Grundfos TP 40-190/2 A-F-A-RUUE
Grundfos TP 40-190/2 A-F-A-RUUE
| 100277 | |
| Brand | Grundfos |
| Type | TP 40-190/2 A-F-A-RUUE |
| Volume flow Q max. (m³/h) | 10,5 |
| Delivery height H max. (m) | 13,2 |
| Power max. (kW) | 0,8 |
| Amount in stock | 1 |
Grundfos TP 40-190/2 A-F-A-RUUE

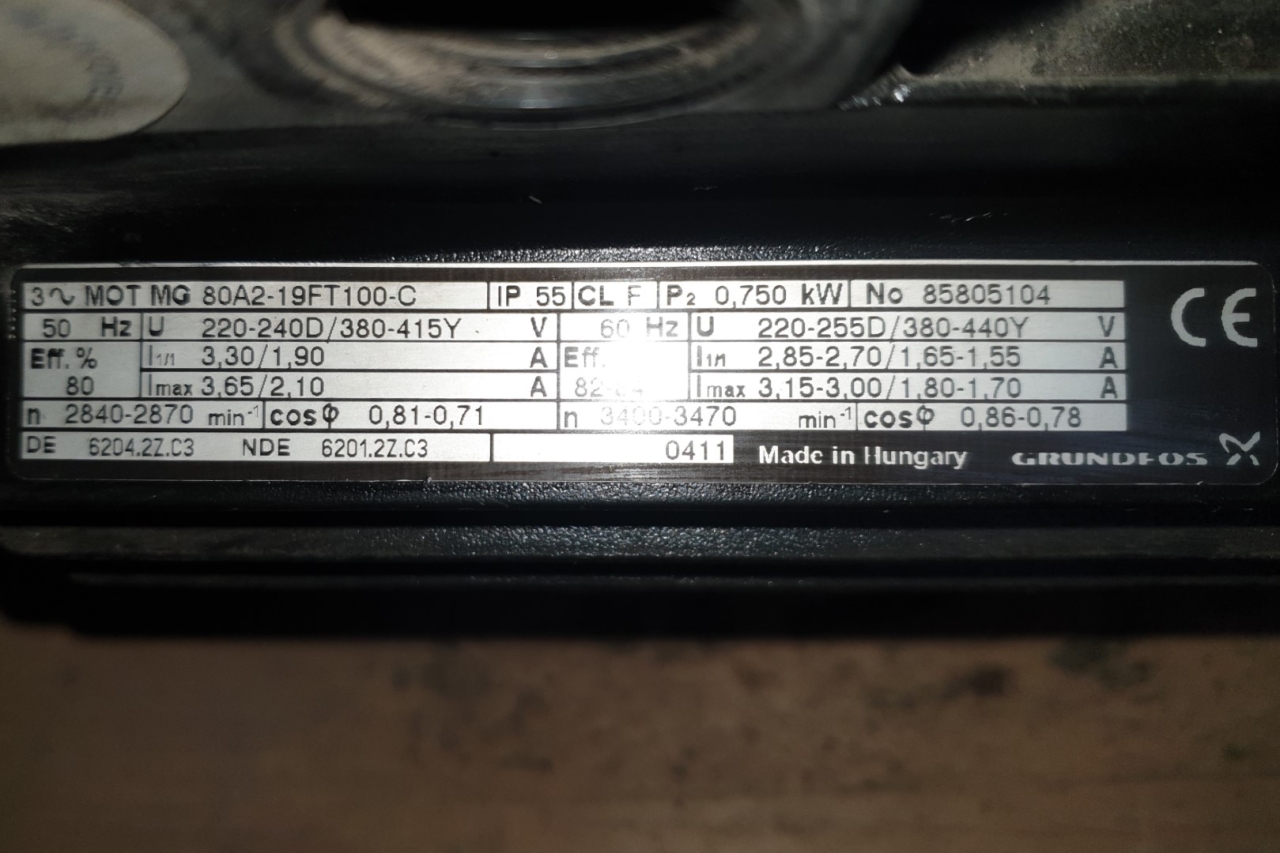

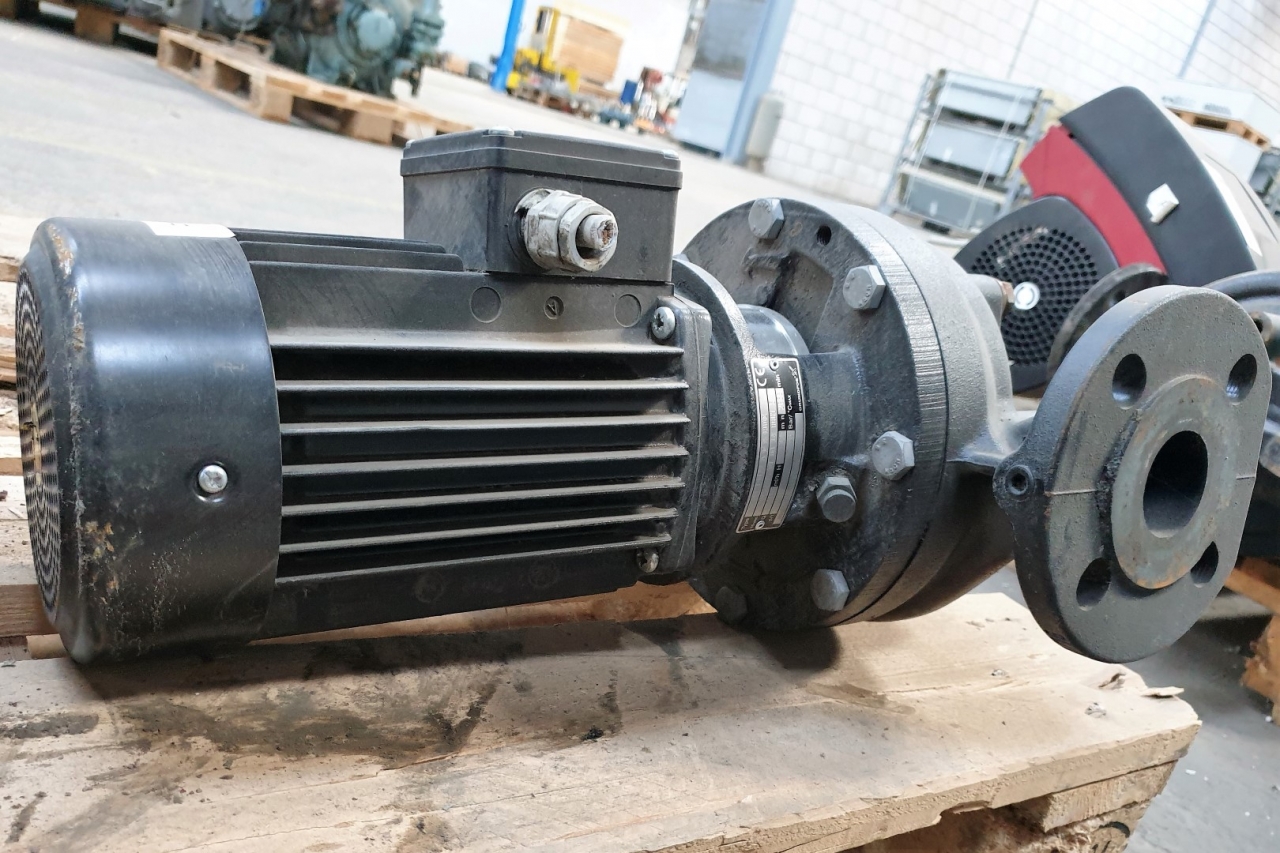

Used Grundfos TP 40-190/2 A-F-A-RUUE waterpump. Complete with a Grundfos MG 80A2-19FT 100L The pump has a nominal flow of 10,5 m³/h and 2855 RPM. Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the "top-down" design, i.e. the motor, pump head and impeller can be removed for maintenance or service while the pump housing remains in the pipework. The pump is equipped with an unbalanced rubber bellows seal. The pump is equipped with a fan-cooled asynchronous motor.
Grundfos TP 40-190/2 A-F-A-RUUE
