Grasso PR-P55S-28 / Gea FRIGoPAK FPL 150 G var.
Grasso PR-P55S-28 / Gea FRIGoPAK FPL 150 G var.
| 17920 | |
| Brand | Grasso |
| Type | PR-P55S-28 / Gea FRIGoPAK FPL 150 G var. |
| Refrigerant | NH 3 (ammonia) |
| kW at 0ºC/+40ºC | 772,0 (0/+35°C) |
| kW at -10ºC/+40ºC | 429,0 (-15/+35°C) |
| kW at -30ºC/+40ºC | 201,0 (-35/+35°C) |
| Electromotor Specs | 60 Hz - 150 kW -3575 RPM |
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Liquid receiver |
|
| Liquid receiver ltr. | 1320 l |
| Oil separator |
|
| Solenoid Valve |
|
| Control panel |
|
| m3 / h | 966 |
| Remarks | | Y.o.b. 2013 |
| Weight in kg. | 5400 |
| Sizes | 4850x2250x2550 mm (LxWxH) |
| Amount in stock | 1 |
Grasso PR-P55S-28 / Gea FRIGoPAK FPL 150 G var.

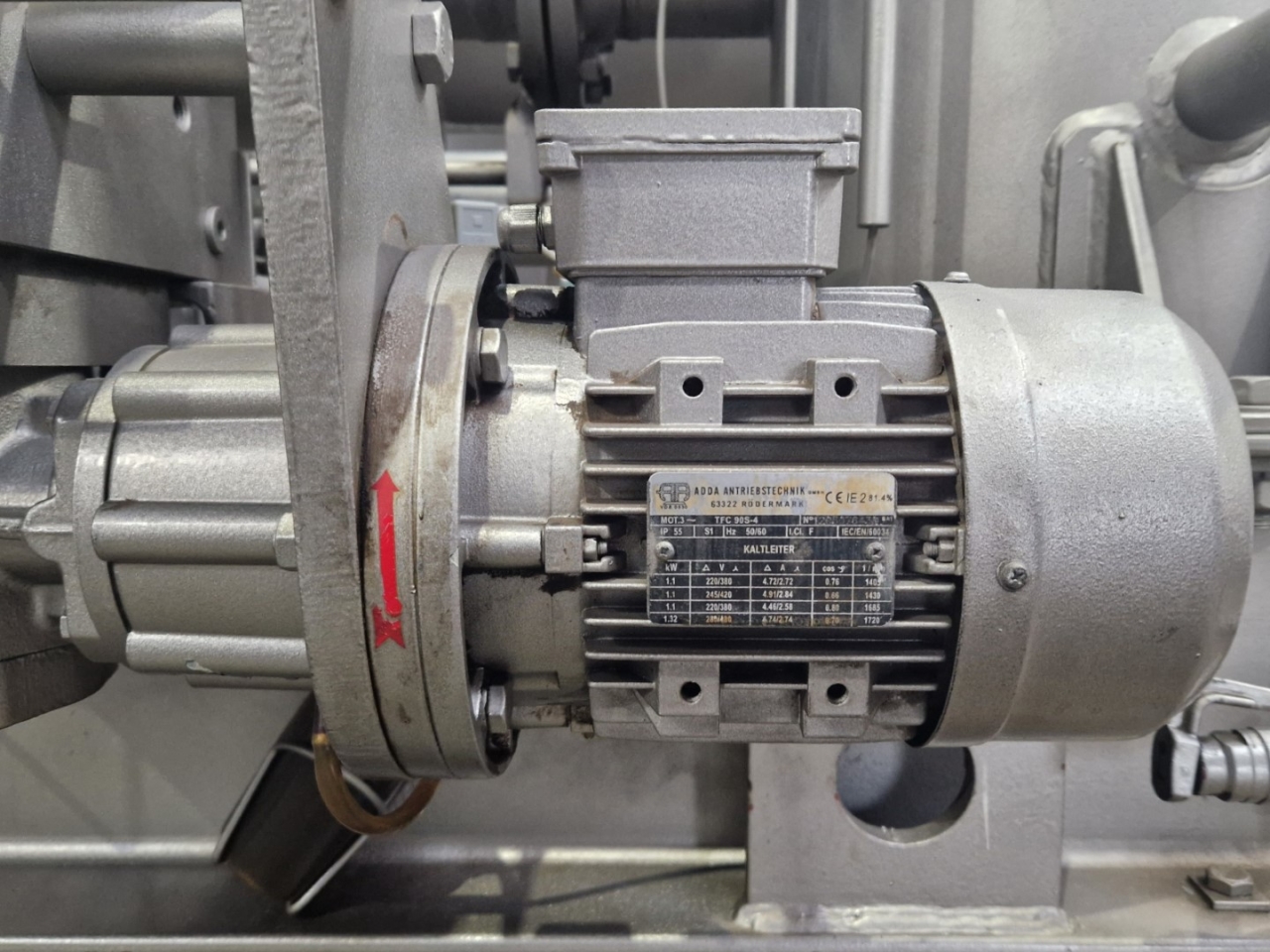

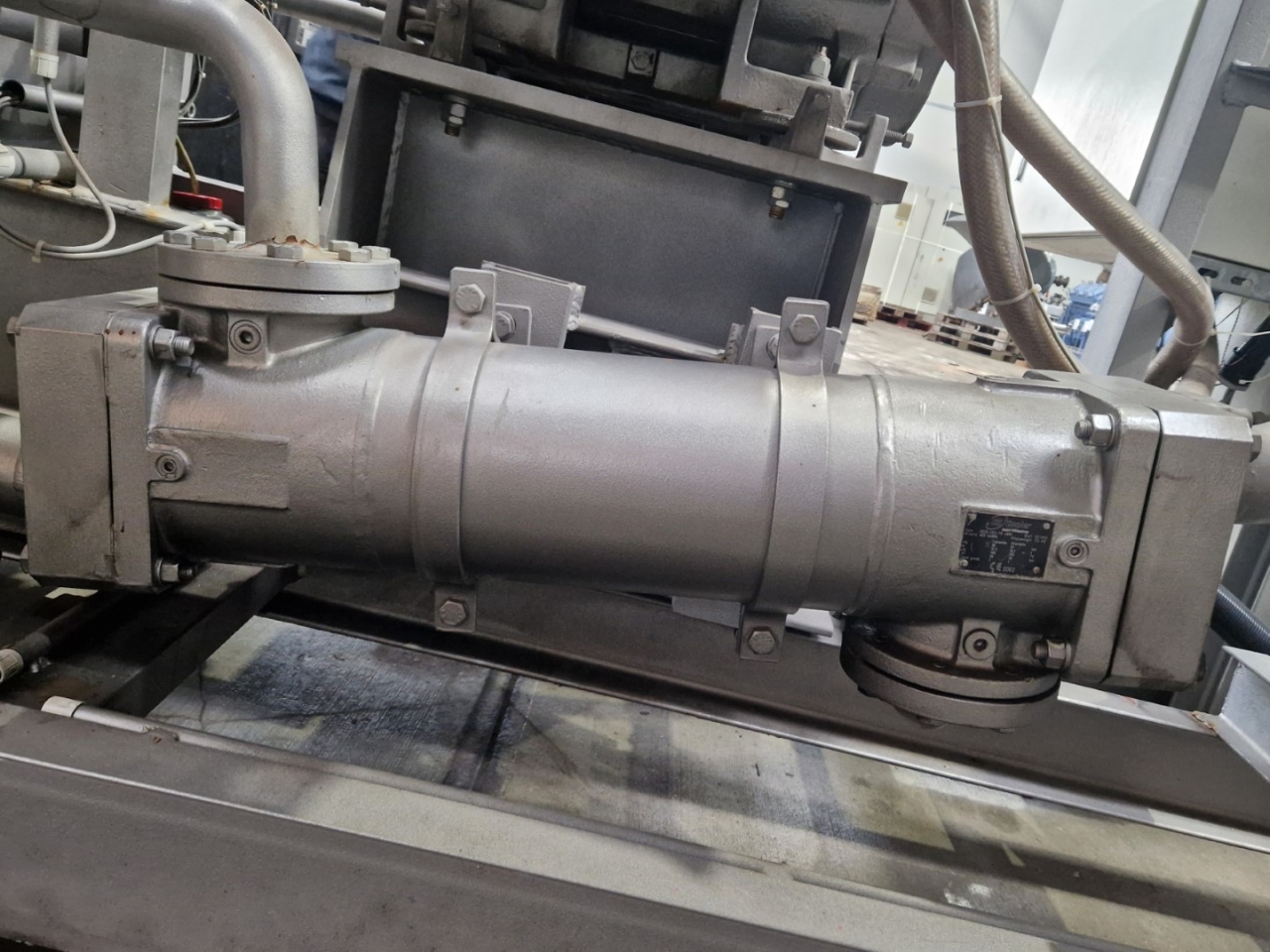

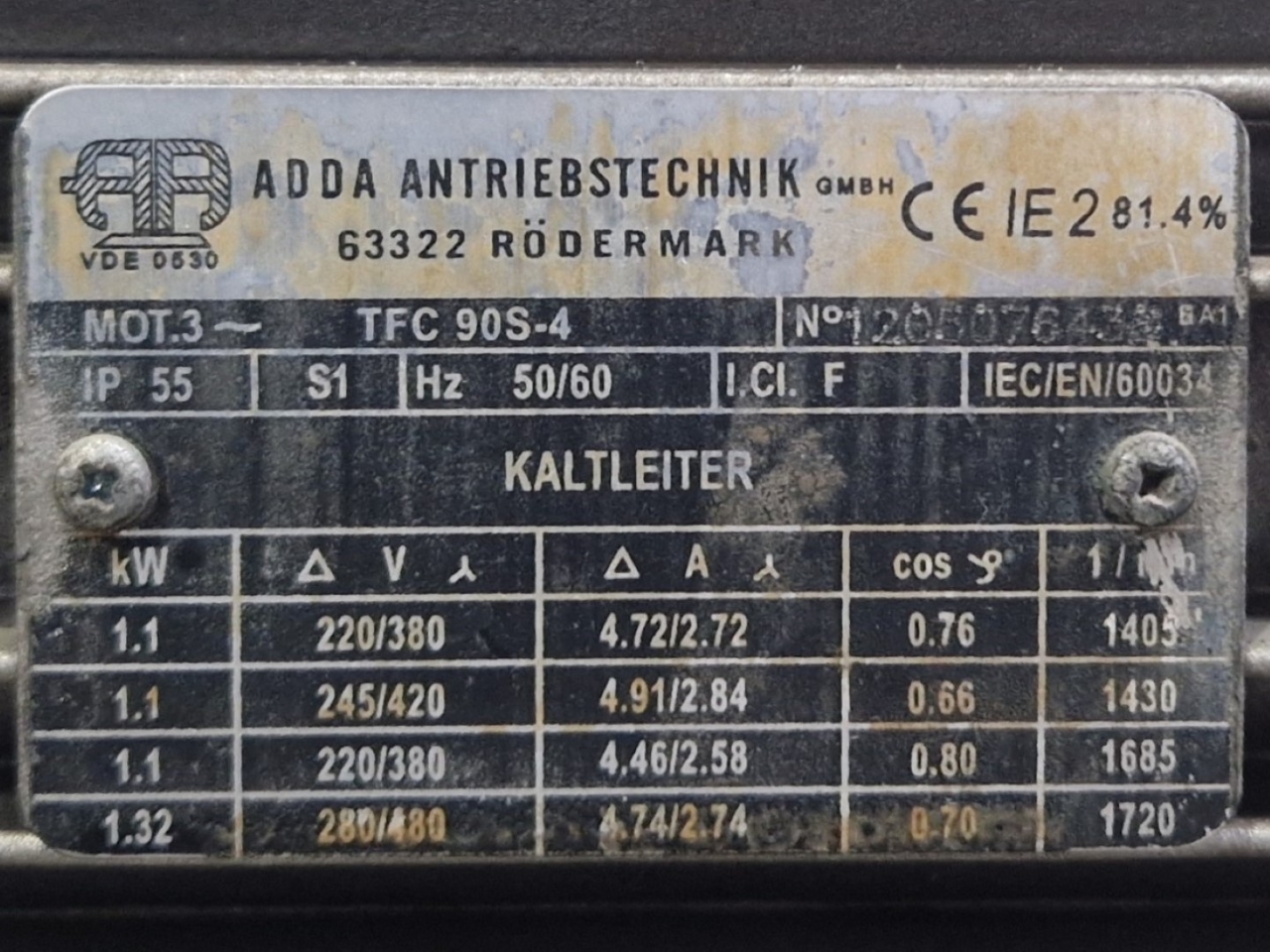

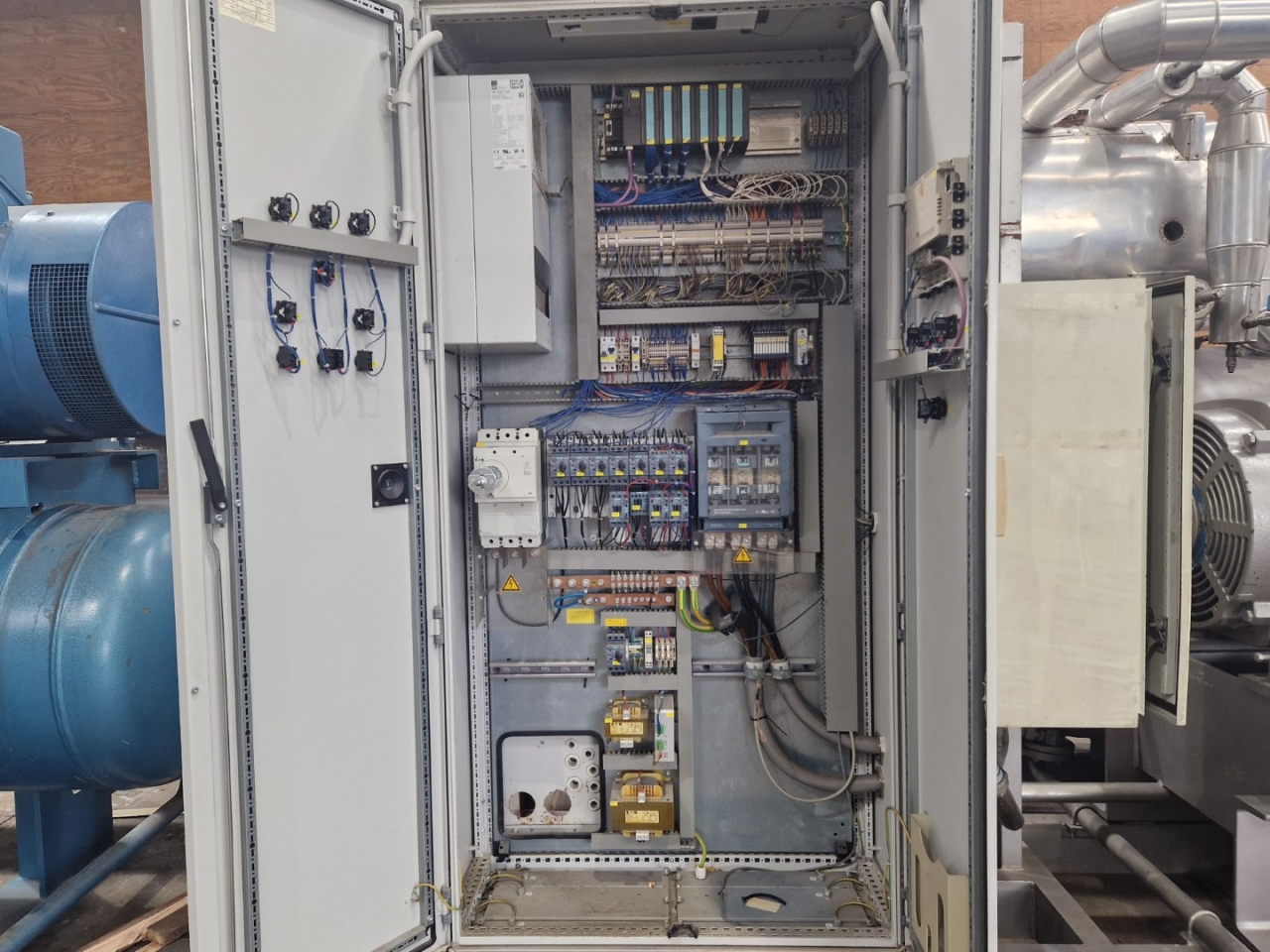

Used Gea/Grasso FRIGoPAK FPL 150 G var. compressor unit. Complete with a Grasso PR-P55S-28 screw compressor on NH3, Weg 280 S electric motor - 60 Hz - 150,0 kW - 3575 RPM, ATM Apparatebau 410983 liquid receiver, ATM Apparatebau 3672 oil seperator with a volume of 337 liters, HS-Cooler KS20-FEH-112 L800 oil cooler, Kracht KF 40 RF 34/376 oil pump with a ADDA Antriebstechnik TFC 90S-4 electric motor - 50/60 Hz - 1,1/1,32 kW - 1405/1720 RPM and a control box with a Siemens touch display. This set has a capacity of 772 kW at the following temperatures: 0°C/+35°C
