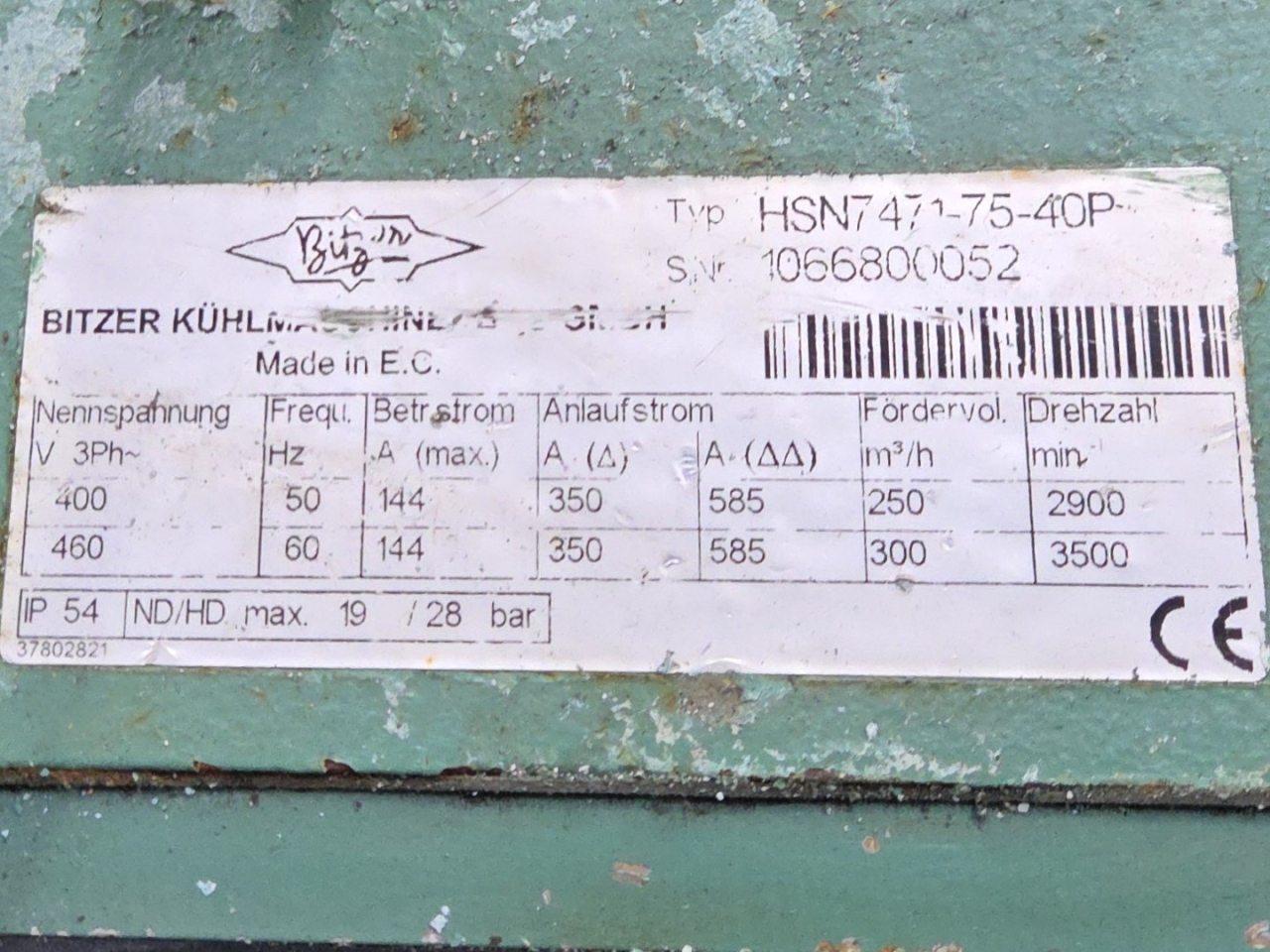

Bitzer HSN 7471-75-40P (x3)
Bitzer HSN 7471-75-40P (x3)
| 18540 | |
| Brand | Bitzer |
| Type | HSN 7471-75-40P (x3) |
| Refrigerant | Freon |
| kW at -20ºC/+40ºC | 360,9 |
| kW at -30ºC/+40ºC | 248,7 |
| kW at -40ºC/+40ºC | 163,5 |
| kW at -45ºC/+40ºC | 129,0 |
| Unloaded Start |
|
| Capacity Control |
|
| On steel base frame |
|

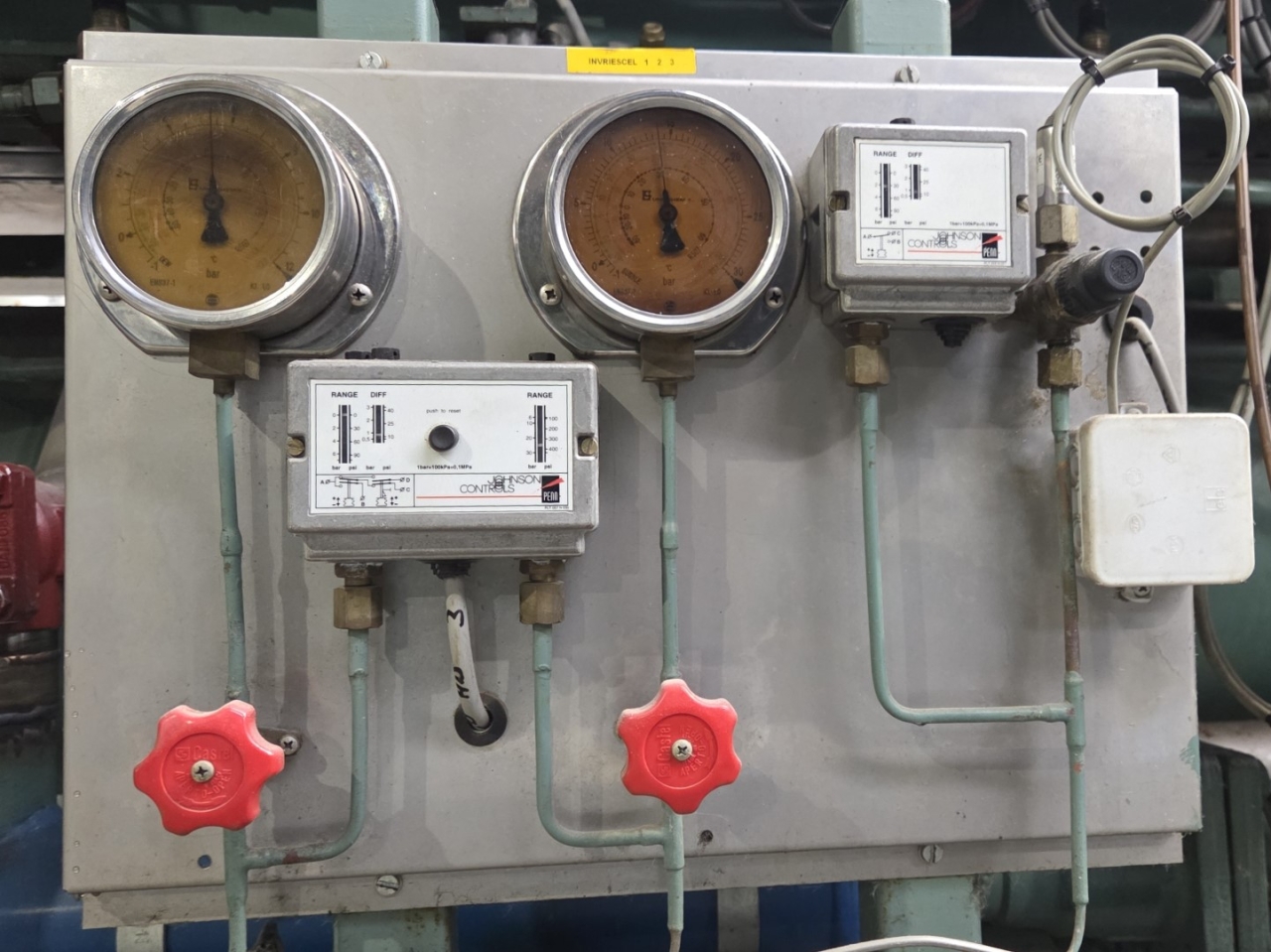

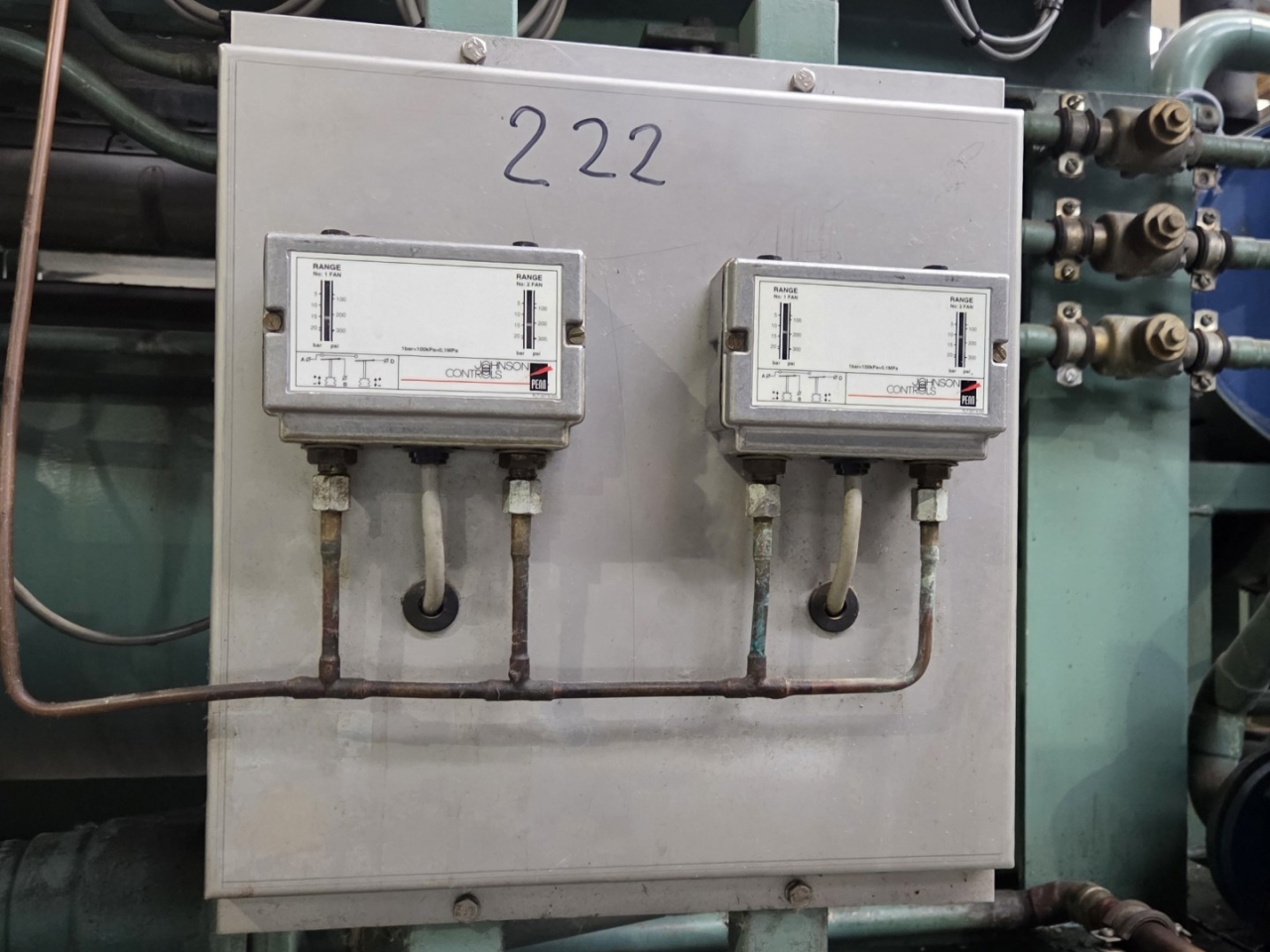

| Pressure safety switches Hp/Lp/Op |
|

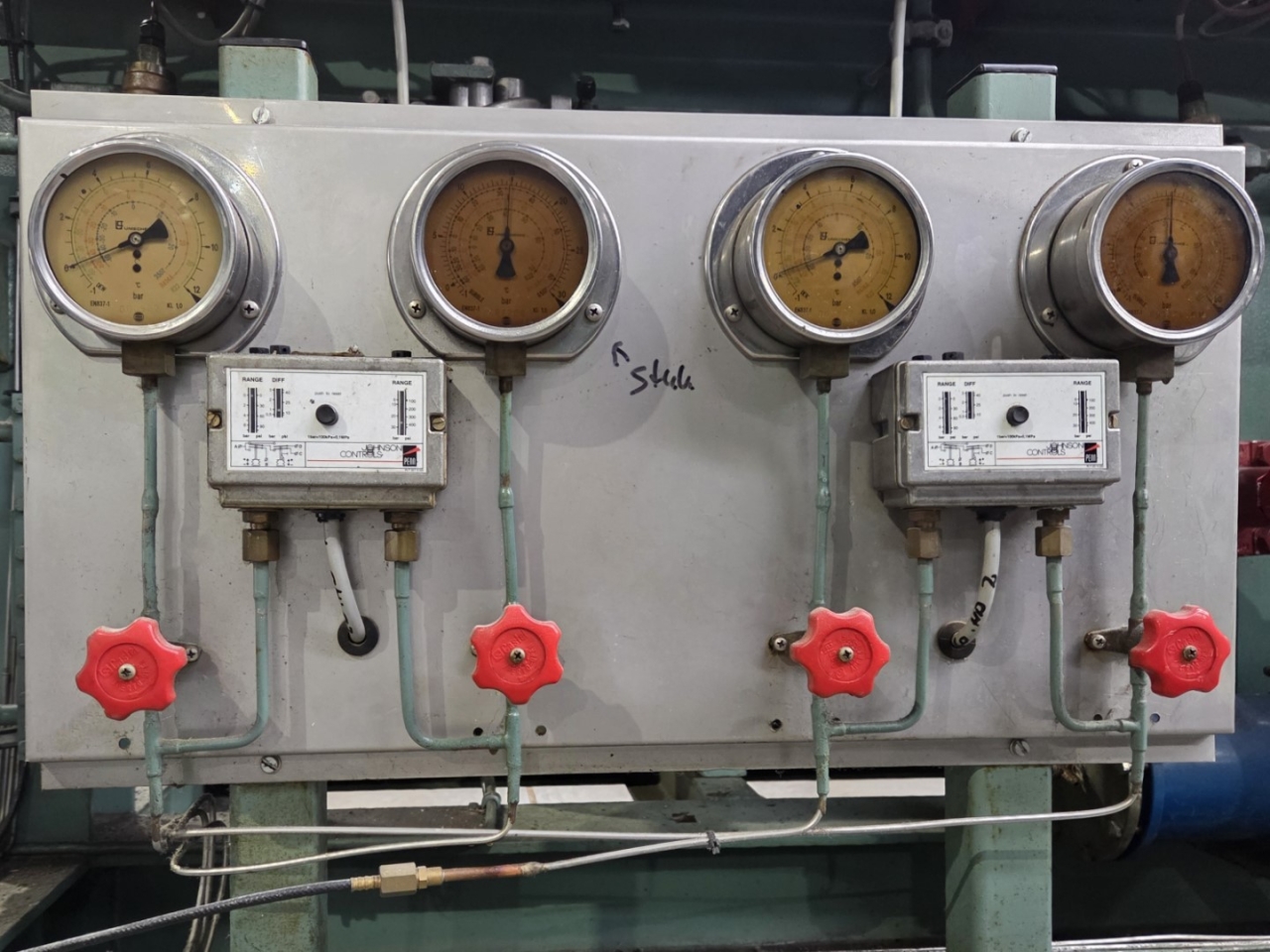

| Pressure gauges Hp/Lp/Op |
|
| Liquid receiver |
|
| Oil separator |
|
| Liquid line filter drier |
|
| Sight Glass |
|
| Solenoid Valve |
|
| Control panel |
|
| m3 / h | 50 Hz - 750 m³/h & 60 Hz - 900 m³/h |

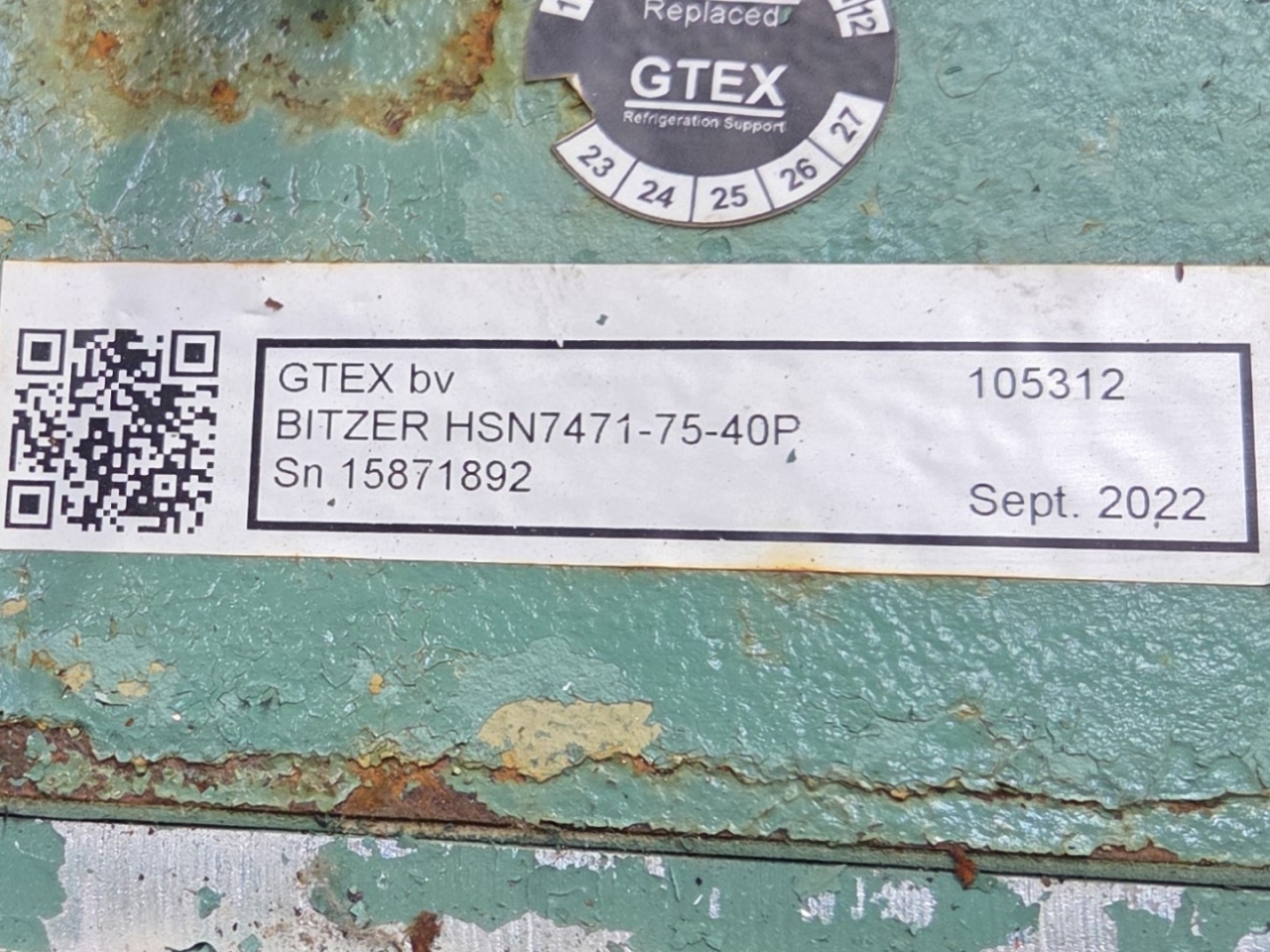

| Remarks | | Y.o.b. 2004 (s.nr: 1066800052) & y.o.b. 2000 (s.nr: 5871892) |
| Package / Rack |
|
| Sizes | 3700x1420x1780 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer HSN 7471-75-40P (x3)

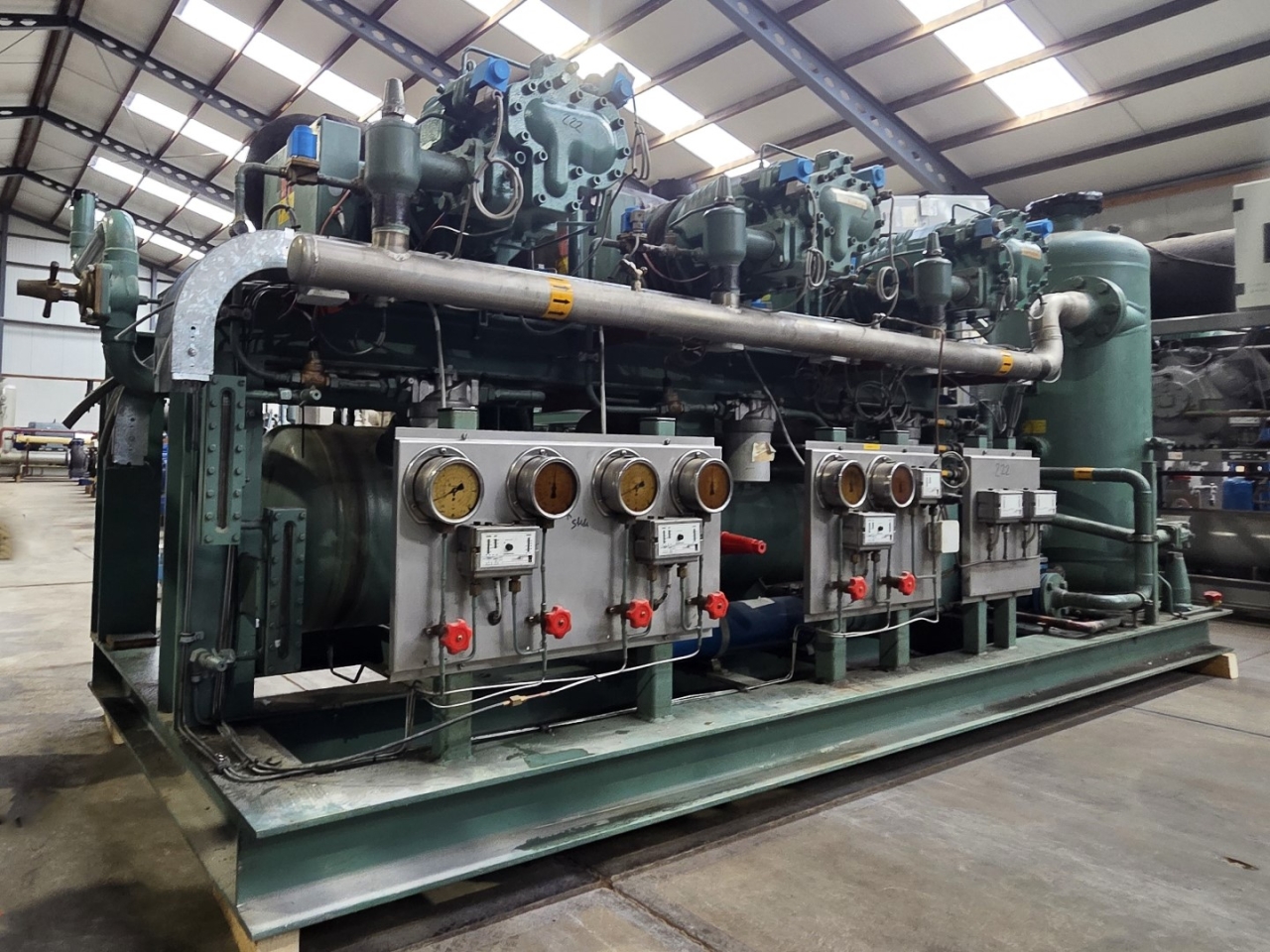

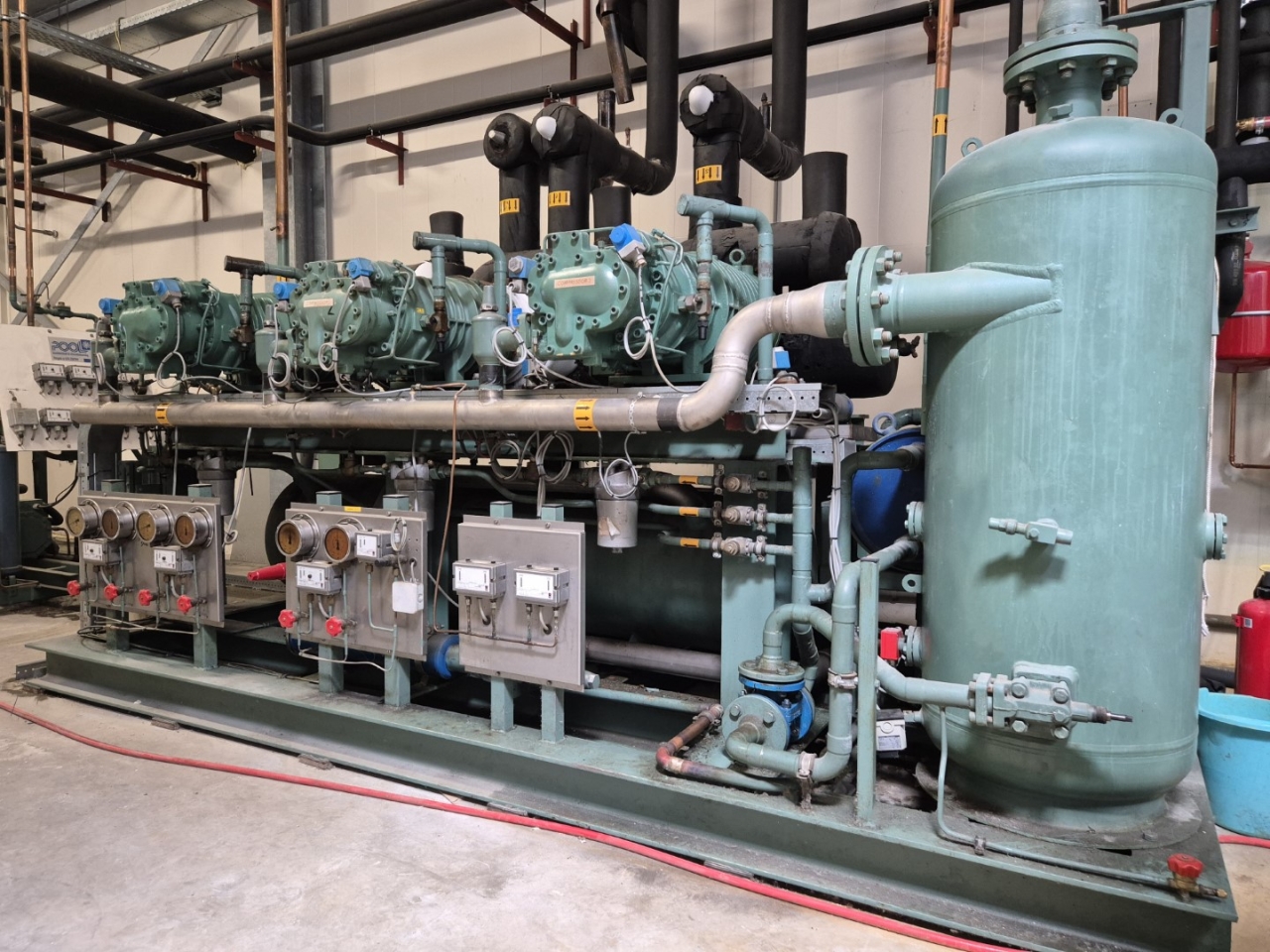

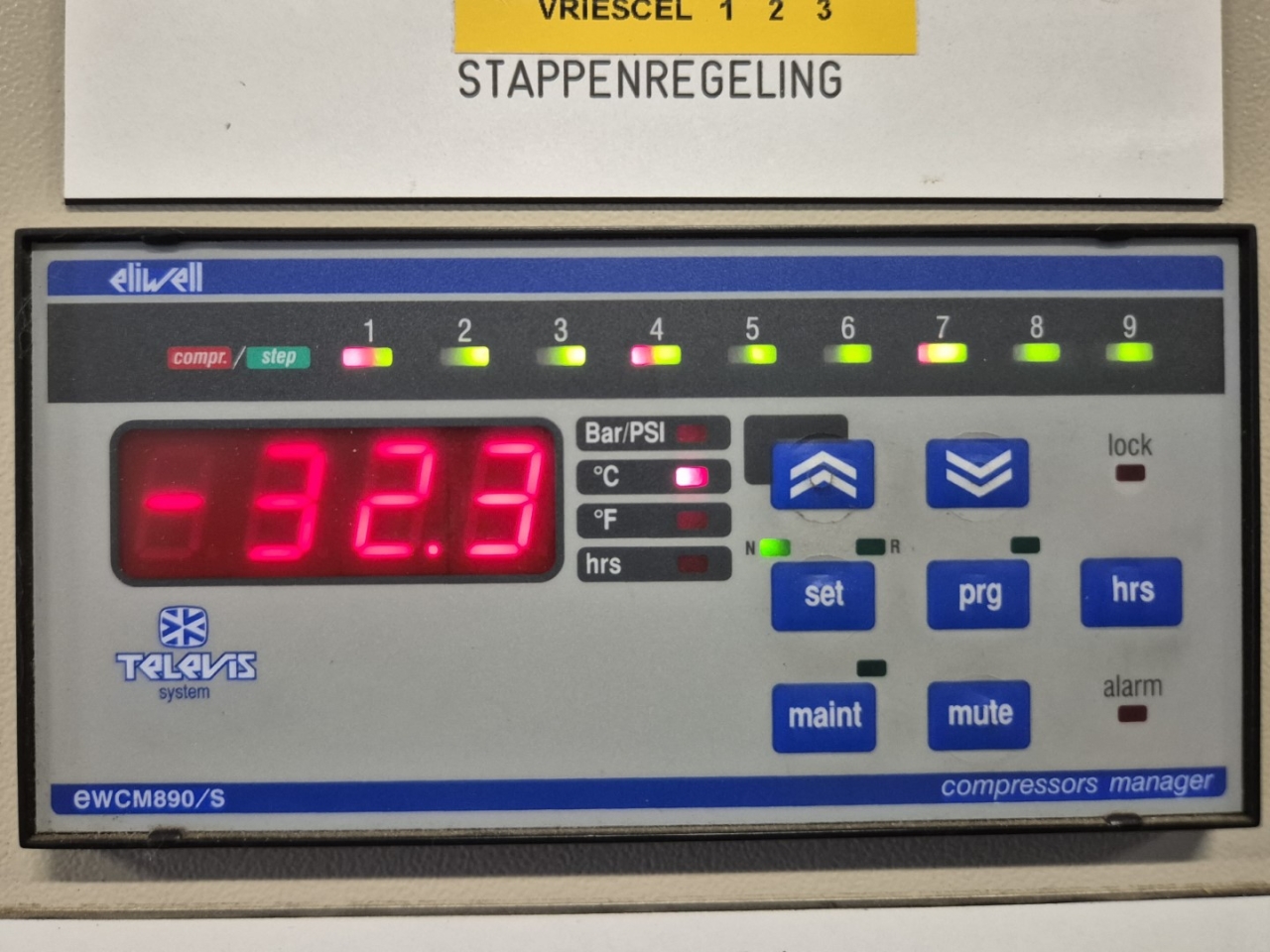

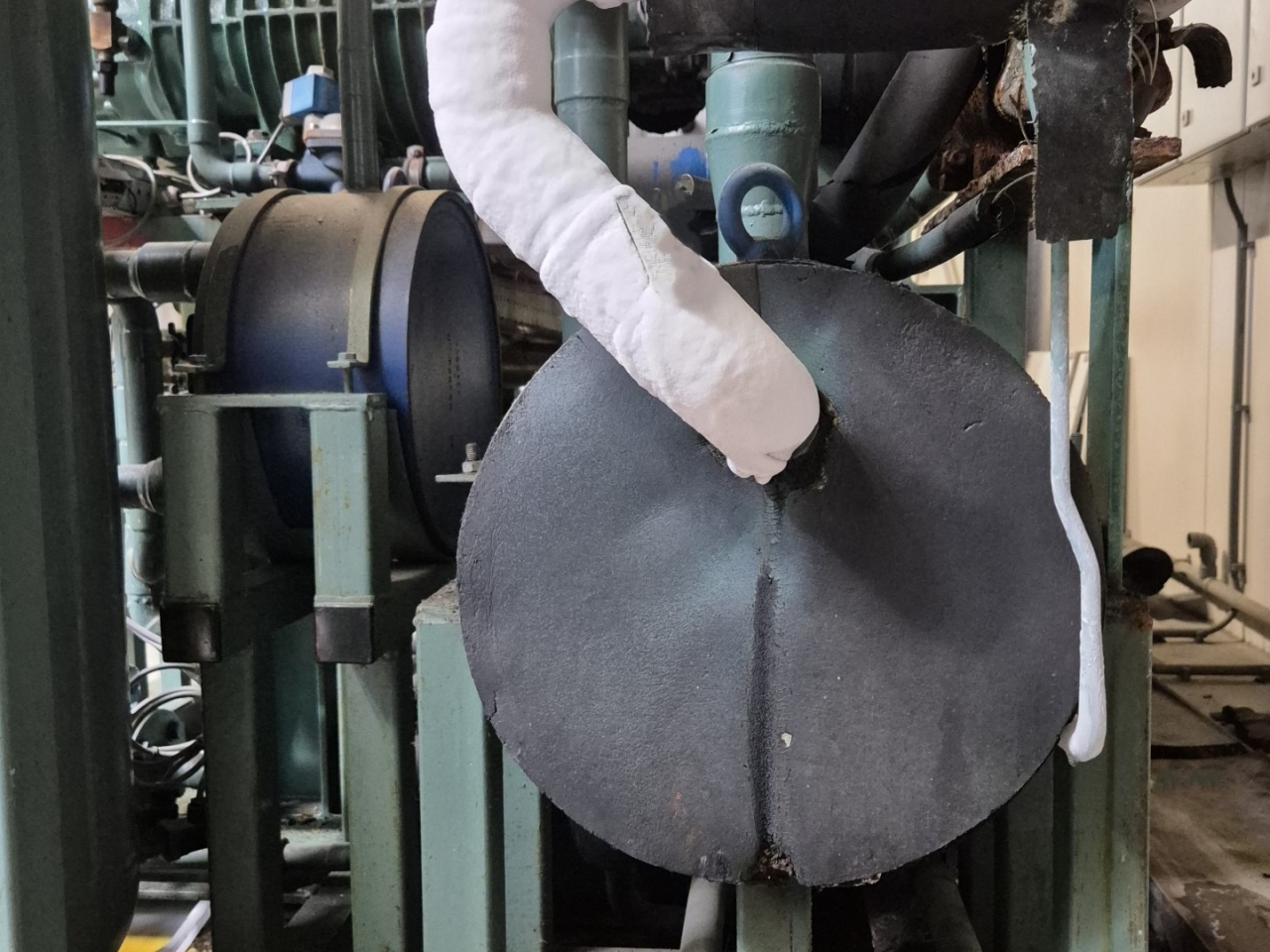

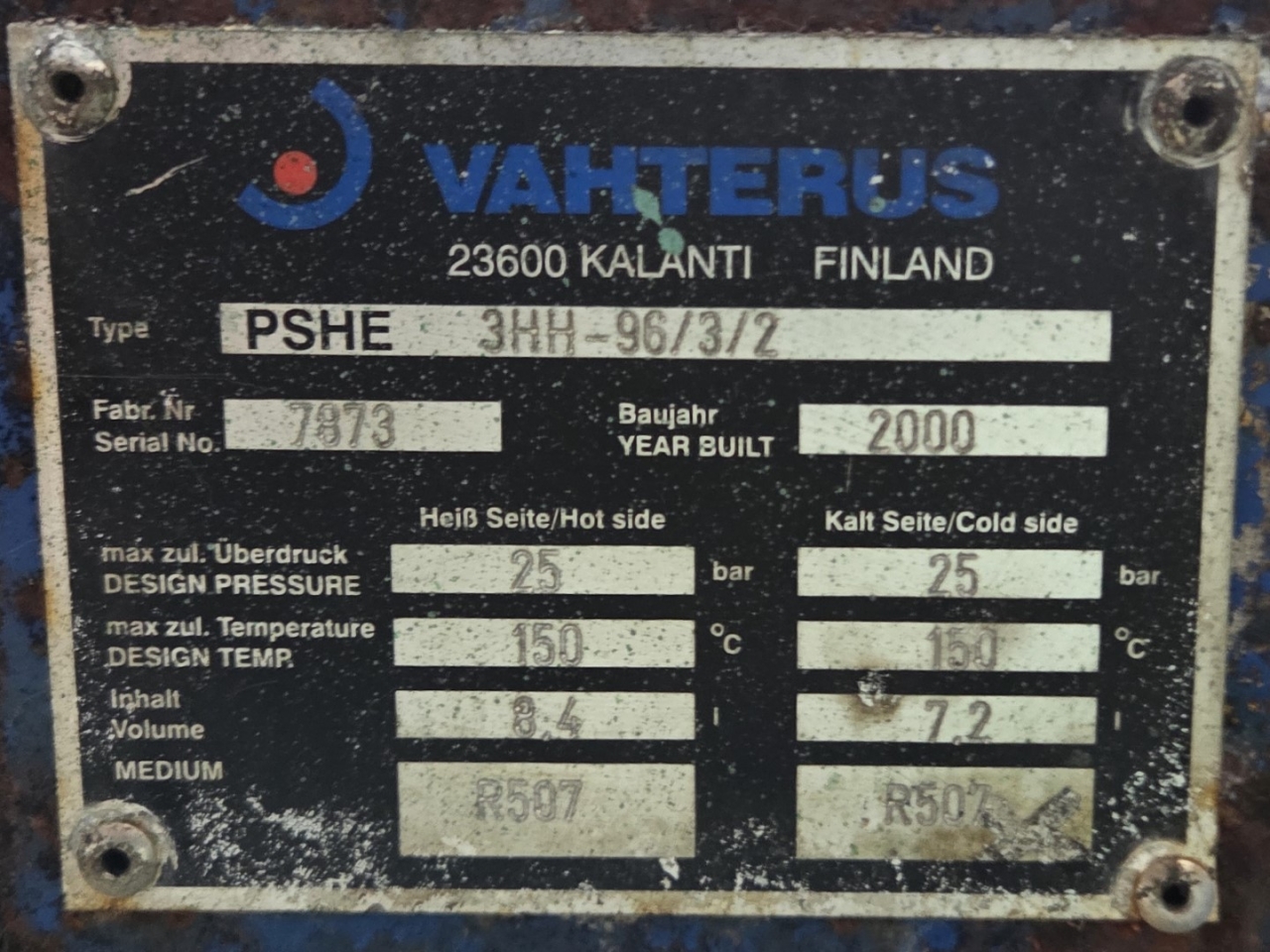

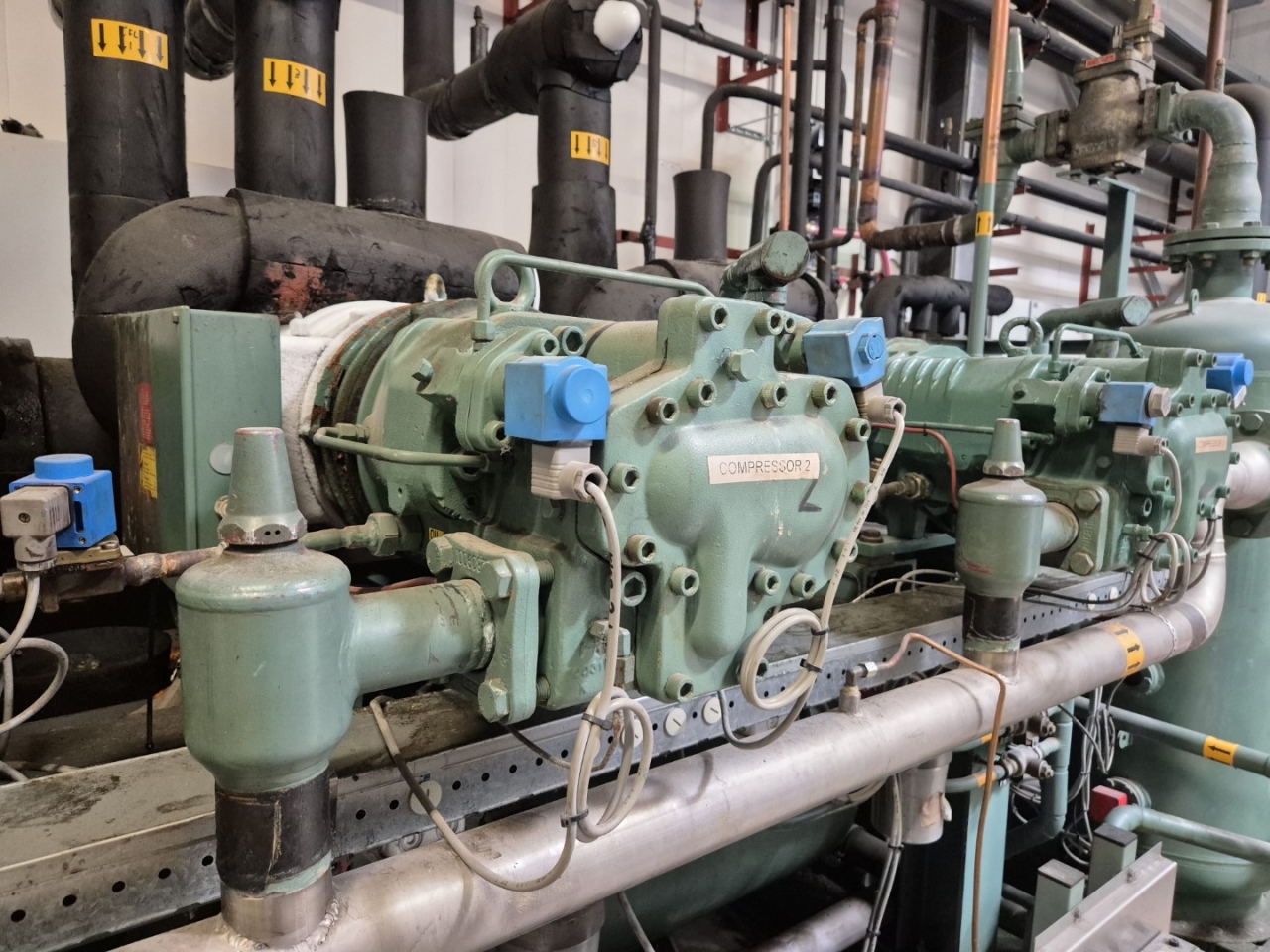

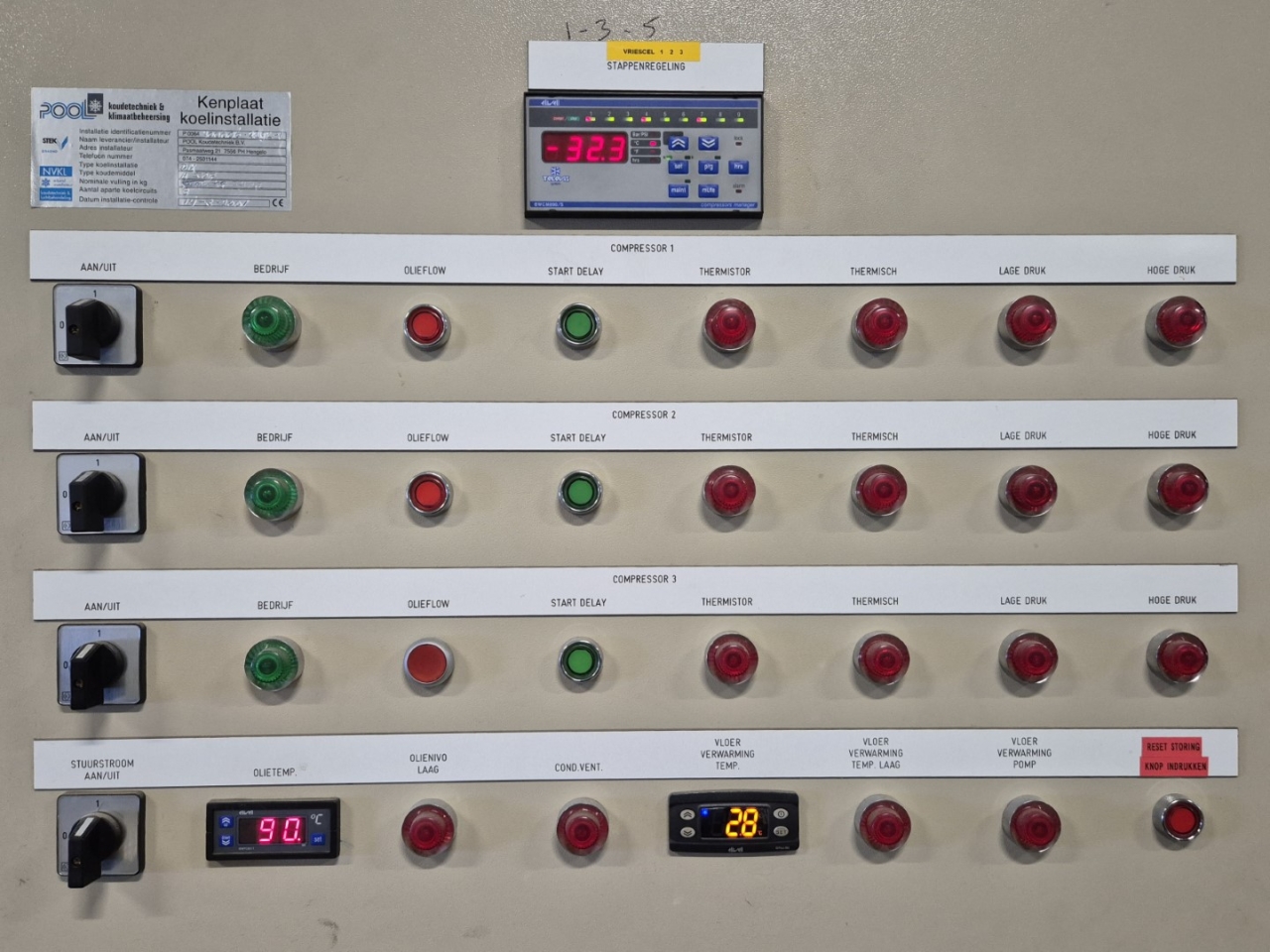

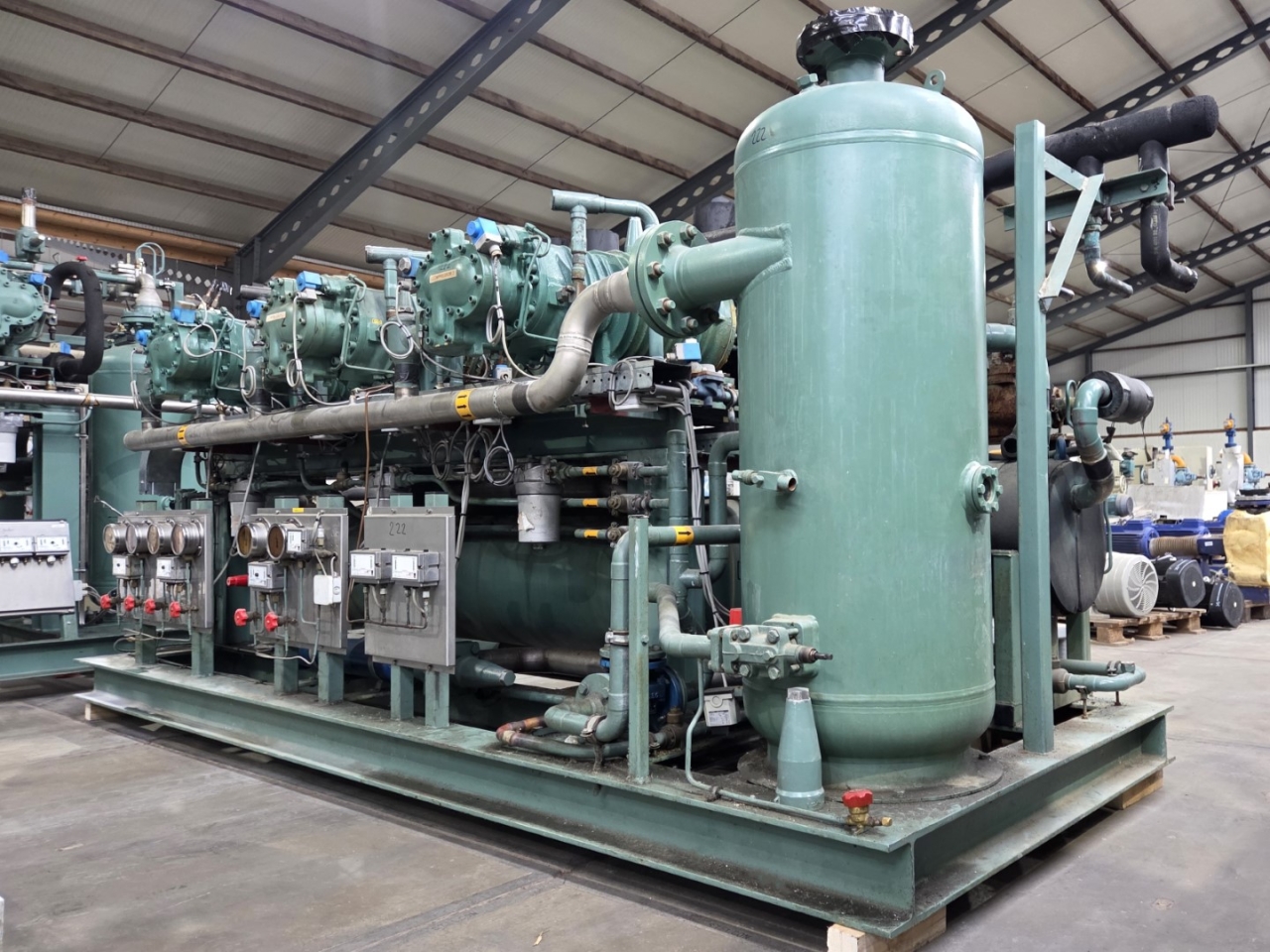

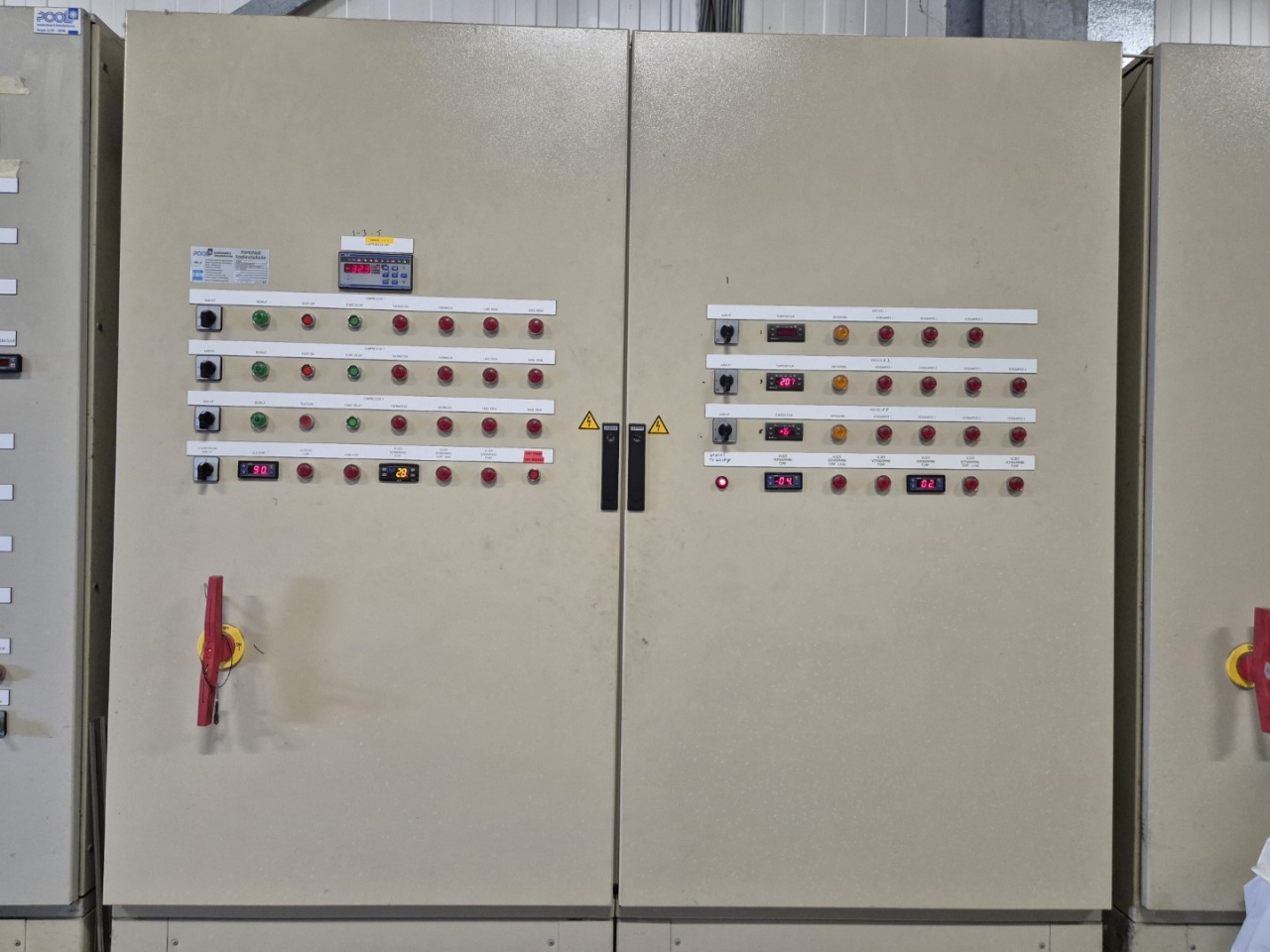

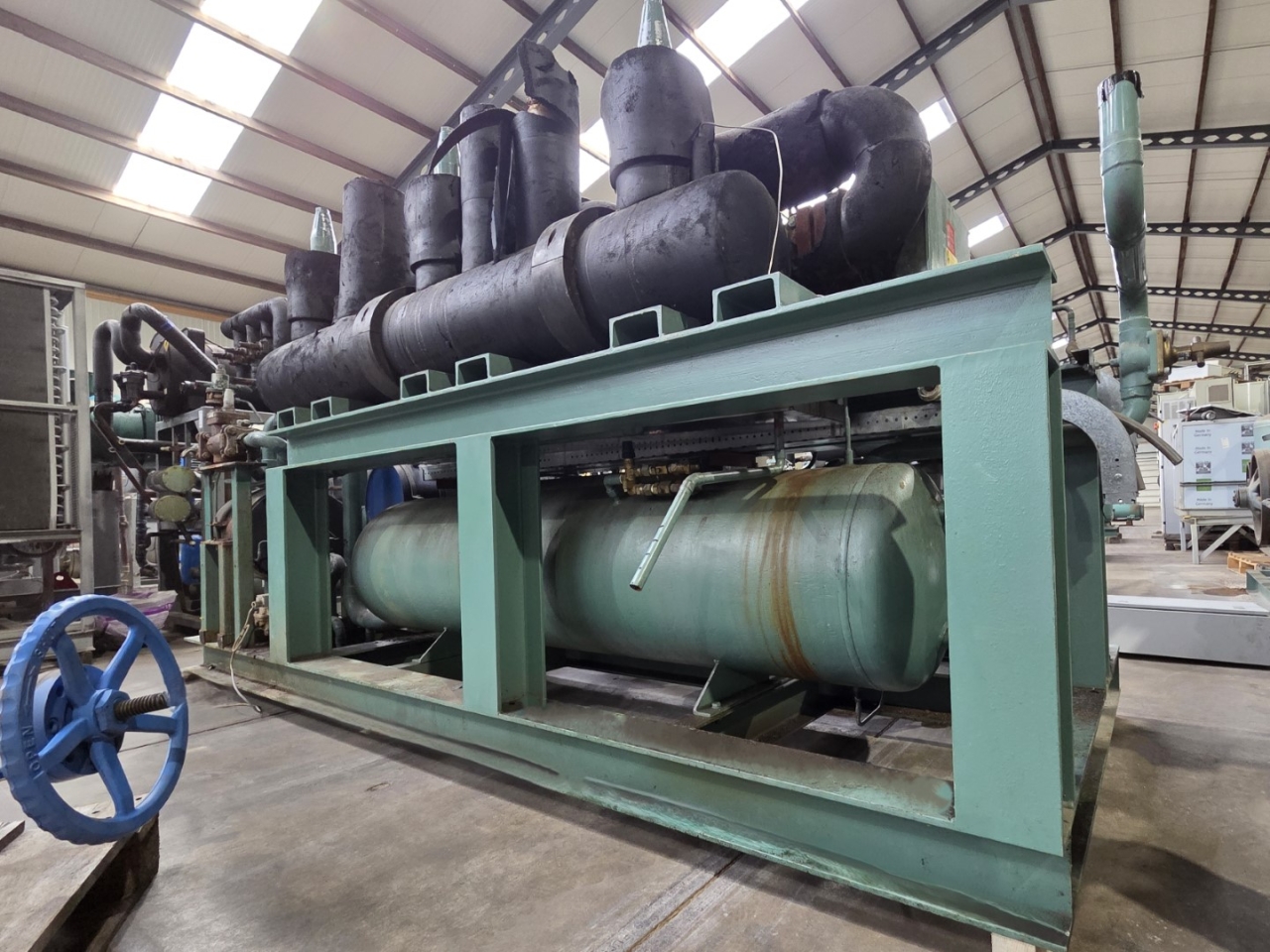

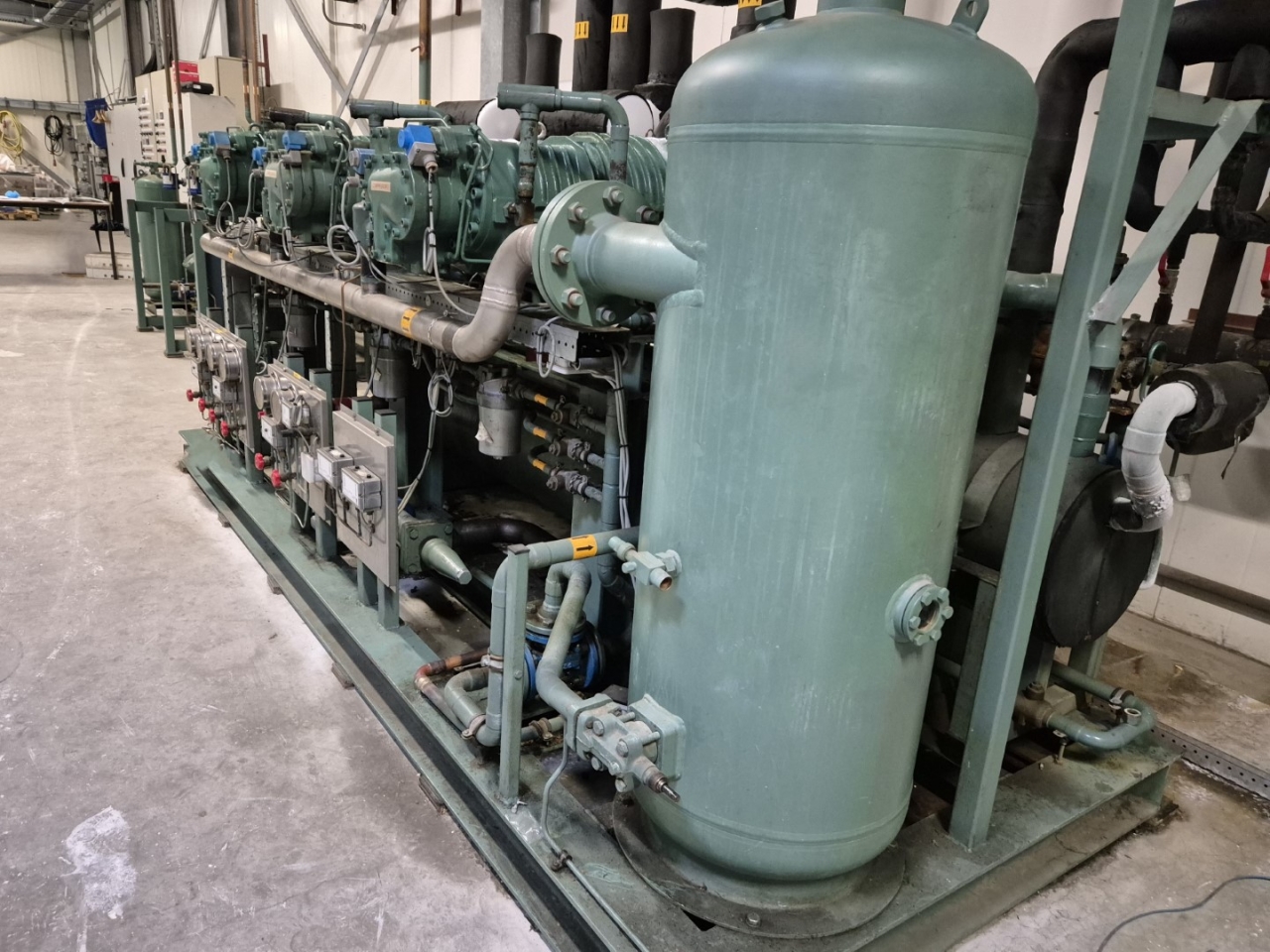

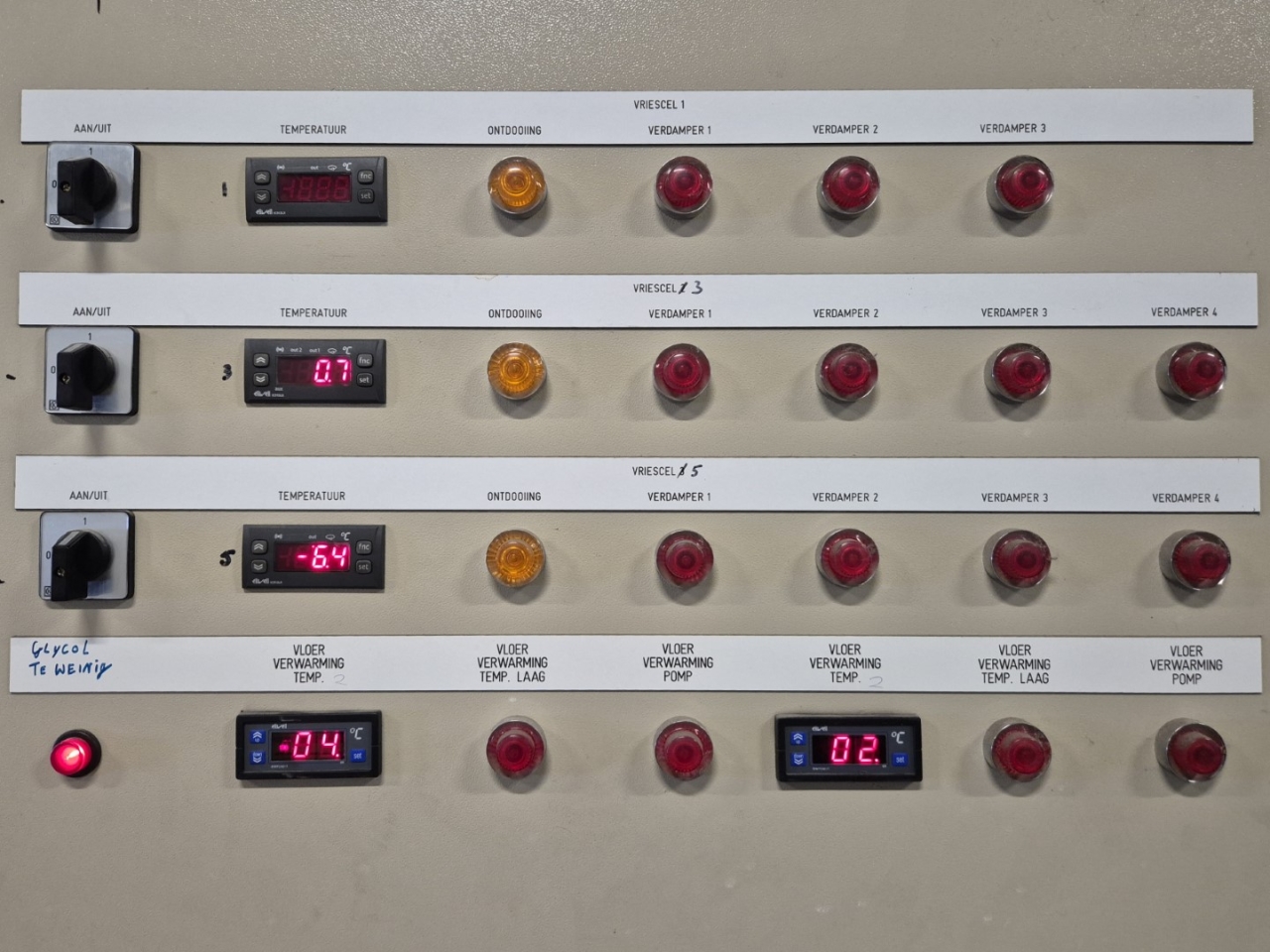

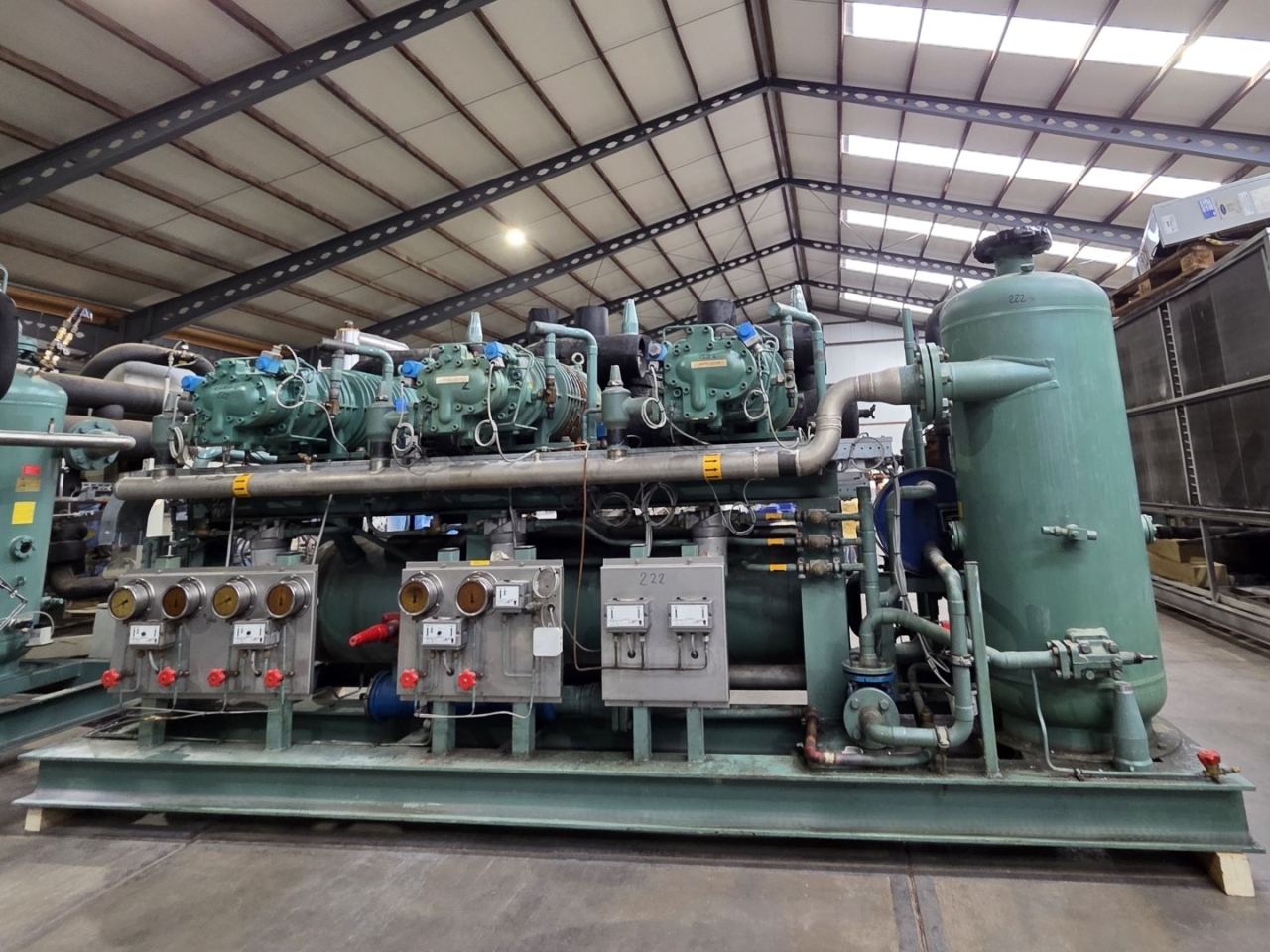

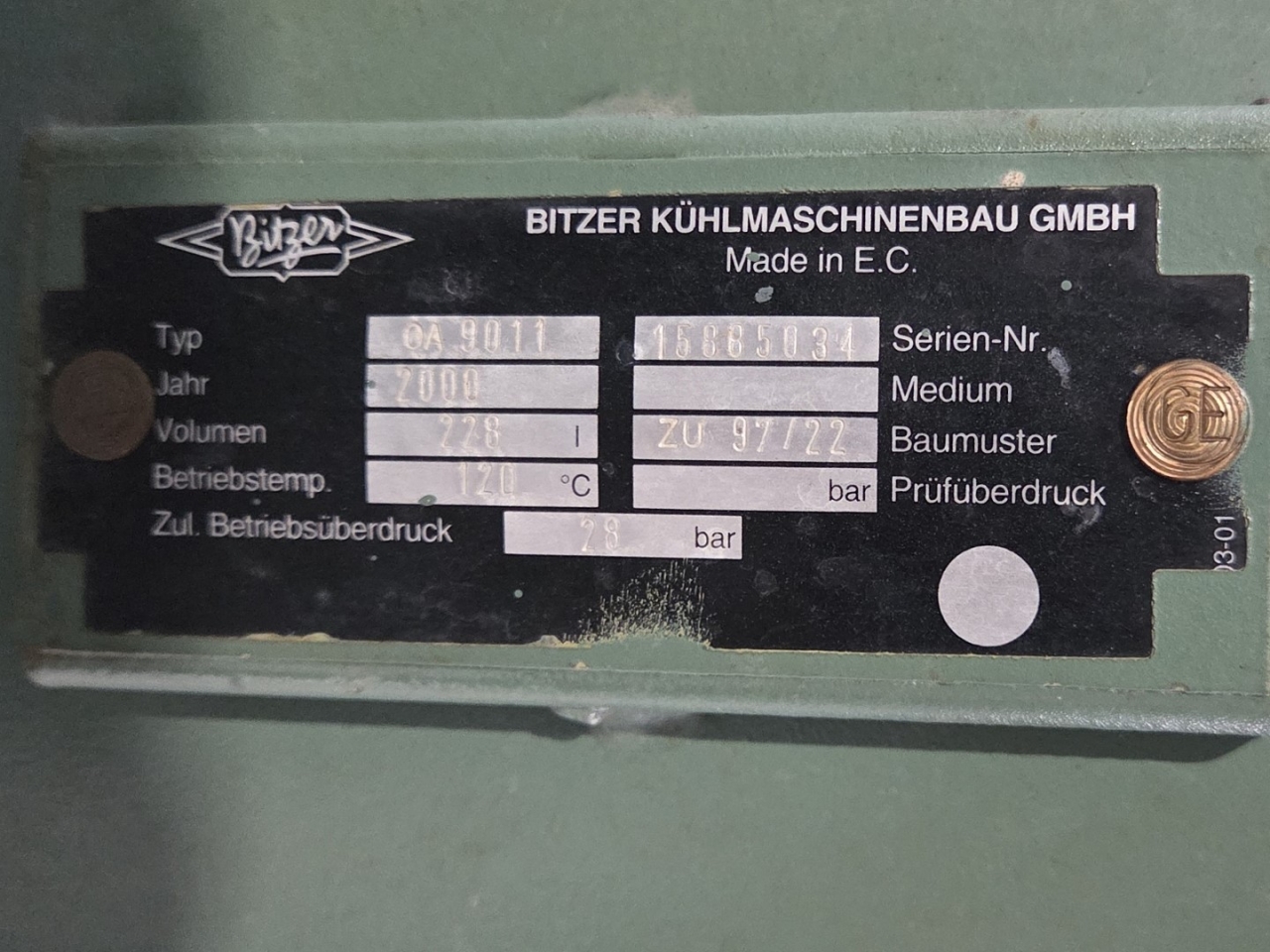

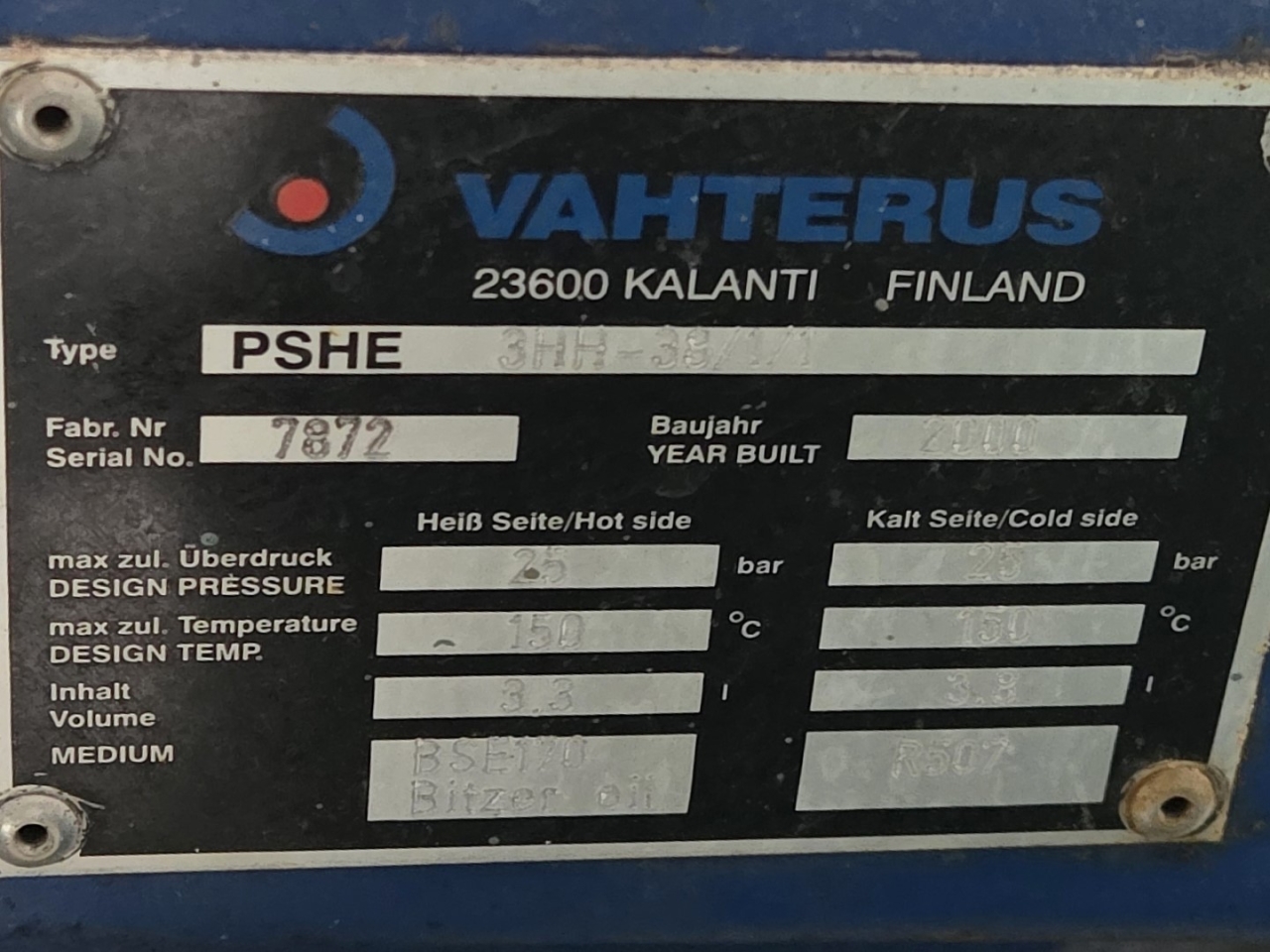

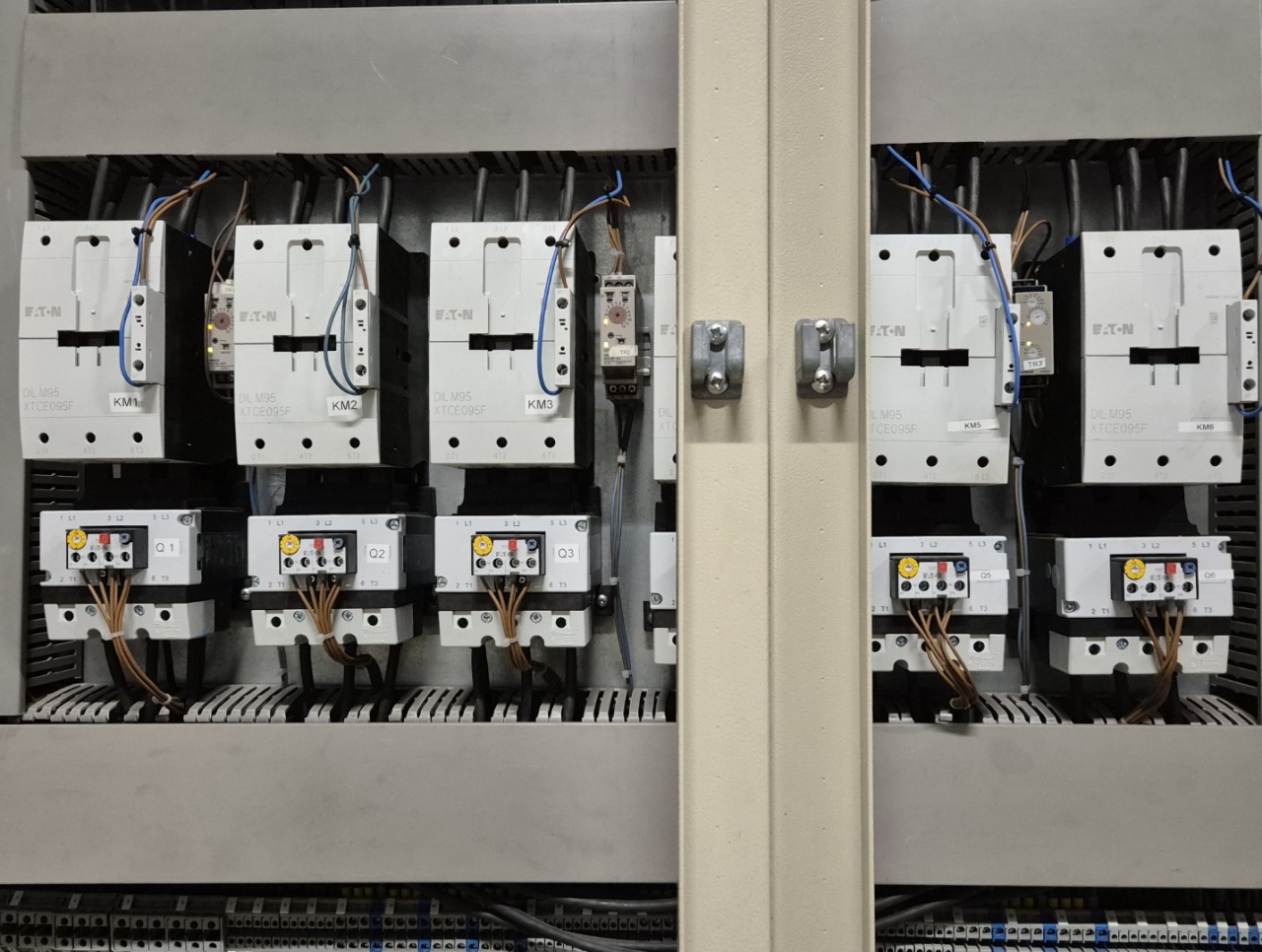

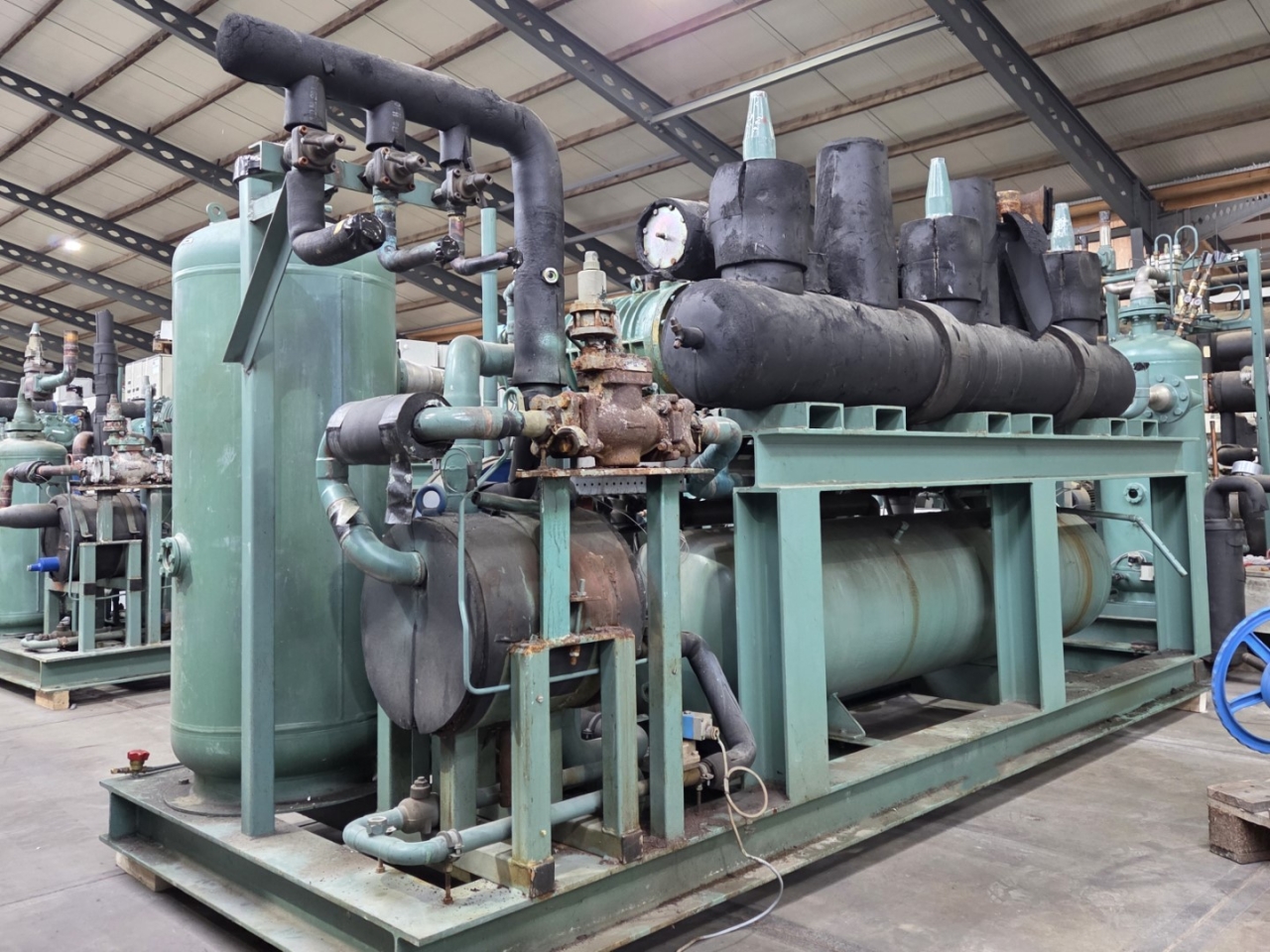

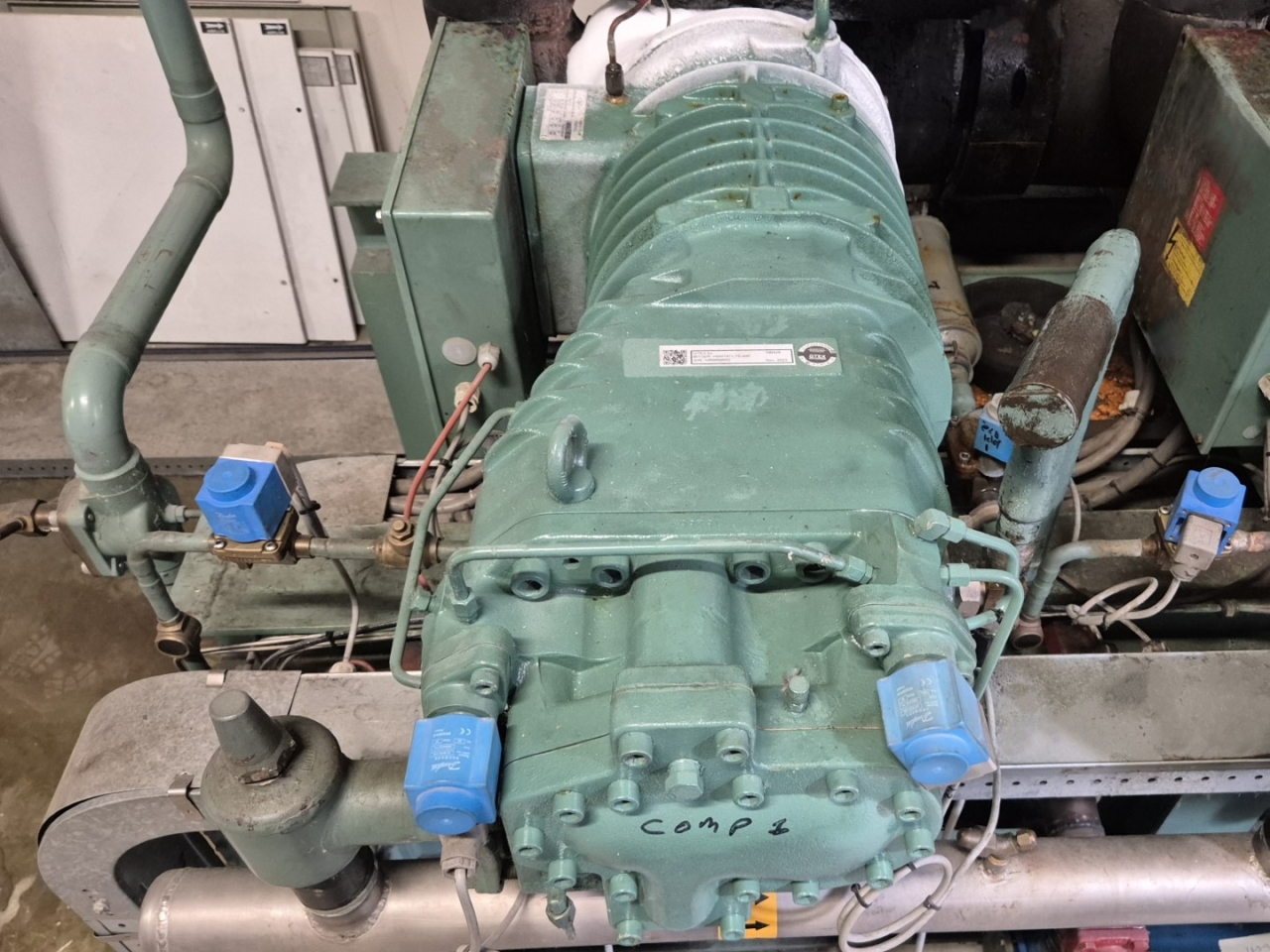

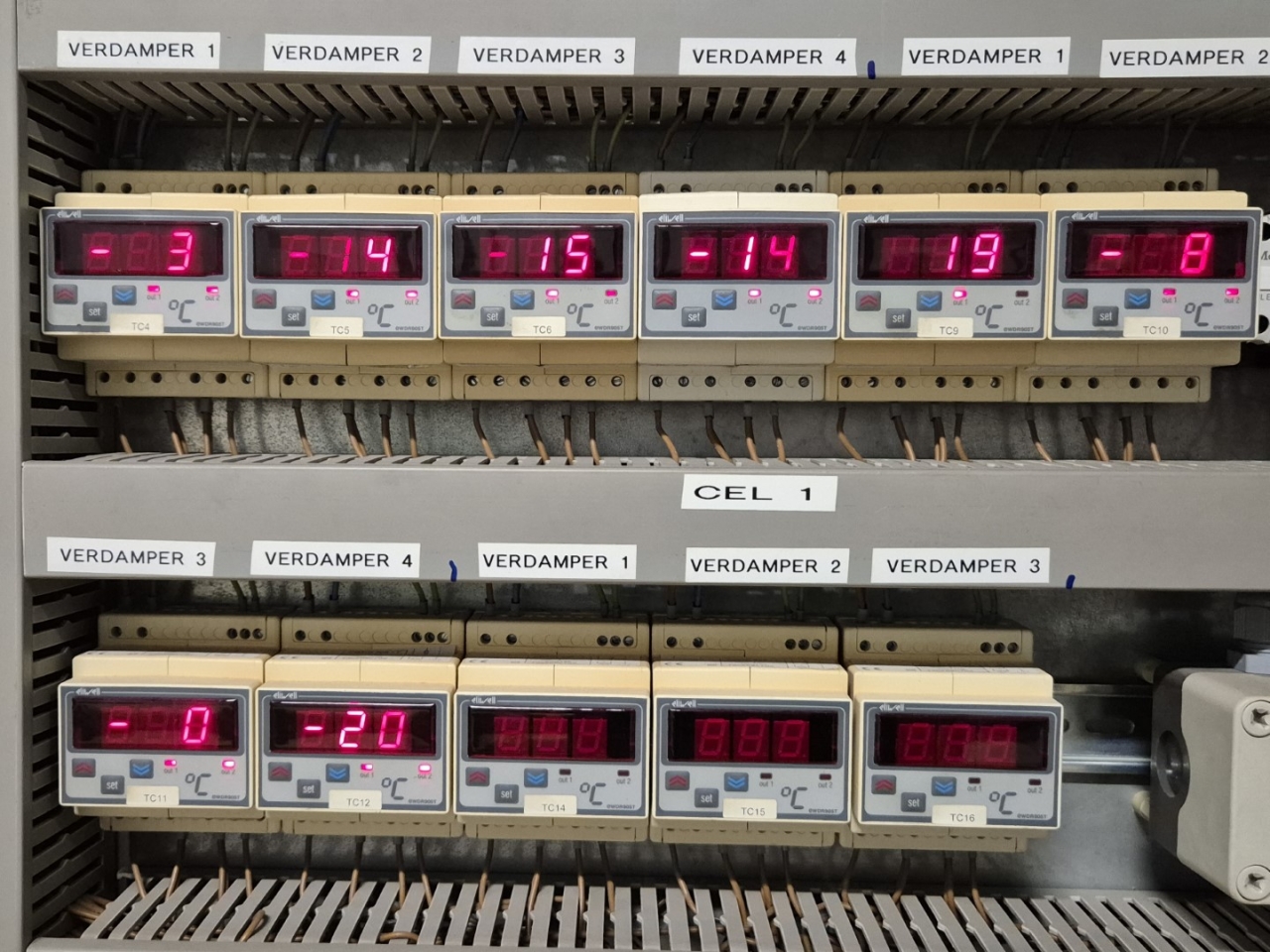

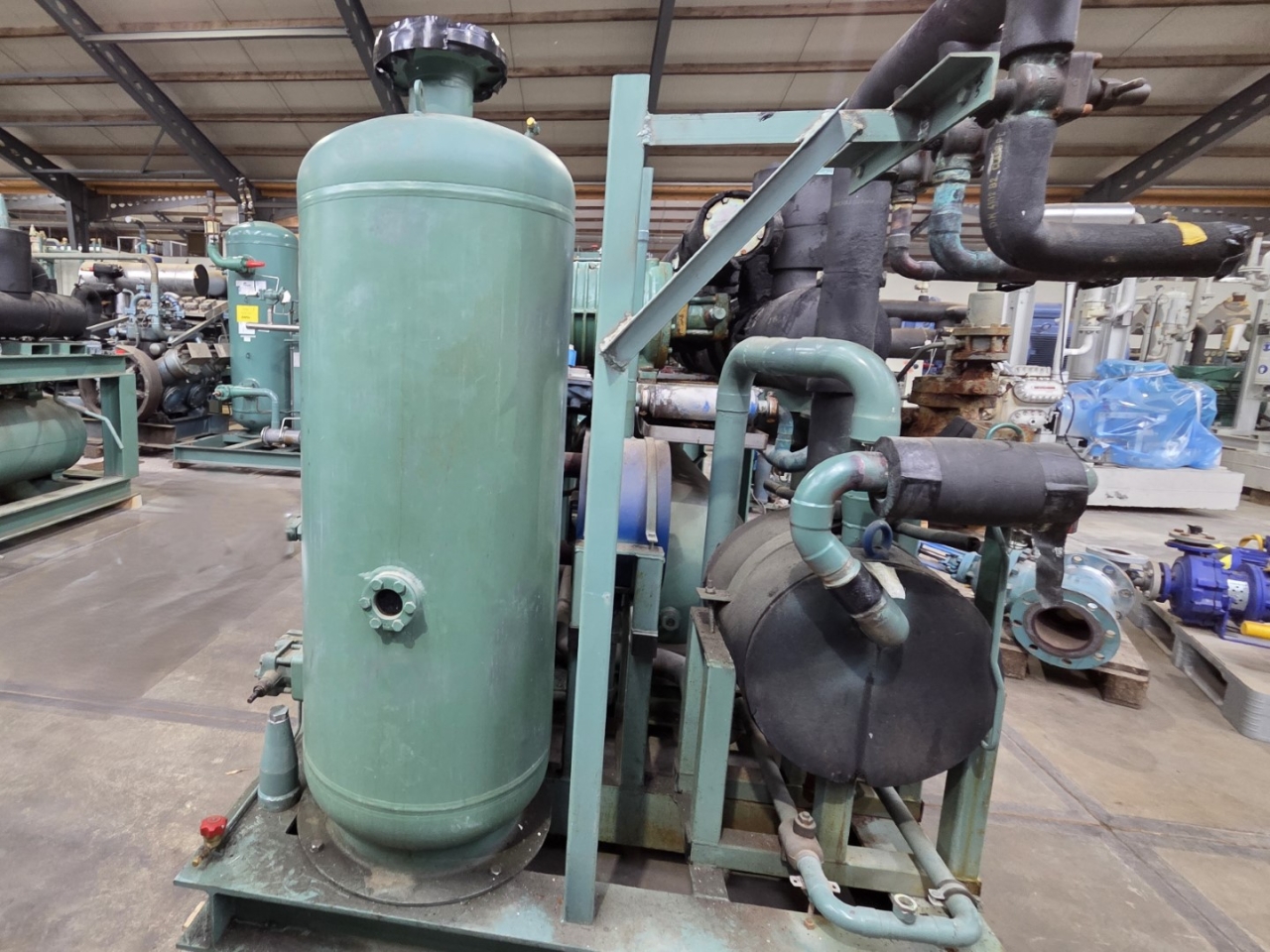

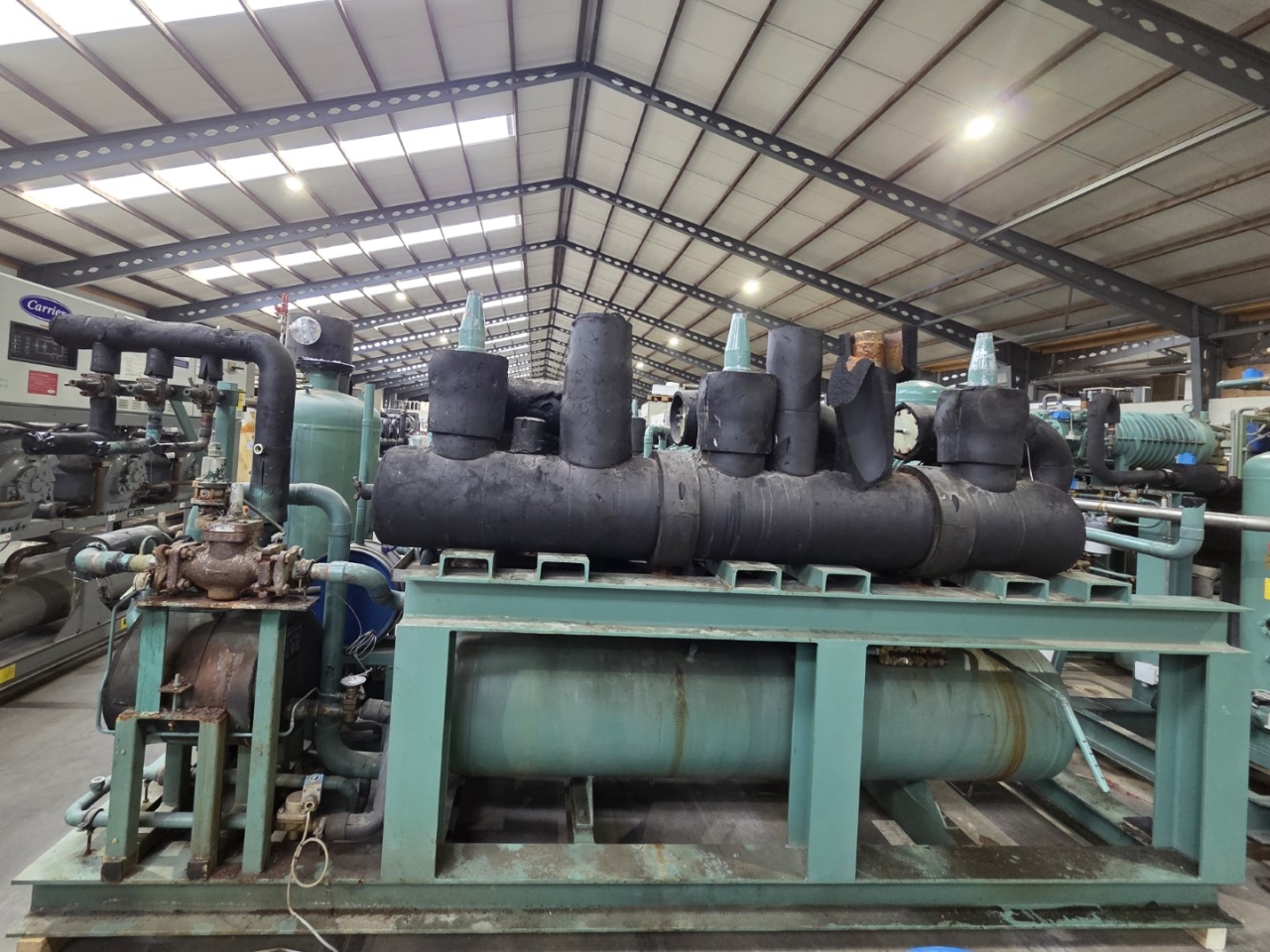

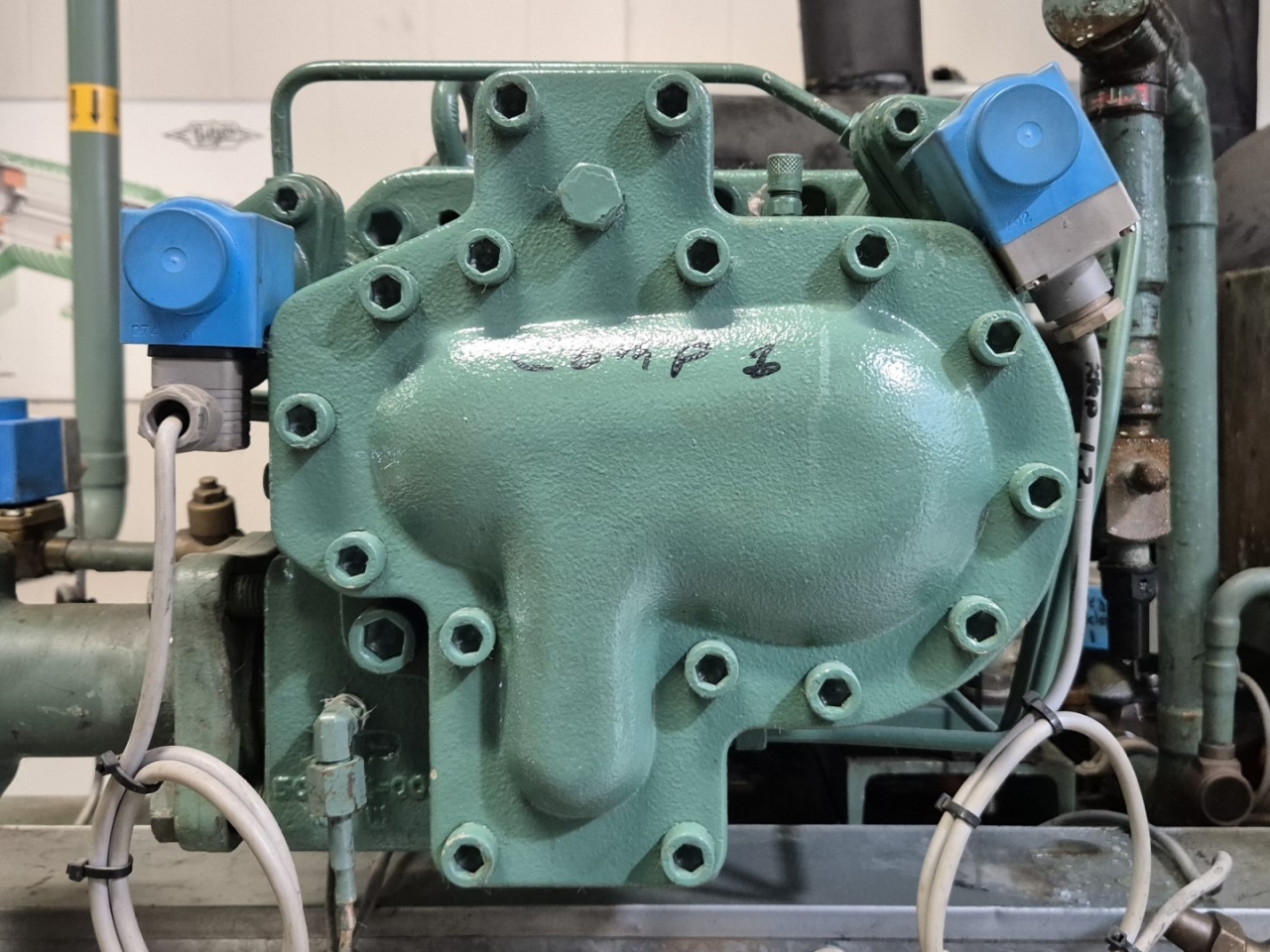

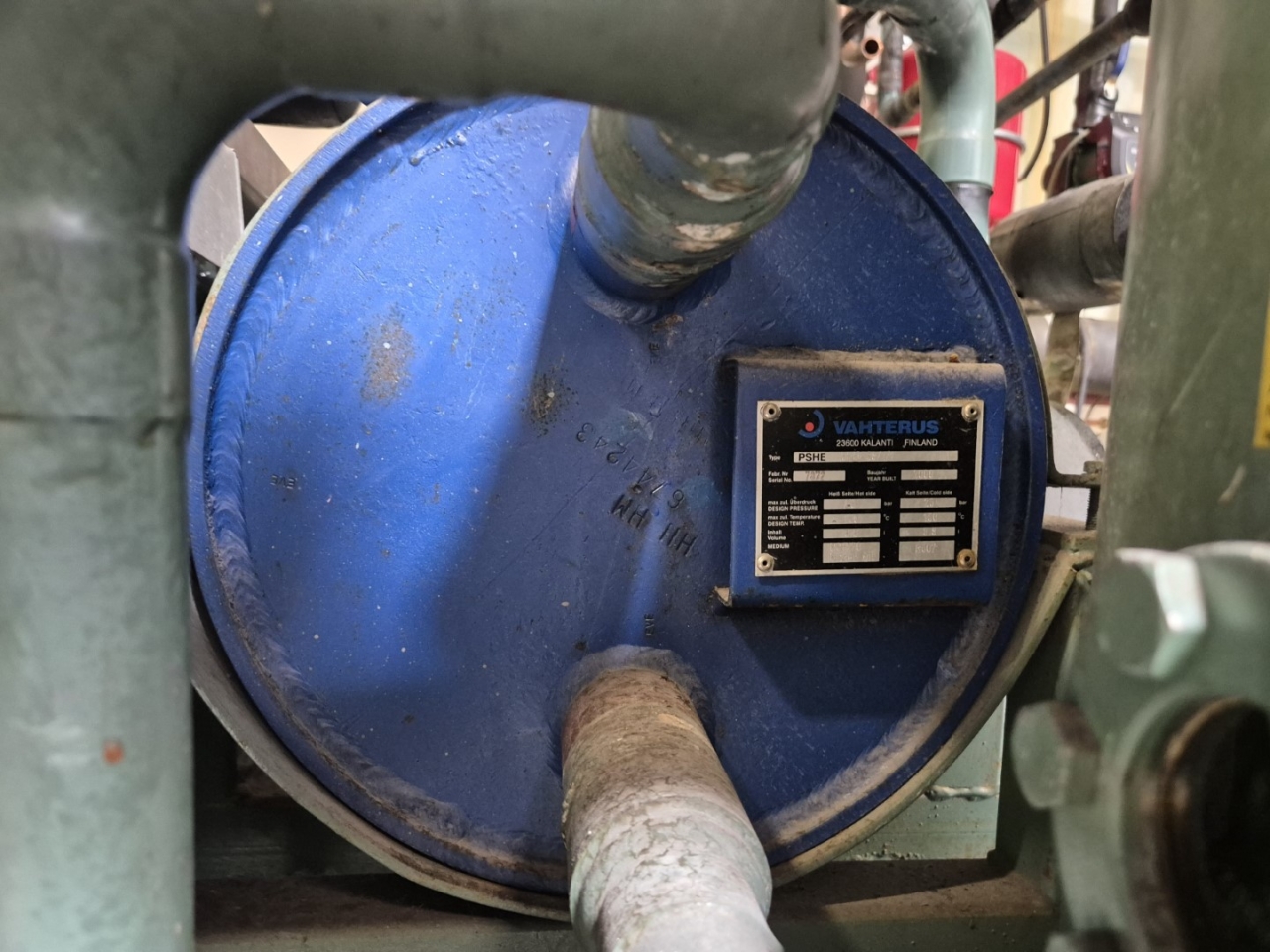

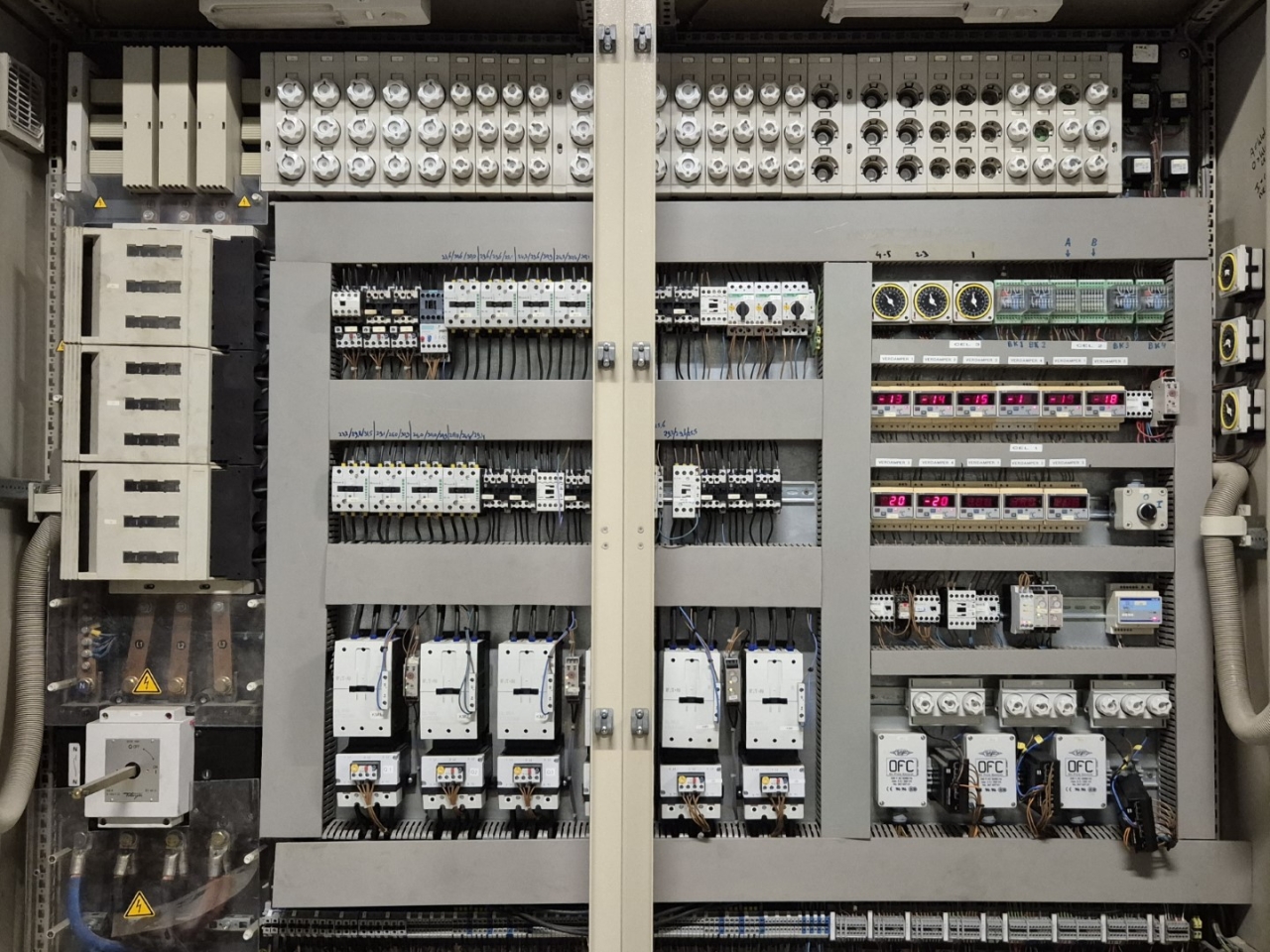

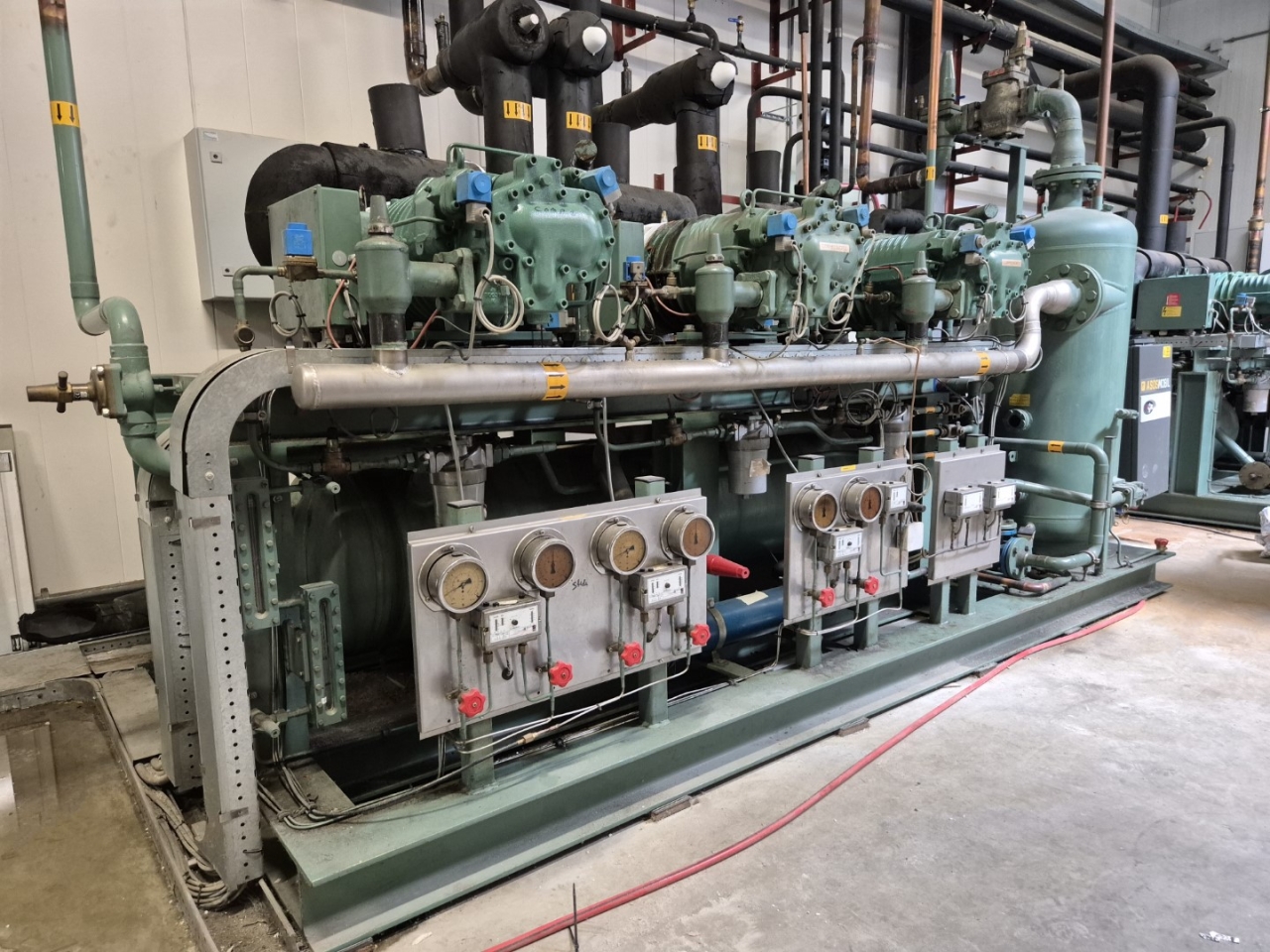

Used Bitzer HSN 7471-75-40P (x3) semi-hermetic screw compressor skid on Freon. Complete with a Hans Güntner liquid receiver with a volume of 400 liters, Bitzer OA 9011 oil separator, Vahterus PSHE 3HH-38/1/1 oil cooler, Vahterus Q plate 3HH-96/3/2 as economizer, pressure and safety switches/gauges and a control cabinet with a Eliwell EWCM890/S controller. The compressors have a total displacement of 750 m³/h at 50 Hz & 900 m³/h at 60 Hz.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we solely deliver our orders after performing an extensive test and an industrial cleaning. If requested we are happy to arrange your logistics.
