Helpman ODIN-C1.144-V-1500-230V
Helpman ODIN-C1.144-V-1500-230V
| 18492 | |
| Brand | Helpman |
| Type | ODIN-C1.144-V-1500-230V |
| Product type | Air Cooled Condenser |
| kW | 102,0 |
| Number of Fans | 3 |
| RPM of the Fans | 1385 |
| Refrigerant | Freon |
| Air Flow in m³/h | 28.960 |
| diameter fans Ø | 560 mm |
| Surface (m2) | 351,4 m² |
| Tube volume | 23,1 dm³ |
| Sizes | 4450x730x1220 mm (LxWxH) |
| Weight | 283 kg |
| Remarks | | Y.o.b. 2006 |
| Amount in stock | 1 |
Helpman ODIN-C1.144-V-1500-230V

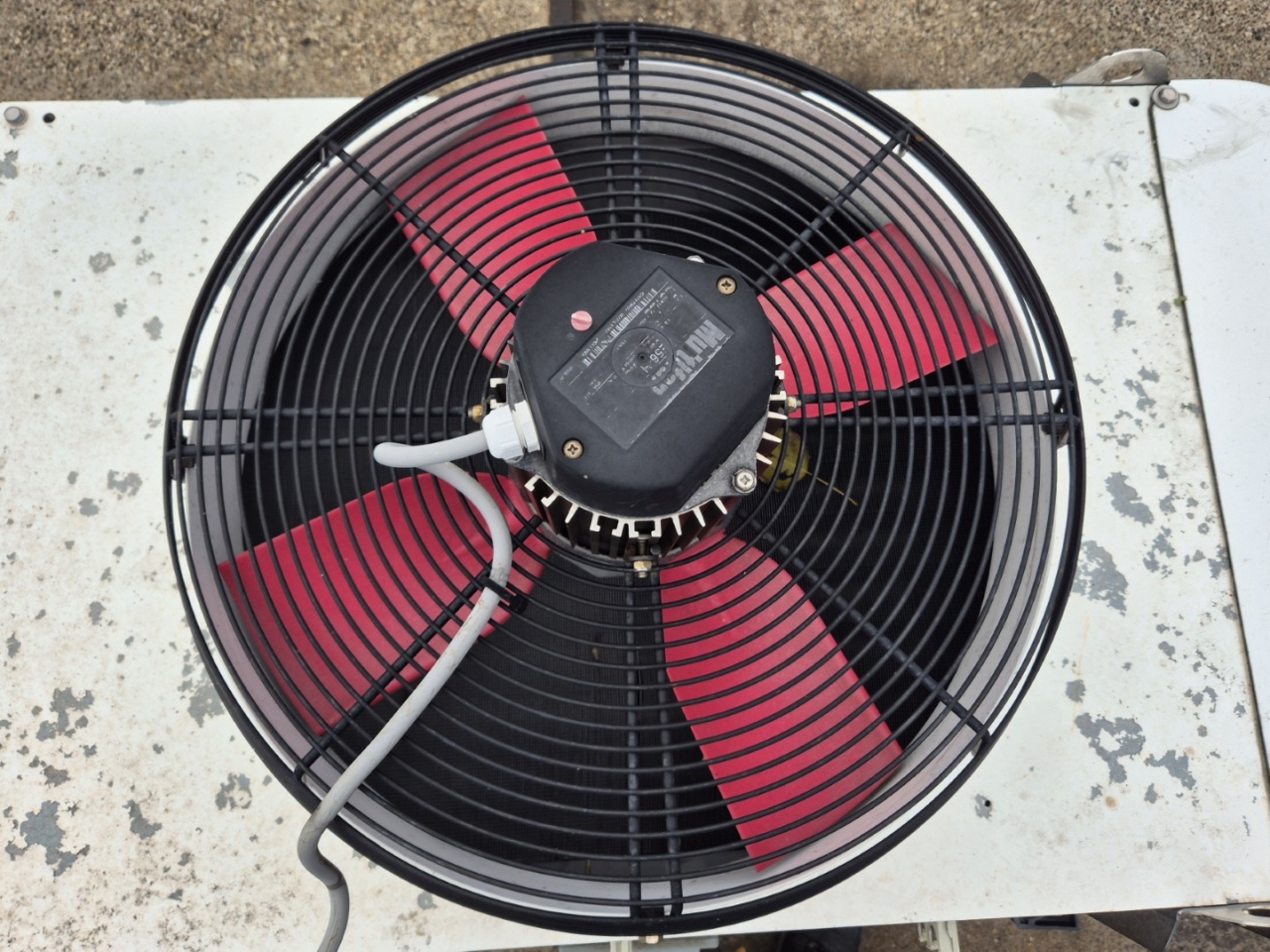

Used Helpman ODIN-C1.144-V-1500-230V air-cooled condenser. Complete with 3 Multifan fans - 50 Hz - 0,33 kW - 1385 RPM - diameter 560 mm and 1 Ziehl-Abegg FN050-4EK.4I.V7P1 fan - 50 Hz - 0,75 kW - 1230 RPM - diameter 560 mm and a total airflow of 28.960 m³/h.
*All components of this used condensor will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning. on demand, we can arrange your shipment.
