| 18693 | |
| Brand | Mycom |
| Type | FM160L-L |
| Refrigerant | NH 3 (ammonia) |
| kW at +10ºC/+40ºC | 835,4 |
| kW at 0ºC/+40ºC | 579,6 |
| kW at -5ºC/+40ºC | 475,6 |
| kW at -10ºC/+40ºC | 385,6 |
| kW at -20ºC/+40ºC | 242,7 |
| kW at -30ºC/+40ºC | 140,7 |
| Electromotor Specs | 50/60 Hz - 132/152 kW - 2945/3538 RPM |
| Unloaded Start |
|
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Oil separator |
|
| Sight Glass |
|
| Control panel |
|

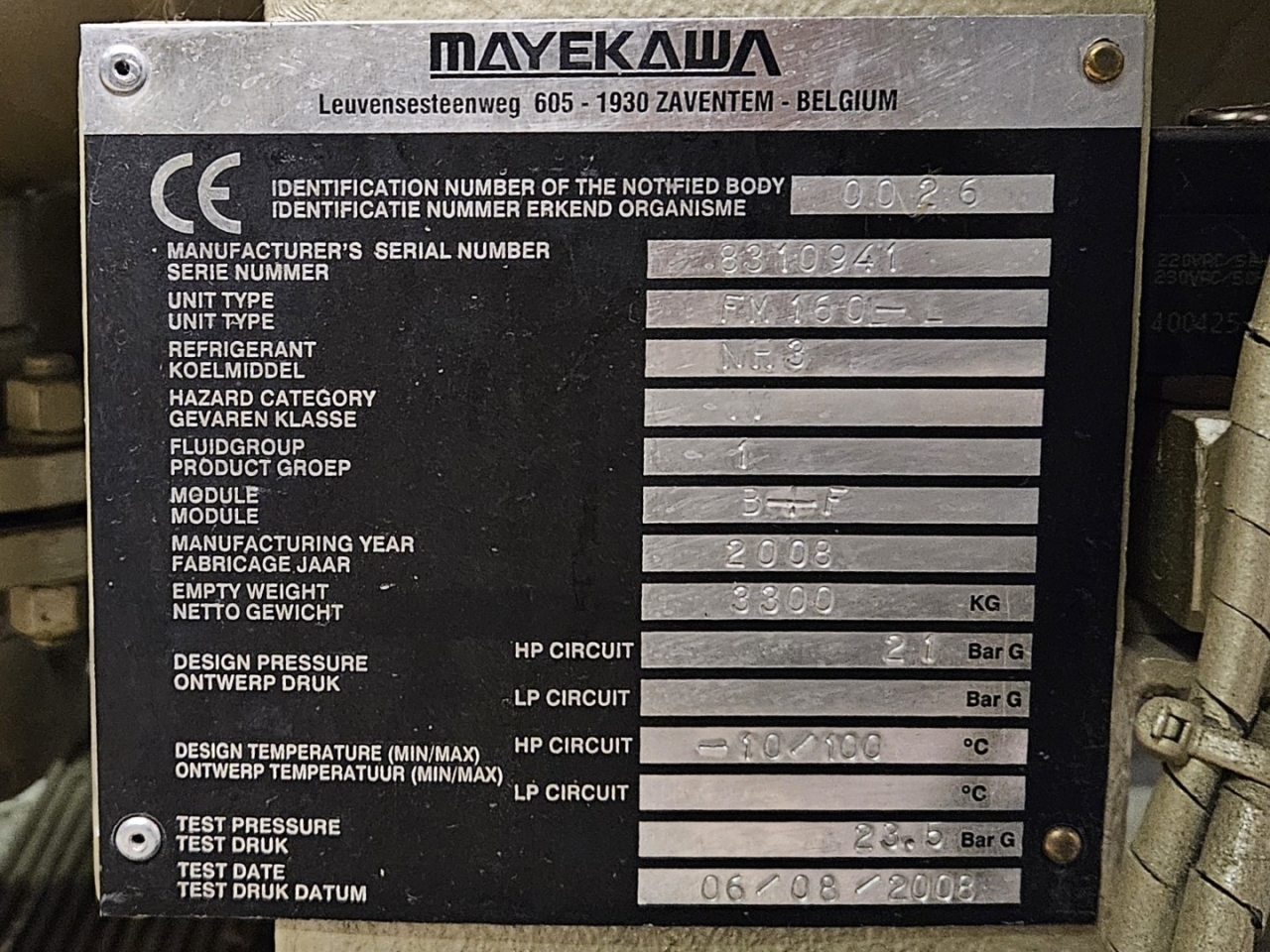

| Remarks | | Y.o.b. 2008 |
| Weight in kg. | 3300 |
| Amount in stock | 1 |
Mycom FM160L-L

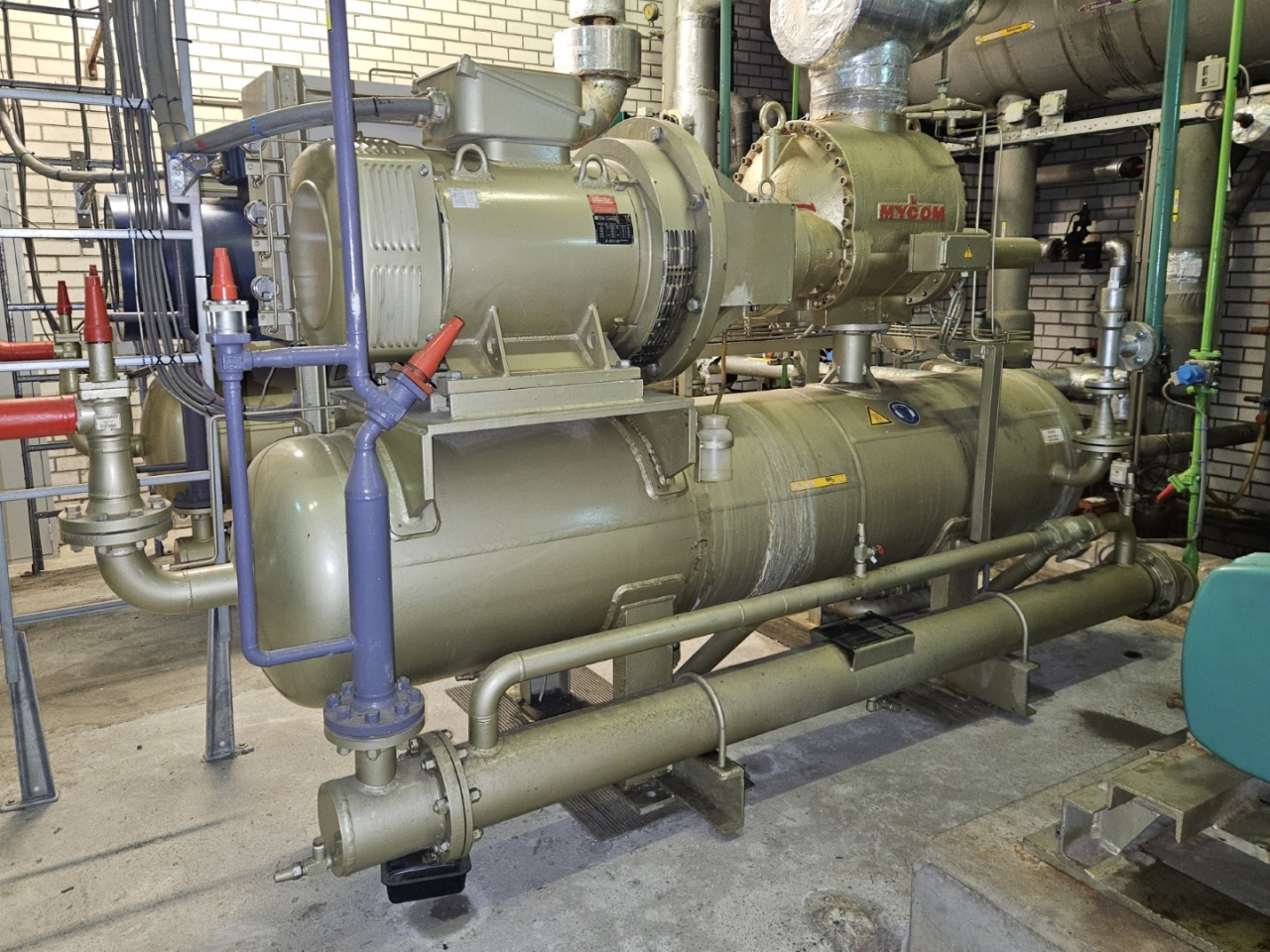

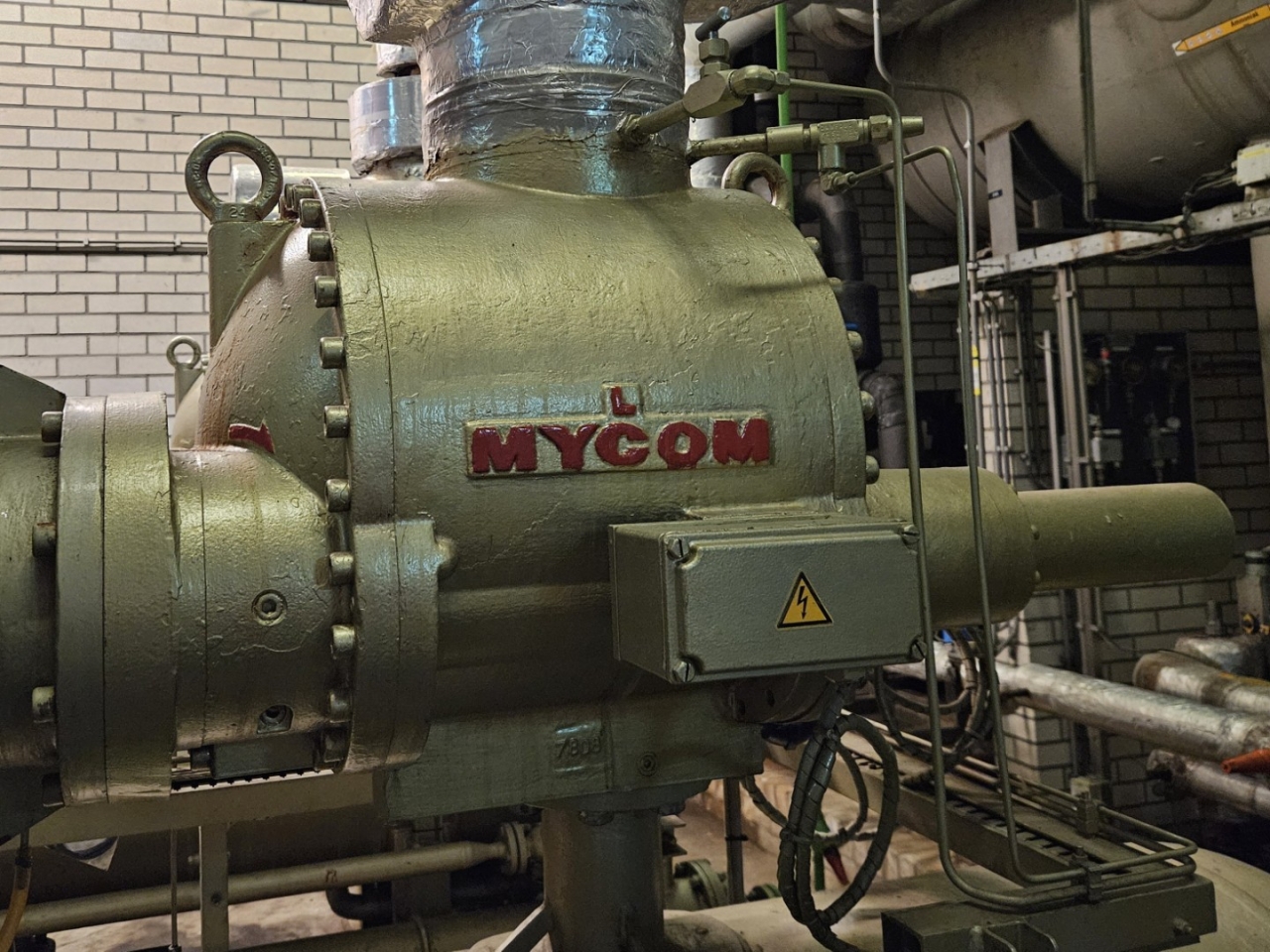

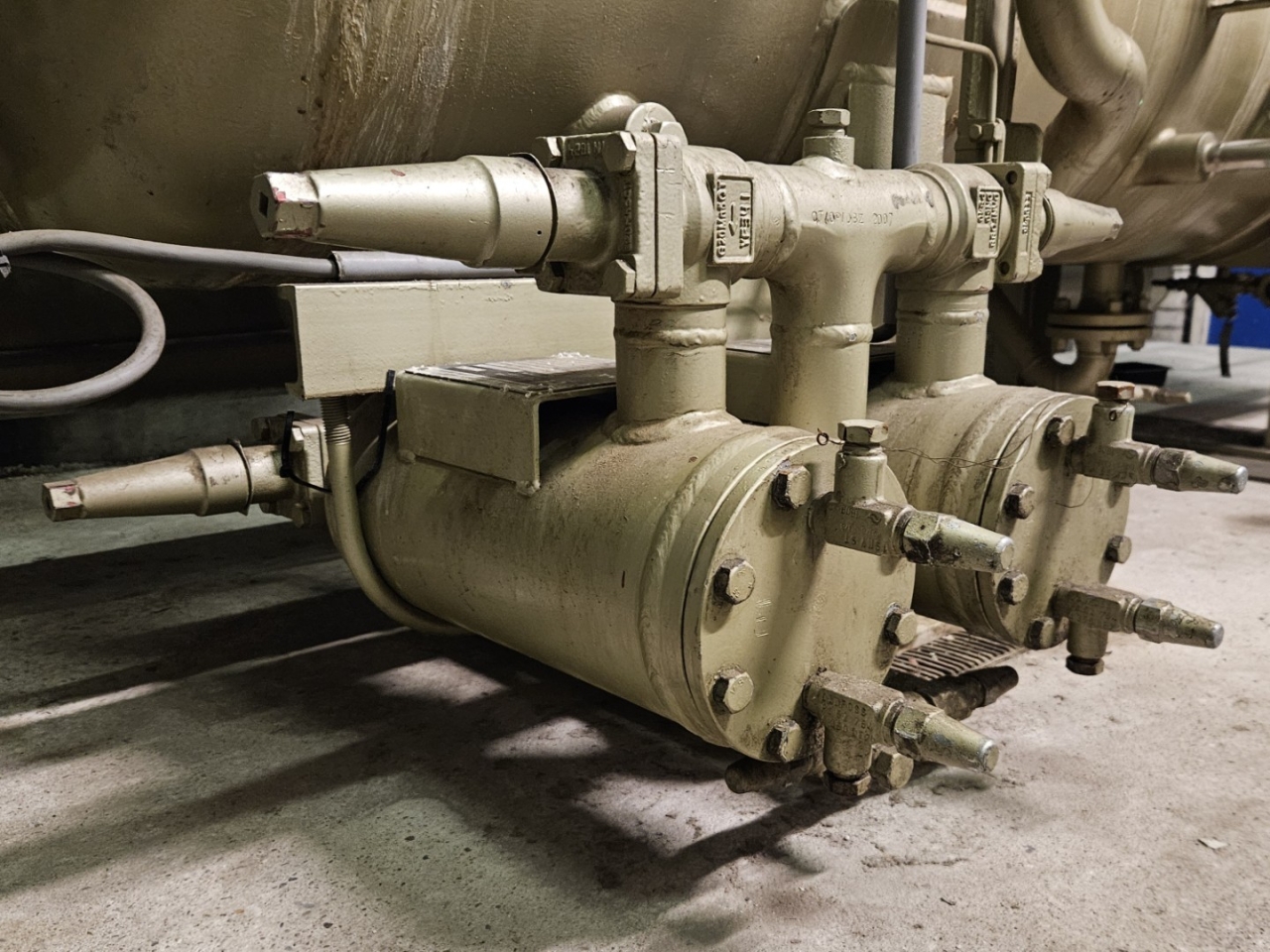

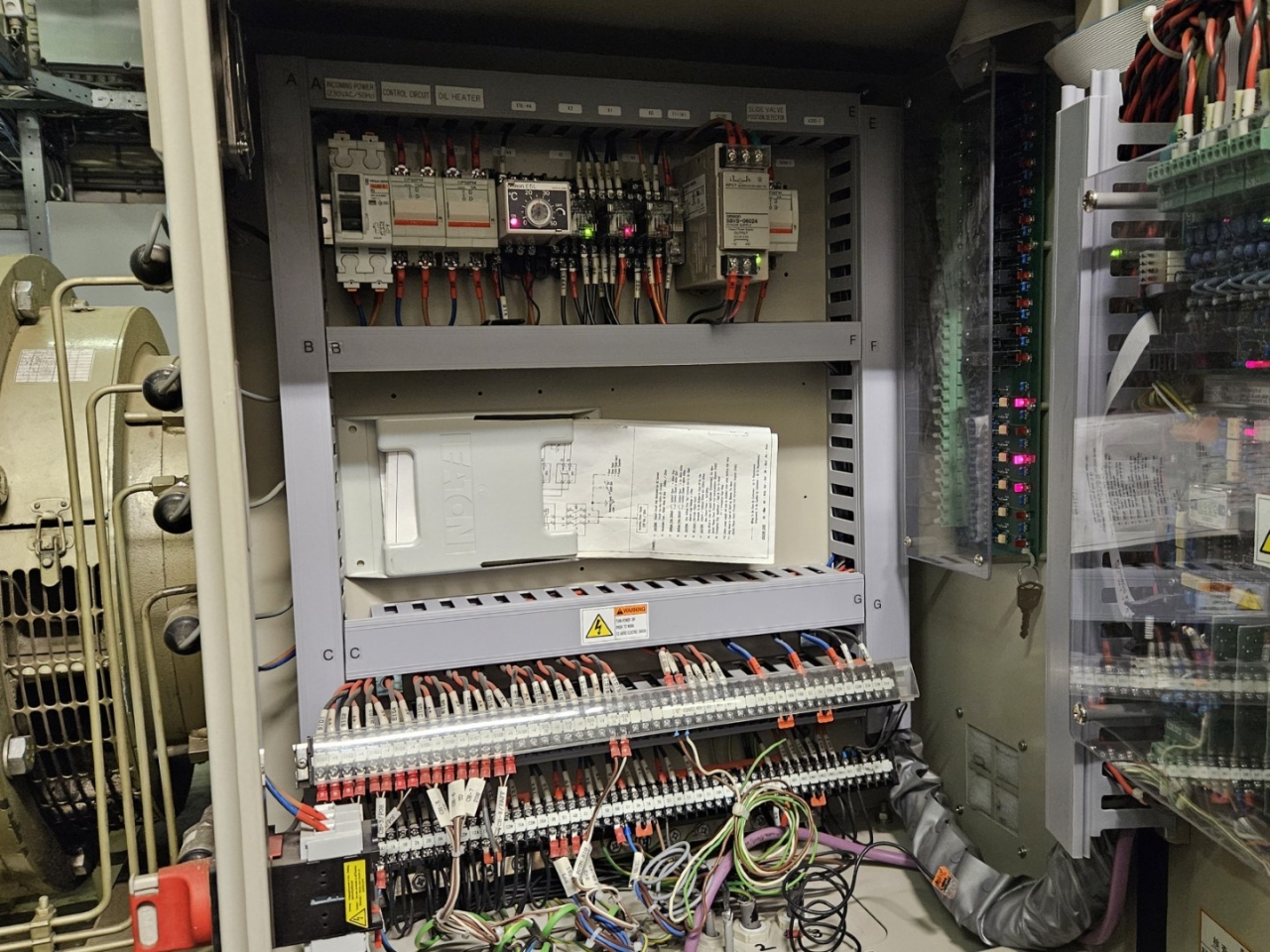

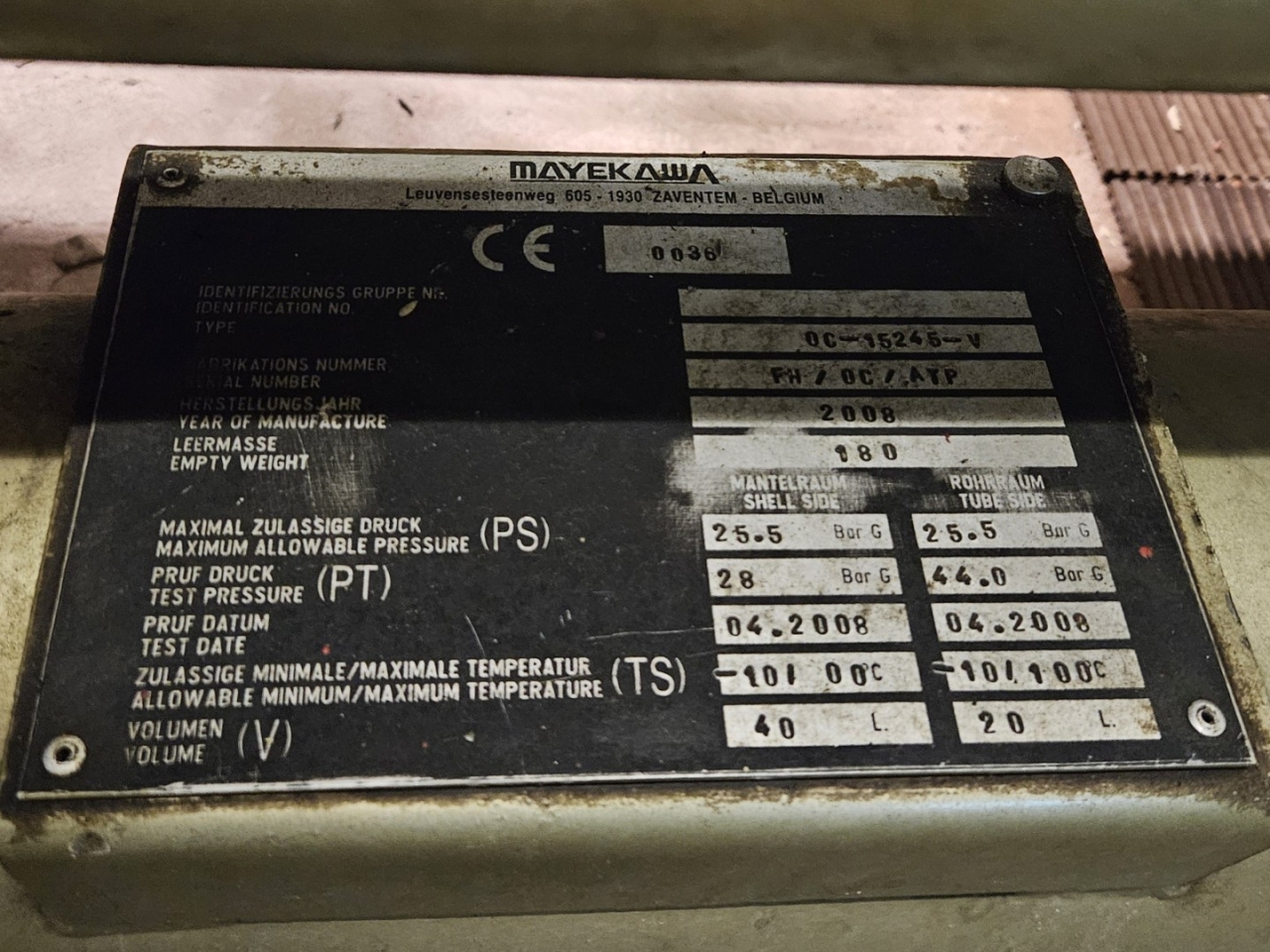

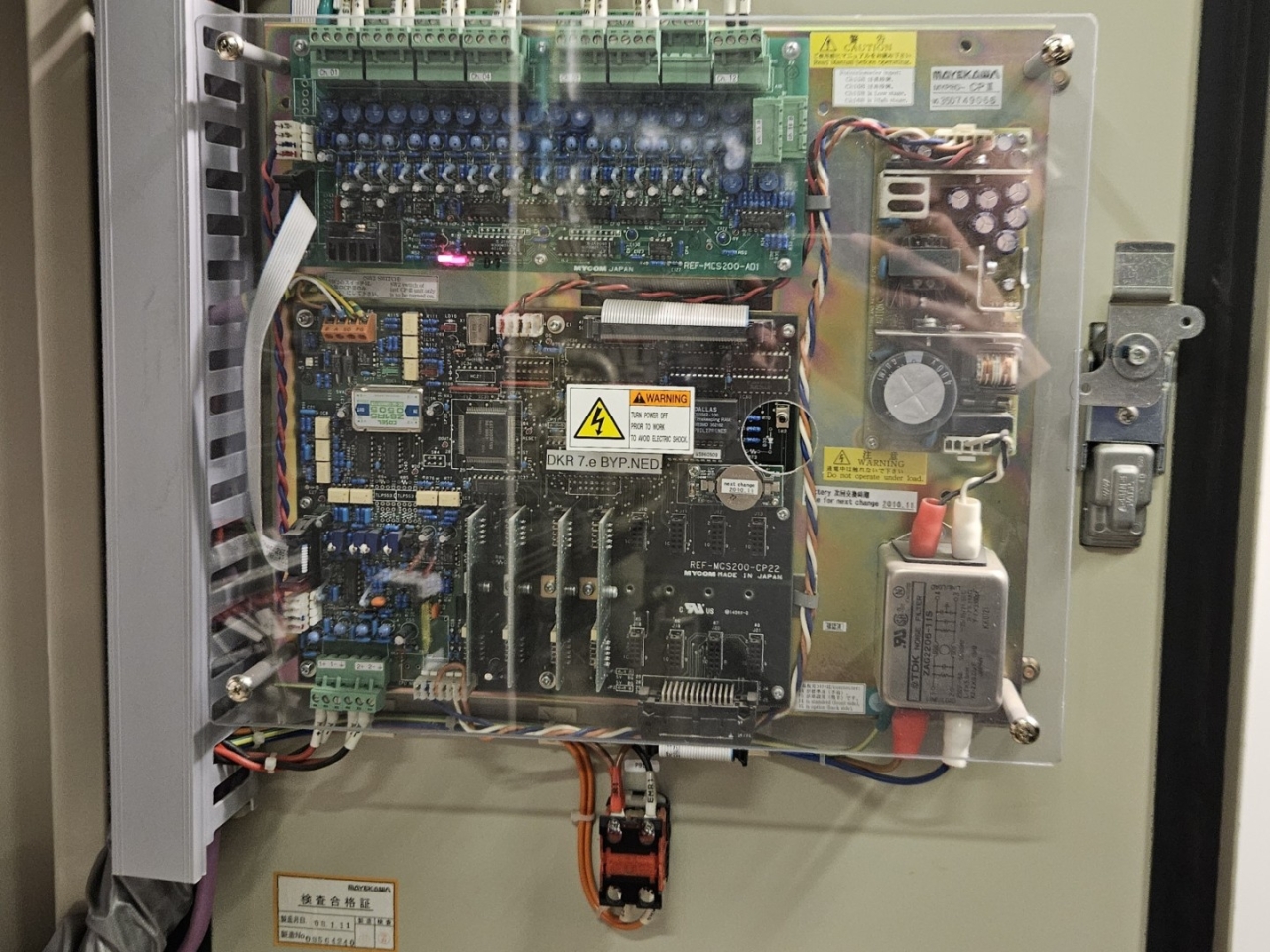

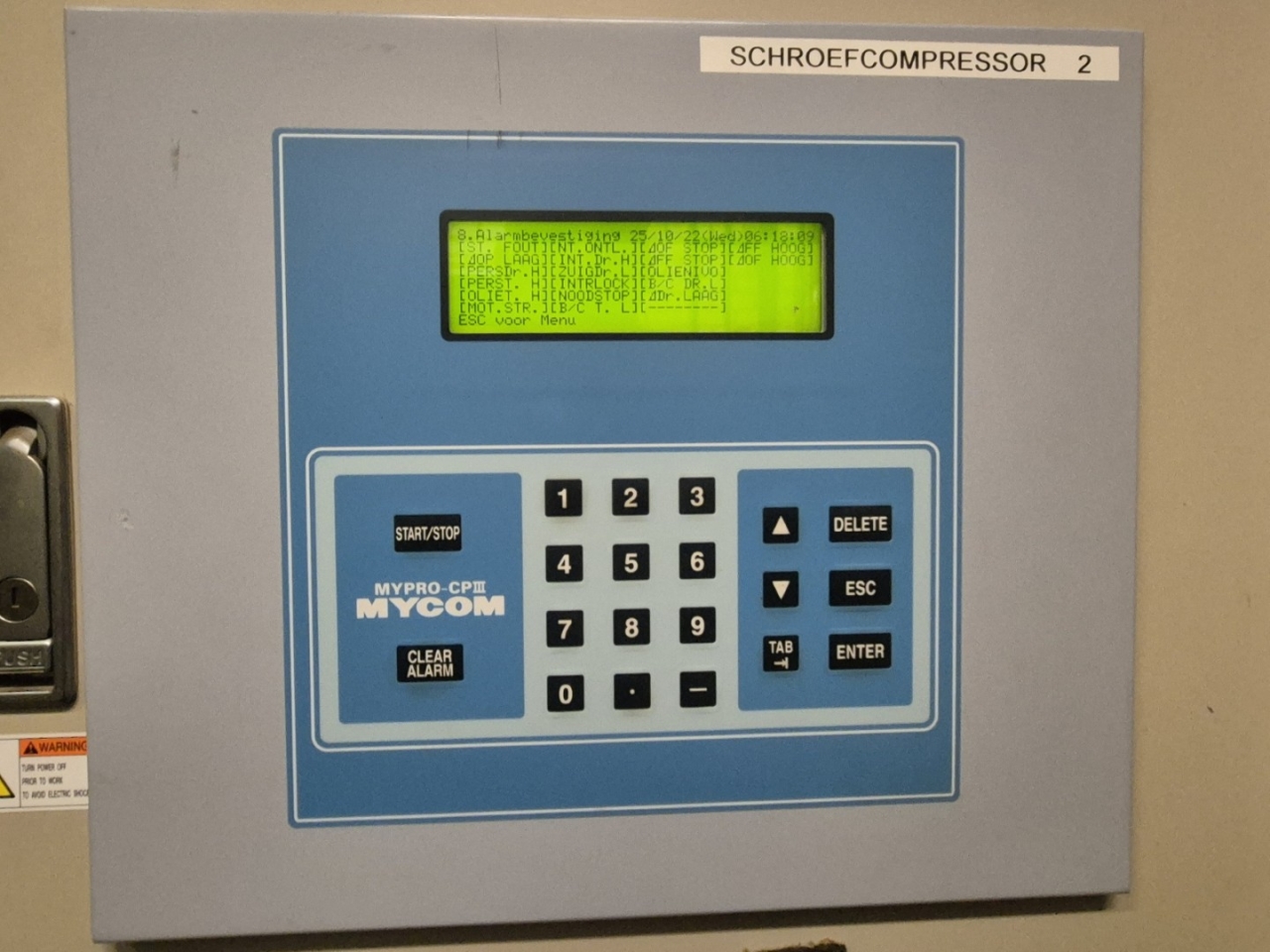

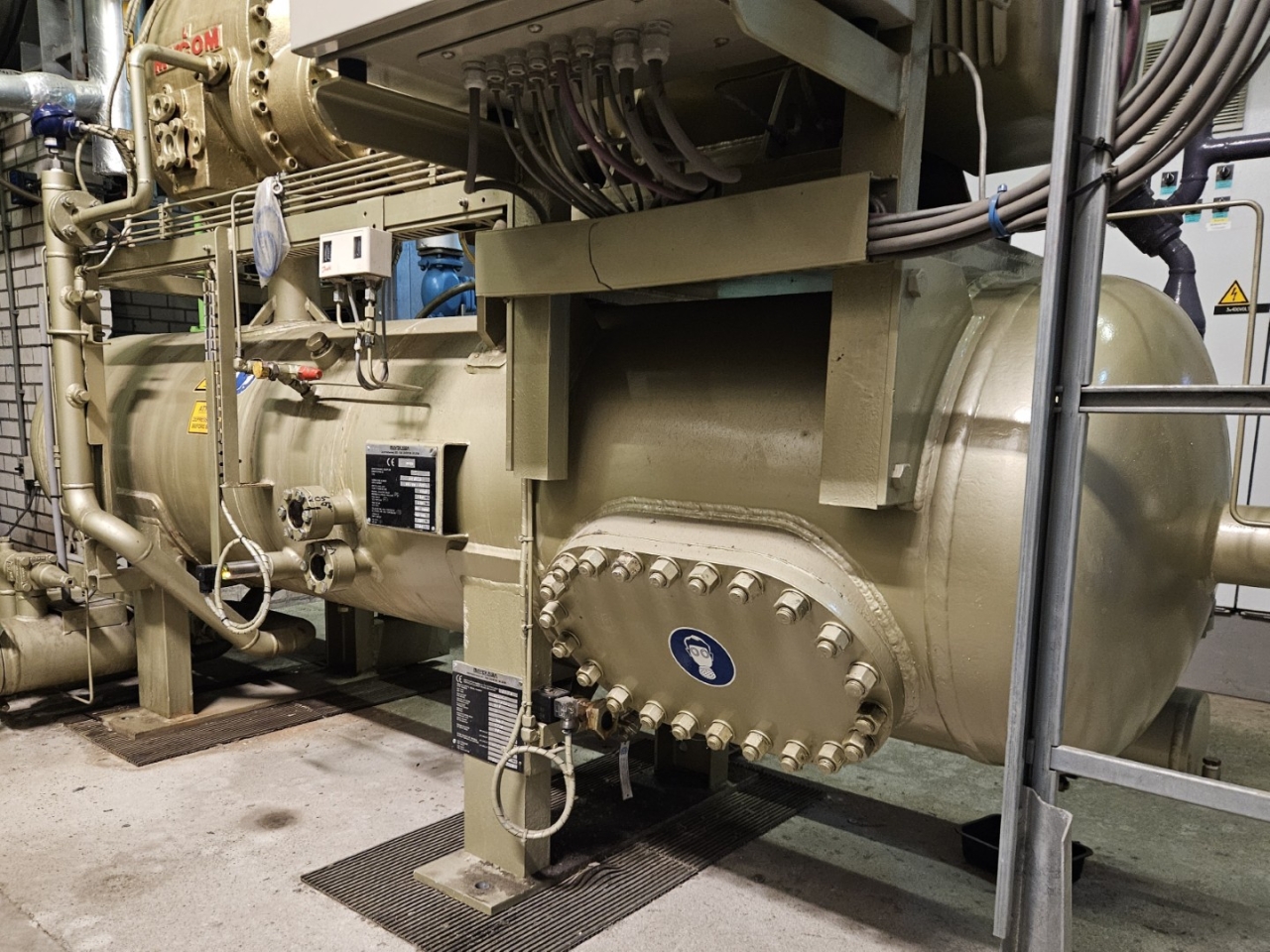

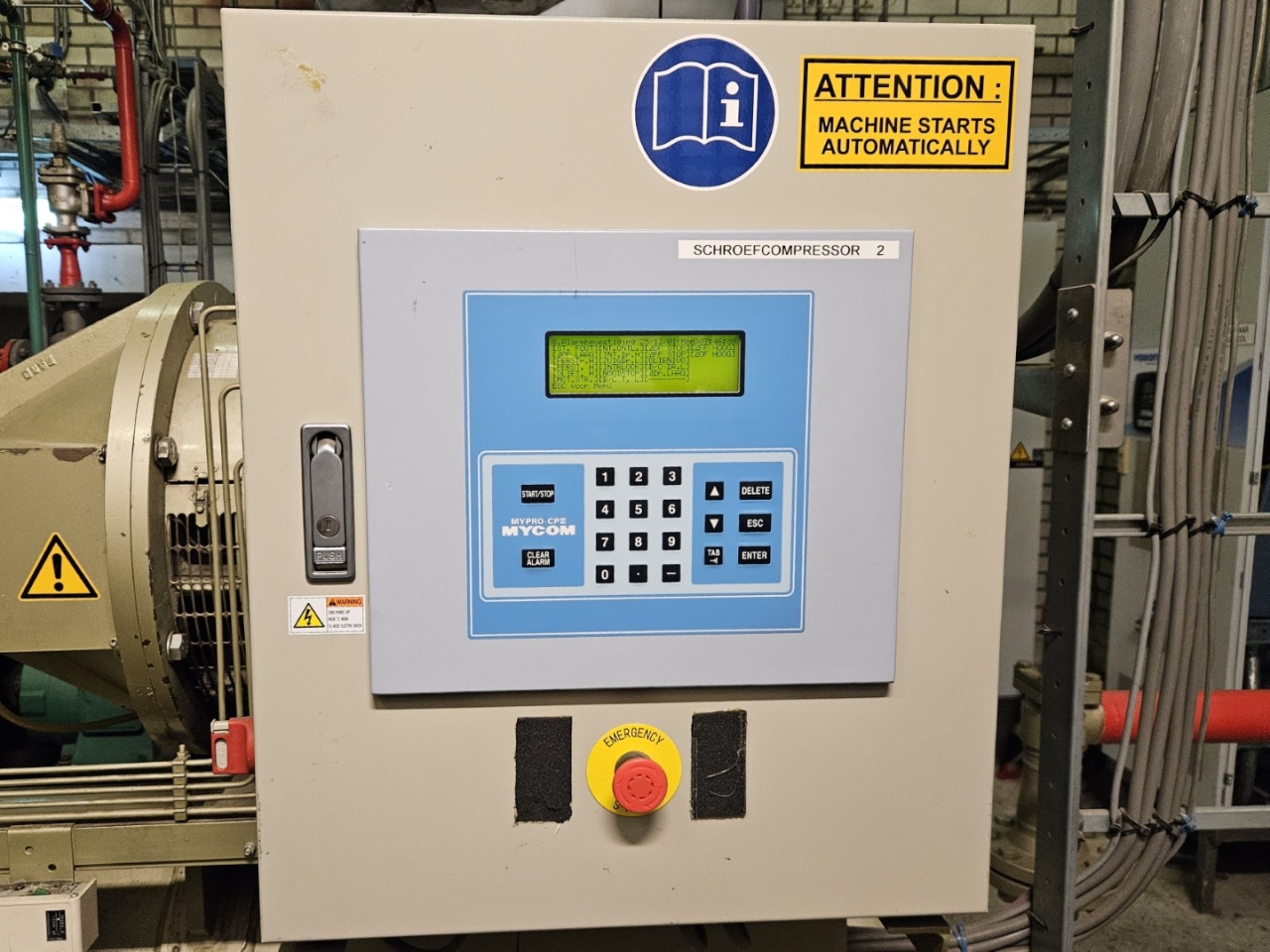

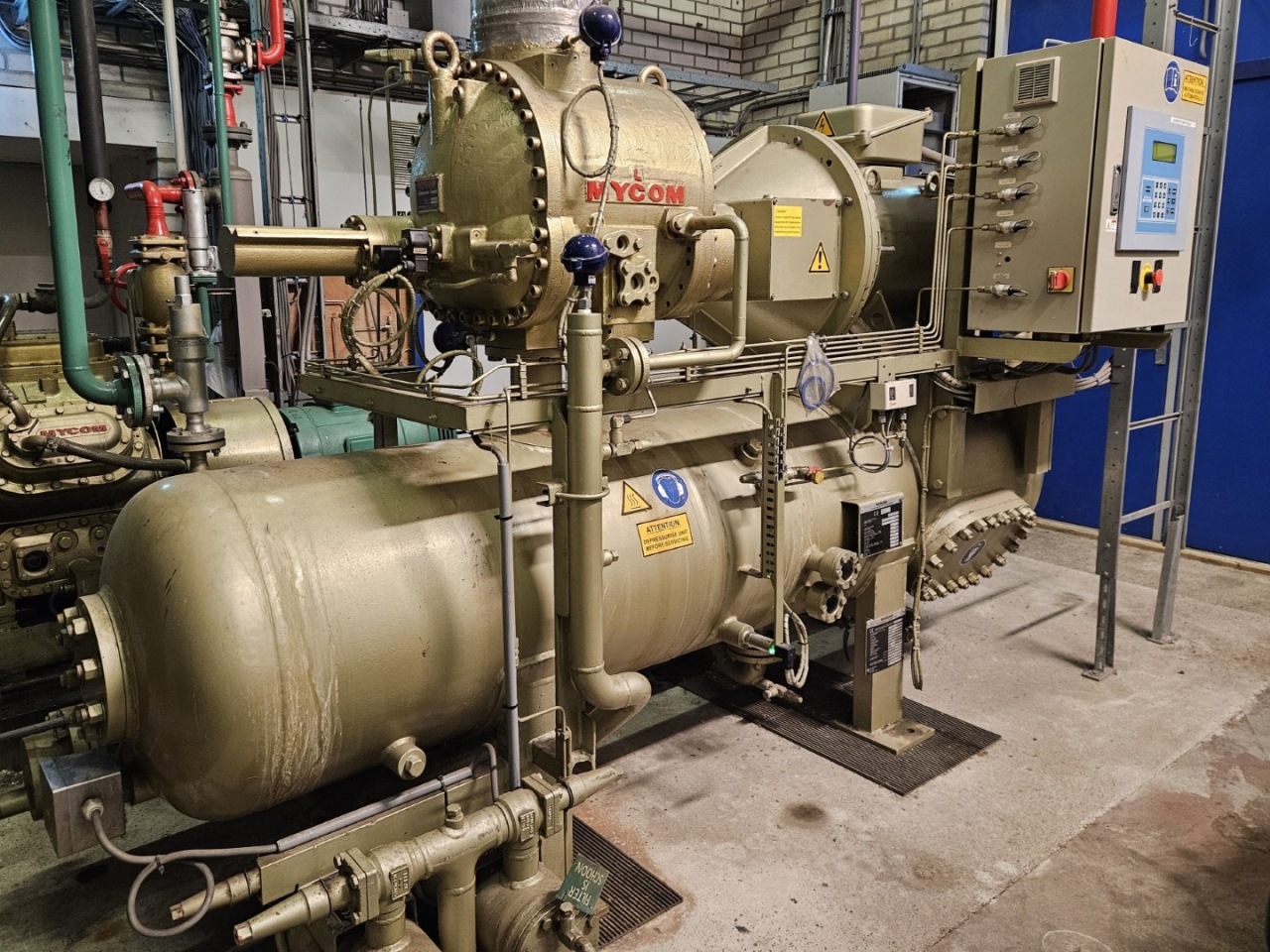

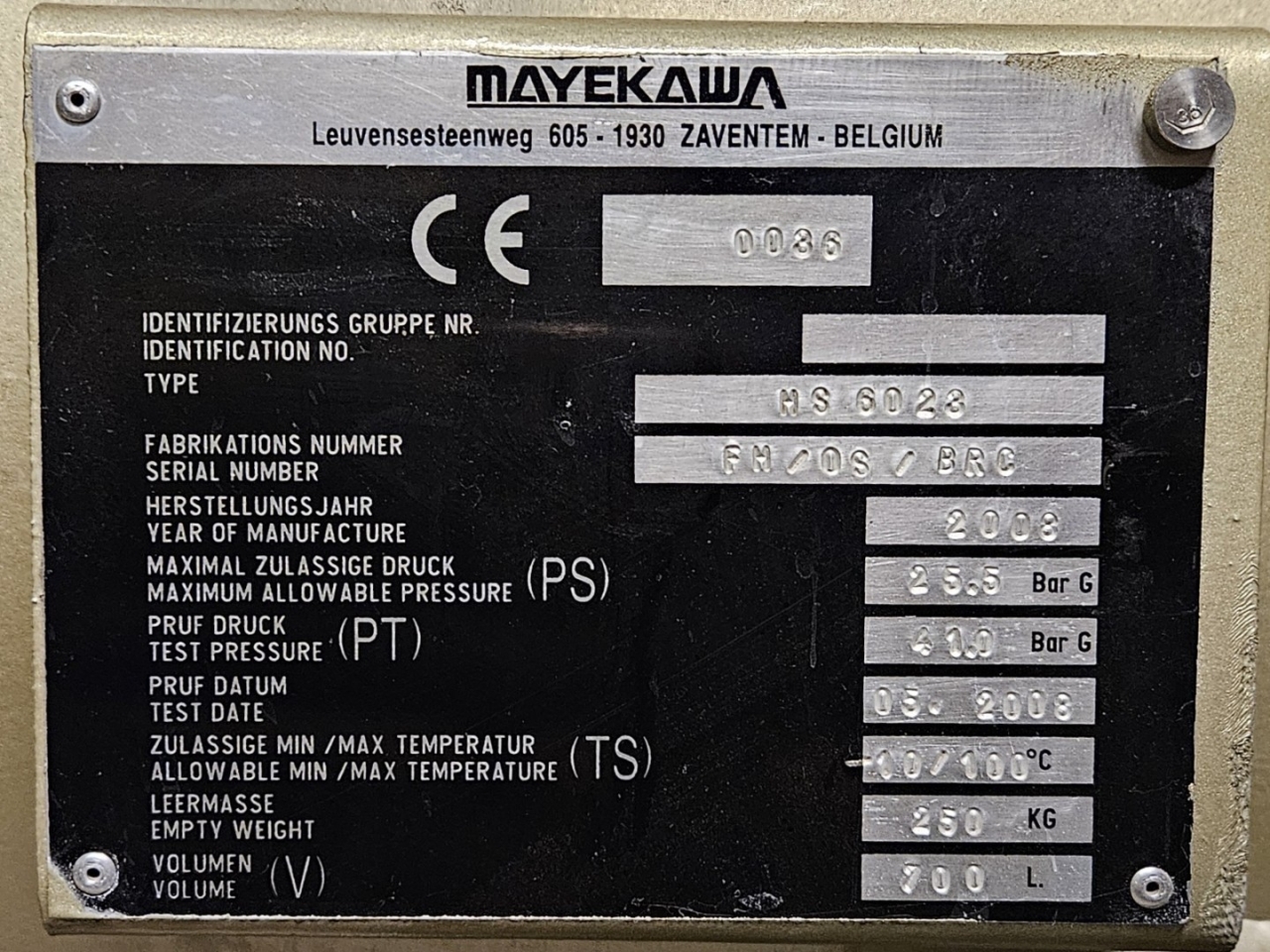

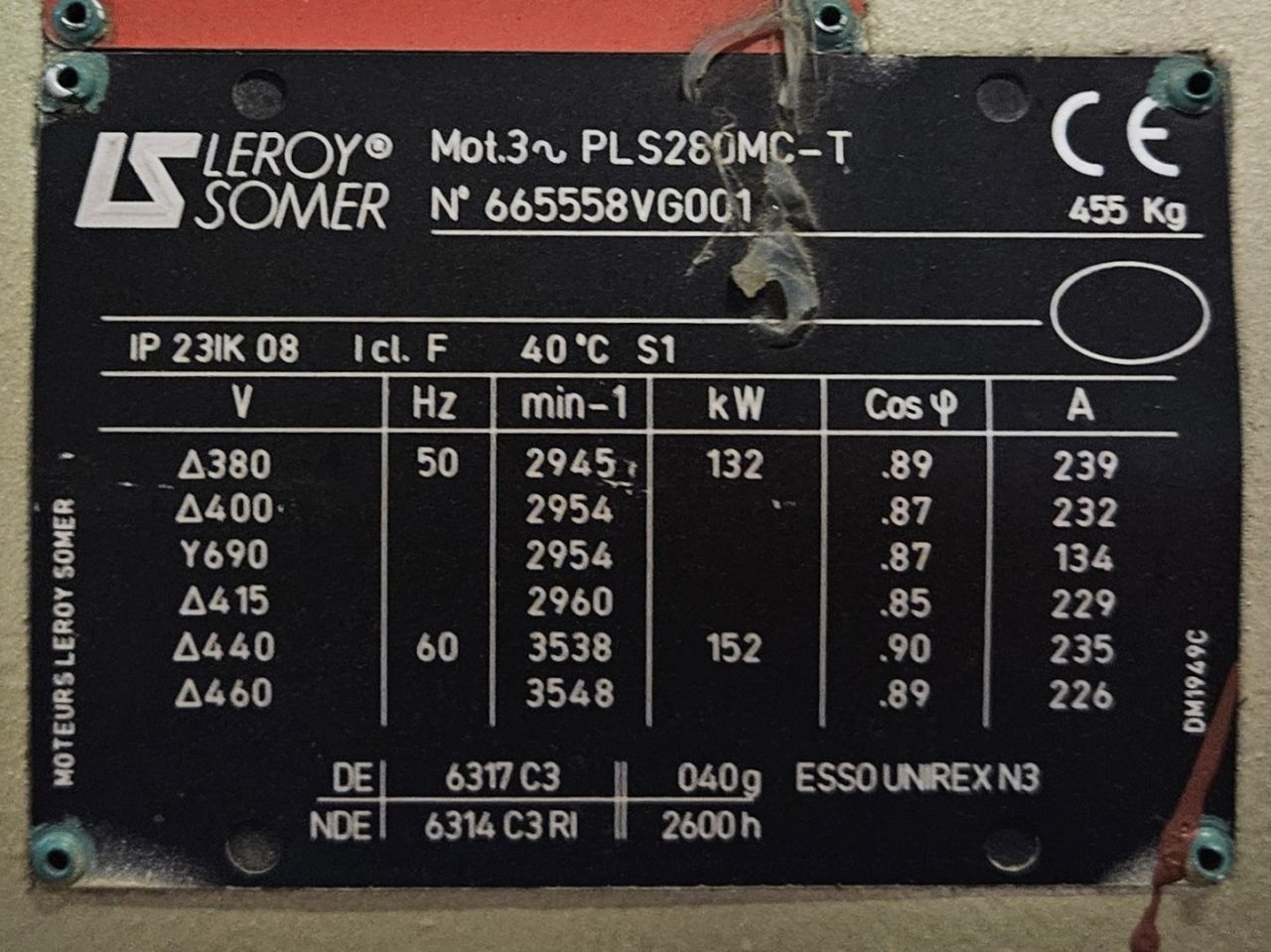

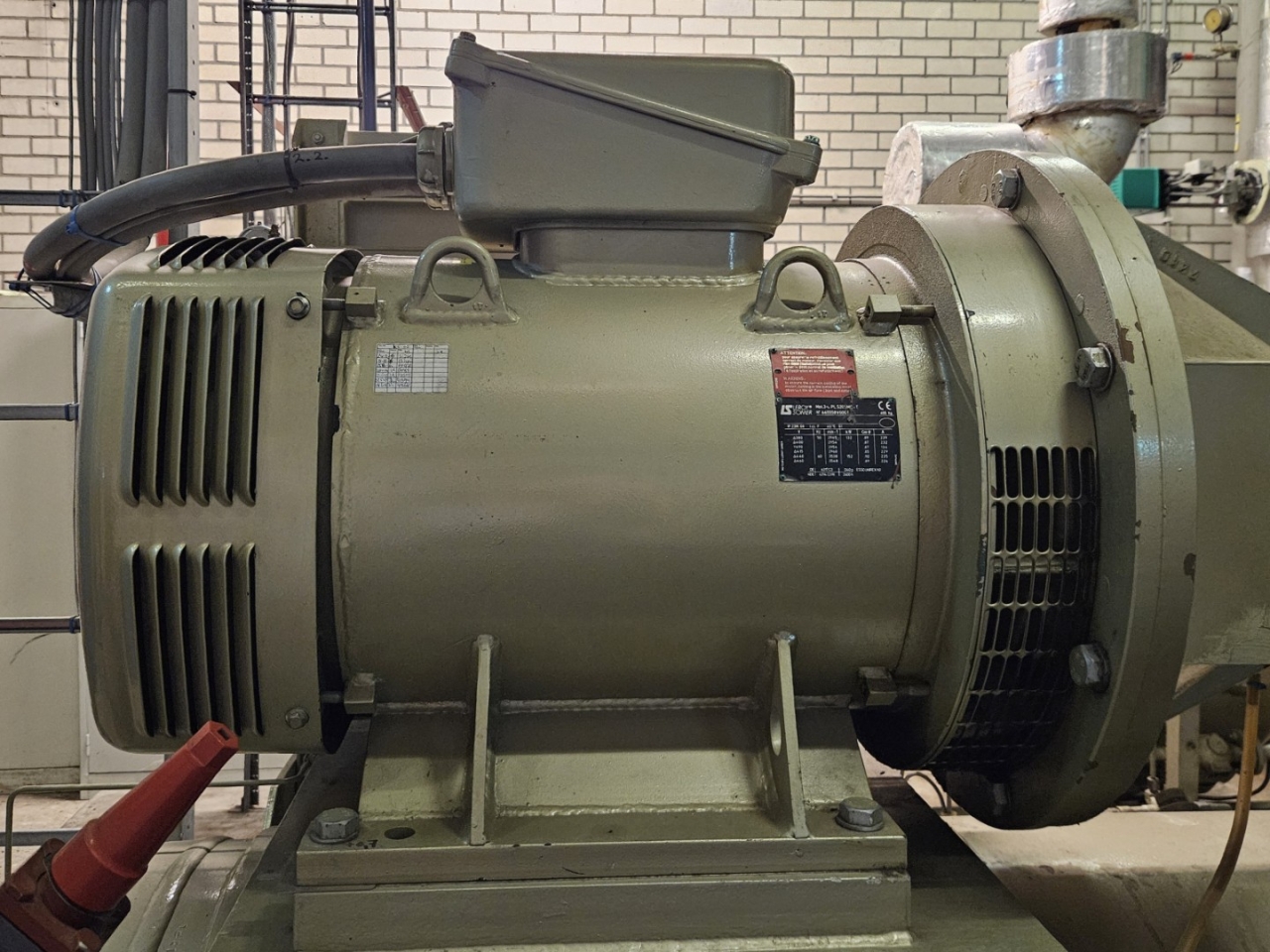

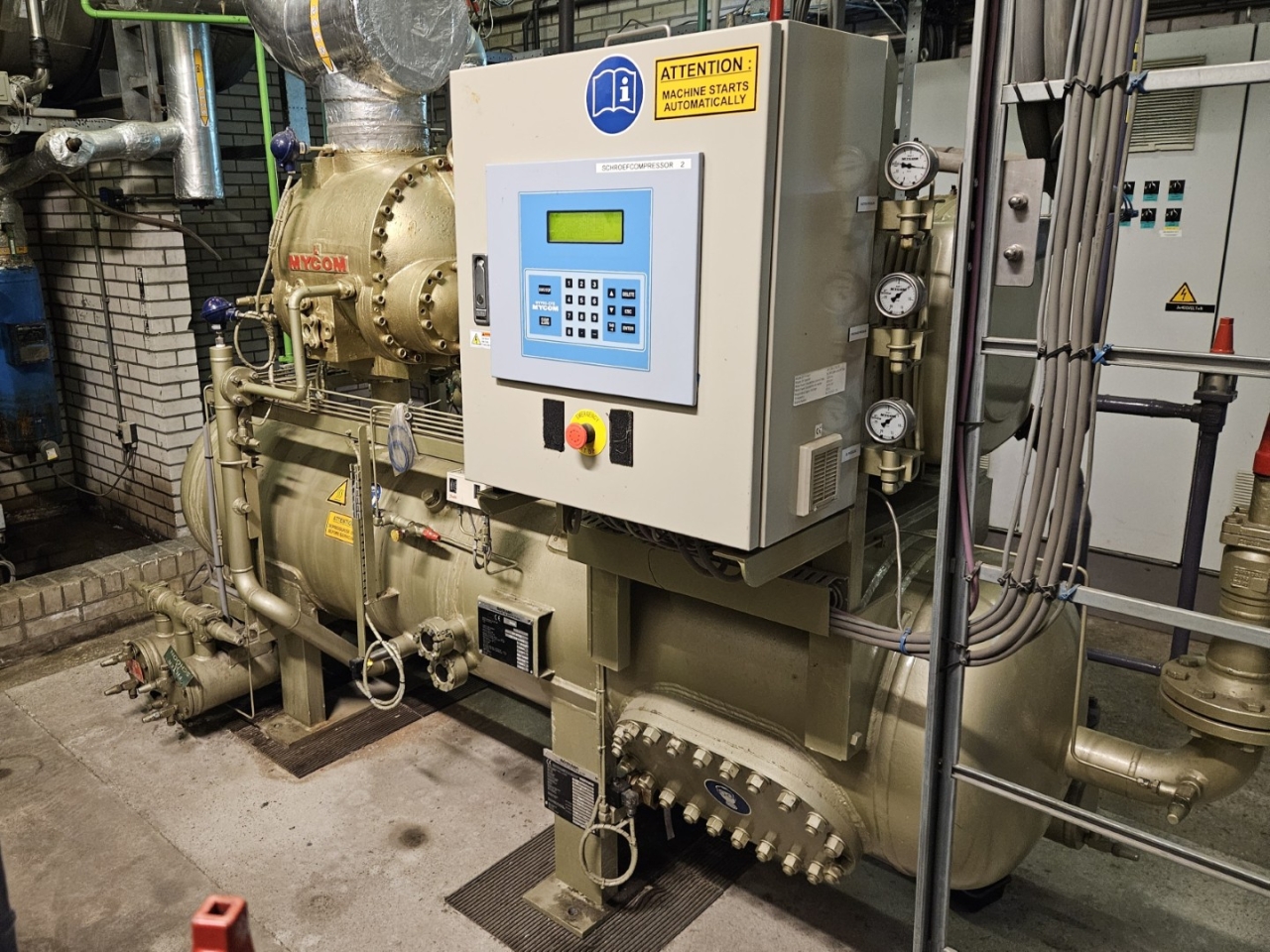

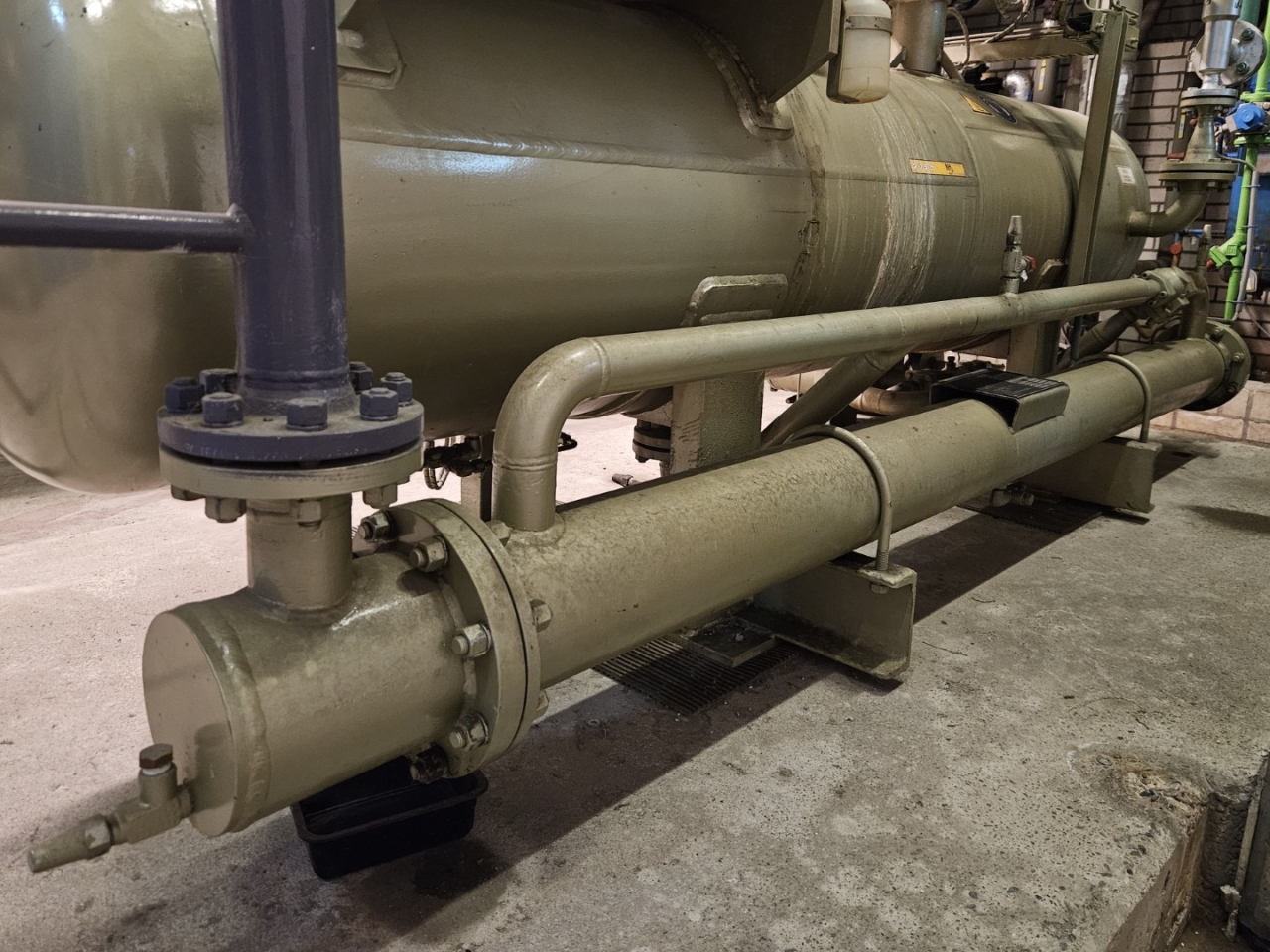

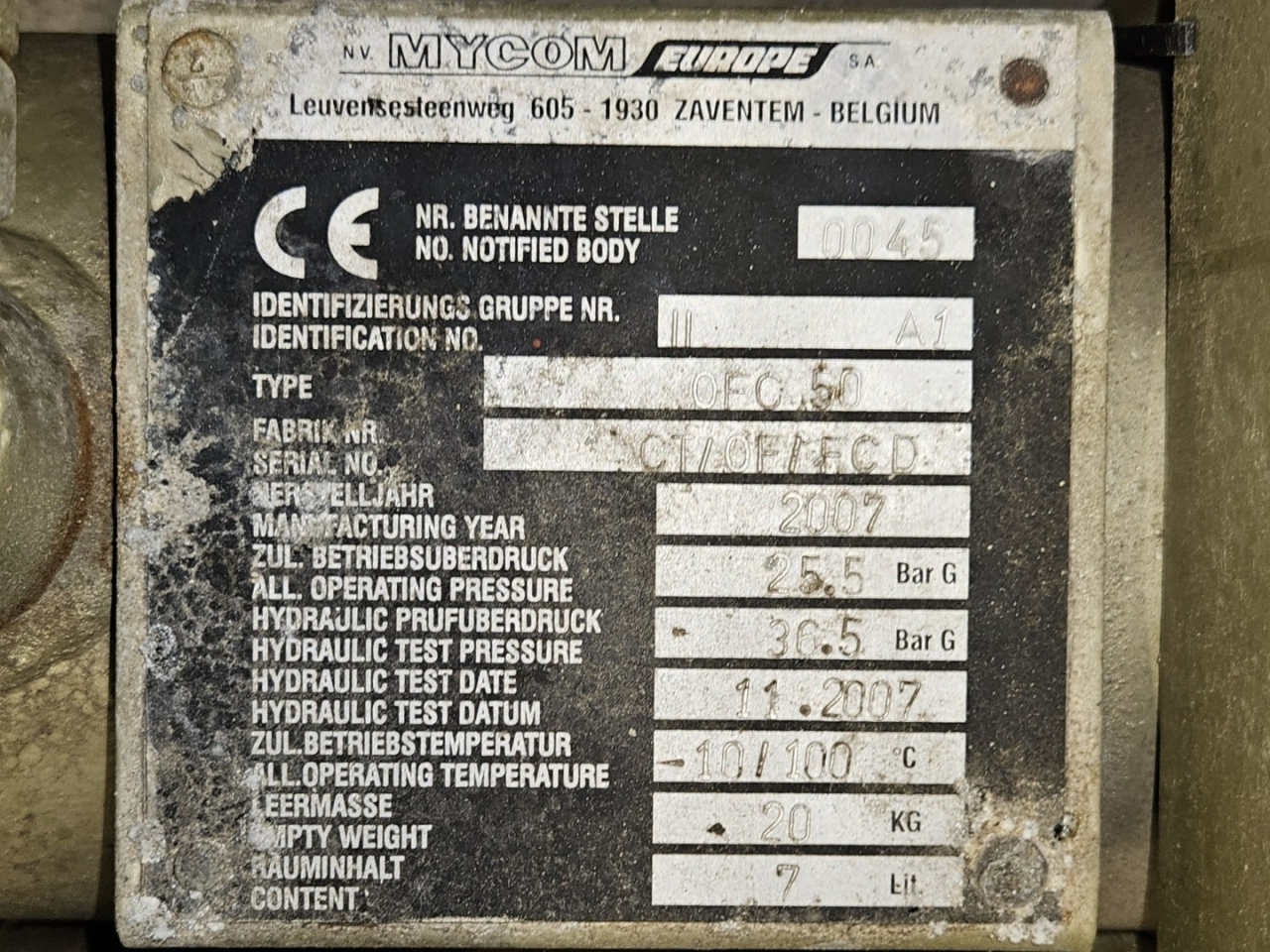

Used Mycom / Mayekawa FM160L-L screw compressor skid on NH3 (Ammonia). Complete with a Leroy Somer PLS280MC-T electric motor - 50/60 Hz - 132/152 kW - 2945/3538 RPM, Mayekawa HS 6023 oil separator with a volume of 700 liter, Mayekawa OC-15245-V oil cooler, 2 Mayekawa OFC 50 oil filter, pressure and safety switches/gauges and a control cabinet with a Mycom MYPRO-CP3 controller.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
