Gram GSV 50
Gram GSV 50
| 18837 | |
| Brand | Gram |

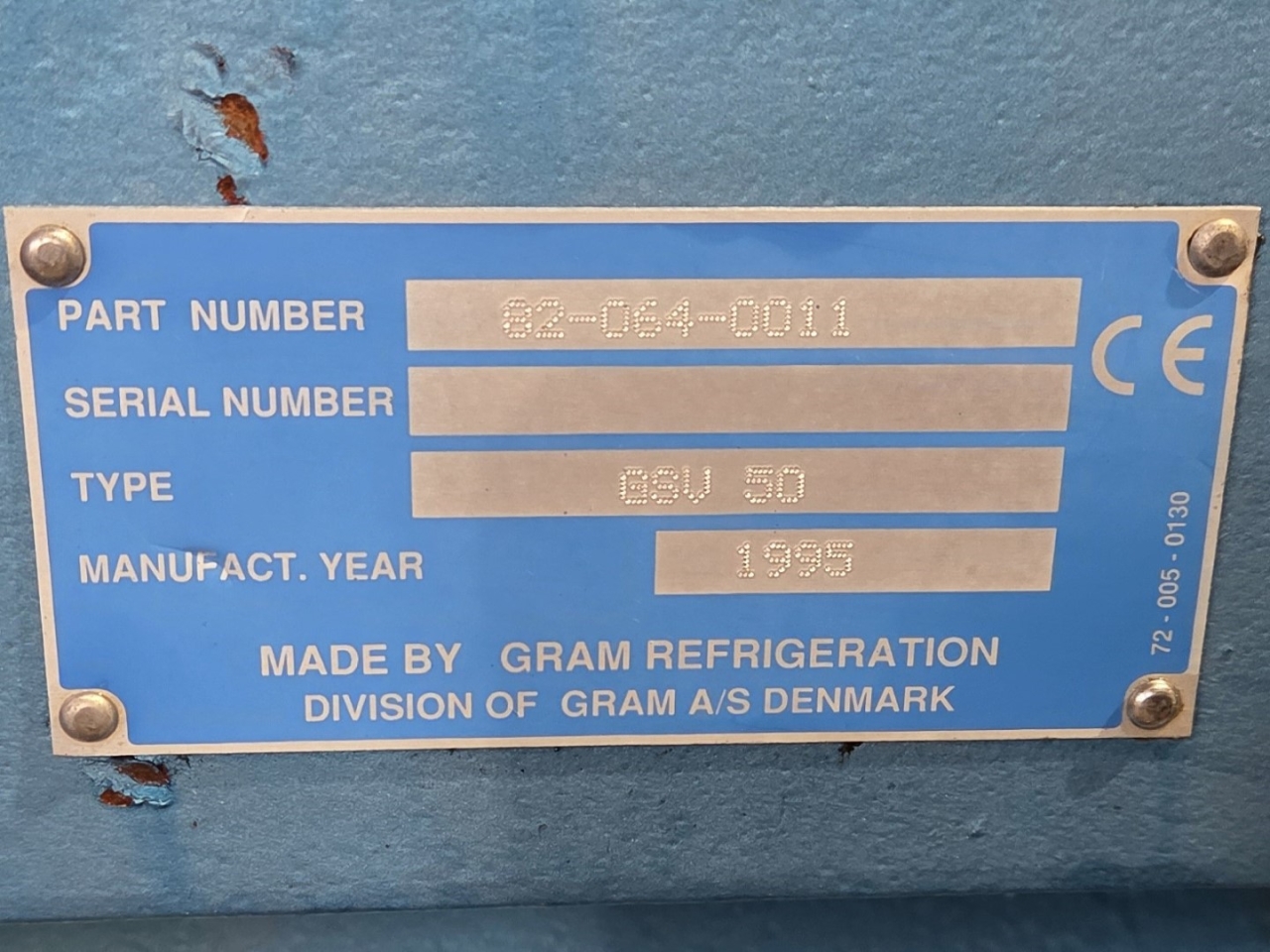

| Type | GSV 50 |
| Refrigerant | NH 3 (ammonia) |
| Refrigerant type | R717 |
| kW at -40ºC/+40ºC | 91,1* (-40ºC/+35ºC) |
| Electromotor Specs | 50 Hz - 90 kW - 2970 RPM |
| Unloaded Start |
|
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Oil separator |
|
| Liquid line filter drier |
|
| Sight Glass |
|
| m3 / h | 750 |
| Remarks | | Y.o.b. 1995 |
| Remarks || | *Capacity based on electromotor: 110 kW at 2960 RPM |
| Sizes | 3350x1400x1850 mm (LxWxH) |
| Amount in stock | 1 |
Gram GSV 50

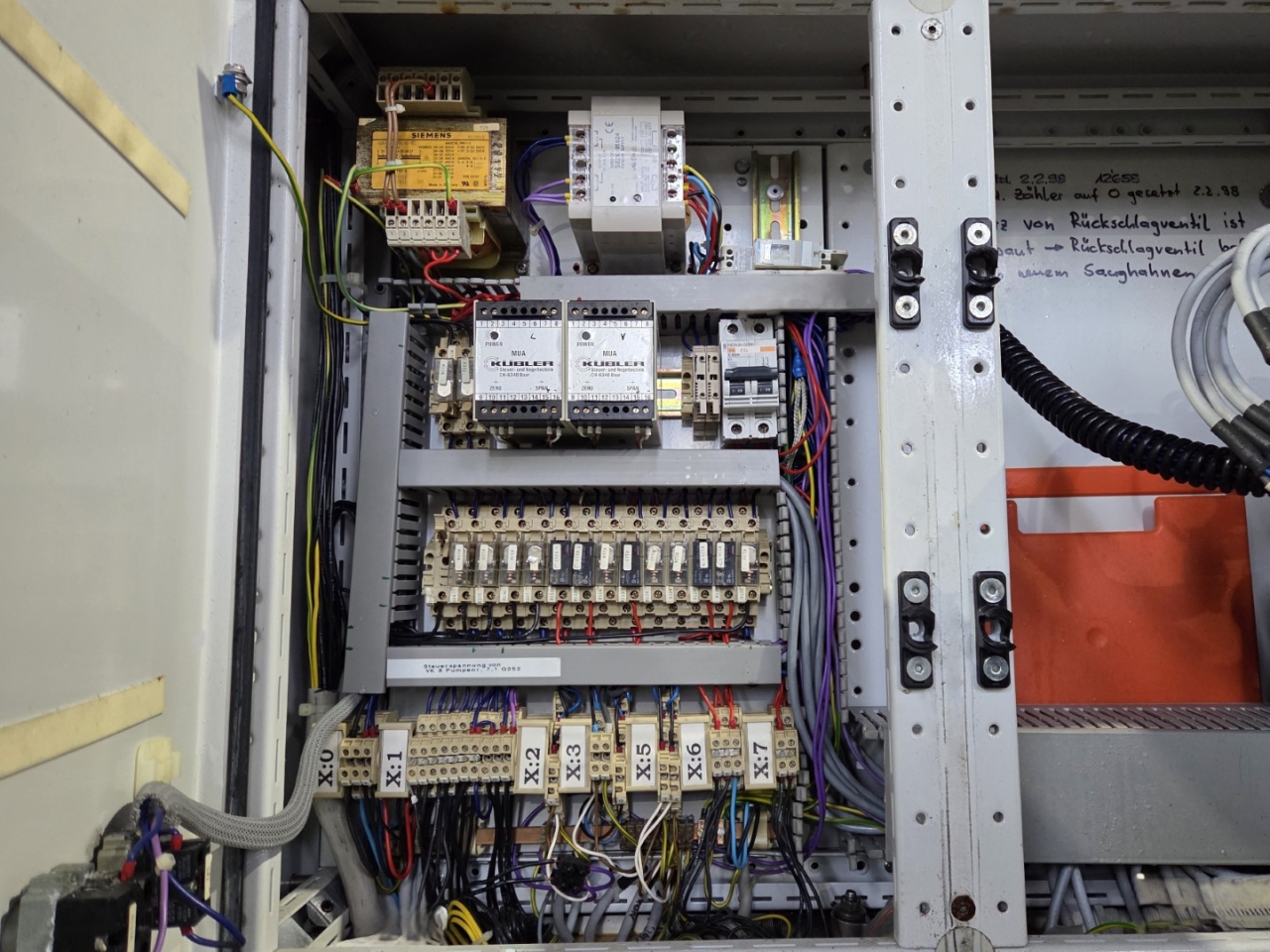

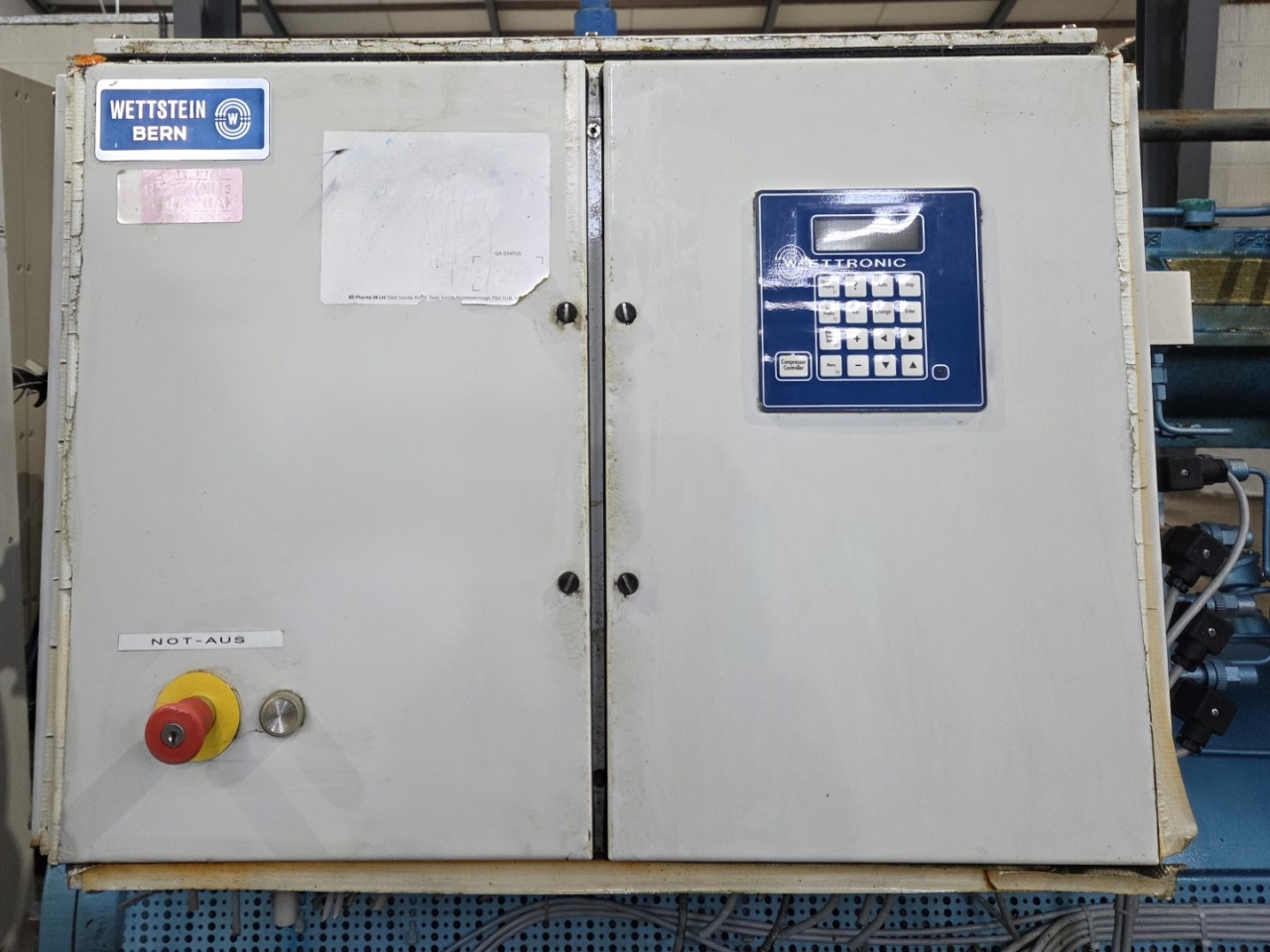

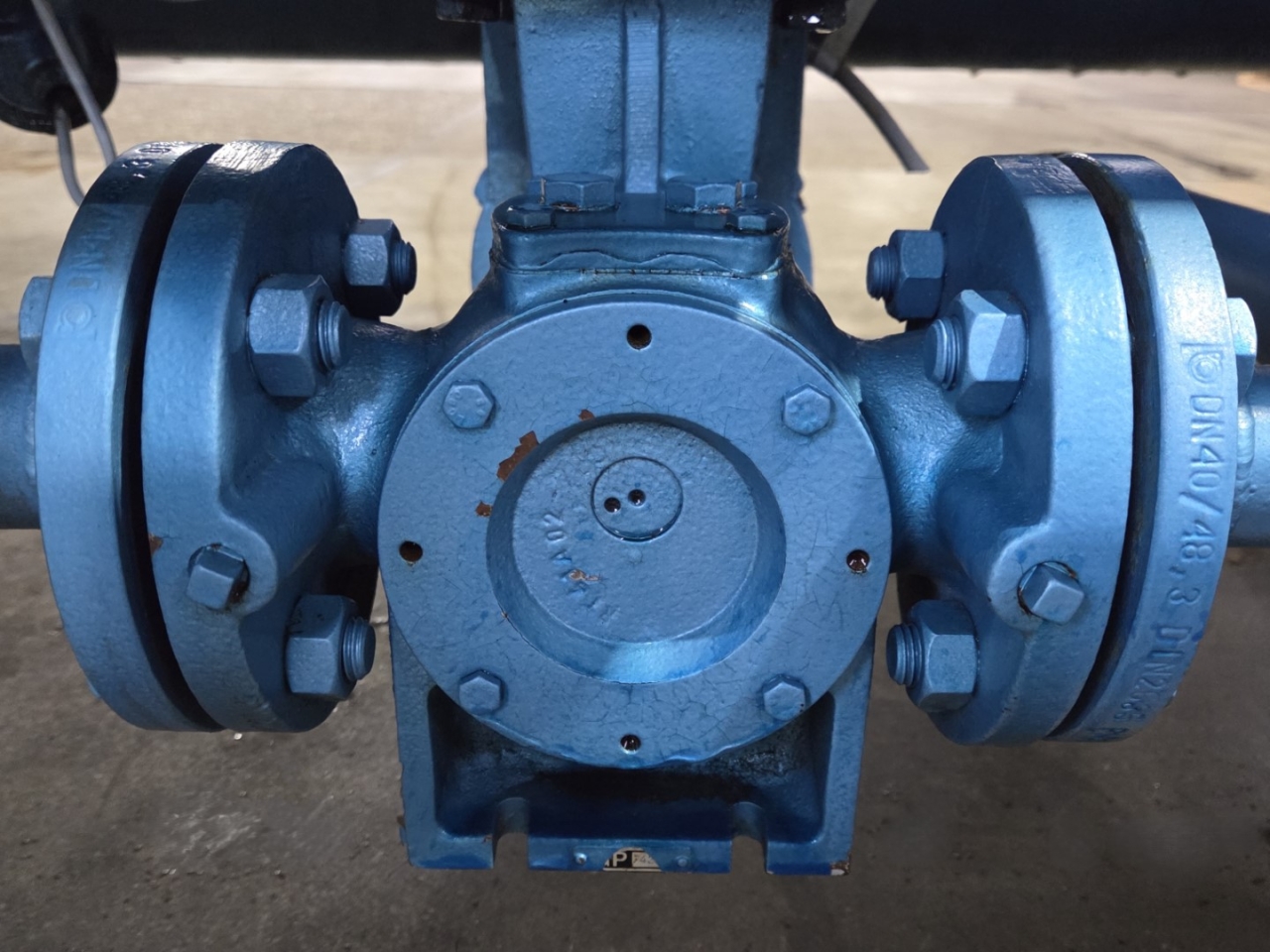

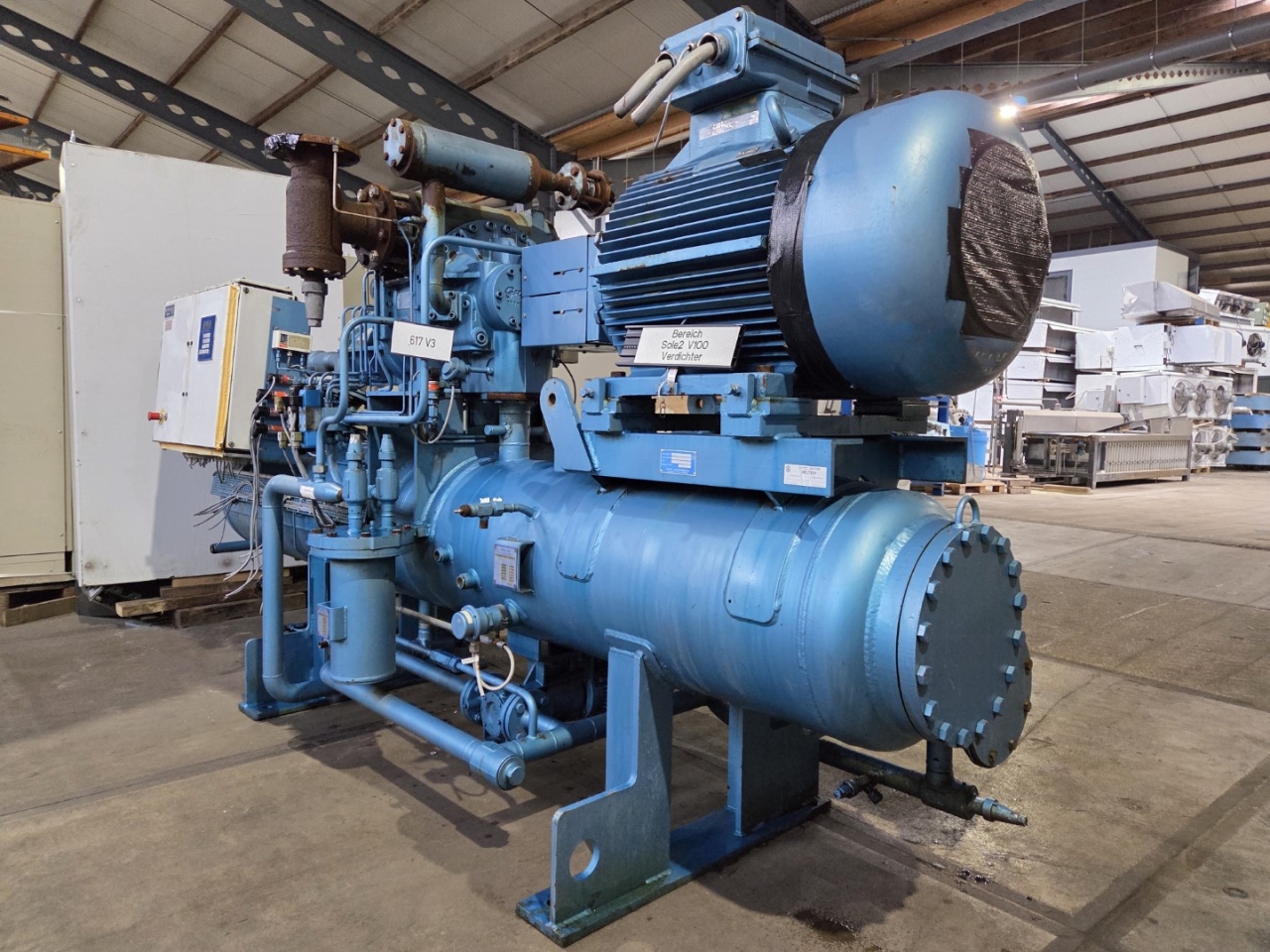

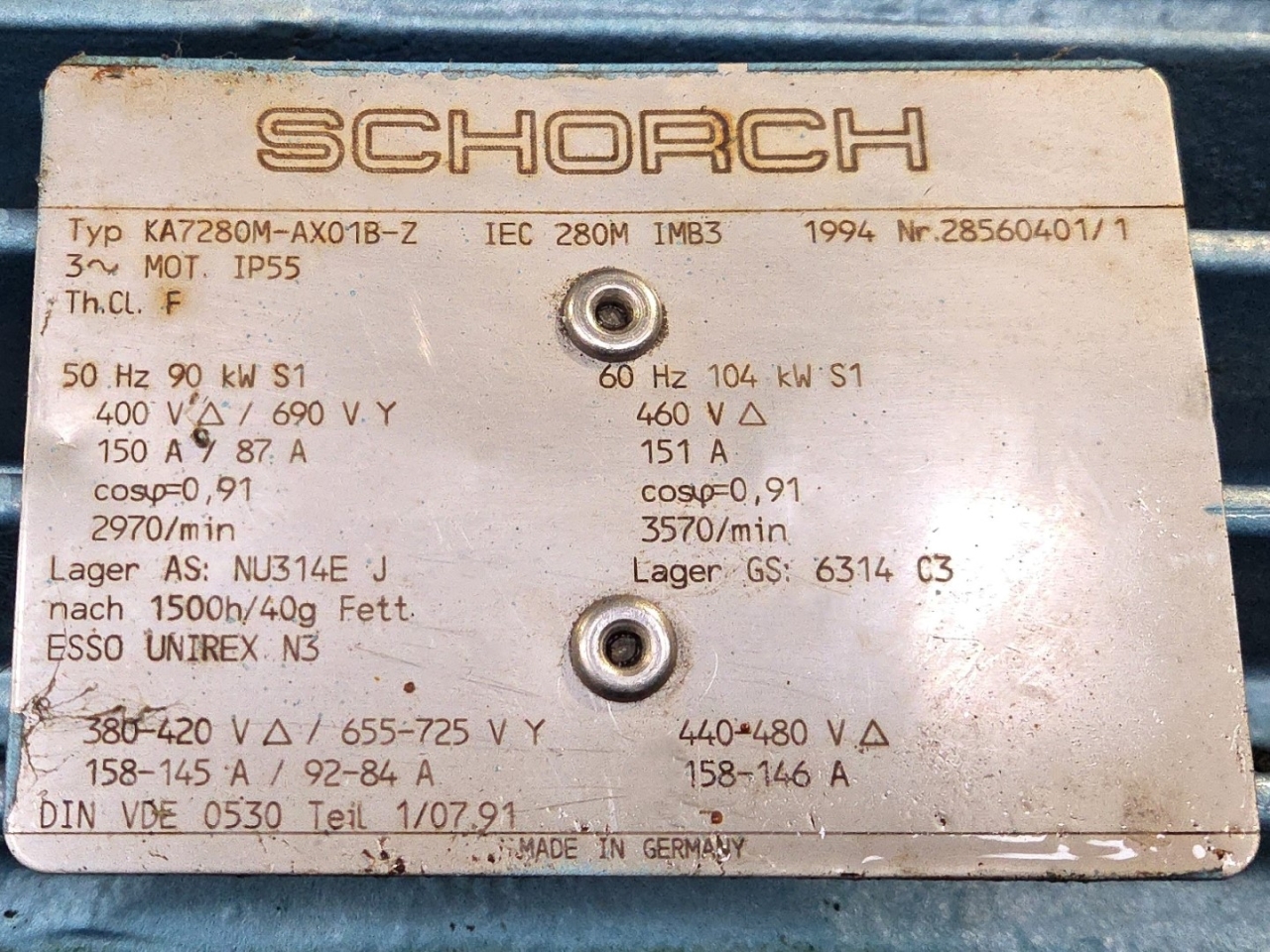

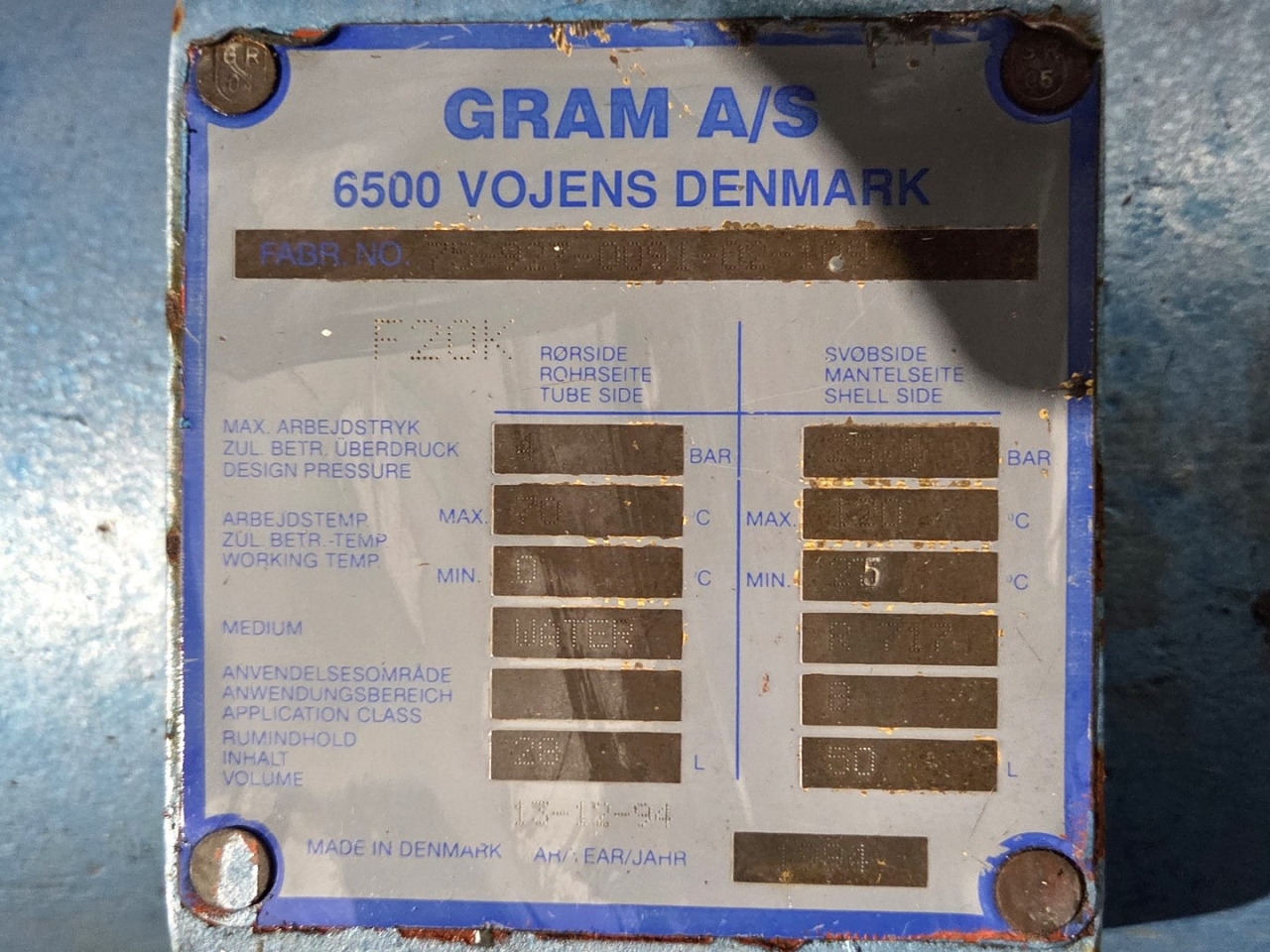

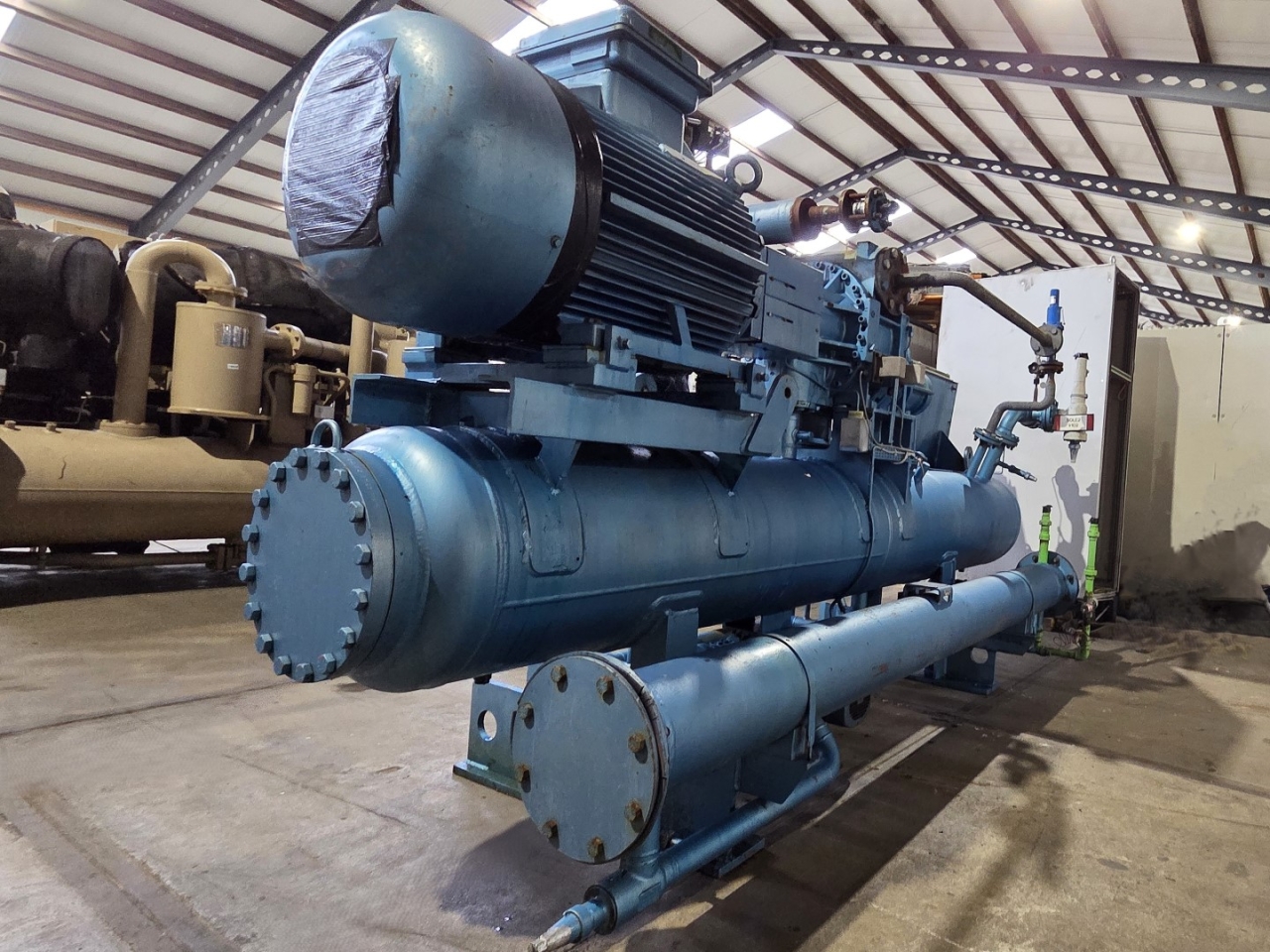

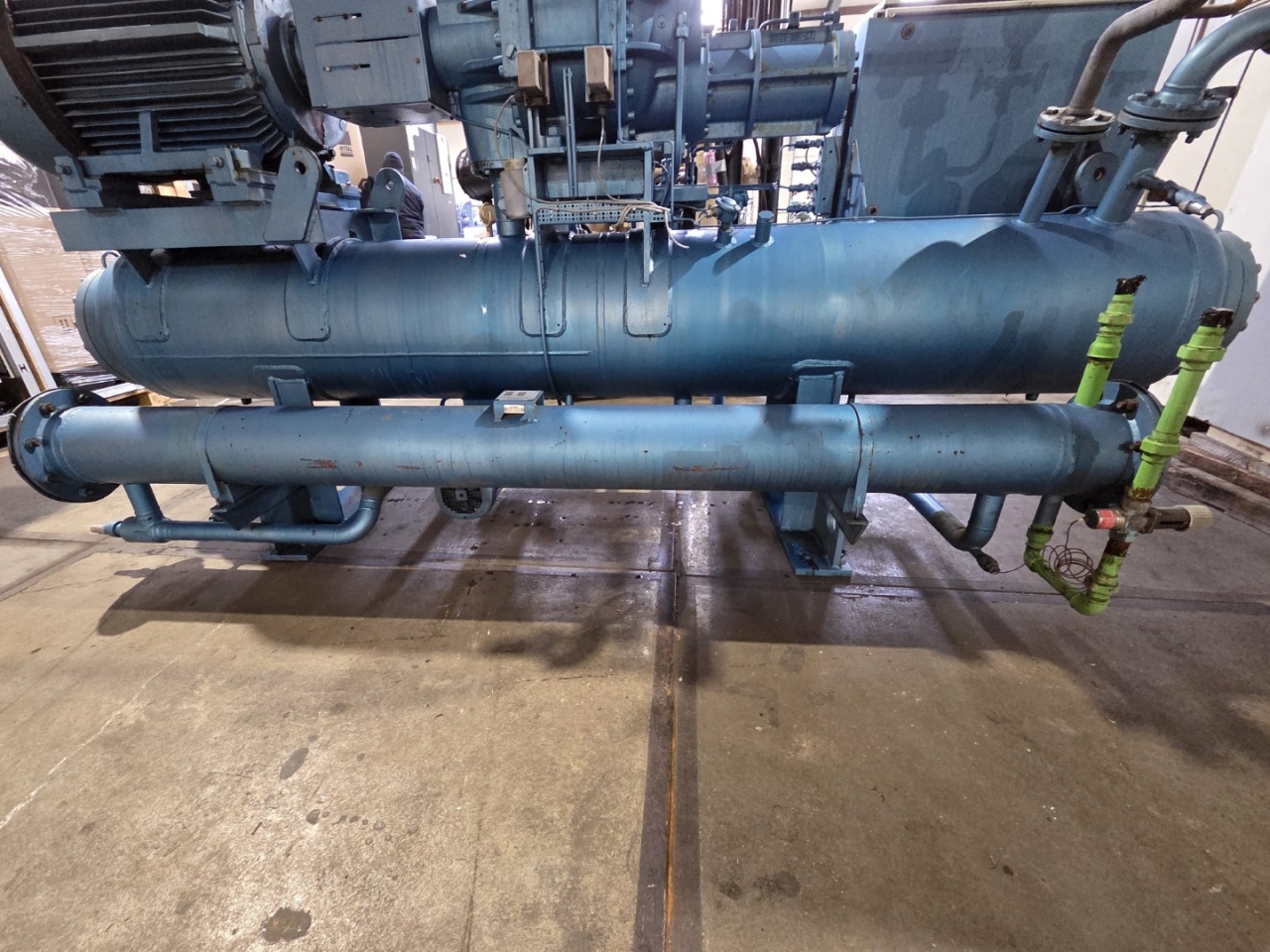

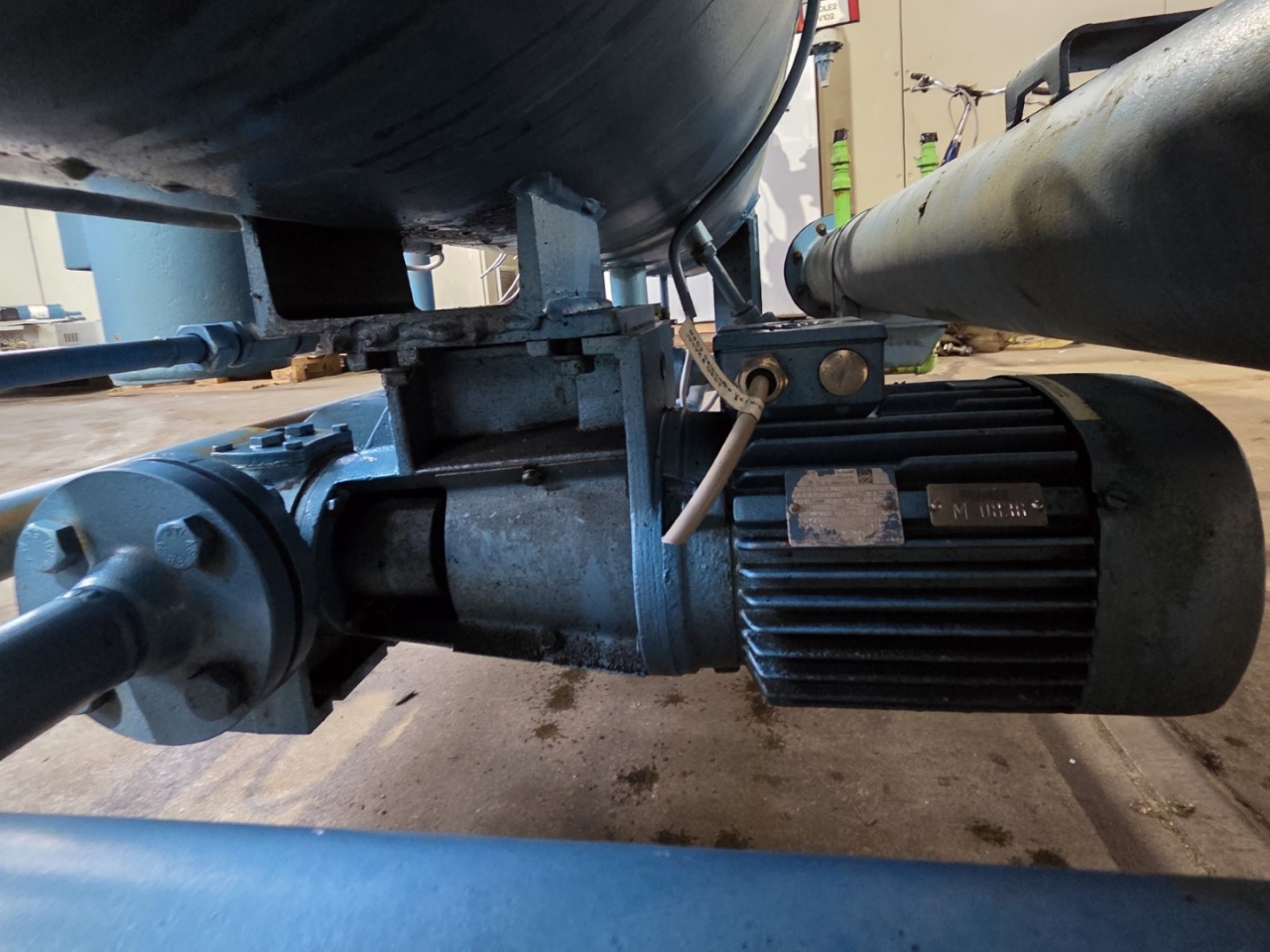

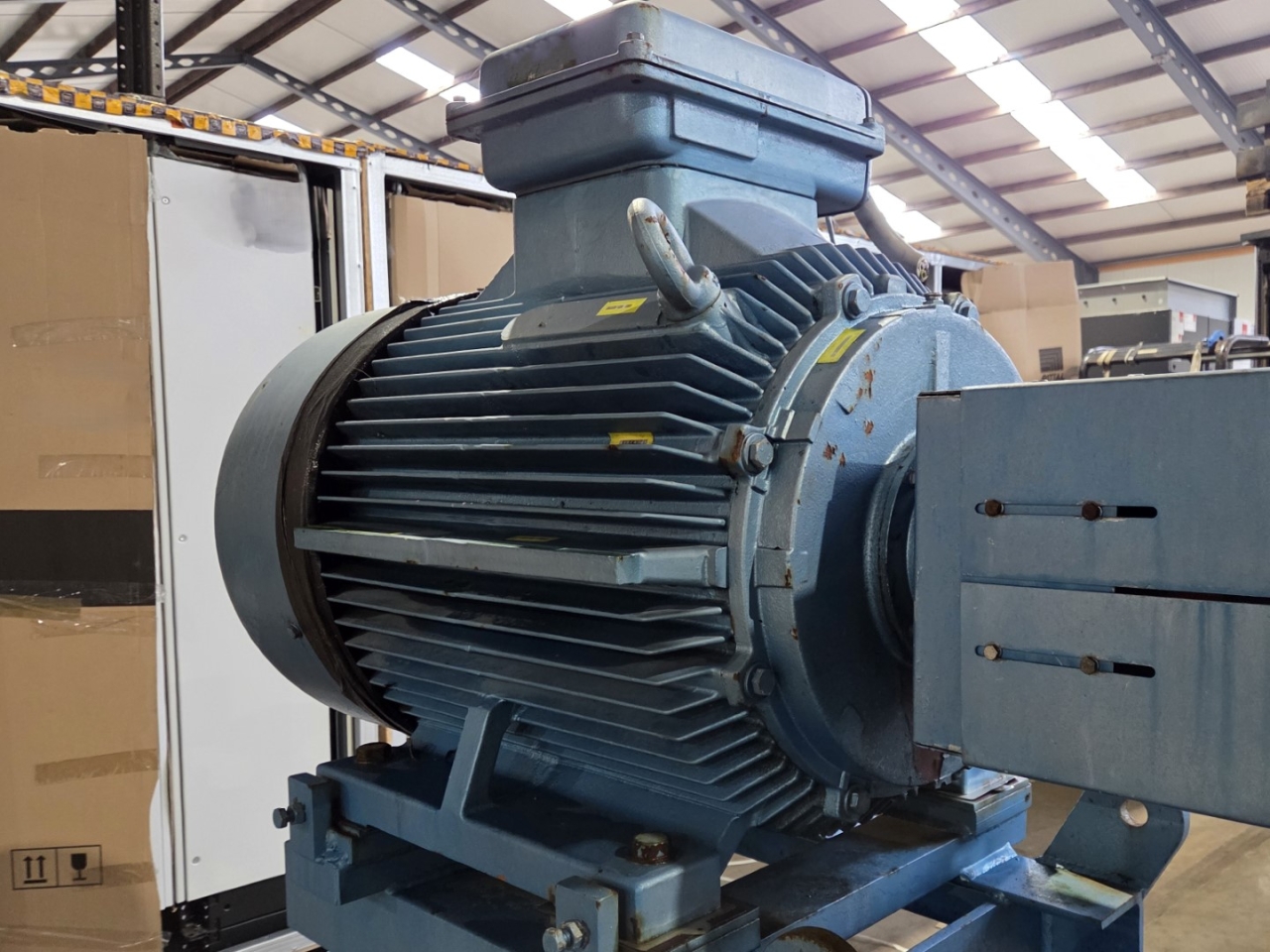

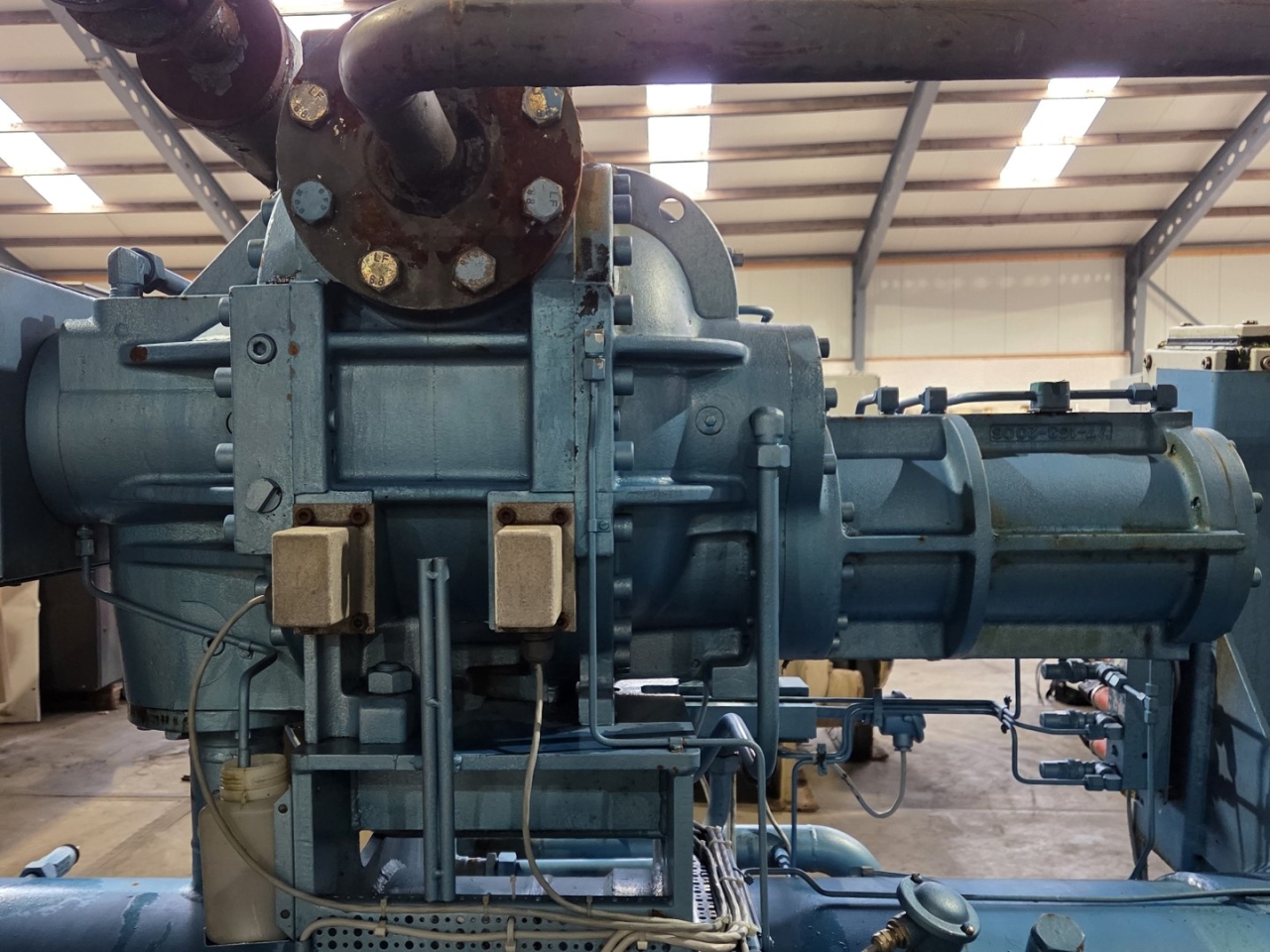

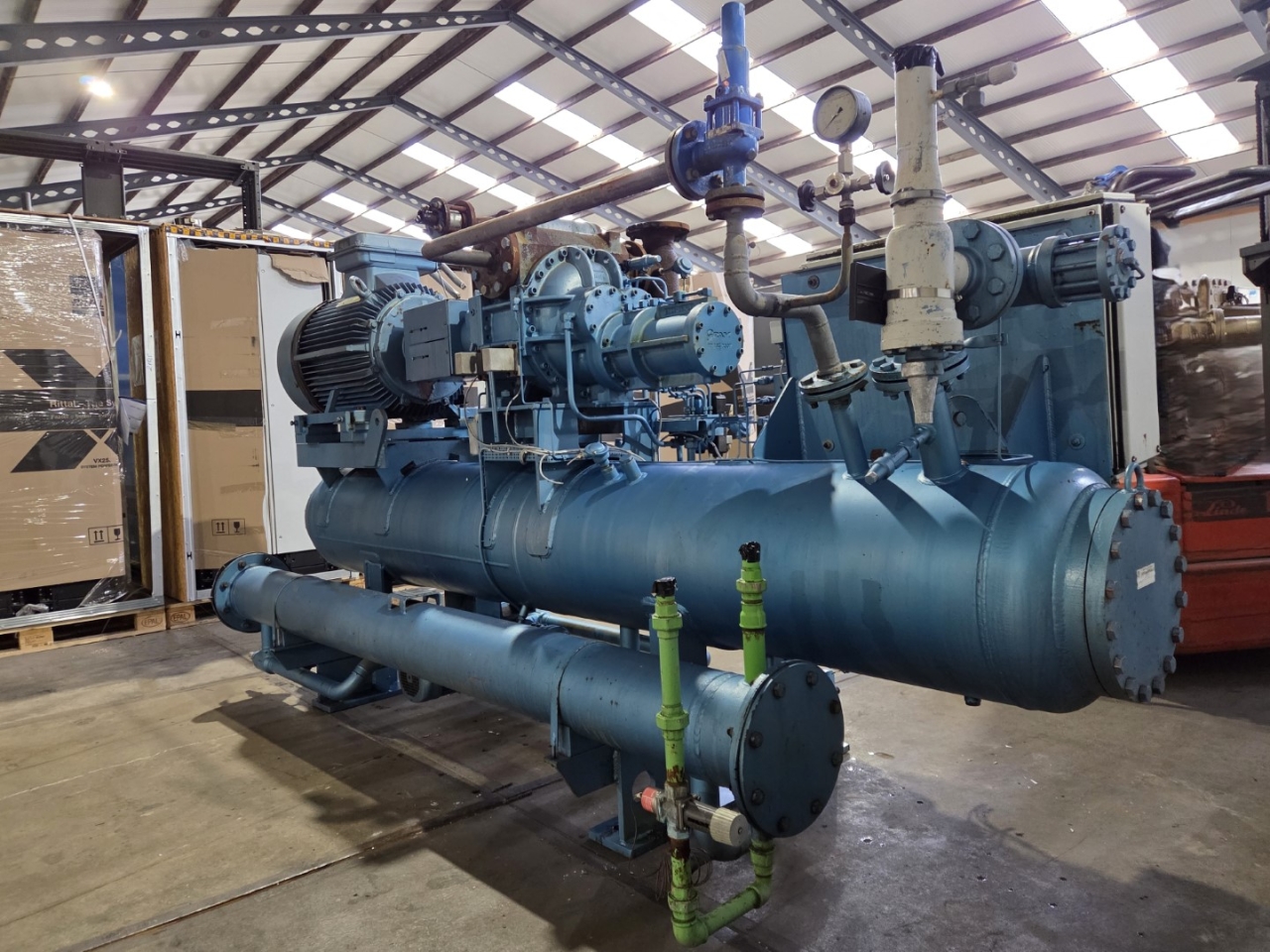

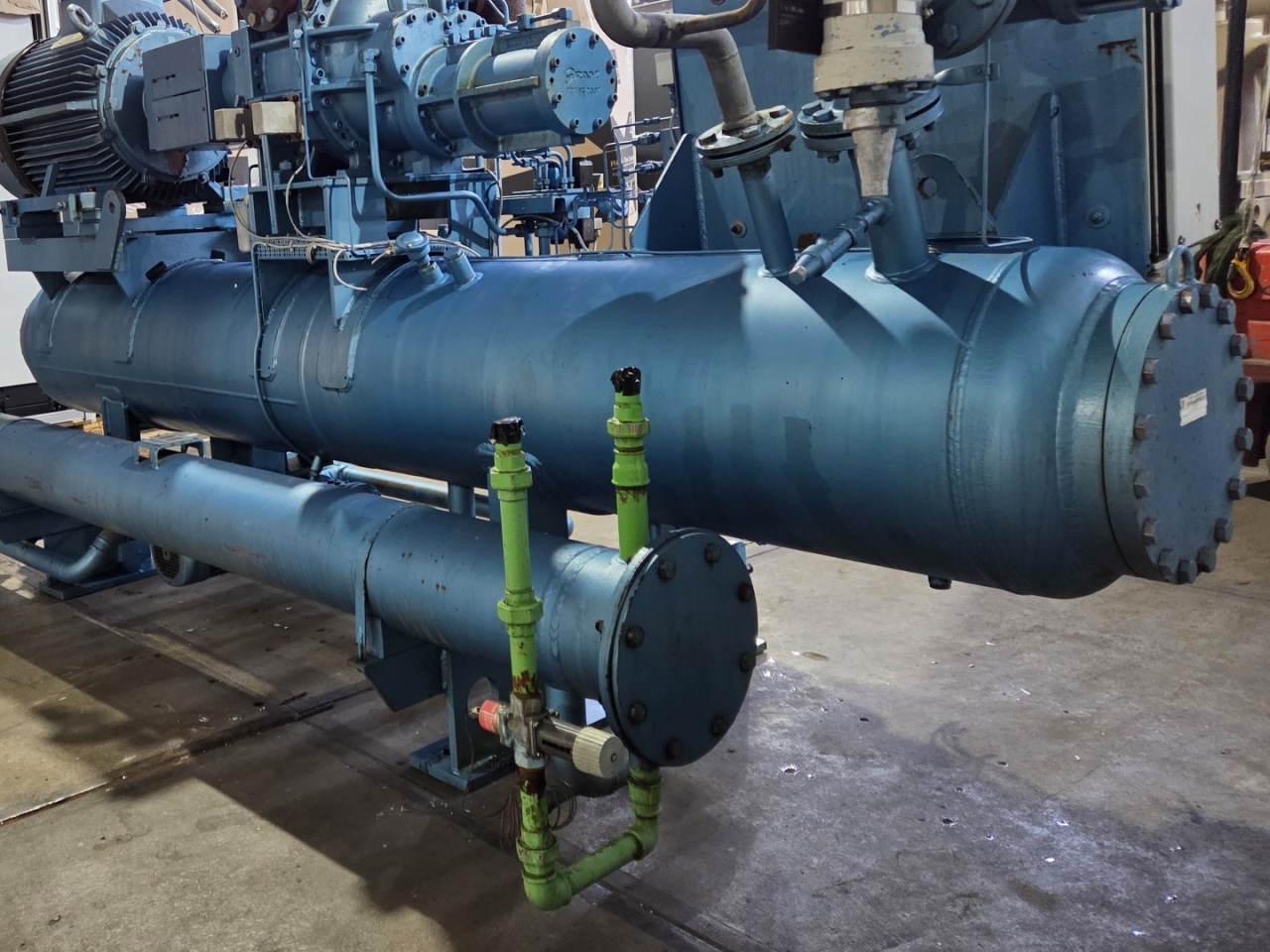

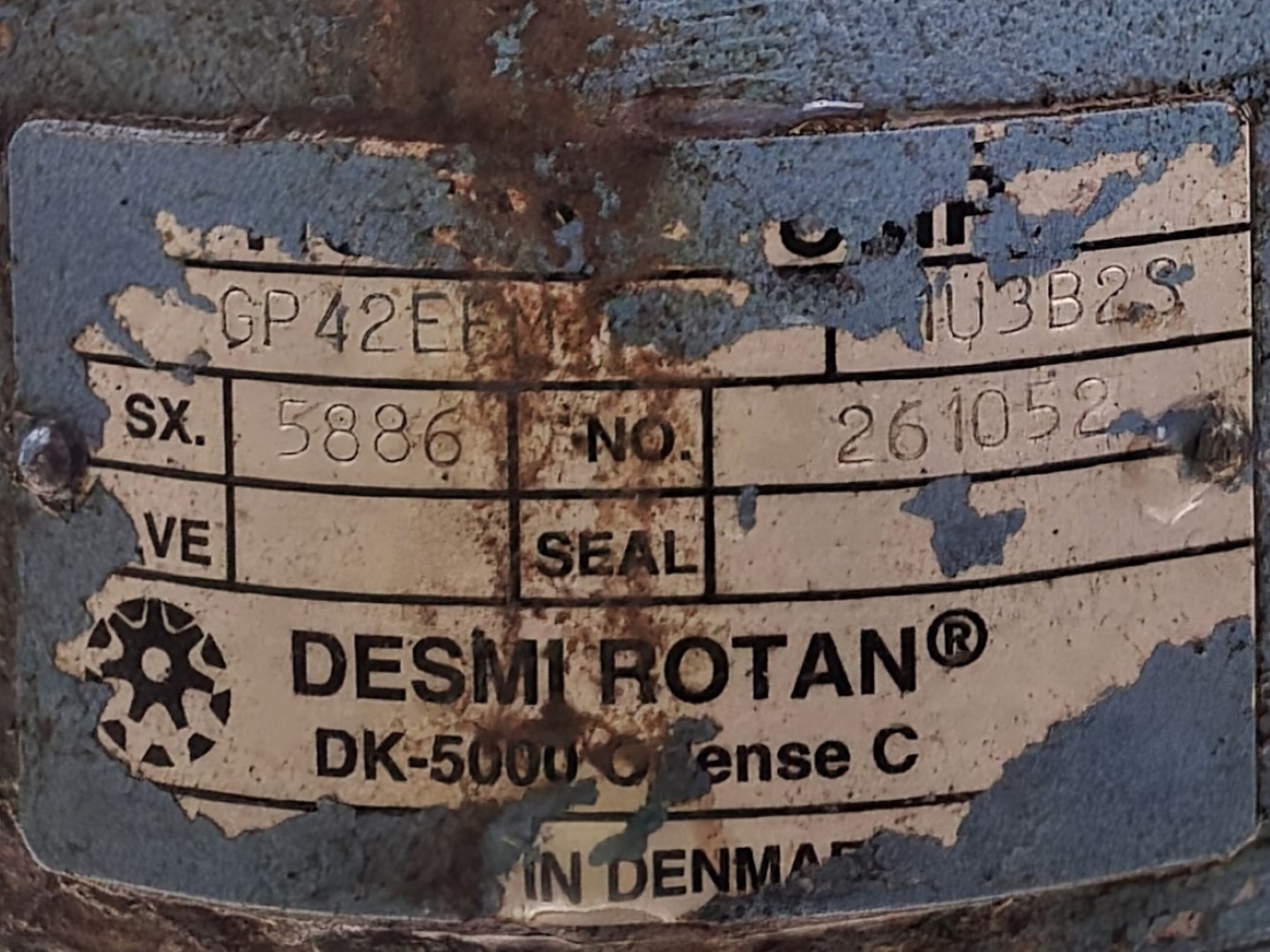

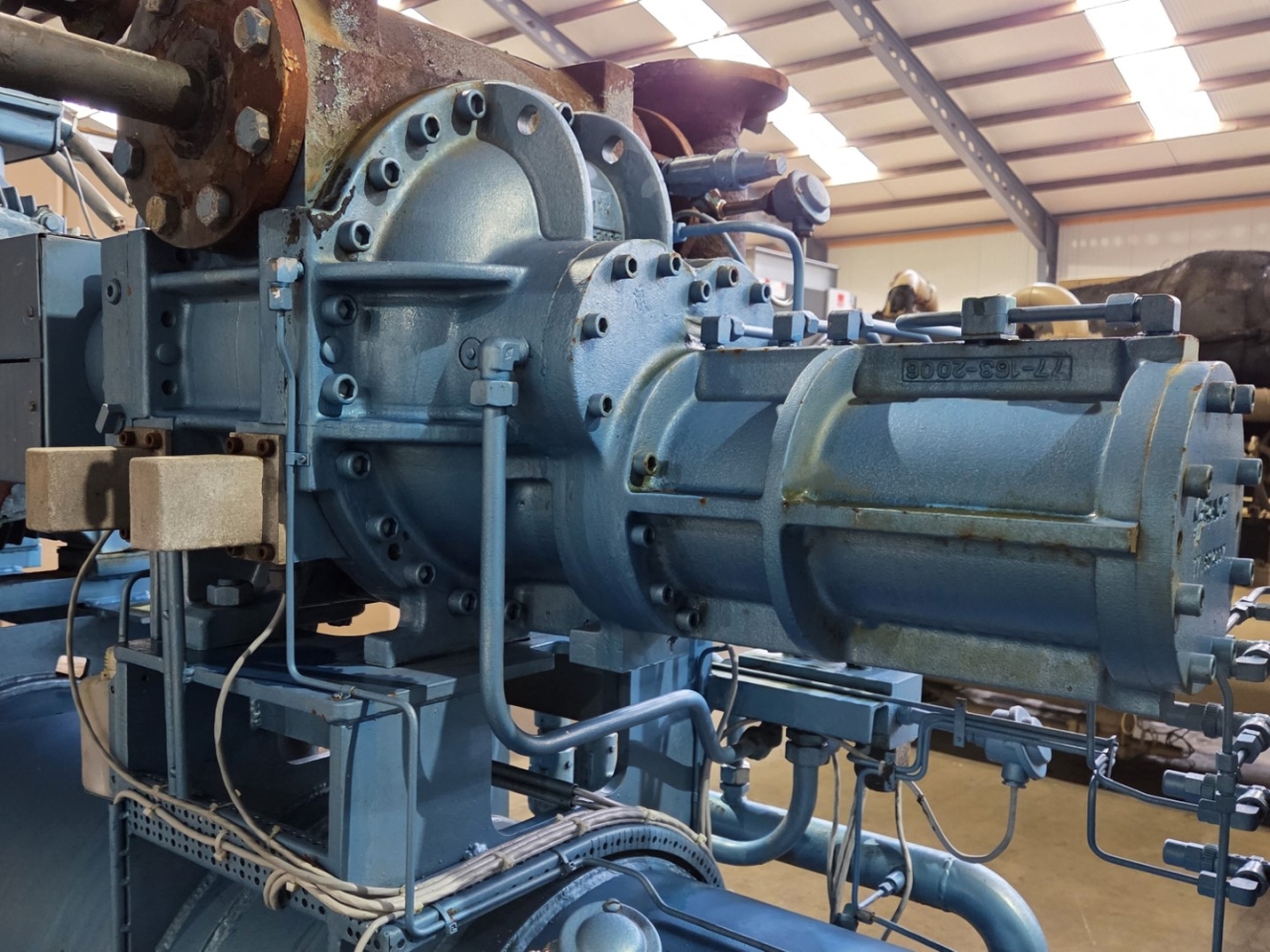

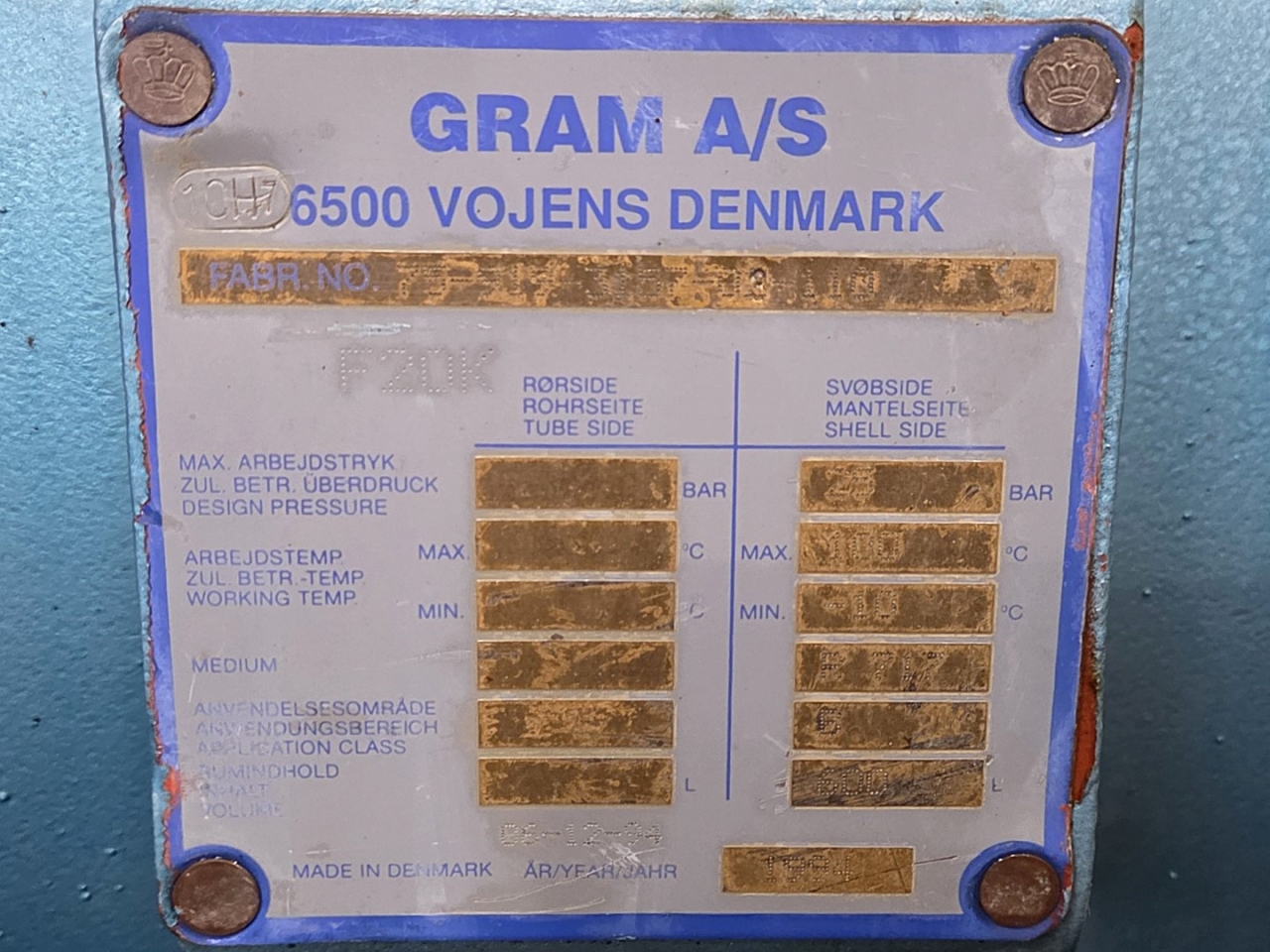

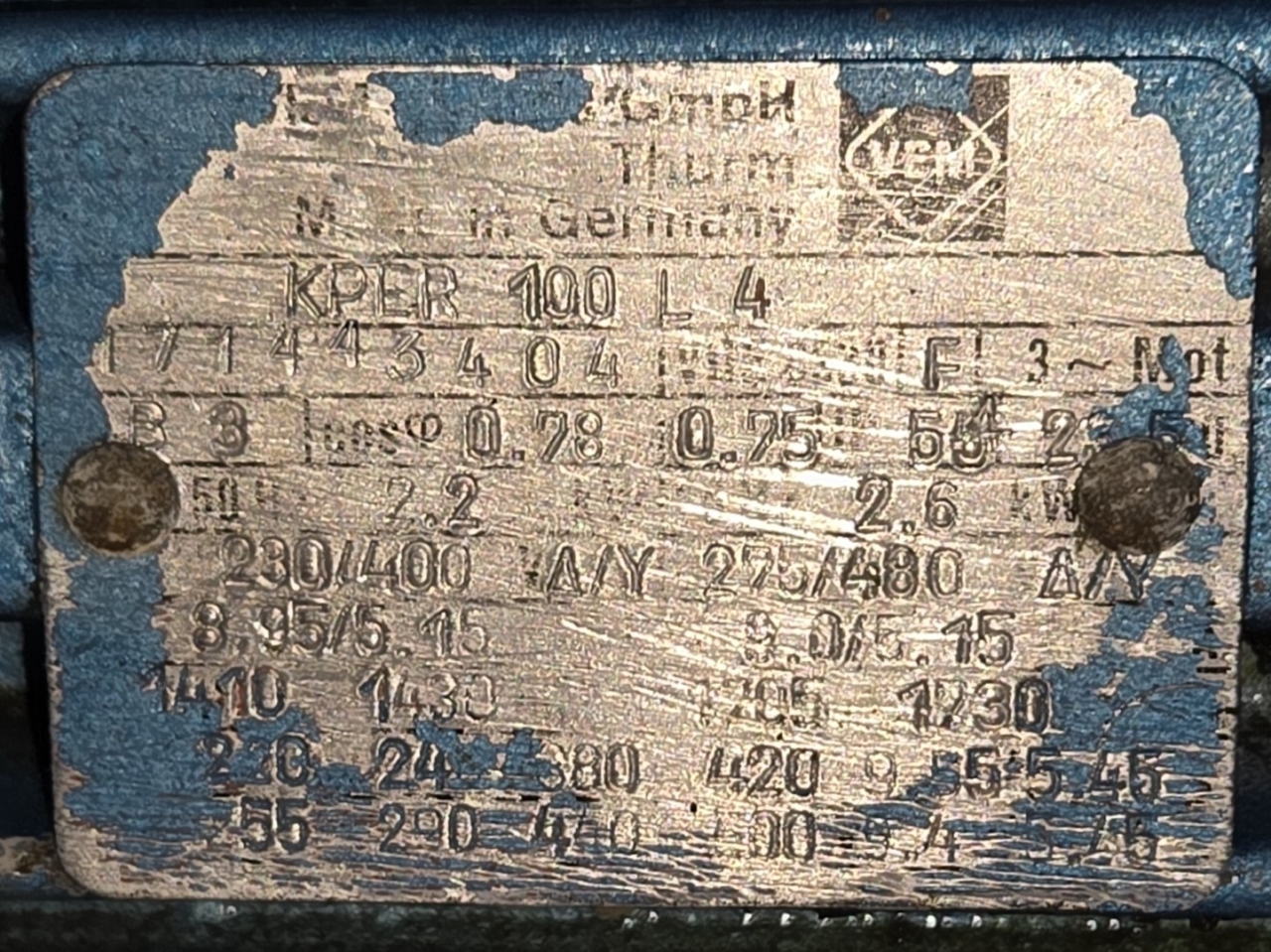

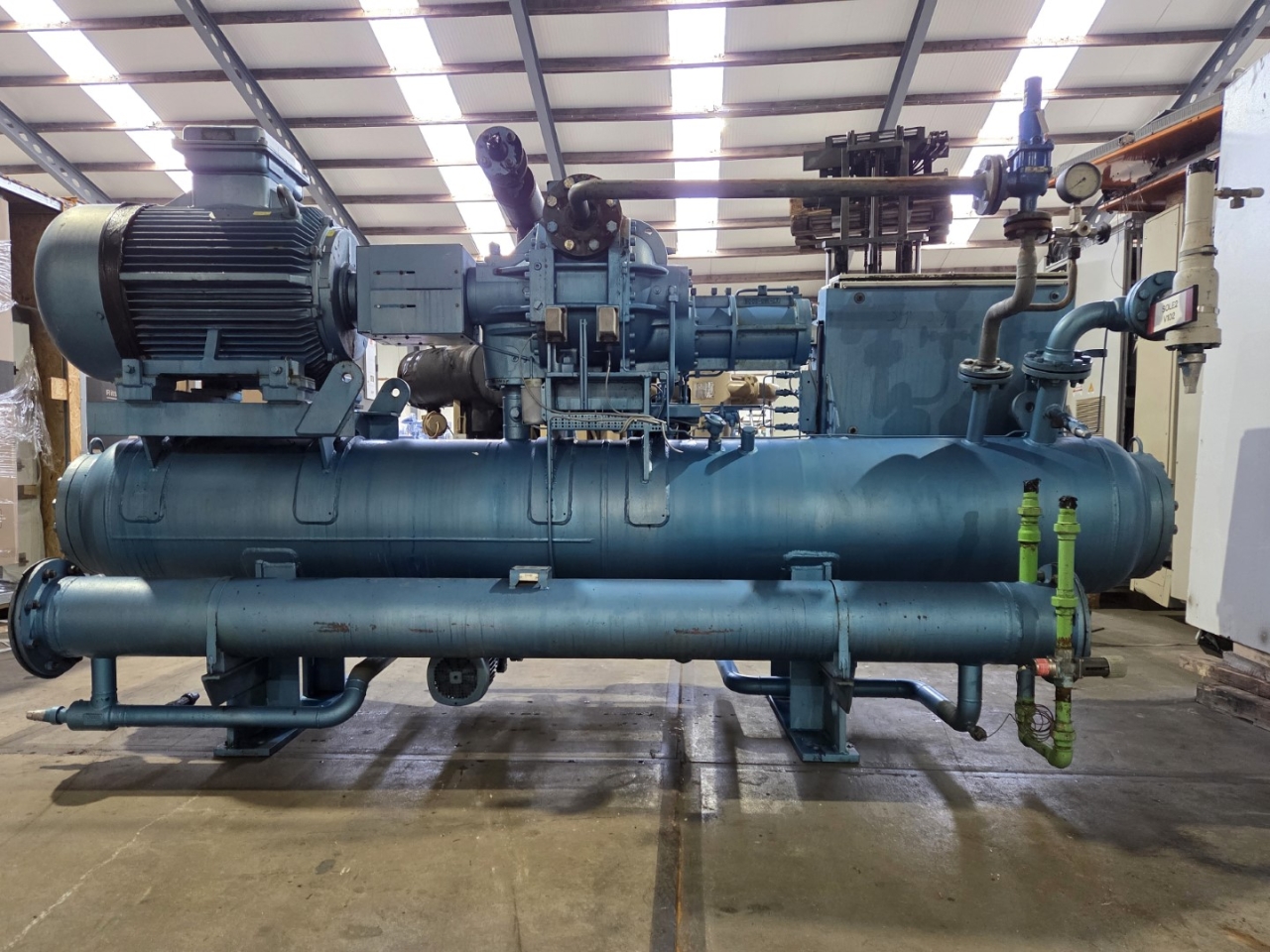

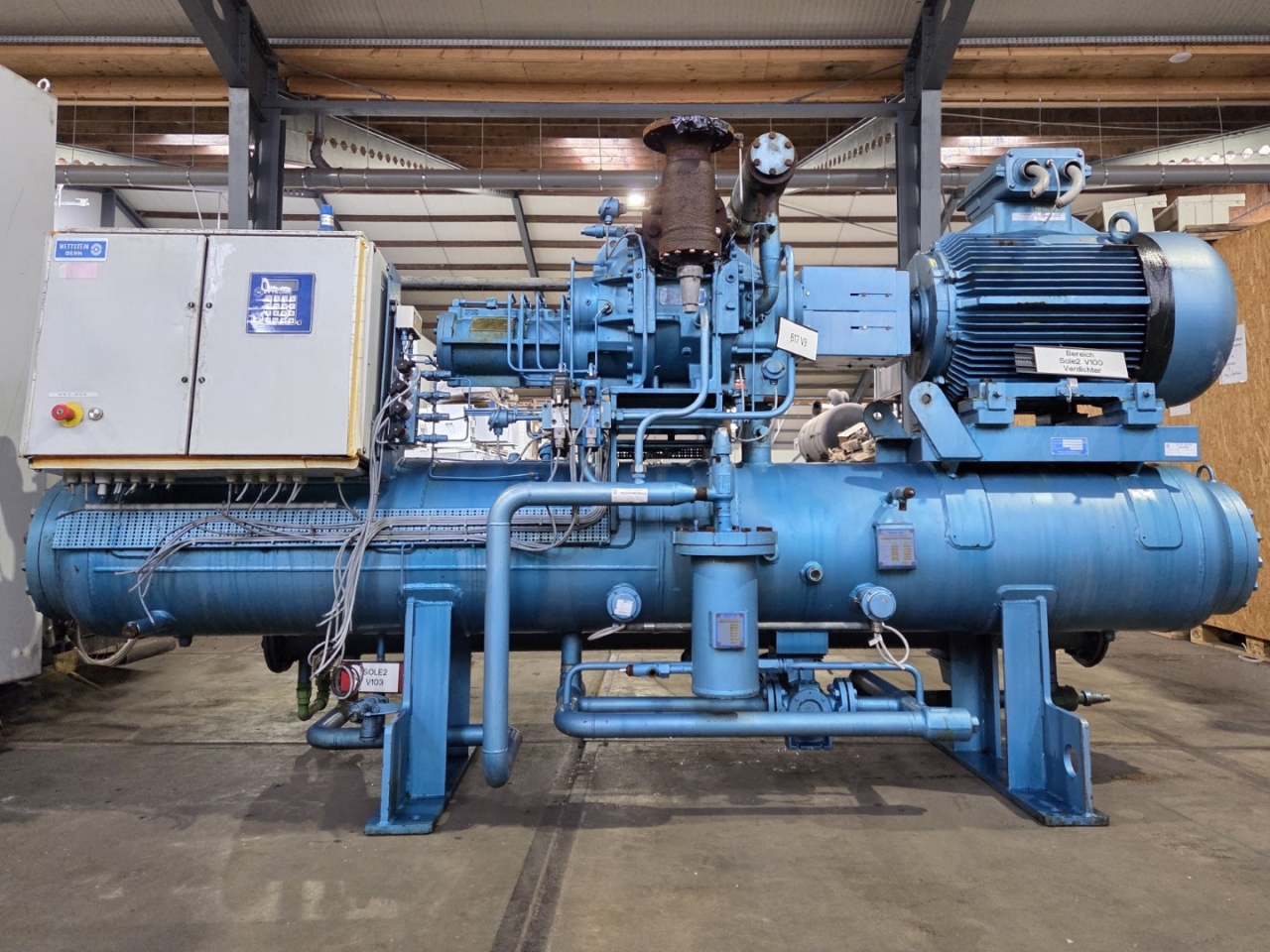

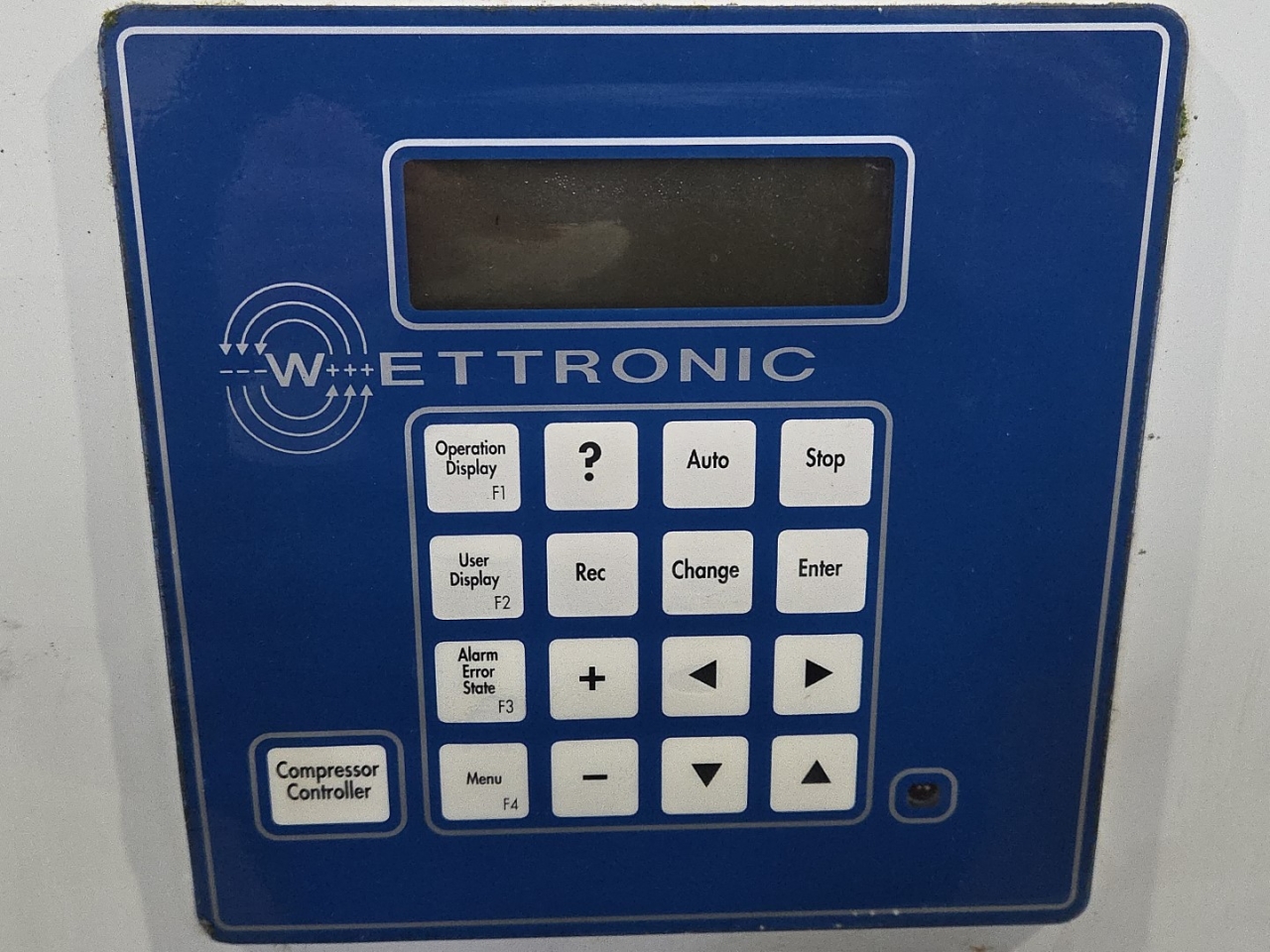

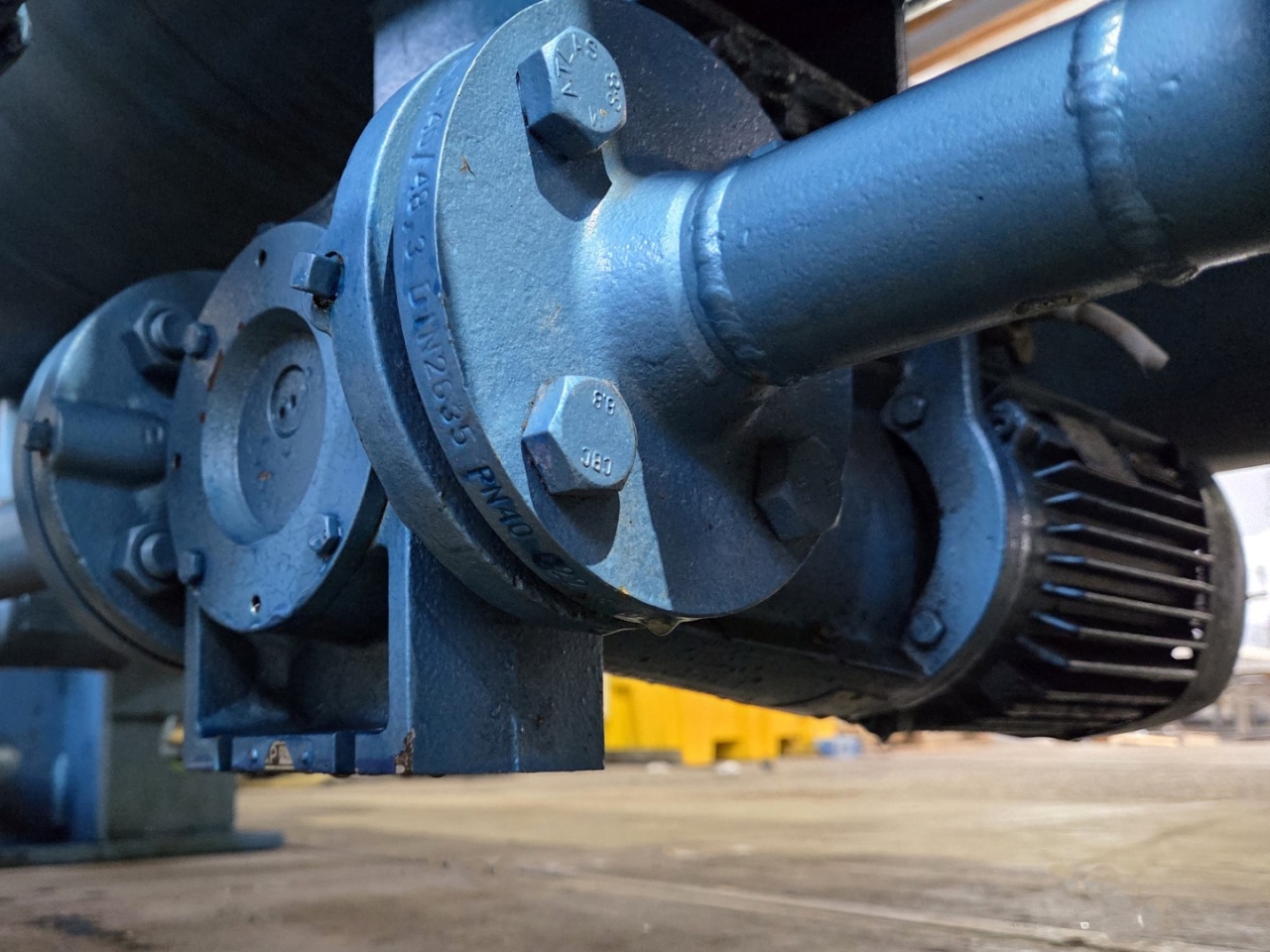

Used Gram GSV 50 compressor unit on NH3 (Ammonia). Complete with Gram GSV-50 screw compressor, Schorch KA7280M-AX01B-Z electric motor: 50/60 Hz - 90/104 kW - 2970/3570 RPM, Gram oil separator with a volume of 600 liters, Gram shell and tube oil cooler with a volume of 28 liters (water) & 50 liters (R717), Desmi Rotan CP 42EFN oil pump with Vem KPER 100 L 4 electric motor: 50/60 Hz - 1410/1430 - 1705/1730 - 2,2/2,6 kW and a control cabinet with a Wettronic controller. The compressor has a displacement of 750 m³/h.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we solely deliver our orders after performing an extensive test and an industrial cleaning. If requested we are happy to arrange your logistics.
Gram GSV 50
| Gram GSV 50 - | (PDF) |
