Bitzer CSH9563-210Y-40D
Bitzer CSH9563-210Y-40D
| 18861 | |
| Brand | Bitzer |
| Type | CSH9563-210Y-40D |
| Refrigerant | Freon |
| Refrigerant type | R134a |
| kW at +10ºC/+40ºC | 491,3* |
| kW at 0ºC/+40ºC | 331,5* |
| kW at -5ºC/+40ºC | 268,0* |
| kW at -10ºC/+40ºC | 213,7* |
| kW at -20ºC/+40ºC | 128,0* |
| Unloaded Start |
|
| Capacity Control |
|
| m3 / h | 615 |
| Remarks | | Y.o.b. 2014 |
| Remarks || | *Capacity based on Freon type R134a. |
| Weight in kg. | 1310 |
| Sizes | 1824x717x776 mm (LxWxH) |
| Amount in stock | 2 |
Bitzer CSH9563-210Y-40D

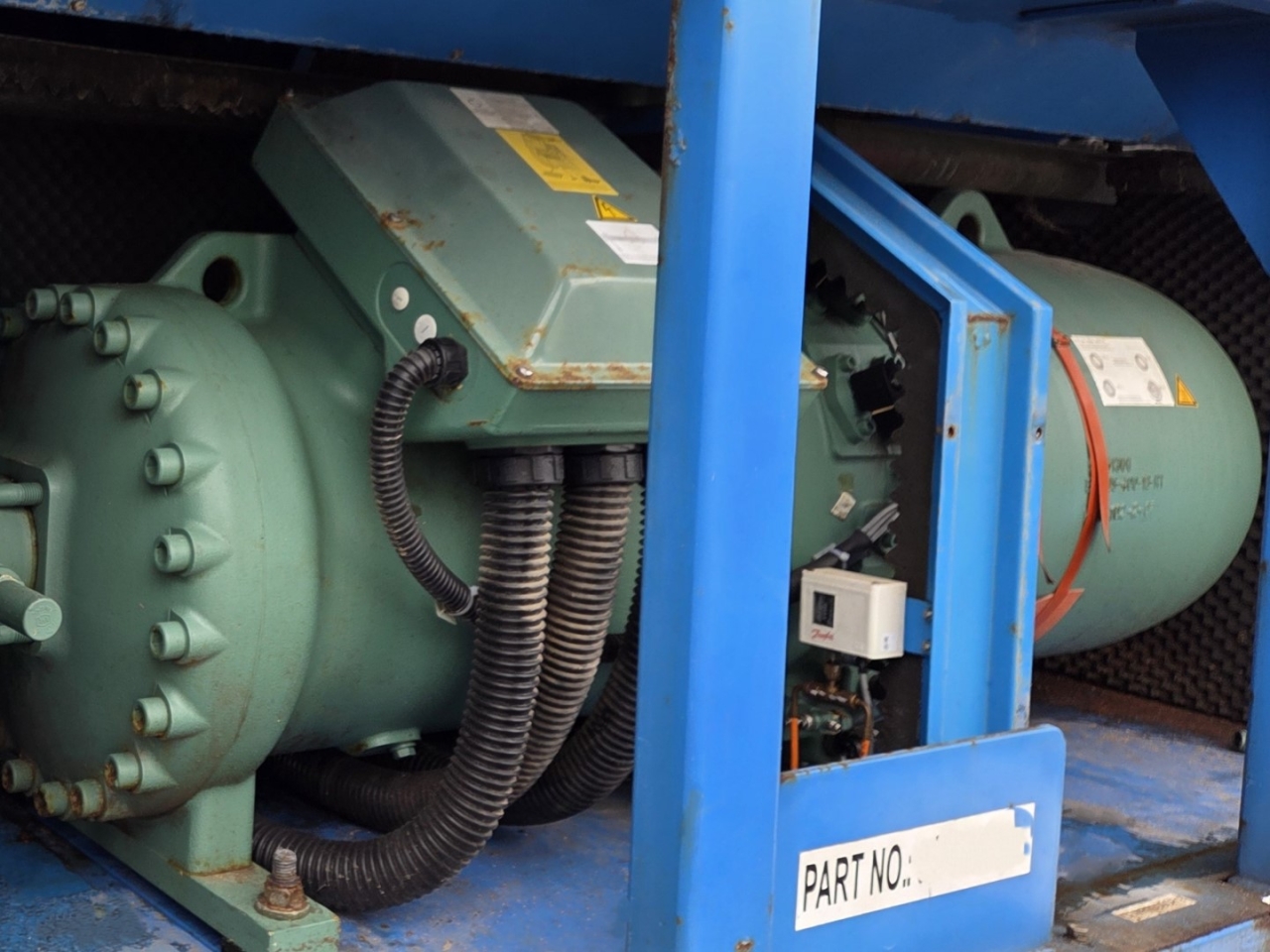

Used Bitzer CSH9563-210Y-40D compact screw compressor on Freon. The compressor has a displacement of 615 m³/h at 50 Hz and 742 m³/h at 60 Hz.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
