Sabroe SMC108L-HP
Sabroe SMC108L-HP
| 18877 | |
| Brand | Sabroe |
| Type | SMC108L-HP |
| Refrigerant | NH 3 (ammonia) |
| Refrigerant type | R717 |
| kW at +10ºC/+40ºC | 722,4 |
| kW at 0ºC/+40ºC | 477,8 |
| kW at -5ºC/+40ºC | 297,1 |
| Electromotor Specs | 50 Hz - 110 kW - 1475 RPM |
| Unloaded Start |
|
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Oil separator |
|
| Liquid line filter drier |
|
| Sight Glass |
|
| m3 / h | 551,0 |
| Remarks | | Y.o.b. 1995 |
| Sizes | 2250x1100x1650 mm (LxWxH) |
| Amount in stock | 1 |
Sabroe SMC108L-HP

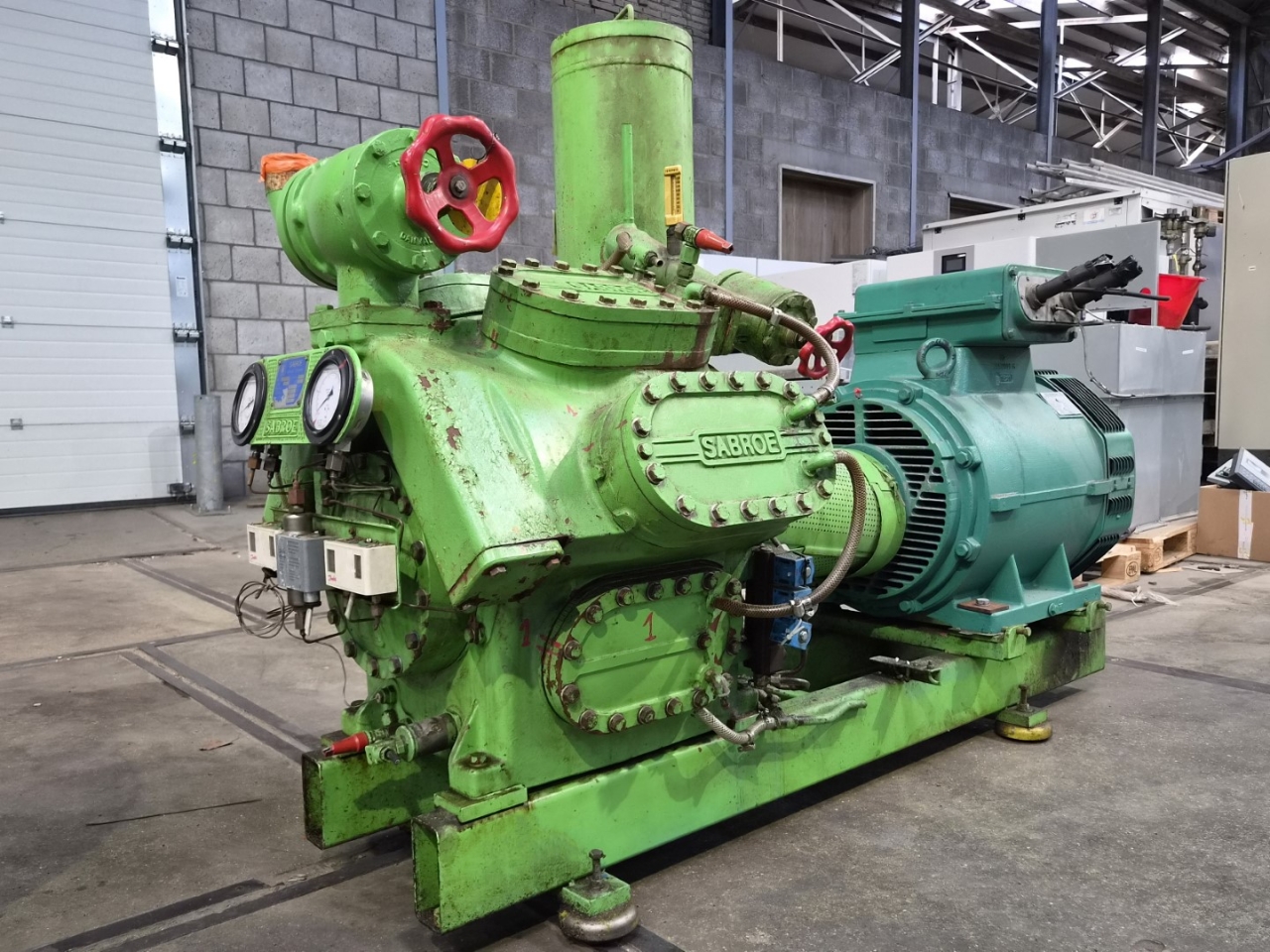

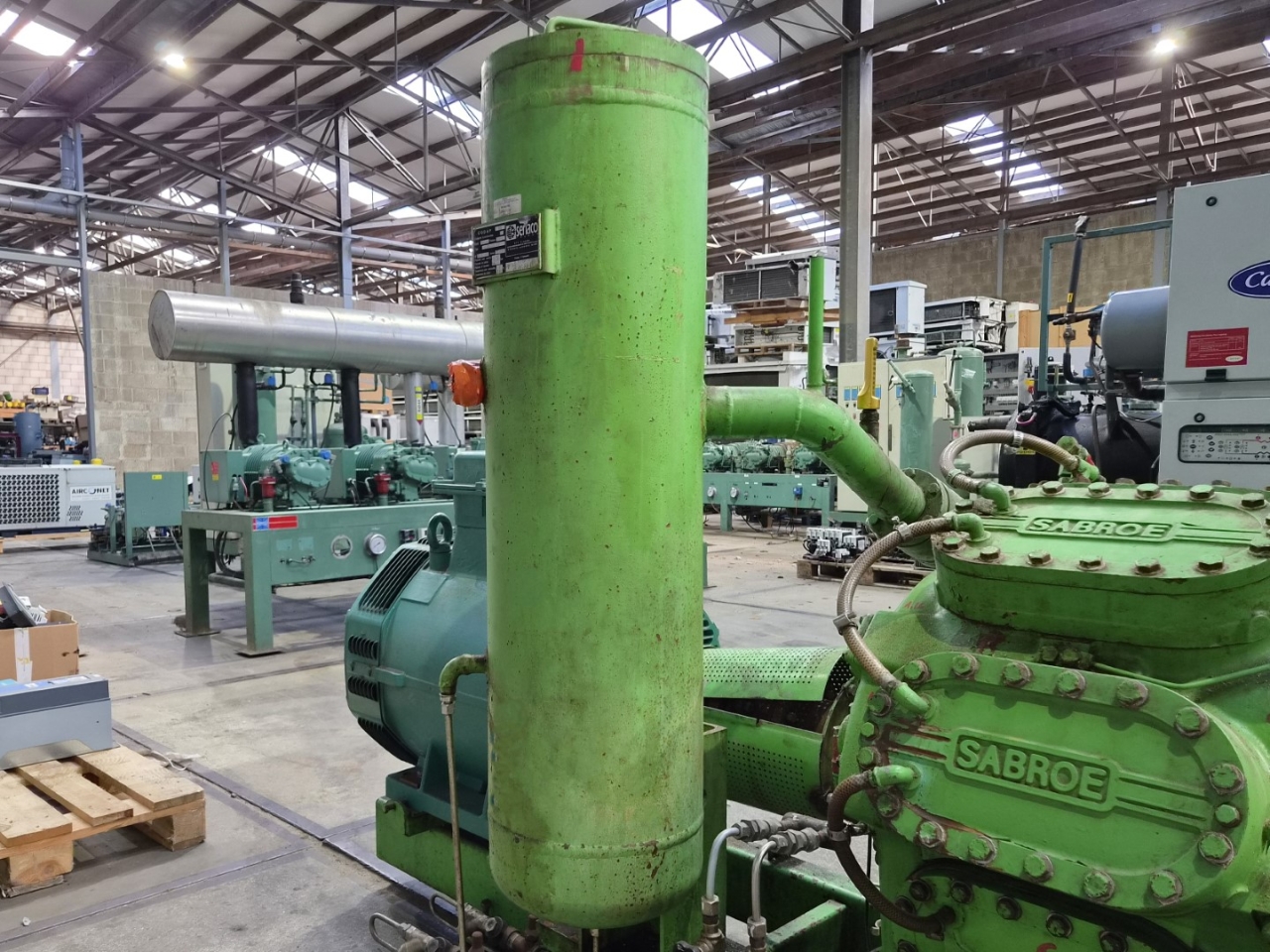

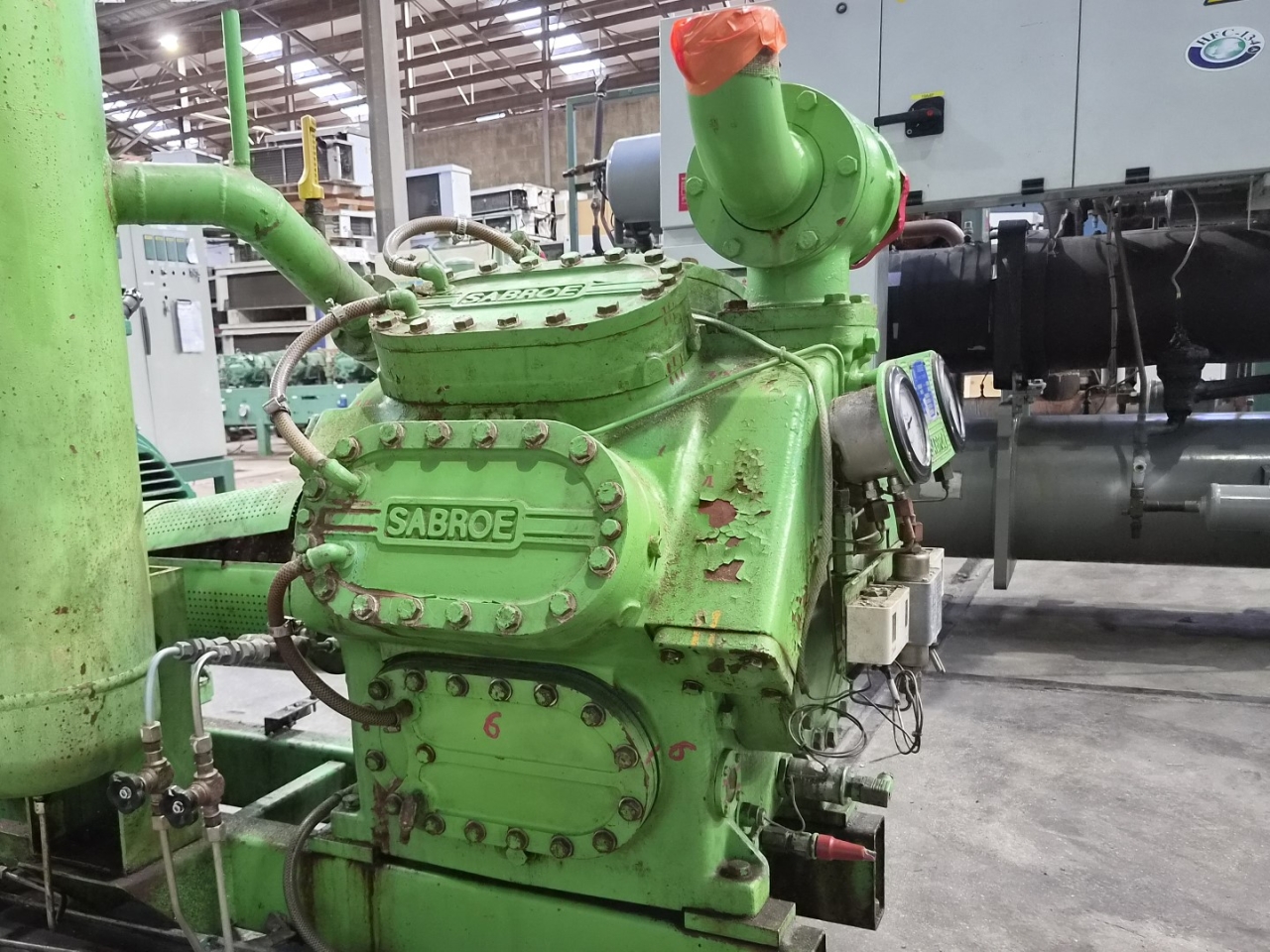

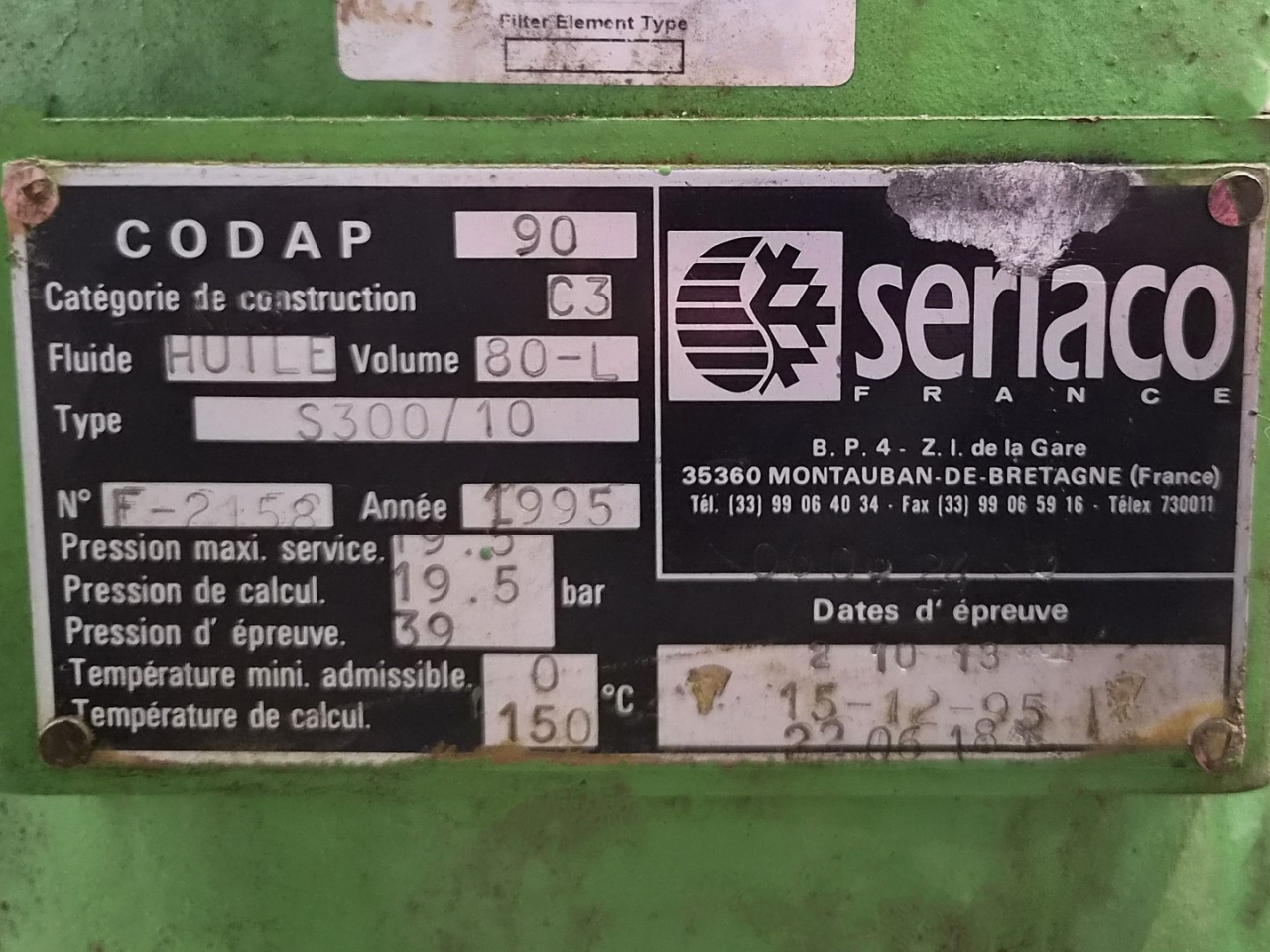

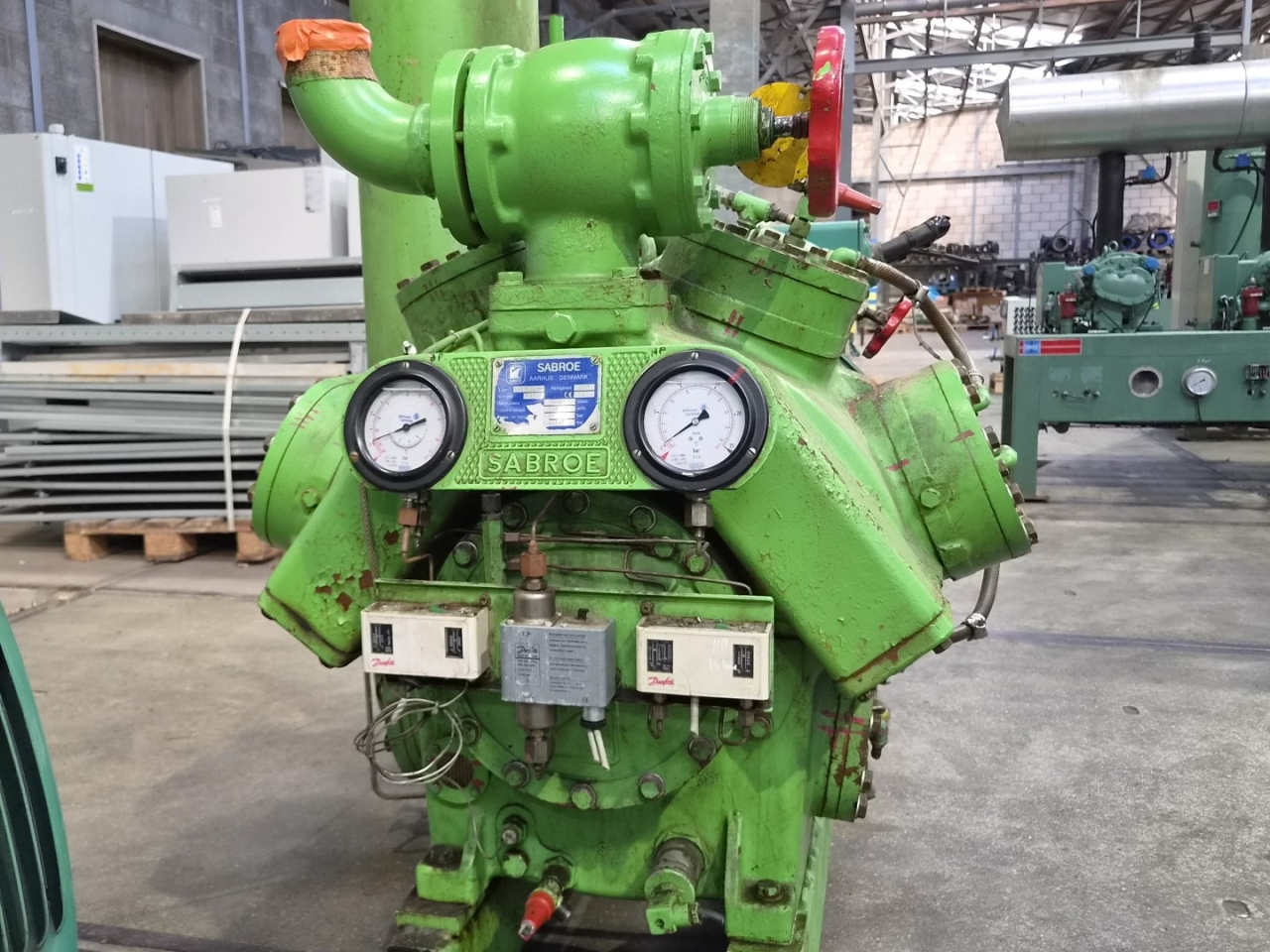

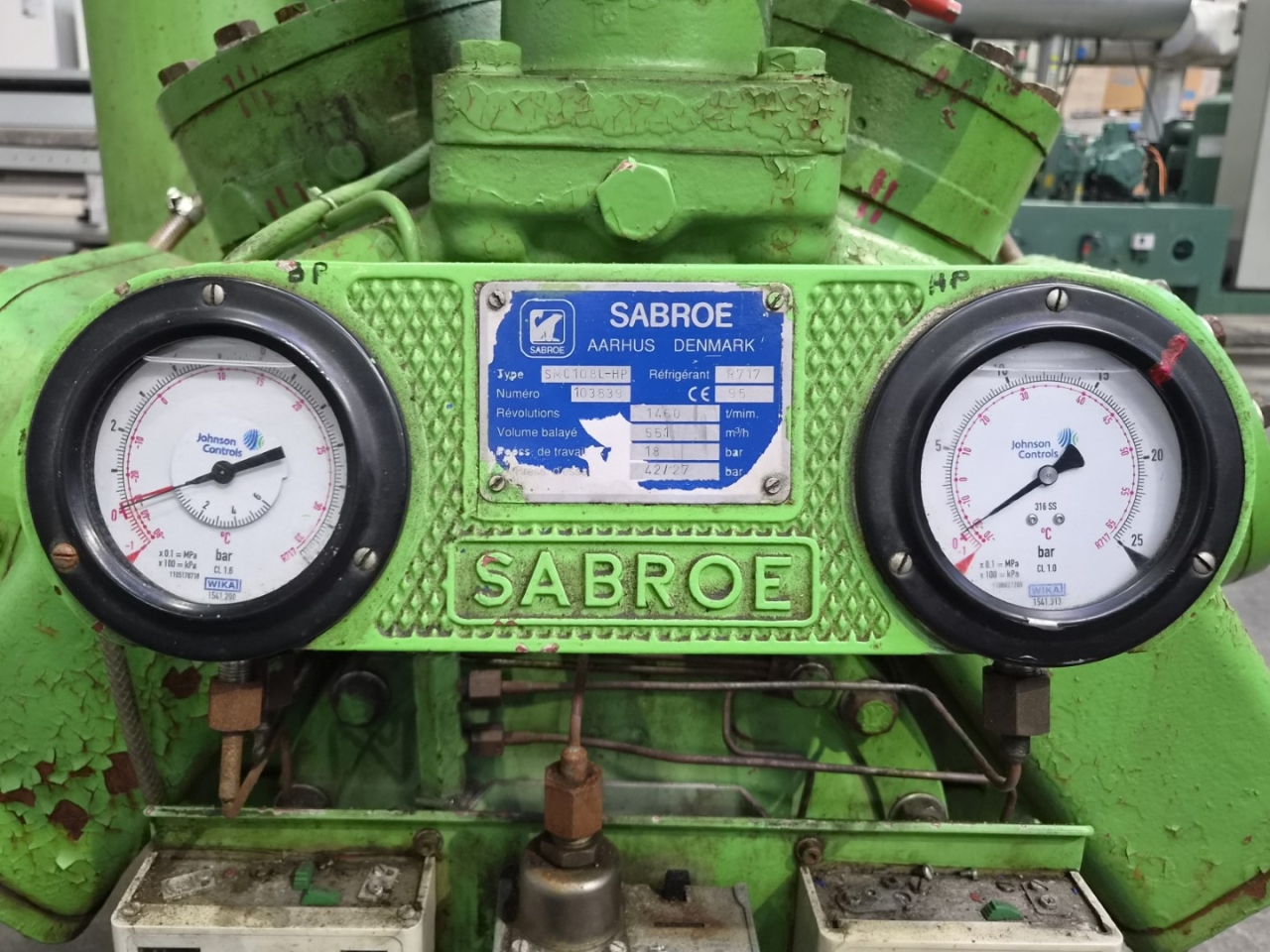

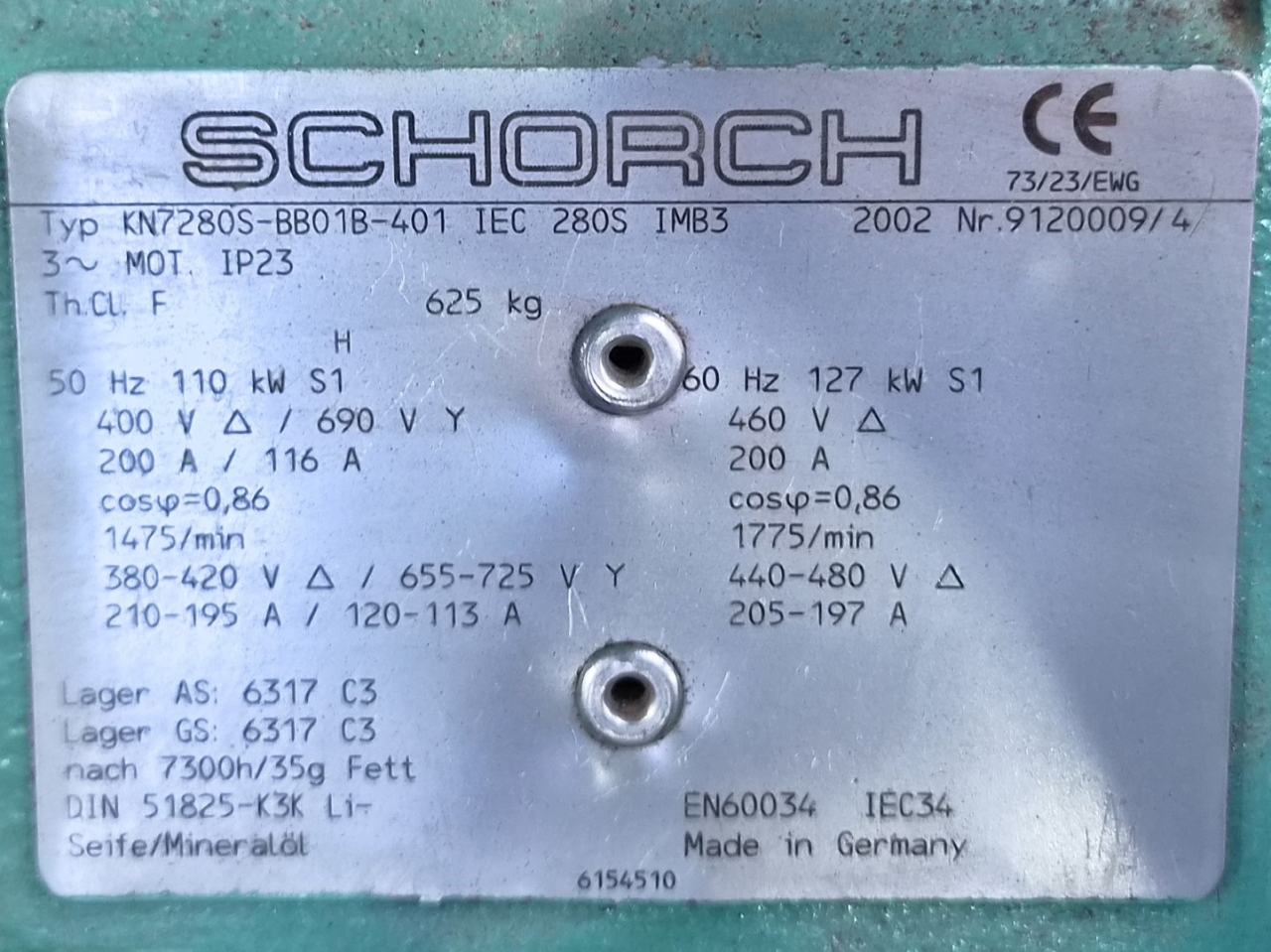

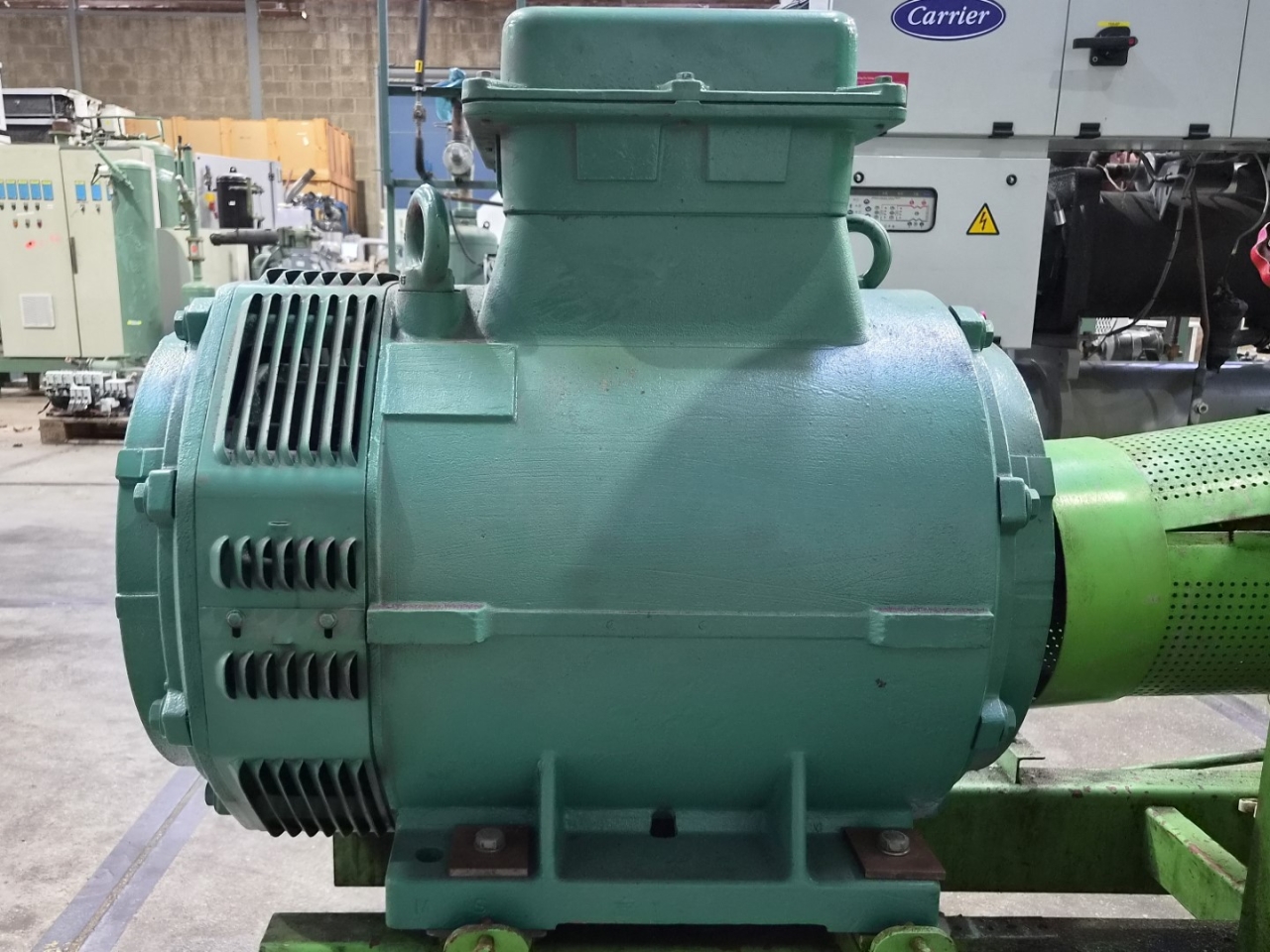

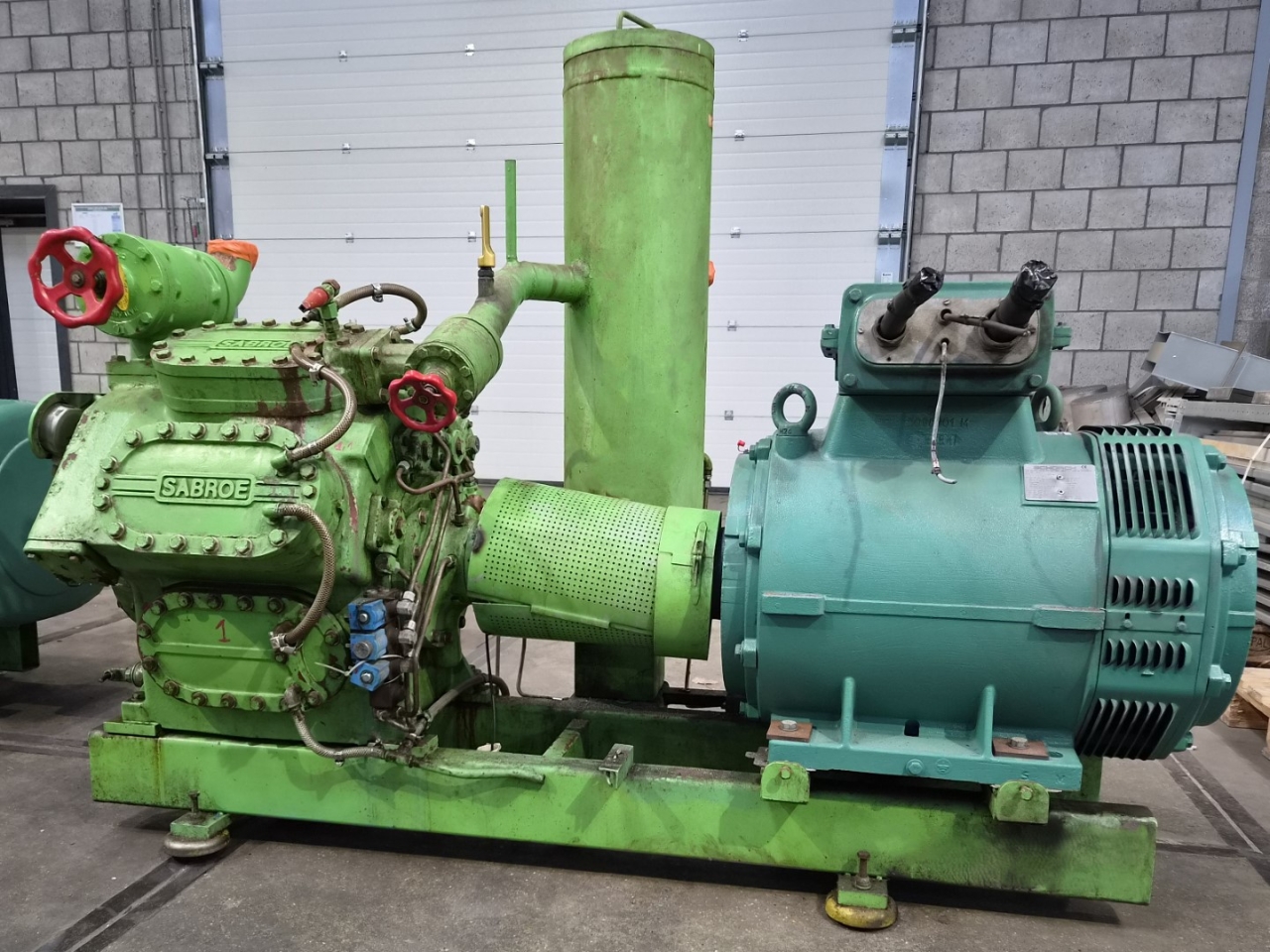

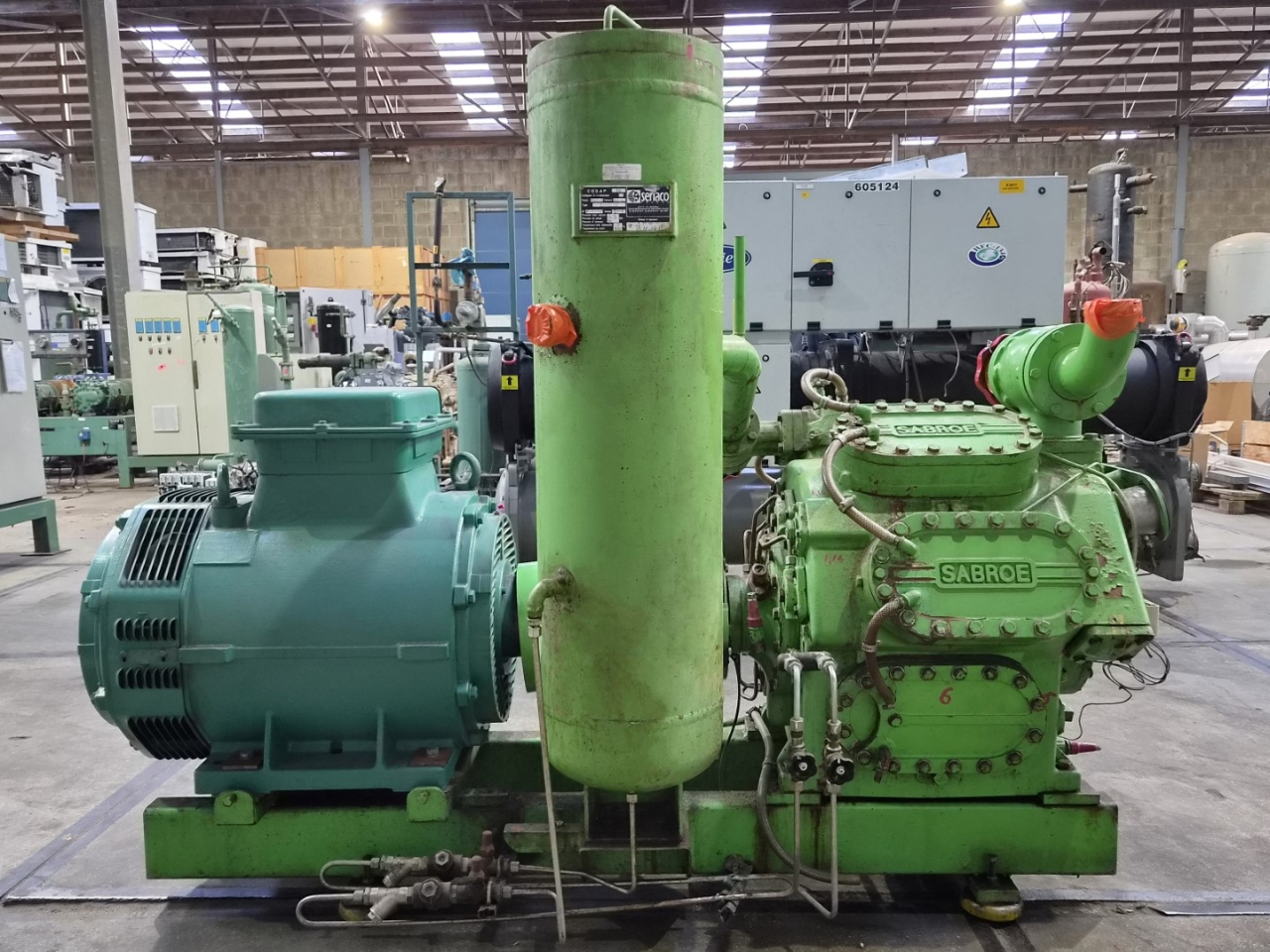

Used Sabroe SMC108L-HP reciprocating compressor on NH3 (Ammonia). Complete with an Schorch KN7280S-BB01B-401 electric motor - 50/60 Hz - 110/127 kW - 1475/1775 RPM, Seriaco S300/10 oil separator with a volume of 80 liters and pressure and safety switches/gauges. The compressor has a displacement of 551,0 m²/h at 1460 RPM.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
Sabroe SMC108L-HP
| Sabroe SMC108L-HP - | (PDF) |
