Grasso RC 311
Grasso RC 311
| 18943 | |
| Brand | Grasso |
| Type | RC 311 |
| Refrigerant | NH 3 (ammonia) |
| kW at +10ºC/+40ºC | 495,0* |
| kW at 0ºC/+40ºC | 331,3* |
| kW at -5ºC/+40ºC | 266,0* |
| kW at -10ºC/+40ºC | 209,2* |
| Electromotor Specs | 50 Hz - 90 kW - 1480 RPM |
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Oil separator |
|
| Liquid line filter drier |
|
| Sight Glass |
|
| m3 / h | 399 |
| Remarks | | Y.o.b. 2005 |
| Remarks || | * Elektro motor 1000 RPM |
| Sizes | 2550x1200x1980 mm (LxWxH) |
| Amount in stock | 1 |
Grasso RC 311

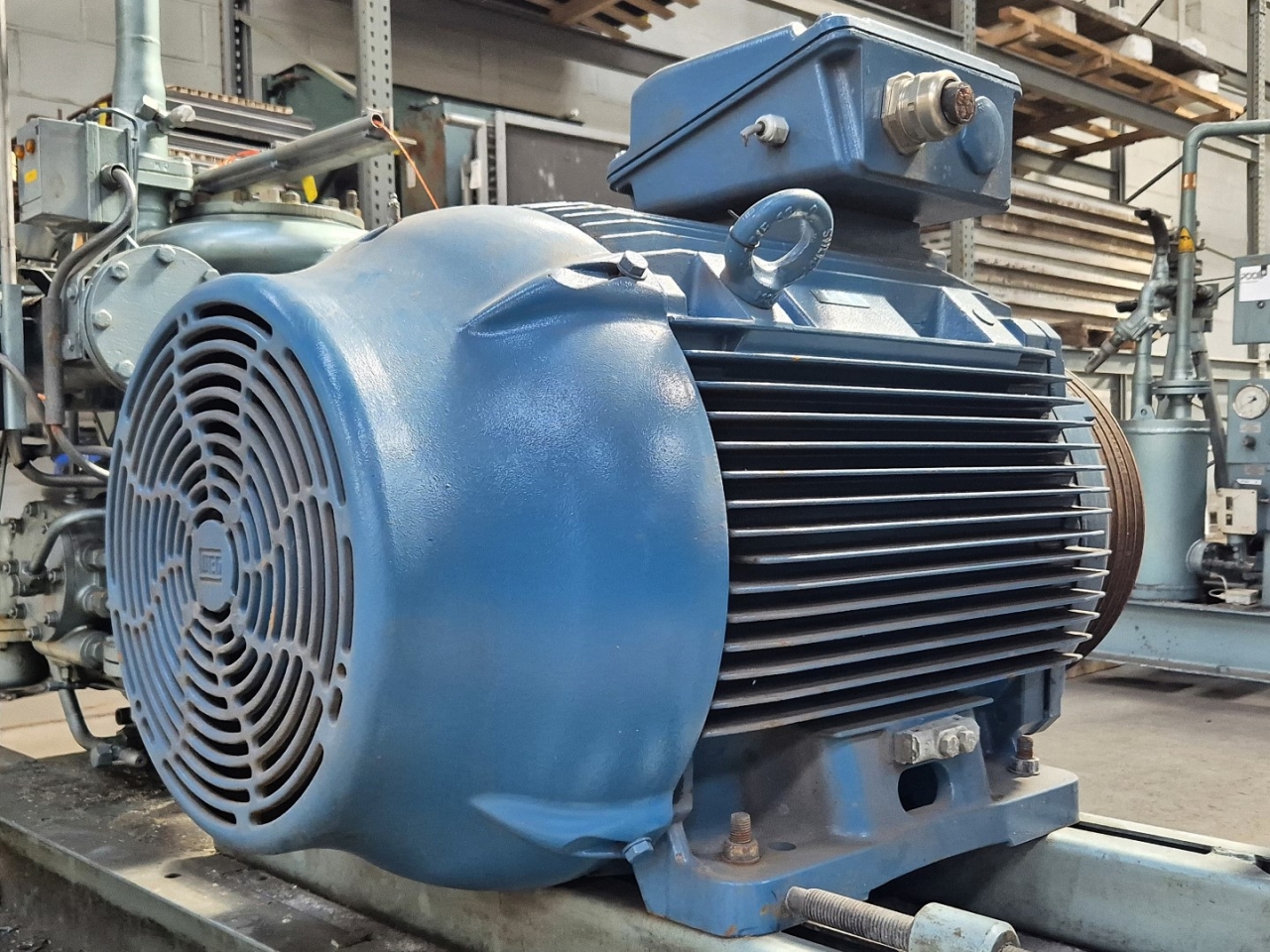

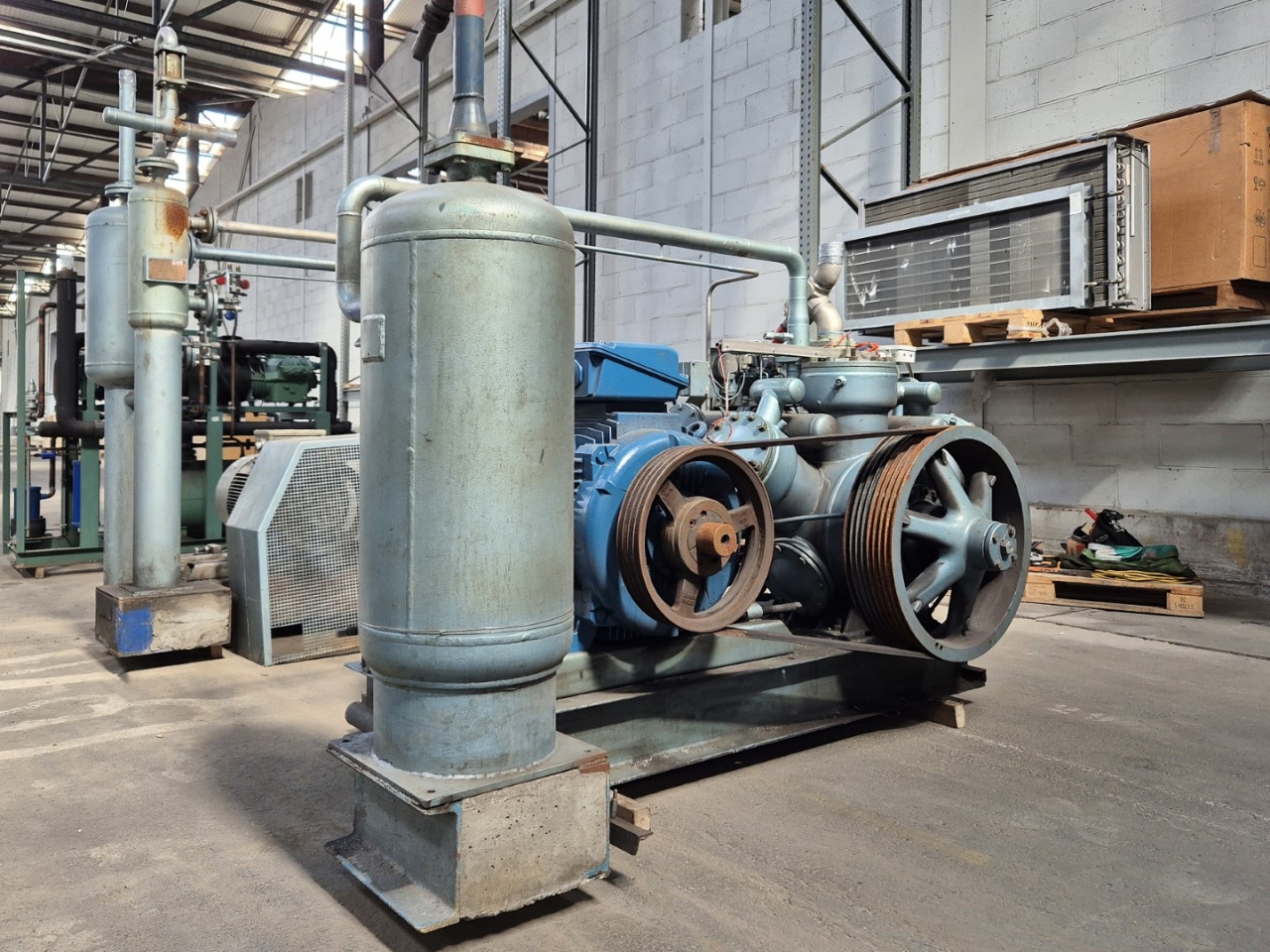

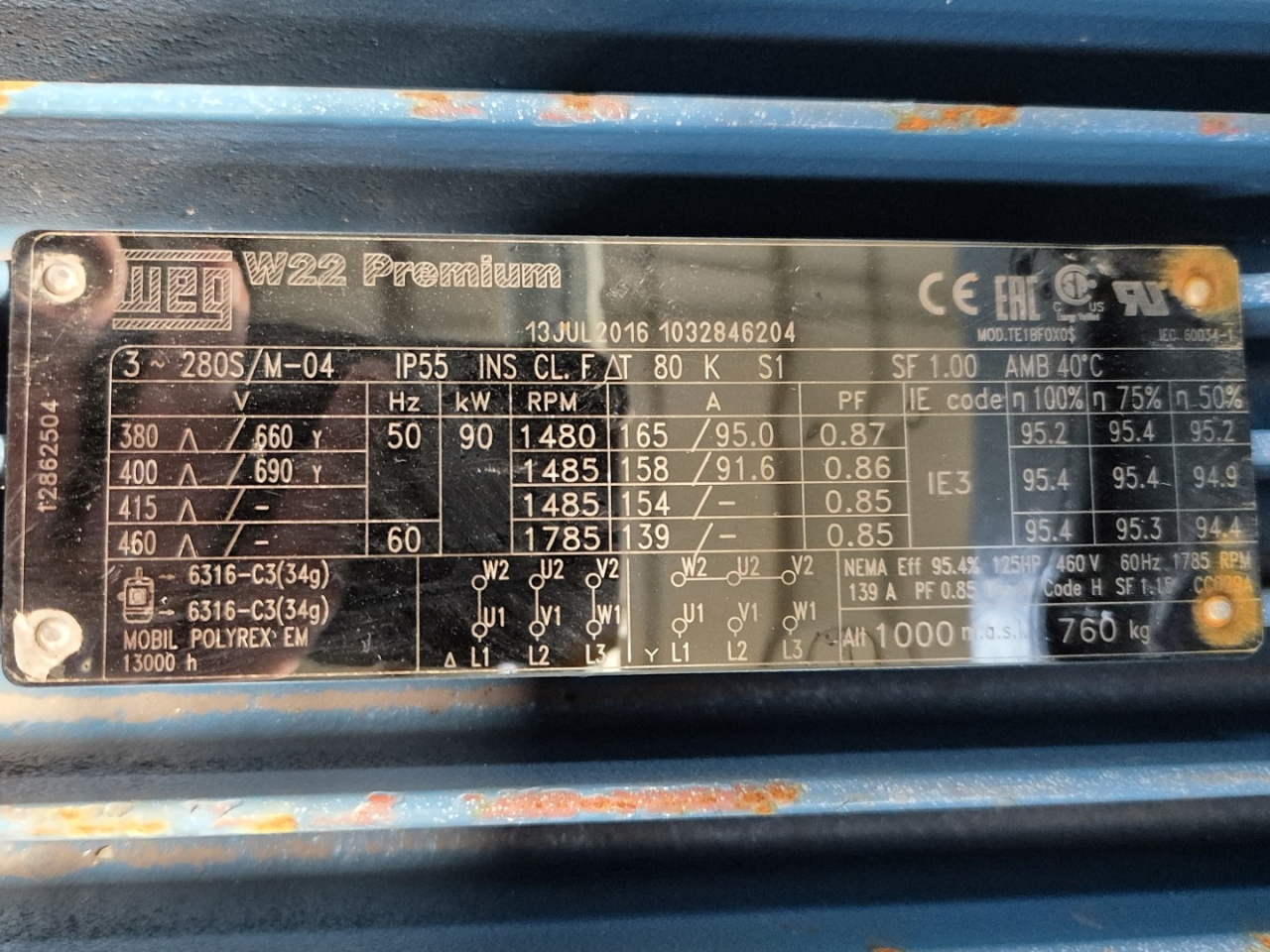

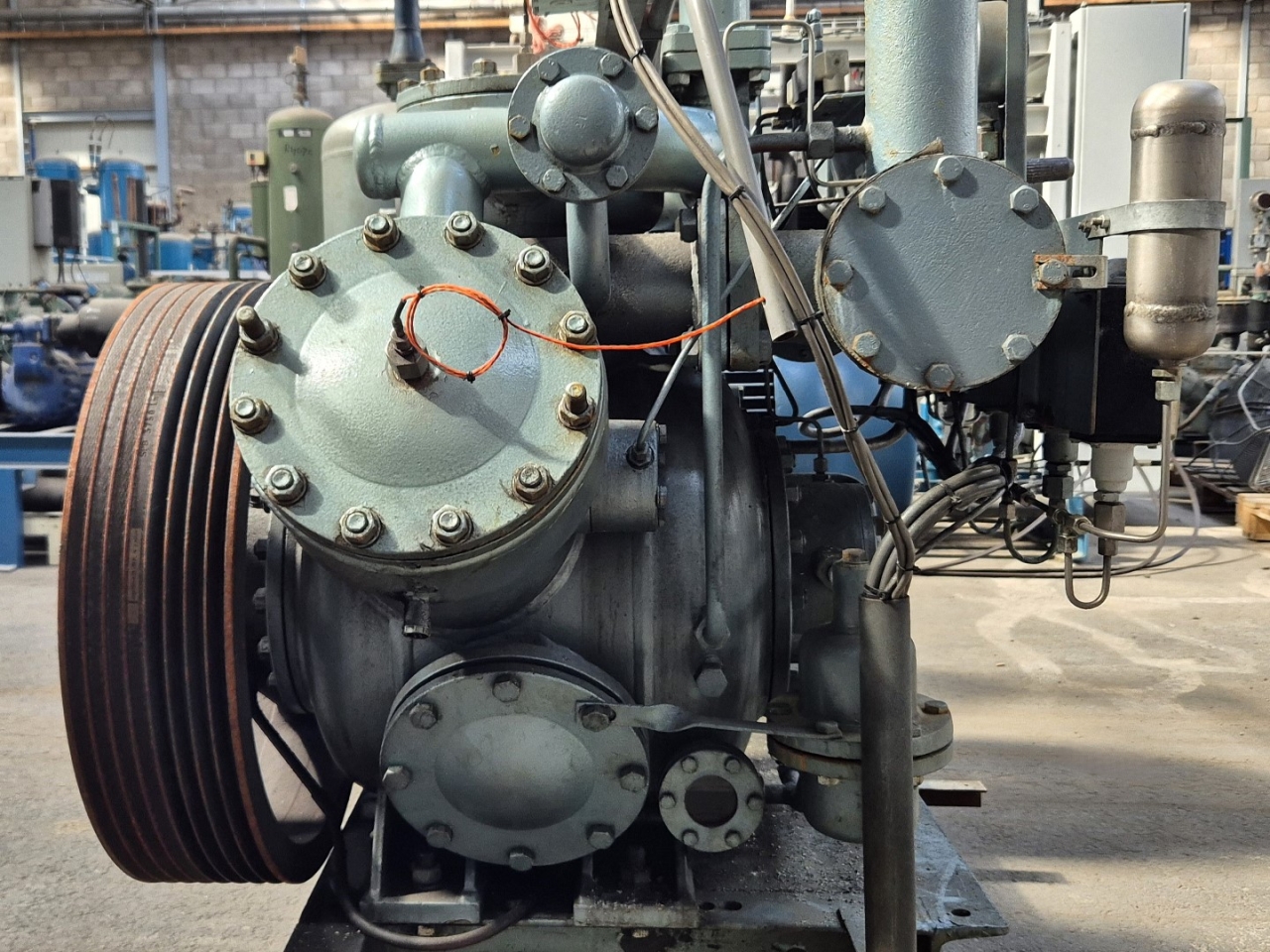

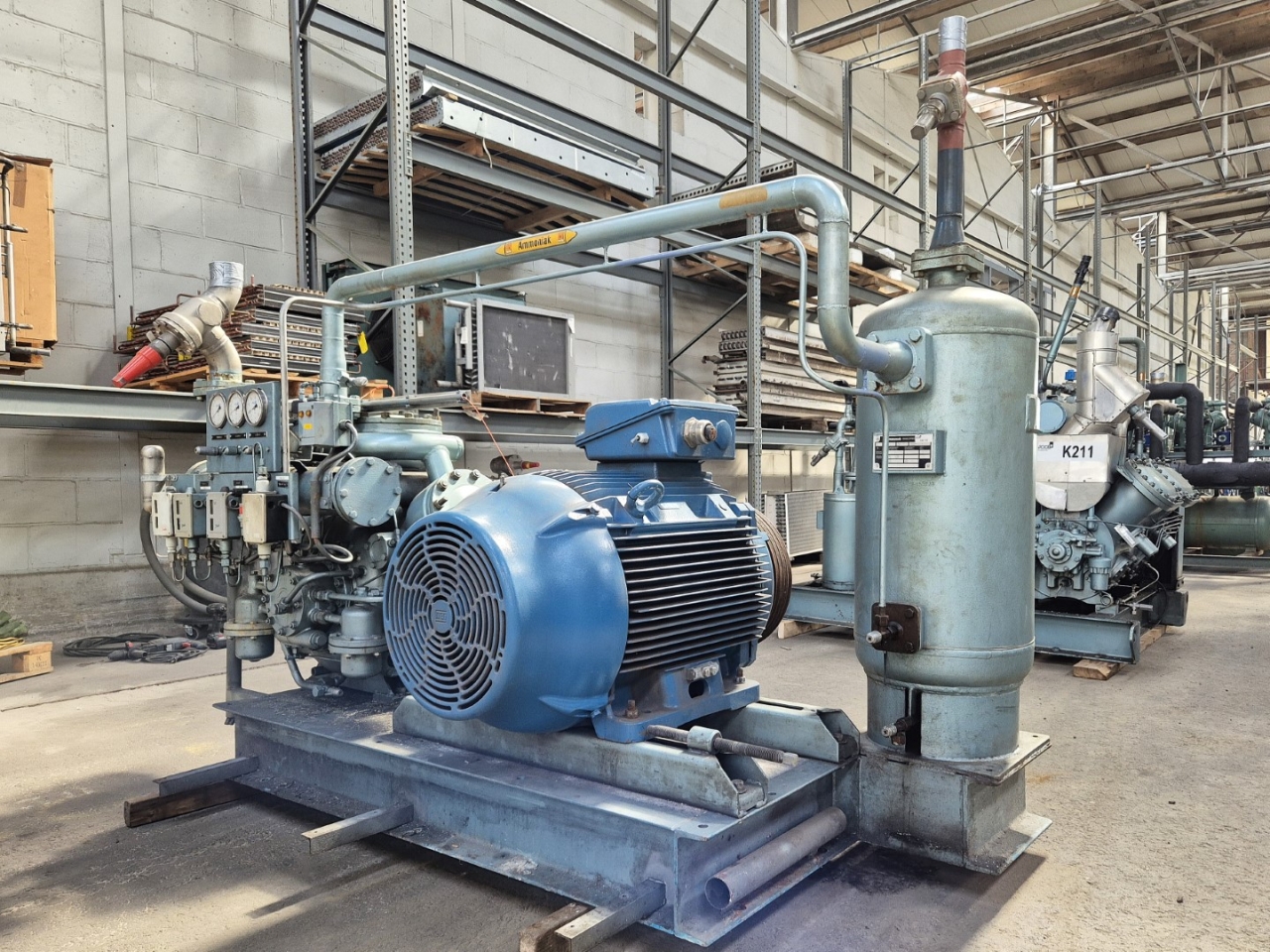

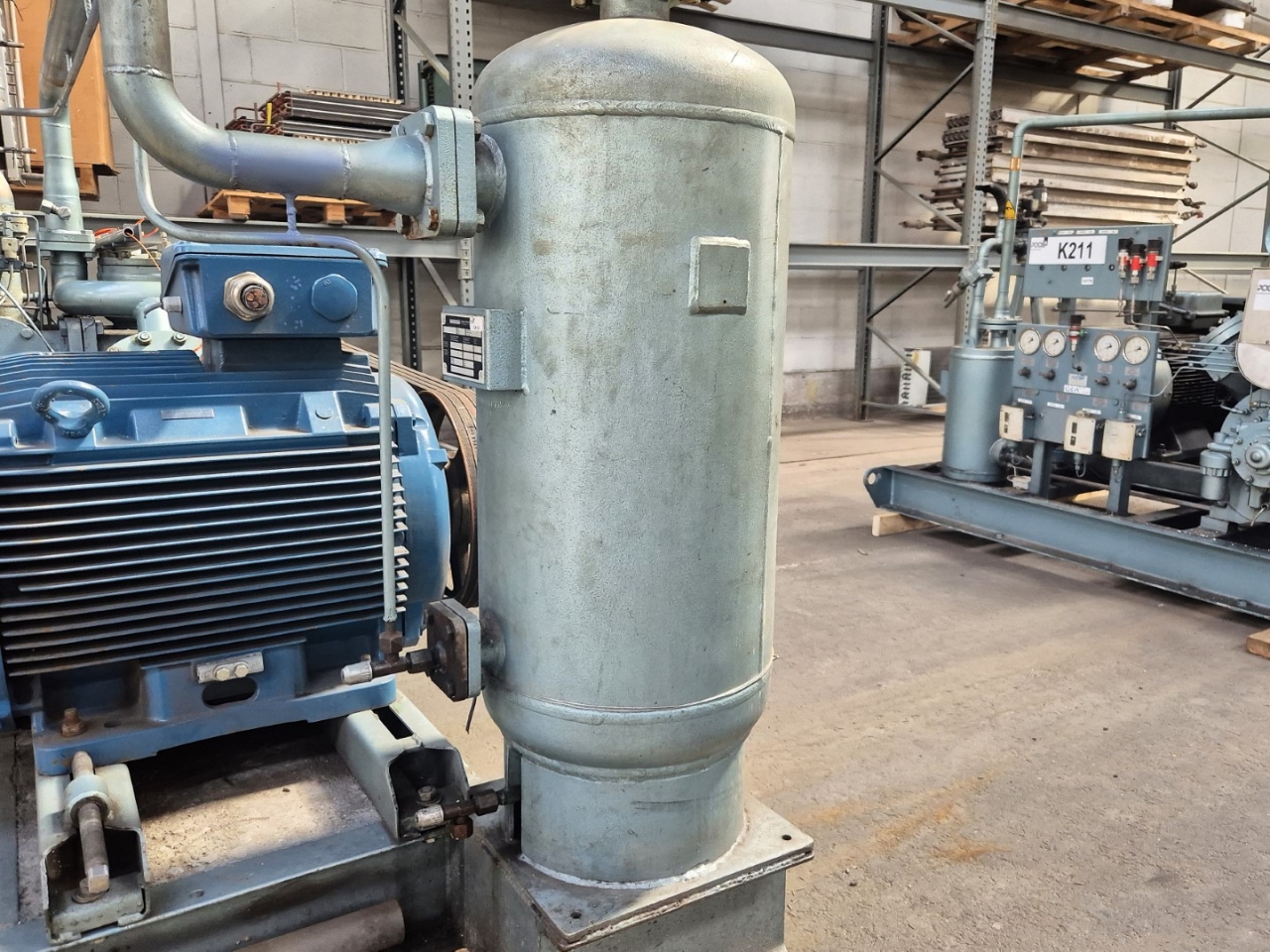

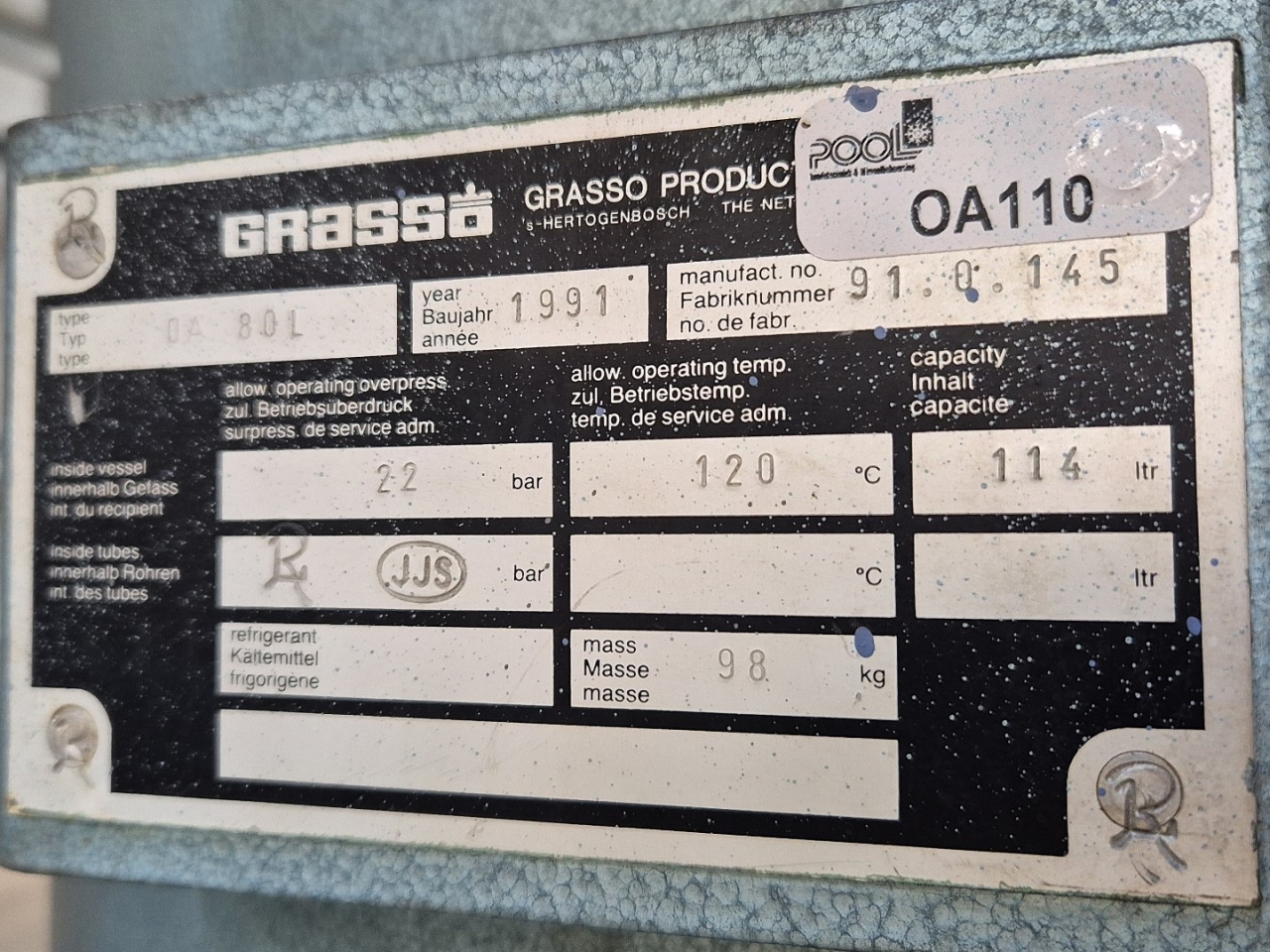

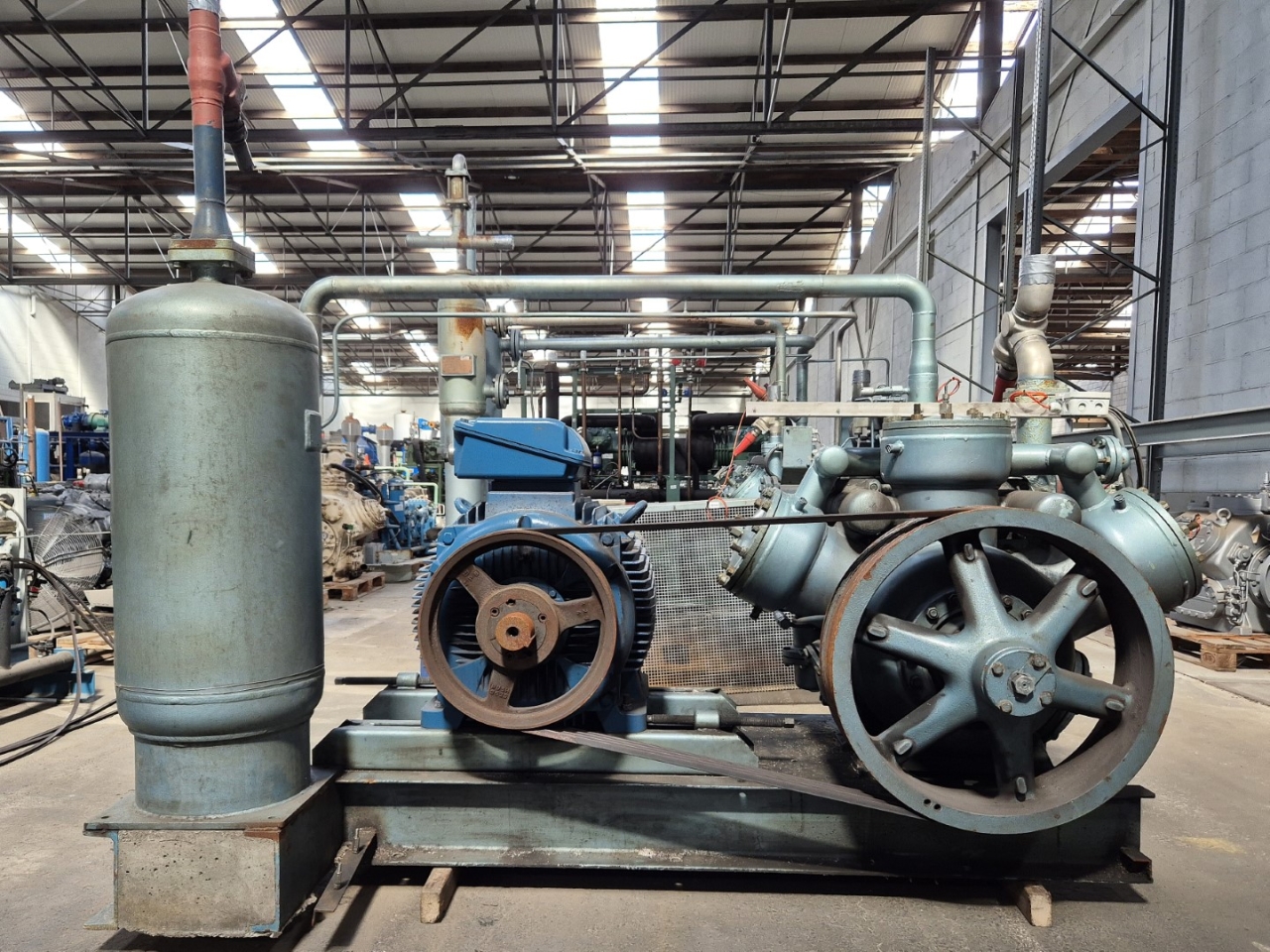

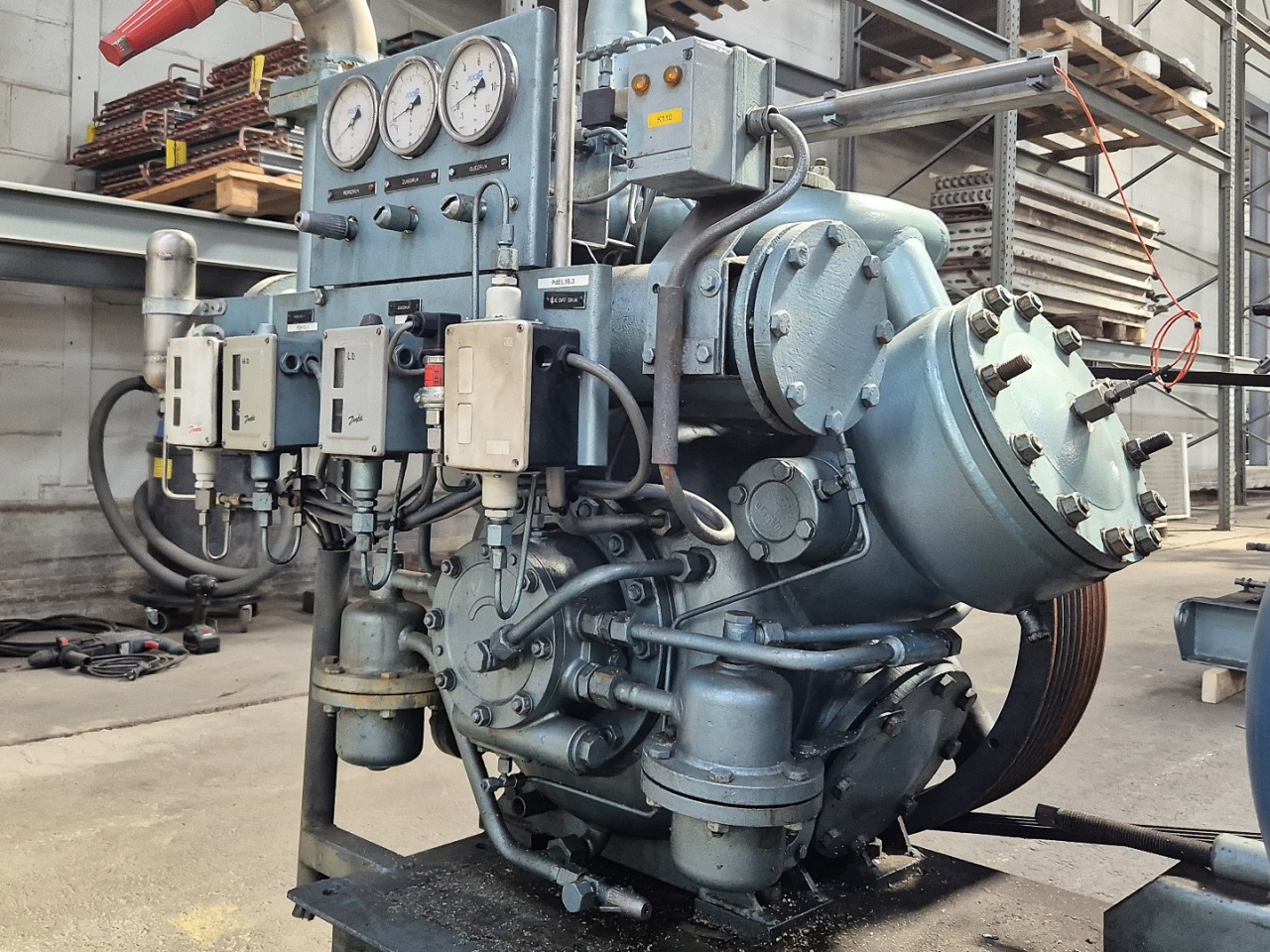

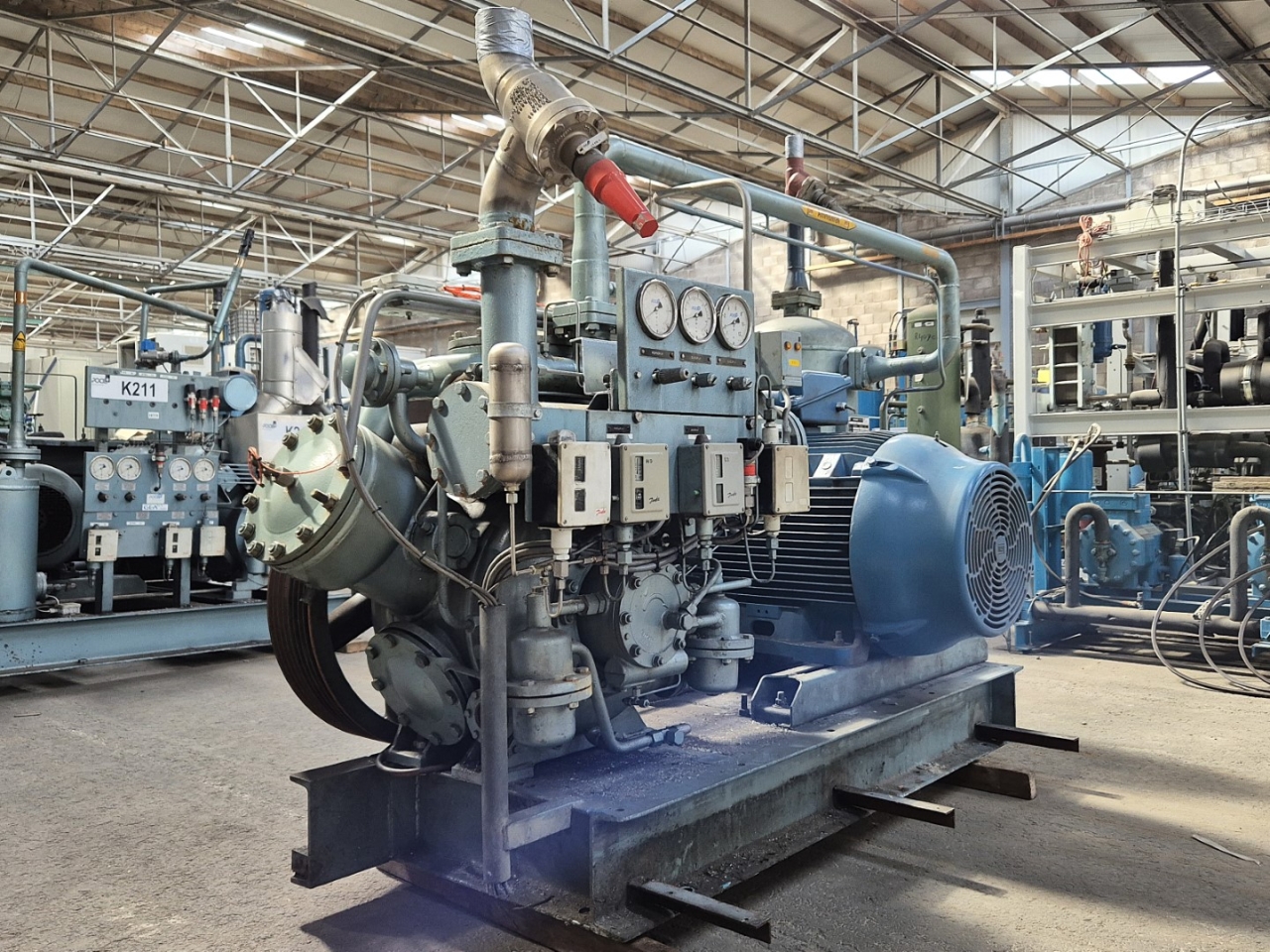

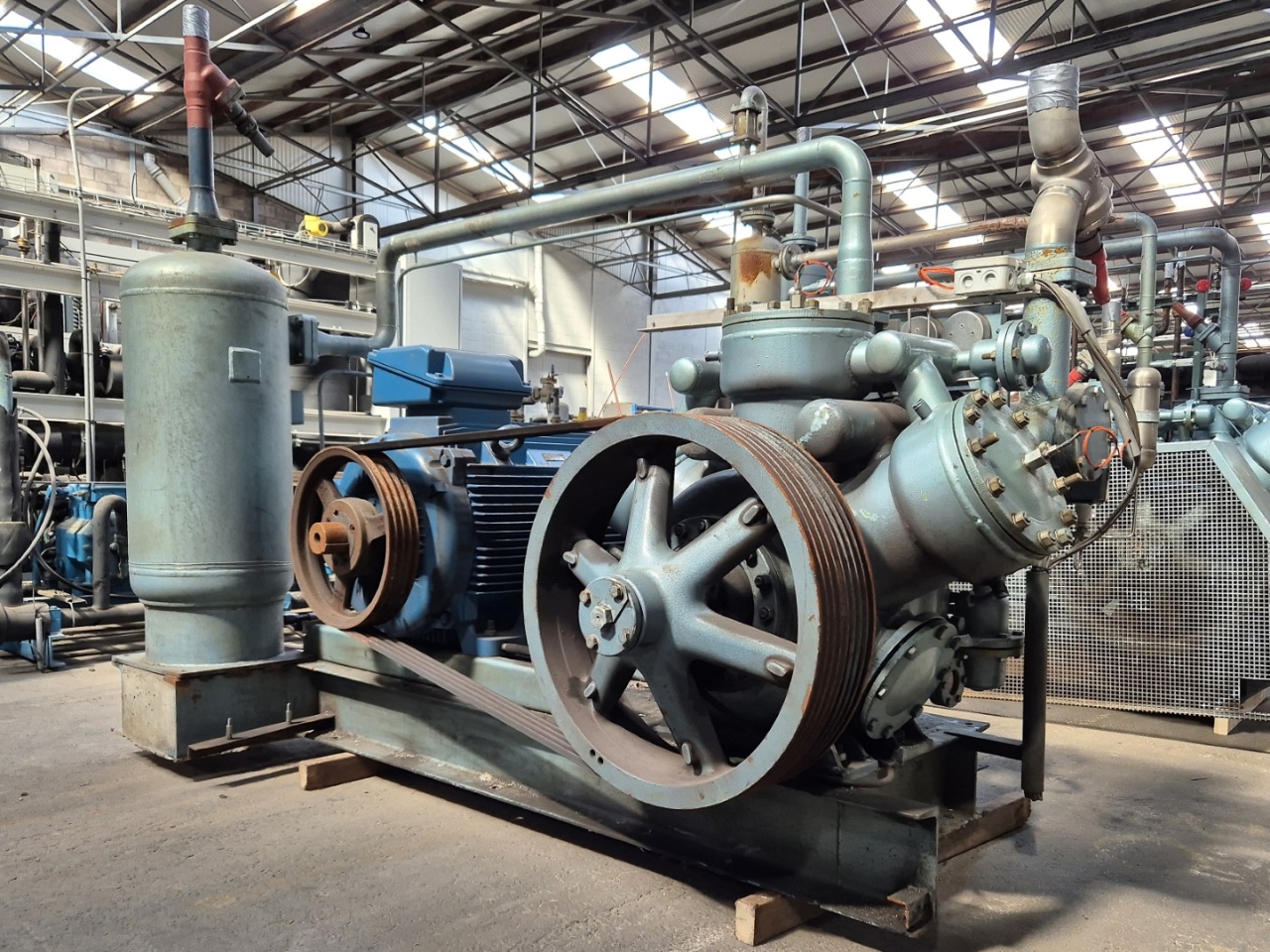

Used Grasso RC 311 open-type reciprocating compressor on NH3 (Ammonia). Complete with a Weg 280S/M-04 electromotor: 50/60 Hz - 90 kW - 1480/1785 RPM, Grasso OA 80L oil separator with a volume of 114 liters, pressure and safety switches/gauges and a sight glass. The compressor has a displacement of 399 m³/h at 1000 RPM.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we solely deliver our orders after performing an extensive test and an industrial cleaning. If requested we are happy to arrange your logistics.
