Tranter GCD-044NR
Tranter GCD-044NR
| 300625 | |
| Brand | Tranter |
| Type | GCD-044NR |
| Product type | PHE |
| Refrigerant / Medium | Water/Glycol |
| Capacity kW | 300,0 |
| Surface (m2) | 70 m² |
| Size | 2000x460x1140 mm (LxWxH) |
| Layers / Cassettes | 146 |
| Volume |
Hot side: 46,8 dm³ Cold side: 47,4 dm³ |
| Remarks | | Y.o.b. 2016 |
| Amount in stock | 1 |
Tranter GCD-044NR

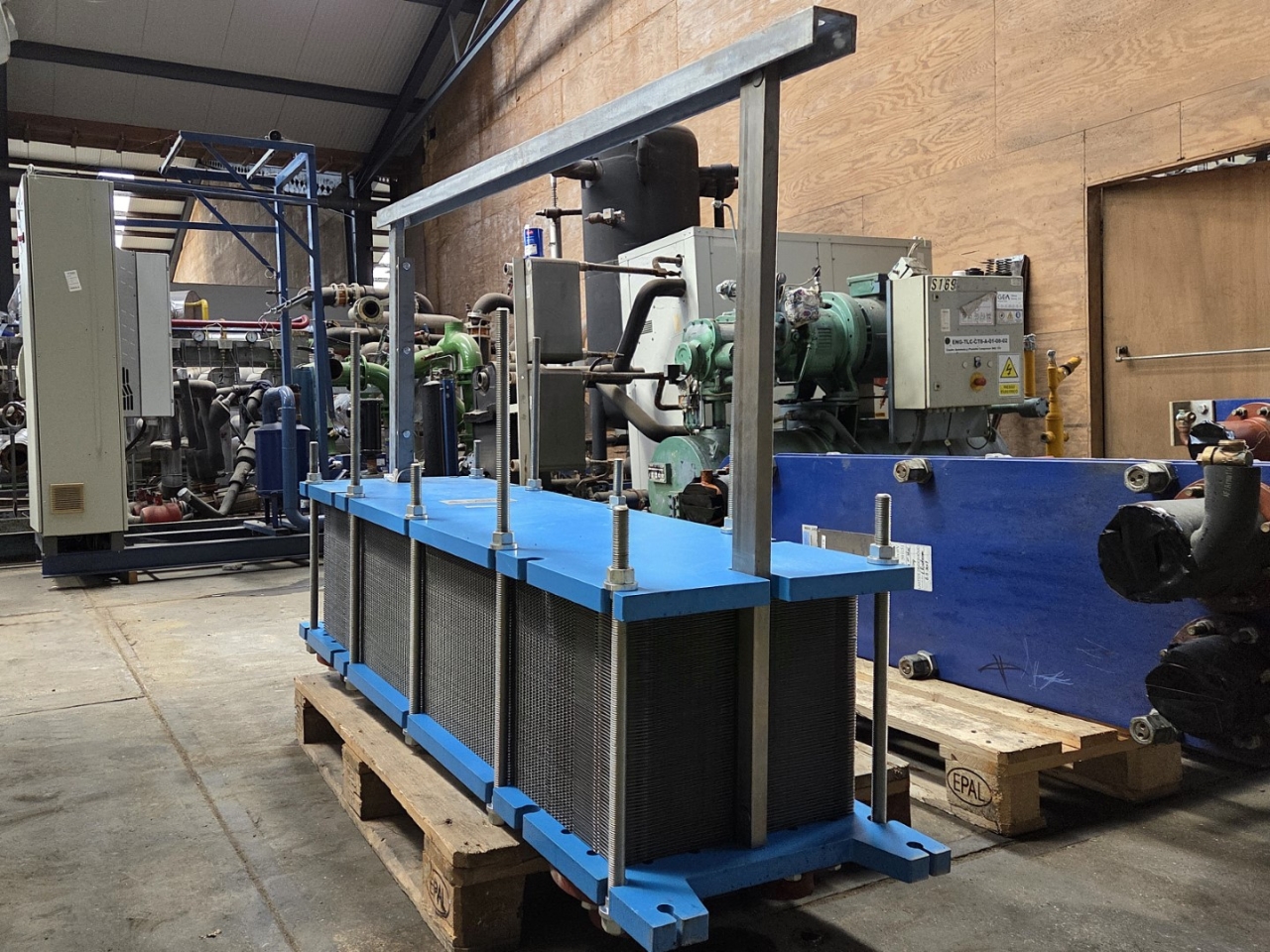

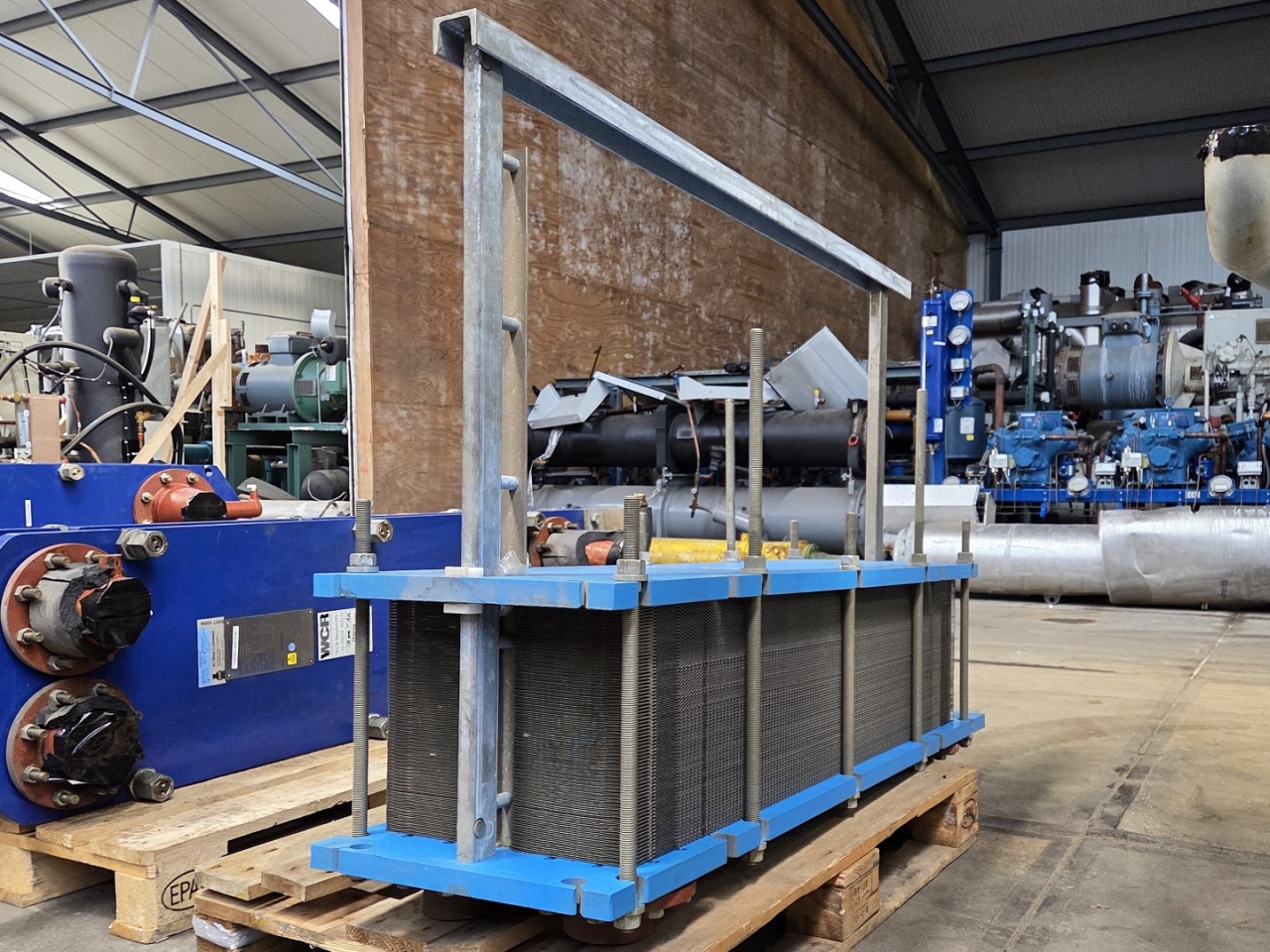

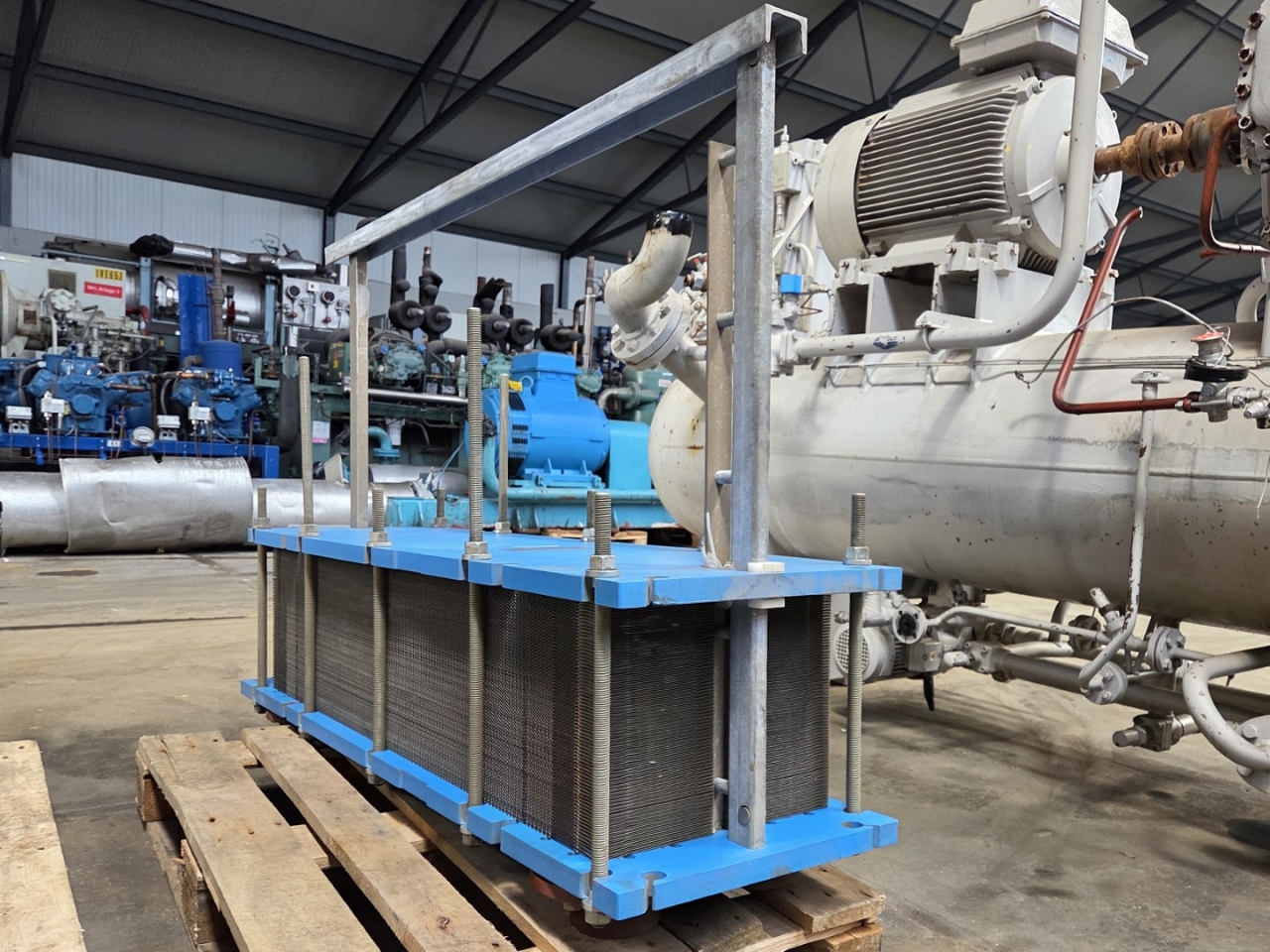

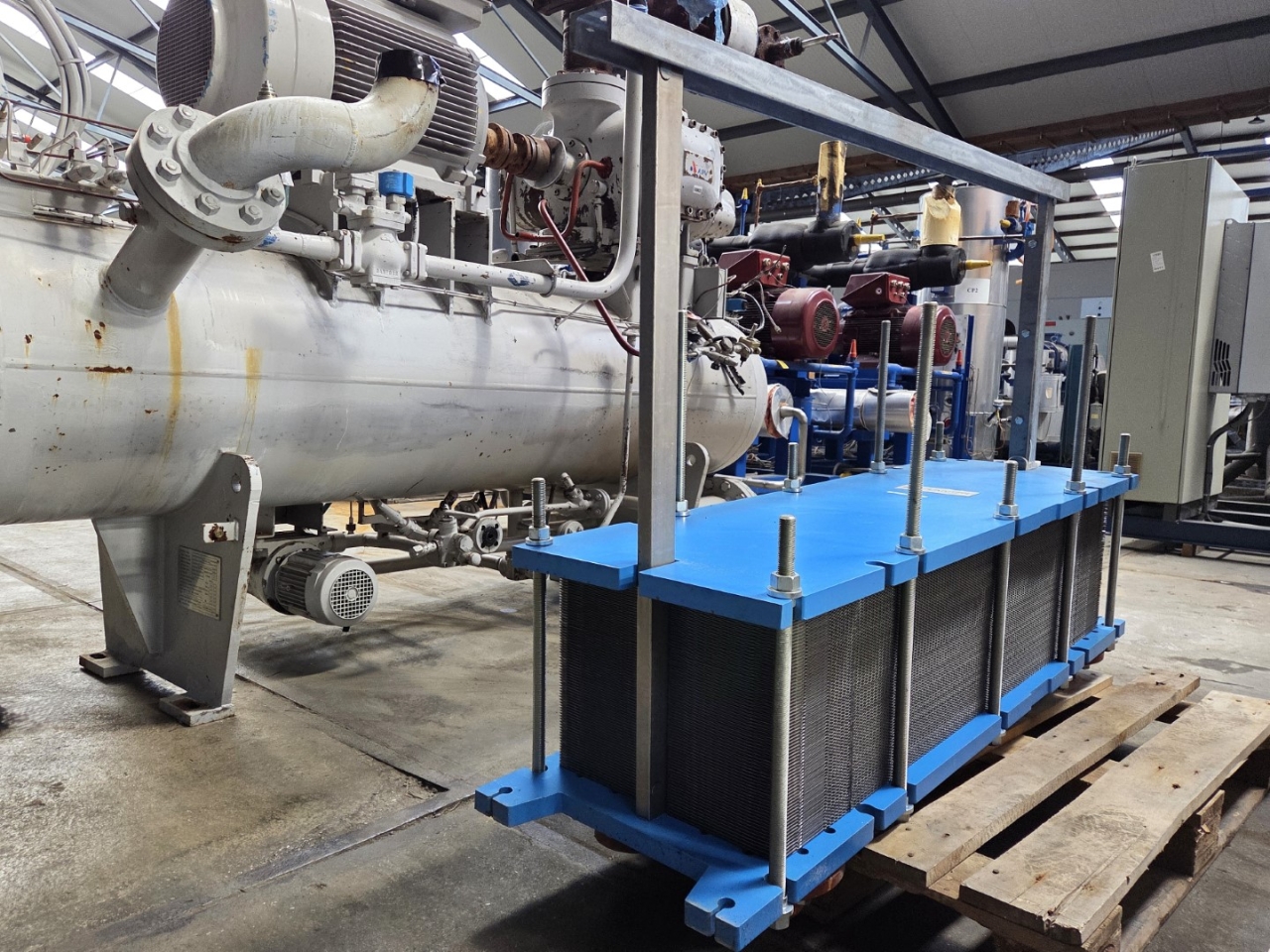

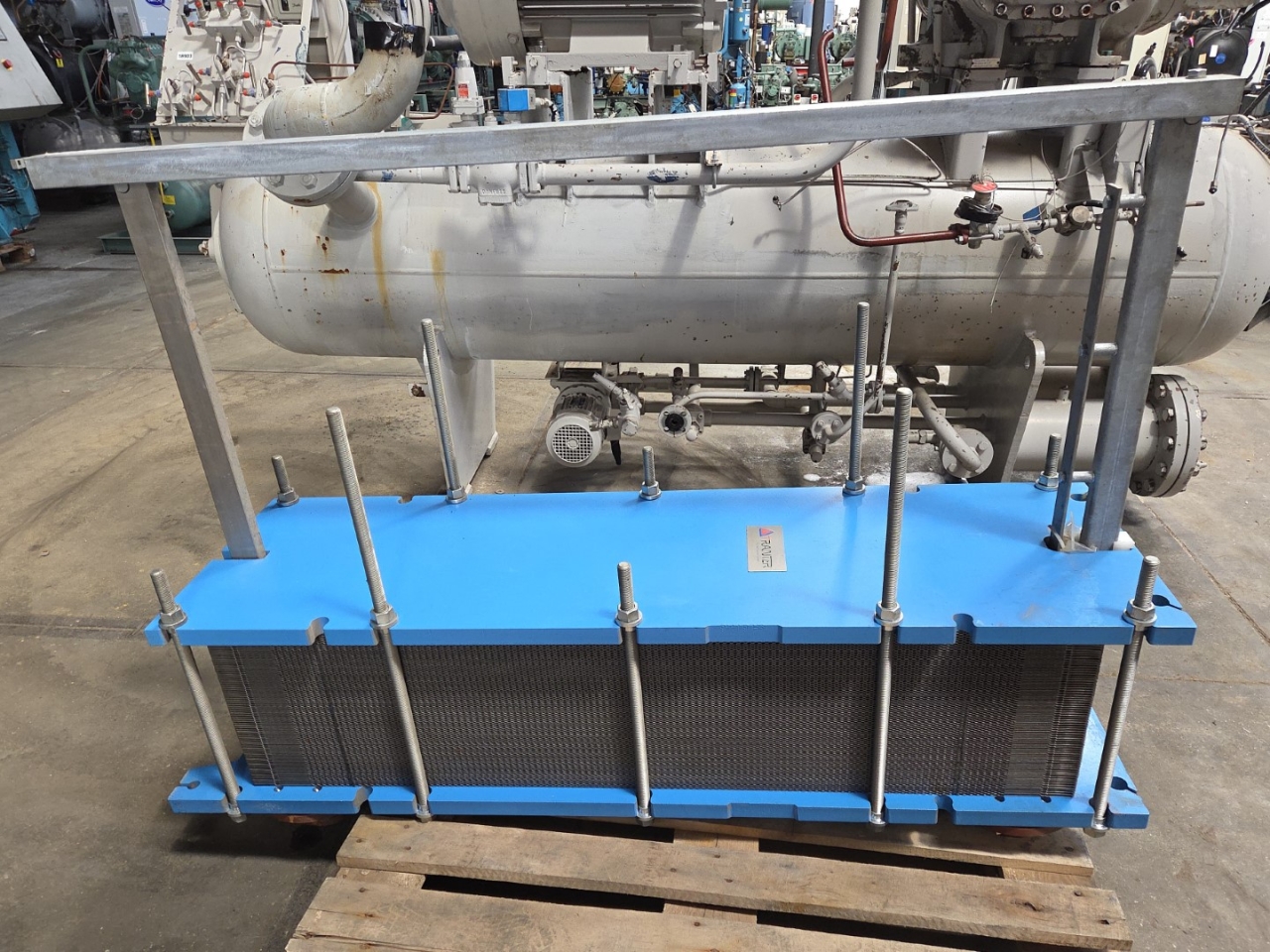

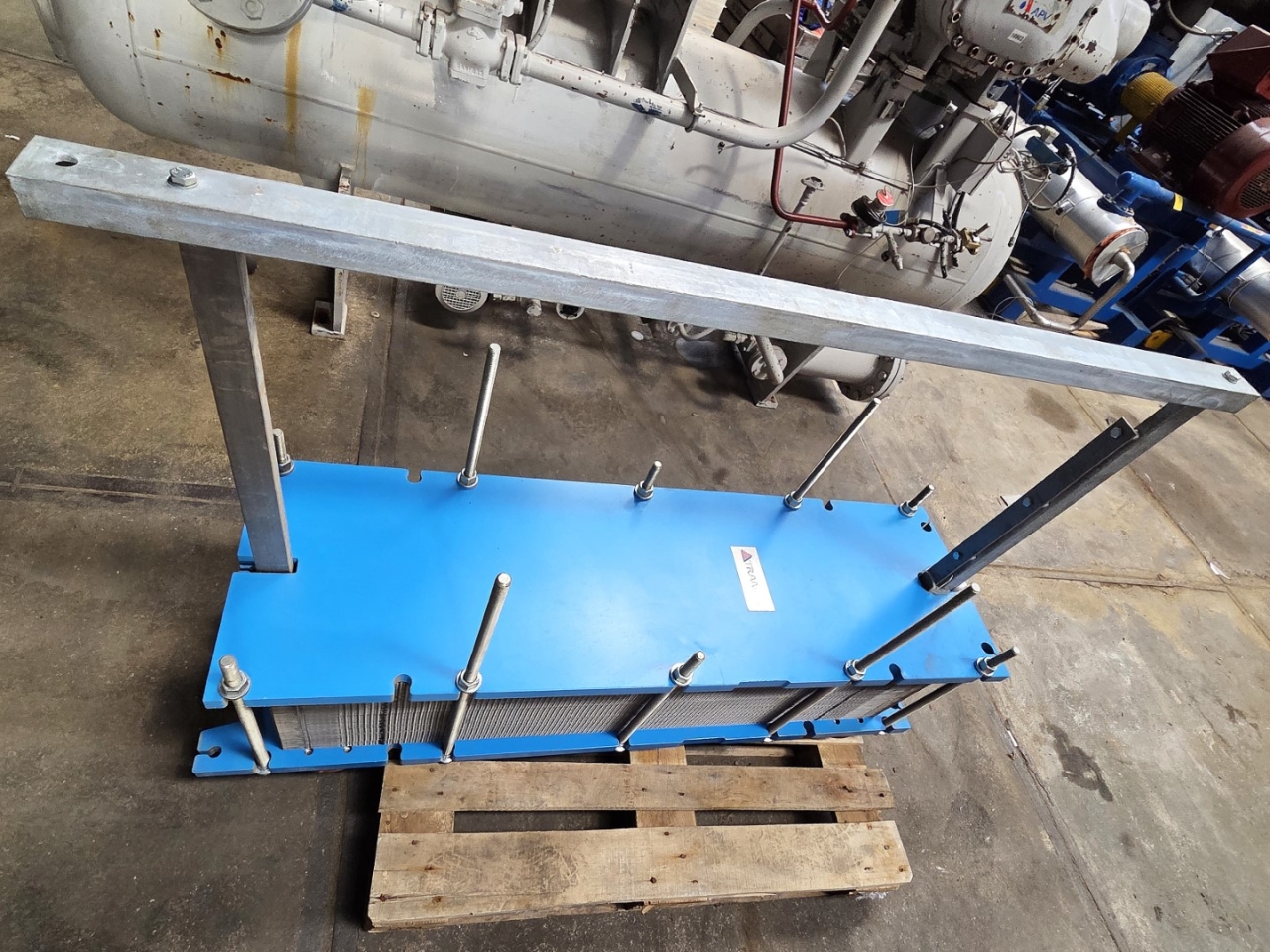

Used Tranter GCD-044NR heat exchanger with 146 layers for Water / Glycol built in 2016. The heat exchanger has a volume of 46,8 dm³ (Hot side) & 47,4 dm³ (Cold side). Block dimensions: 1350x390x310 mm (LxWxH).
Capacity of 300 kW based on the following:
Hot side: (Water)
Liquid flow: 64,8 m³/h
Temp in: 27°C and out: 23°C.
Cold side: (EthGlycol 30%)
Liquid flow: 70,1 m³/h
Temp in: 22°C and out: 26°C
Tranter GCD-044NR
| Tranter GCD-044NR - | (PDF) |
