Dorin K3000CS-01 (x2) & H3000CS (x1) & Bitzer 6F-40.2Y (x2) & 6F-50.2Y-40P (x1)
Dorin K3000CS-01 (x2) & H3000CS (x1) & Bitzer 6F-40.2Y (x2) & 6F-50.2Y-40P (x1)
| 19020 | |
| Brand | Dorin |

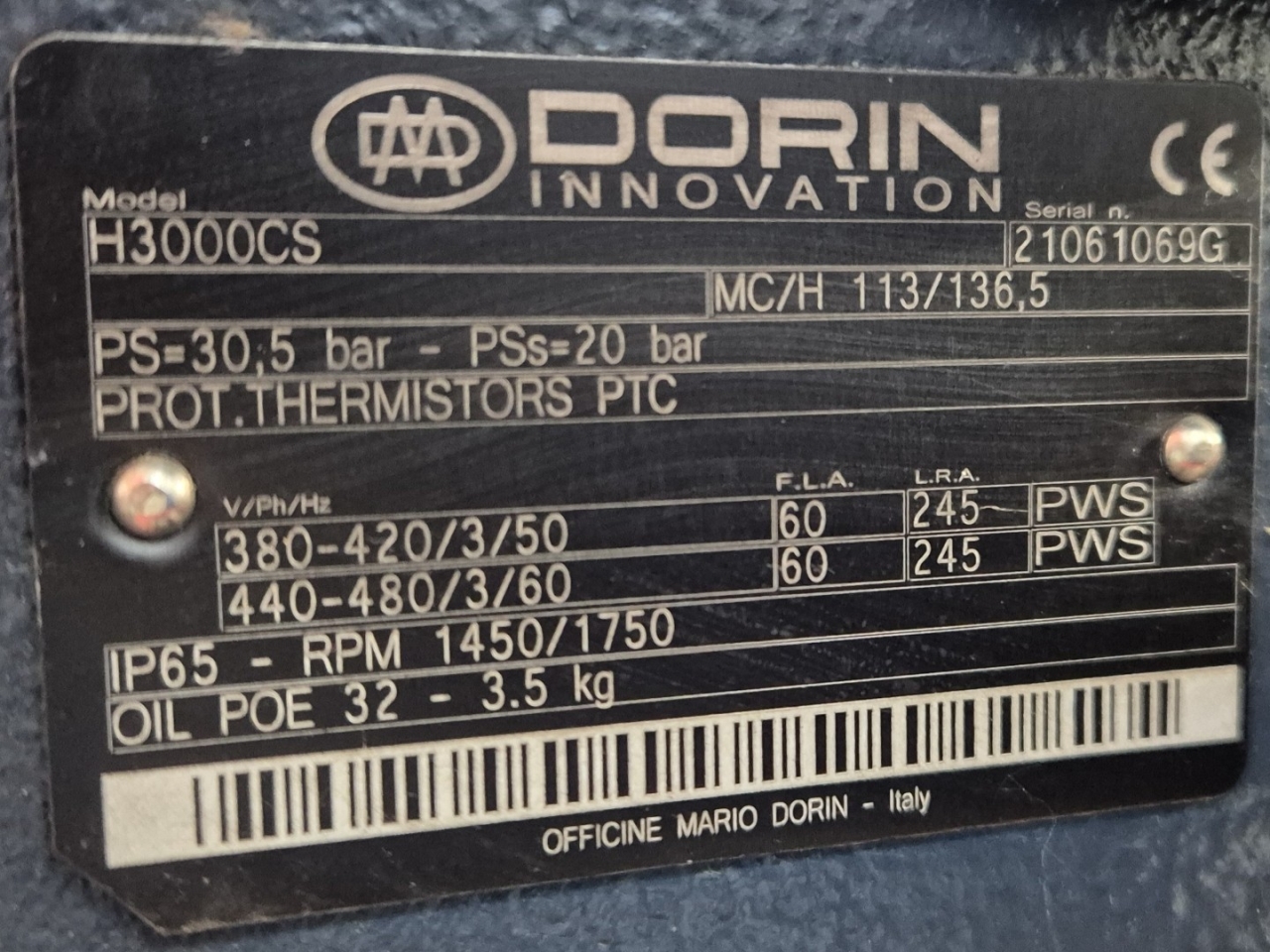

| Type | K3000CS-01 (x2) & H3000CS (x1) & Bitzer 6F-40.2Y (x2) & 6F-50.2Y-40P (x1) |
| Refrigerant | Freon |
| kW at -5ºC/+40ºC | 431,1 |
| kW at -10ºC/+40ºC | 350,8 |
| kW at -20ºC/+40ºC | 223,8 |
| kW at -30ºC/+40ºC | 176,0 |
| kW at -40ºC/+40ºC | 98,5 |
| On steel base frame |
|

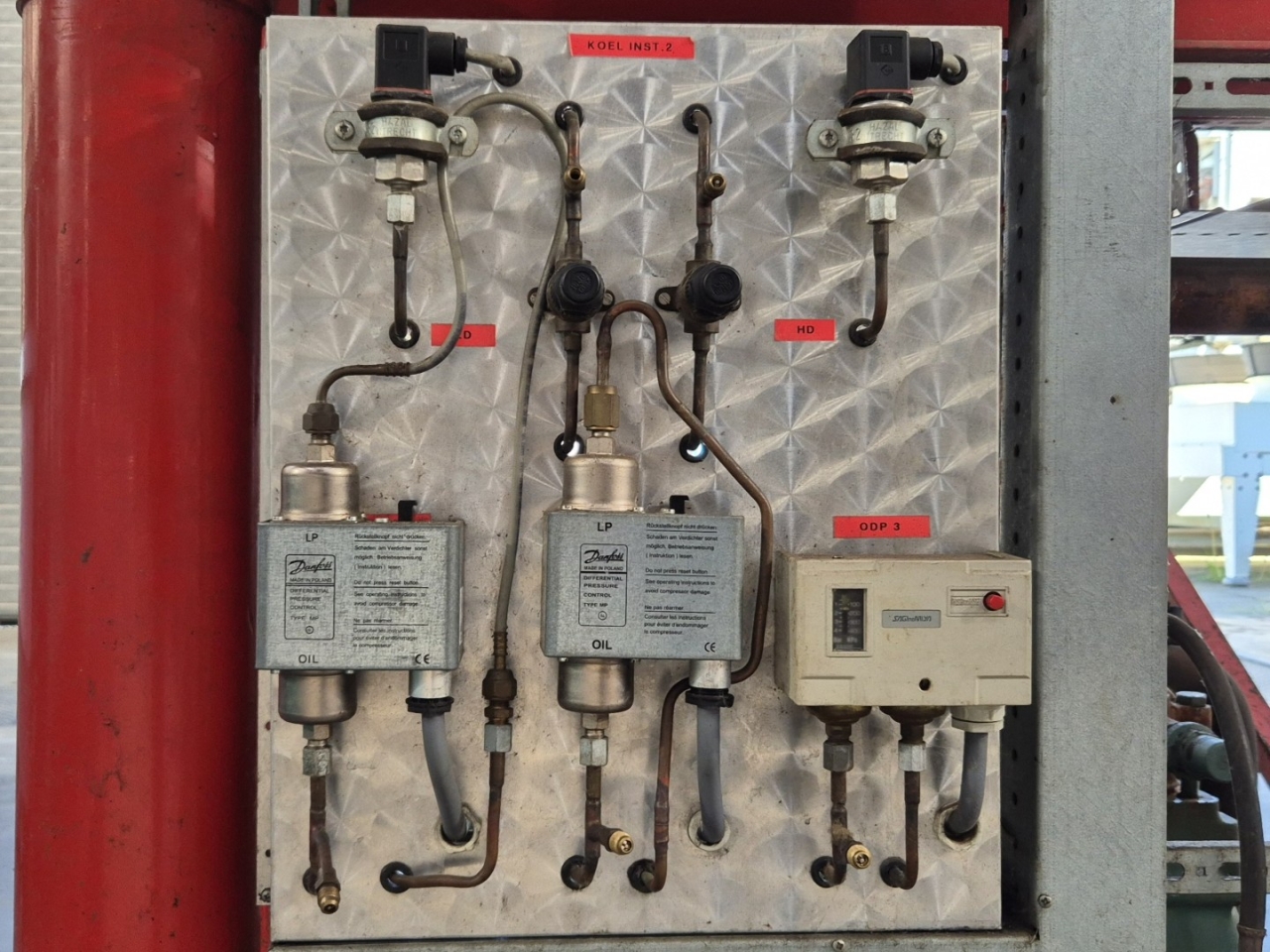

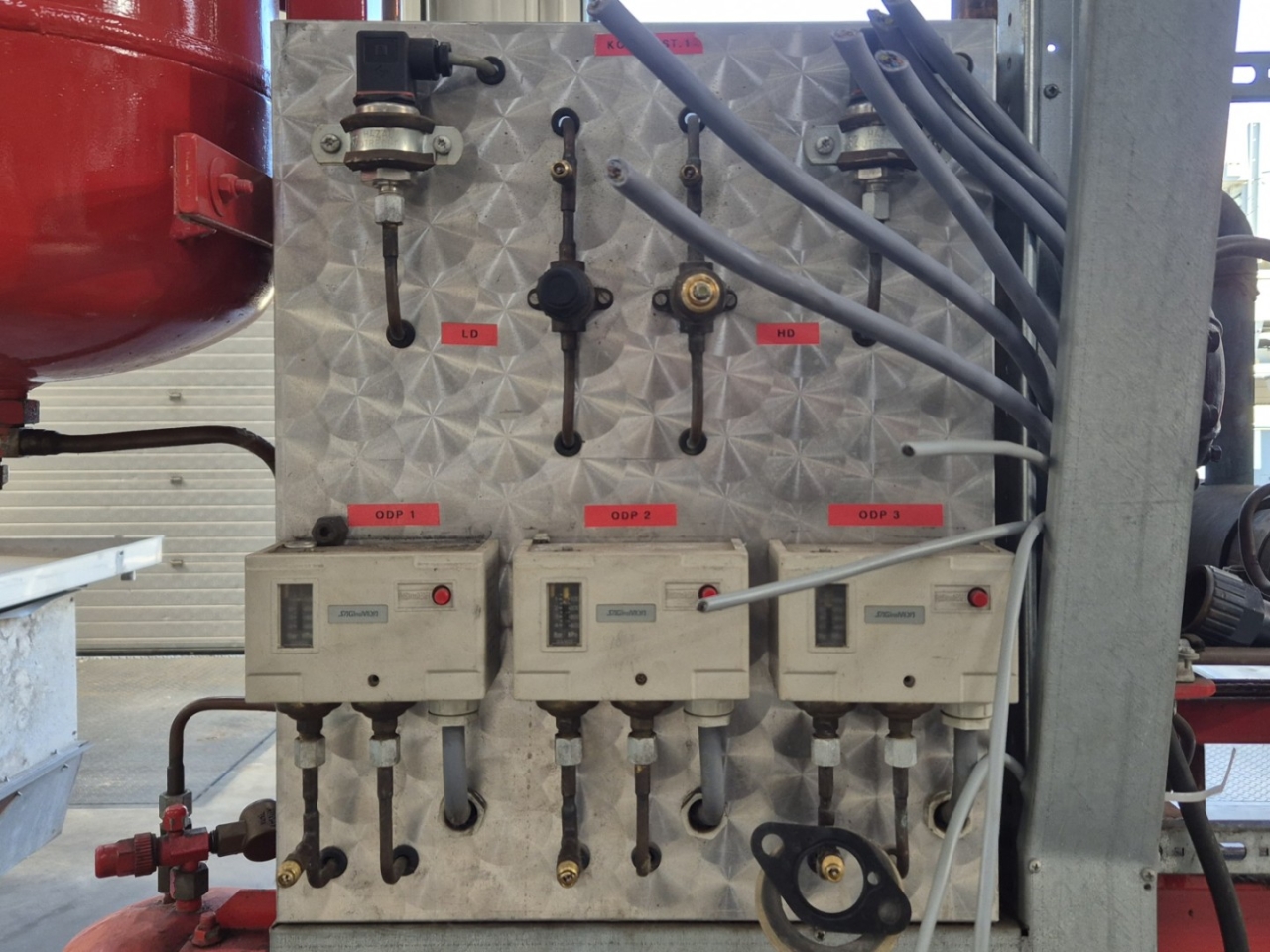

| Pressure safety switches Hp/Lp/Op |
|

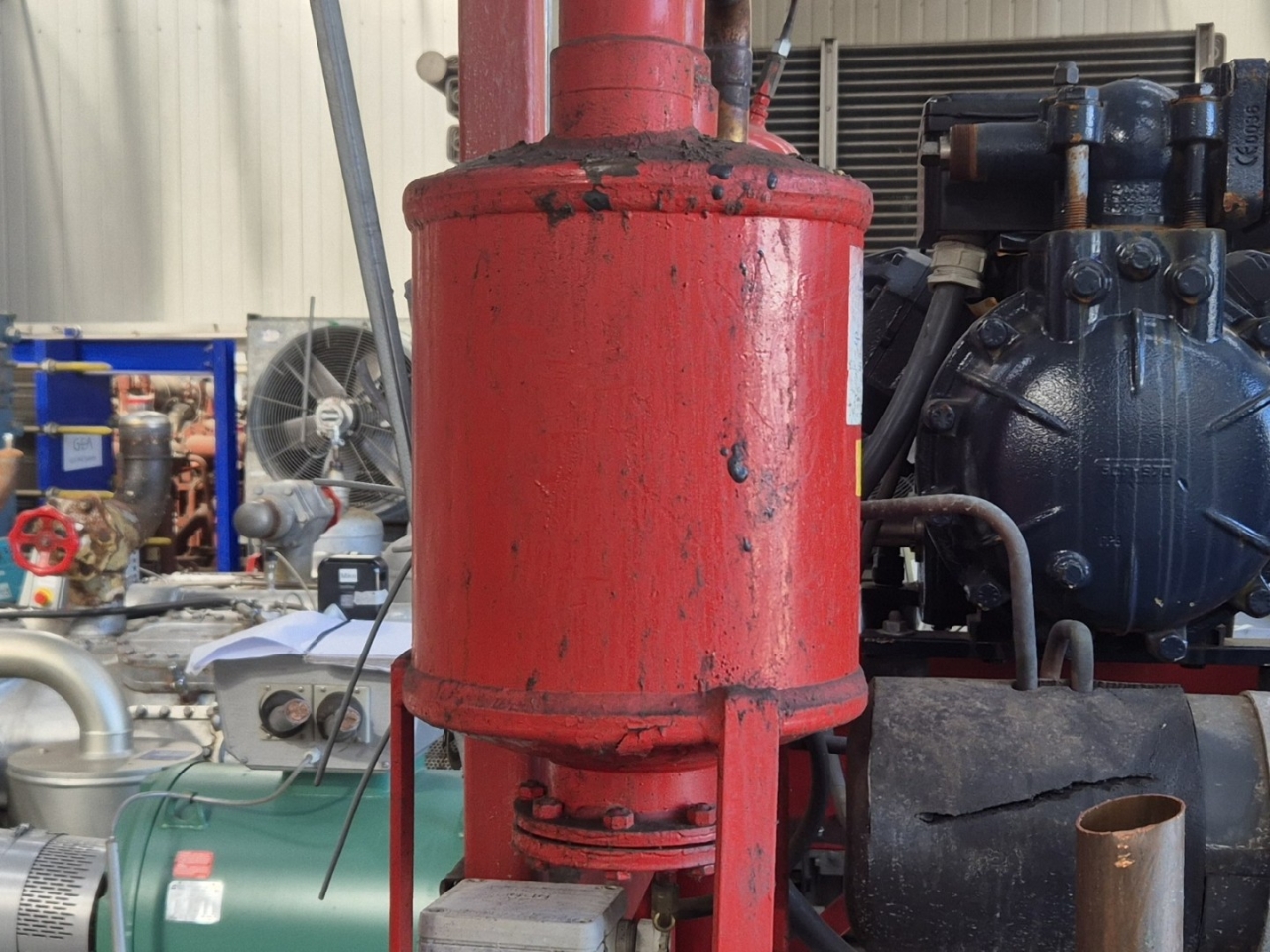

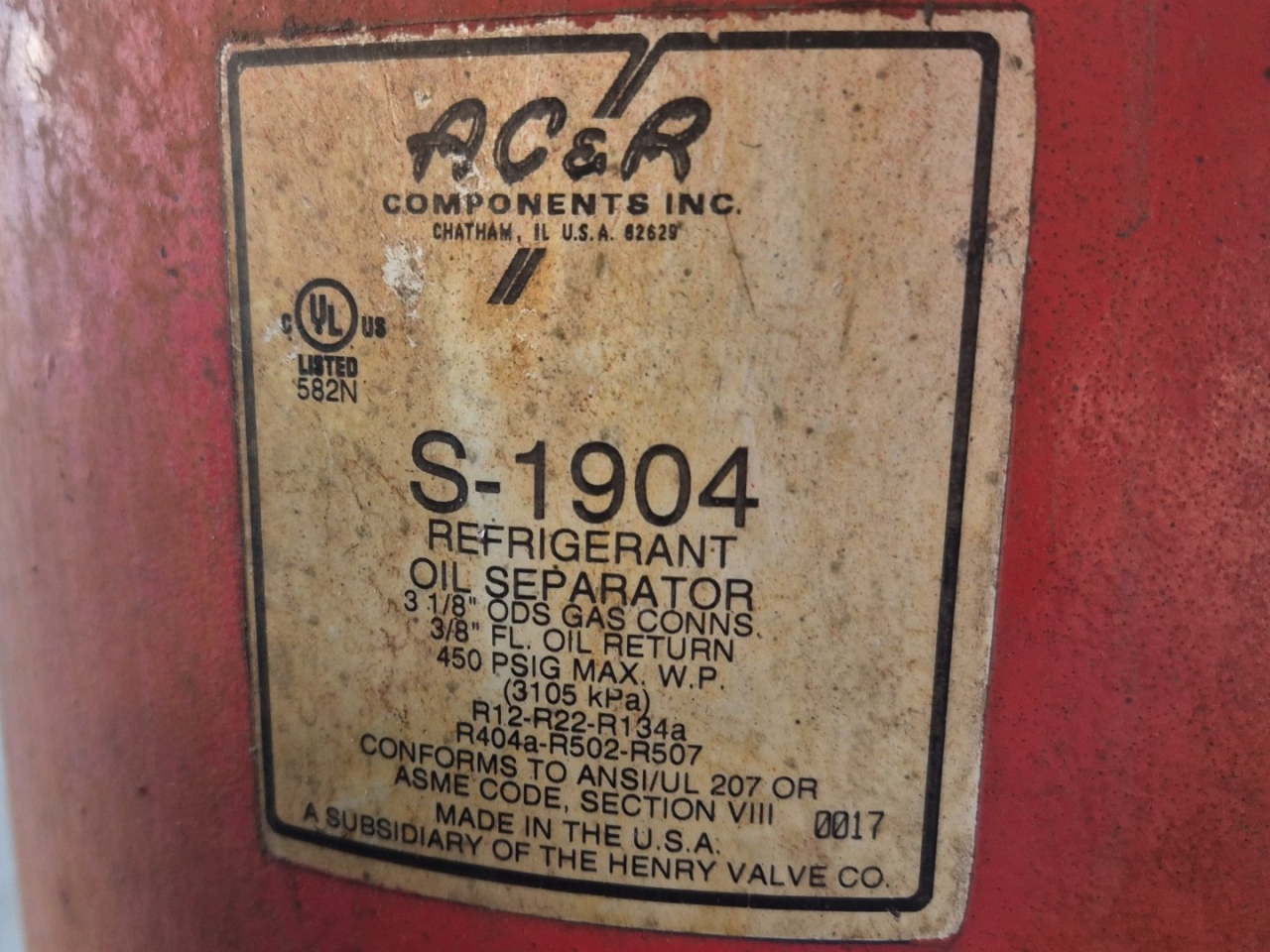

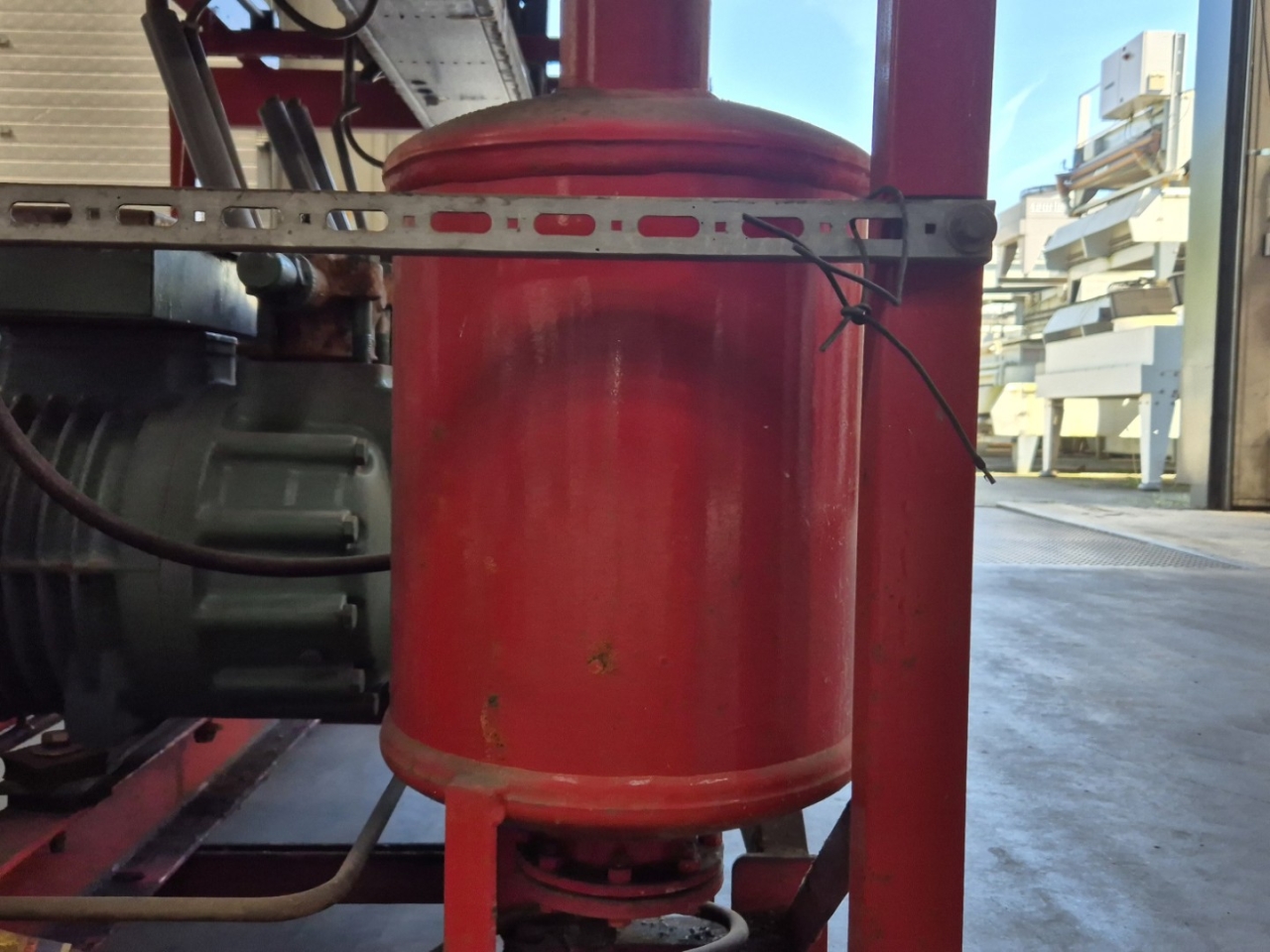

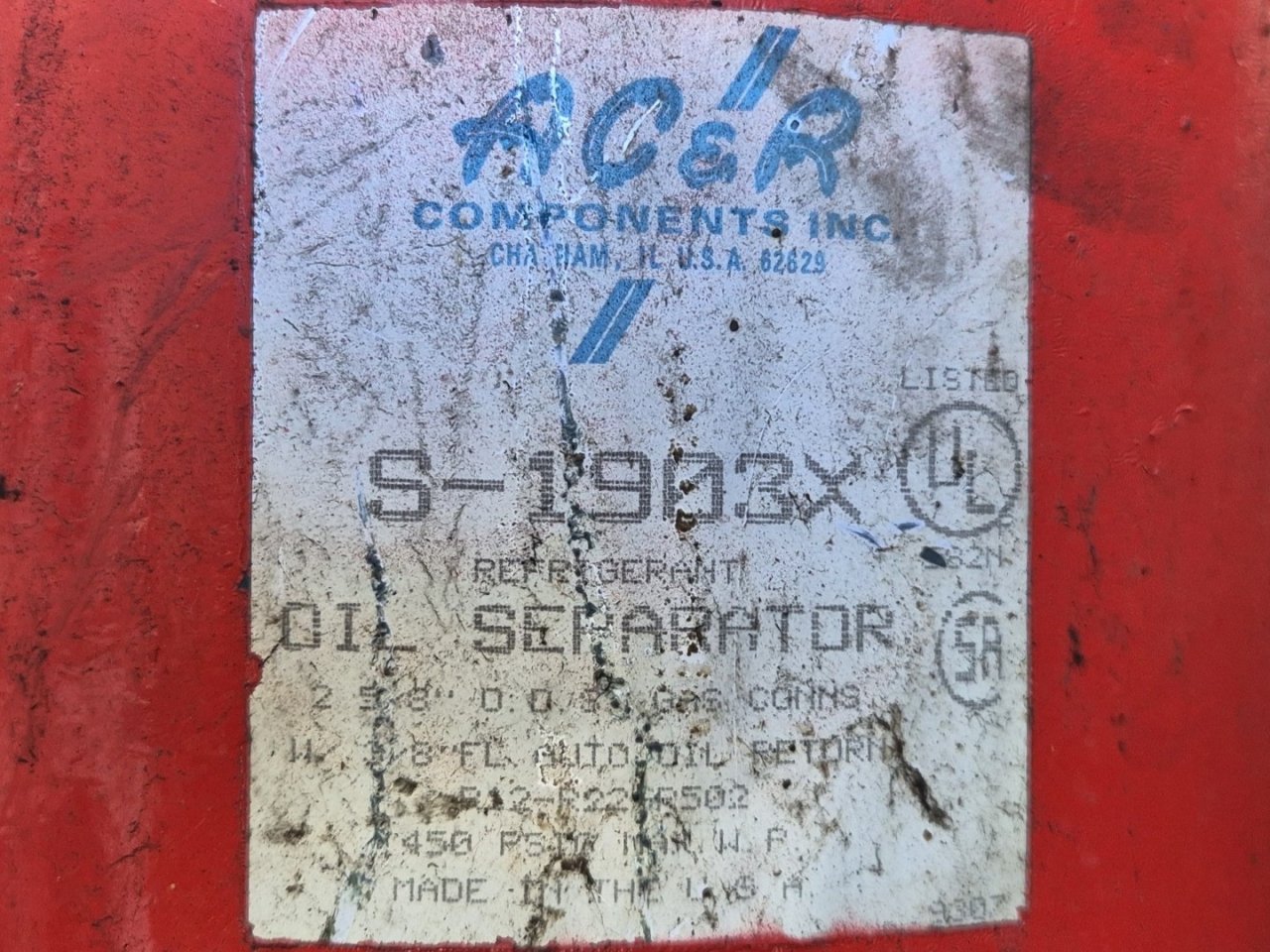

| Oil separator |
|
| Oil level system AC&R |
|
| Liquid line filter drier |
|
| Sight Glass |
|

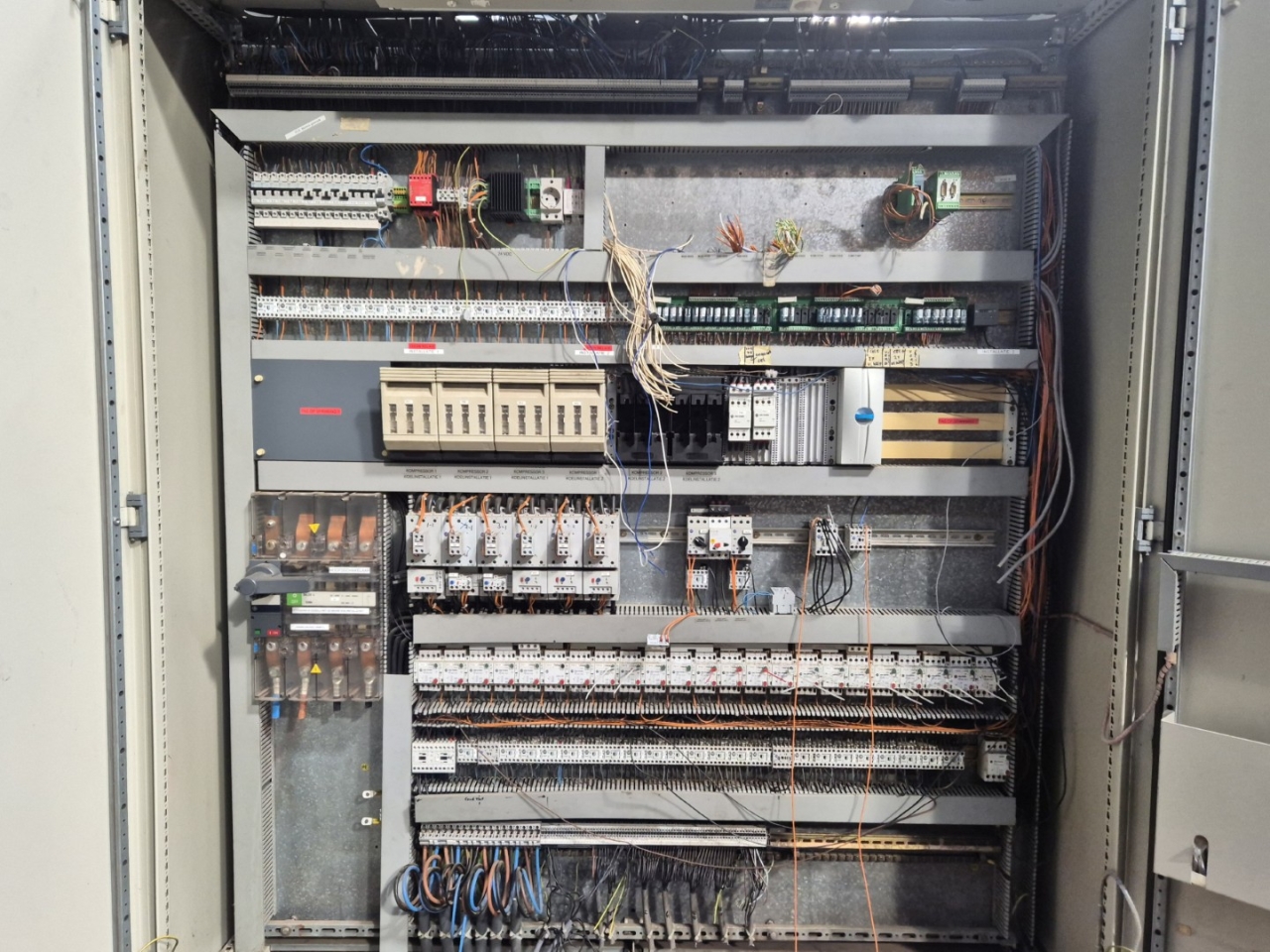

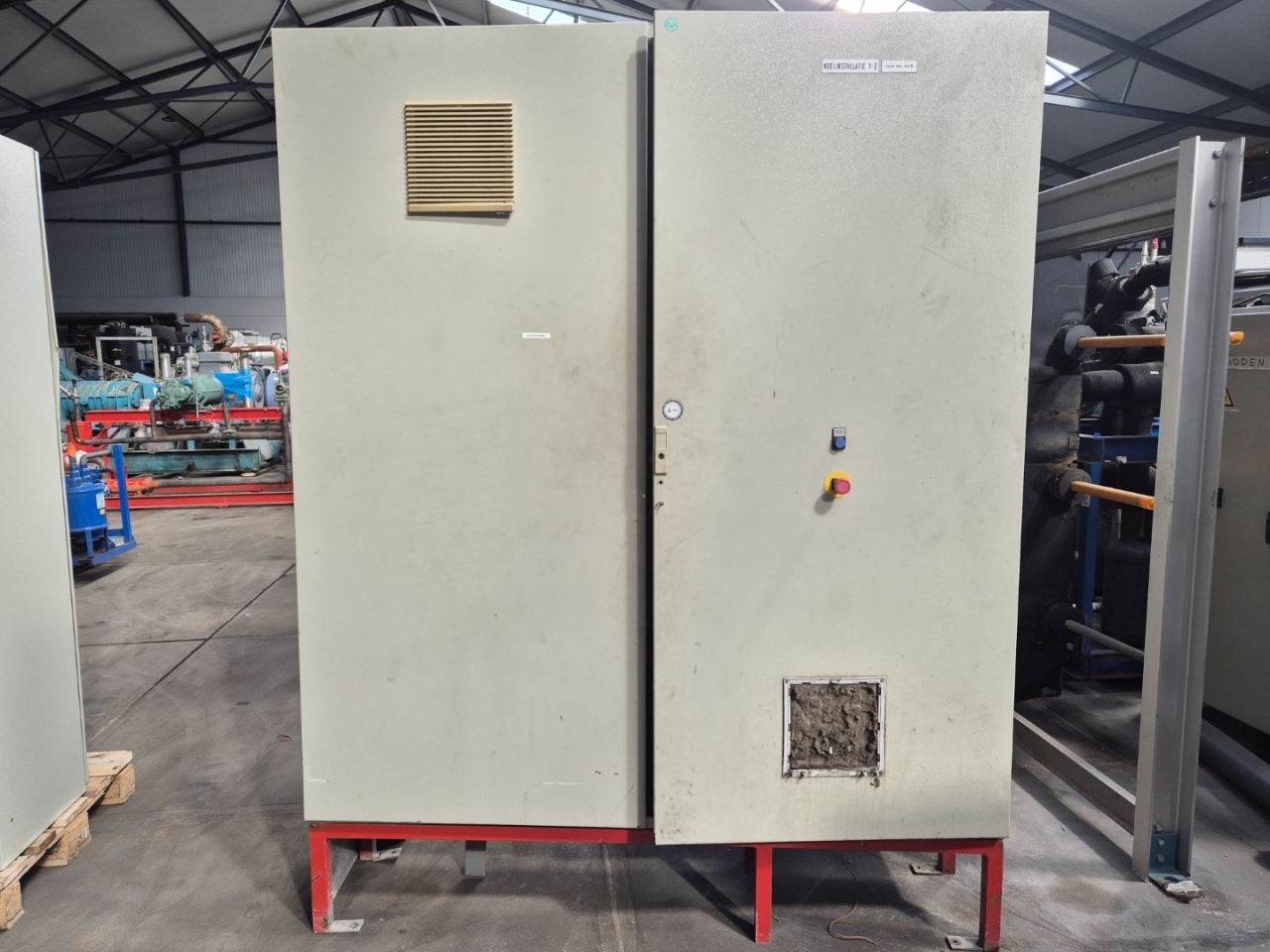

| Control panel |
|
| m3 / h | 789,0 |
| Package / Rack |
|
| Sizes | 2150x1550x2150 mm (LxWxH) |
| Amount in stock | 1 |
Dorin K3000CS-01 (x2) & H3000CS (x1) & Bitzer 6F-40.2Y (x2) & 6F-50.2Y-40P (x1)

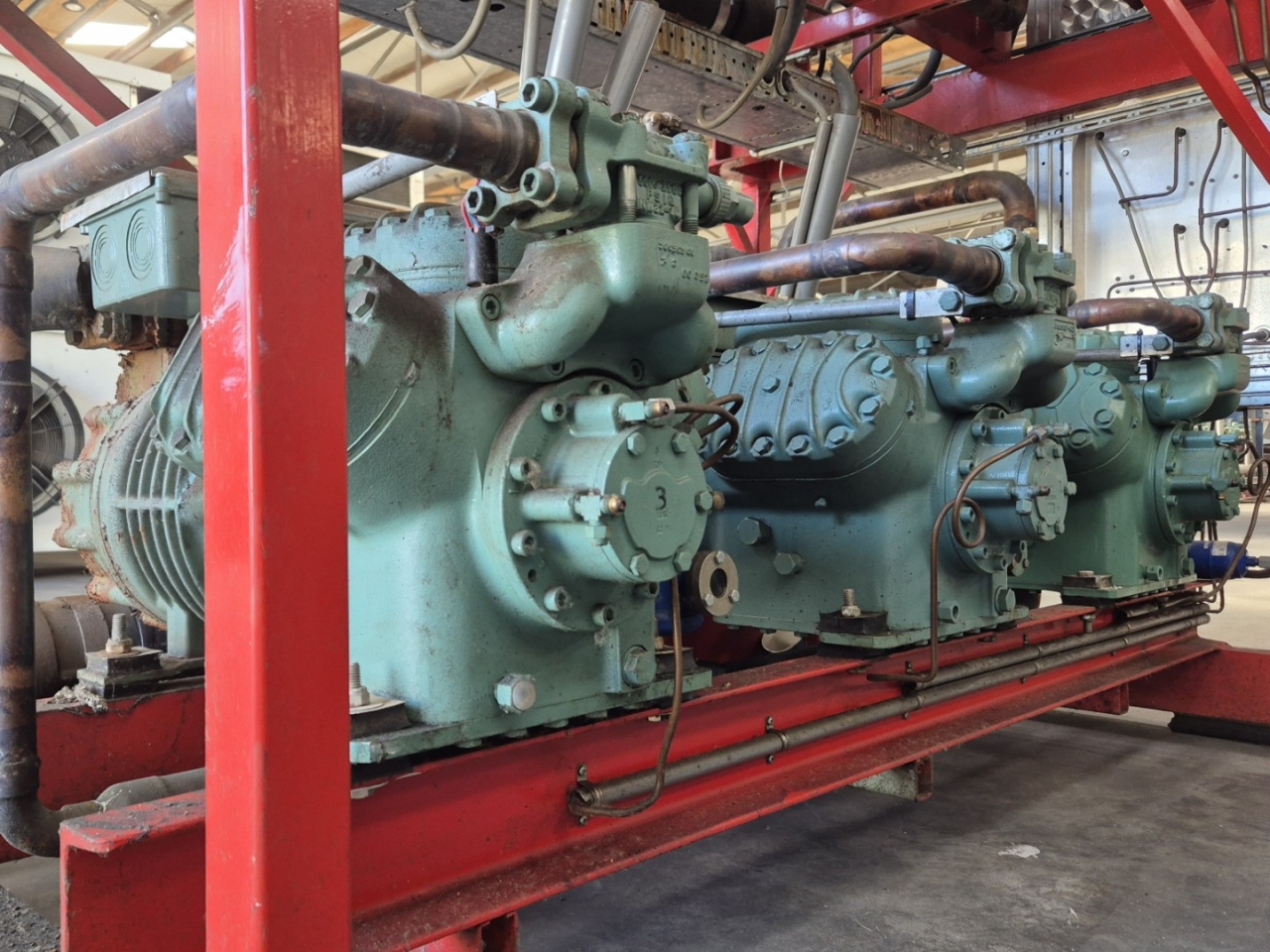

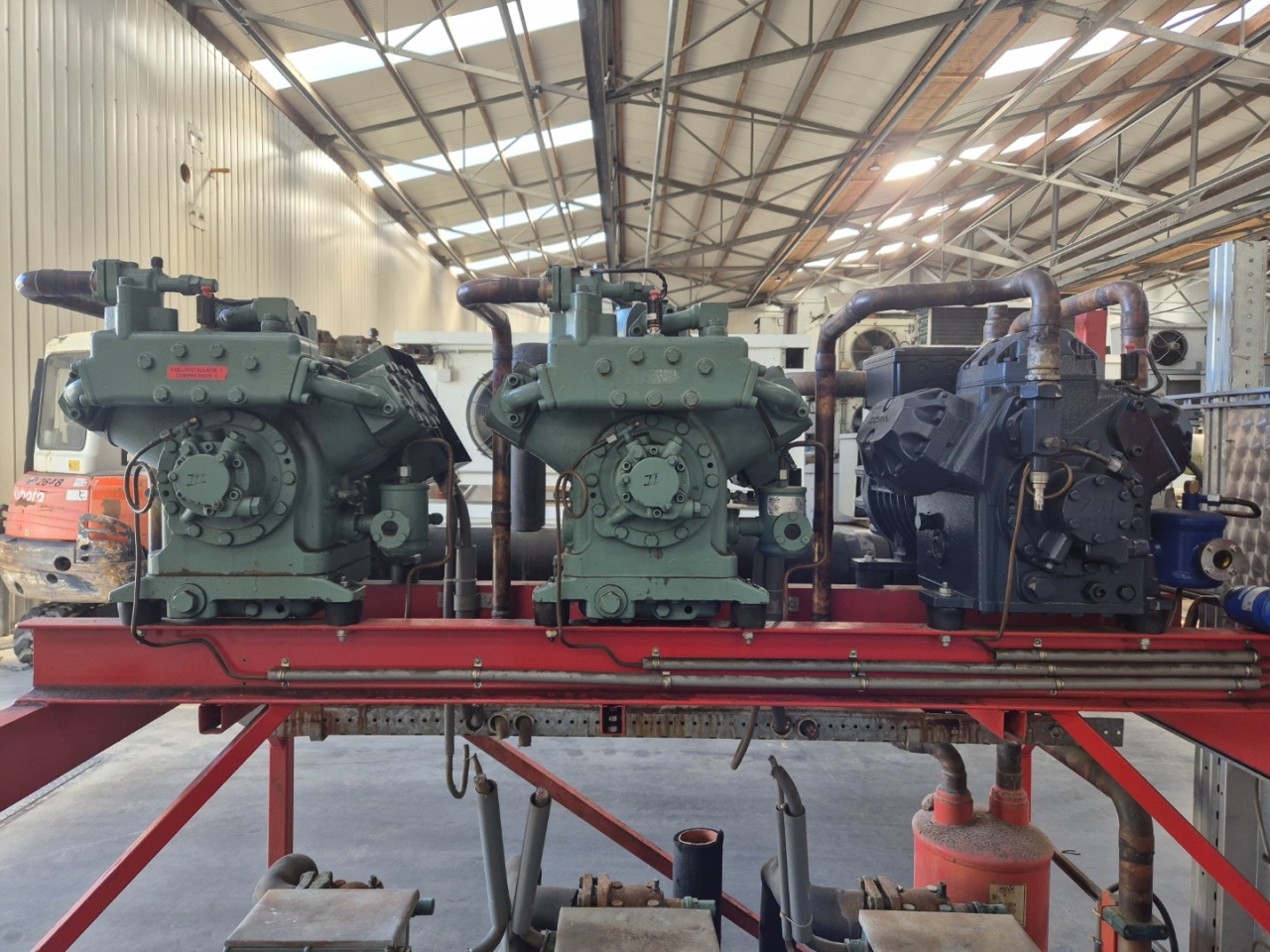

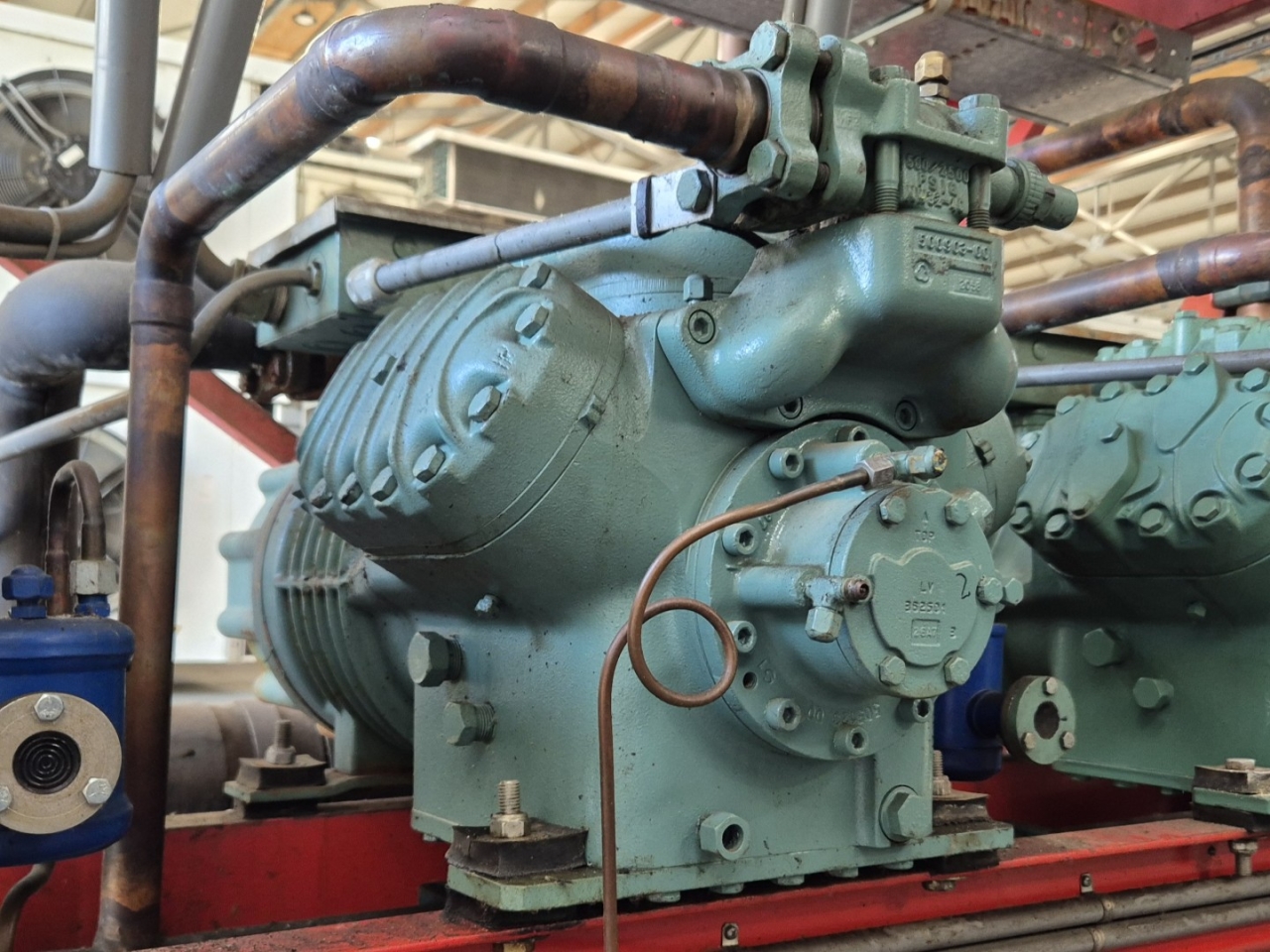

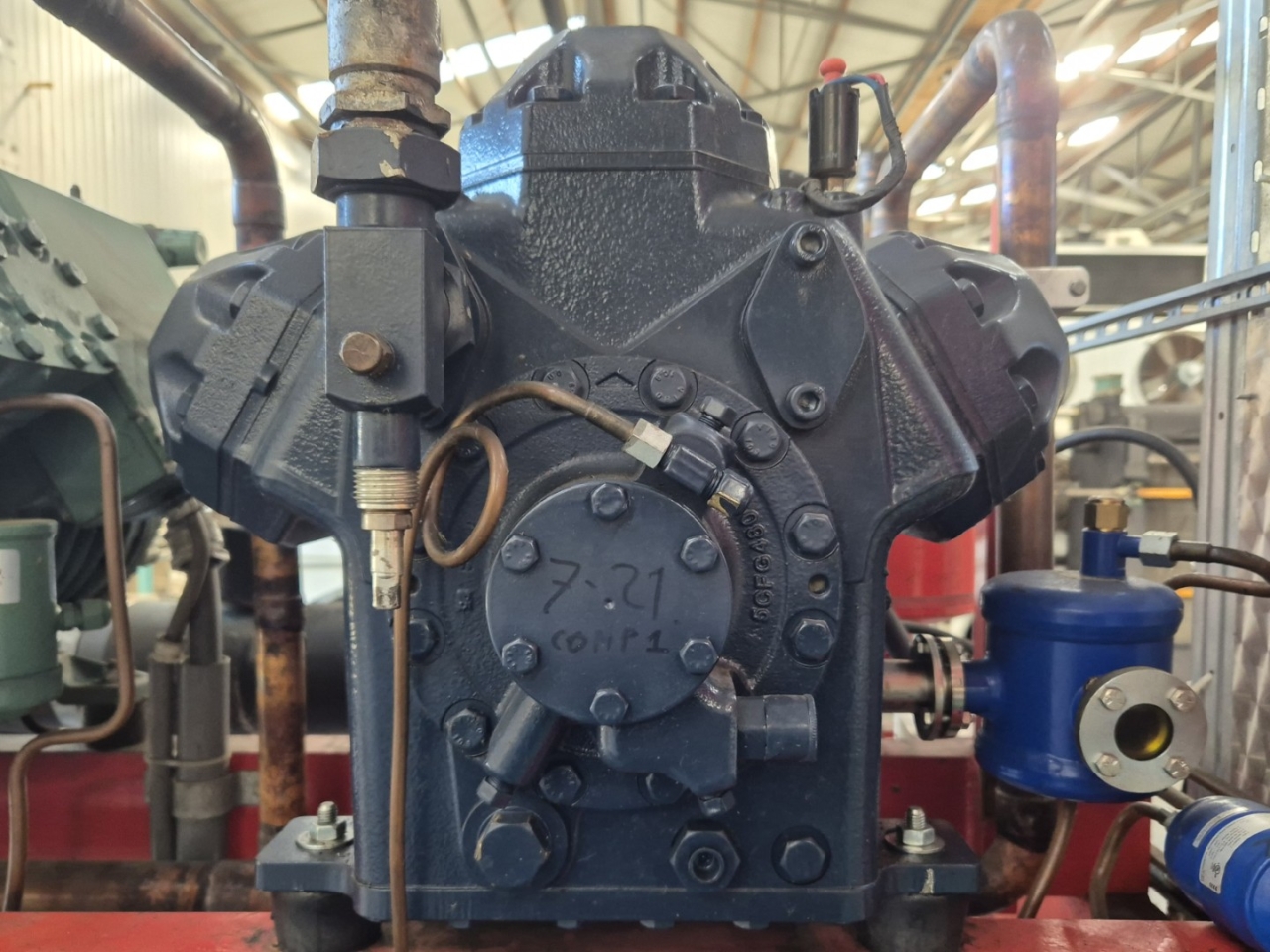

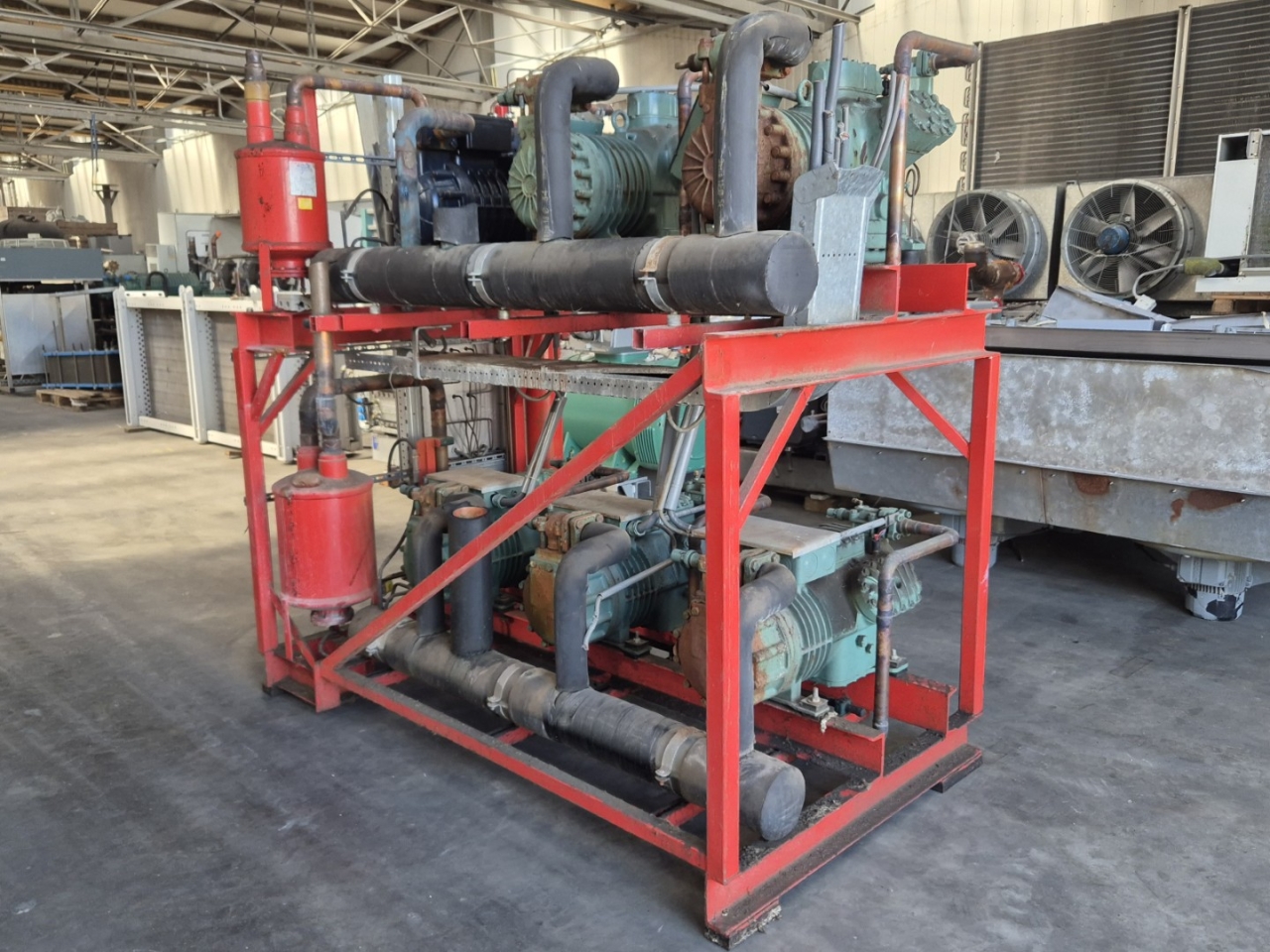

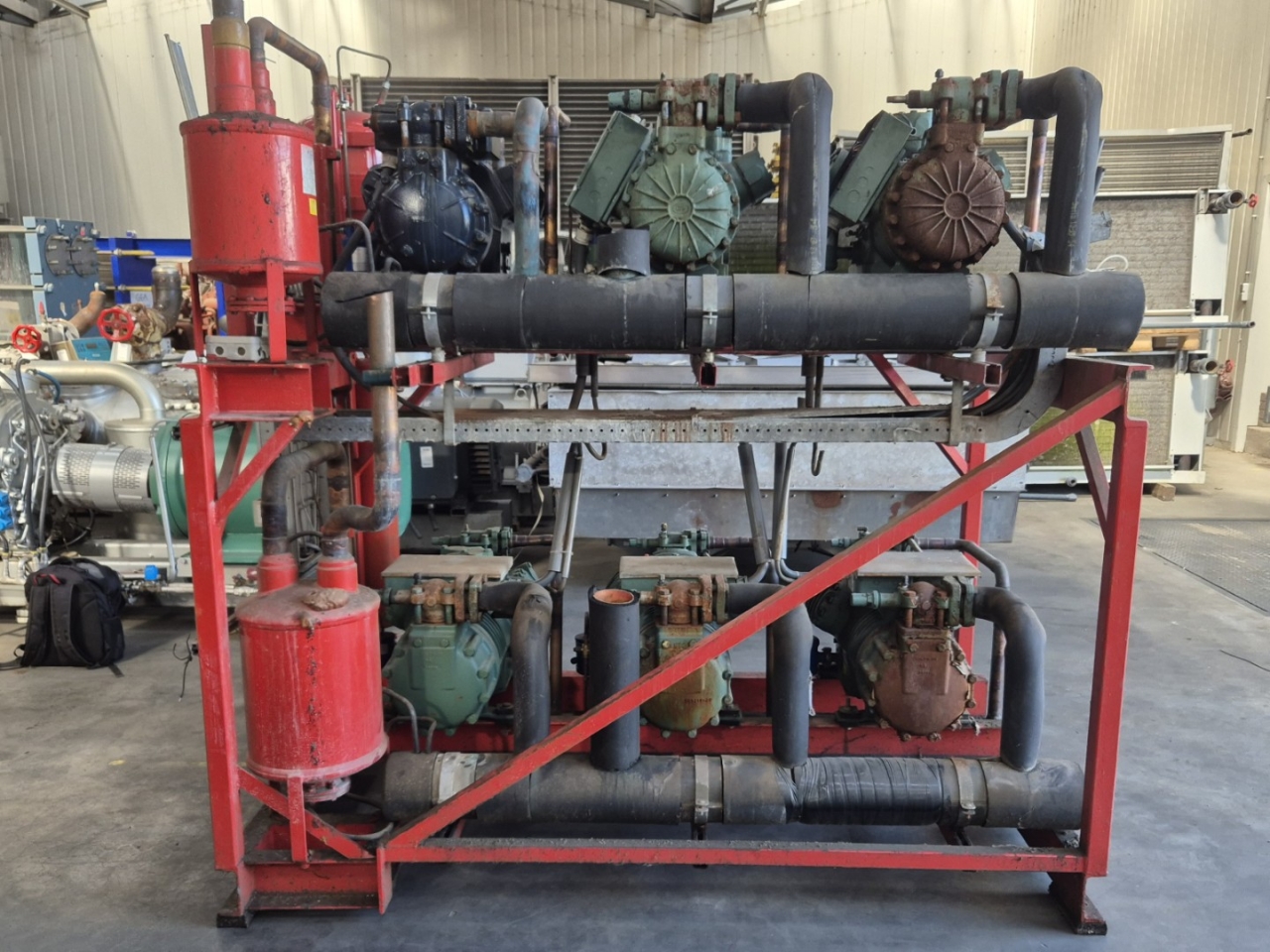

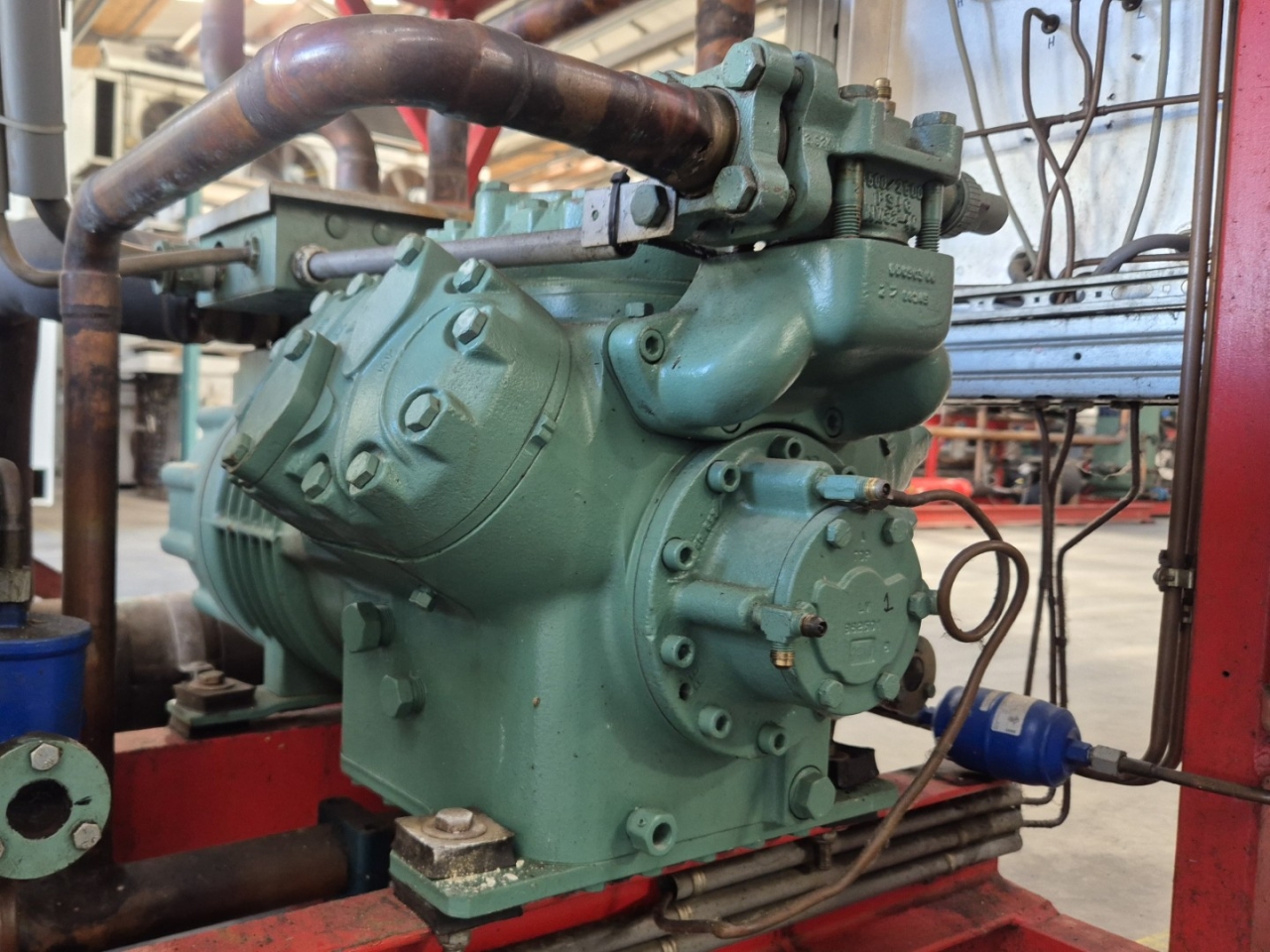

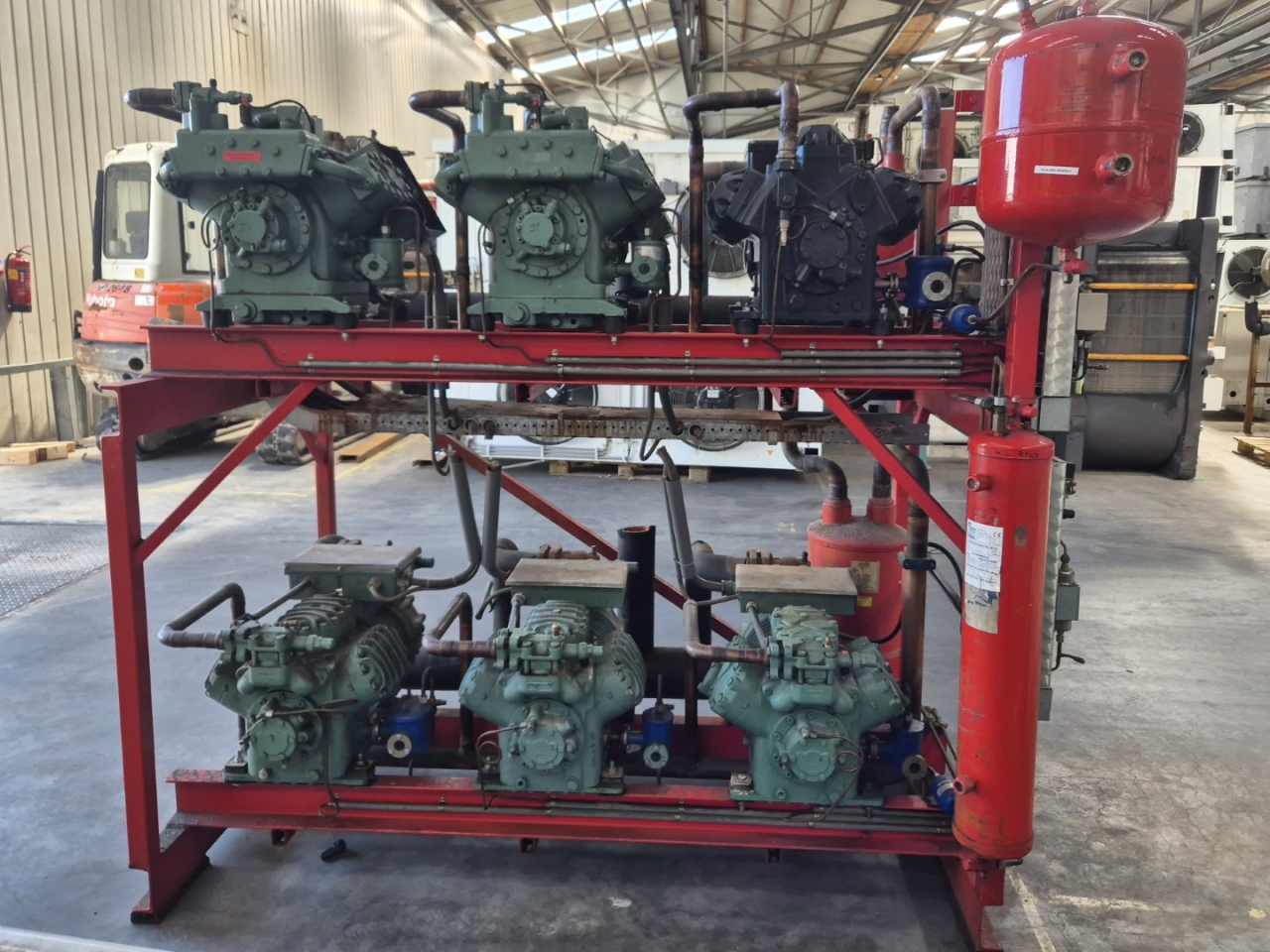

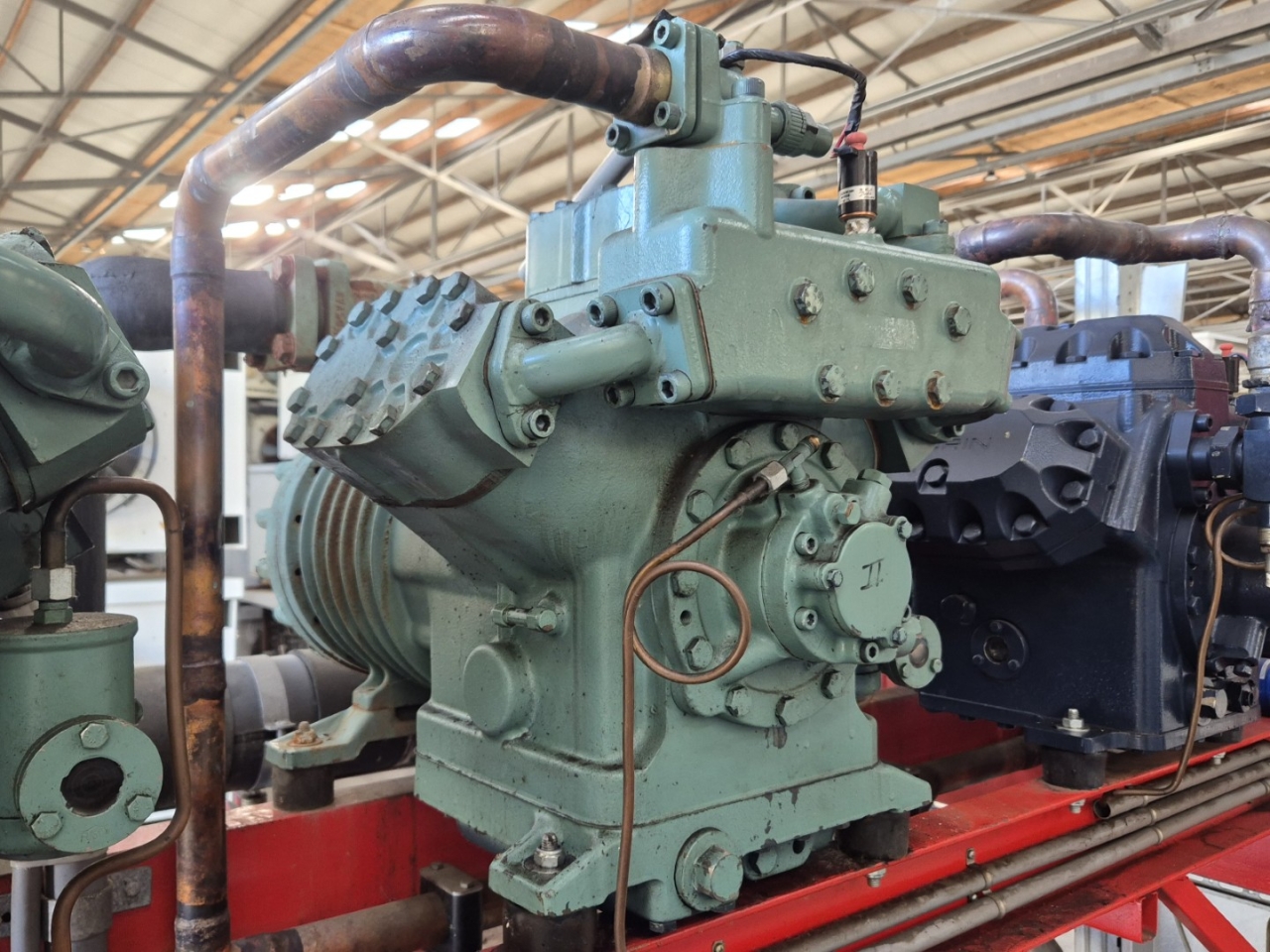

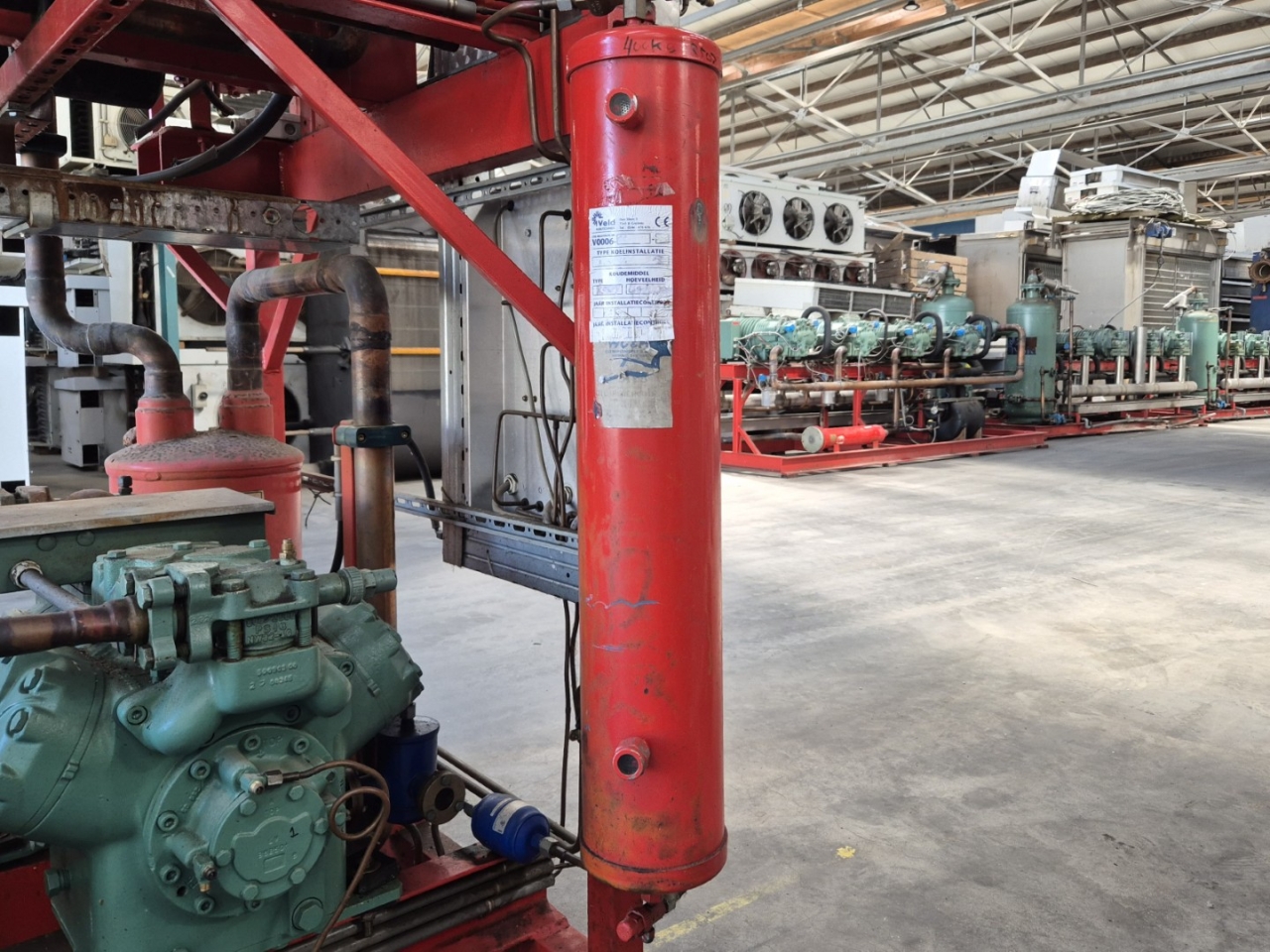

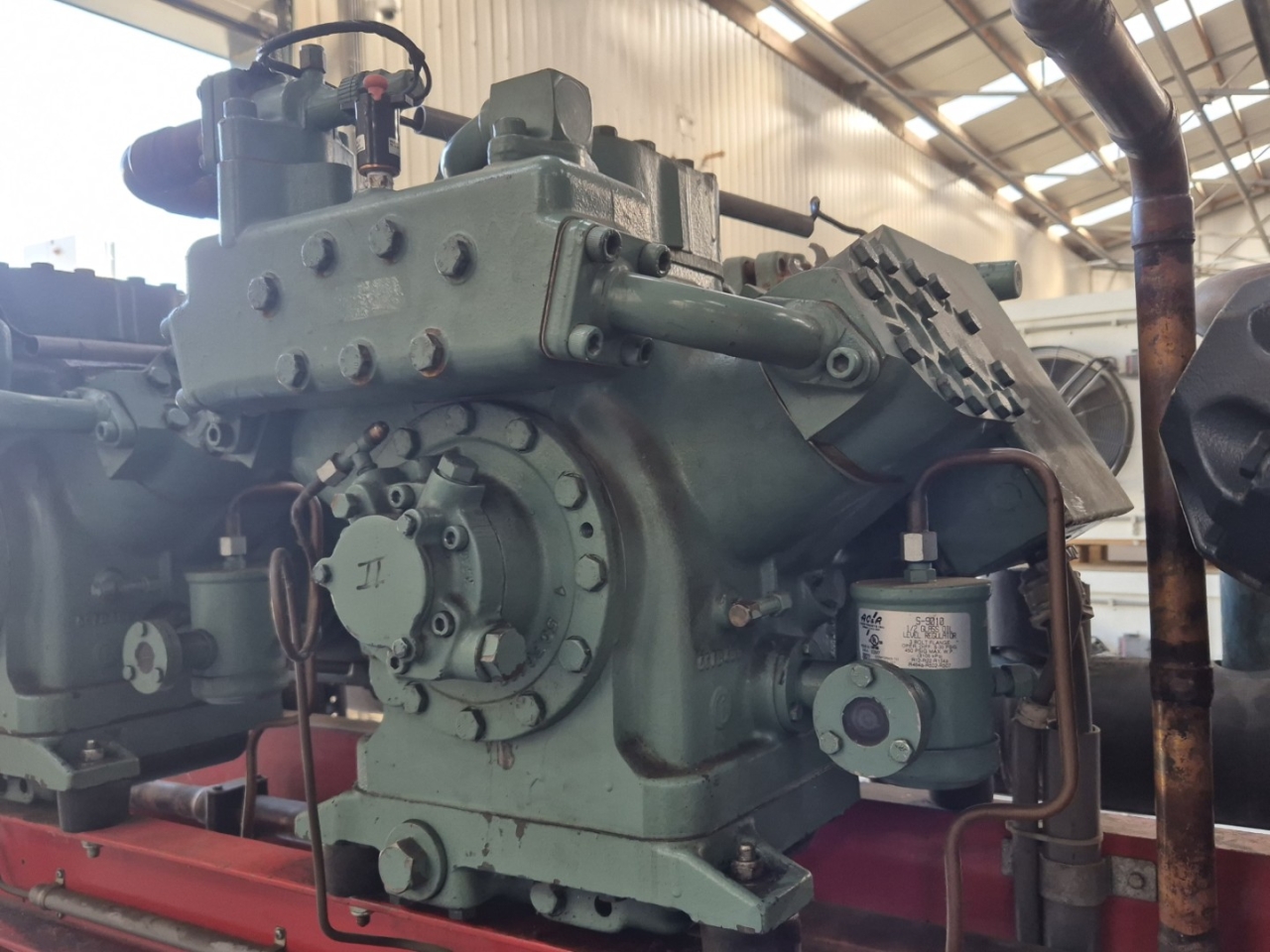

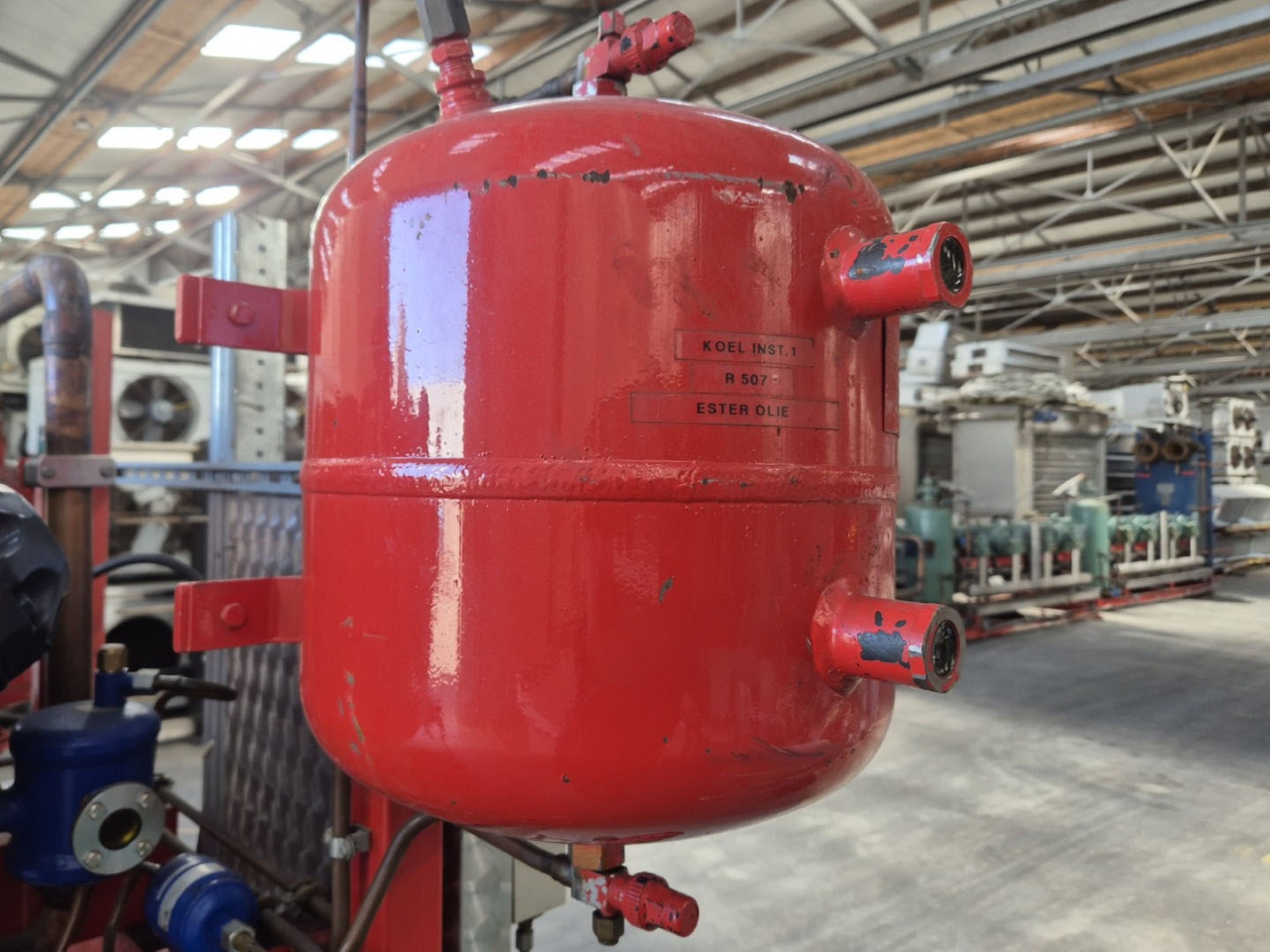

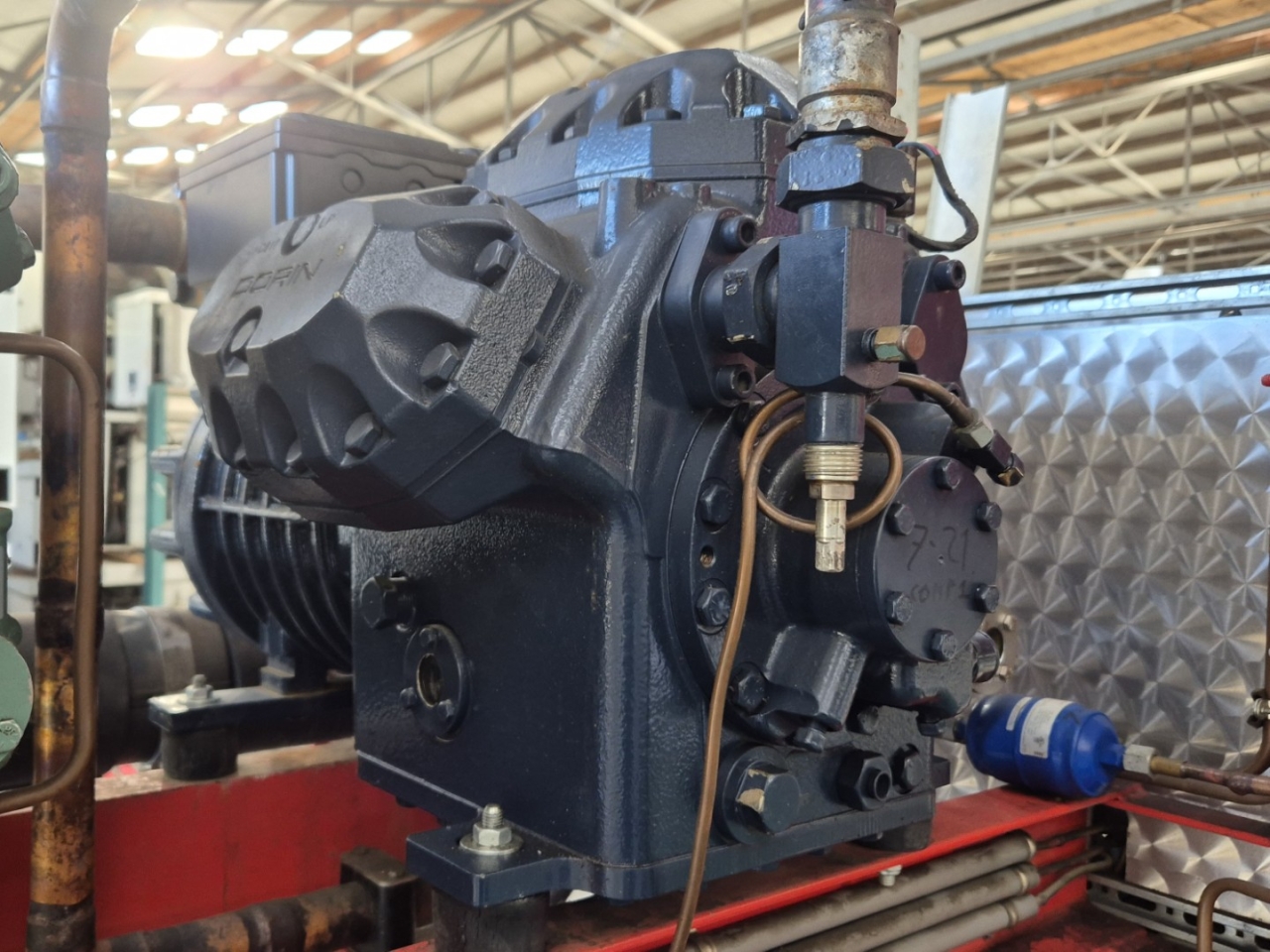

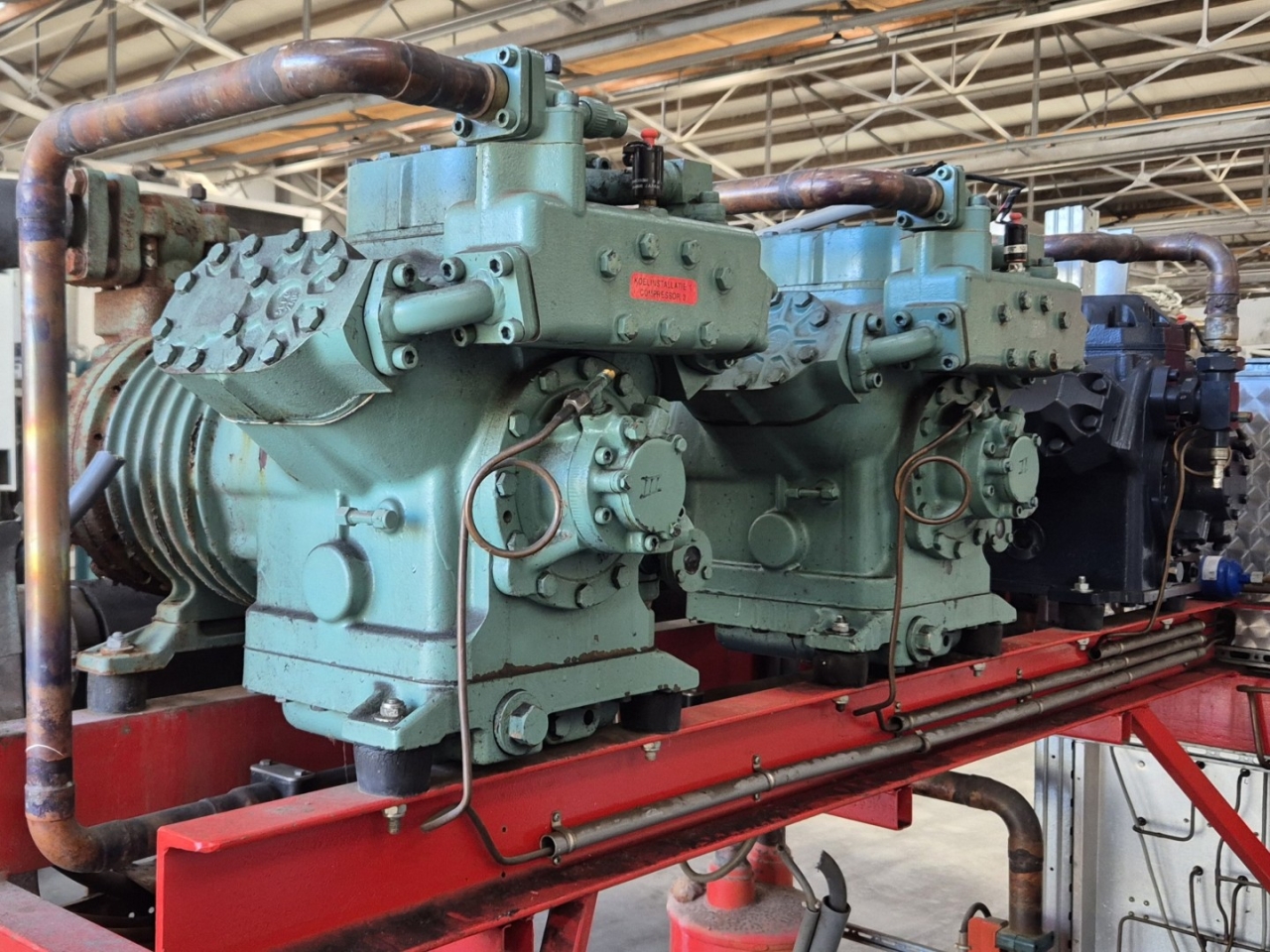

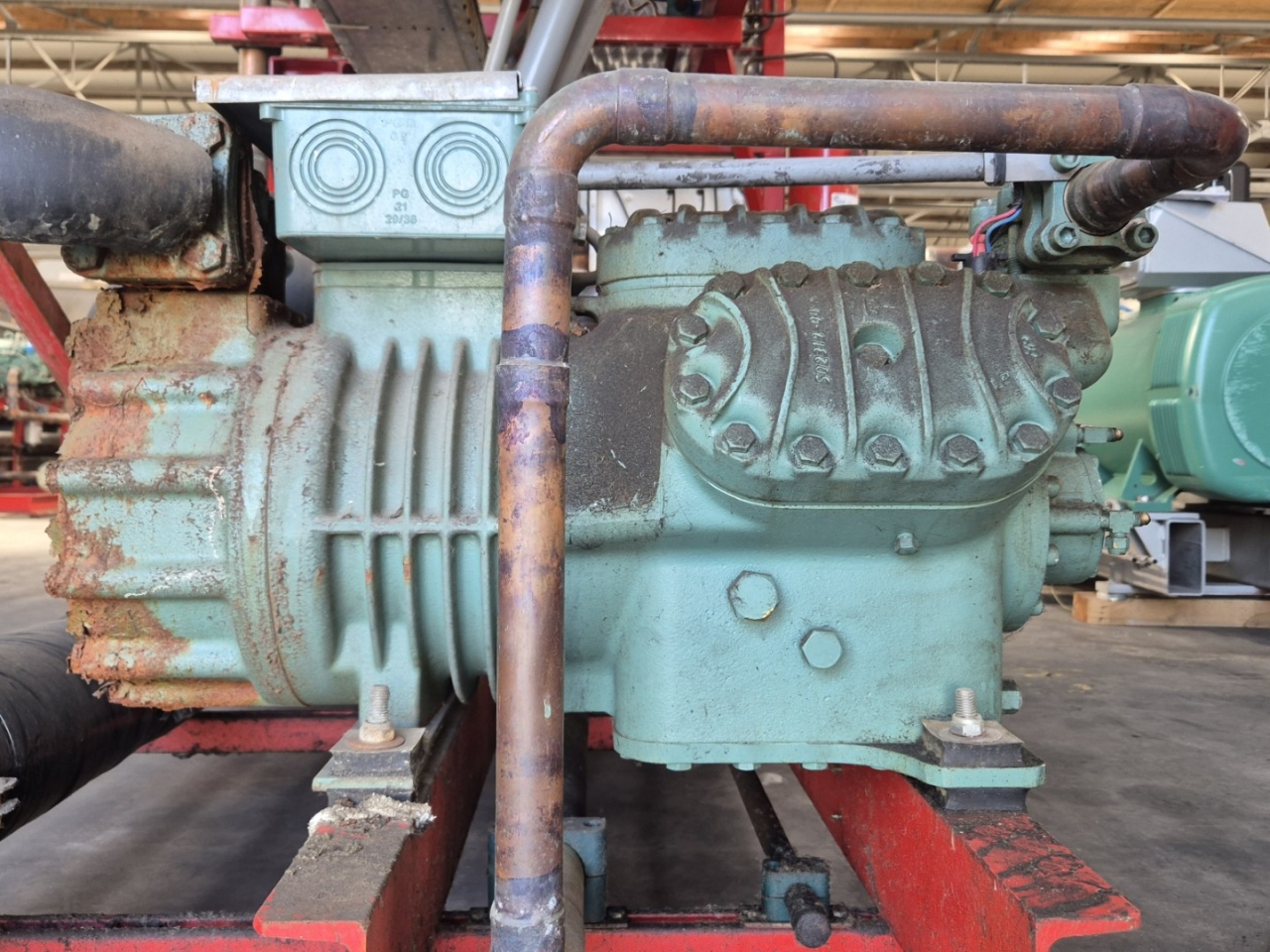

Used Dorin K3000CS-01 (x2) & H3000CS (x1) & Bitzer 6F-40.2Y (x2) & 6F-50.2Y-40P (x1) semi-hermetic reciprocating compressor rack on Freon. Complete with oil separators, oil reservoirs, pressure and safety switches/gauges and a control cabinet. The compressor has a displacement of 789 m³/h. This set was originally used for two separate cold rooms.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
Dorin K3000CS-01 (x2) & H3000CS (x1) & Bitzer 6F-40.2Y (x2) & 6F-50.2Y-40P (x1)
| Dorin K3000CS-01 (x2) & H3000CS (x1) & Bitzer 6F-40.2Y (x2) & 6F-50.2Y-40P (x1) - | (PDF) |
| Dorin K3000CS-01 (x2) & H3000CS (x1) & Bitzer 6F-40.2Y (x2) & 6F-50.2Y-40P (x1) - Specifications | (PDF) |
| 19020_Bitzer 6F-40.2Y-40P & 6F-50.2Y Specifications.pdf | (PDF) |
