Bitzer HSN 7471-75 (x4)
Bitzer HSN 7471-75 (x4)
| 19023 | |
| Brand | Bitzer |
| Type | HSN 7471-75 (x4) |
| Refrigerant | Freon |
| kW at -20ºC/+40ºC | 481,2 |
| kW at -30ºC/+40ºC | 331,6 |
| kW at -40ºC/+40ºC | 218,0 |
| kW at -45ºC/+40ºC | 172,0 |
| Unloaded Start |
|
| Capacity Control |
|
| On steel base frame |
|
| Oil separator |
|
| Liquid line filter drier |
|
| Sight Glass |
|
| Solenoid Valve |
|
| Control panel |
|
| m3 / h | 1000 m³/h at 50 Hz & 1200 m³/h at 60 Hz |
| Package / Rack |
|
| Sizes | 3800x1300x1800 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer HSN 7471-75 (x4)

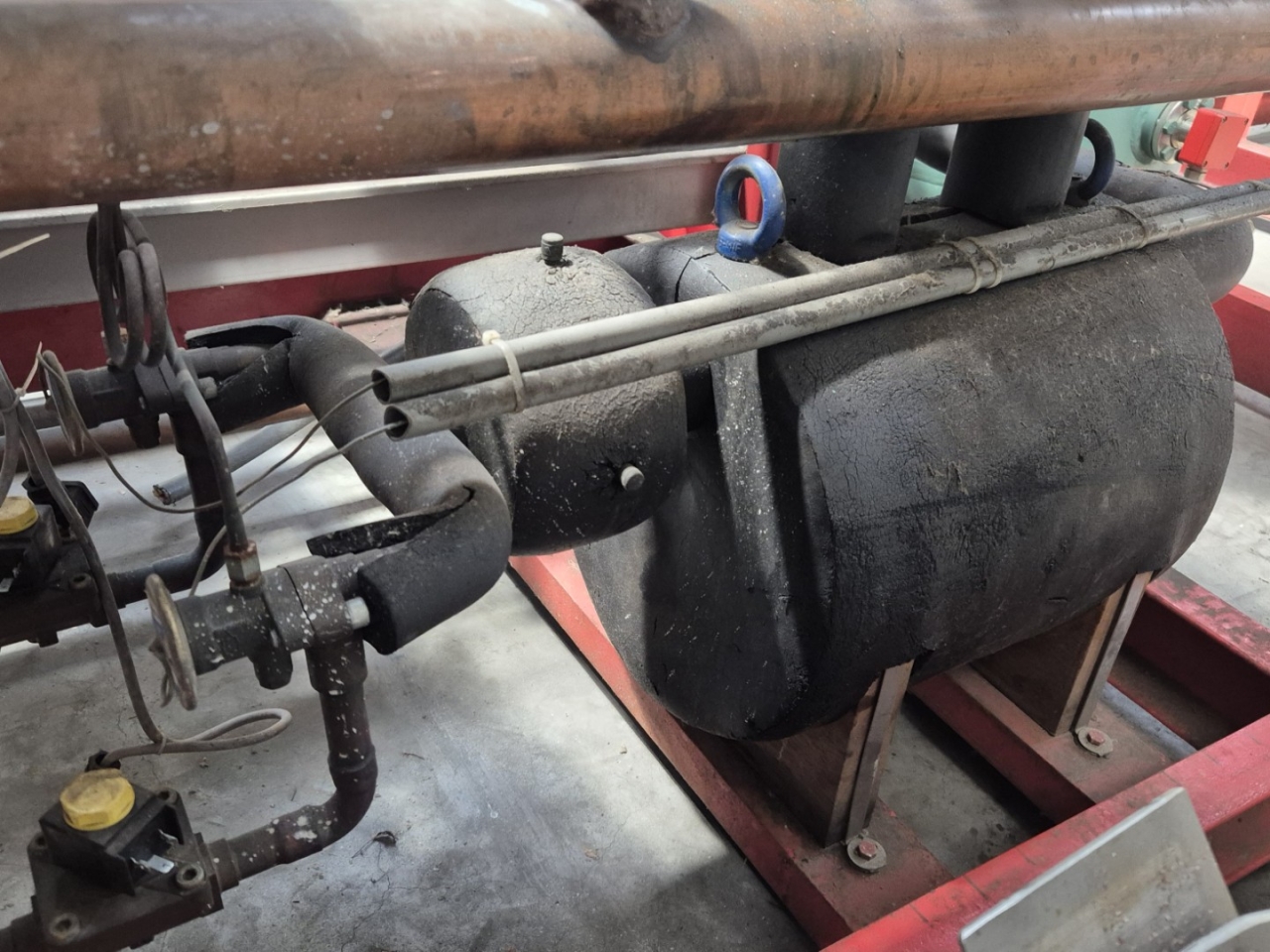

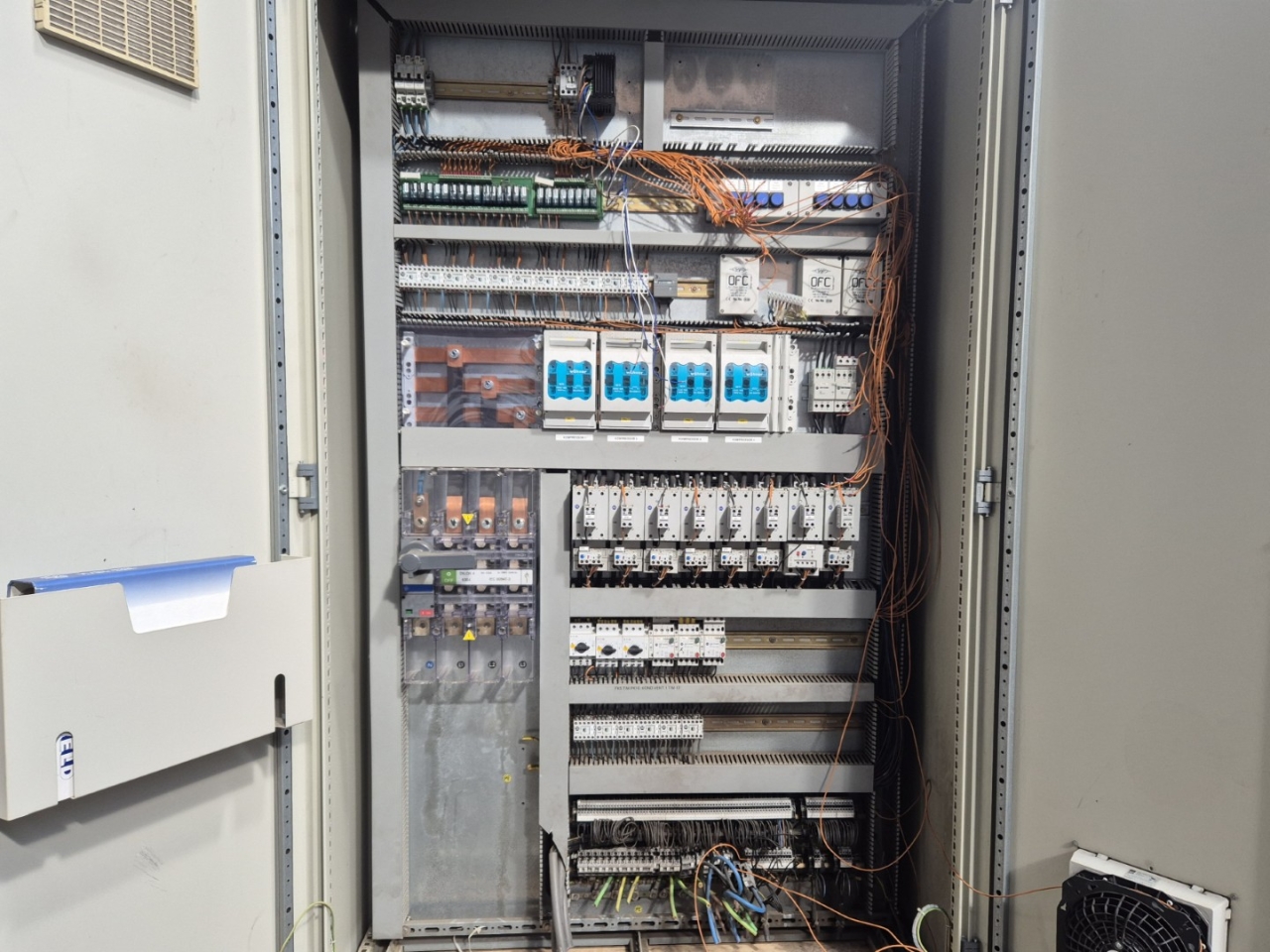

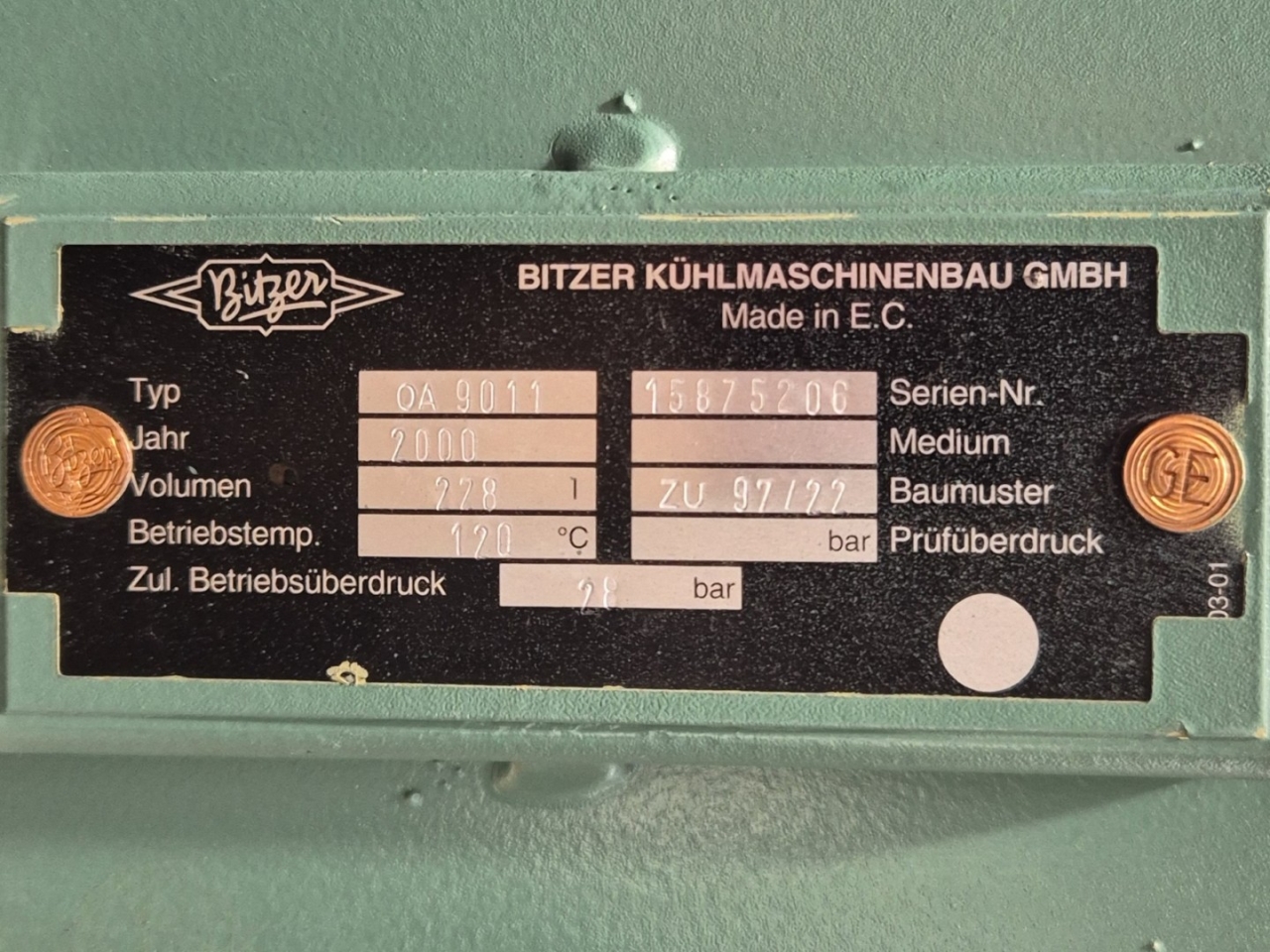

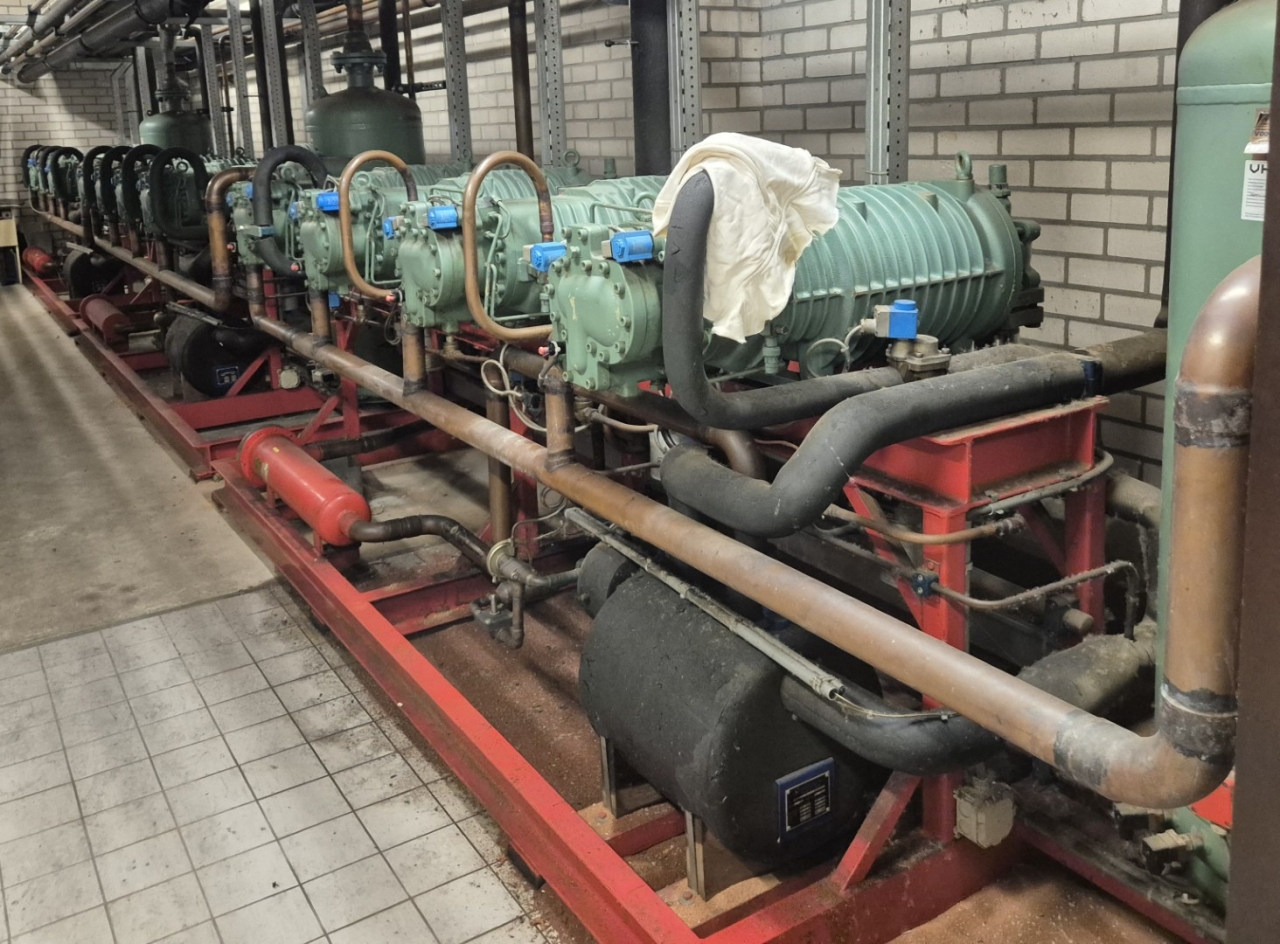

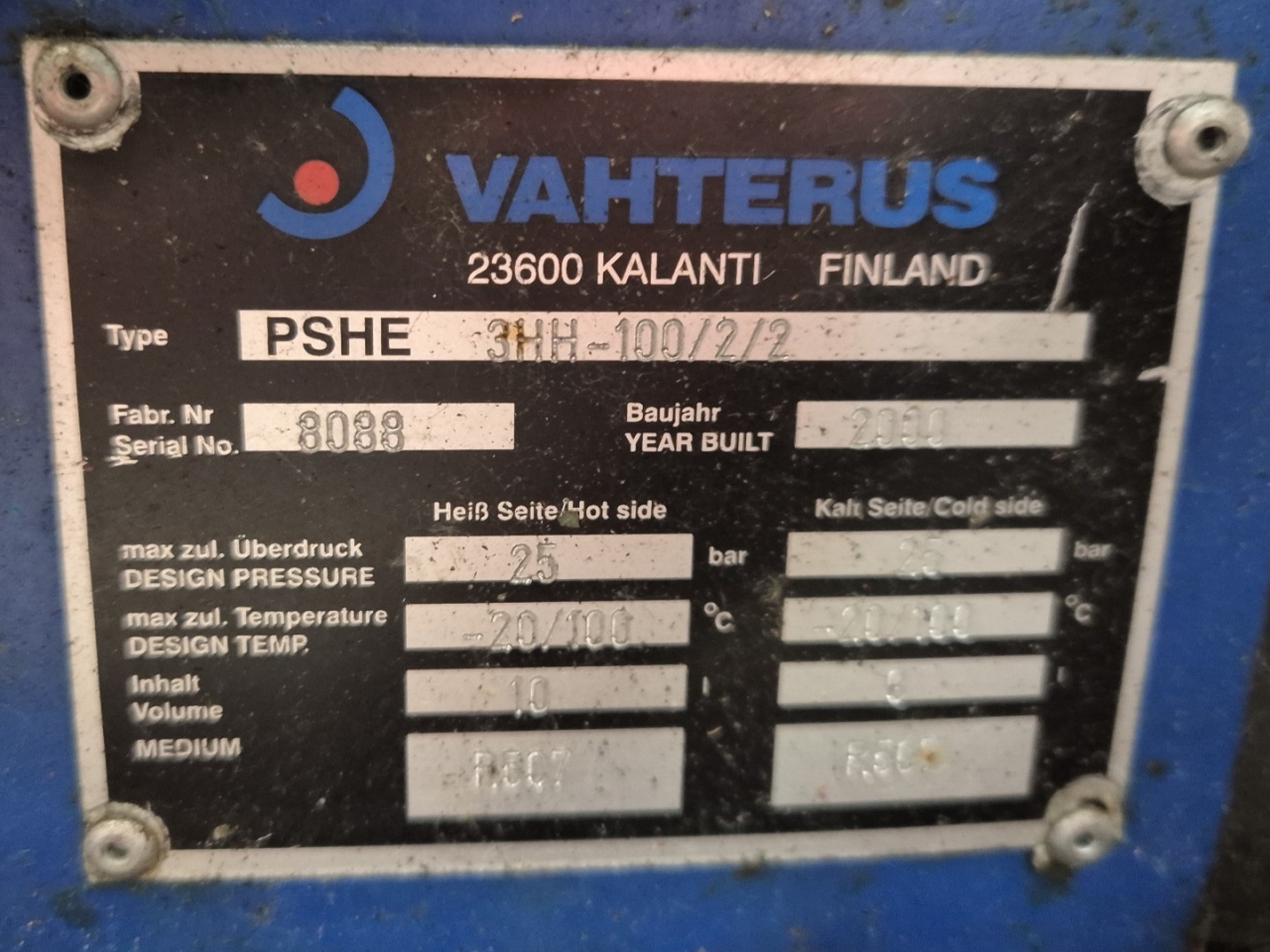

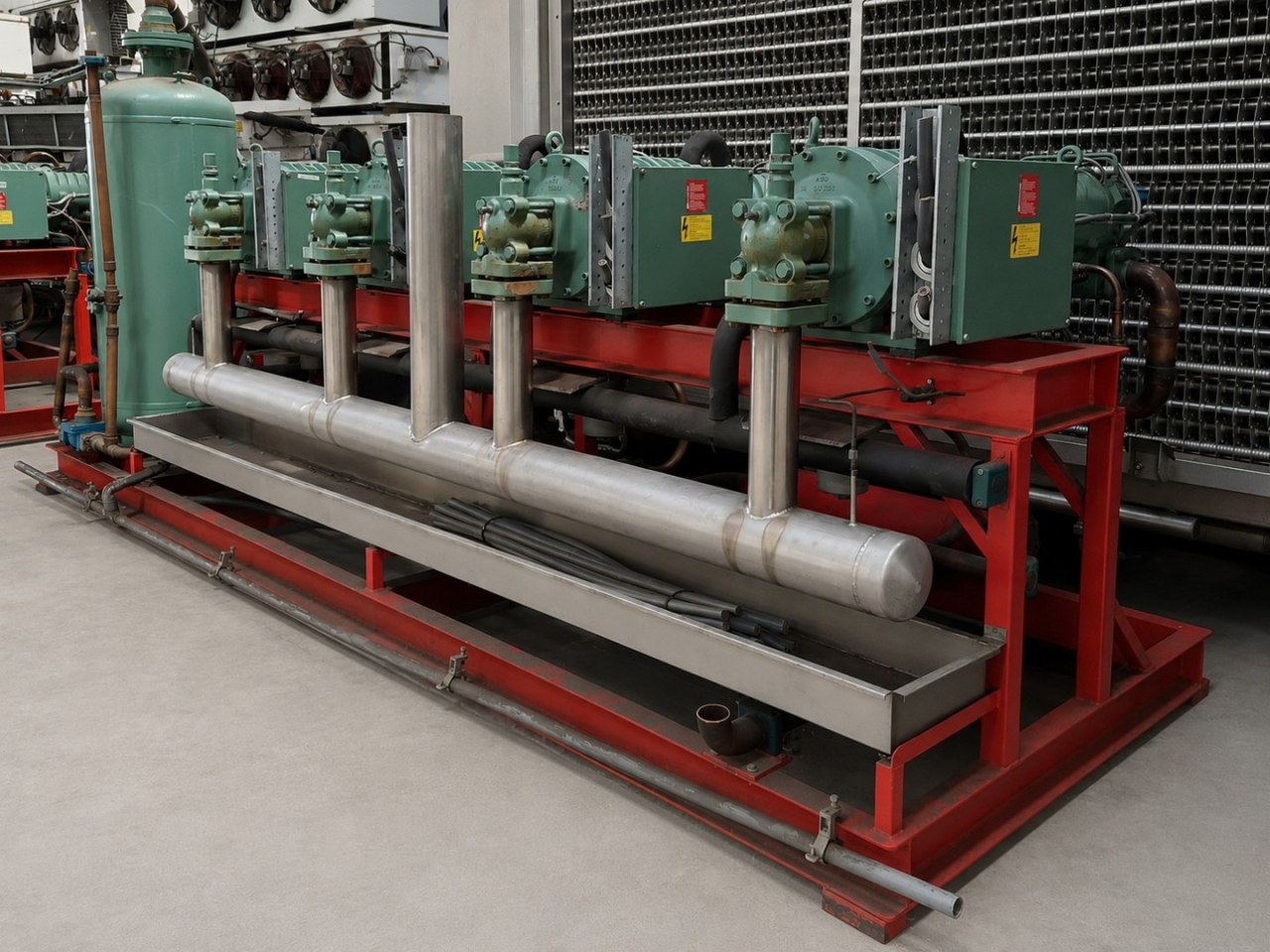

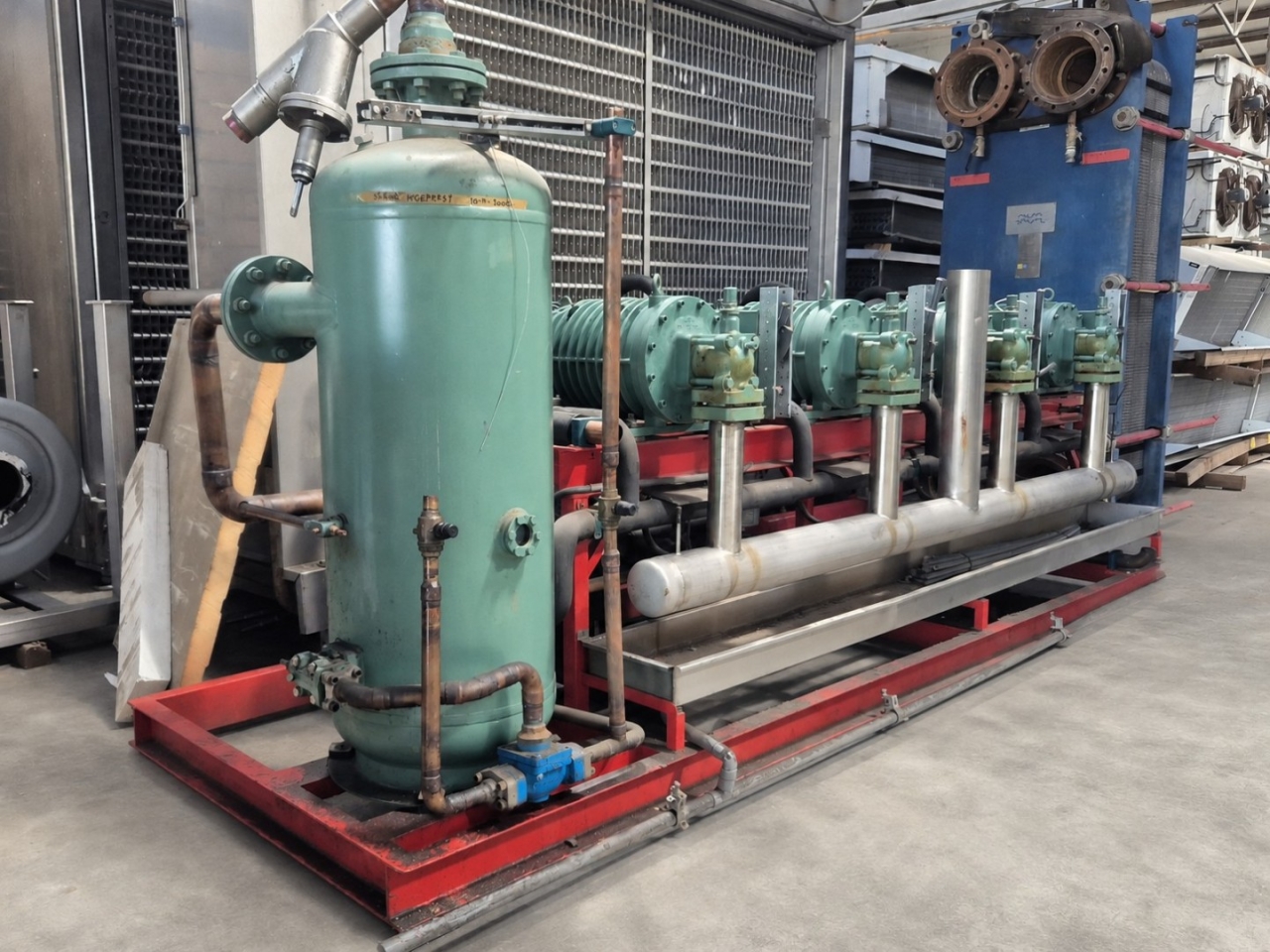

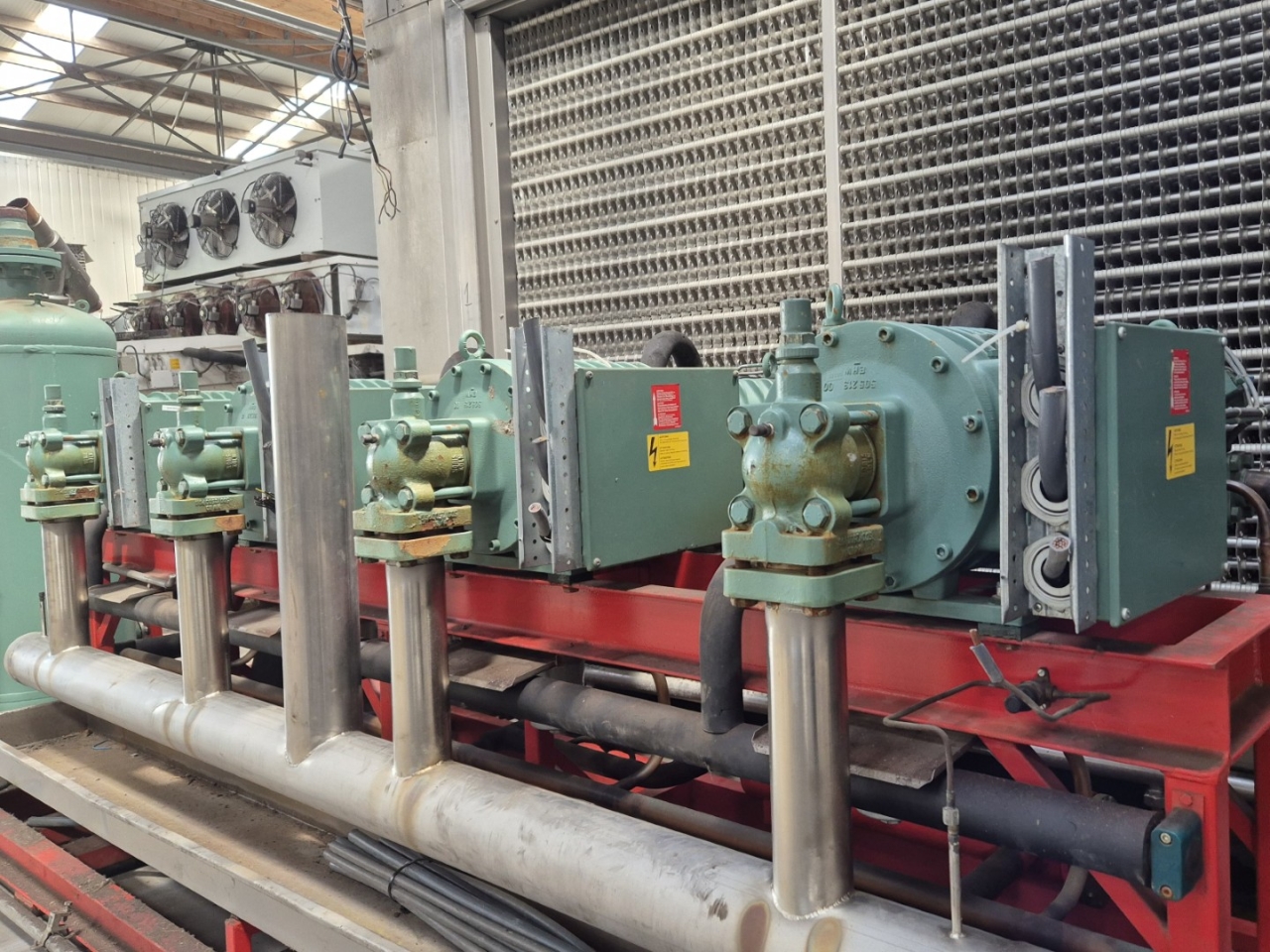

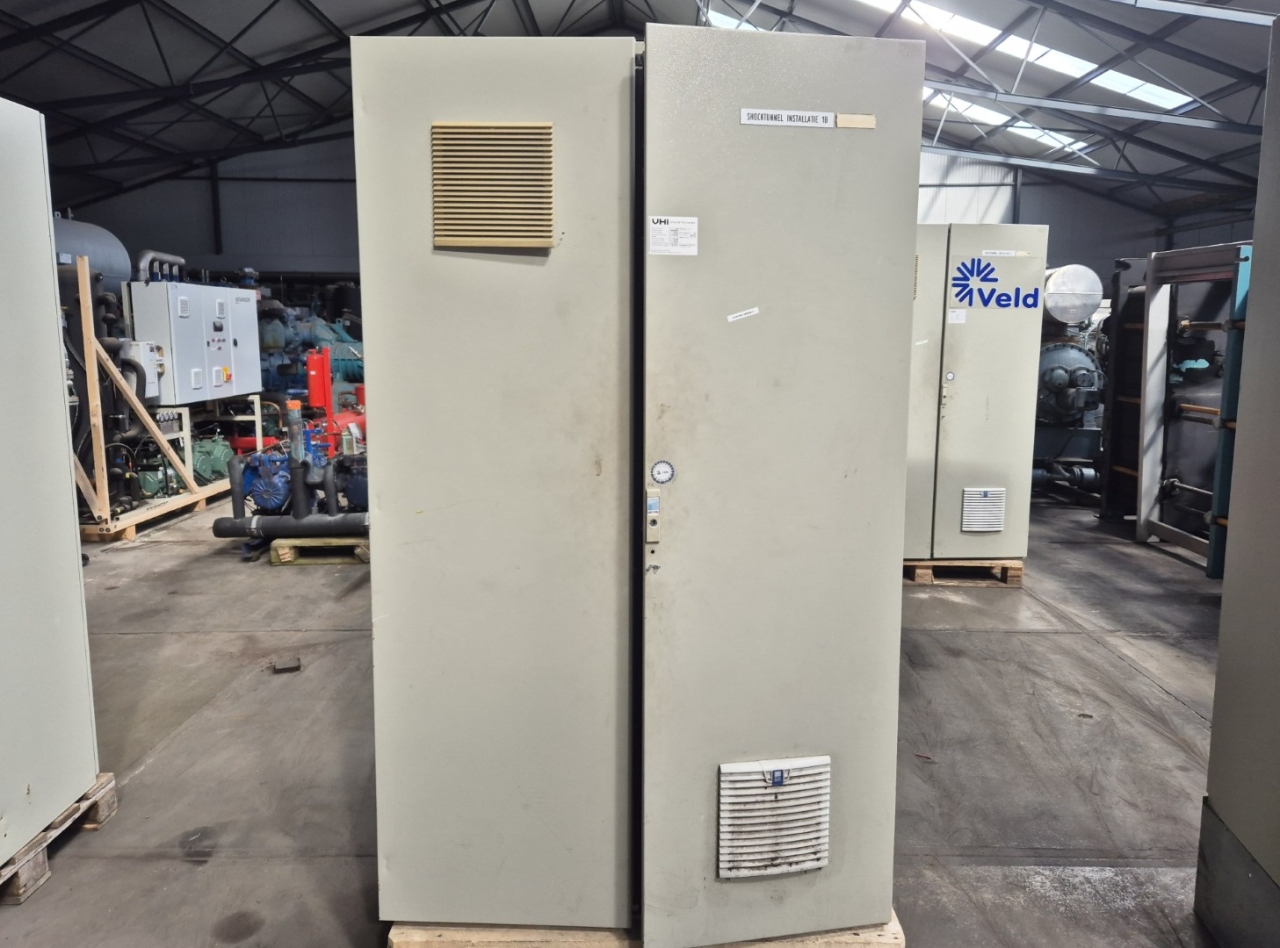

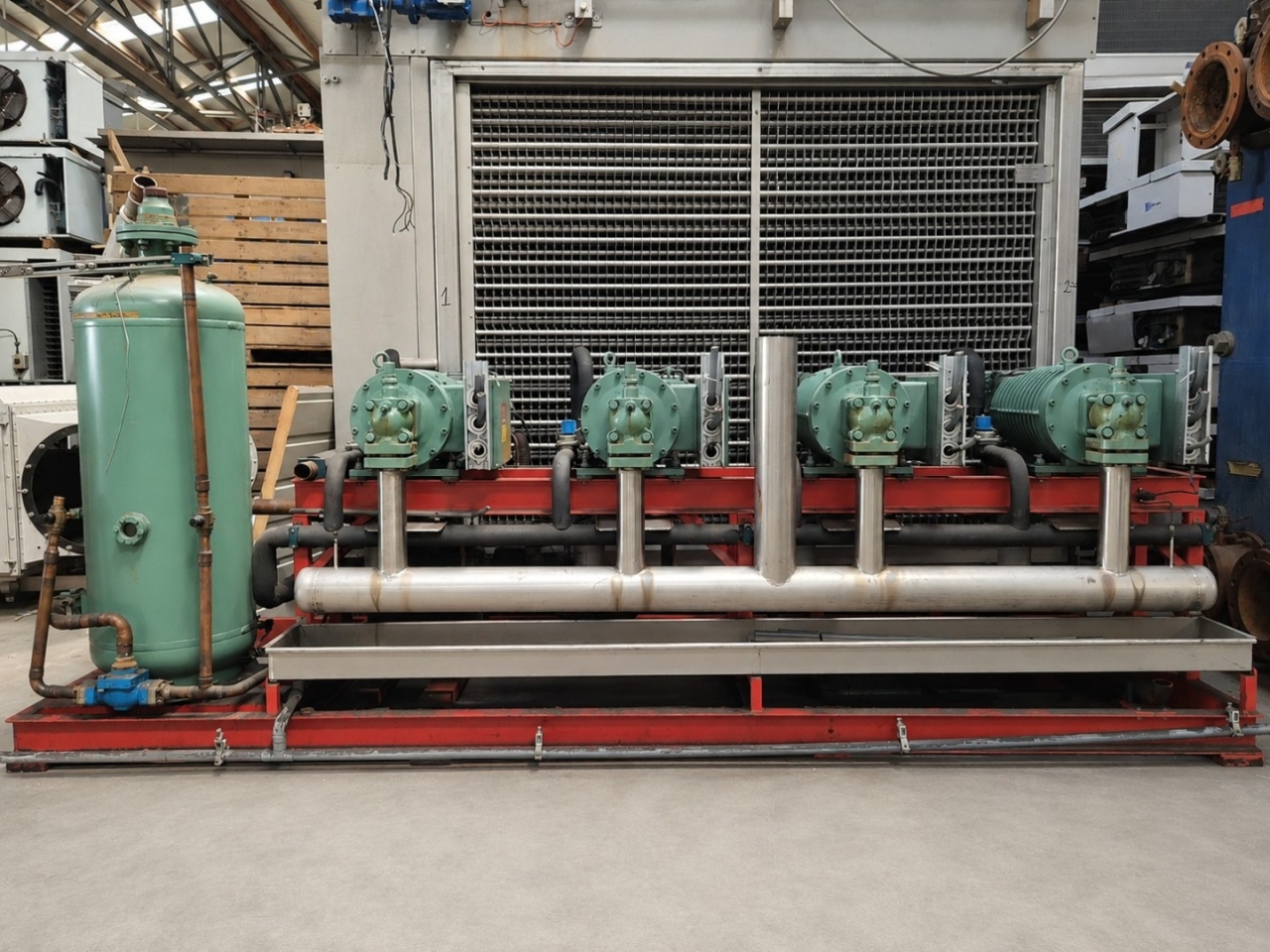

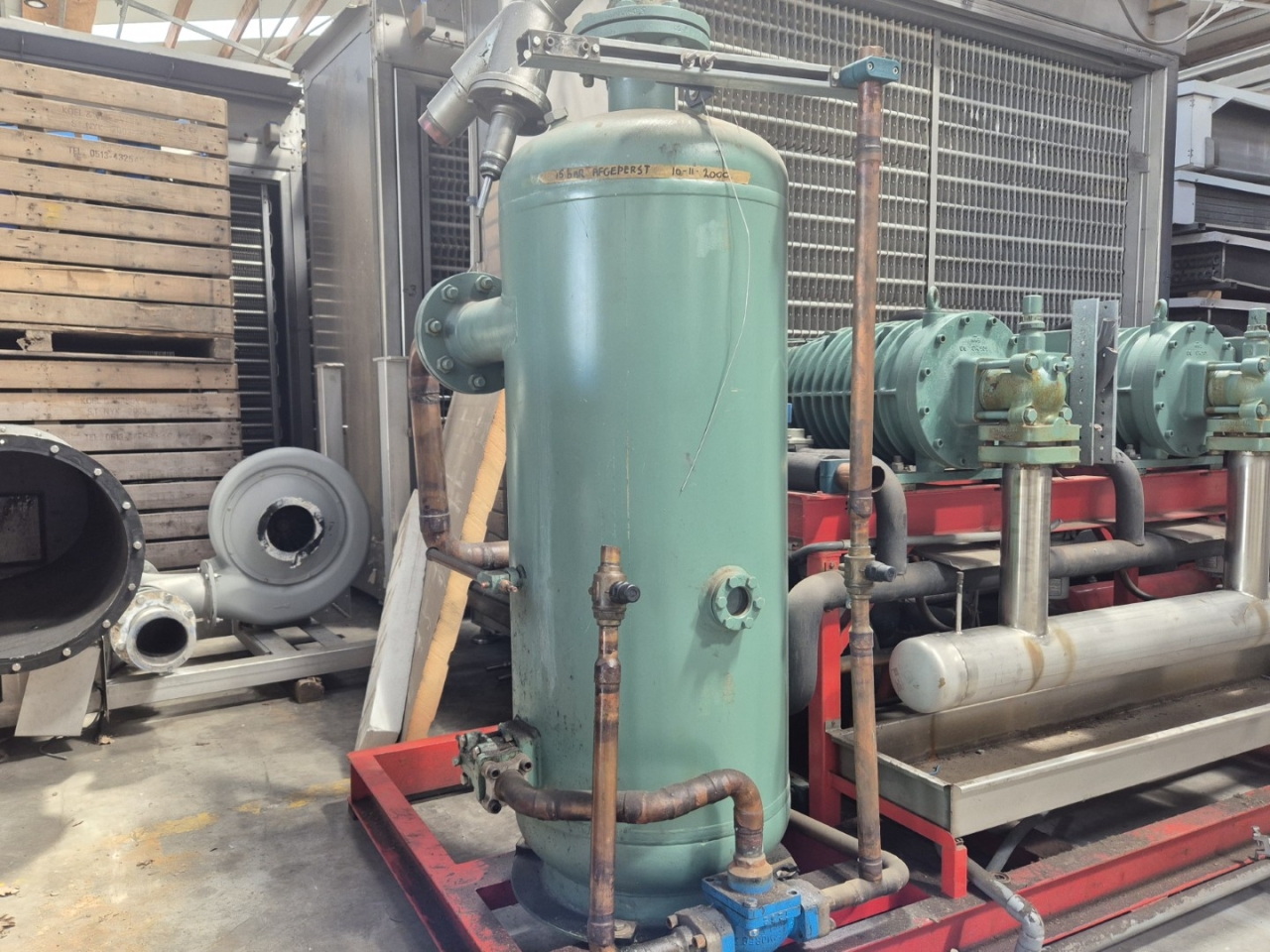

Used Bitzer HSN 7471-75 (x4) semi-hermetic screw compressor rack on Freon. Complete with a Bitzer OA 9011 oil separator with a volume of 228 liter, Vahterus PSHE 3HH-100/2/2 as economizer, liquid line filter drier and a control cabinet. The compressors have a total displacement of 1000 m³/h at 50 Hz & 1200 m³/h at 60 Hz.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
