Bitzer 4FE-28Y-40P Condensing unit
Bitzer 4FE-28Y-40P Condensing unit
| 19032 | |
| Brand | Bitzer |
| Type | 4FE-28Y-40P Condensing unit |
| Refrigerant | Freon |
| kW at 0ºC/+40ºC | 84,4 |
| kW at -5ºC/+40ºC | 70,5 |
| kW at -10ºC/+40ºC | 58,4 |
| kW at -20ºC/+40ºC | 38,7 |
| kW at -30ºC/+40ºC | 24,2 |
| kW at -40ºC/+40ºC | 13,6 |
| kW at -45ºC/+40ºC | 9,6 |
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Liquid receiver |
|
| Liquid receiver ltr. | 47,2 |
| Liquid line filter drier |
|
| Sight Glass |
|
| Solenoid Valve |
|
| Control panel |
|
| m3 / h | 50 Hz - 101,8 m³/h & 60 Hz - 121,3 m³/h |
| Remarks | | Y.o.b. 2017 |
| Condensing Unit |
|
| Sizes | 2500x1000x1900 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer 4FE-28Y-40P Condensing unit

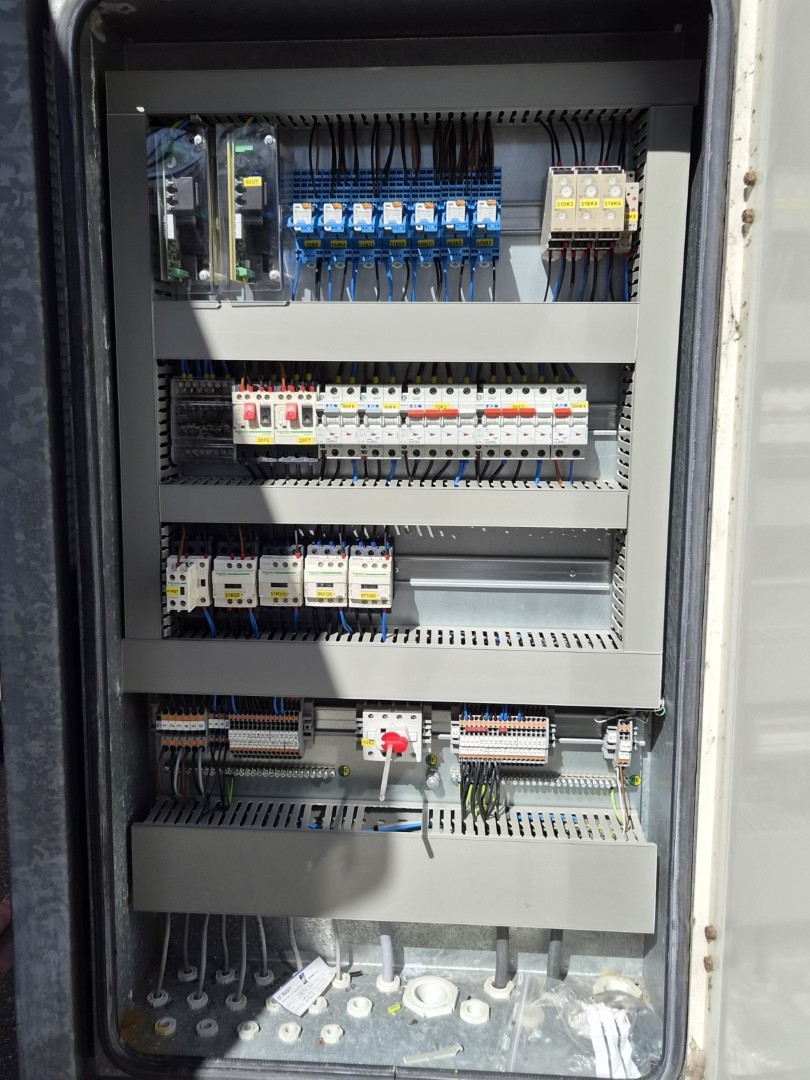

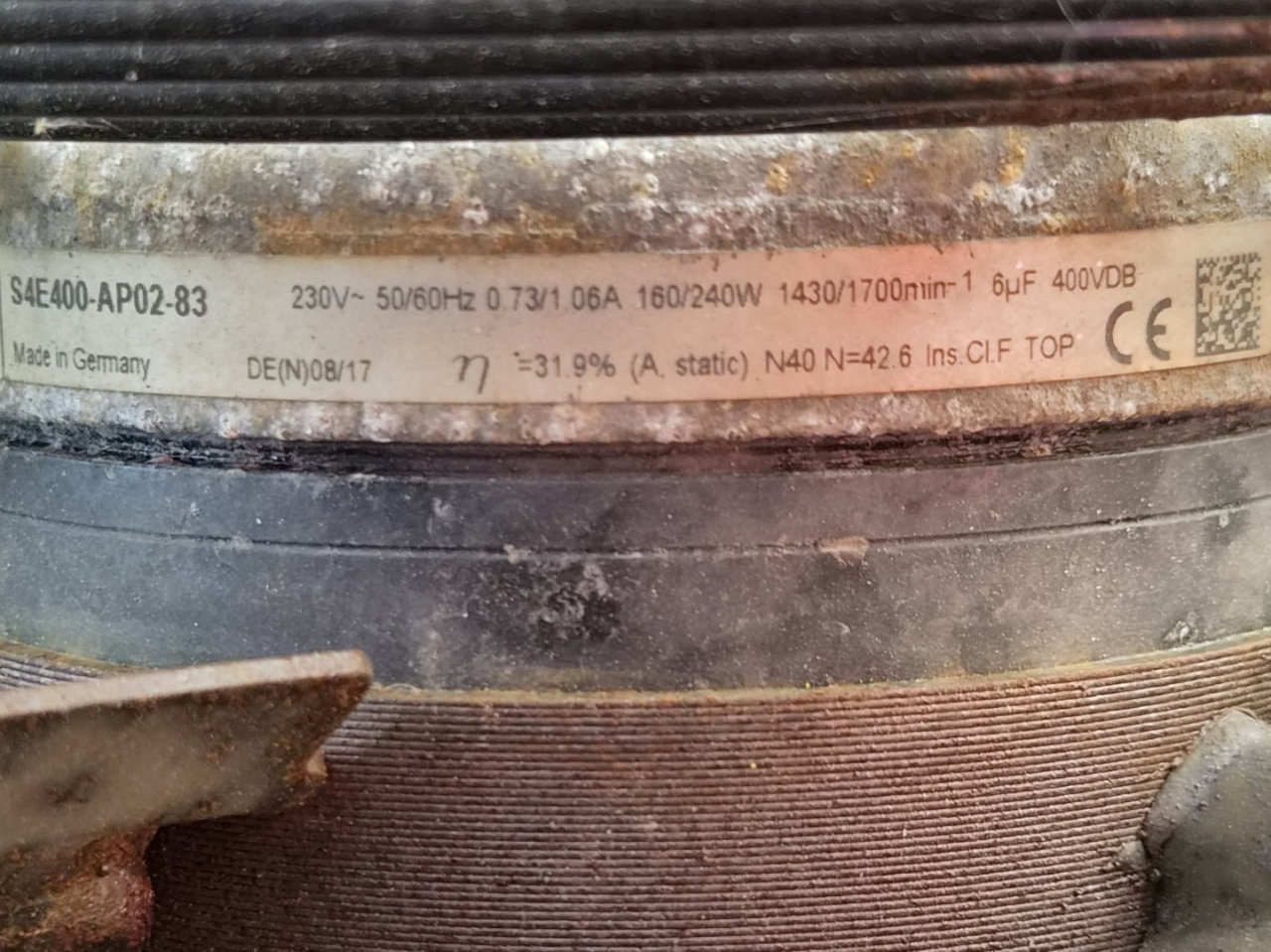

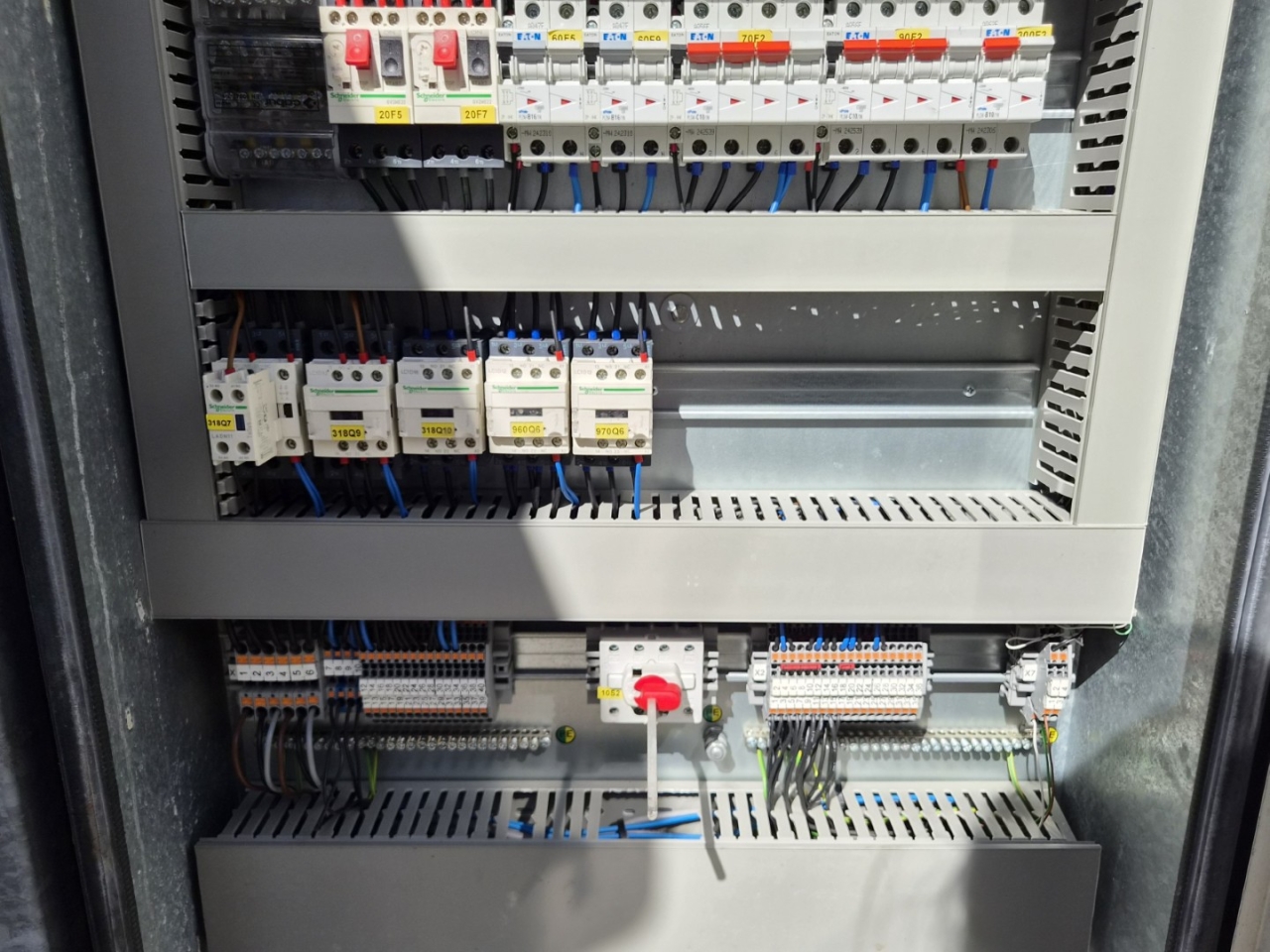

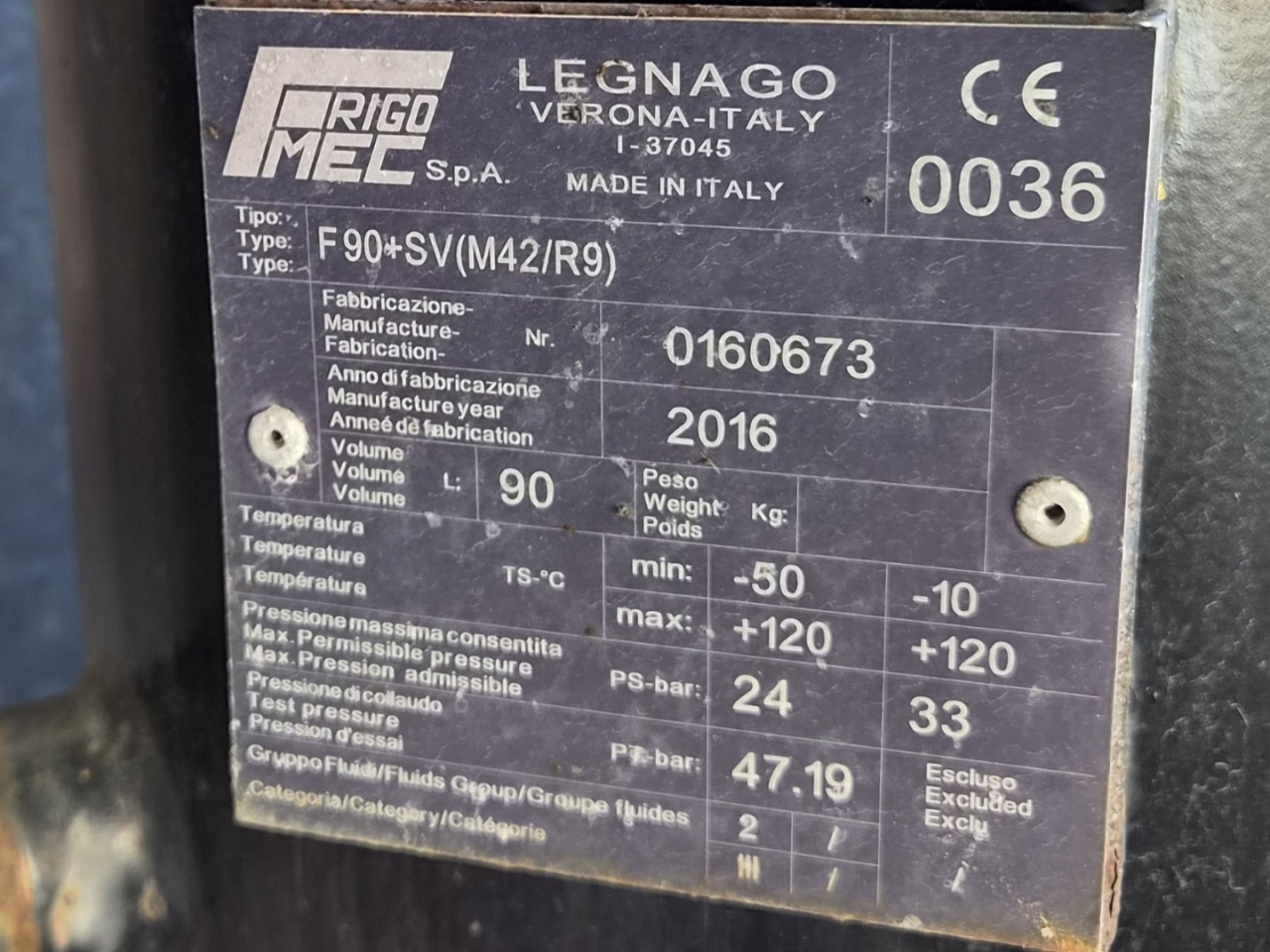

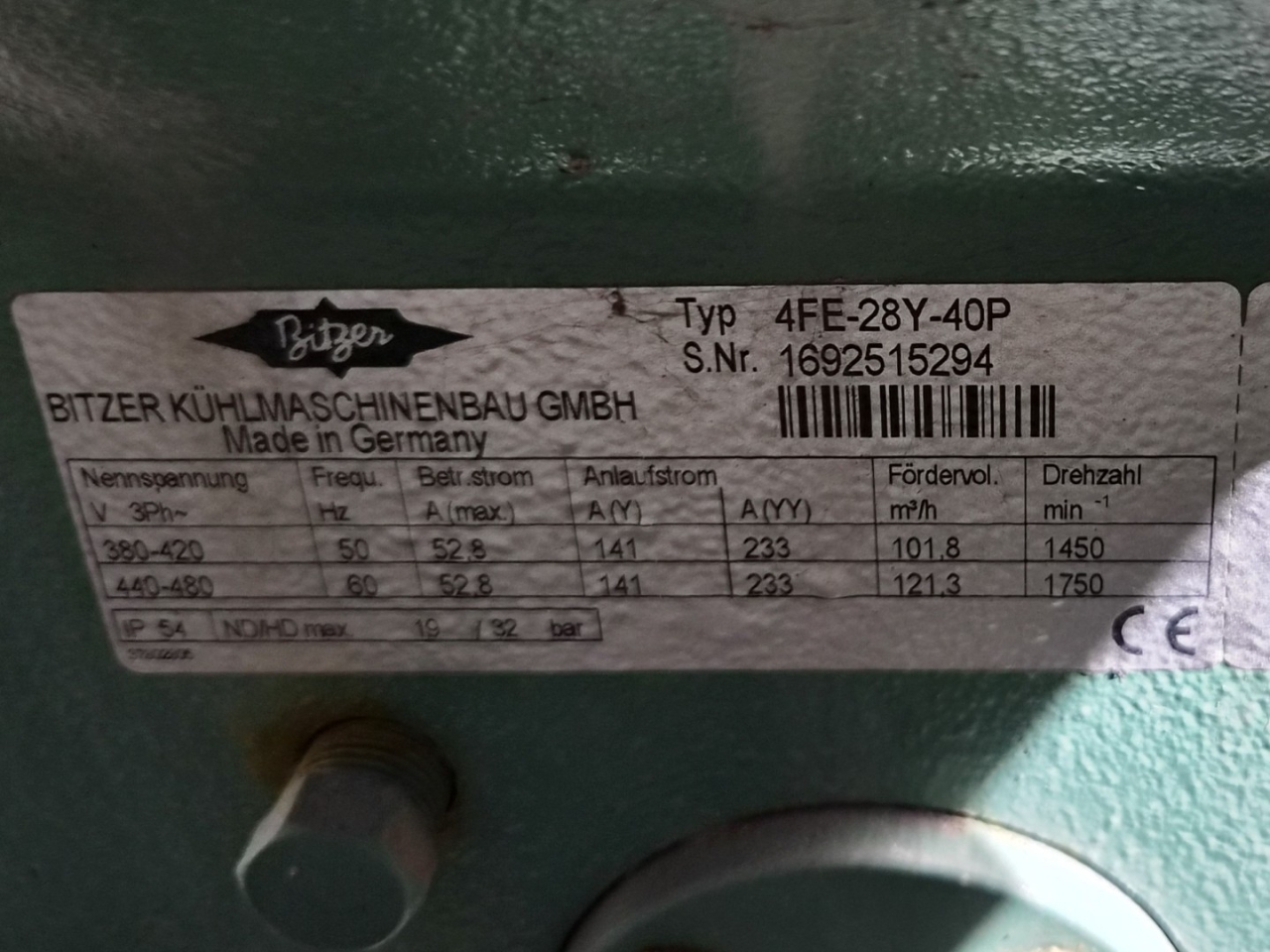

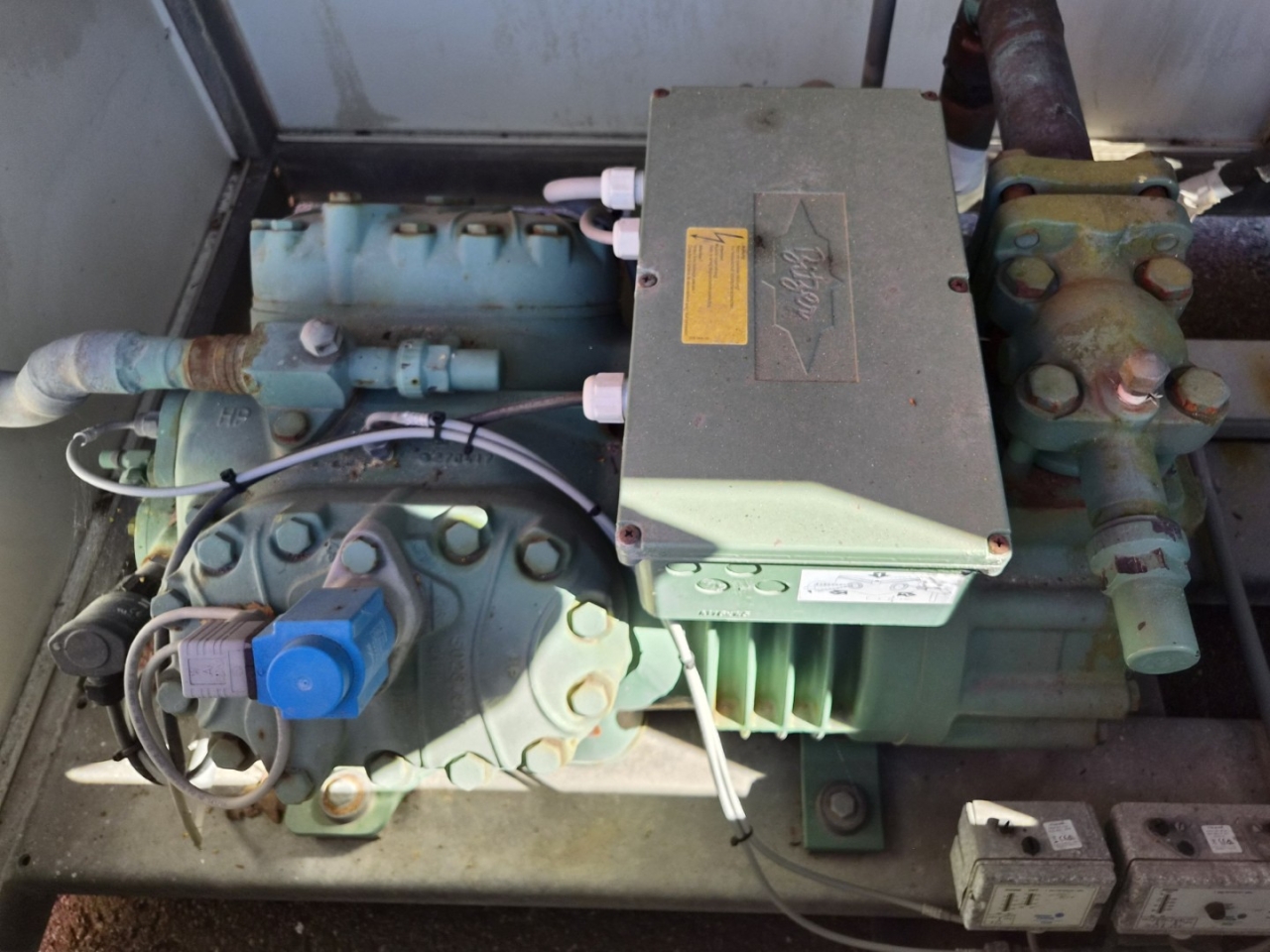

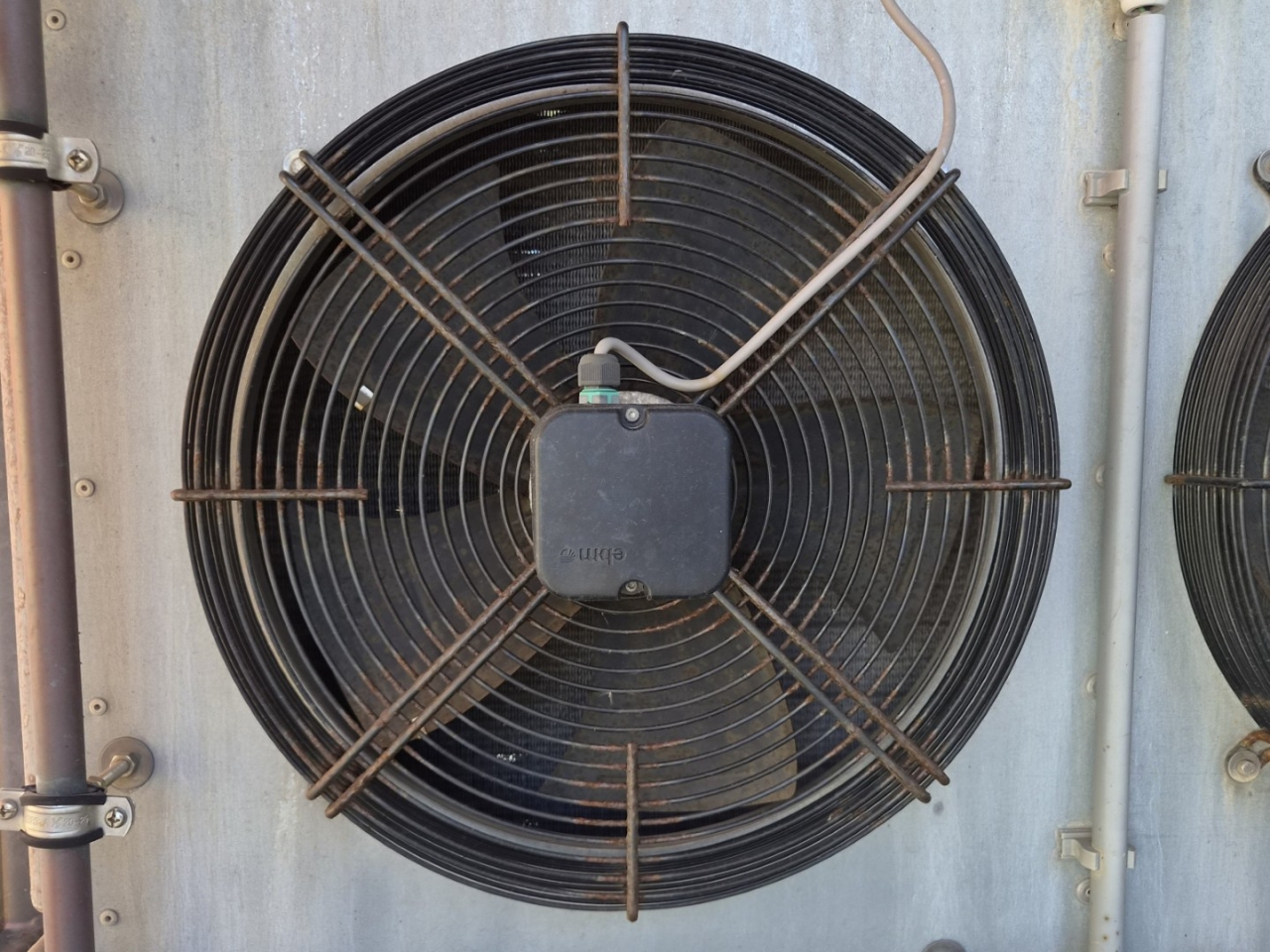

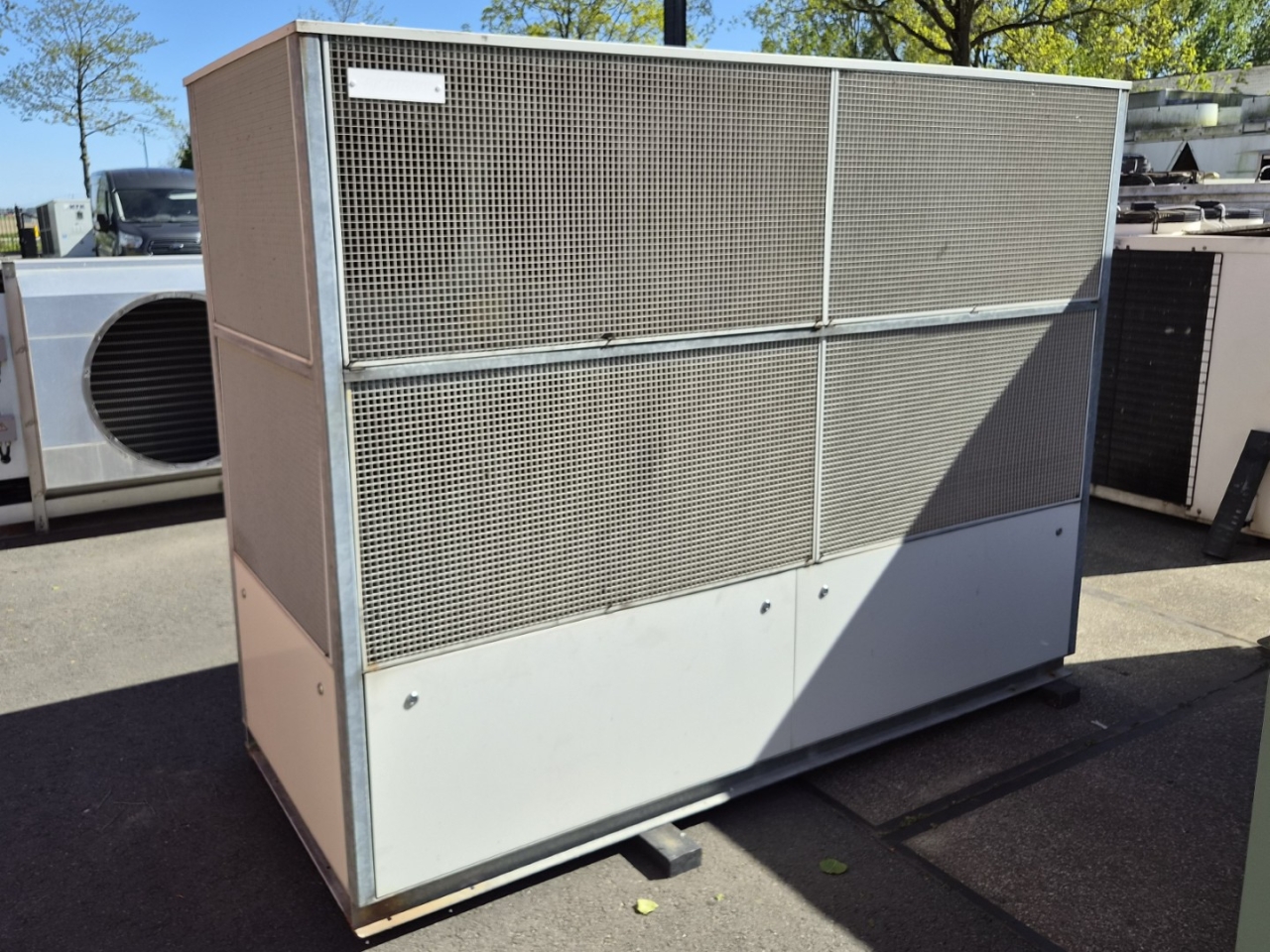

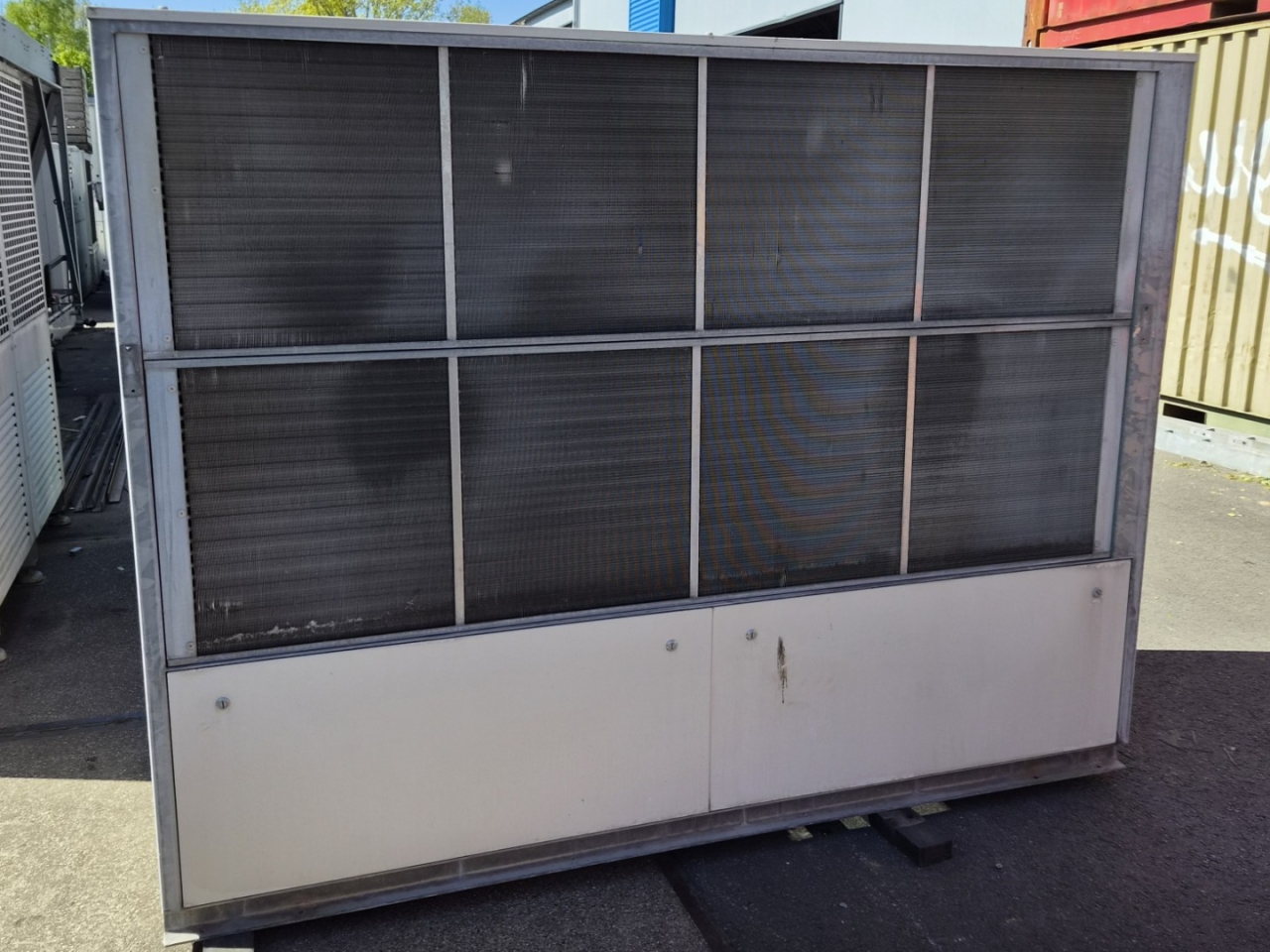

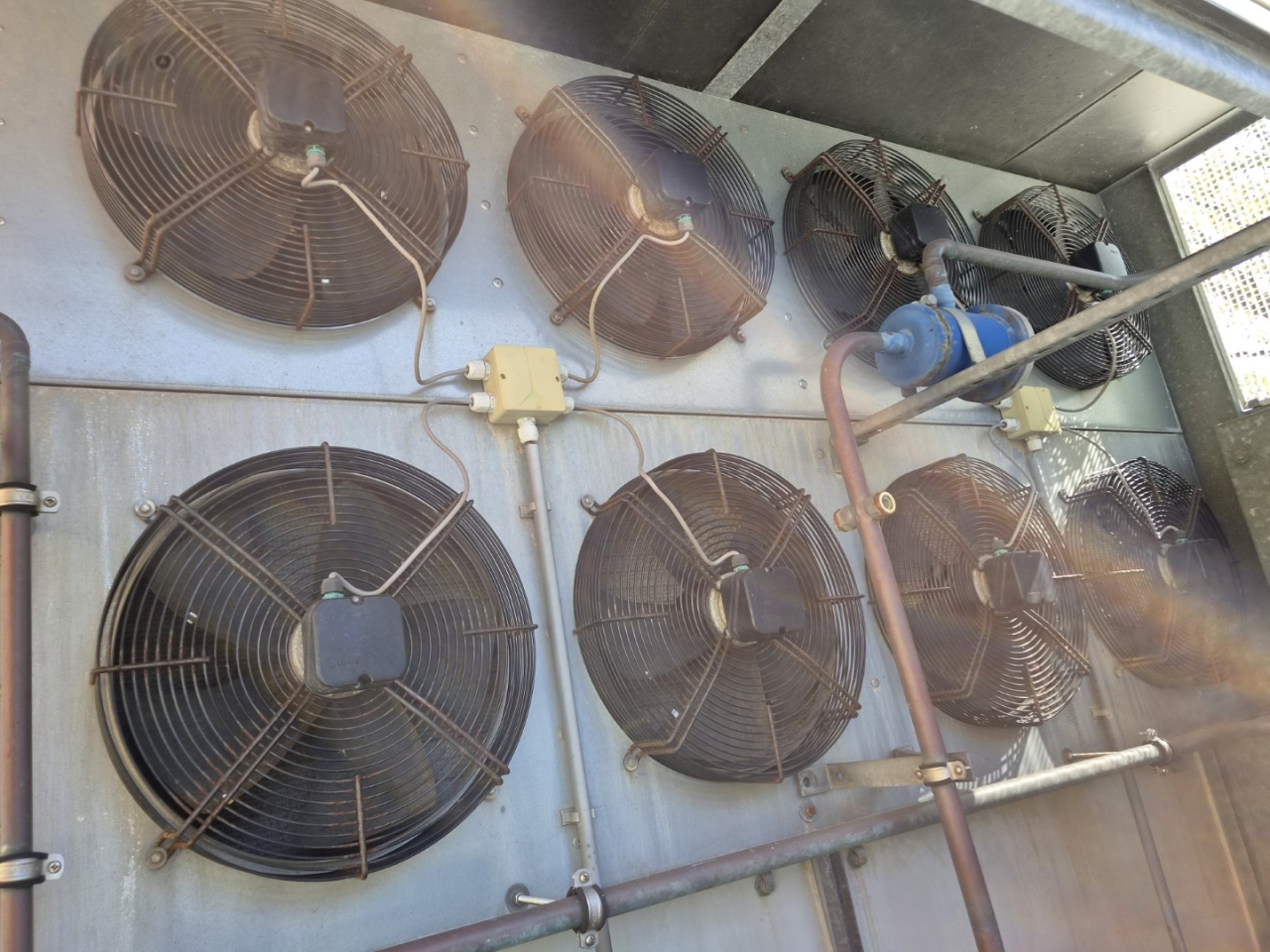

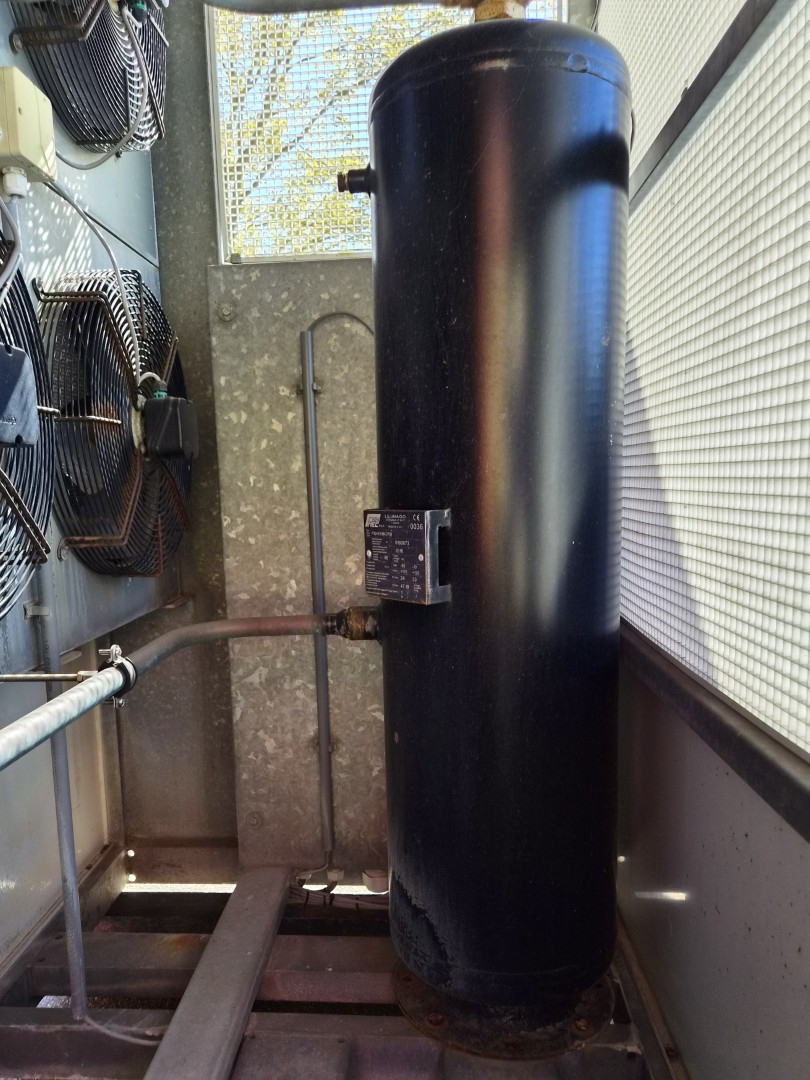

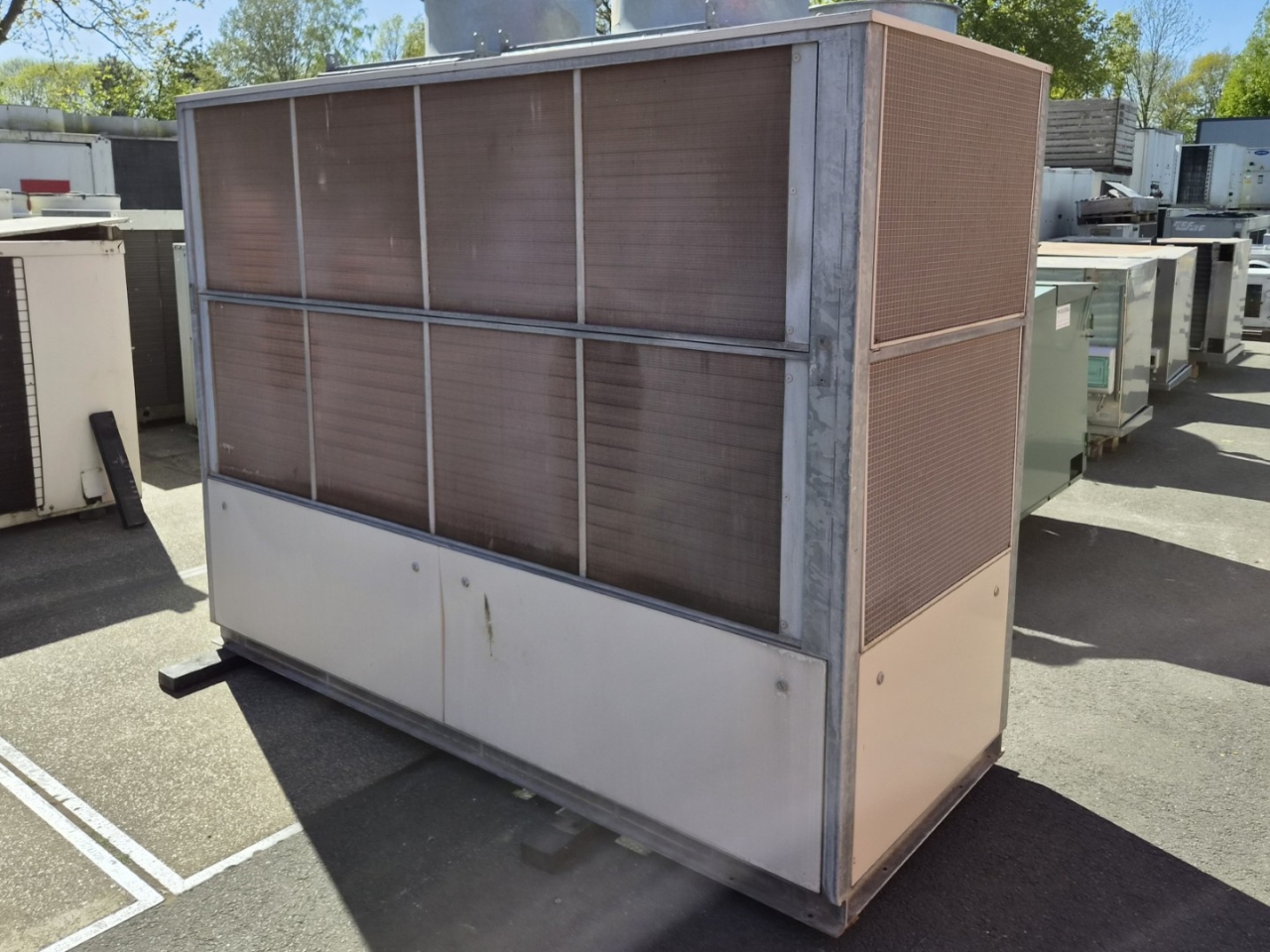

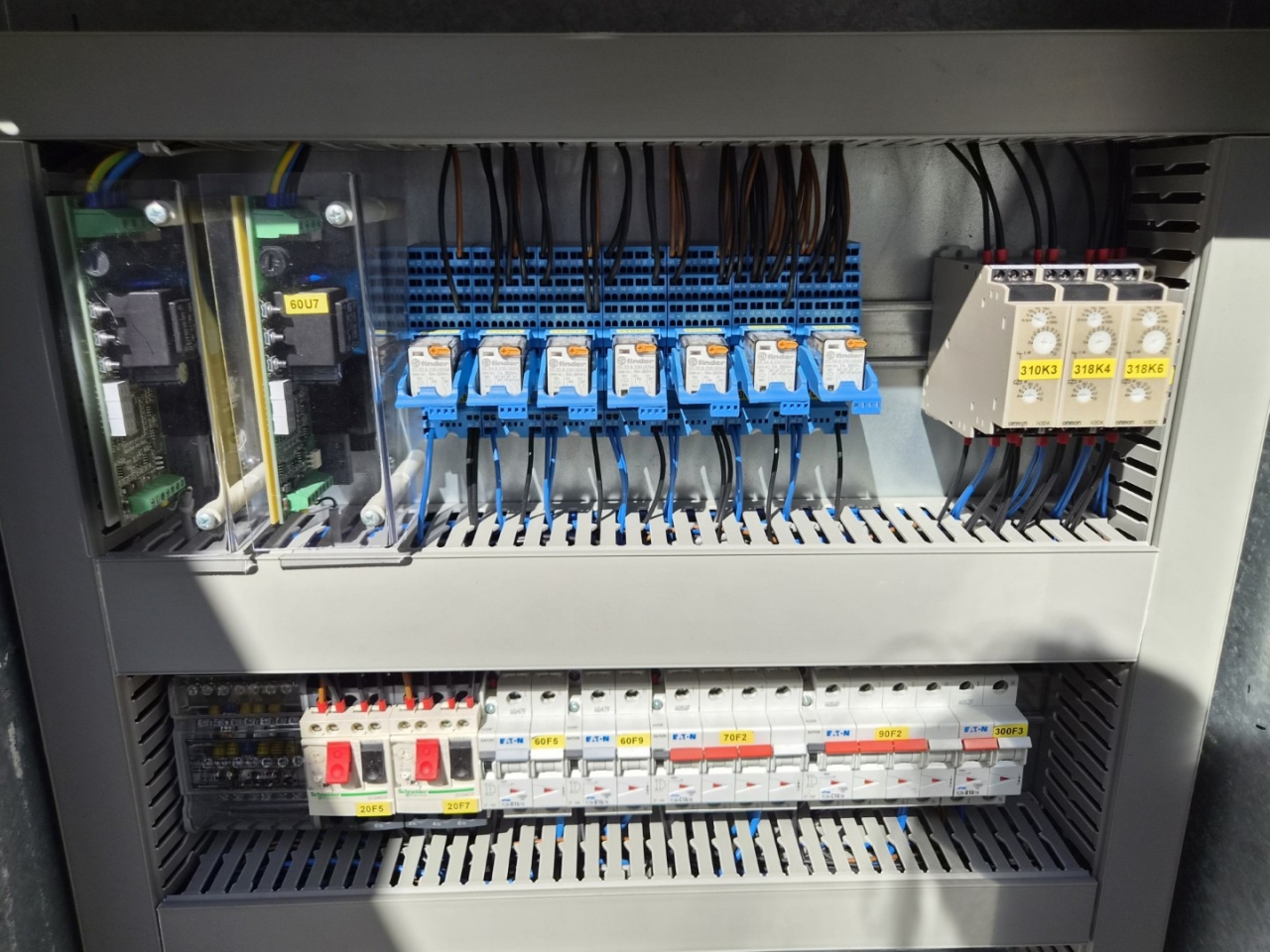

Used Bitzer condensing unit on Freon. Complete with Bitzer 4FE-28Y-40P semi-hermetic reciprocating compressor, condenser with 8 EBM-Papst S4E400-AP02-83 fans - 50/60 Hz - 0,16/0,24 kW - 1430/1700 RPM - diameter 400 mm, Frigo-mec F90+SV(M42/R9) liquid receiver with a volume of 47 liter, pressure and safety switches and a control cabinet. The compressor has a displacement of 101,8 m³/h at 50 Hz & 121,3 m³/h at 60 Hz.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
