Güntner GVH 090.2A/2x3-E(D)
Full specifications for Güntner GVH 090.2A/2x3-E(D)
| No. | 12916 |
| Brand | Güntner |
| Type | GVH 090.2A/2x3-E(D) |
| Product type | Air Cooled Condenser |
| kW | 283,0 |
| Number of Fans | 6 |
| RPM of the Fans | 390/250 |
| Refrigerant | Freon |
| Air Flow in m³/h | 76.200 |
| diameter fans Ø | 900 mm |
| Surface (m2) | 1002 m² |
| Tube volume | 134 dm² |
| Sizes | 6200x2280x1900 mm (LxWxH) |
| Weight | 1092 kg |
| Remarks | | Y.o.b. 2010 |
| Amount in stock | 1 |
Description for Güntner GVH 090.2A/2x3-E(D)

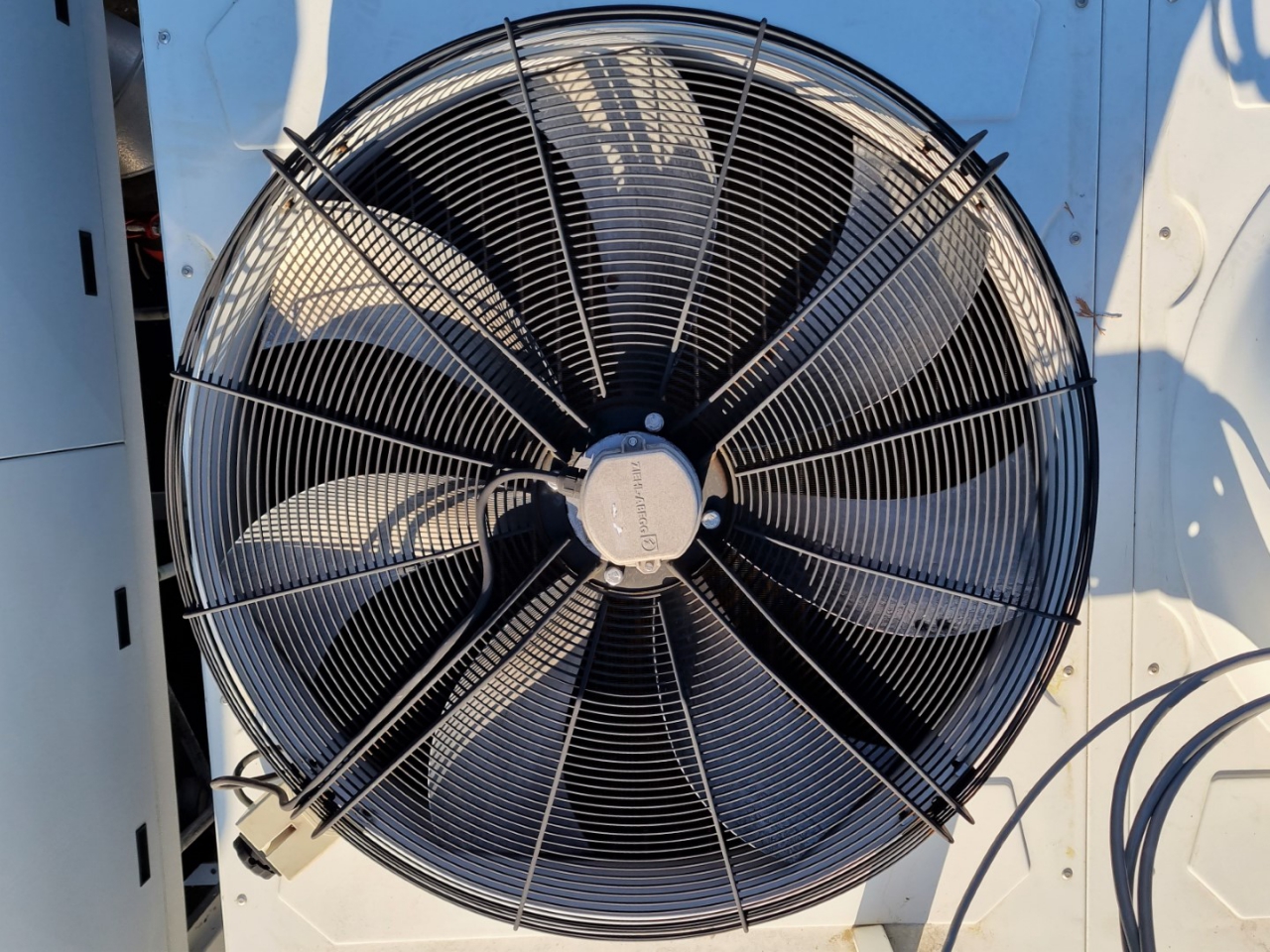

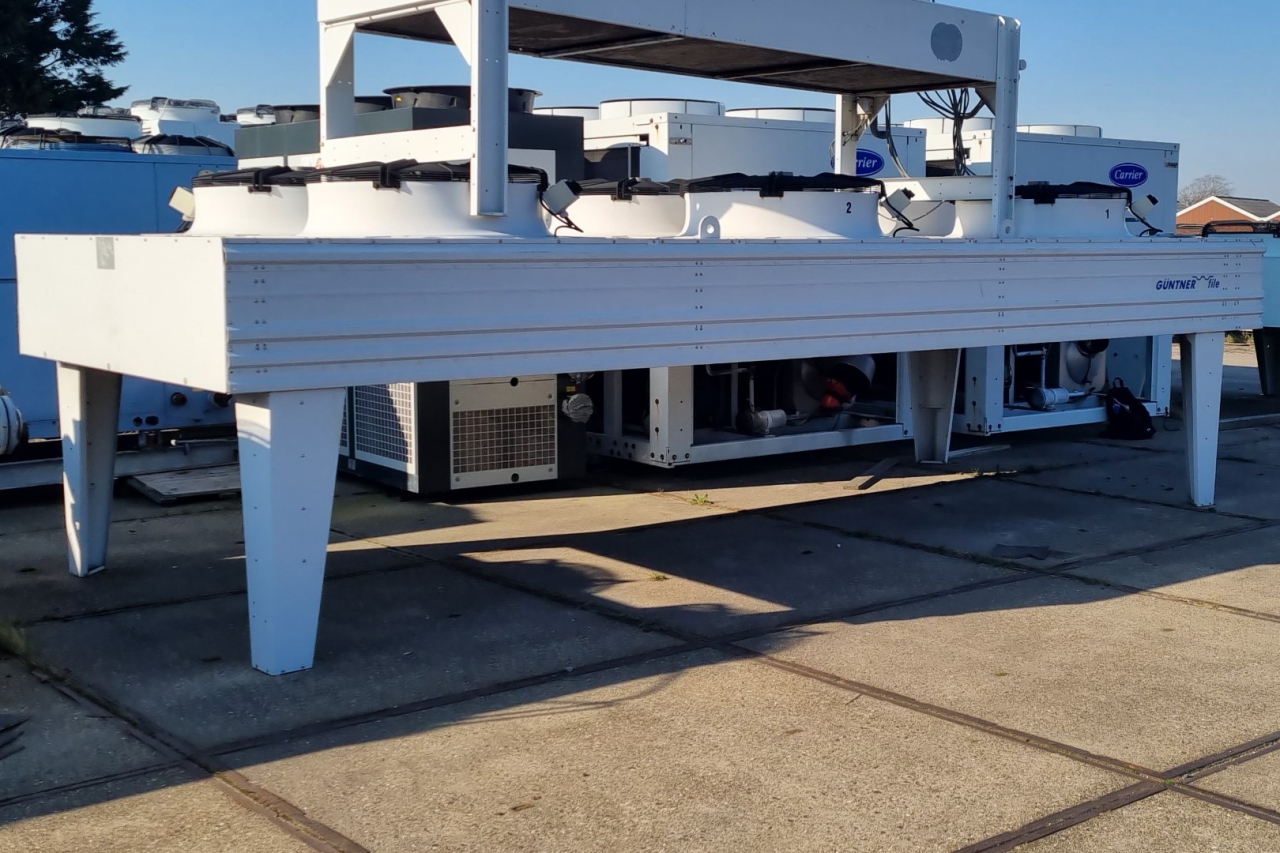

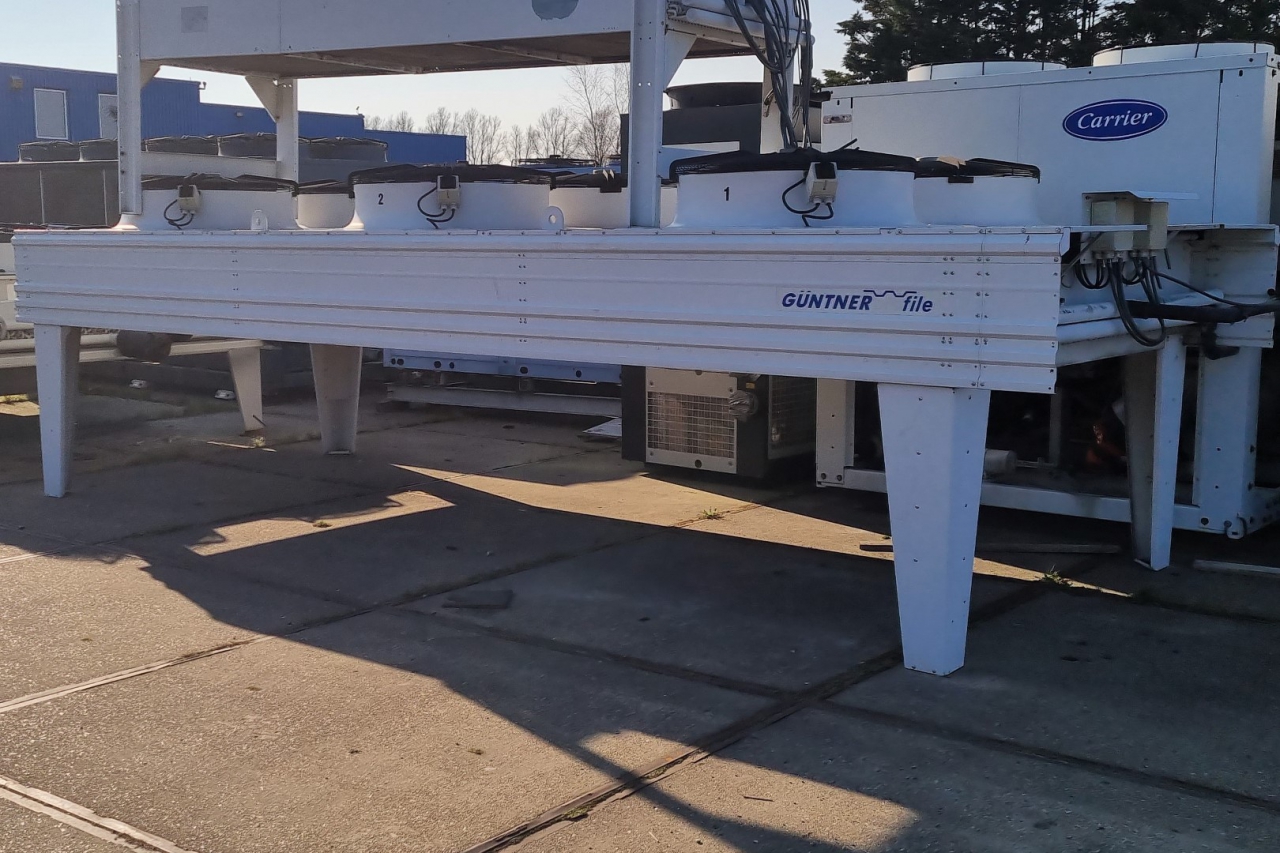

Used Güntner GVH 090.2A/2x3-E(D) air cooled condensor. Complete with 6 Ziehl-Abegg fans 50 Hz - 0,30/0,08 kW - 390/250 RPM - diameter 900 mm. Mentioned capacity at delta is 283 kW and capacity at star is 196 kW.
*All components of this used condensor will be tested on good working, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform a industrial cleaning. Also, we can arrange your shipment.
Downloads for Güntner GVH 090.2A/2x3-E(D)

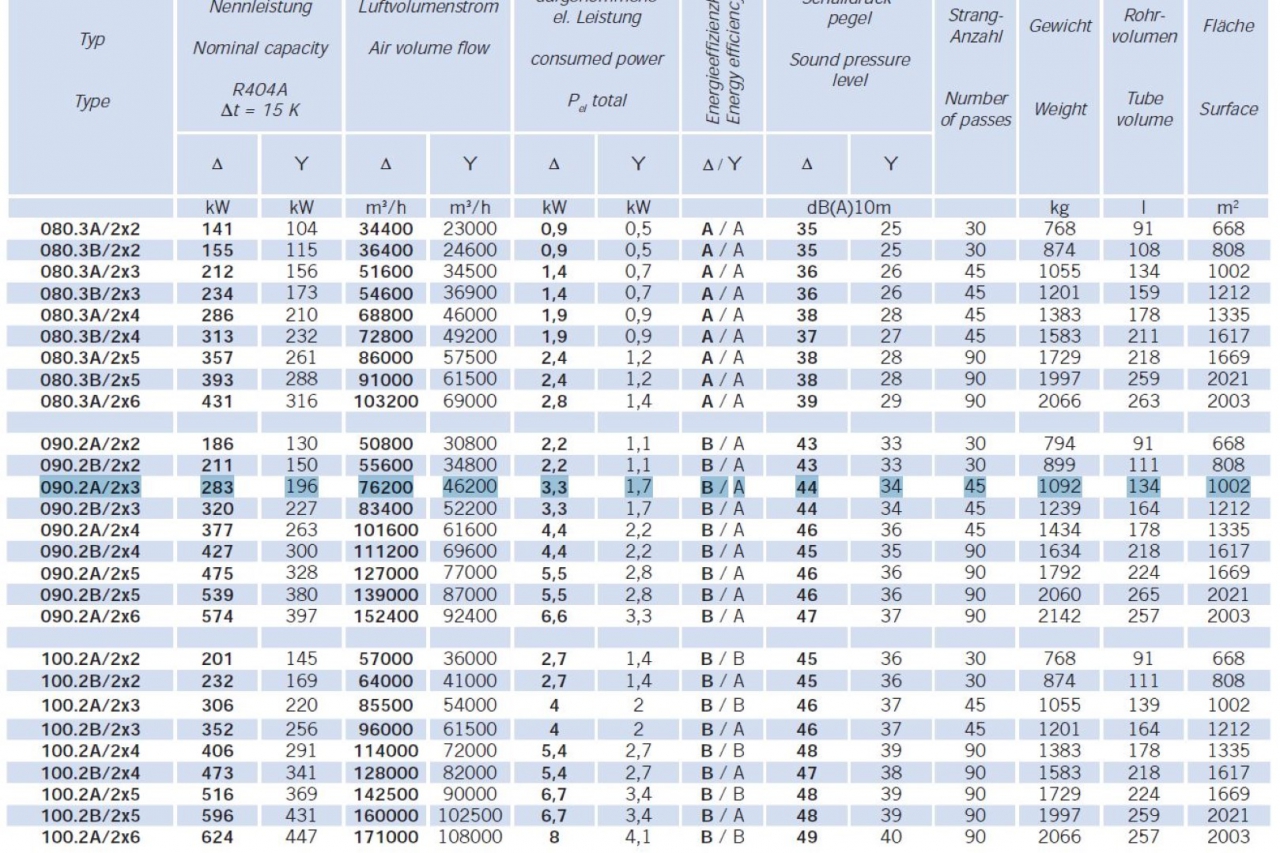

| Güntner GVH 090.2A/2x3-E(D) - Product sheet | Download (PDF) |
| Güntner GVH 090.2A/2x3-E(D) - Specifications | Download (PDF) |
