Bitzer 4V-10.2
Full specifications for Bitzer 4V-10.2
| No. | 15939 |
| Brand | Bitzer |
| Type | 4V-10.2 |
| Refrigerant | Freon |
| kW at 0ºC/+40ºC | 26,8 |
| kW at -5ºC/+40ºC | 22,2 |
| kW at -10ºC/+40ºC | 18,2 |
| kW at -20ºC/+40ºC | 11,8 |
| kW at -30ºC/+40ºC | 7,1 |
| kW at -40ºC/+40ºC | 3,7 |
| Unloaded Start |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Liquid receiver |
|
| Oil separator |
|
| Sight Glass |
|
| Solenoid Valve |
|

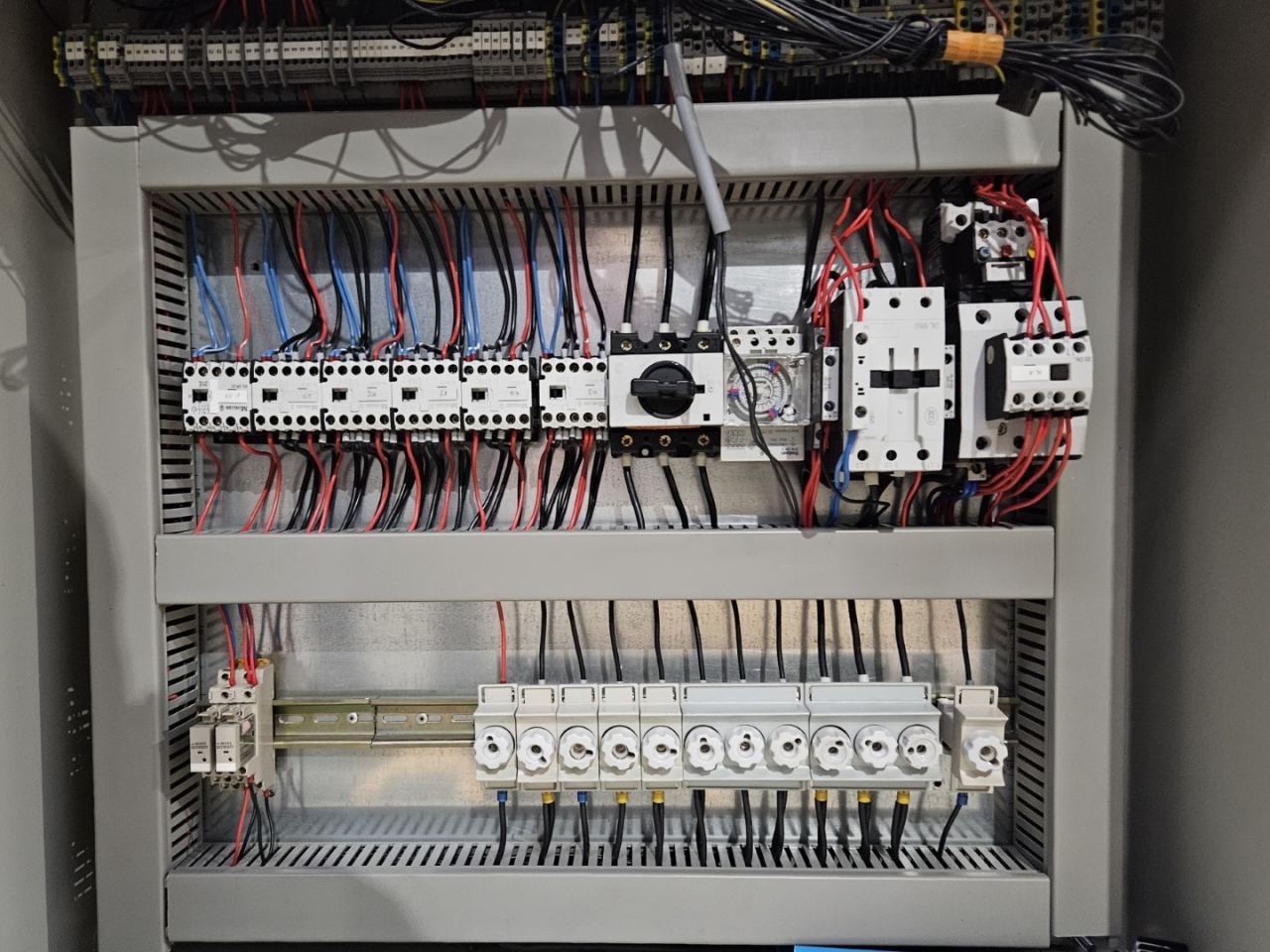

| Control panel |
|
| m3 / h | 33,07 |
| Weight in kg. | 142 kg |
| Sizes | 1000x610x1040 mm (LxWxH) |
| Amount in stock | 1 |
Description for Bitzer 4V-10.2

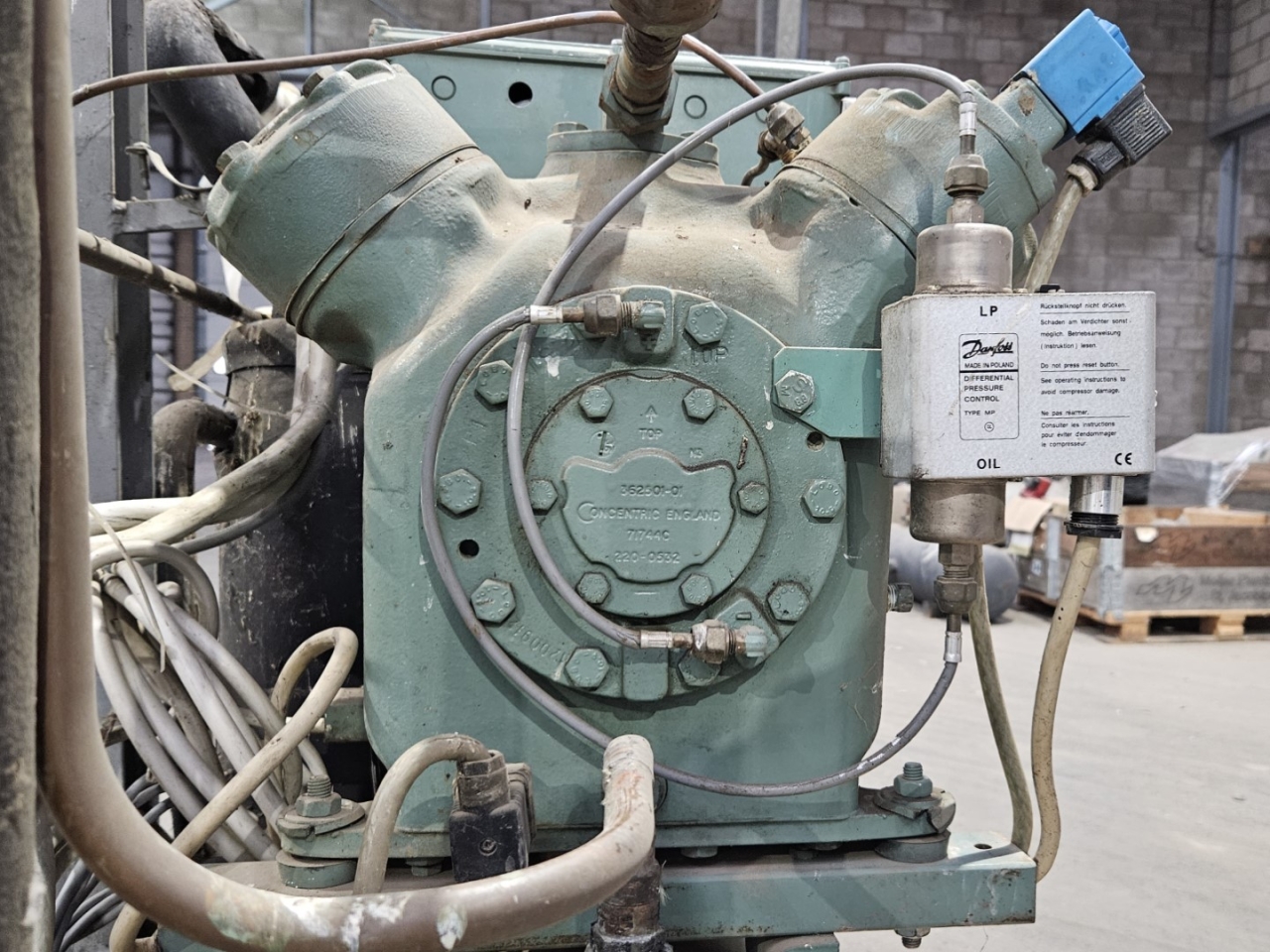

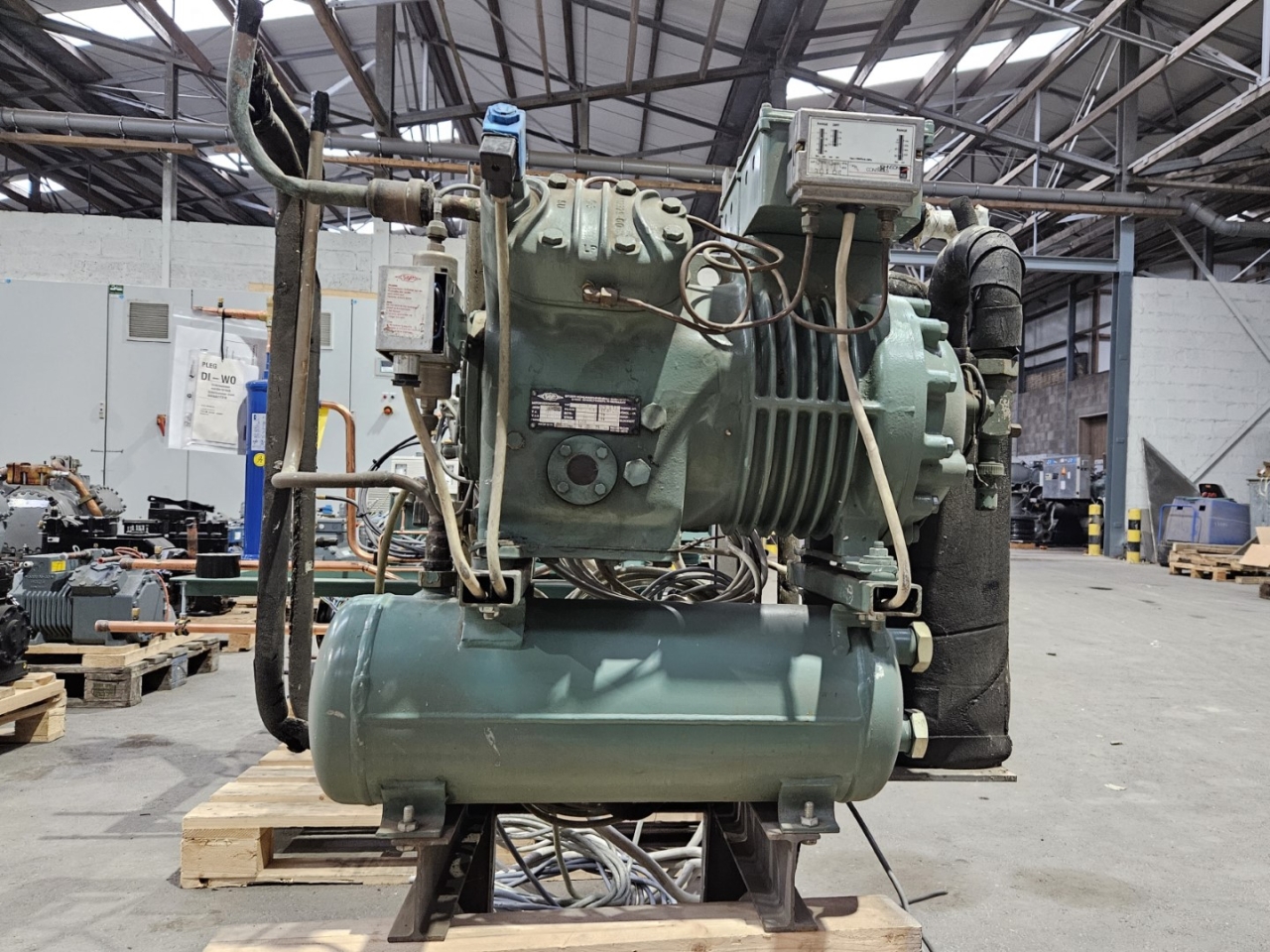

Used Bitzer 4V-10.2 semi-hermetic reciprocating compressor on steel base frame. Complete with a pressure and safety switch, liquid receiver, oil separator, sight glass and control panel. The compressor has a displacement of 33,07 m³/h at 1450 RPM and 39,91 m³/h at 1750 RPM.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
Downloads for Bitzer 4V-10.2
| Bitzer 4V-10.2 - Product sheet | Download (PDF) |
| Bitzer 4V-10.2 - Specifications | Download (PDF) |
