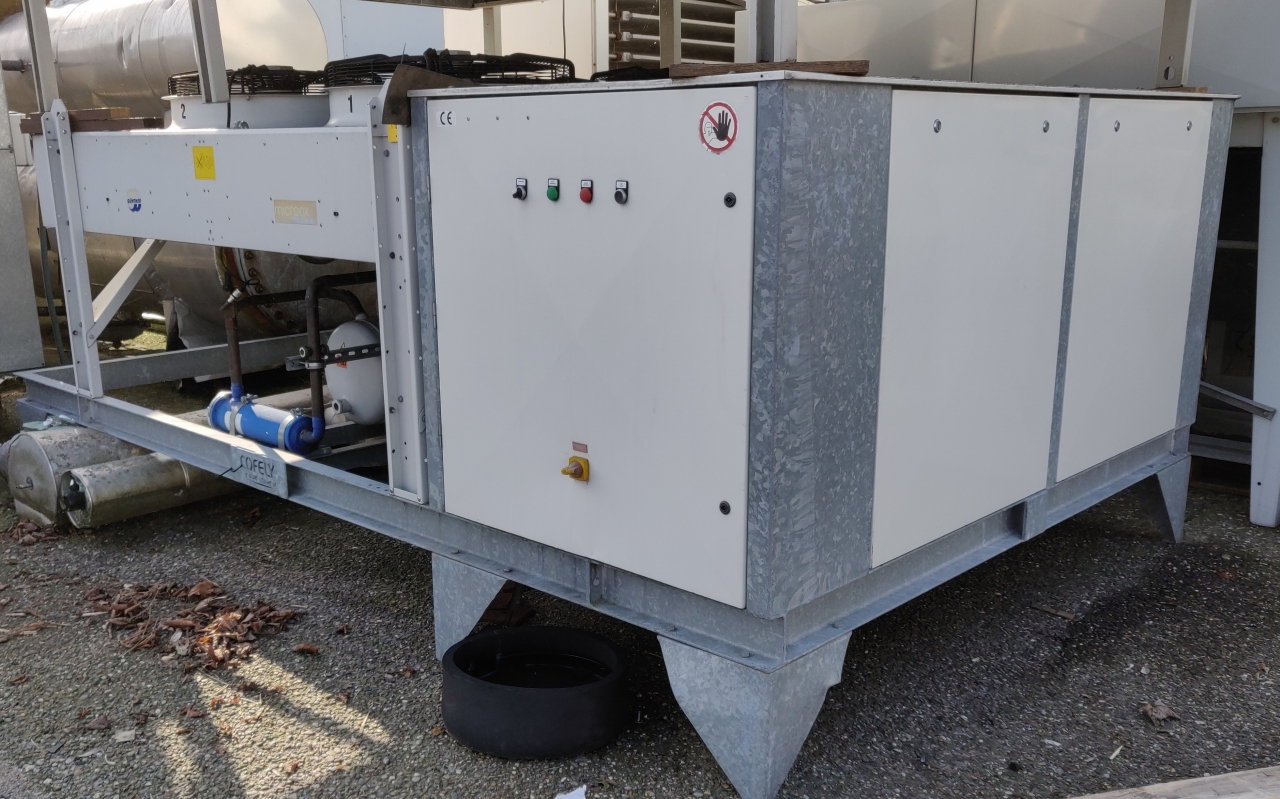

Bitzer CSH6593-60Y-40P Frigatronic Condensing unit
THIS ITEM IS SOLD Request an alternative
Full specifications for Bitzer CSH6593-60Y-40P Frigatronic Condensing unit
| No. | 10056 |
| Brand | Bitzer |
| Type | CSH6593-60Y-40P Frigatronic Condensing unit |
| Refrigerant | Freon |
| Refrigerant type | r134a or other types |
| kW at +10ºC/+40ºC | 171,6 |
| kW at 0ºC/+40ºC | 115,4 |
| kW at -5ºC/+40ºC | 93,2 |
| kW at -10ºC/+40ºC | 74,2 |
| kW at -20ºC/+40ºC | 44,5 |
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|

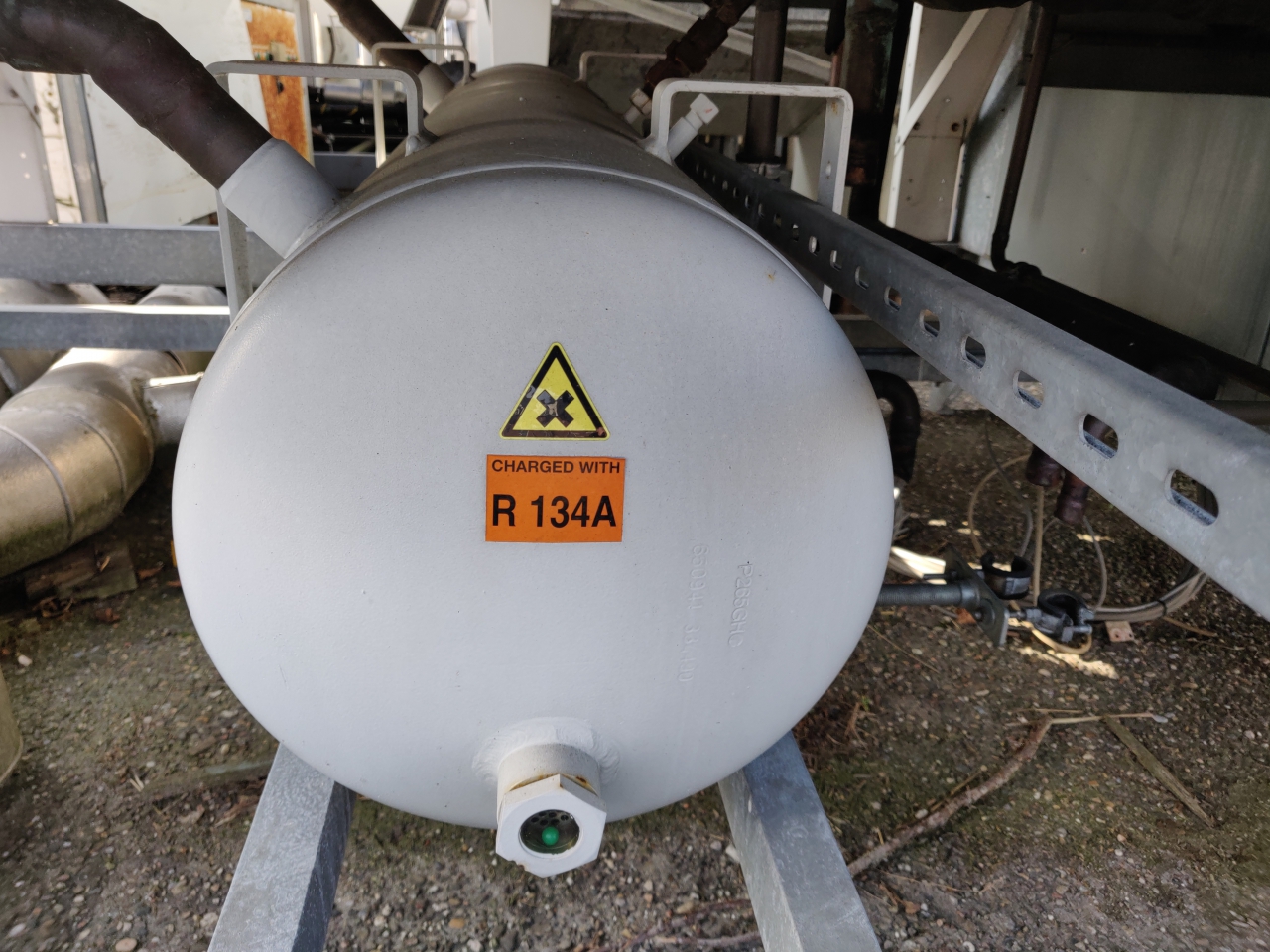

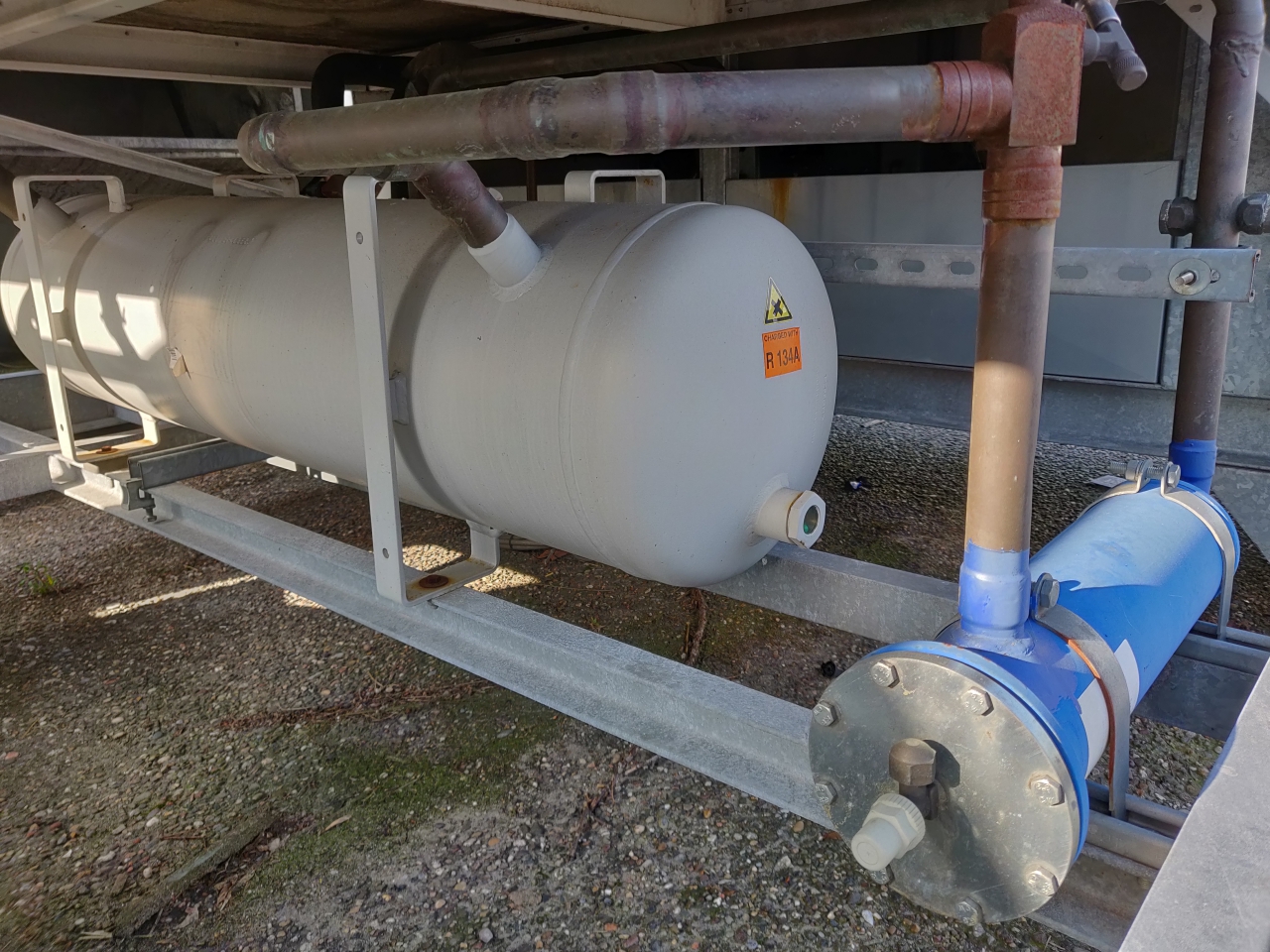

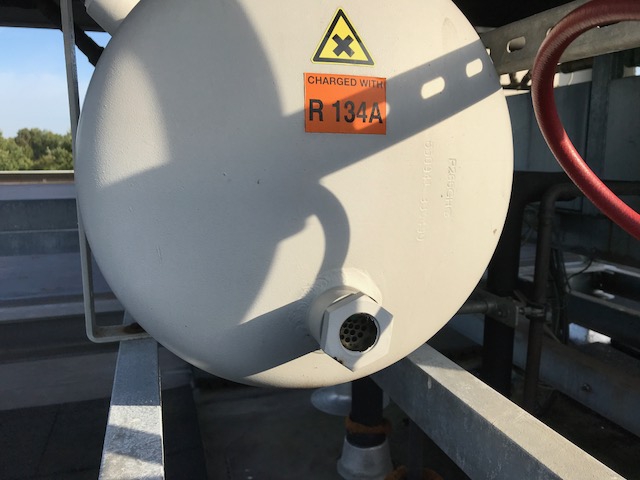

| Liquid receiver |
|
| Oil separator |
|
| Oil level system AC&R |
|

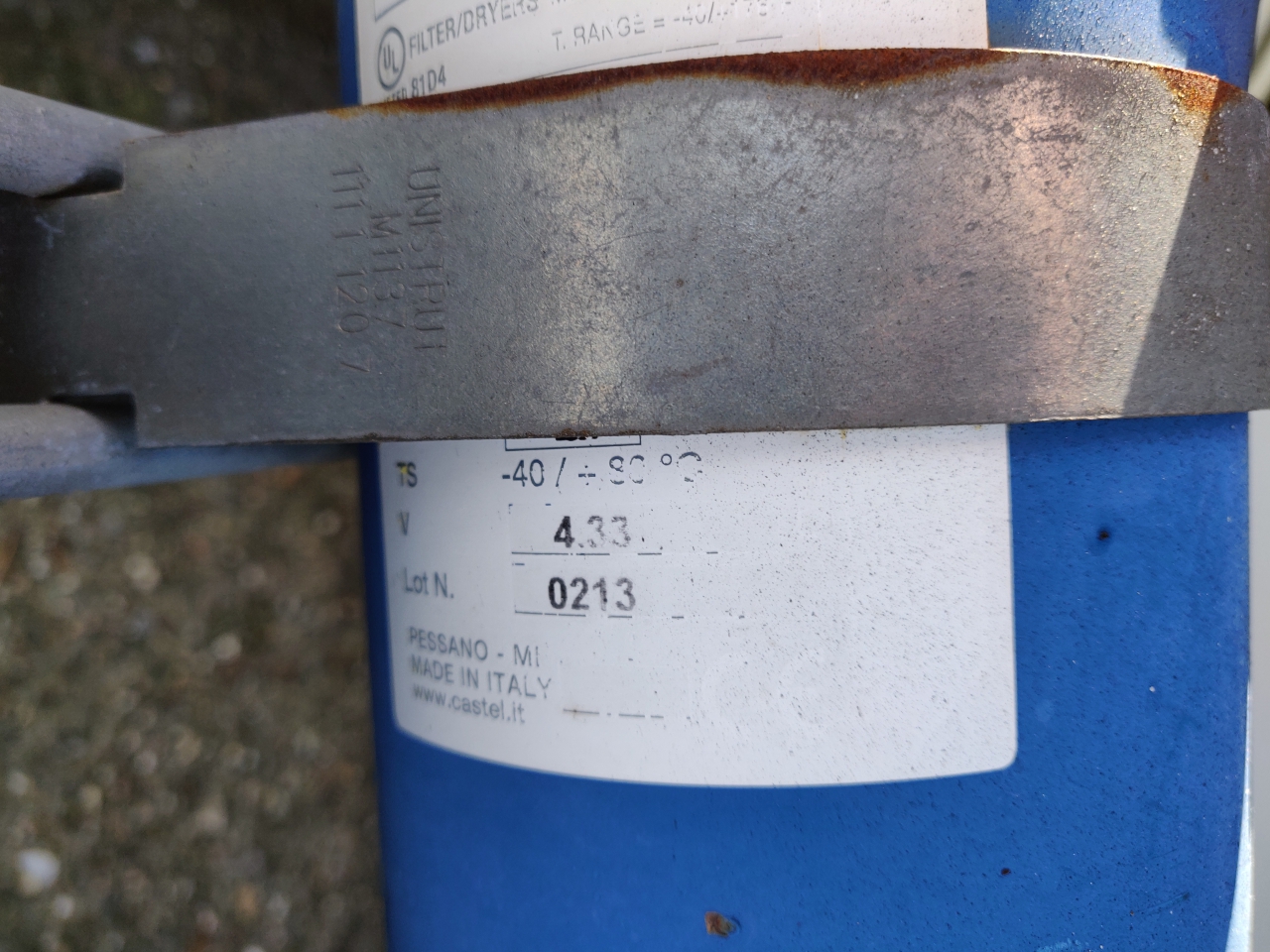

| Liquid line filter drier |
|
| Sight Glass |
|
| Solenoid Valve |
|

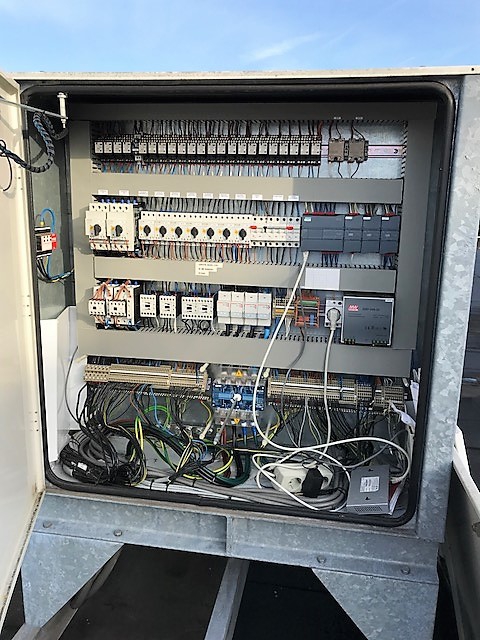

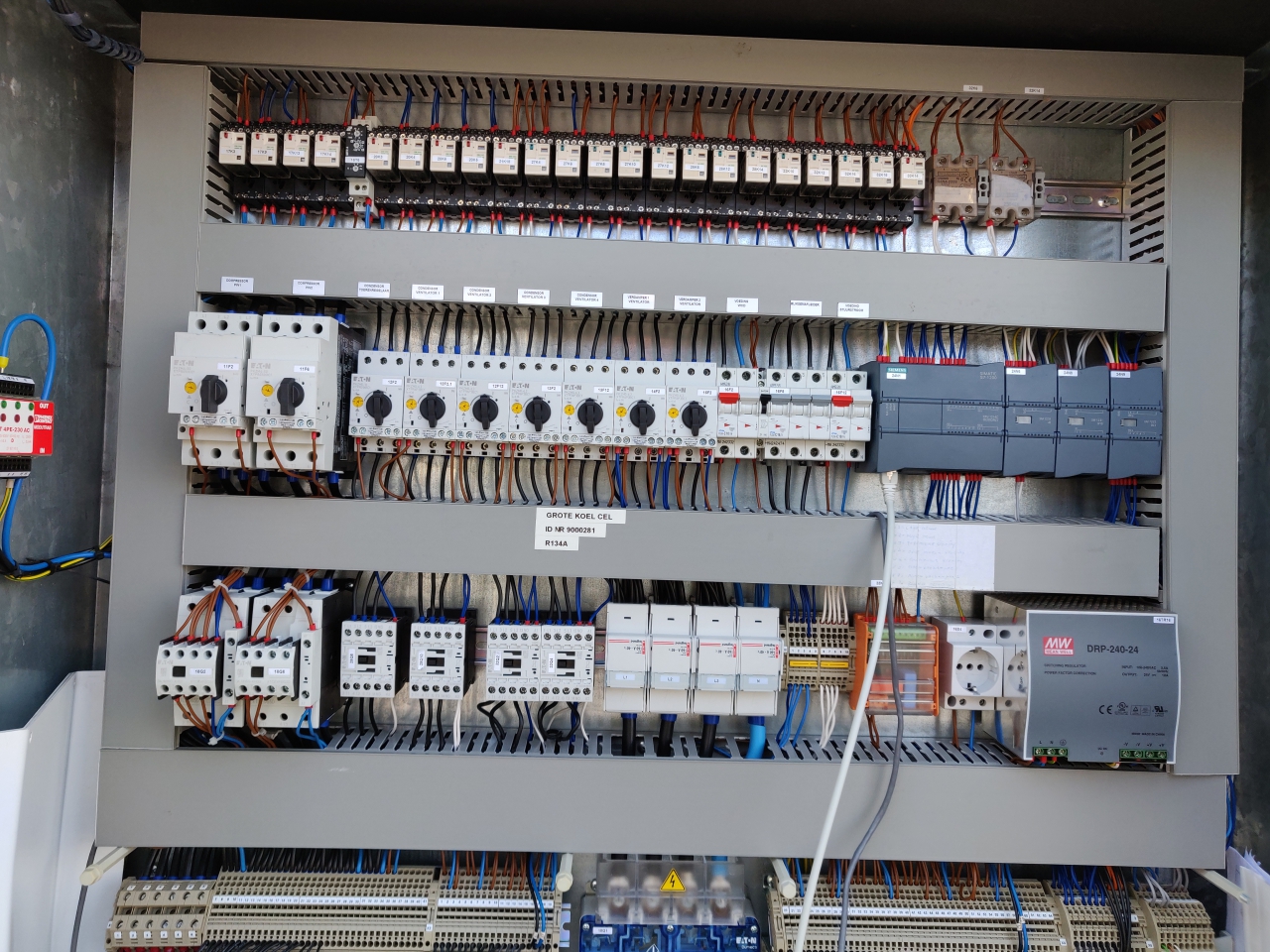

| Control panel |
|
| Remarks | | Yob 2013 |

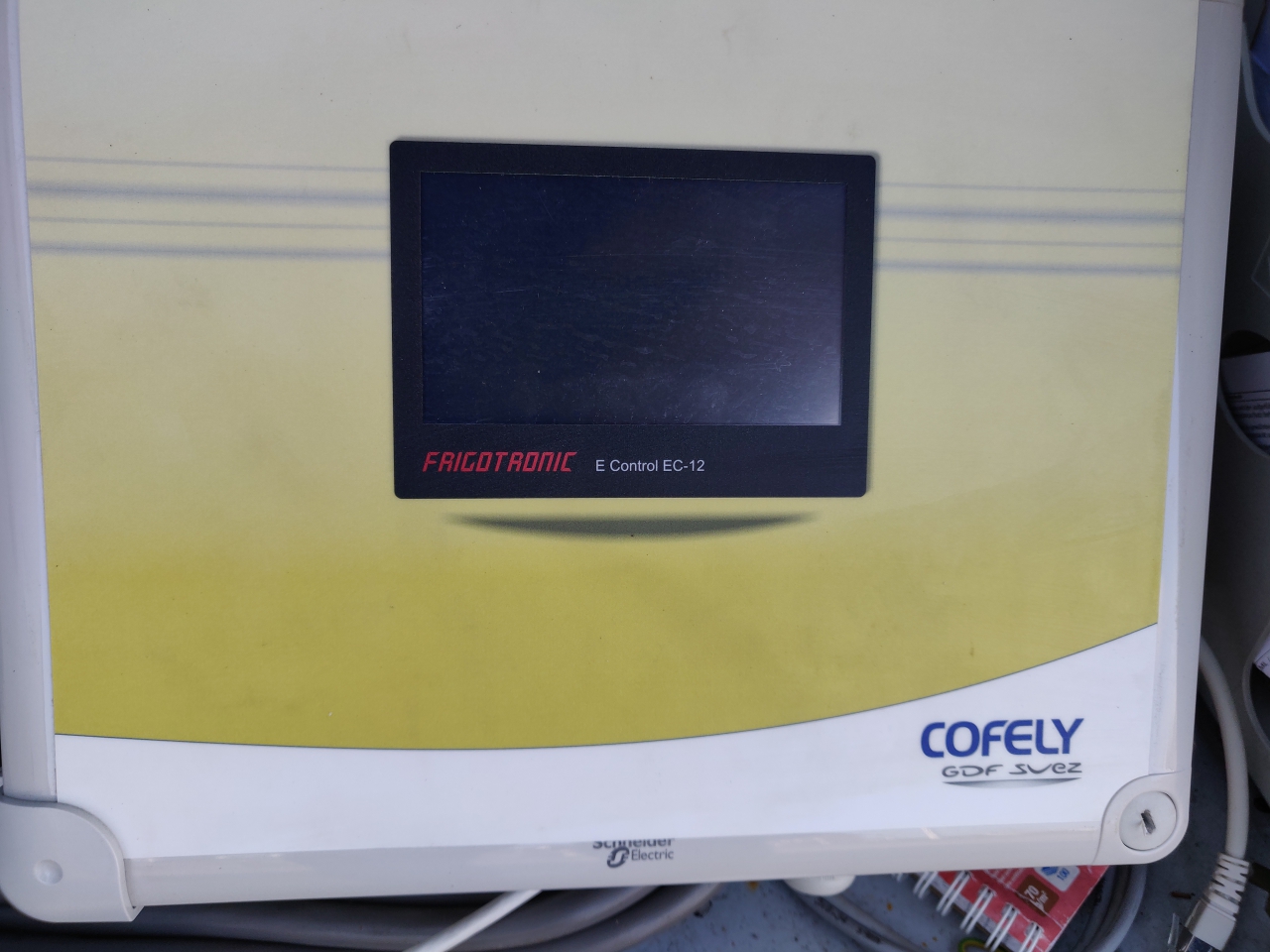

| Remarks || | Including display |
| Weight in kg. | 1316 |
| Condensing Unit |
|
| Sizes | 3200x2050x2100mm (LxWxH) |
| Amount in stock | 1 |
Description for Bitzer CSH6593-60Y-40P Frigatronic Condensing unit

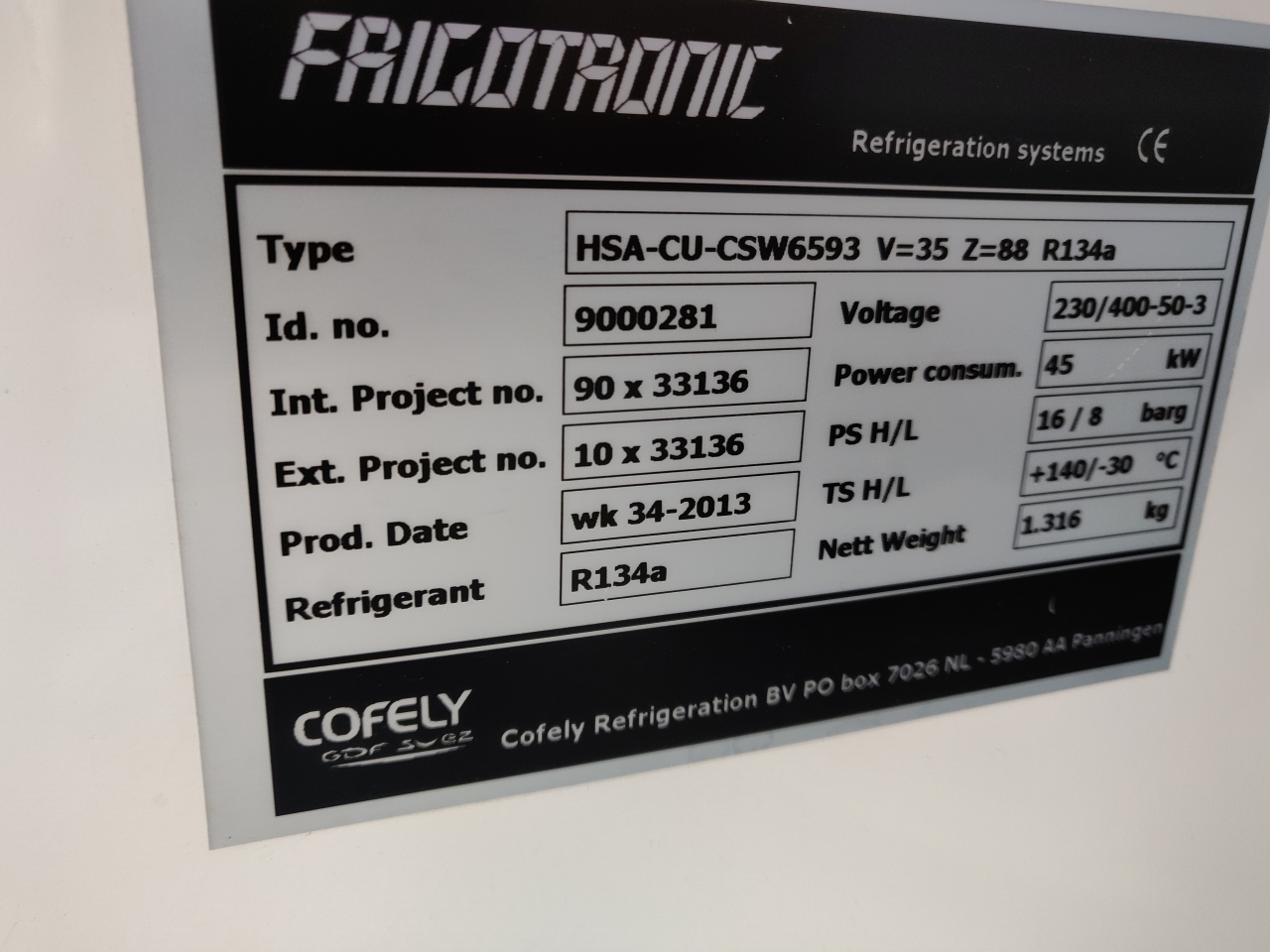

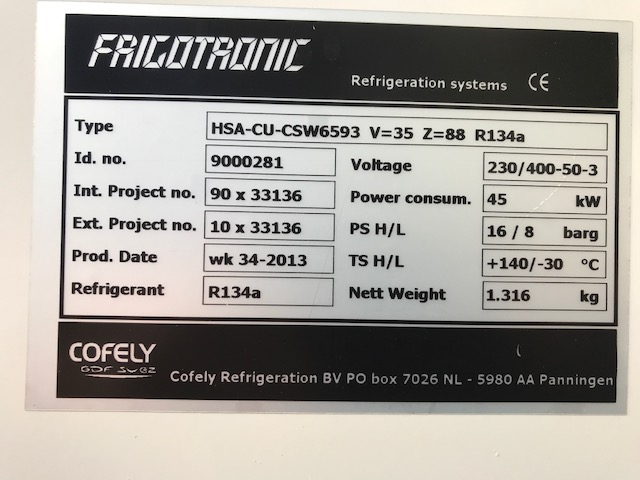

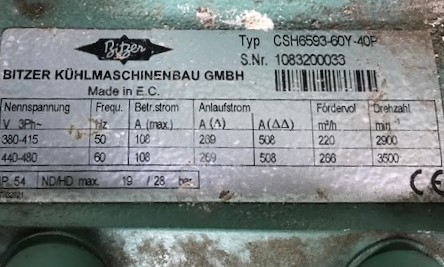

Used, well maintened condensing unit. Build by Frigatronic ( Model: HSA-CU-CSW6593 ) Including a Bitzer CSH6593-60Y-40P Compact screw. Refrigeration compressor ( sn ) 1083200033 // Year of manufacturing :2013. Our capacity table is based on the used type of Freon. You can also use this compressor on alternative types of Freon. For all the other specs, see the picture of the manufacturer model plate or the attached pdf file (if available) *Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also arrange the logistics.
Downloads for Bitzer CSH6593-60Y-40P Frigatronic Condensing unit
| Bitzer CSH6593-60Y-40P Frigatronic Condensing unit - Product sheet | Download (PDF) |
| Bitzer CSH6593-60Y-40P Frigatronic Condensing unit - Specifications | Download (PDF) |
