Güntner GVH 090.2A/2x3-N(S)
Full specifications for Güntner GVH 090.2A/2x3-N(S)
| No. | 12417 |
| Brand | Güntner |
| Type | GVH 090.2A/2x3-N(S) |
| Product type | Air Cooled Condenser |
| kW | 609 |
| Number of Fans | 3 |
| RPM of the Fans | 890/700 |
| Refrigerant | Freon |
| Air Flow in m³/h | 167.400 |
| diameter fans Ø | 910 mm |
| Surface (m2) | 1.502 |
| Tube volume | 206 dm³ |
| Sizes | 6200x2300x1450 mm |
| Weight | 1.377 kg |

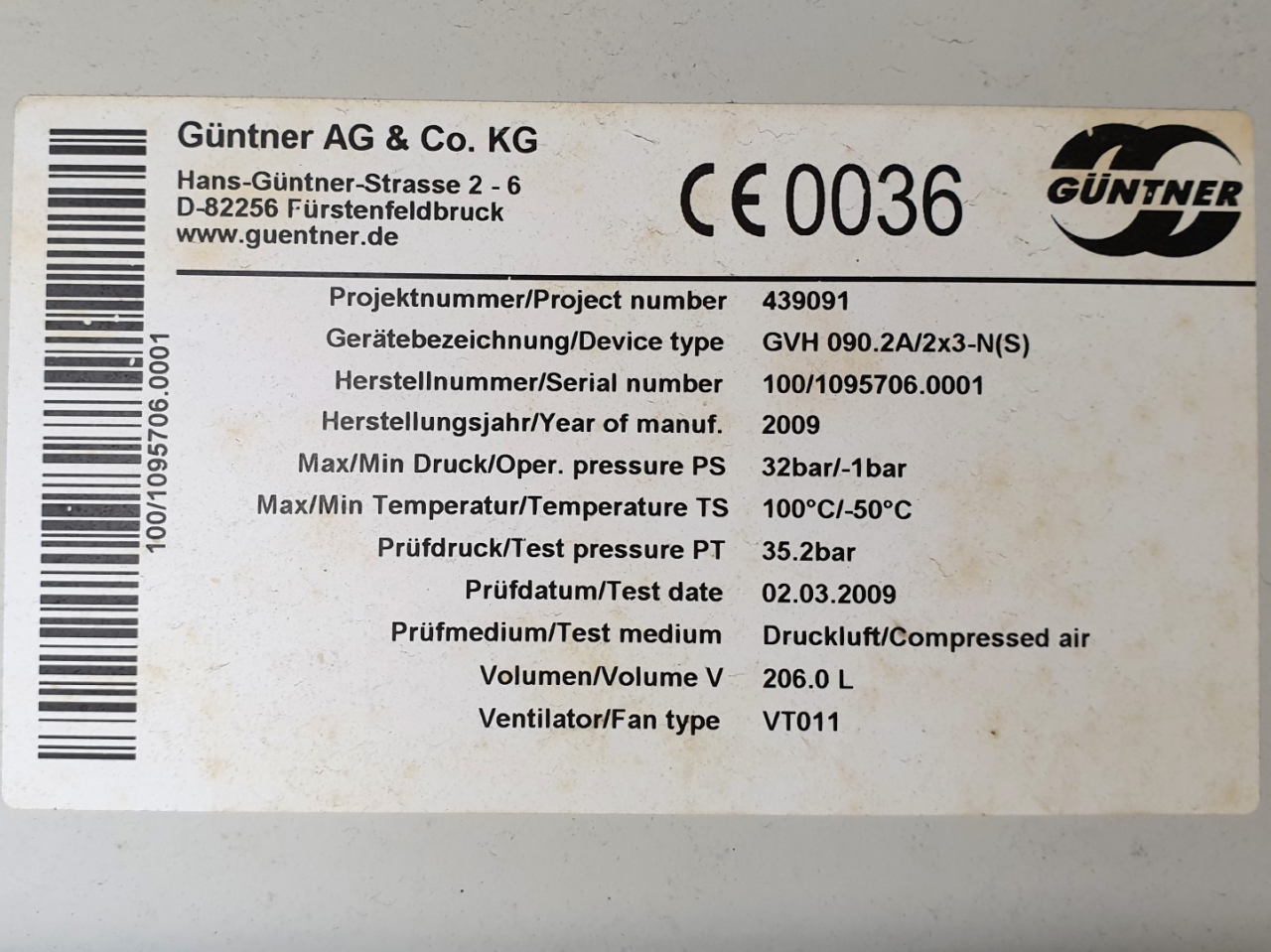

| Remarks | | y.o.b. 2009 |
| Amount in stock | 1 |
Description for Güntner GVH 090.2A/2x3-N(S)

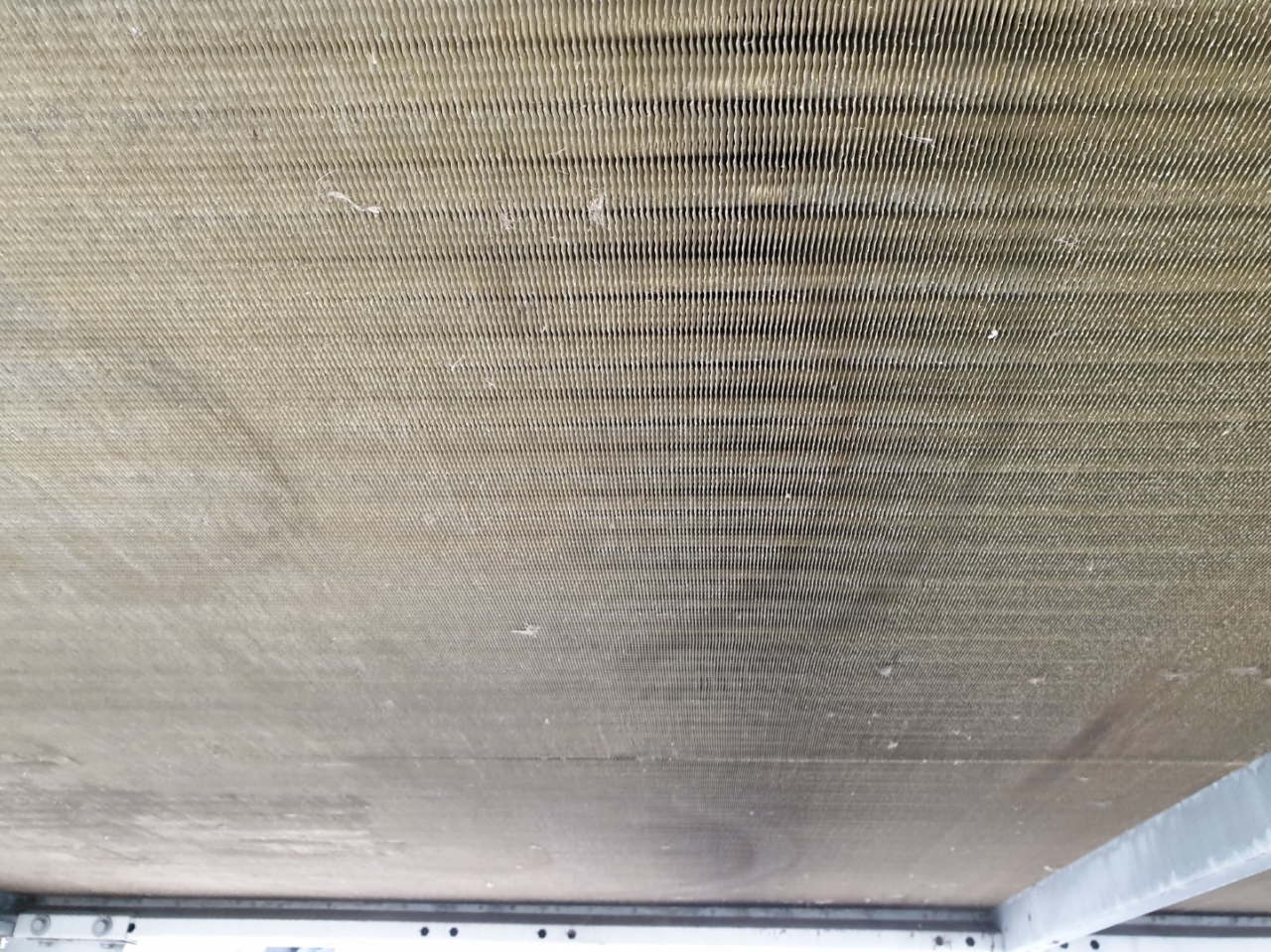

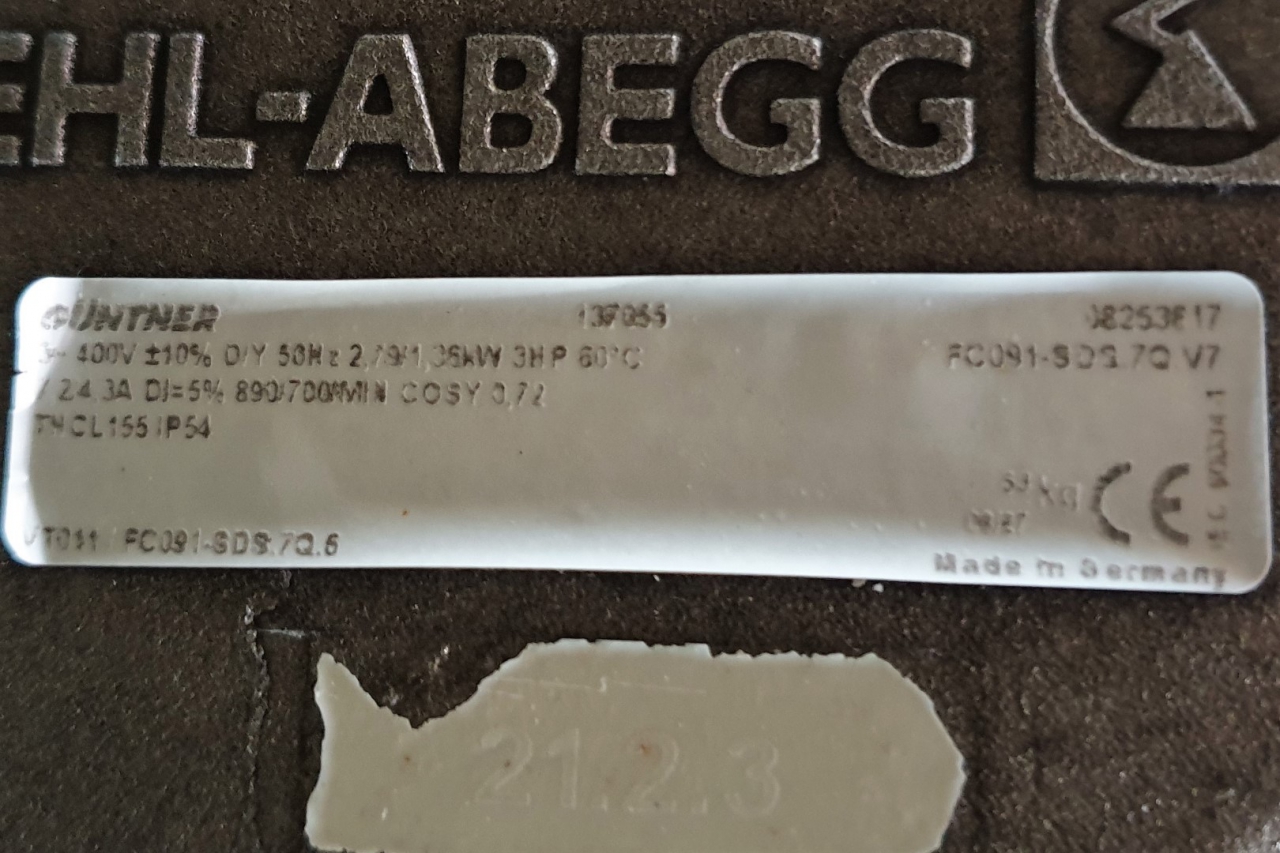

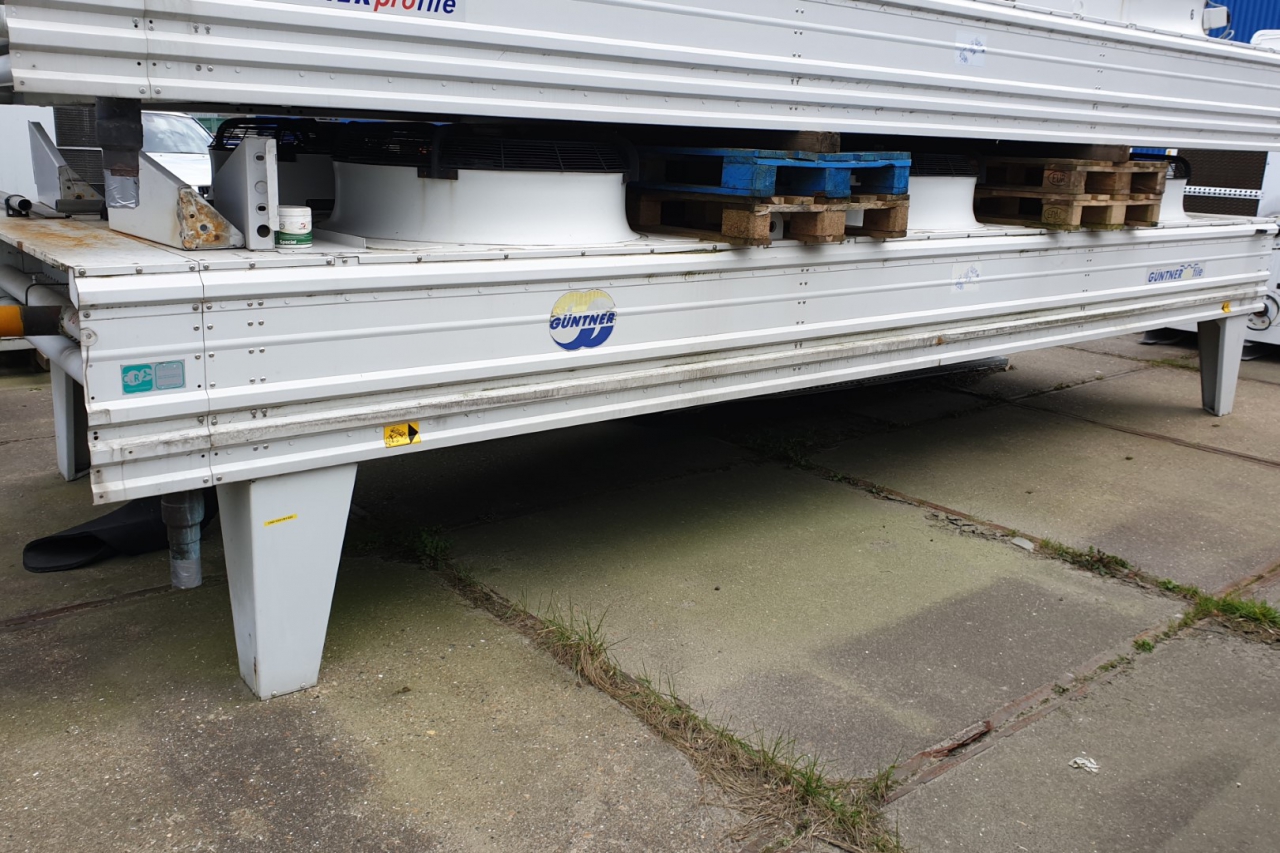

Used Guntner GVH 090.2A/3-N(S) air cooled condensor. Complete with 6 Ziehl-Abegg fans 50 Hz - 2,79/1,36 kW - 890/700 RPM - diameter 900 mm. Build in 2009.
*All components of this used condensors will be tested on good working, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform a industrial cleaning and rust spots will be covered. Also, we can arrange your shipment.
Downloads for Güntner GVH 090.2A/2x3-N(S)
| Güntner GVH 090.2A/2x3-N(S) - Product sheet | Download (PDF) |
| Güntner GVH 090.2A/2x3-N(S) - Specifications | Download (PDF) |
