Bitzer 6FE-40Y-40P (x7) & 6FE-44Y-40P (x1)
Bitzer 6FE-40Y-40P (x7) & 6FE-44Y-40P (x1)
| 17897 | |
| Marca | Bitzer |
| Tipo | 6FE-40Y-40P (x7) & 6FE-44Y-40P (x1) |
| Refrigerante | Freon |
| Refrigerant type | R134A |
| kW at 0ºC/+40ºC | 627,2 |
| kW at -5ºC/+40ºC | 506,4 |
| kW at -10ºC/+40ºC | 404,8 |
| kW at -20ºC/+40ºC | 246,4 |
| Sober Bancada |
|
| Presostatos |
|
| Manometros de Presion |
|
| Manometros del Condensador |
|

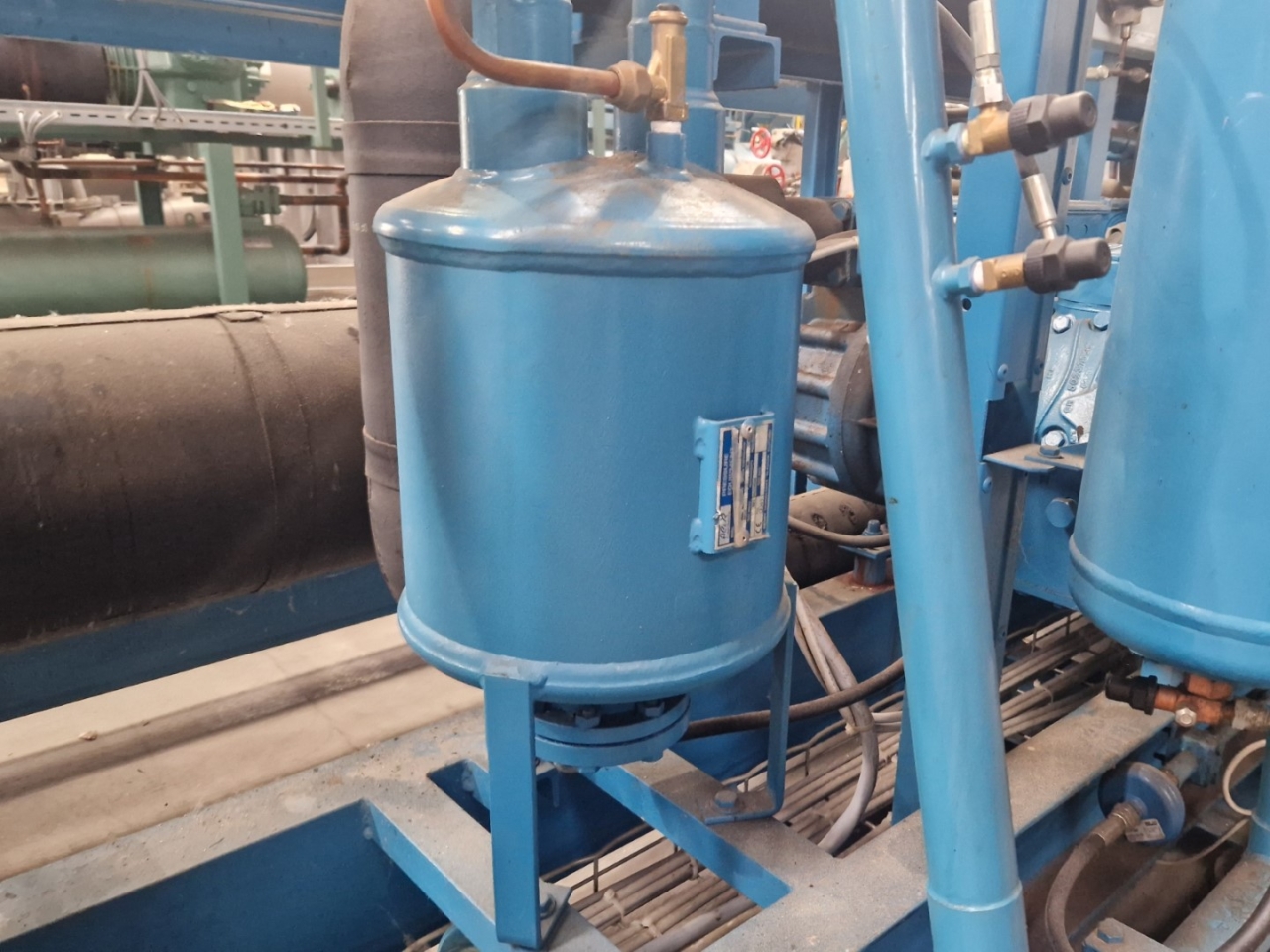

| Separador de aceite |
|
| Sistema de nivel de aceite |
|
| La línea de líquido filtro secador |
|

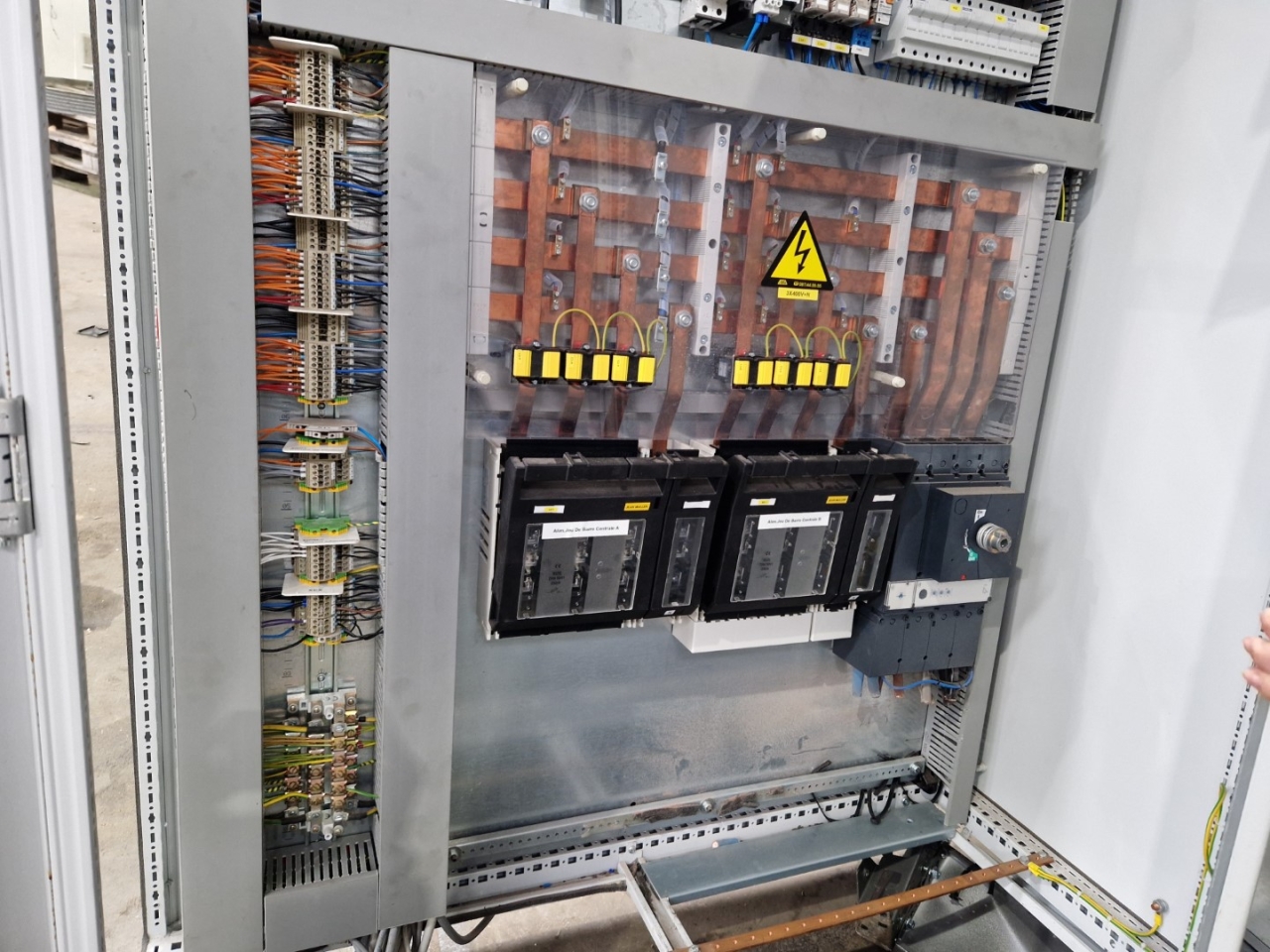

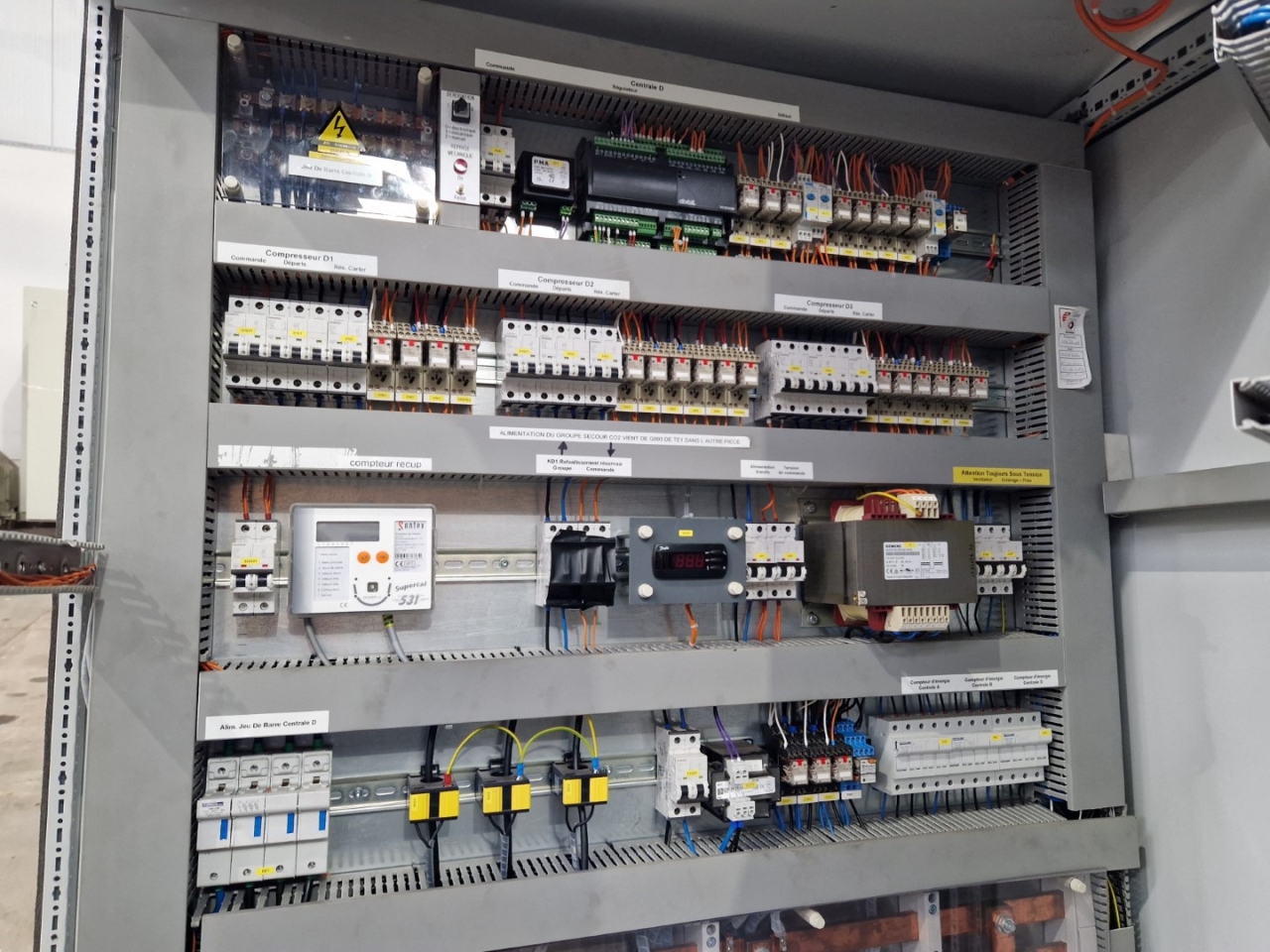

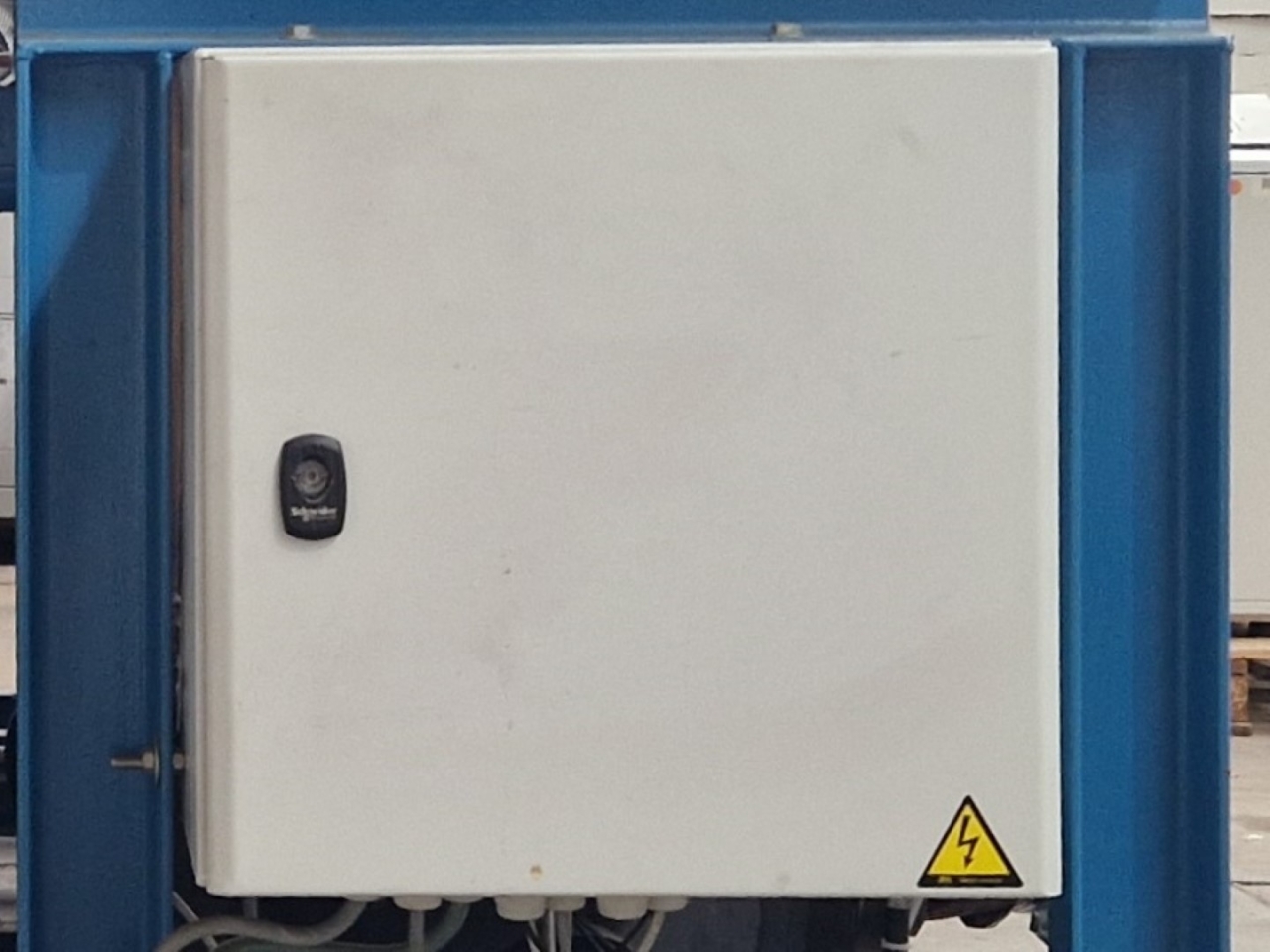

| Panel de control |
|
| m3 / h | 1216 |
| Comentarios | | Y.o.b. 2013 |
| Comentarios || | *Capacity based on Freon type: R134A |
| Package / Rack |
|
| Tamaños |
Compressor set 1: 3950x1850x1950 mm (LxWxH) Compressor set 2: 3950x1850x2050 mm (LxWxH) |
| Stock | 1 |
Bitzer 6FE-40Y-40P (x7) & 6FE-44Y-40P (x1)

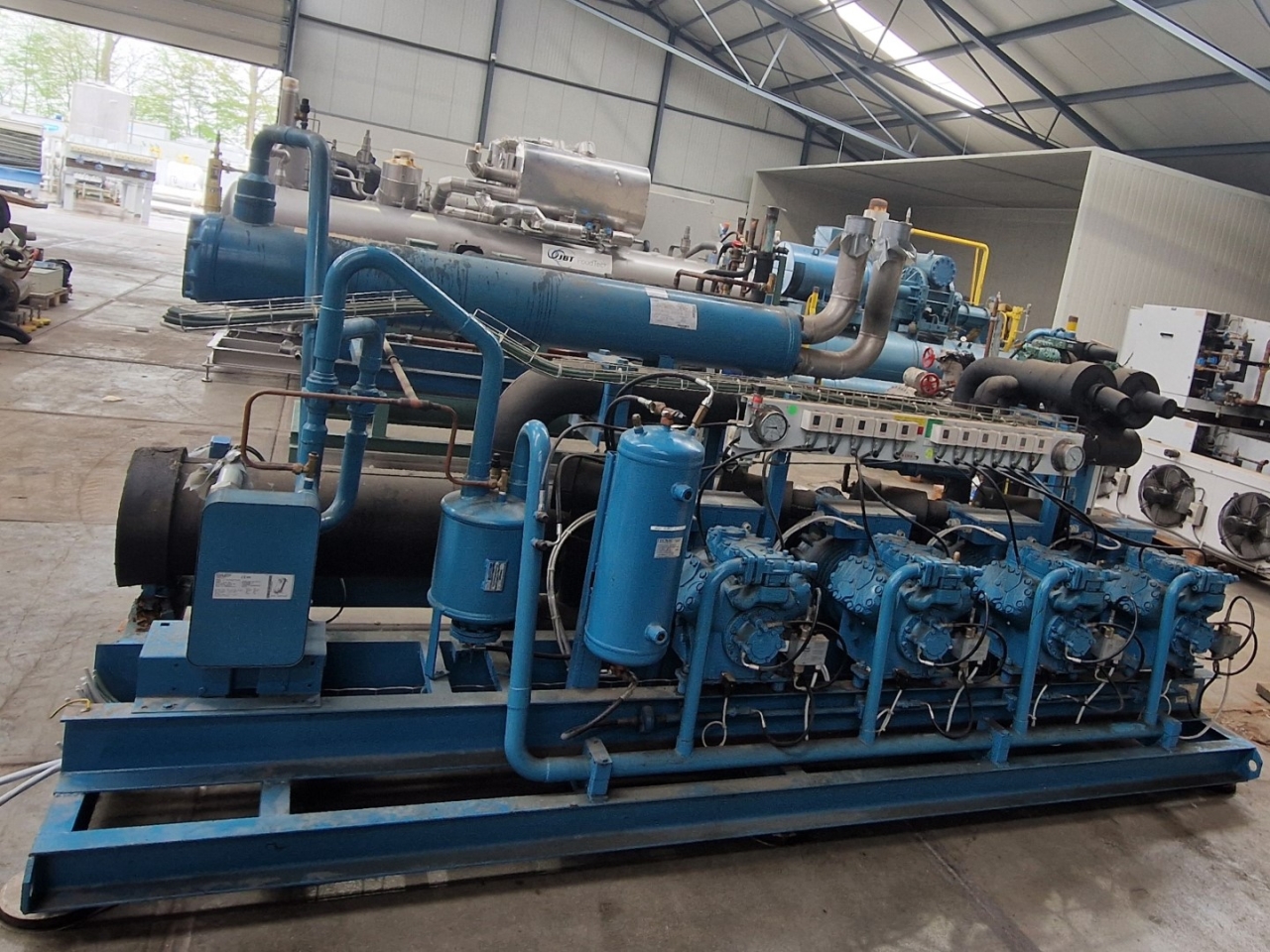

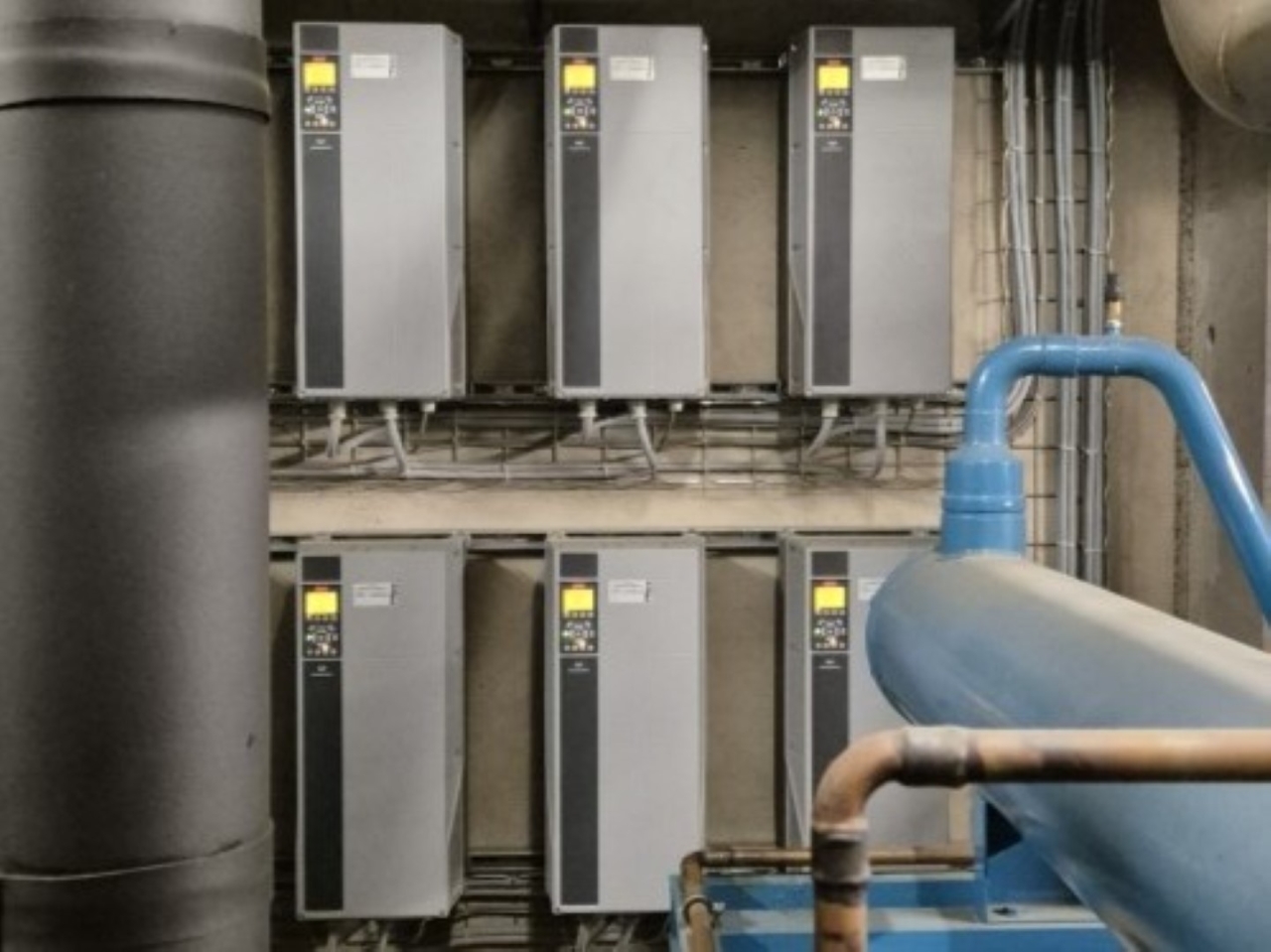

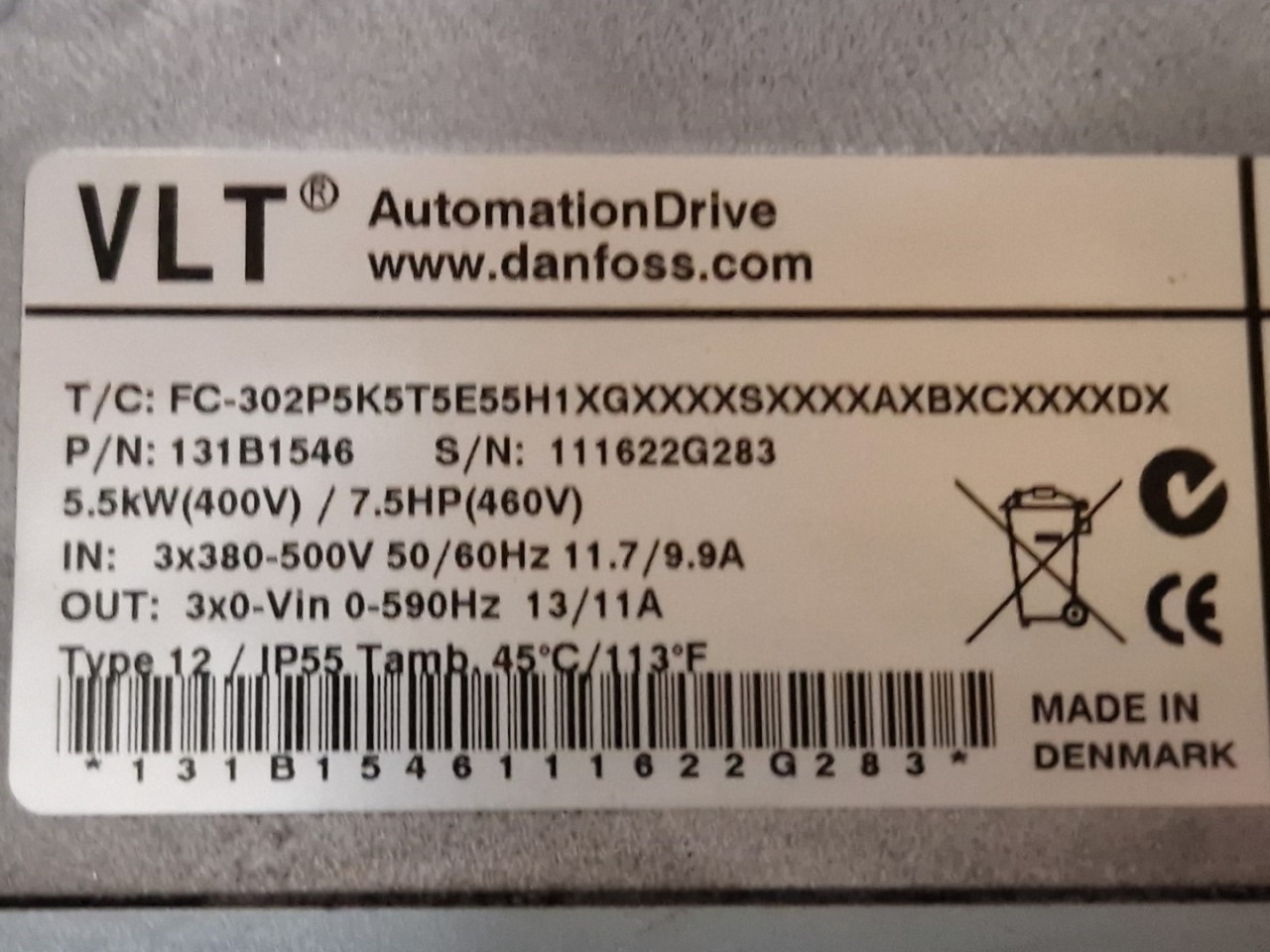

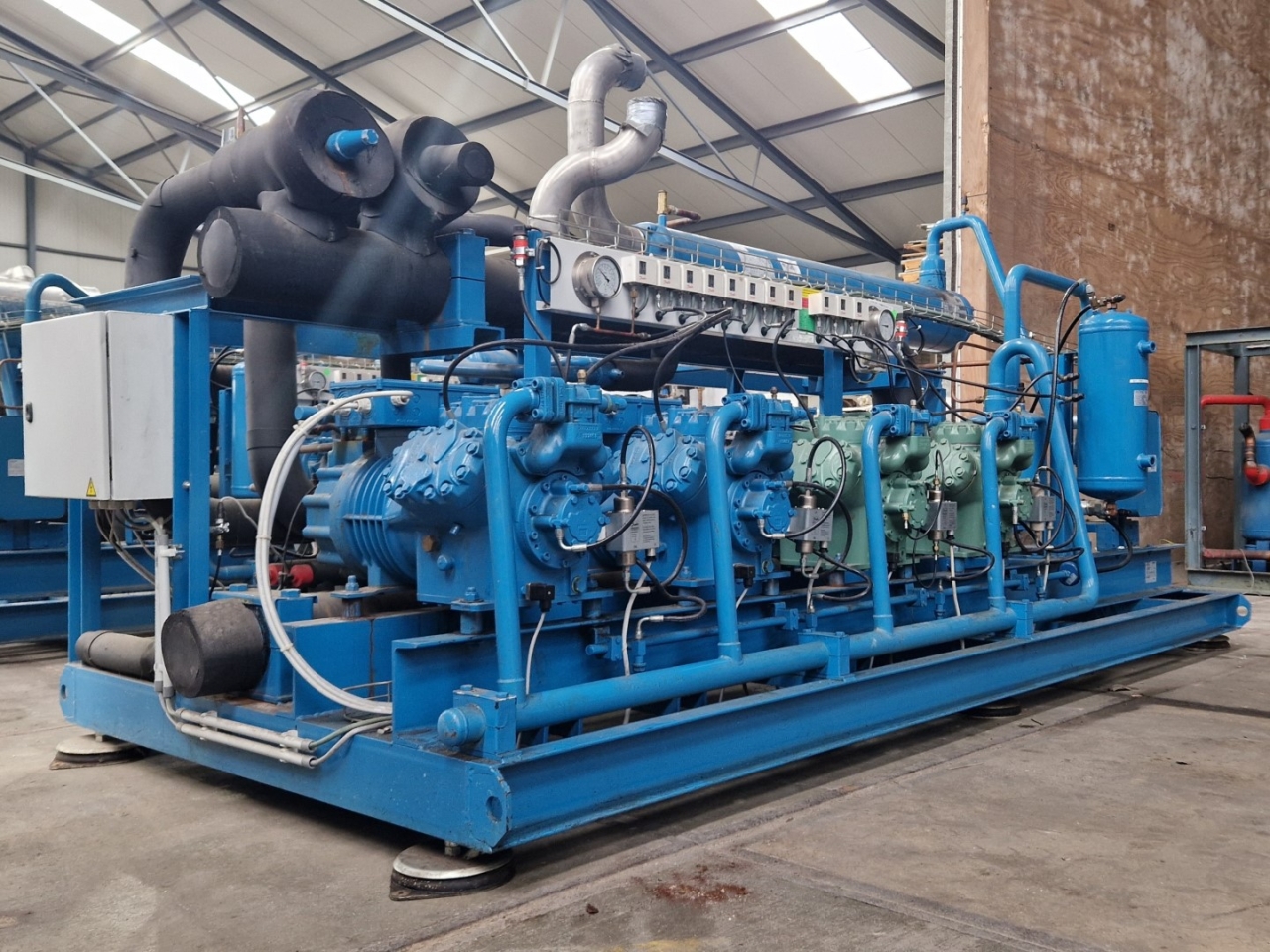

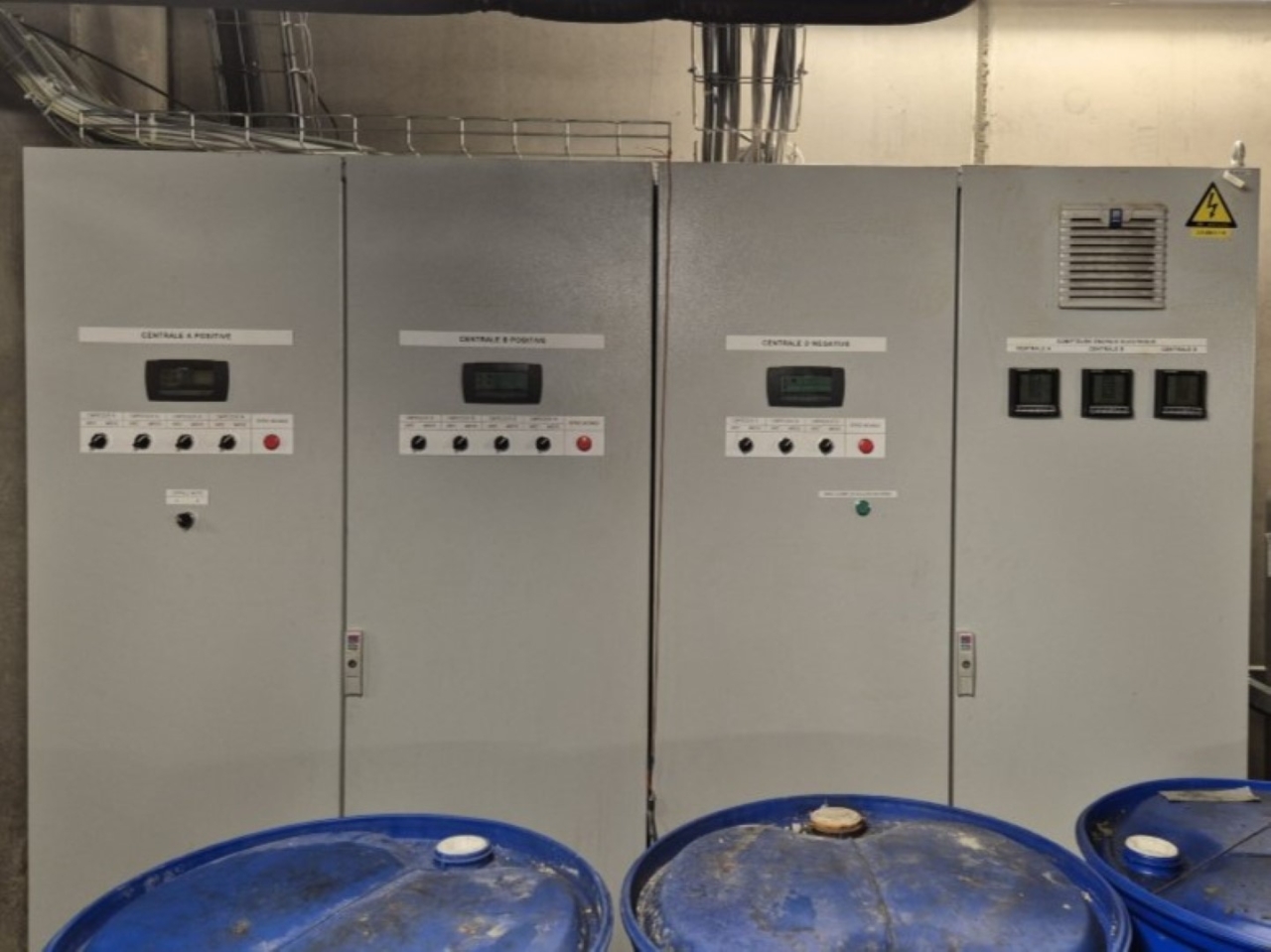

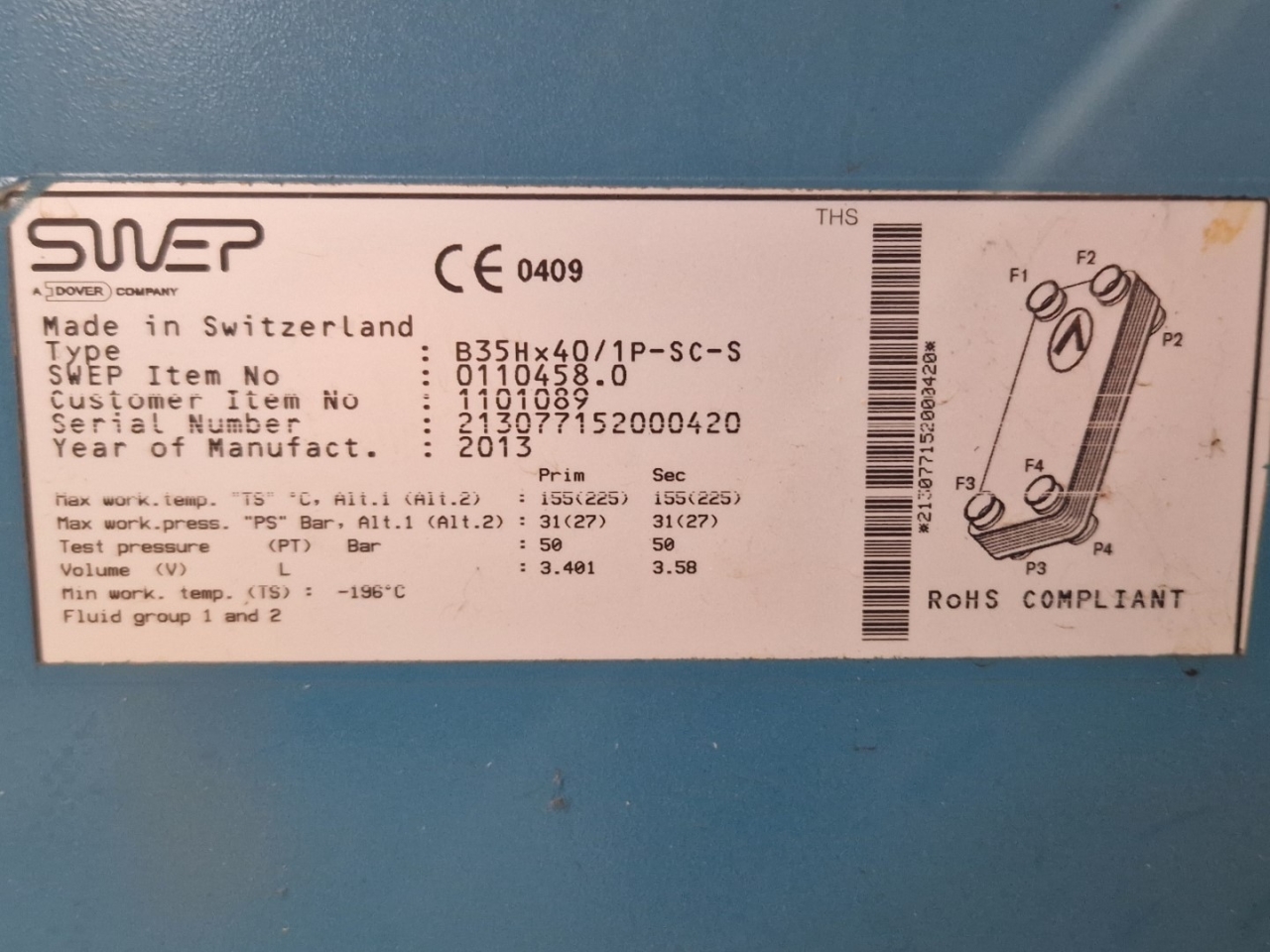

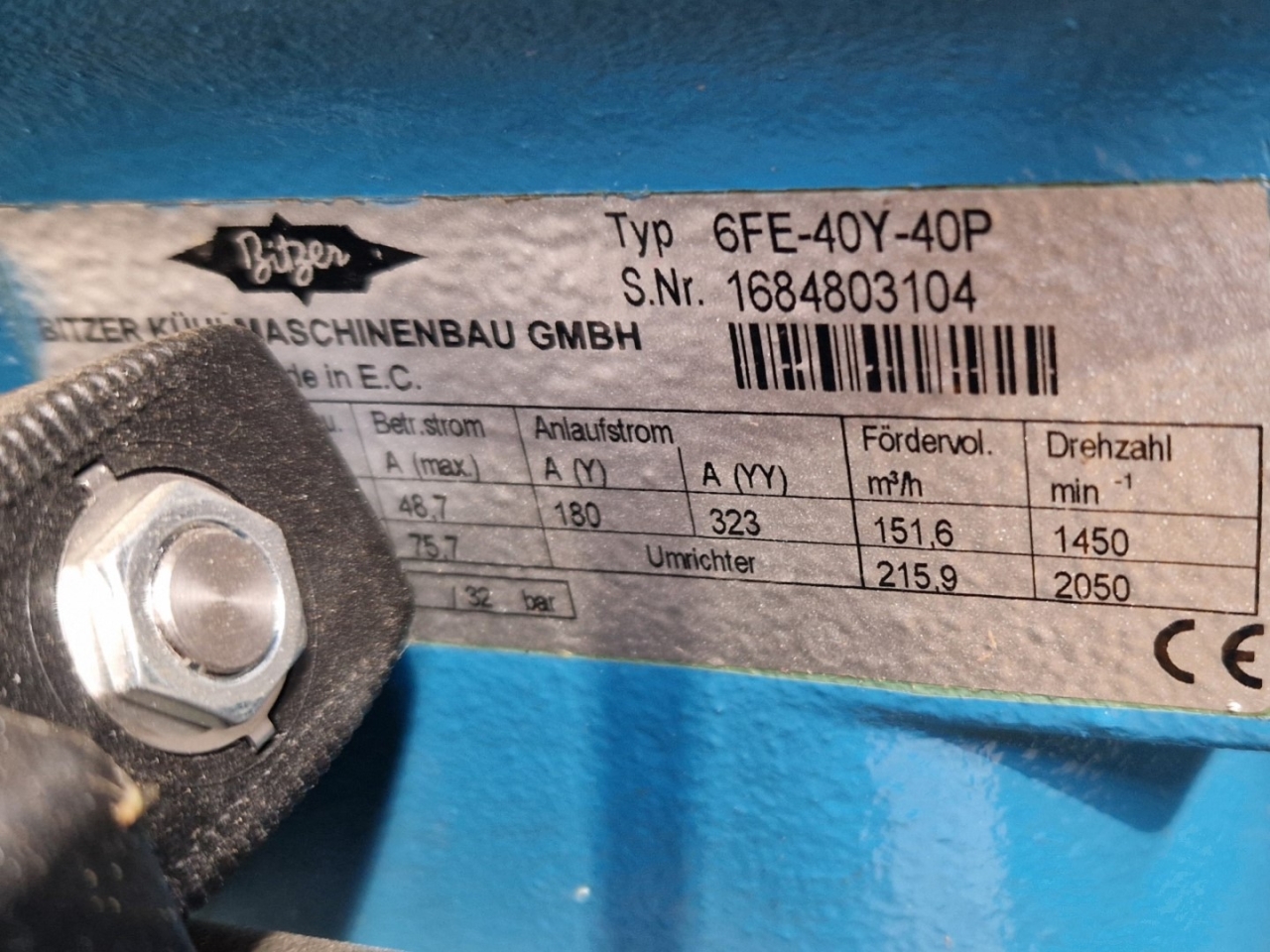

Used Bitzer 6FE-40Y-40P (x7) & 6FE-44Y-40P (x1) semi-hermetic reciprocating compressors on Freon. Complete with an oil separator, oil reservoir, brazed heat exchanger, eletric oil level system AC&R, pressur and safety switches/gauges, liquid line filter drier, 8x Danfoss frequency converters and a control cabinet with multiple controllers and displays. The compressors have a total displacement of 1216 m³/h.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
