Bitzer 6F-50.2Y-40P Condensing unit
Bitzer 6F-50.2Y-40P Condensing unit
| 17966 | |
| Marca | Bitzer |
| Tipo | 6F-50.2Y-40P Condensing unit |
| Refrigerante | Freon |
| kW at 0ºC/+40ºC | 121,7 |
| kW at -5ºC/+40ºC | 101,3 |
| kW at -10ºC/+40ºC | 83,6 |
| kW at -20ºC/+40ºC | 55,0 |
| kW at -30ºC/+40ºC | 33,9 |
| kW at -40ºC/+40ºC | 18,6 |
| Sober Bancada |
|
| Presostatos |
|
| Manometros de Presion |
|
| Recipiente de líquido |
|
| Recipiente de líquido ltr. | 70 |
| Acumulador de succión |
|
| Separador de aceite |
|
| La línea de líquido filtro secador |
|
| Mirilla |
|
| Panel de control |
|
| m3 / h | 151,6 m³/h at 50 Hz & 183 m³/h at 60 Hz |
| Comentarios | | Y.o.b. 2013 |
| Condensing Unit |
|
| Tamaños | 3240x1100x2320 mm (LxWxH) |
| Stock | 3 |
Bitzer 6F-50.2Y-40P Condensing unit

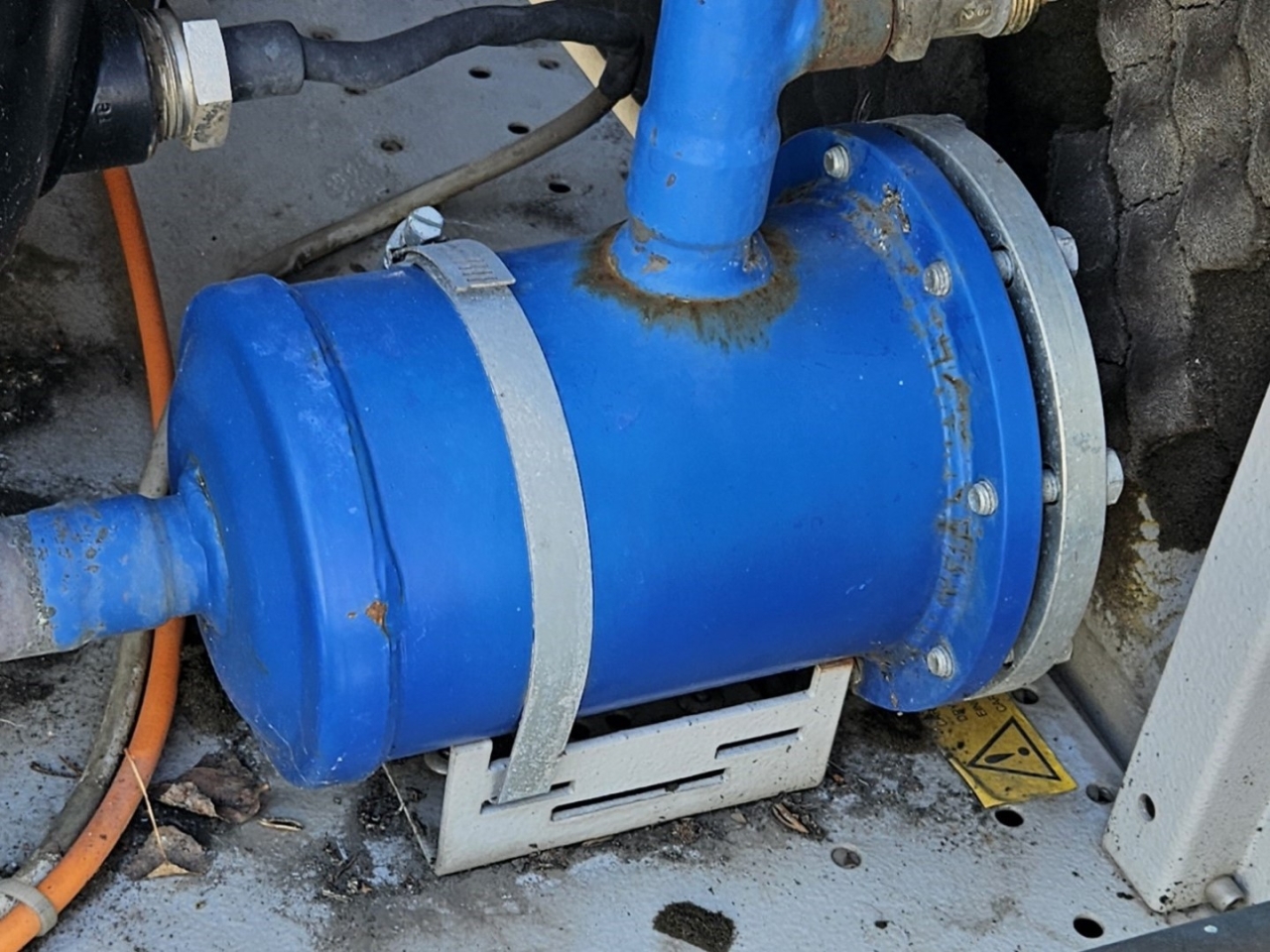

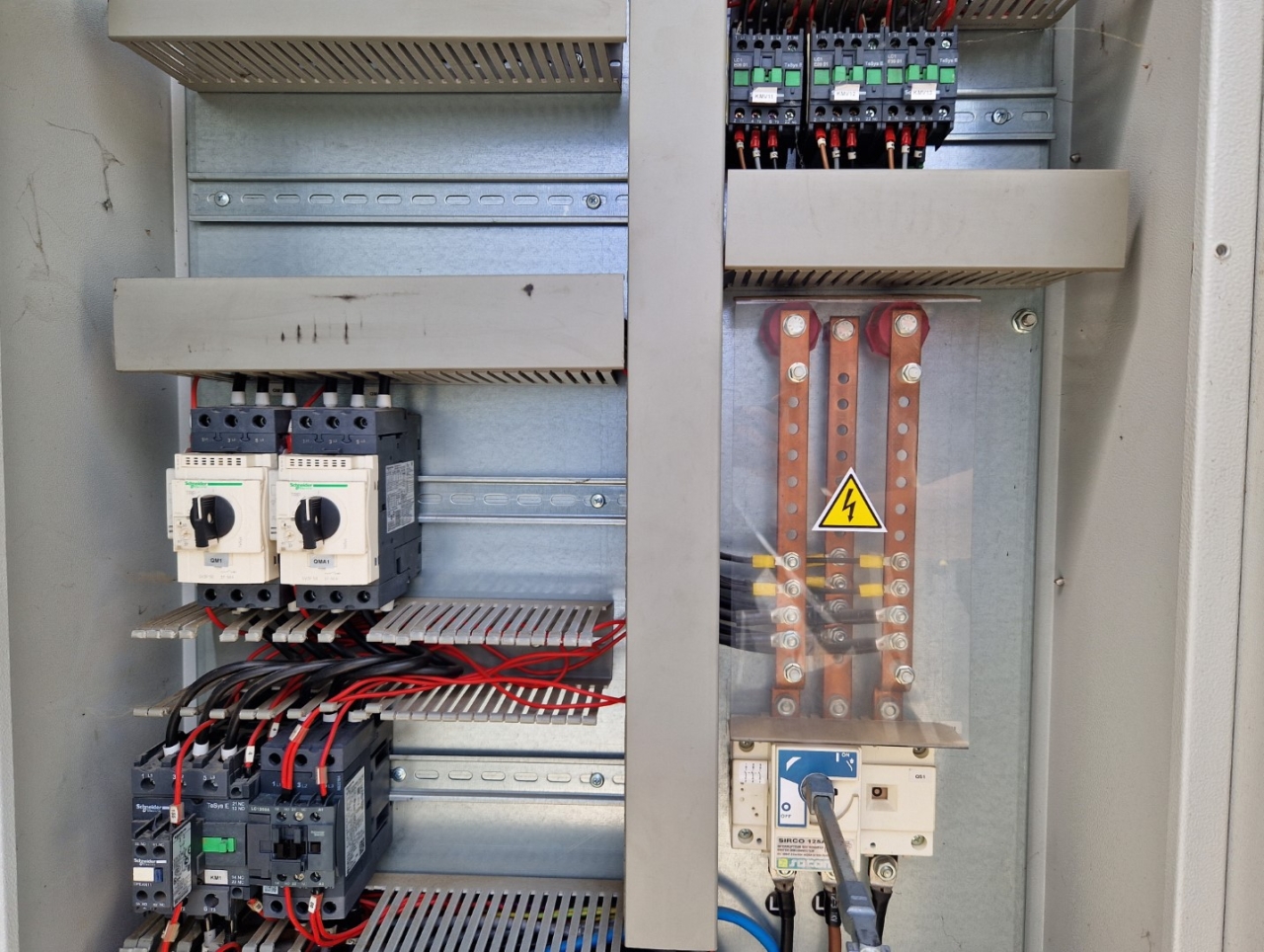

Used Fredvic UM 500 MT/S condensing unit on Freon. Complete with a Bitzer 6F-50.2Y-40P semi-hermetic reciprocating compressor, condenser with 3 EBM-Papst fans - 50 Hz - 1,94/1,21 kW - 880/670 RPM, OCS liquid receiver with a volume of 70 liter, suction accumulator, oil separator, liquid line filter drier, pressure and safety switches/gauges and a control cabinet. The compressor has a displacement of 151,6 m³/h at 50 Hz & 183 m³/h at 60 Hz.
