Goedhart INAL-G-N41080D-B-Sp(D)
Goedhart INAL-G-N41080D-B-Sp(D)
| 17981 | |
| Marca | Goedhart |
| Tipo | INAL-G-N41080D-B-Sp(D) |
| Tipo de producto | Air Cooled Condenser |
| Capacidad kW | 774,2 |
| Número de aficionados | 10 |
| RPM de los ventiladores | 650/900 |
| Refrigerante | NH 3 (ammonia) |
| Flujo de aire in m³/h | 210.120 |
| ventiladores de diámetro Ø | 800 mm |
| Superficie (m2) | 1885 m² |
| Volumen del tubo | 314 dm³ |
| Tamaños | 9070x2360x2200 mm (LxWxH) |
| Peso | 2300 kg |
| Comentarios | | Y.o.b. 2011 |
| Stock | 1 |
Goedhart INAL-G-N41080D-B-Sp(D)

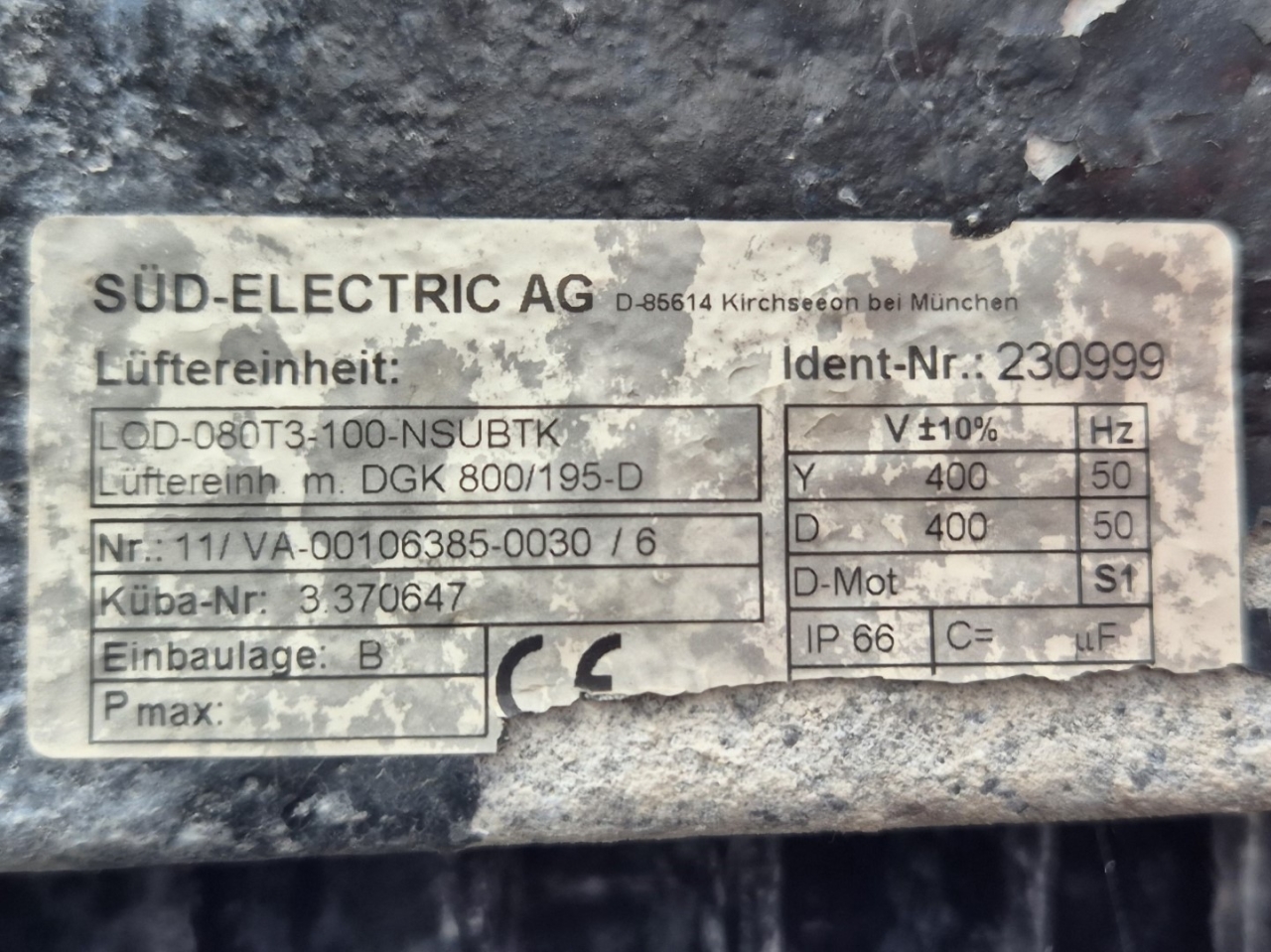

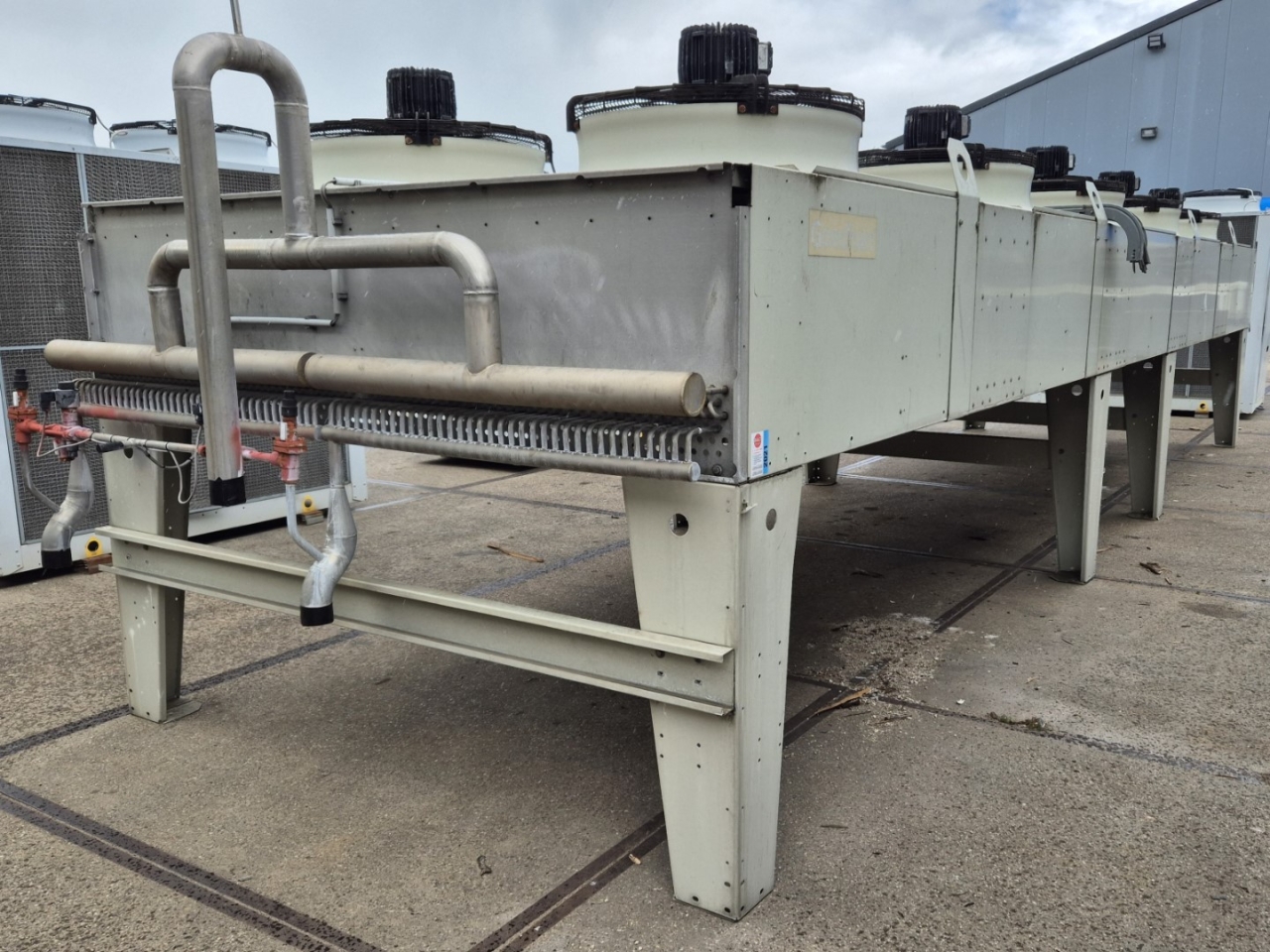

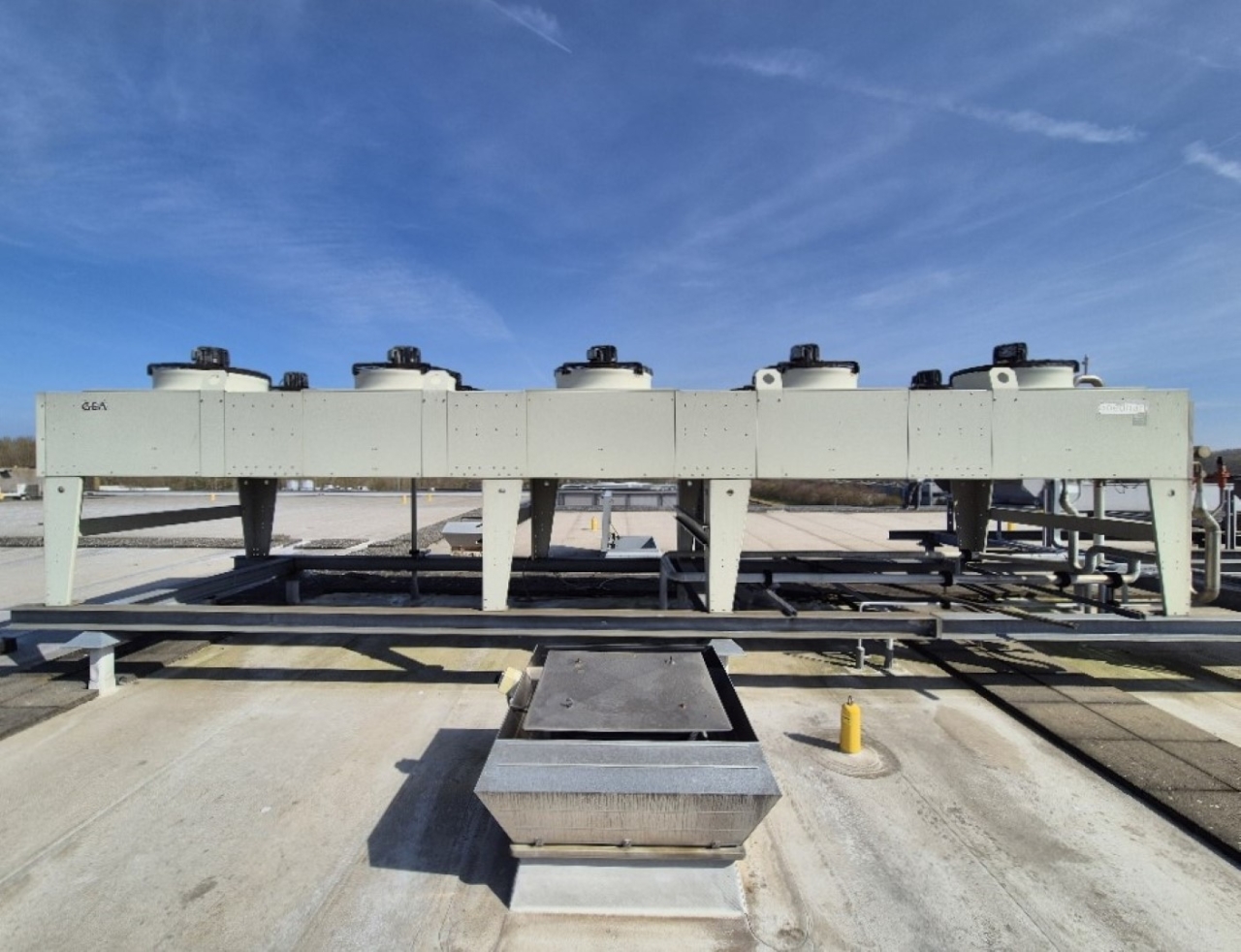

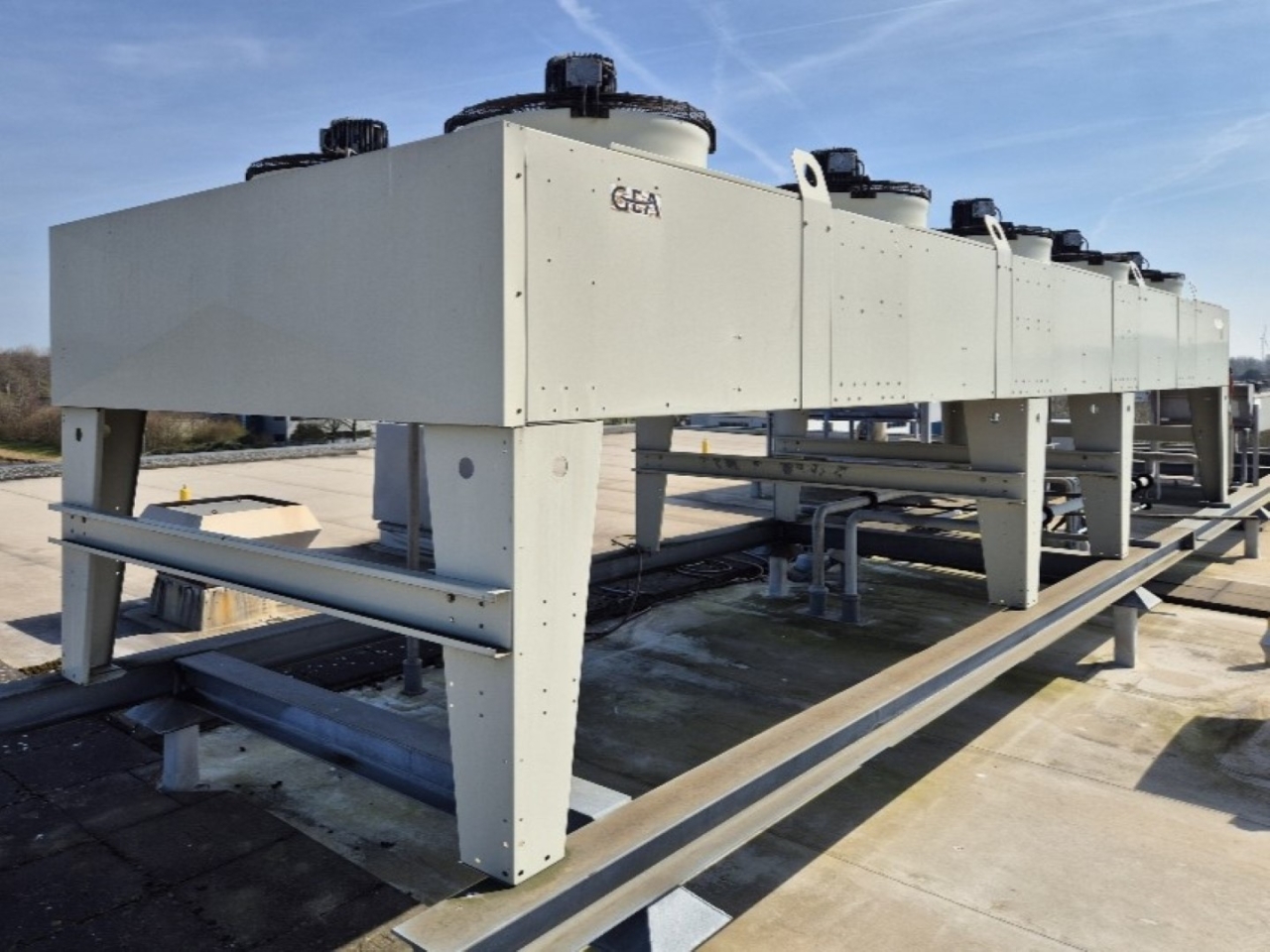

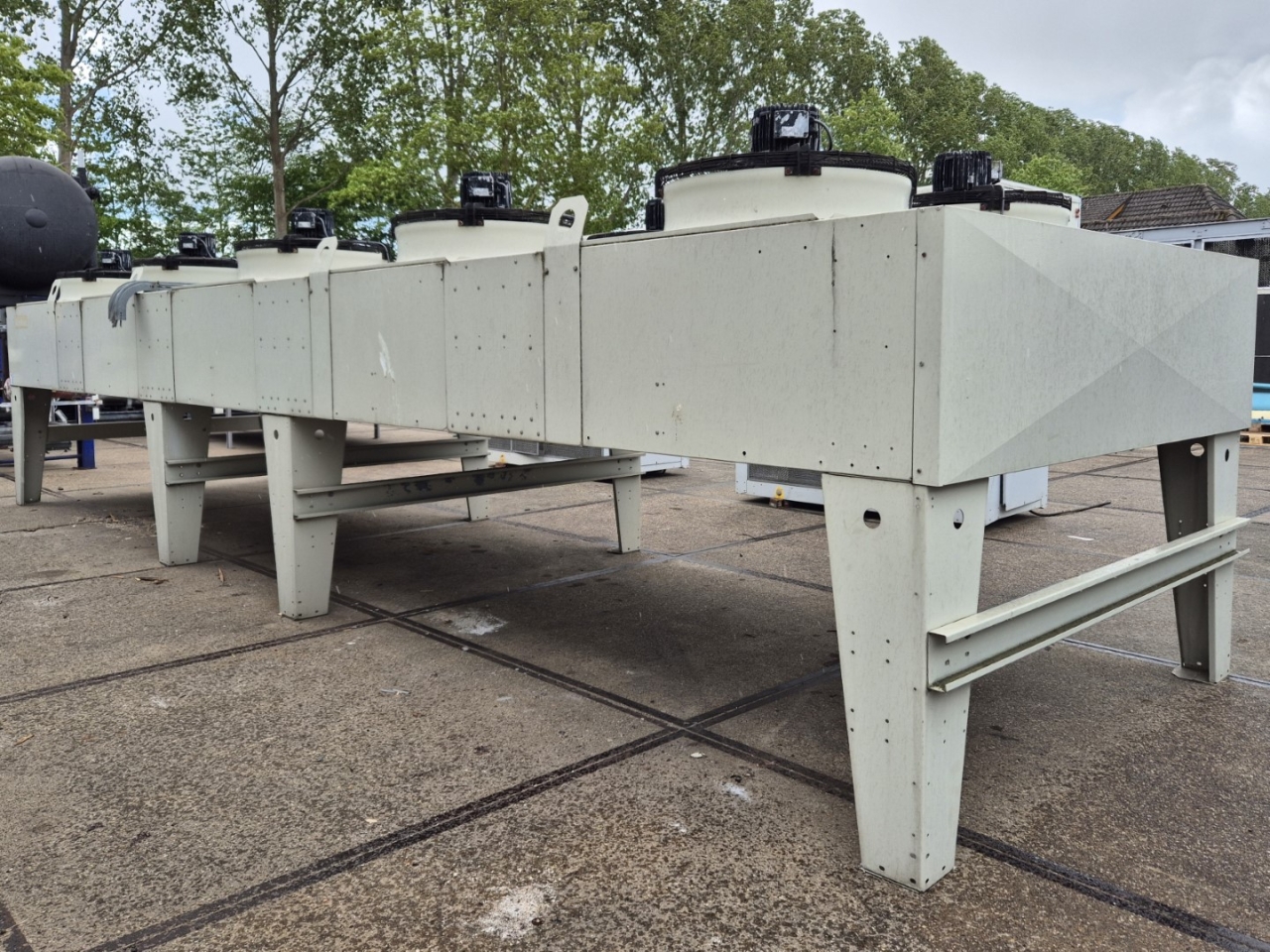

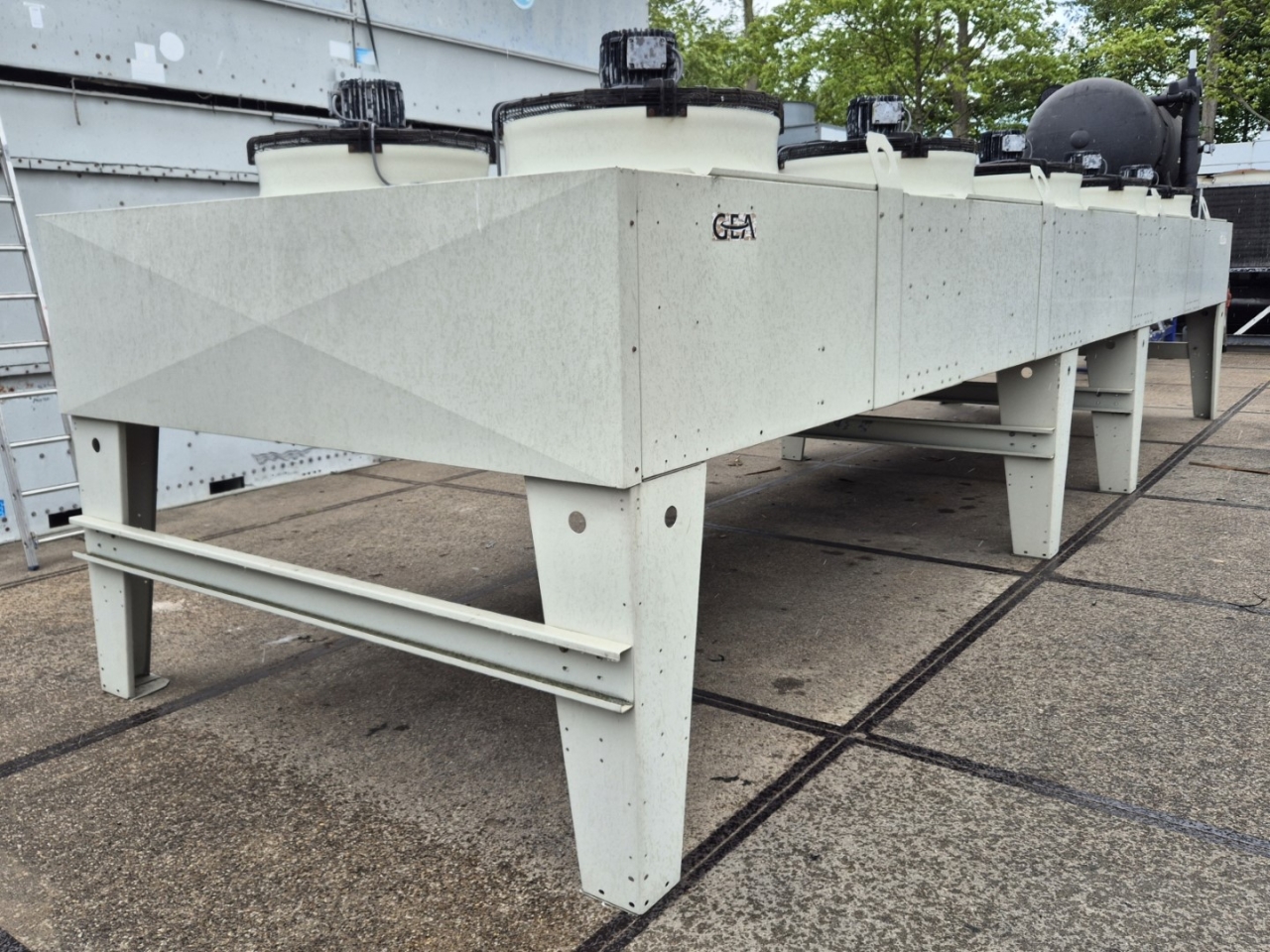

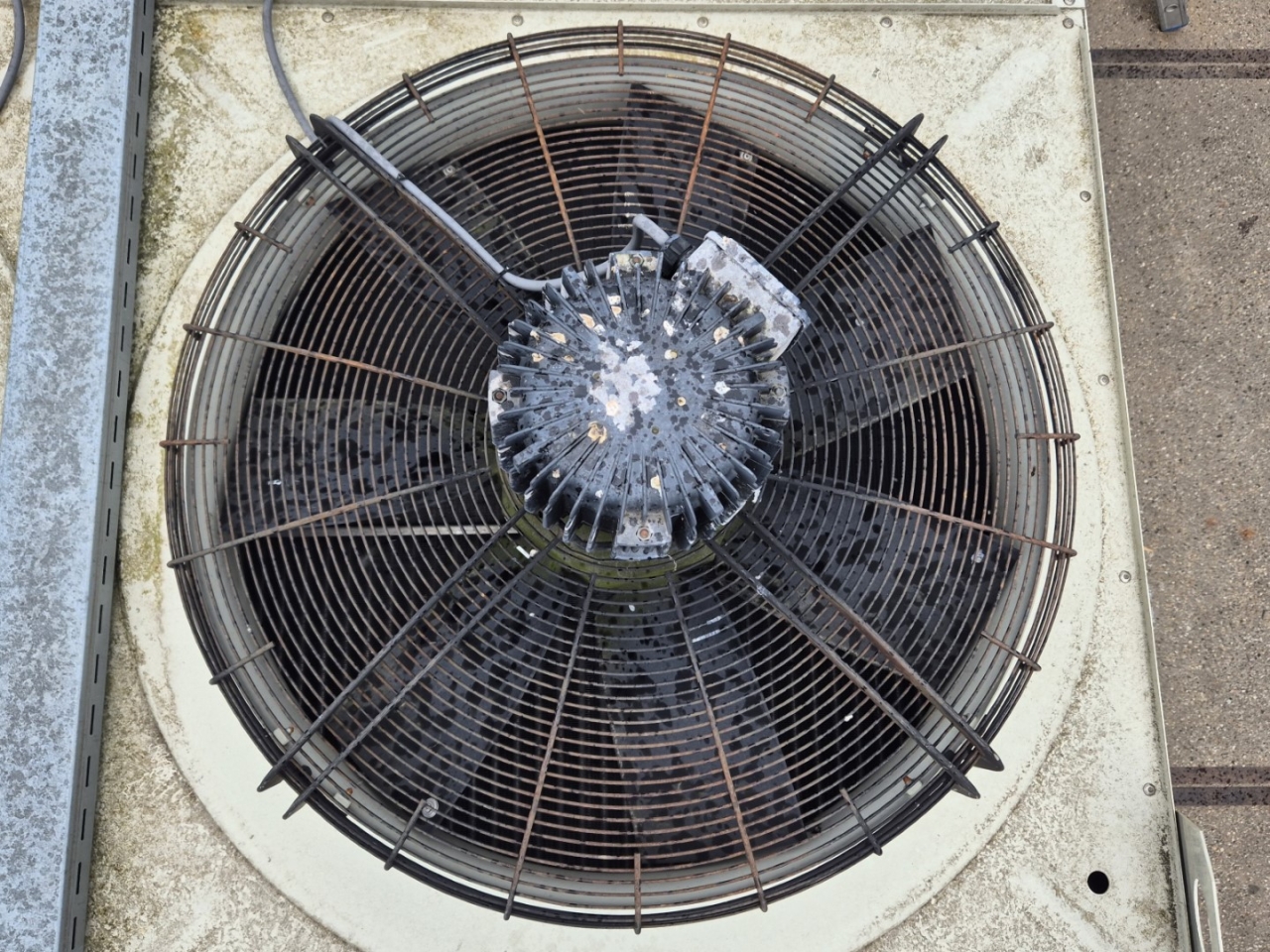

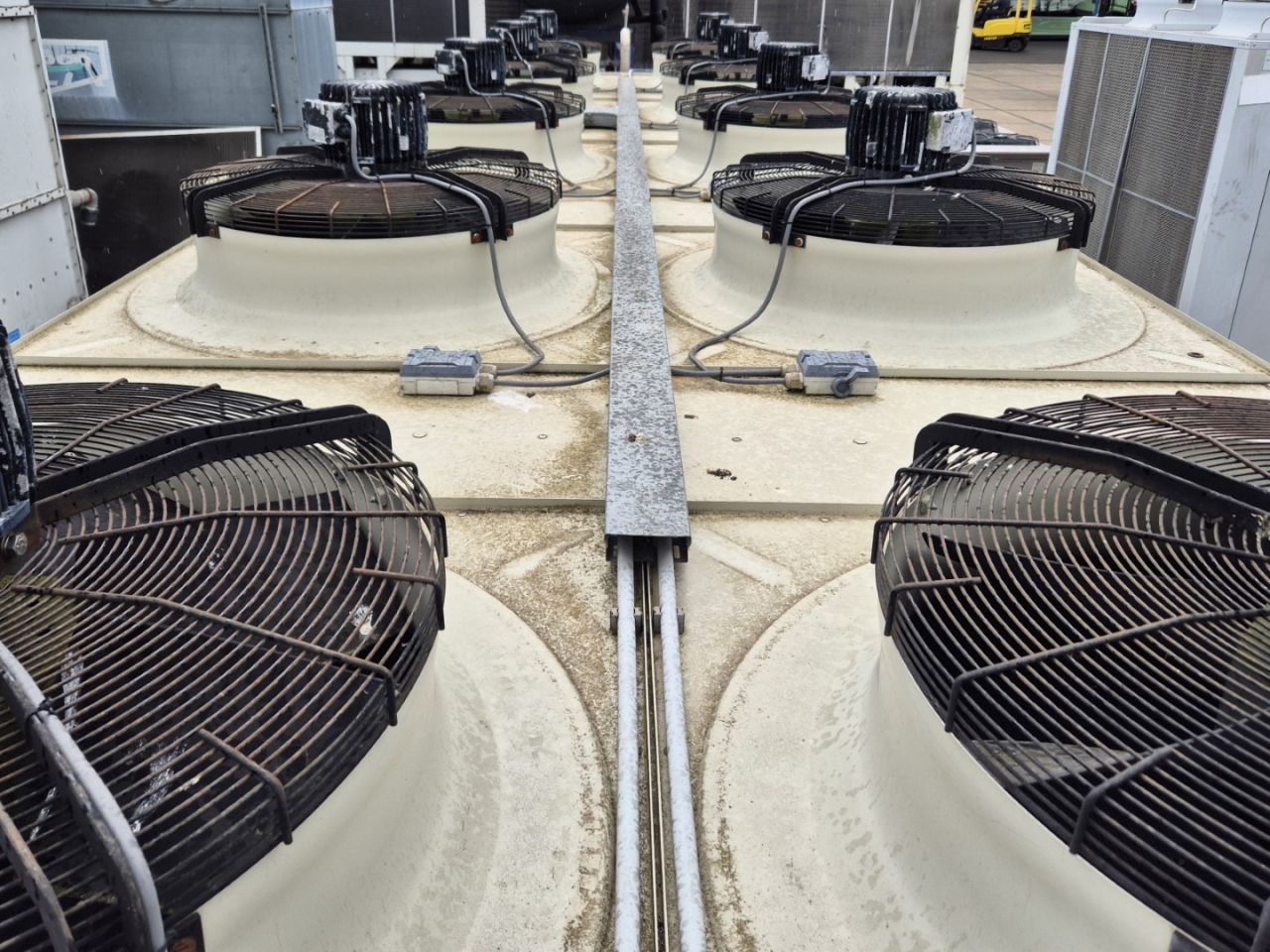

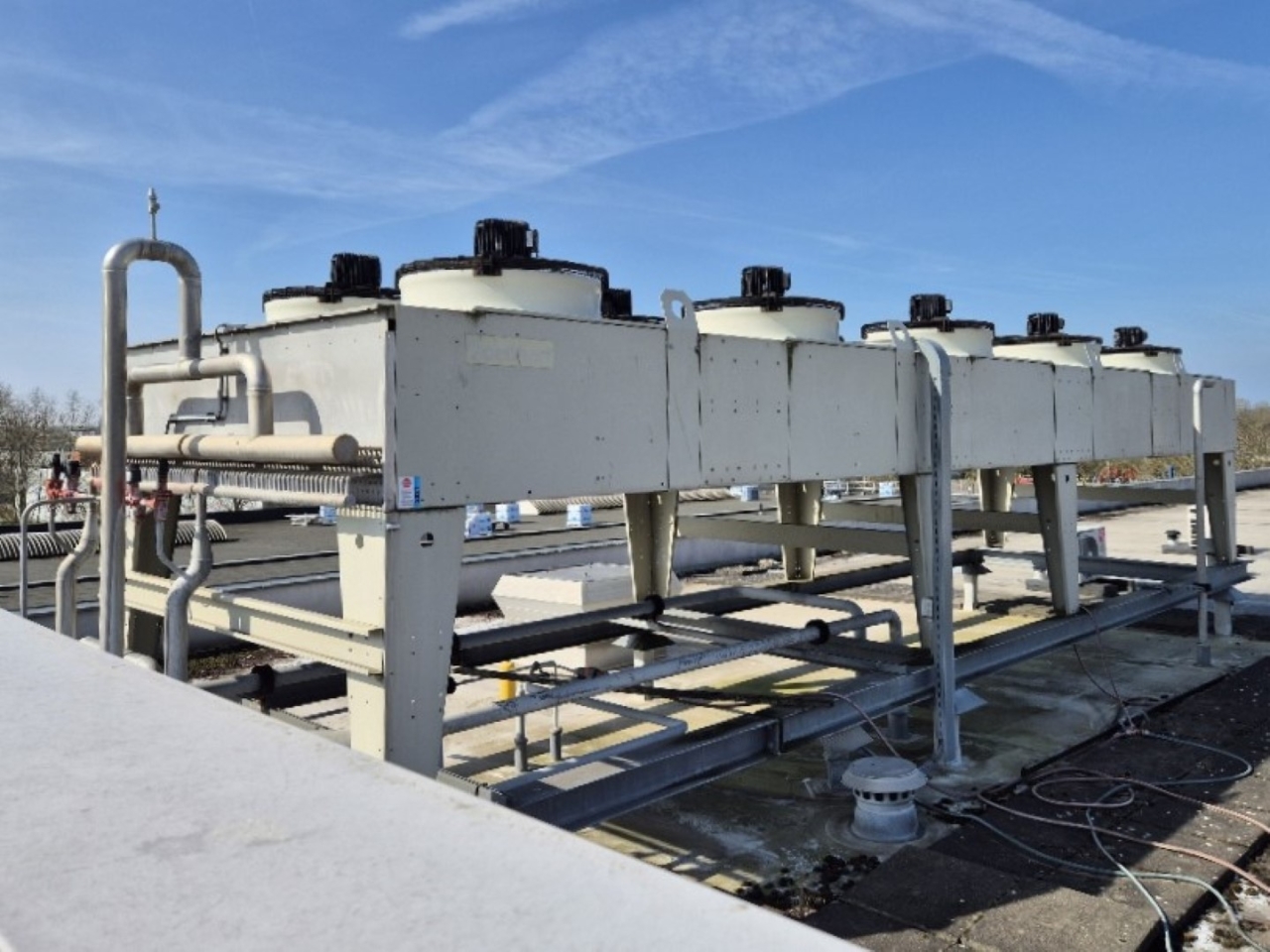

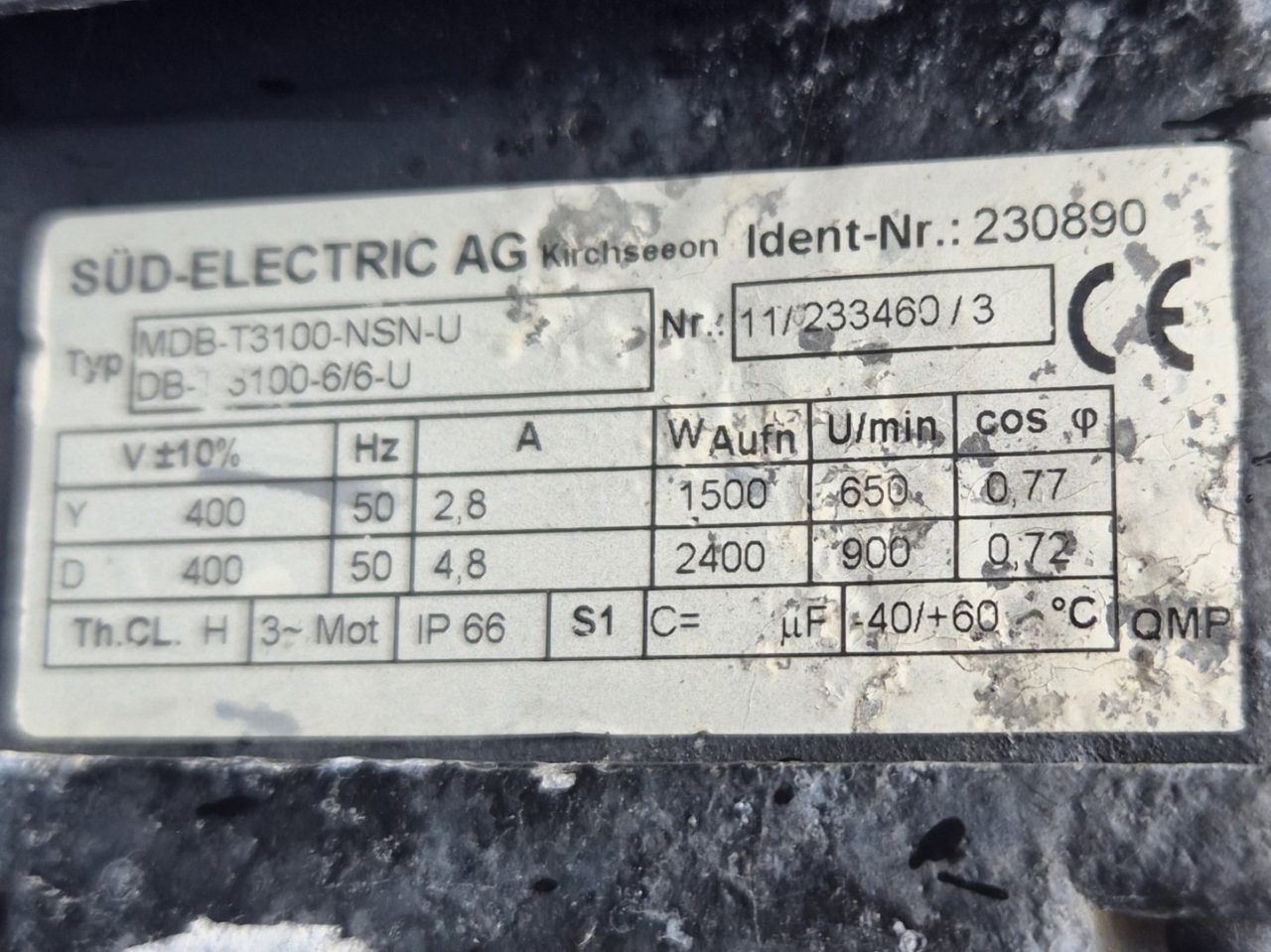

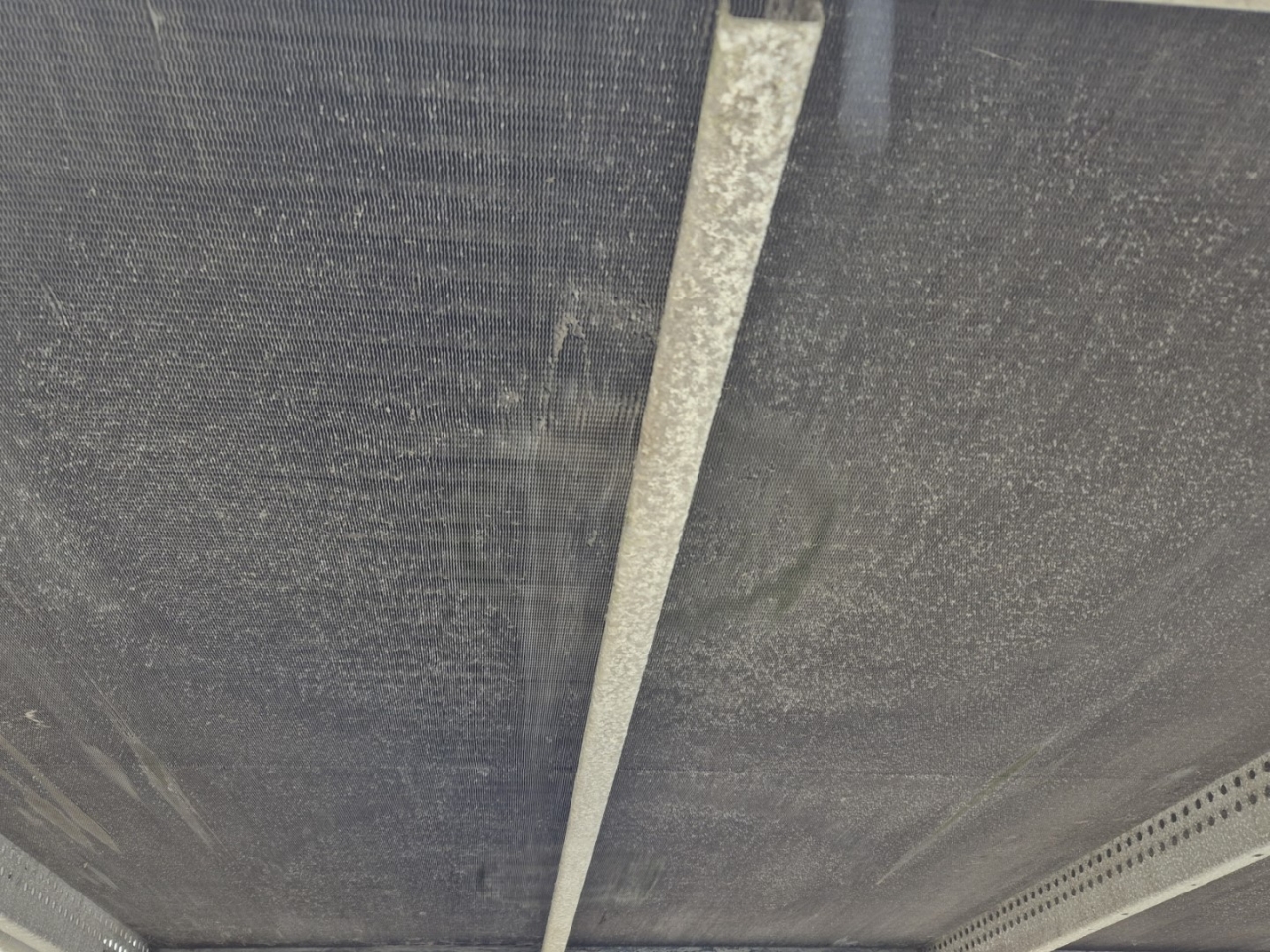

Used Goedhart INAL-G-N41080D-B-6p(D) air-cooled condenser on NH3 (Ammonia). Complete with 10 Süd-Electric LOD-080T3-100-NSUBTK fans - 50 Hz - 2,4/1,5 kW - 900/650 RPM - diameter 800 mm and a total airflow of 210.120 m³/h.

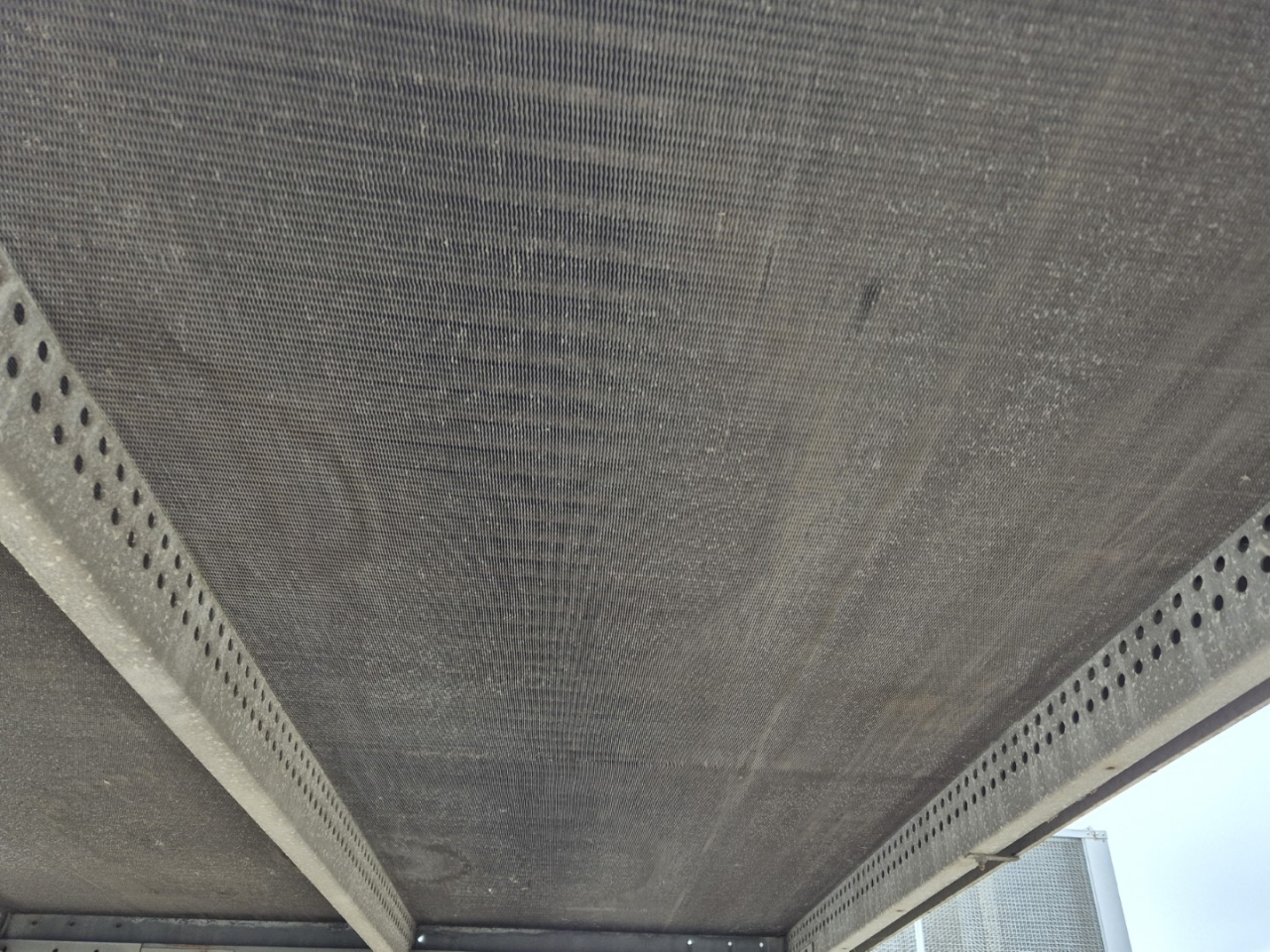

*All components of this used condenser will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning. on demand, we can arrange your shipment.
