Thermofin TCH.3-091-23-B-M-D5-BC-02
Thermofin TCH.3-091-23-B-M-D5-BC-02
| 18126 | |
| Marca | Thermofin |
| Tipo | TCH.3-091-23-B-M-D5-BC-02 |
| Tipo de producto | Air Cooled Condenser |
| Capacidad kW | 563,0 |
| Número de aficionados | 6 |
| RPM de los ventiladores | 885/685 |
| Refrigerante | Freon |
| Flujo de aire in m³/h | 144.785 |
| ventiladores de diámetro Ø | 910 mm |
| Superficie (m2) | 1391 m² |
| Volumen del tubo | 141 dm³ |
| Tamaños | 6150x2290x1450 mm (LxWxH) |
| Peso | 1445 kg |
| Comentarios | | Y.o.b. 2020 |
| Stock | 1 |
Thermofin TCH.3-091-23-B-M-D5-BC-02

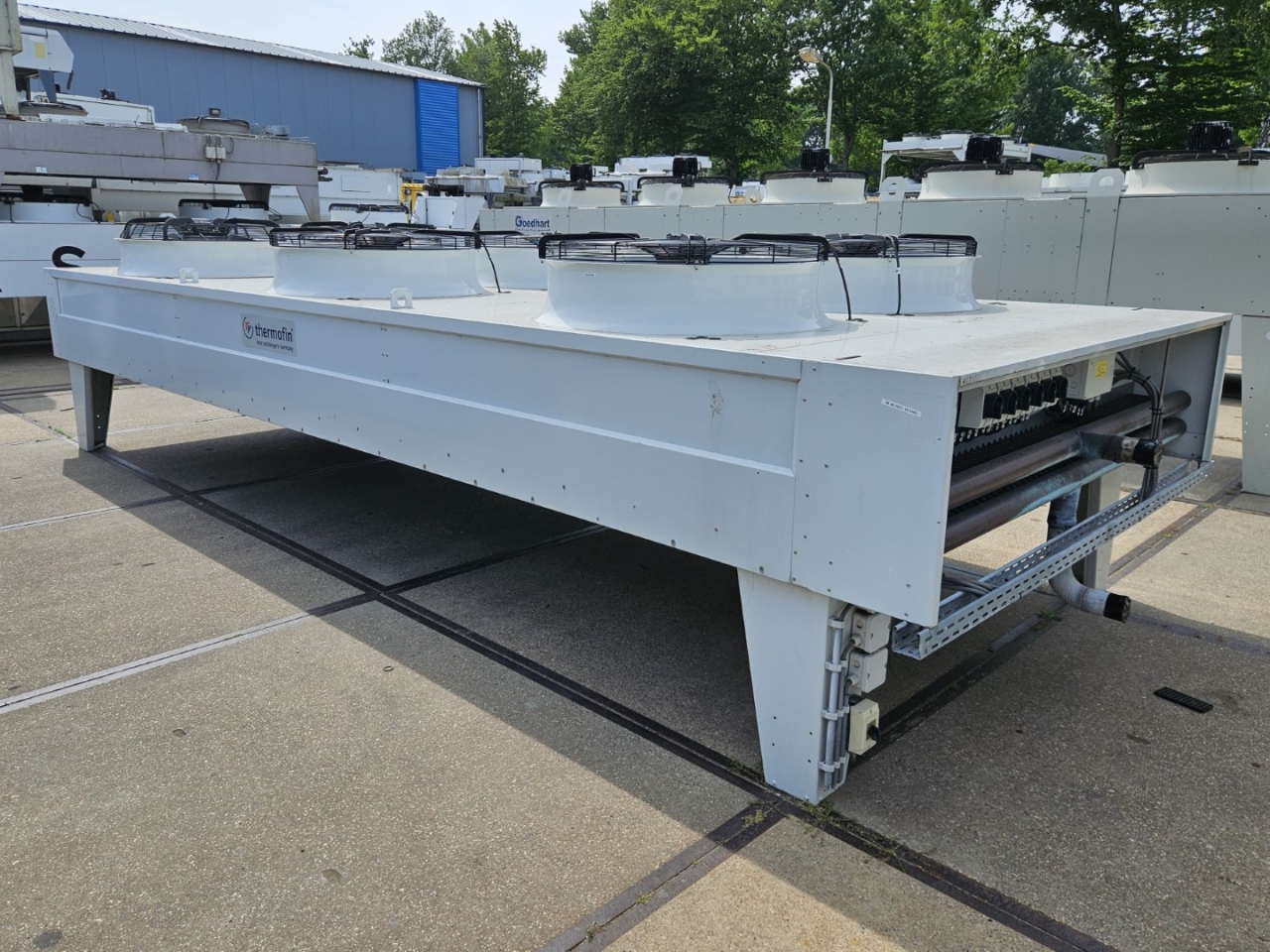

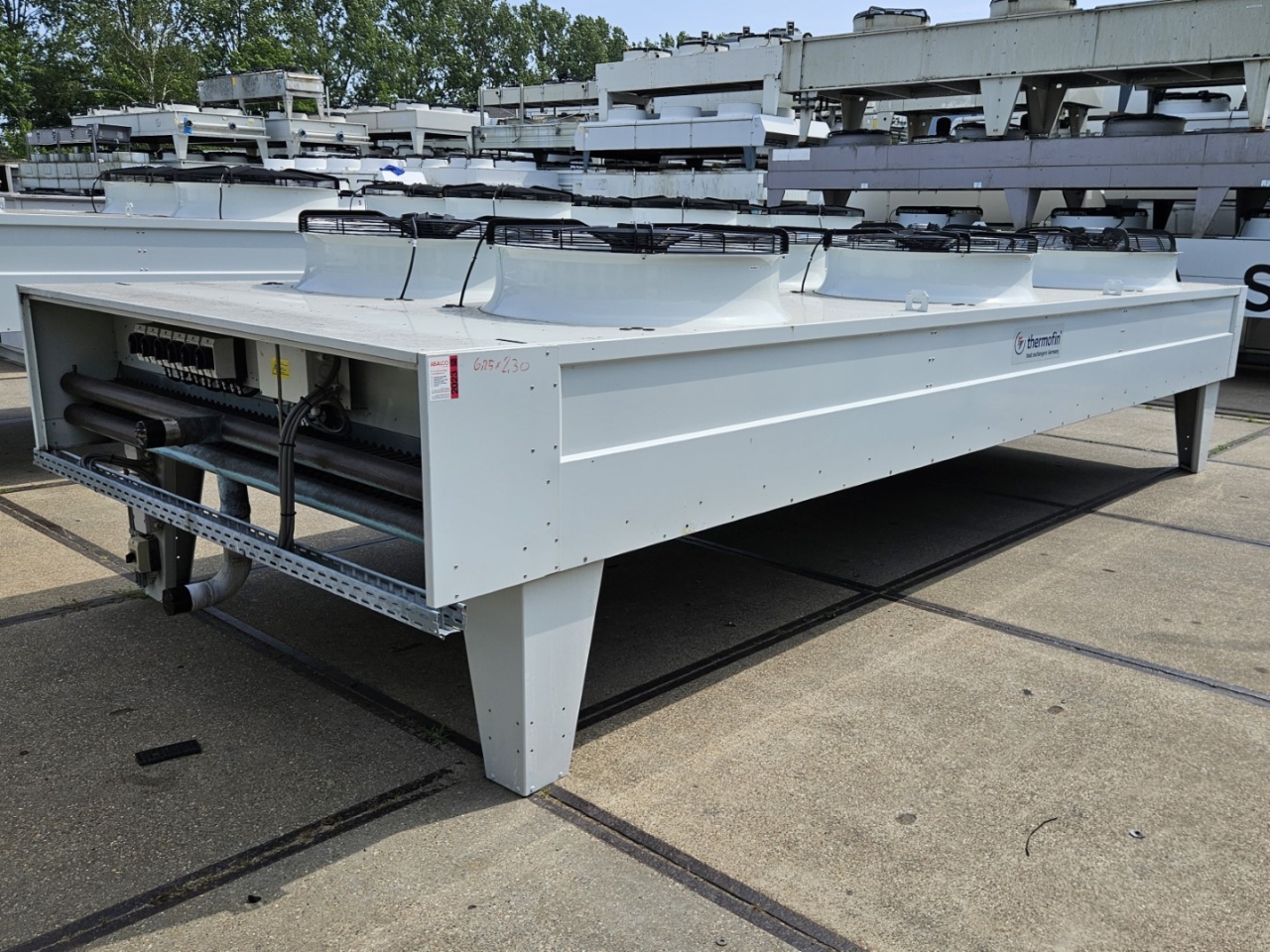

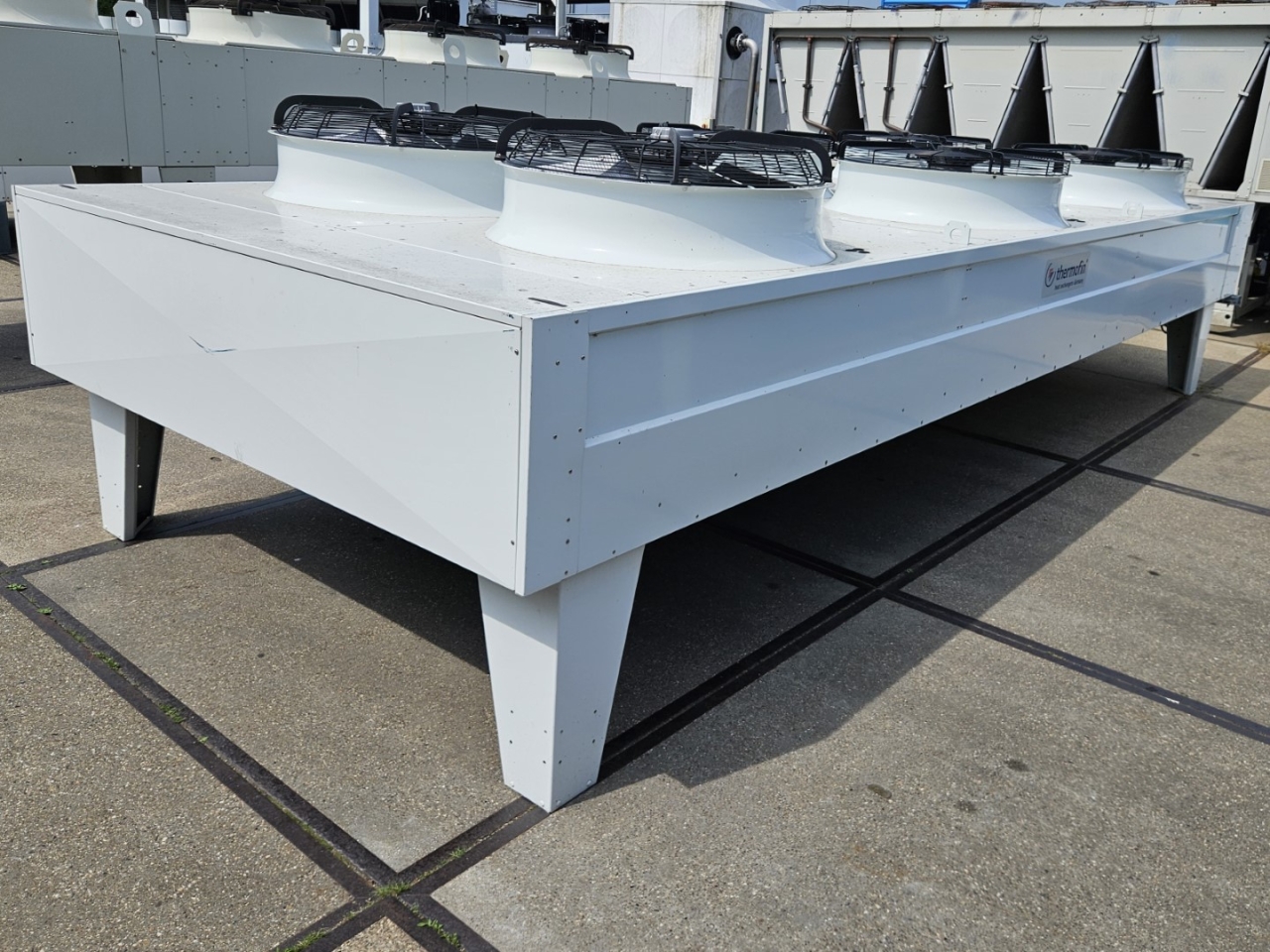

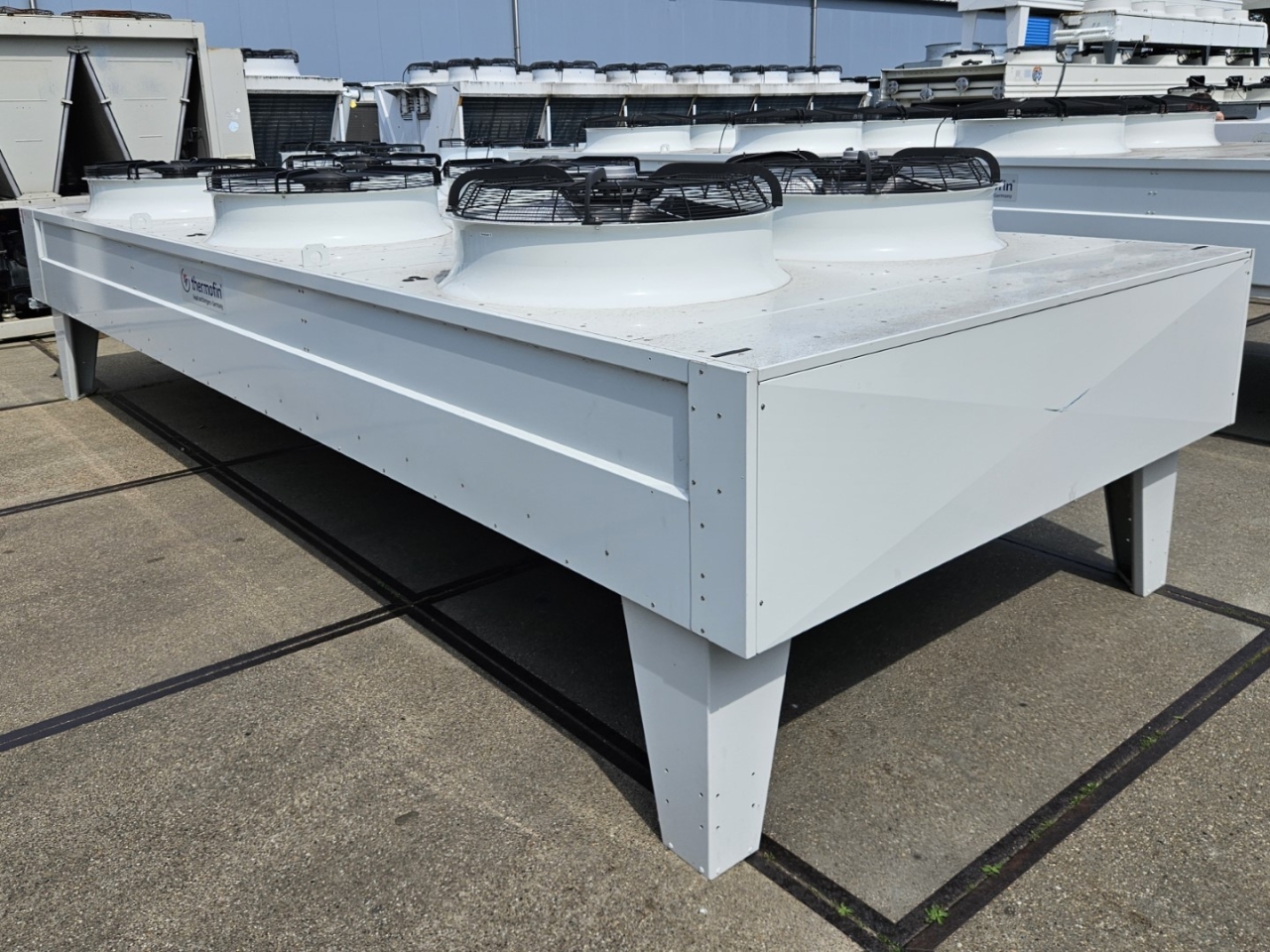

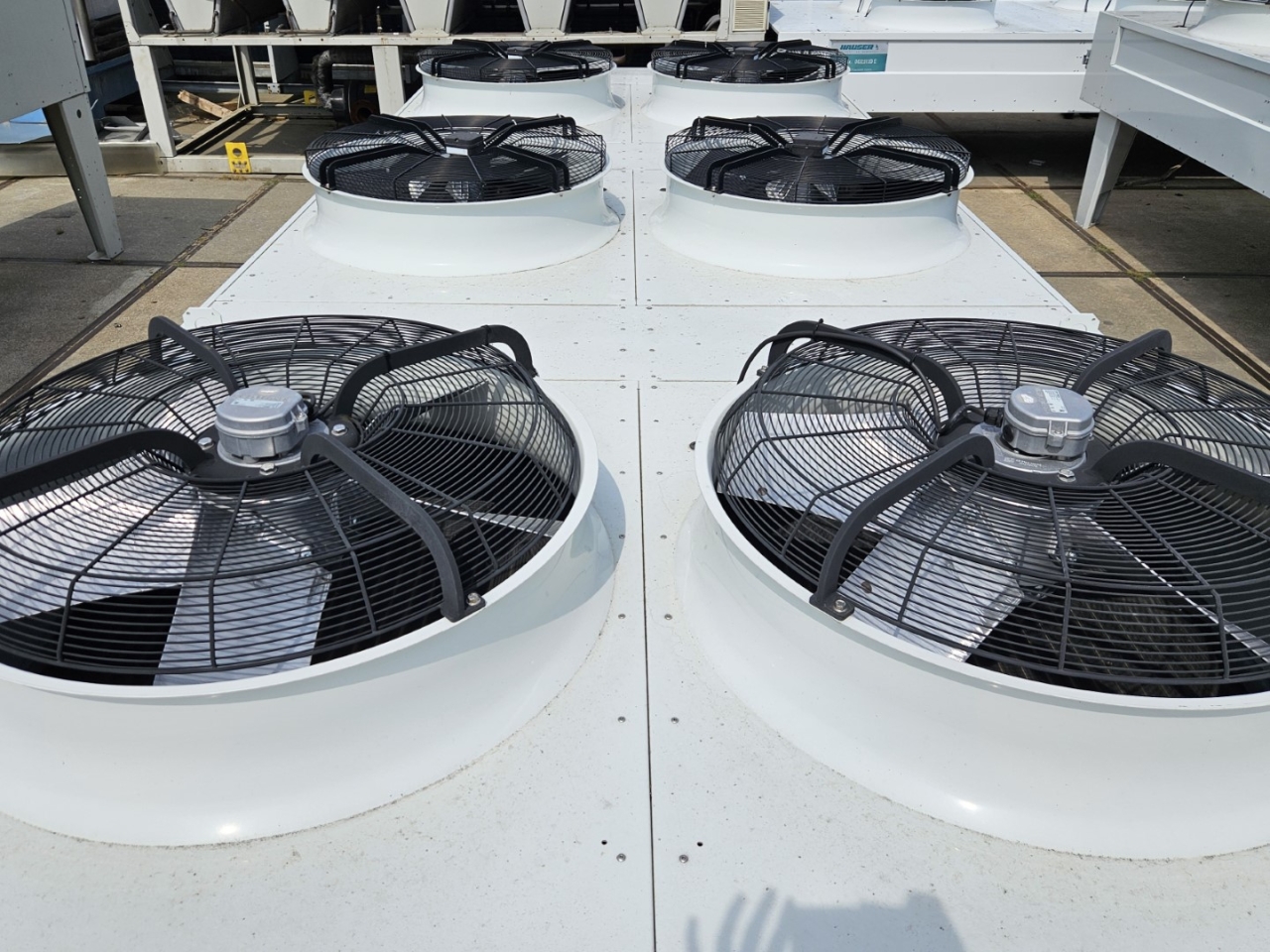

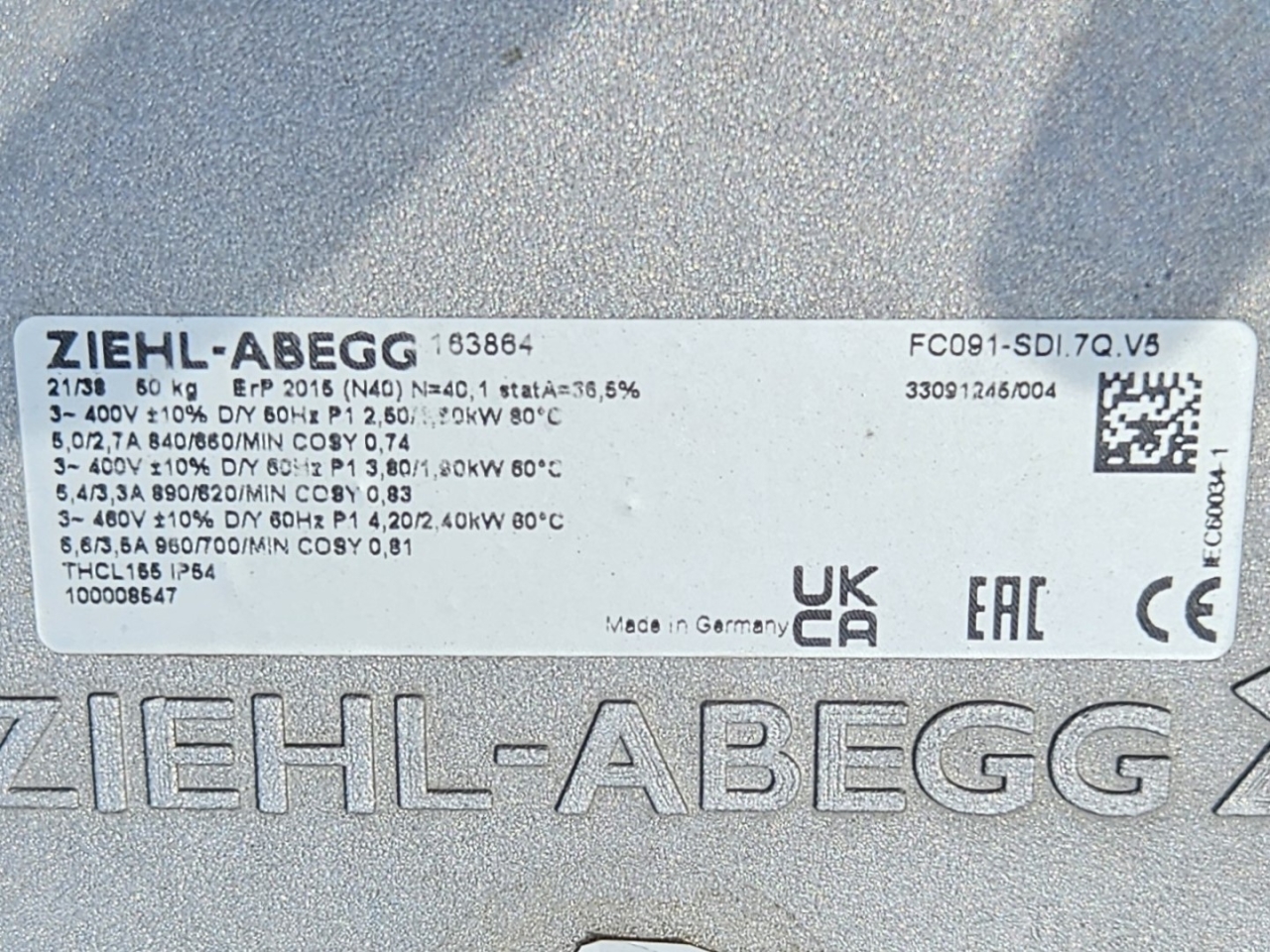

Used Thermofin TCH.3-091-23-B-M-D5-BC-02 air-cooled condenser on Freon built in 2020. Complete with 4 EBM-Papst S6D910-BA01-06 fans - 50 Hz - 2,48/1,57 kW - 885/685 RPM - diameter 910 mm & 2 Ziehl-Abegg FC091-SDI.7Q.V5 fans - 50 Hz - 2,5/1,9 kW - 840/660 RPM - diameter 910 mm and all the fans together produce an total airflow of 144.785 m³/h.

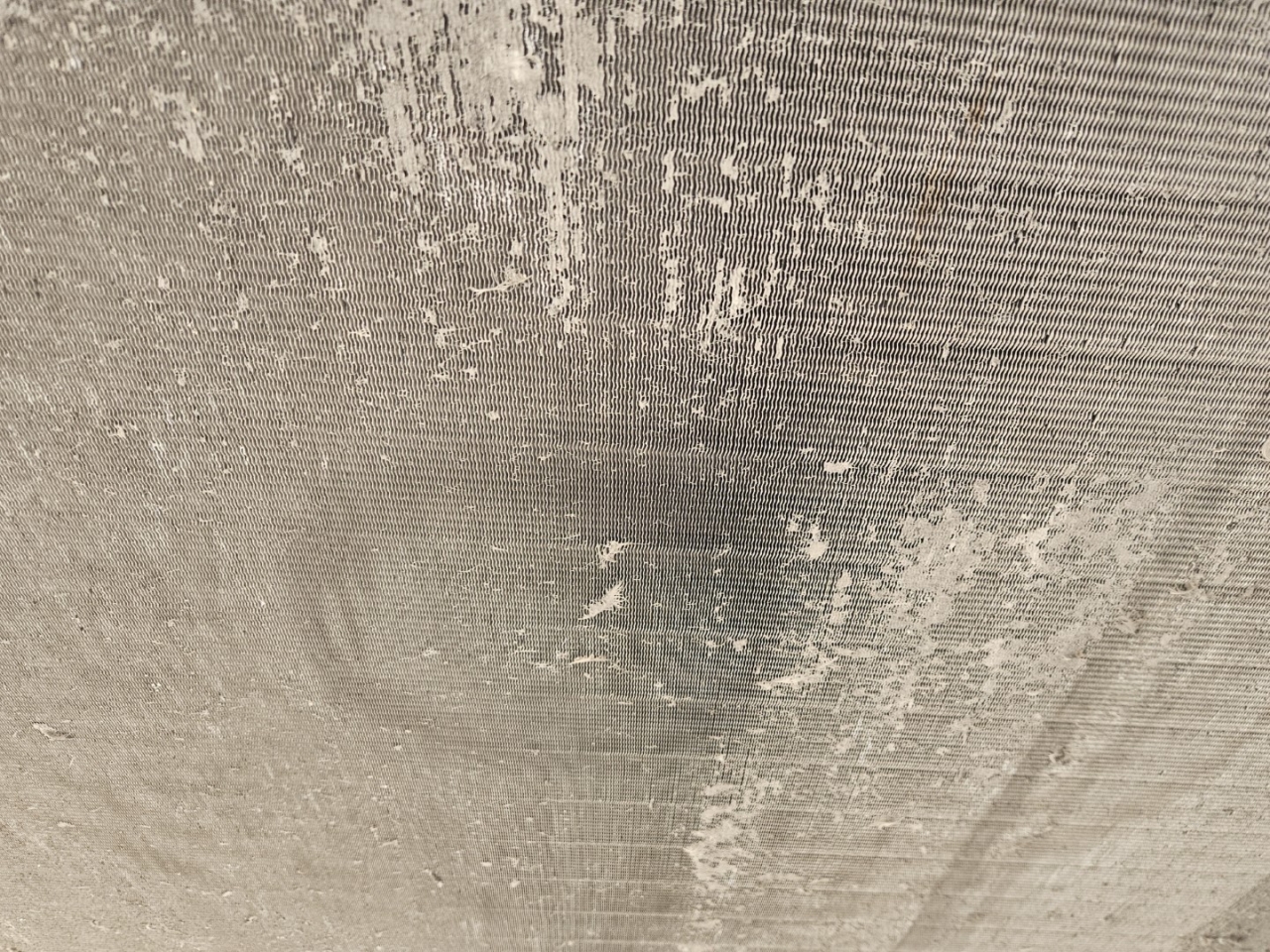

*All components of this used condensor will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning on demand, we can arrange your shipment.
