Stal S83A-HP
Stal S83A-HP
| 18163 | |
| Marca | Stal |
| Tipo | S83A-HP |
| Refrigerante | NH 3 (ammonia) |
| kW at -30ºC/+40ºC | 331,9 |
| kW at -40ºC/+40ºC | 192,7 |
| kW at -45ºC/+40ºC | 143,9 |
| Electromotor Specs | 50 Hz - 200 kW - 2965 RPM |
| Control de capacidad |
|
| Sober Bancada |
|
| Presostatos |
|
| Manometros de Presion |
|
| Separador de aceite |
|
| Panel de control |
|
| m3 / h | 1780 |
| Tamaños | 3500x1350x1600 (LxWxH) |
| Stock | 1 |
Stal S83A-HP

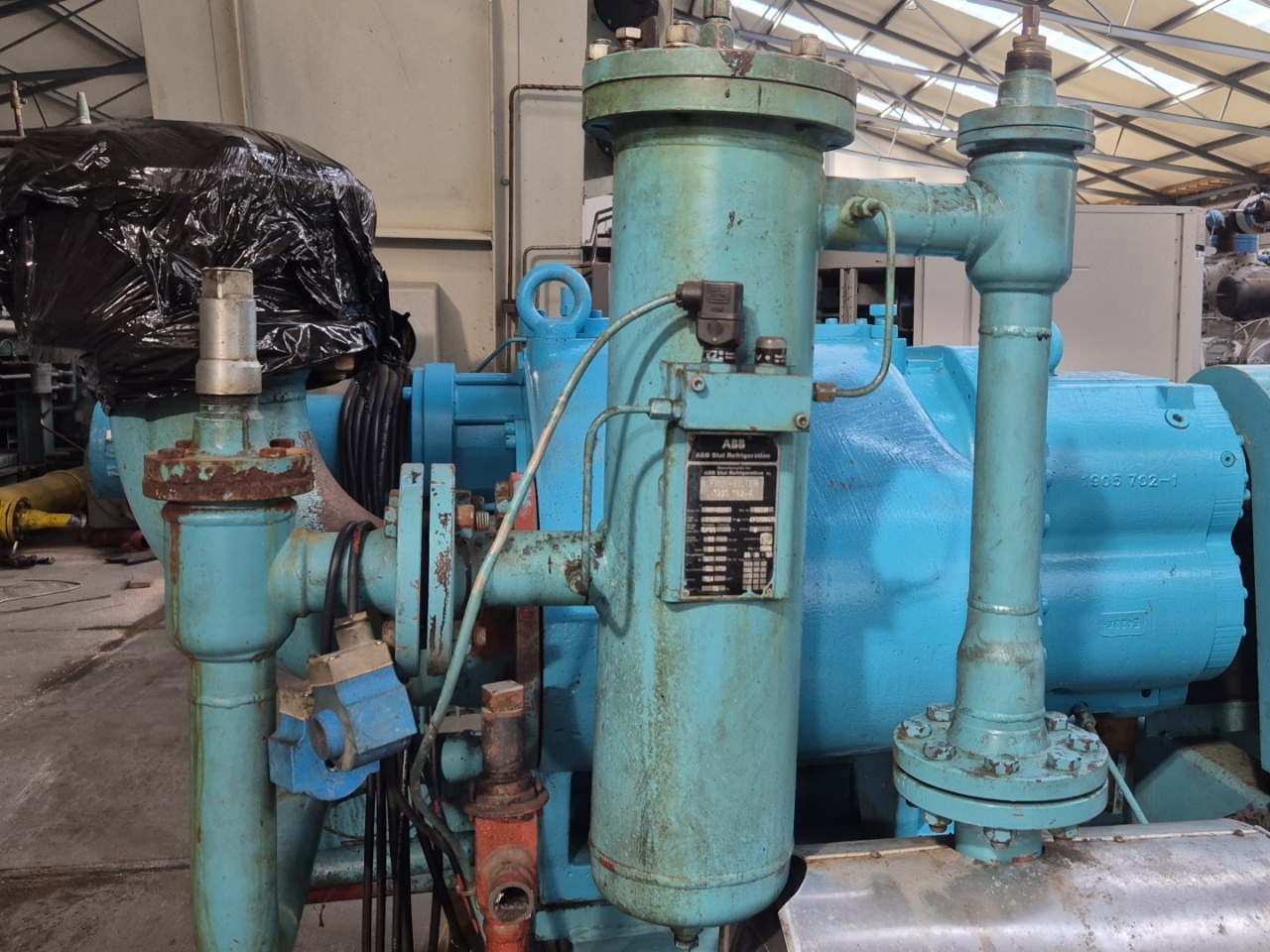

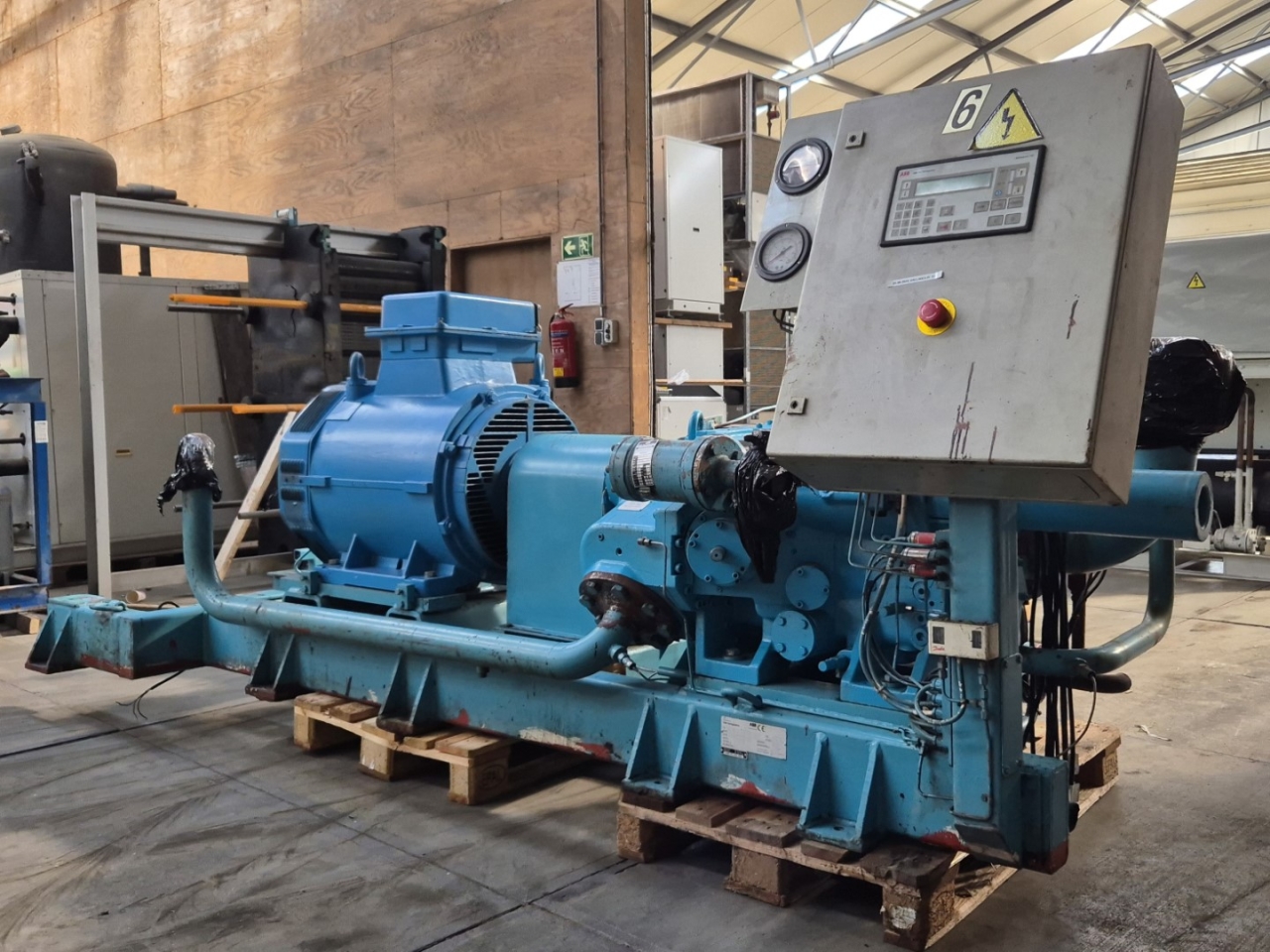

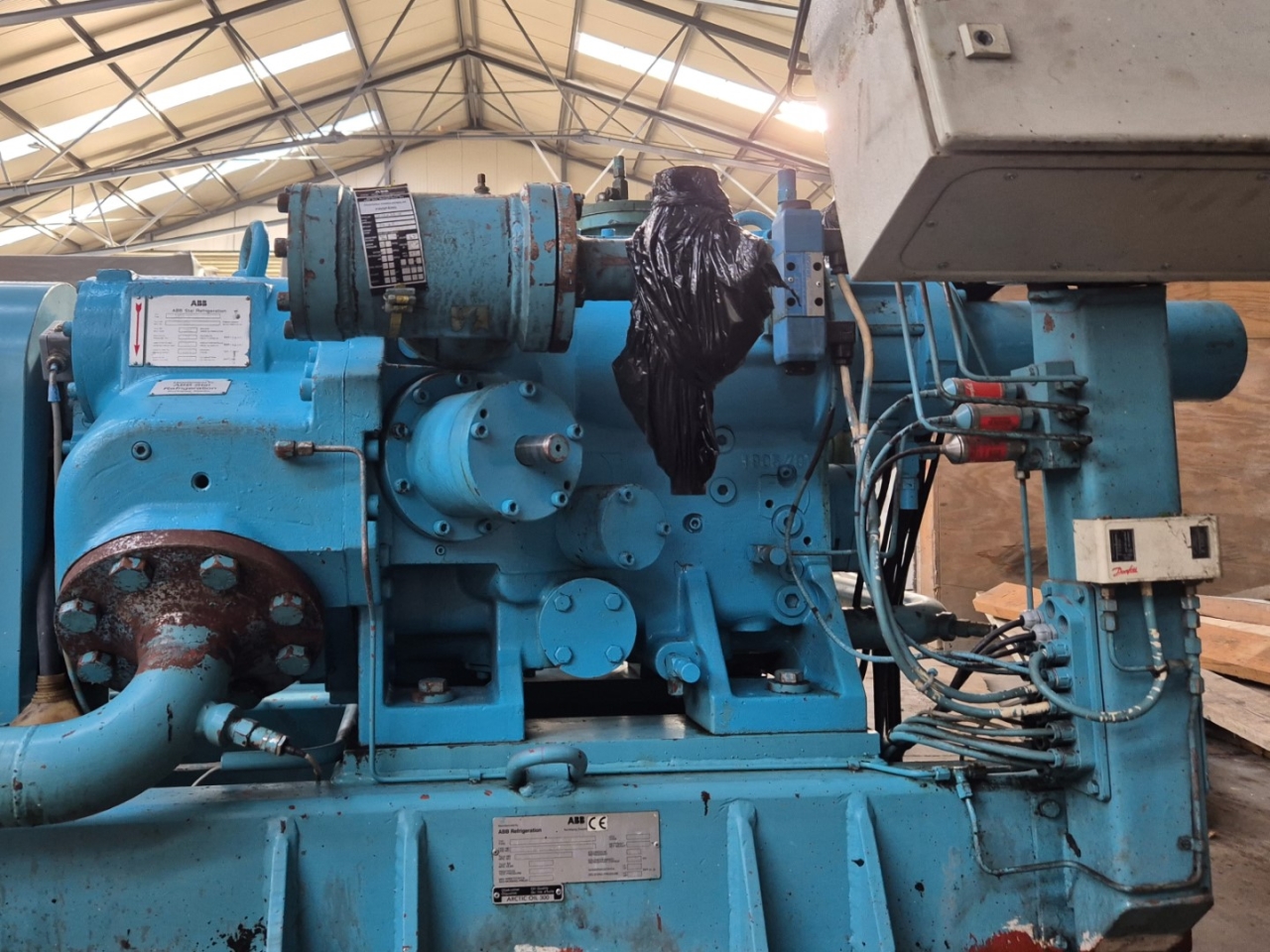

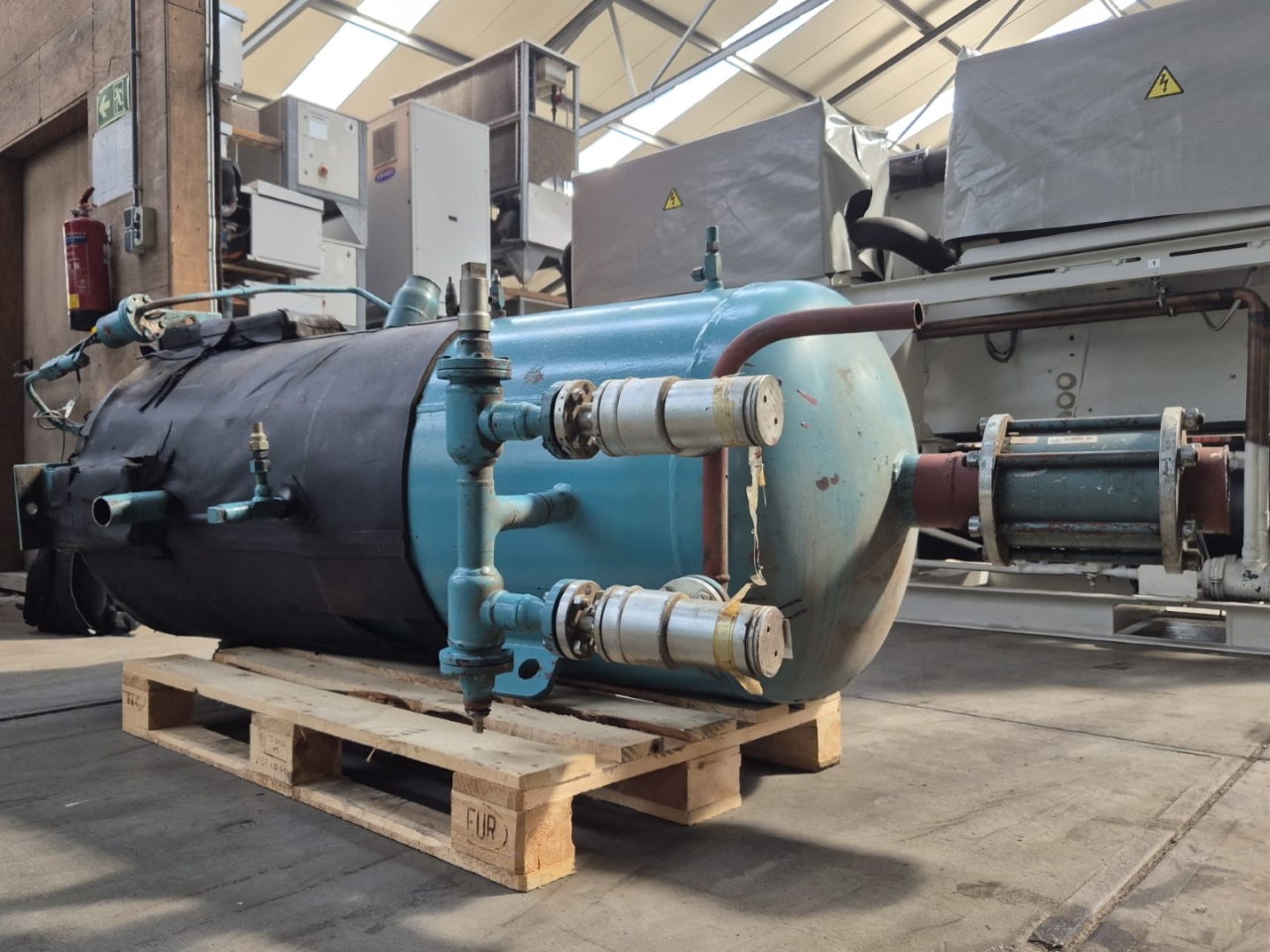

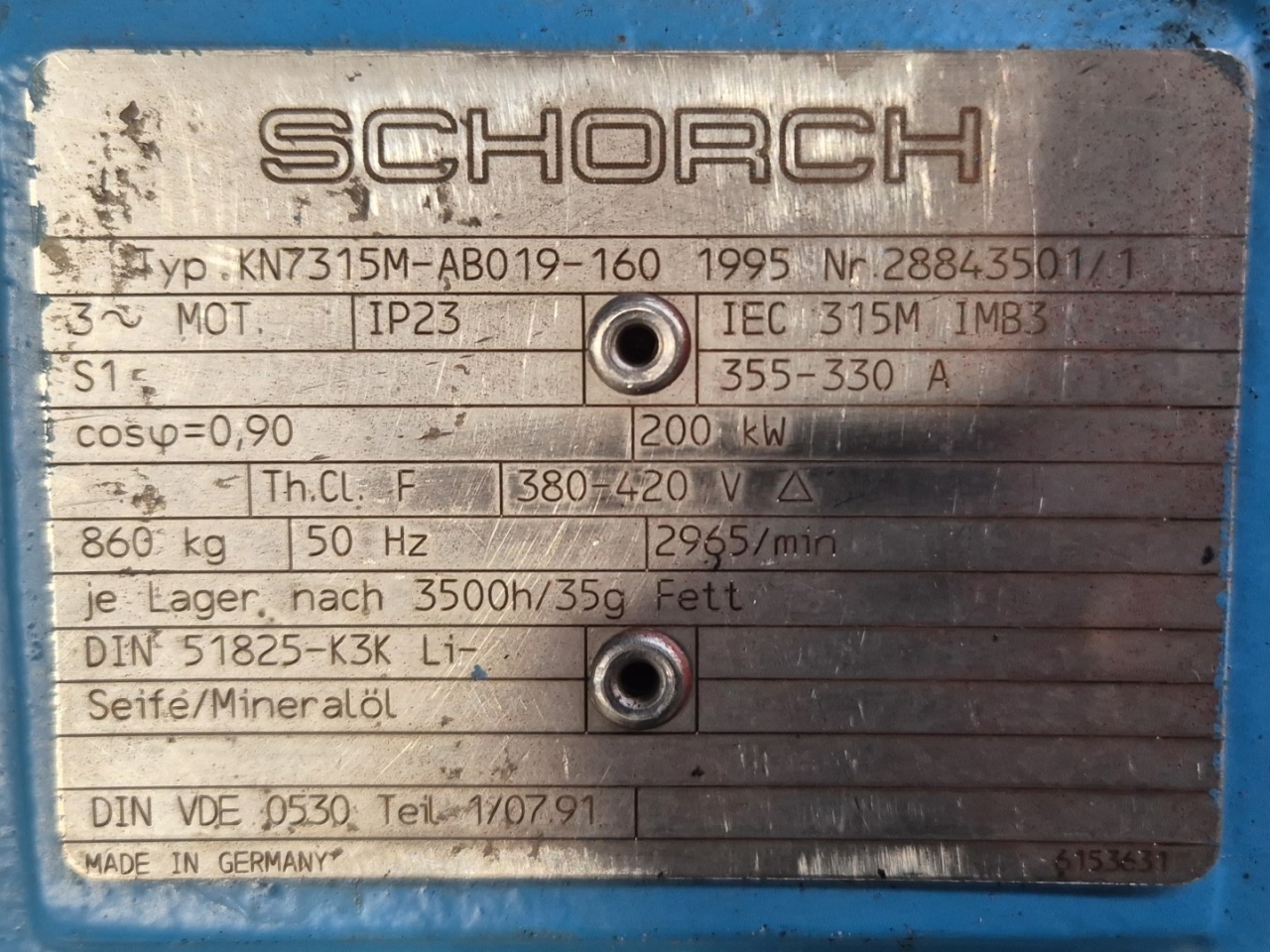

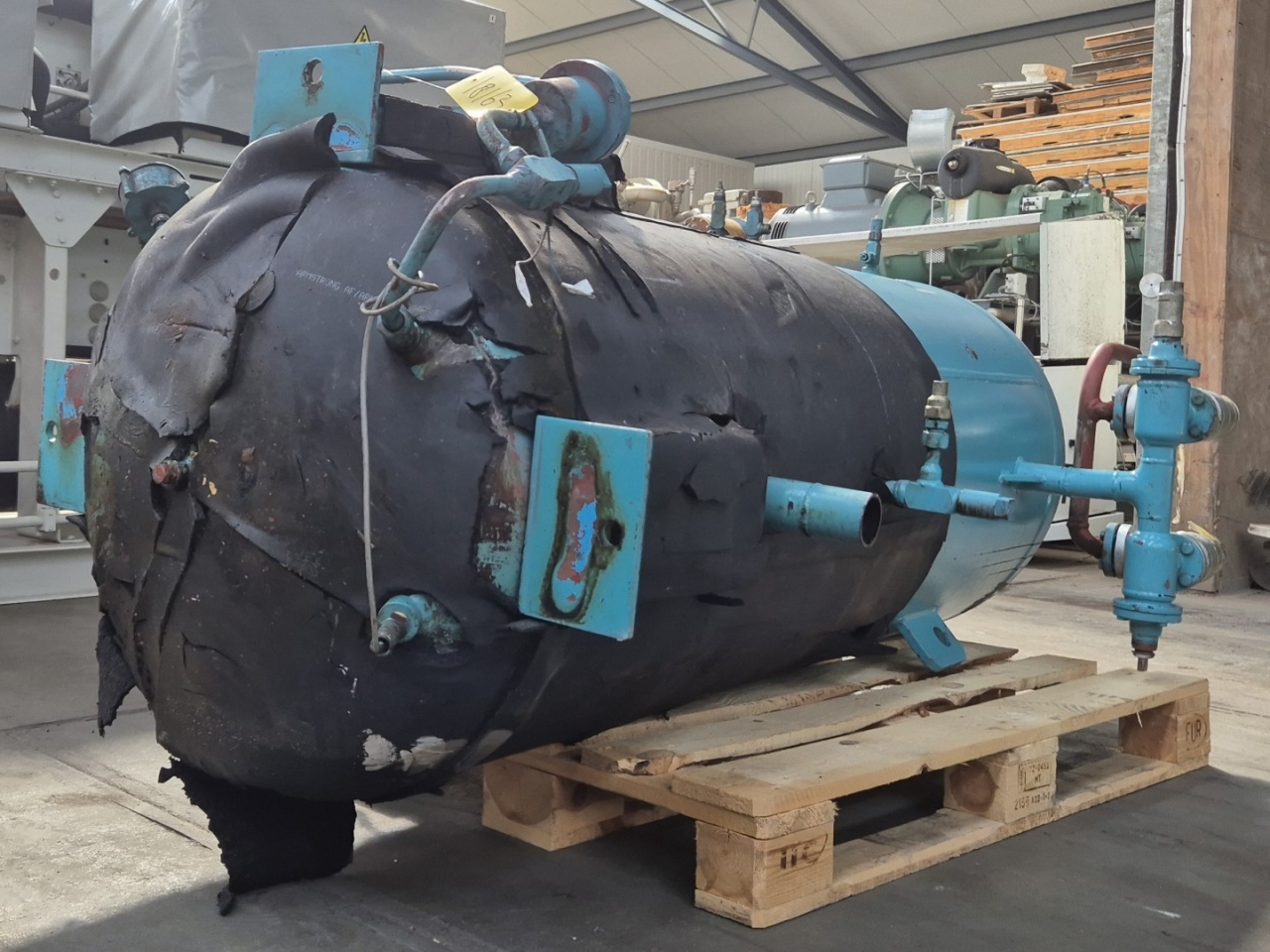

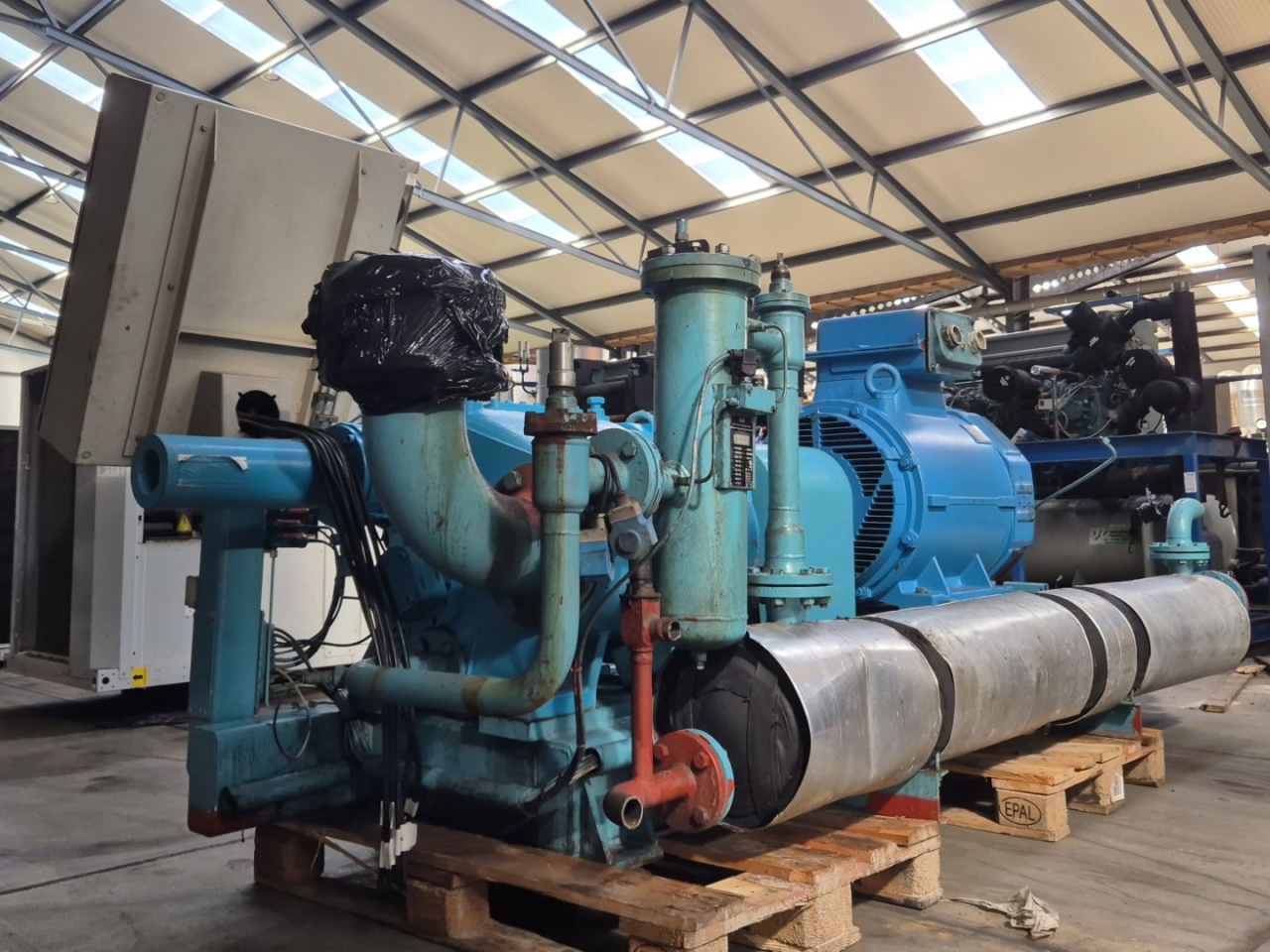

Used ABB Stal SVA 83E compressor skid on NH3. Complete with a Stal S83A screw compressor and a Schorch KN7315M-AB019-160 electric motor - 50 Hz - 200 kW - 2965 RPM, oil separator, oil cooler, oil filter, pressure and safety switches/gauges and a control panel with an ABB Stalectronic 700 controller. The compressor has a displacement of 1740 m³/h.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
