Bitzer HSN 7471-75 (x4)
Bitzer HSN 7471-75 (x4)
| 19021 | |
| Marca | Bitzer |
| Tipo | HSN 7471-75 (x4) |
| Refrigerante | Freon |
| kW at -20ºC/+40ºC | 481,2 |
| kW at -30ºC/+40ºC | 331,6 |
| kW at -40ºC/+40ºC | 218,0 |
| kW at -45ºC/+40ºC | 172,0 |
| Piston Descargador |
|
| Control de capacidad |
|
| Sober Bancada |
|
| Presostatos |
|
| Separador de aceite |
|
| La línea de líquido filtro secador |
|
| Mirilla |
|
| Valvula Solenoide |
|

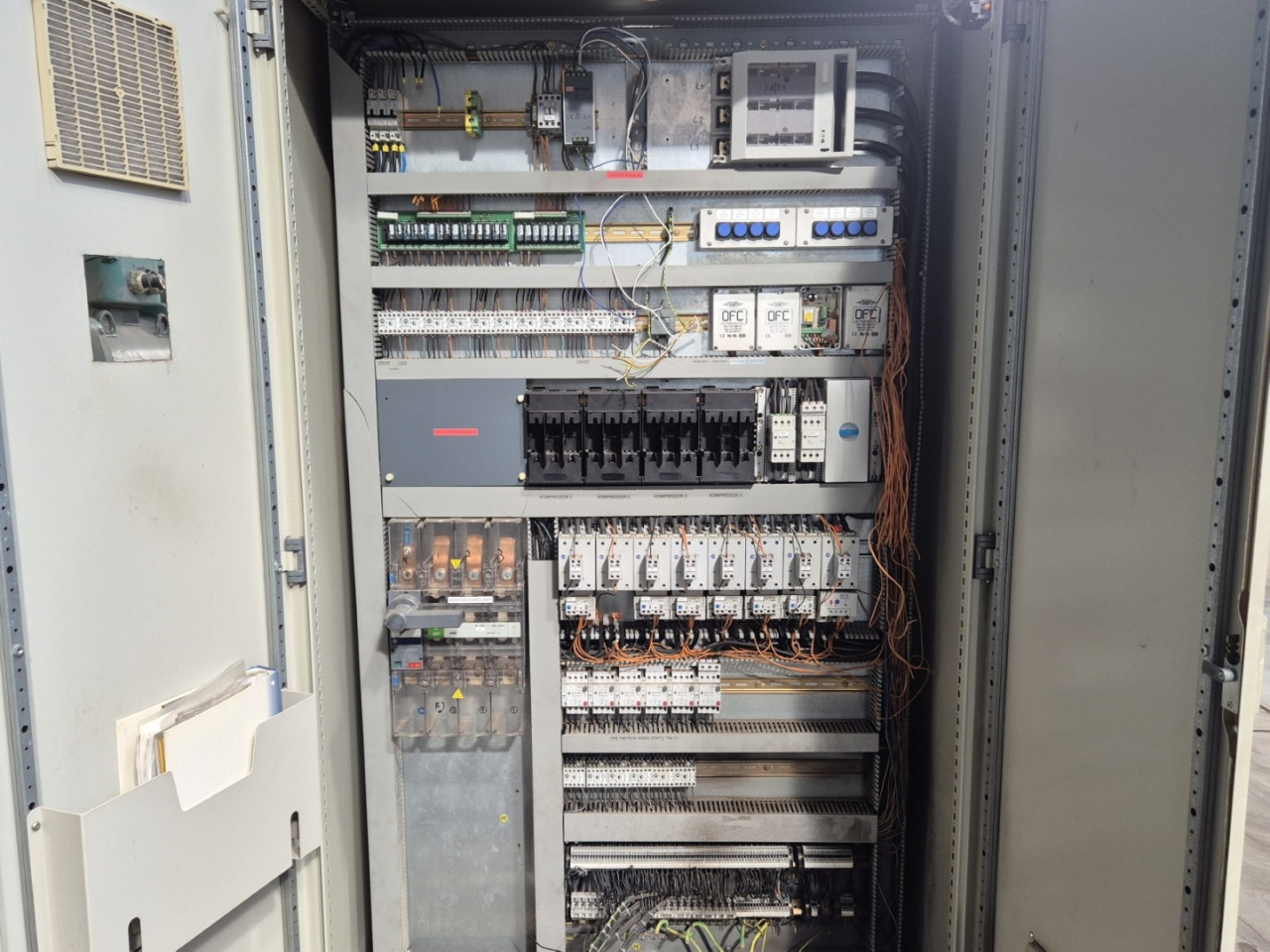

| Panel de control |
|
| m3 / h | 50 Hz - 1000 m³/h & 60 Hz - 1200 m³/h |
| Package / Rack |
|
| Tamaños | 3750x1300x1800 mm (LxWxH) |
| Stock | 1 |
Bitzer HSN 7471-75 (x4)

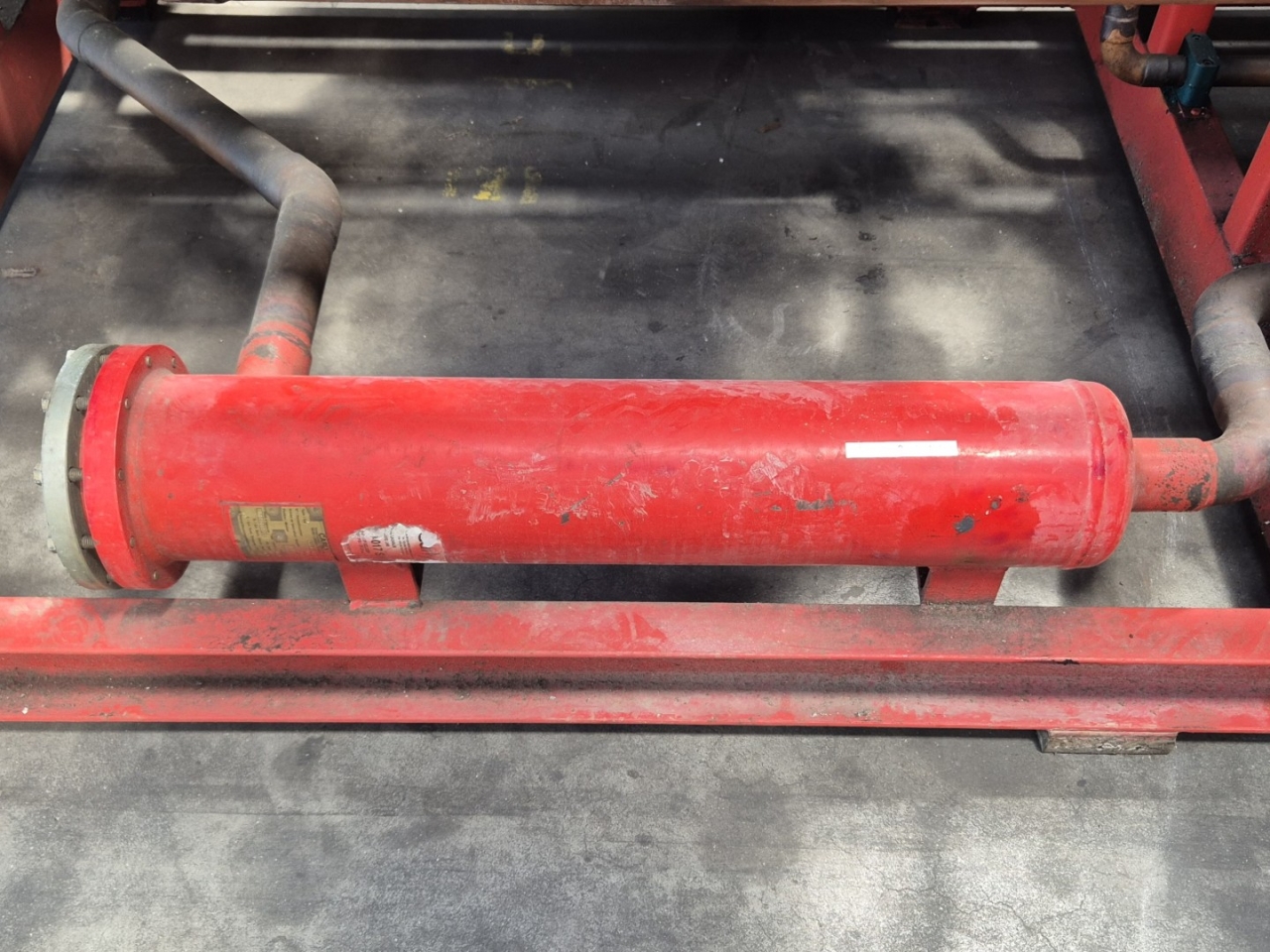

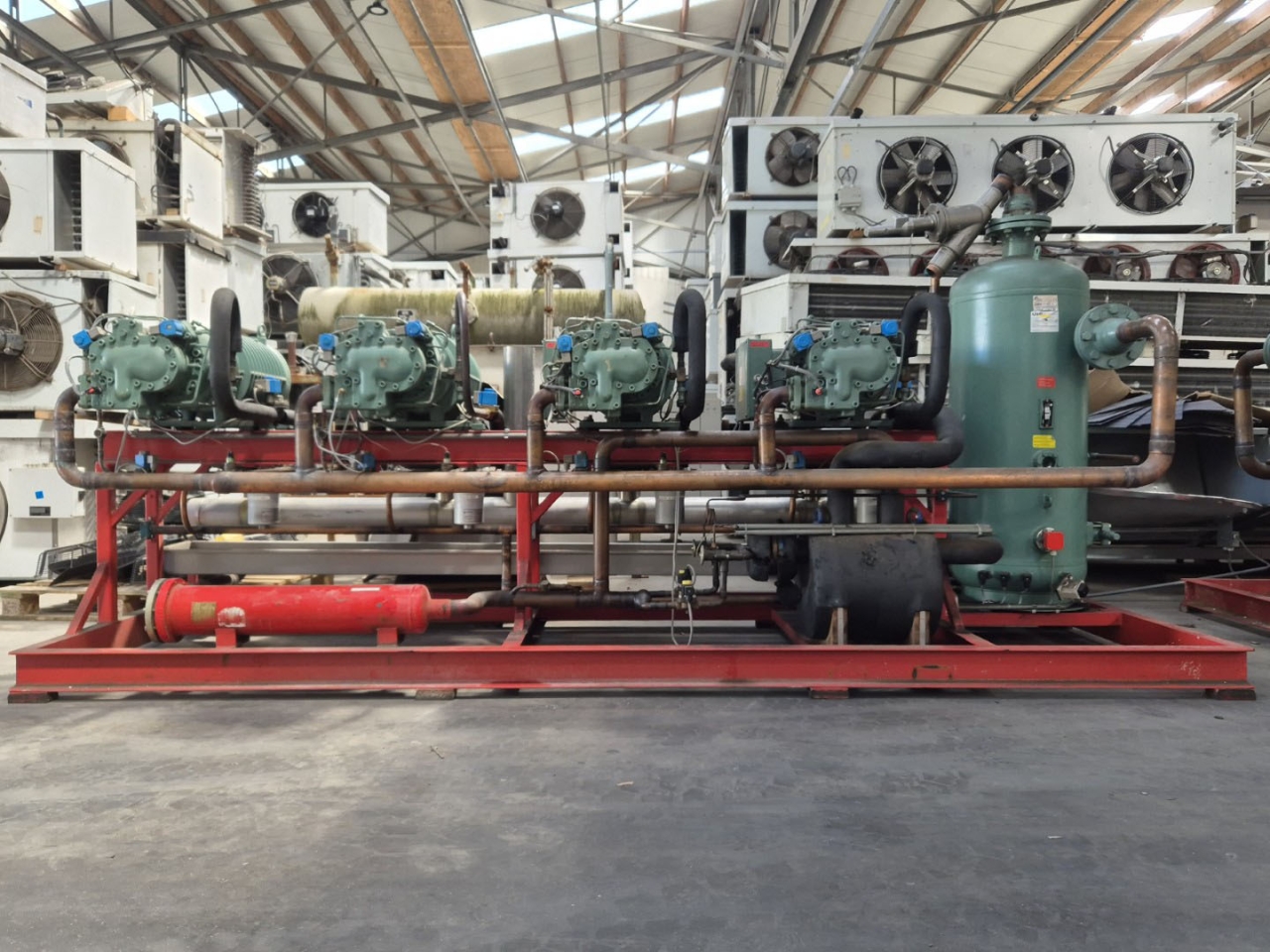

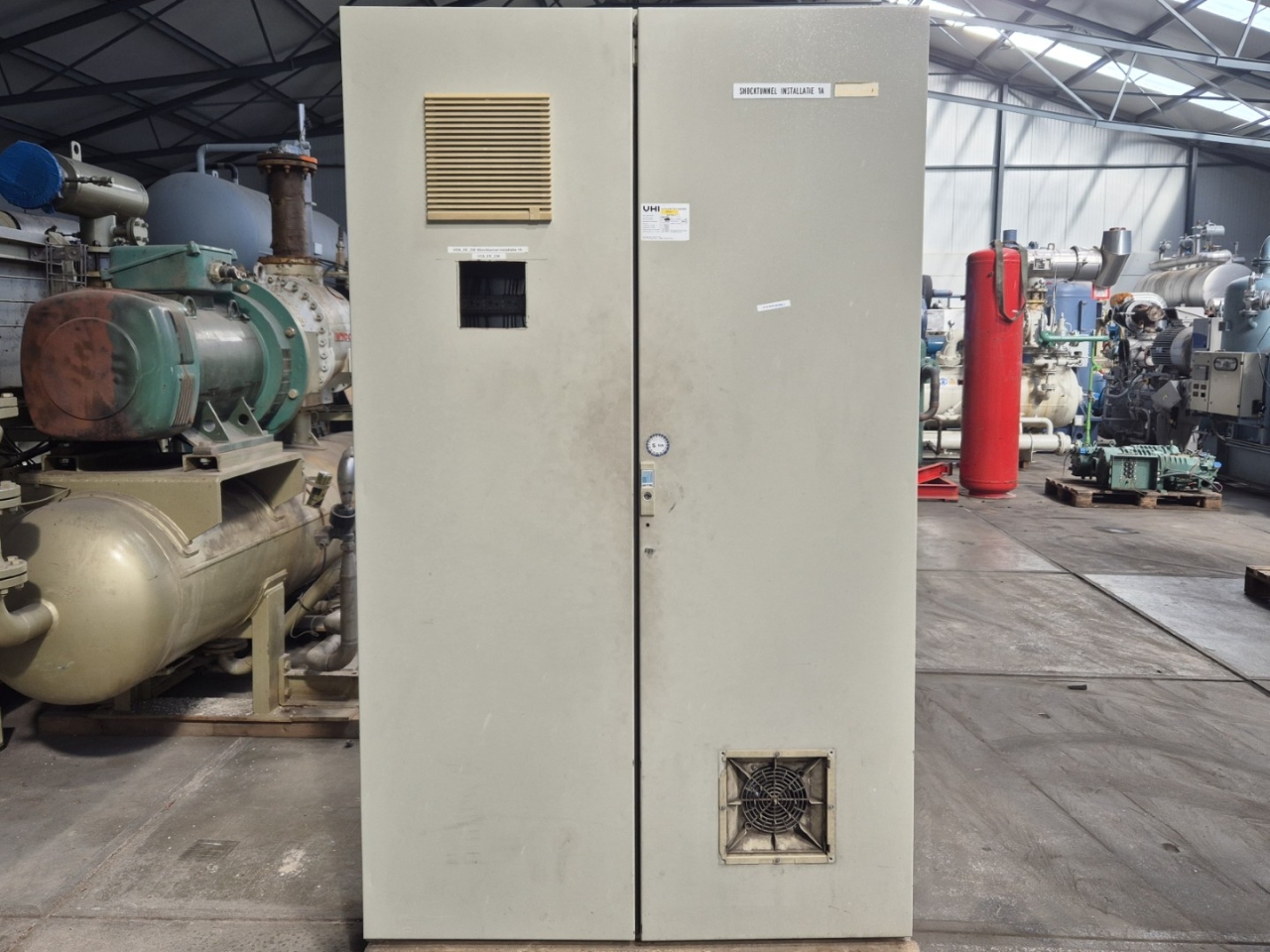

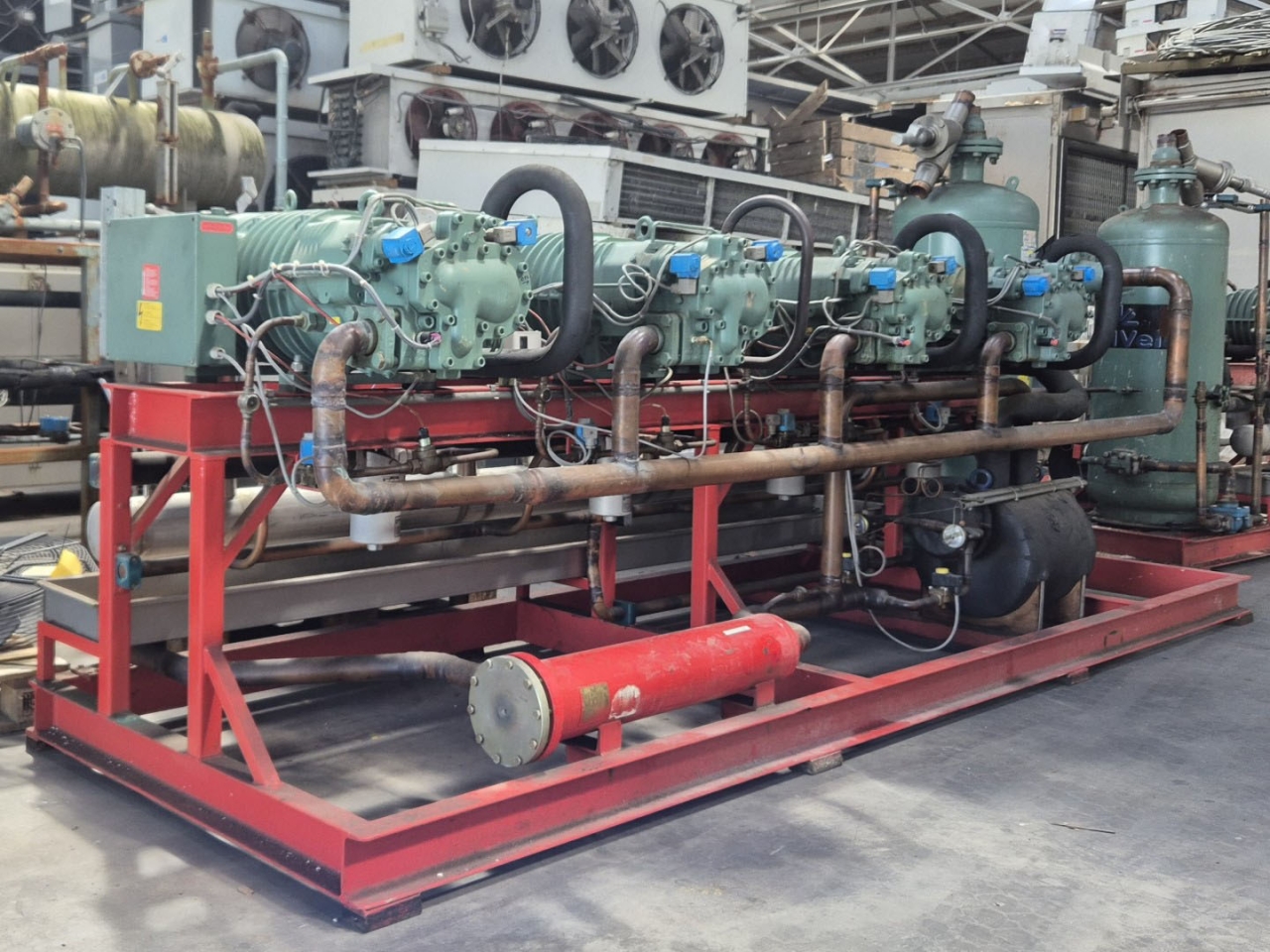

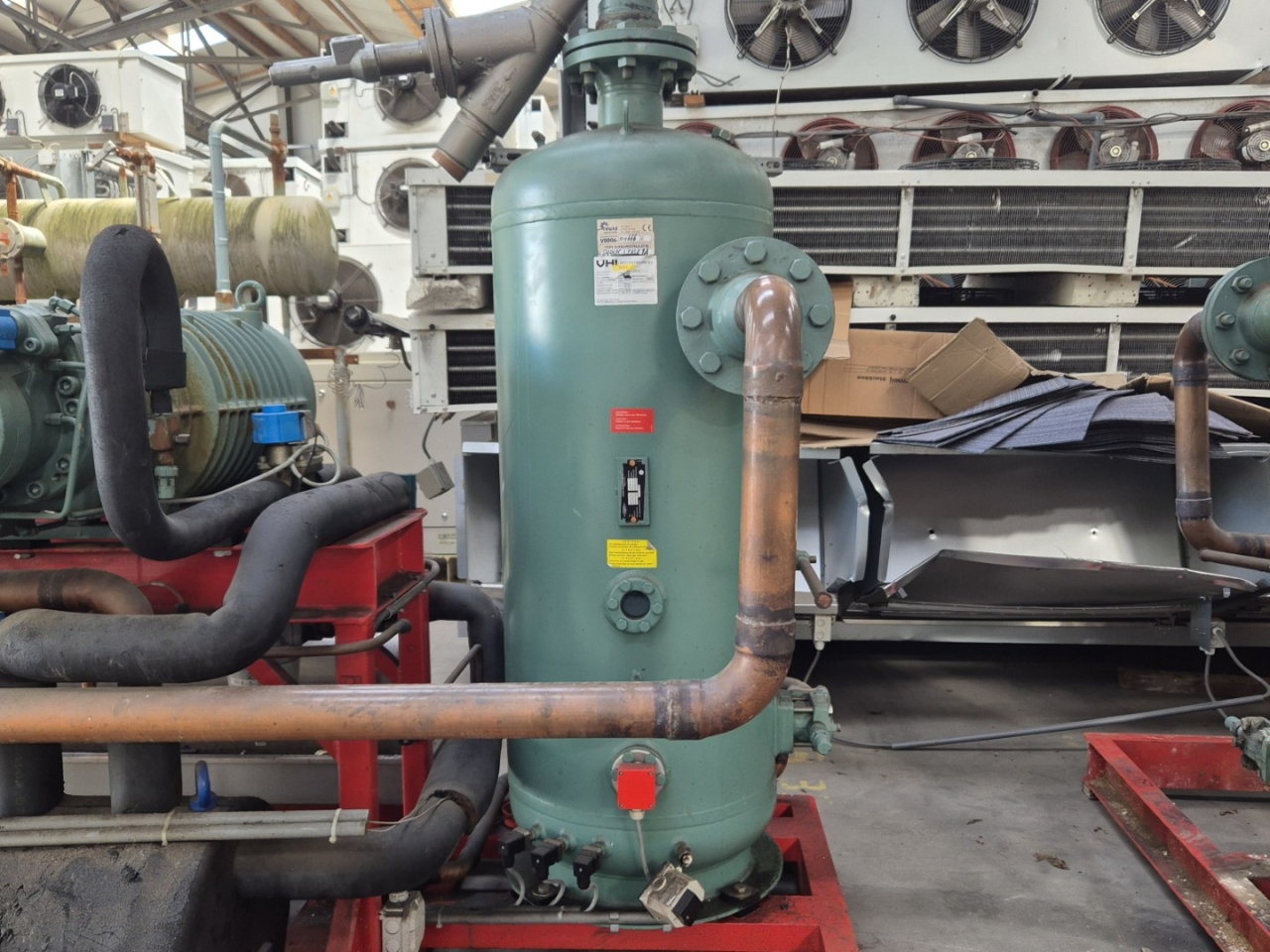

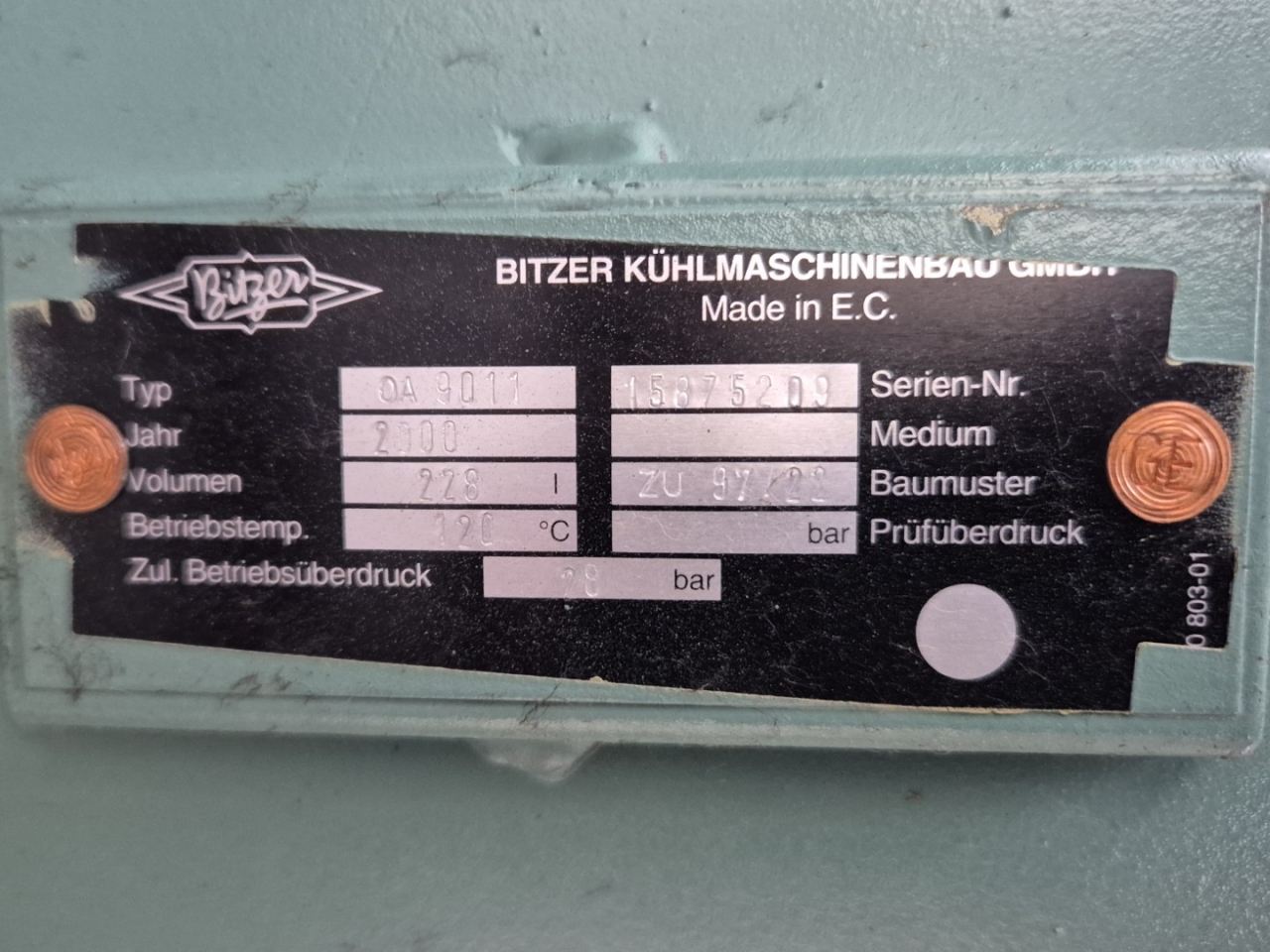

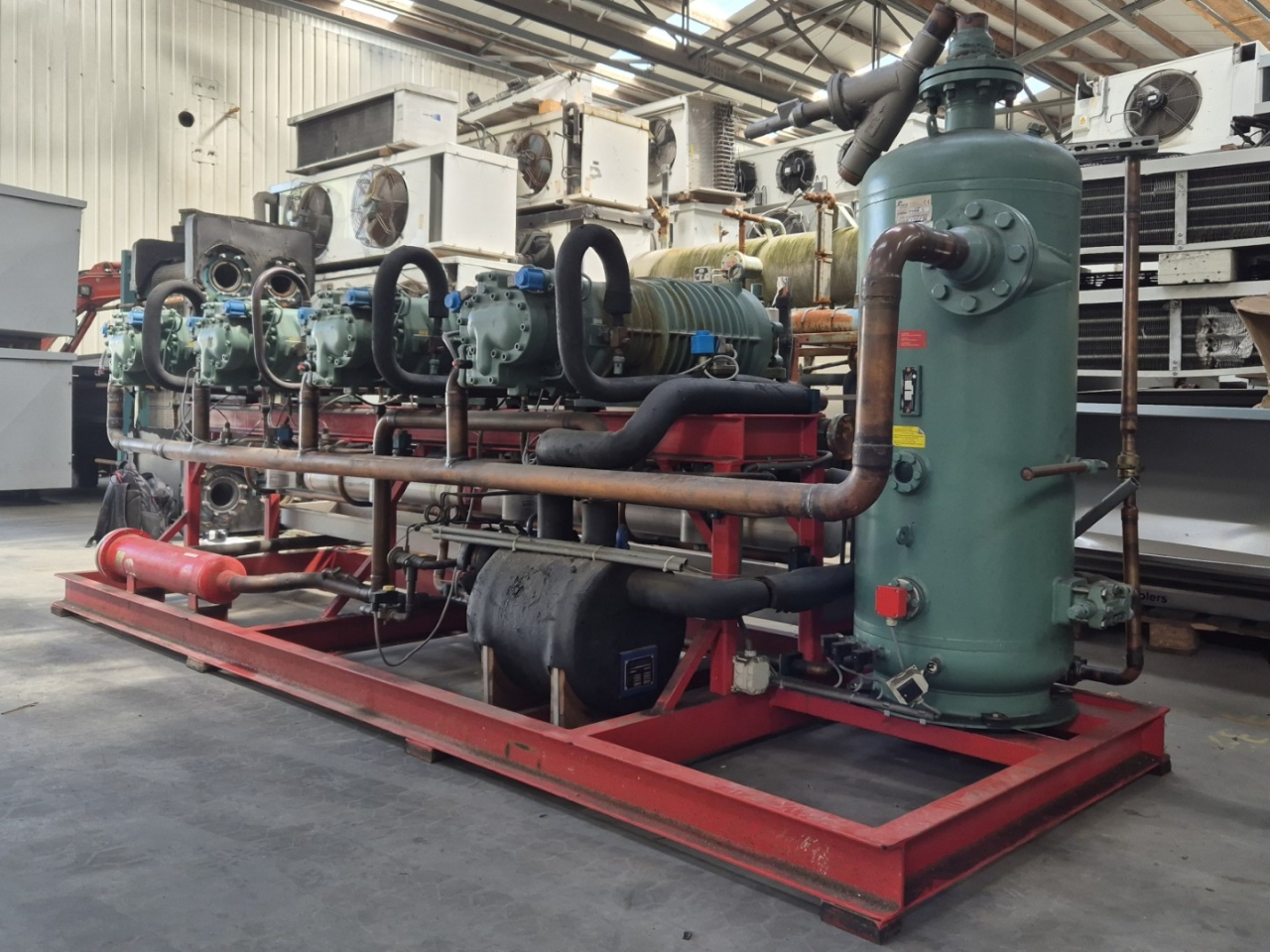

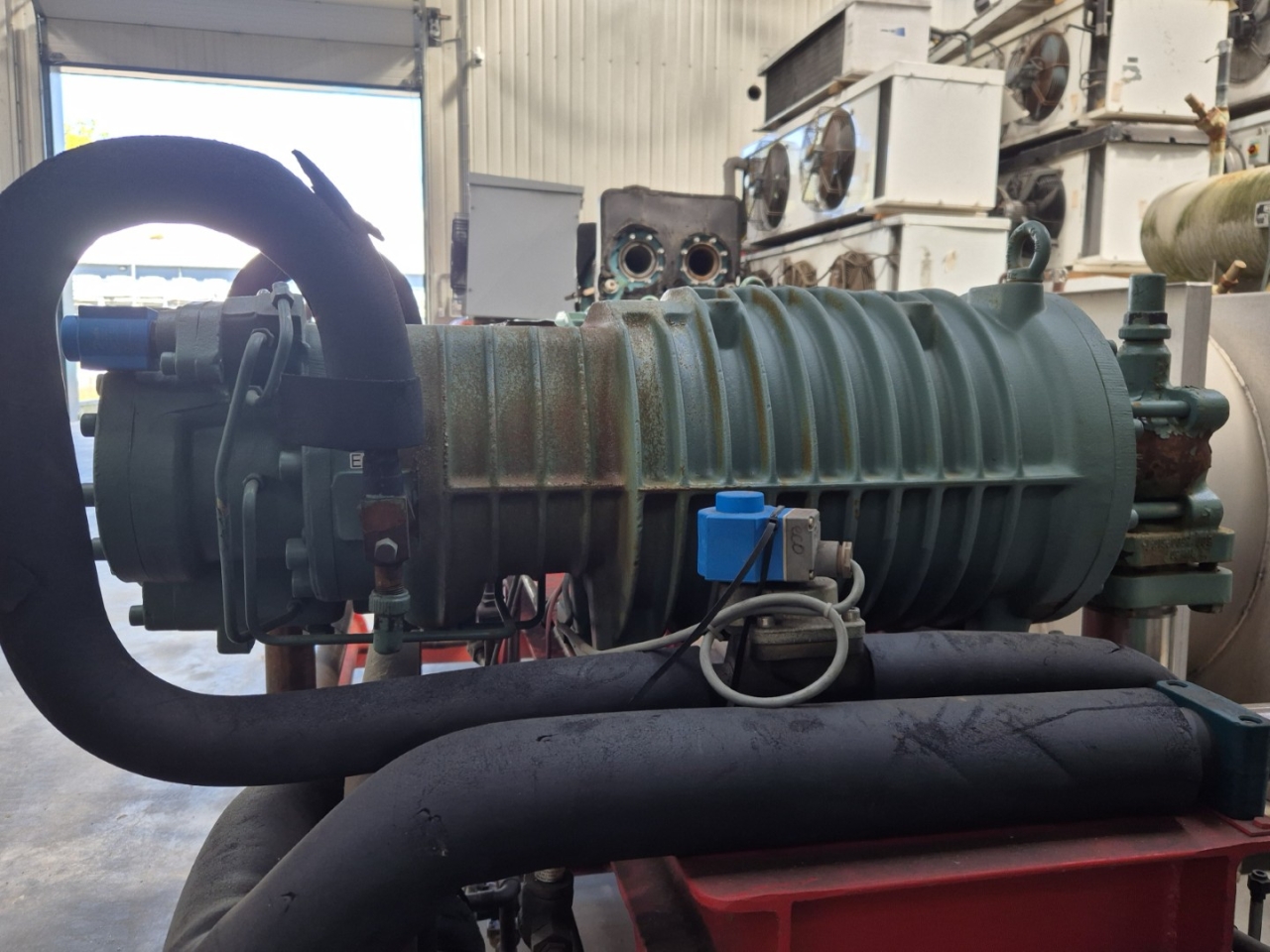

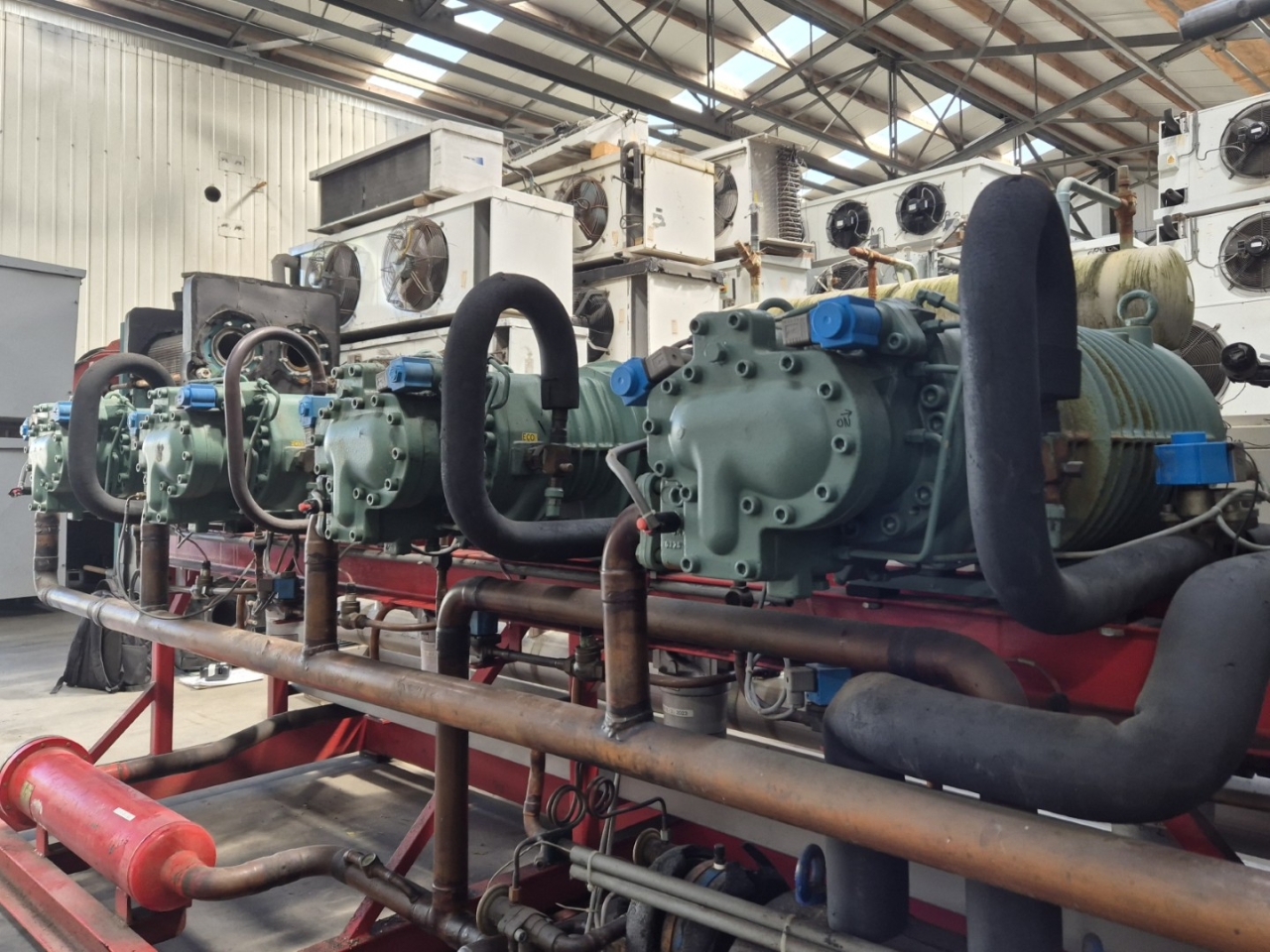

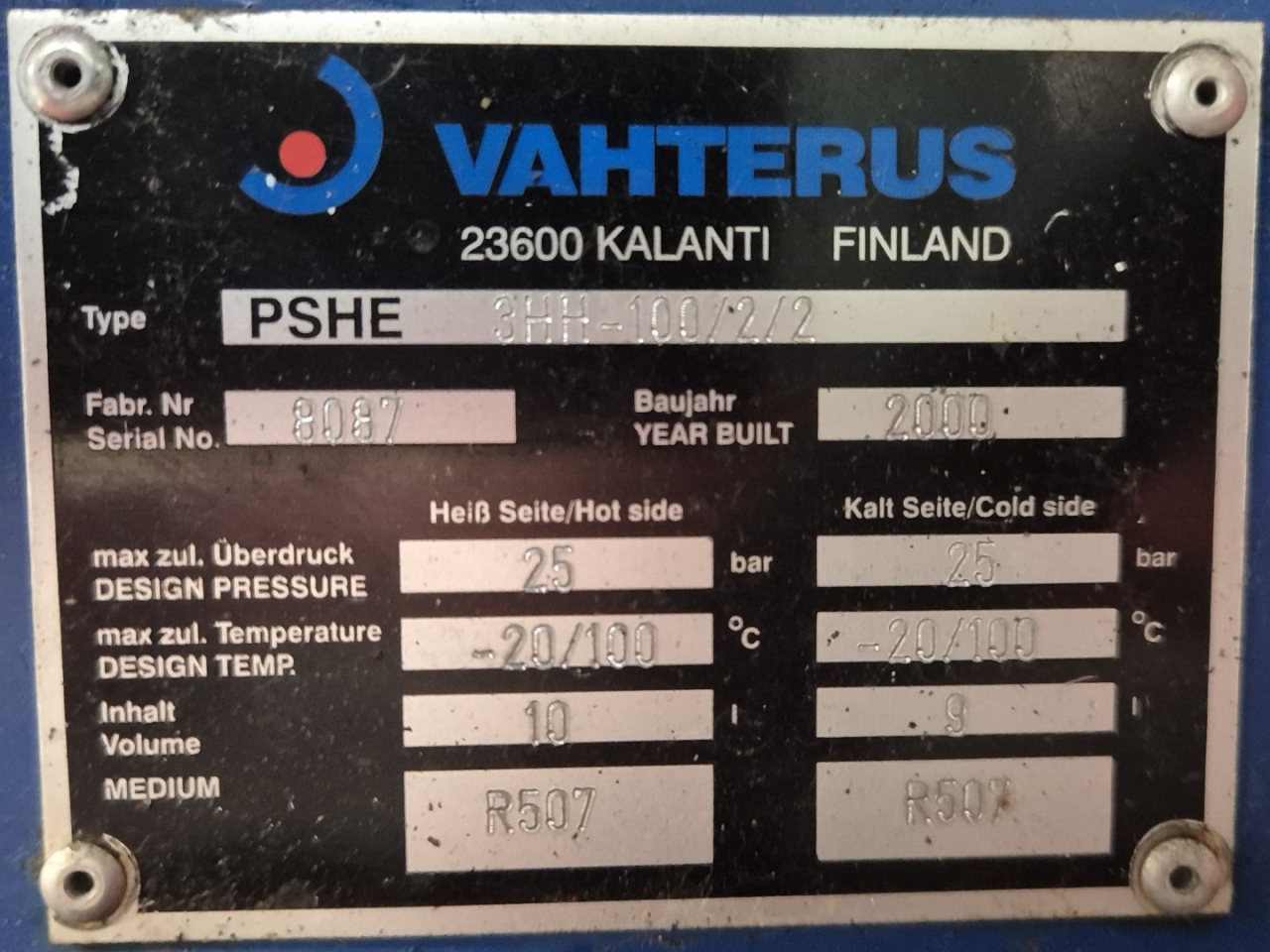

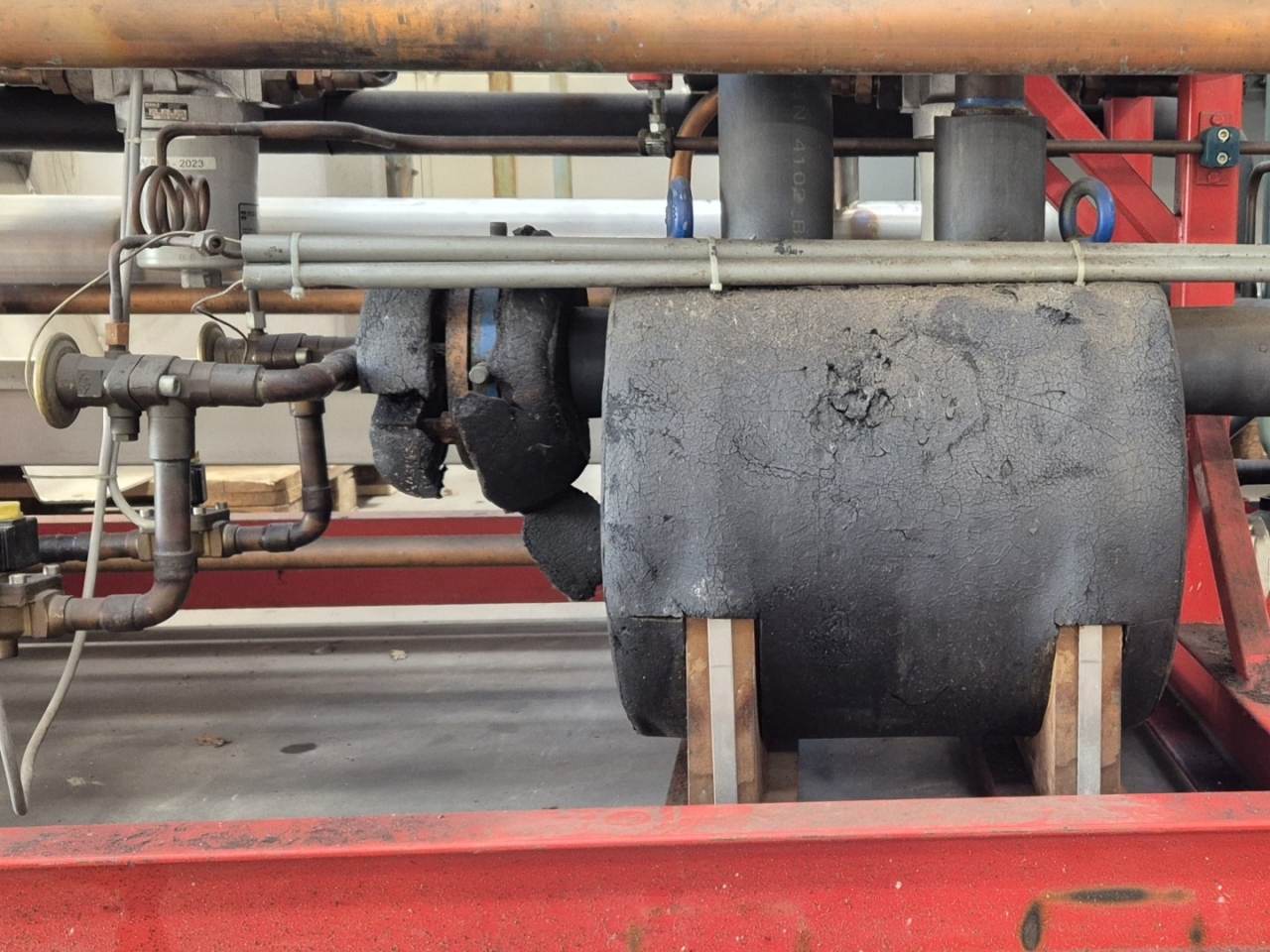

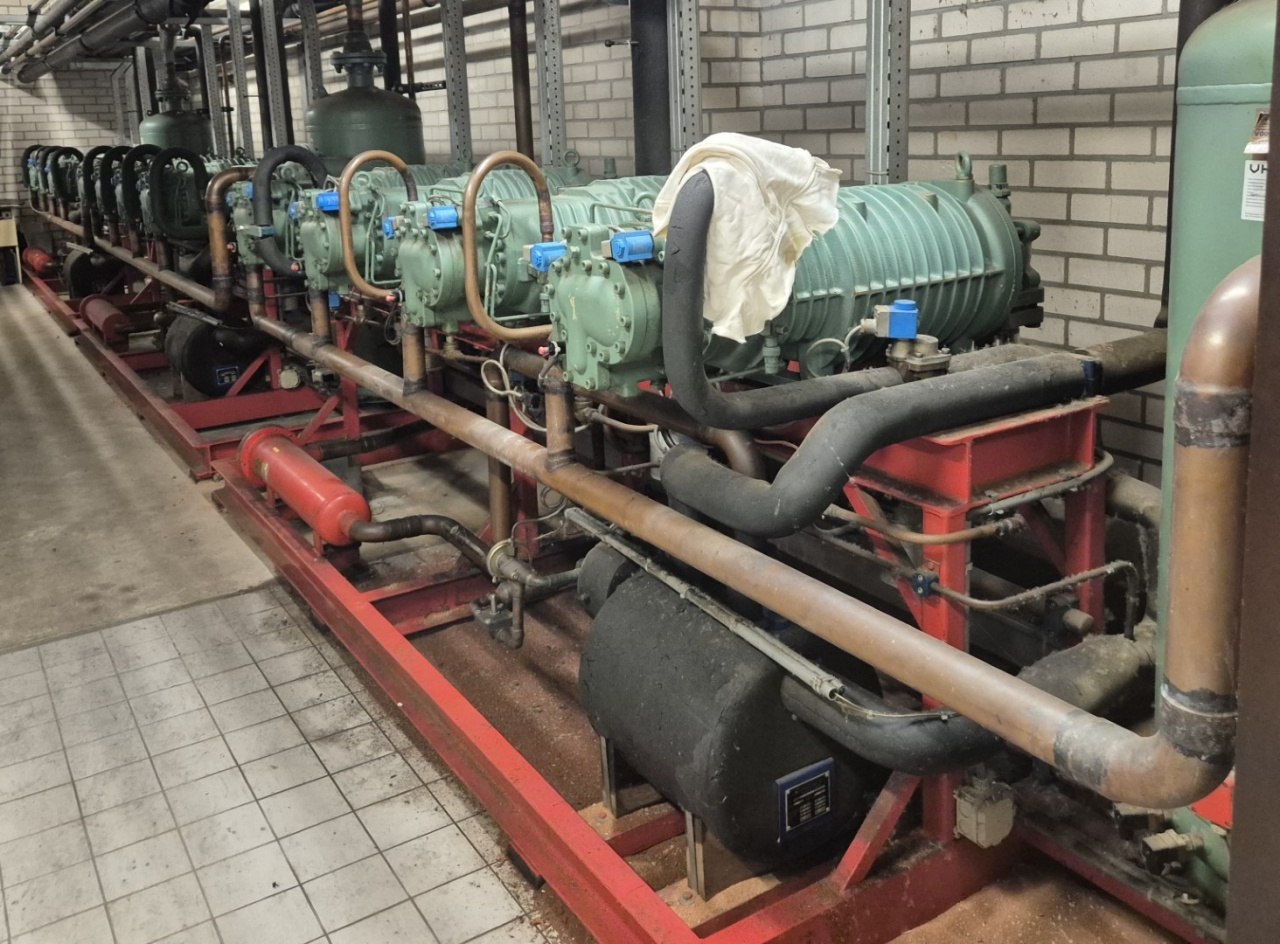

Used Bitzer HSN 7471-75 (x4) semi-hermetic screw compressor rack on Freon. Complete with a Bitzer OA 9011 oil separator with a volume of 228 liter, Vahterus PSHE 3HH-100/2/2 as economizer, liquid line filter drier and a control cabinet. The compressors have a total displacement of 1000 m³/h at 50 Hz & 1200 m³/h at 60 Hz.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
