Bock HGX5/830-4 (x1) & HGX6/1240-4 (x1)
Bock HGX5/830-4 (x1) & HGX6/1240-4 (x1)
| 13901 | |
| Marque | Bock |
| Le type | HGX5/830-4 (x1) & HGX6/1240-4 (x1) |
| Réfrigérant | Freon |
| kW at 0ºC/+40ºC | 144,3 |
| kW at -5ºC/+40ºC | 116,6 |
| kW at -10ºC/+40ºC | 95,8 |
| kW at -20ºC/+40ºC | 61,7 |
| kW at -30ºC/+40ºC | 36,5 |
| kW at -40ºC/+40ºC | 18,7 |
| kW at -45ºC/+40ºC | 12,1 |
| Sur le châssis en acier |
|
| Interrupteurs de sécurité de pression |
|
| Manomètres |
|
| Aspiration d'accumulateur |
|
| Séparateur d'huile |
|
| Système de niveau d'huile |
|
| Liquid déshydrateur ligne |
|
| Voyant |
|
| Electrovanne |
|
| m3 / h | 179,8 |
| Remarques | | Y.o.b. 2001 |
| Package / Rack |
|
| Tailles | 2250x1280x1350 mm (LxWxH) |
| Quantité en stock | 1 |
Bock HGX5/830-4 (x1) & HGX6/1240-4 (x1)

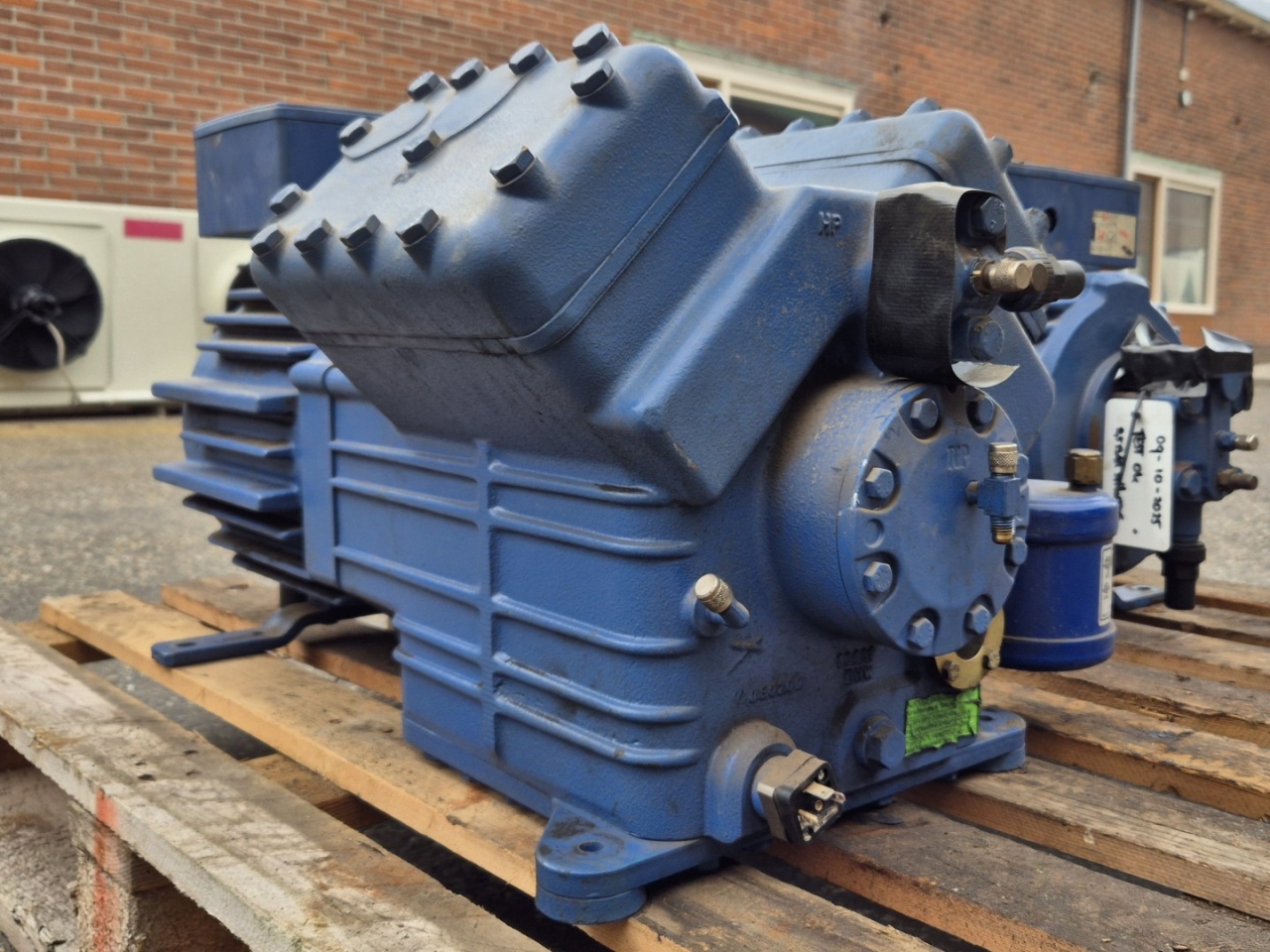

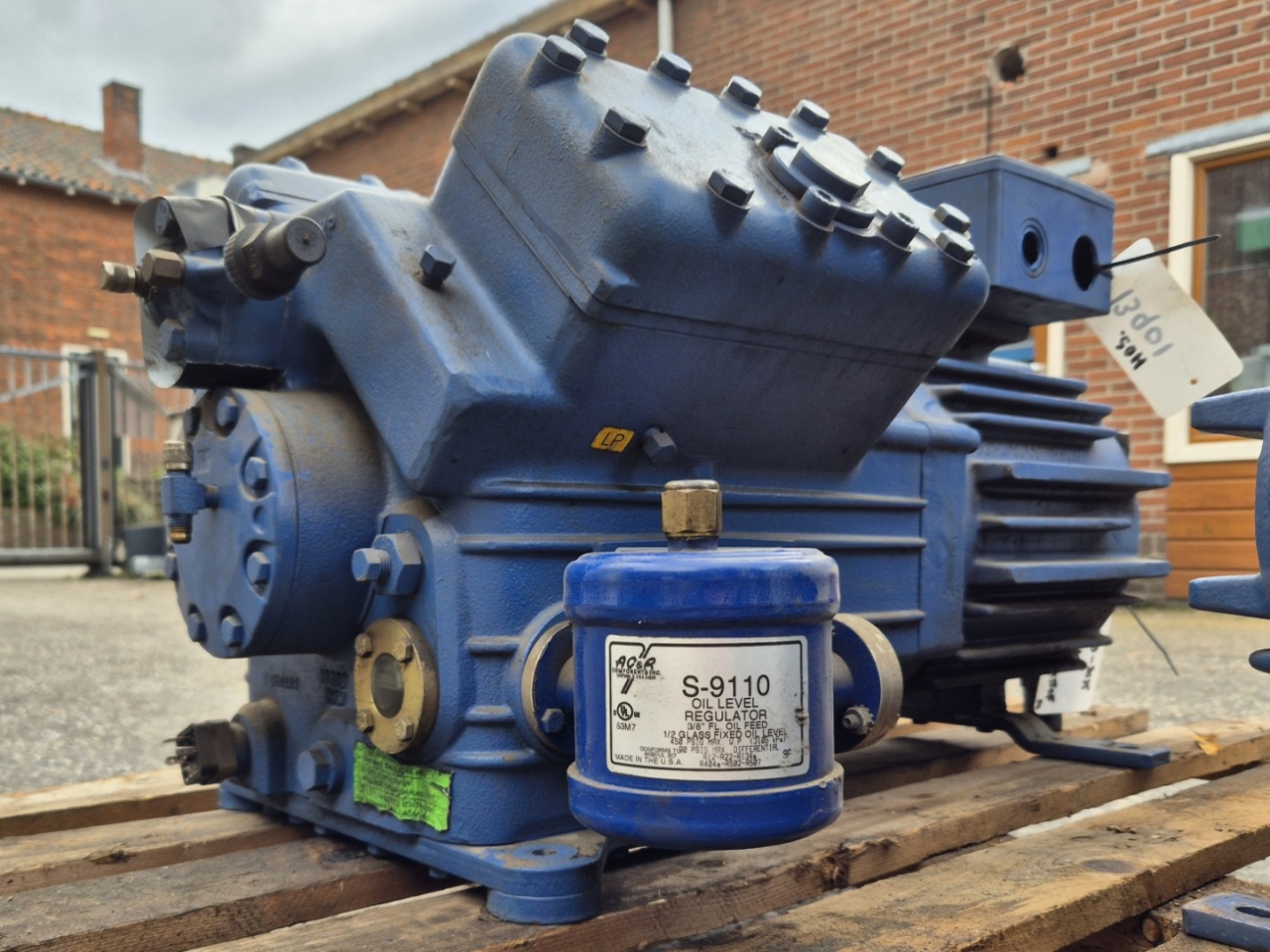

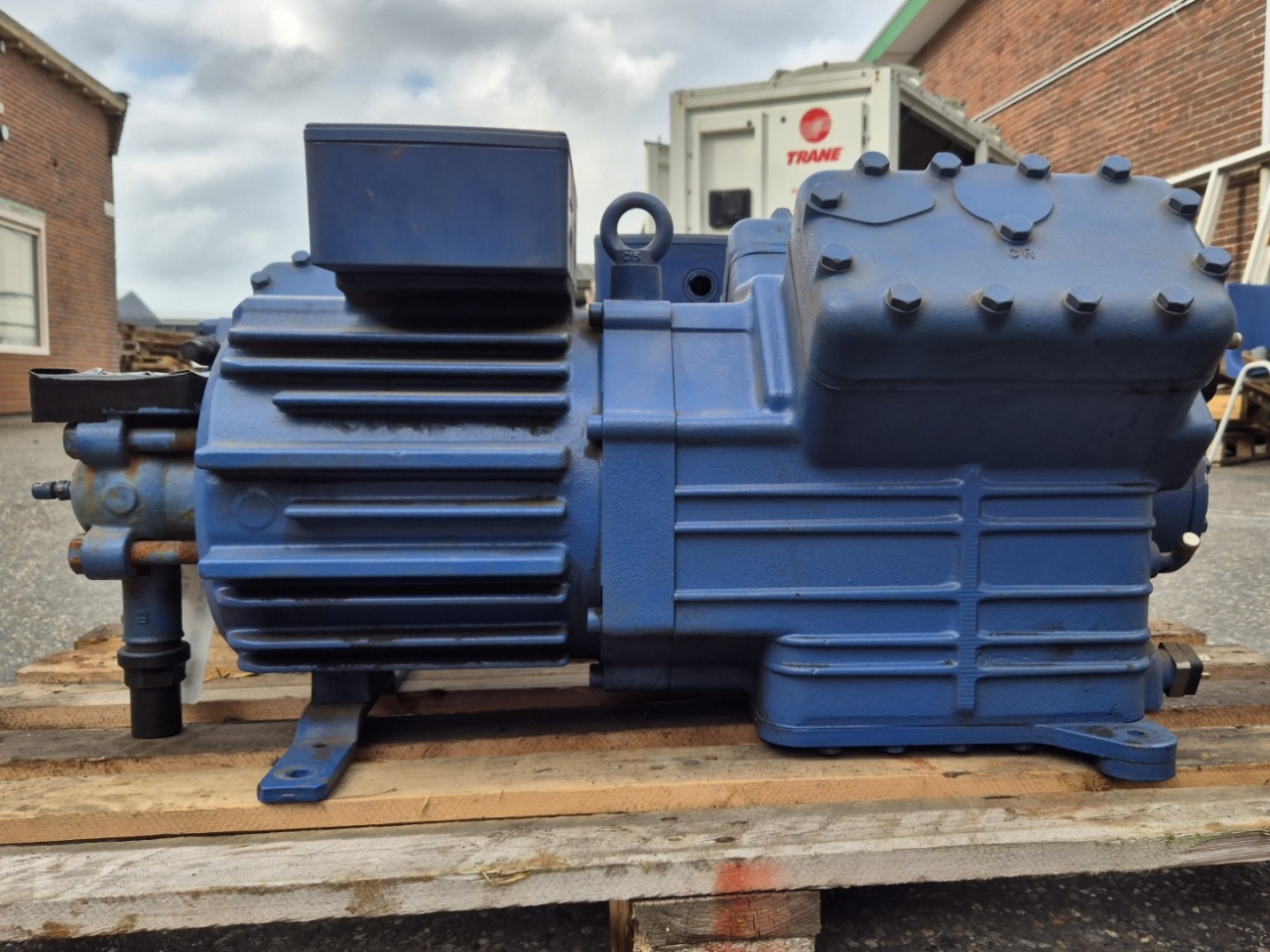

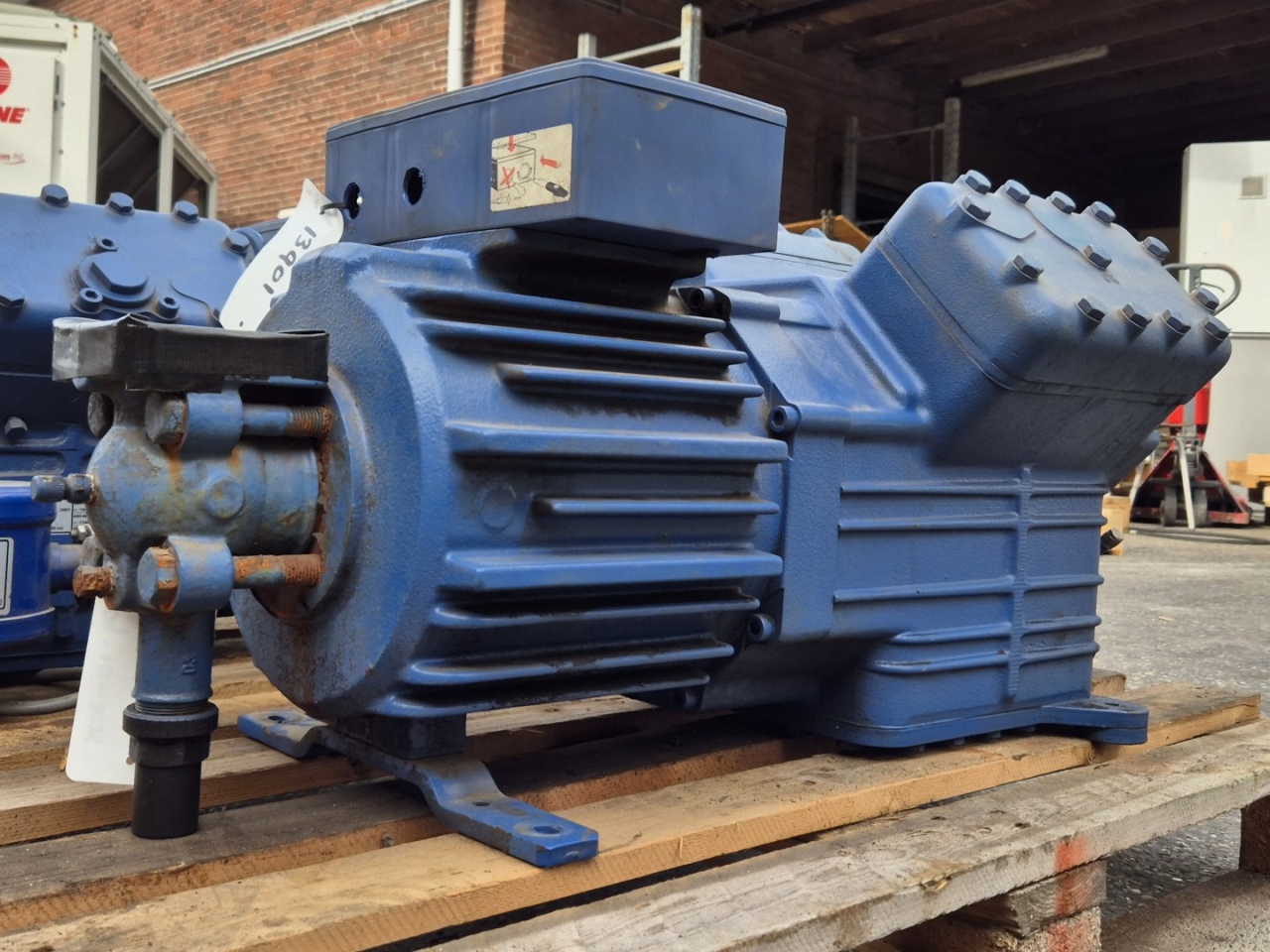

Used Bock semi-hermetic compressor unit on Freon. Complete with (x1) Bock HGX5/830-4 & (x1) Bock HGX6/1240-4 compressors, AC&R S-1903 oil separator, AC&R S-9108 oil reservoir, Henry S-7725 suction accumulator, pressure and safety switches/gauges, selenoid valve and a liquid line filter drier.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also arrange the logistics.
