Bitzer HSN 8571-125-40P (x2)
Bitzer HSN 8571-125-40P (x2)
| 18543 | |
| Marque | Bitzer |
| Le type | HSN 8571-125-40P (x2) |
| Réfrigérant | Freon |
| kW at -20ºC/+40ºC | 396,4 |
| kW at -30ºC/+40ºC | 272,6 |
| kW at -40ºC/+40ºC | 178,8 |
| kW at -45ºC/+40ºC | 141,0 |
| Démarrage à vide |
|
| Contrôle de capacité |
|
| Sur le châssis en acier |
|
| Interrupteurs de sécurité de pression |
|
| Manomètres |
|
| Réservoir de liquide |
|
| Réservoir de liquide ltr. | 473 |
| Séparateur d'huile |
|
| Voyant |
|
| Electrovanne |
|

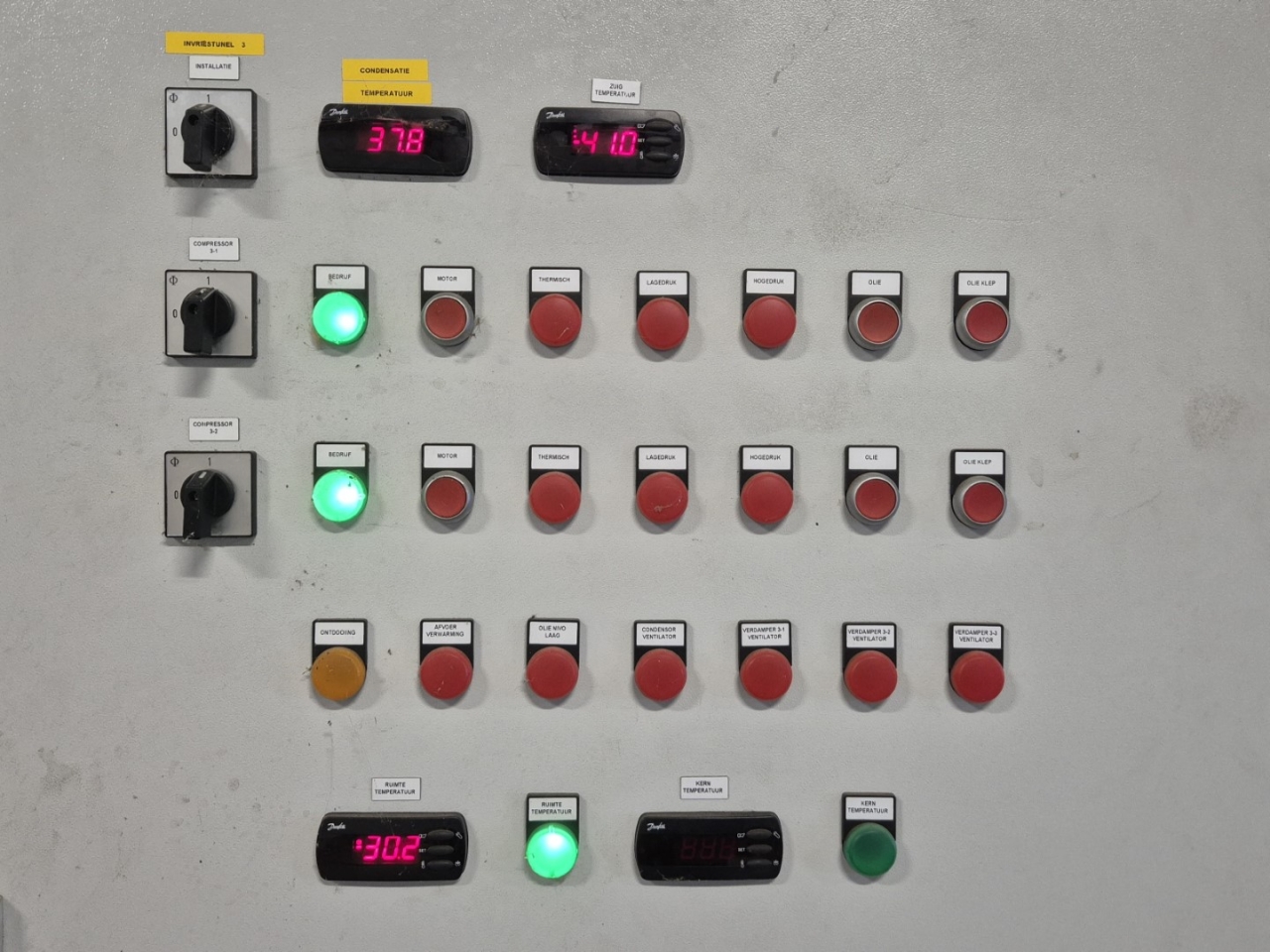

| Panneau de configuration |
|
| m3 / h | 820 m³/h at 50 Hz & 990 m³/h at 60 Hz |
| Remarques | | Y.o.b. 2011 |
| Weight | 2500 |
| Package / Rack |
|
| Tailles | 3610x1700x1950 mm (LxWxH) |
| Quantité en stock | 1 |
Bitzer HSN 8571-125-40P (x2)

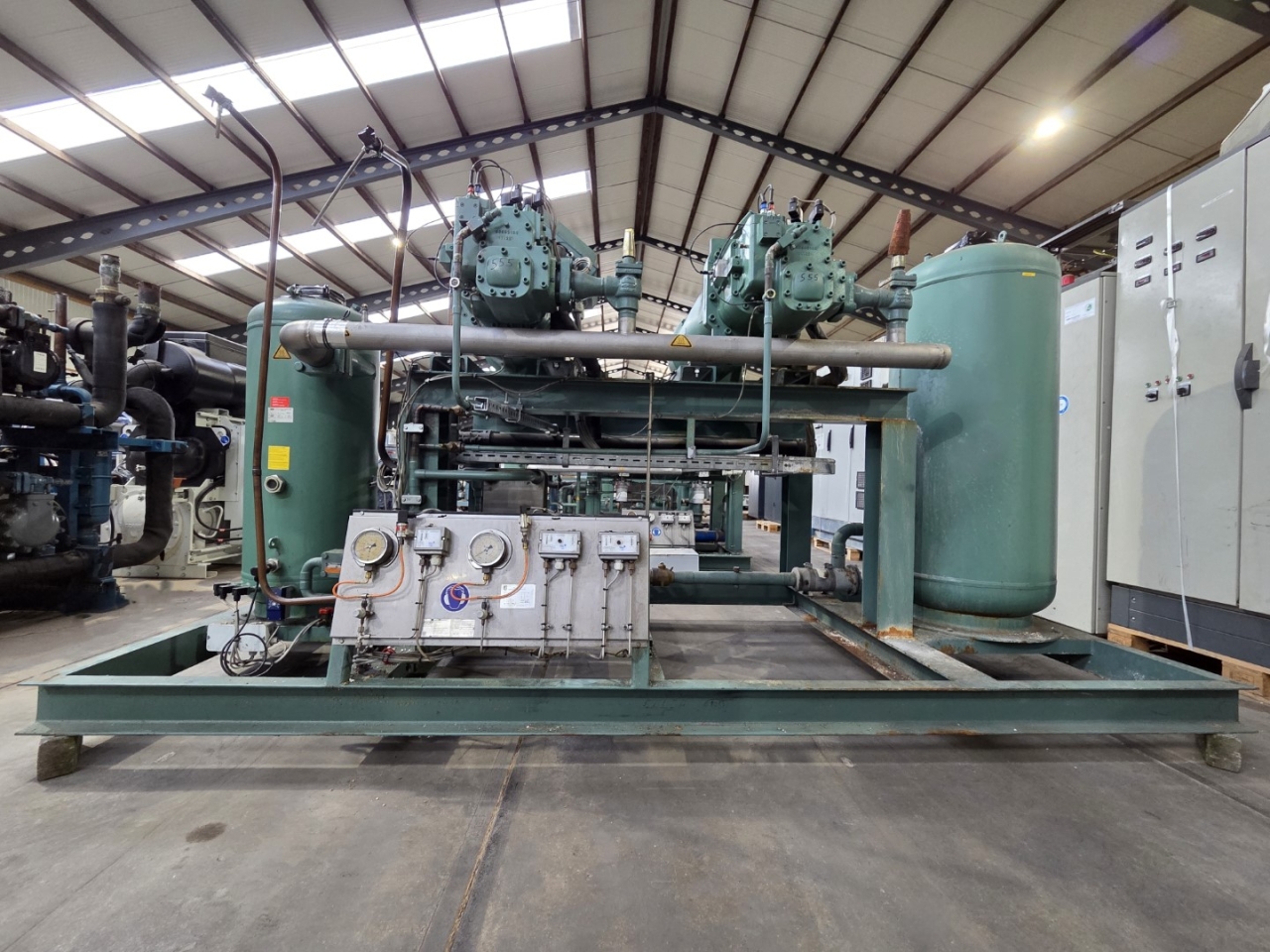

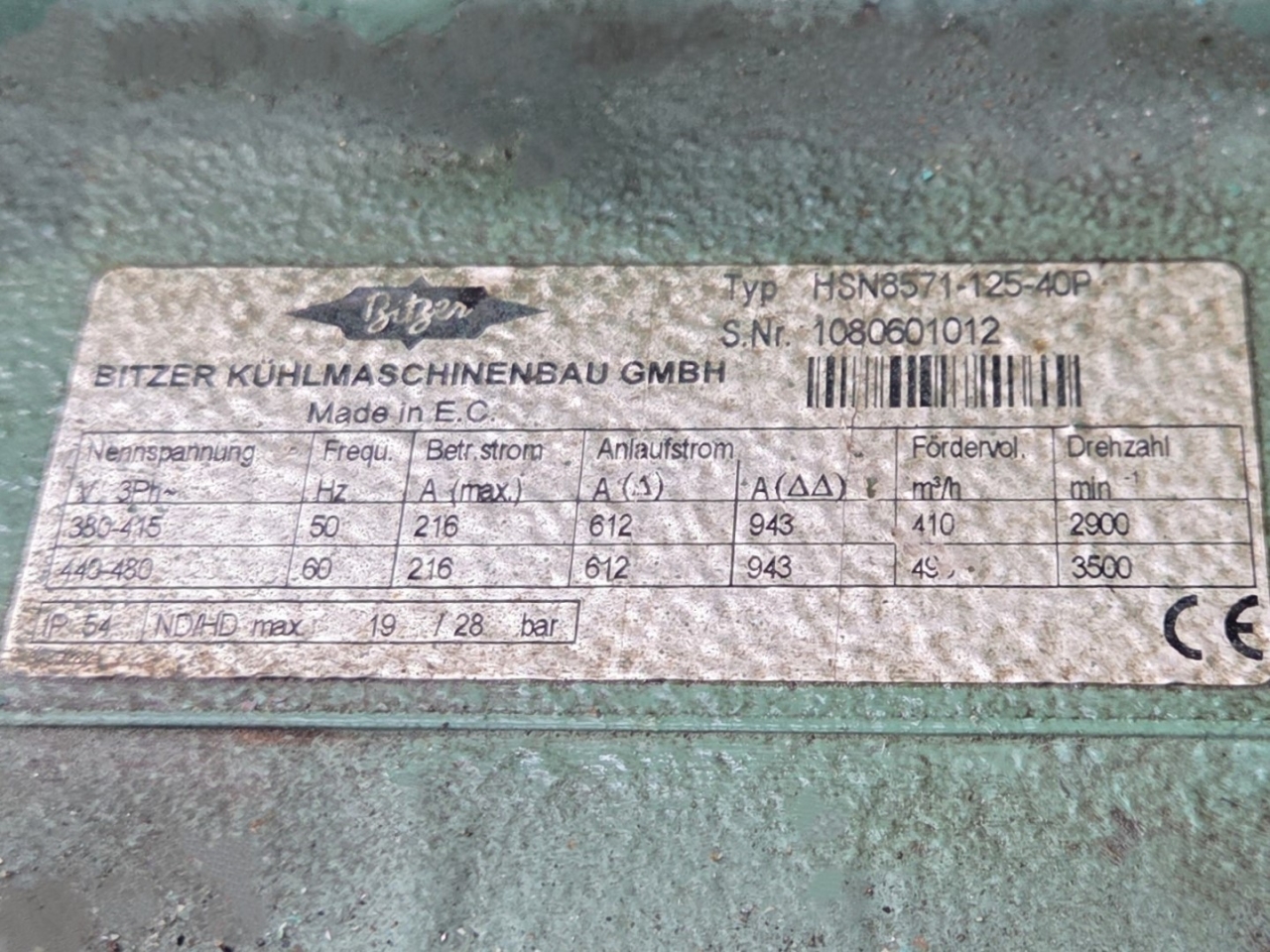

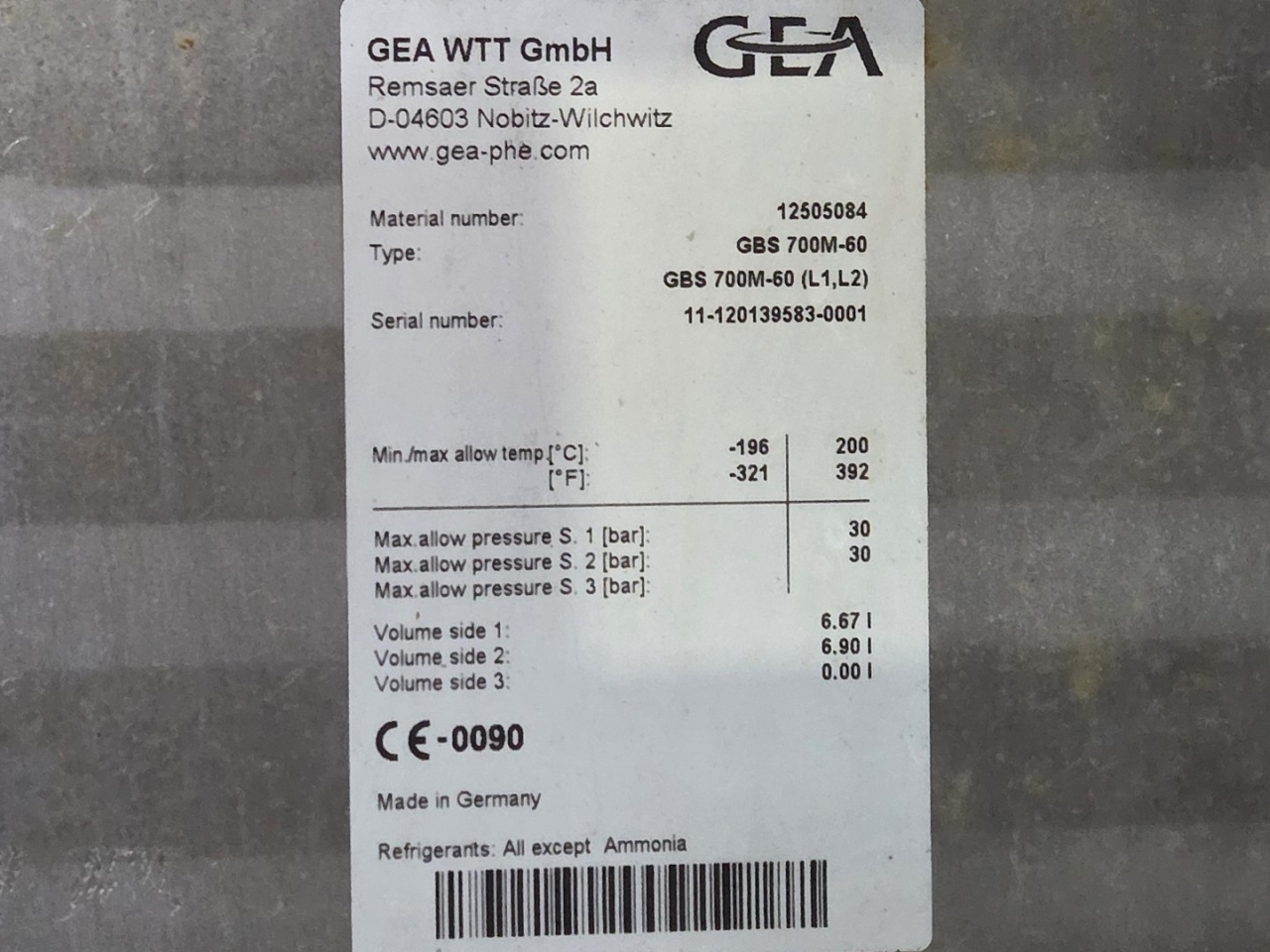

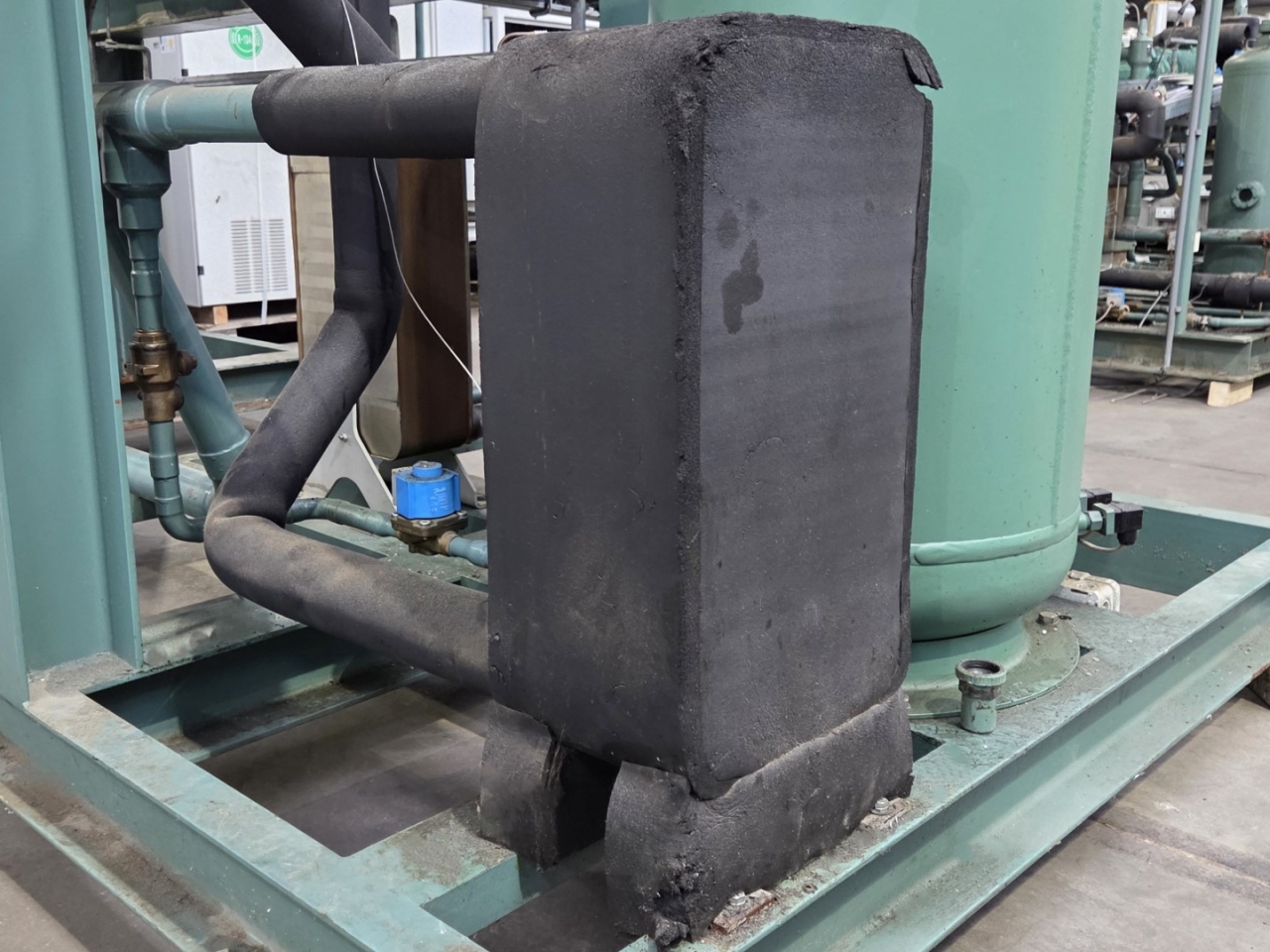

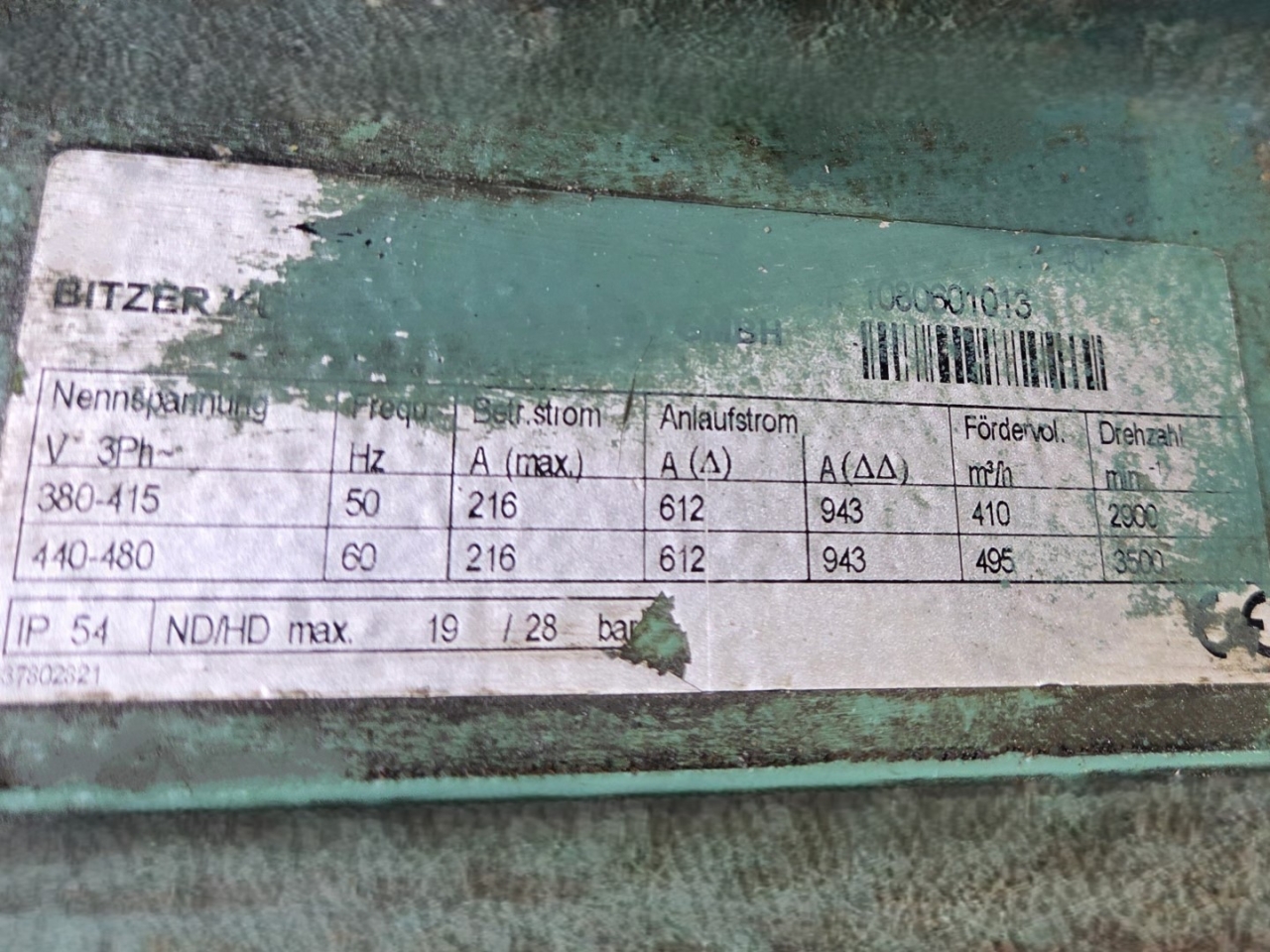

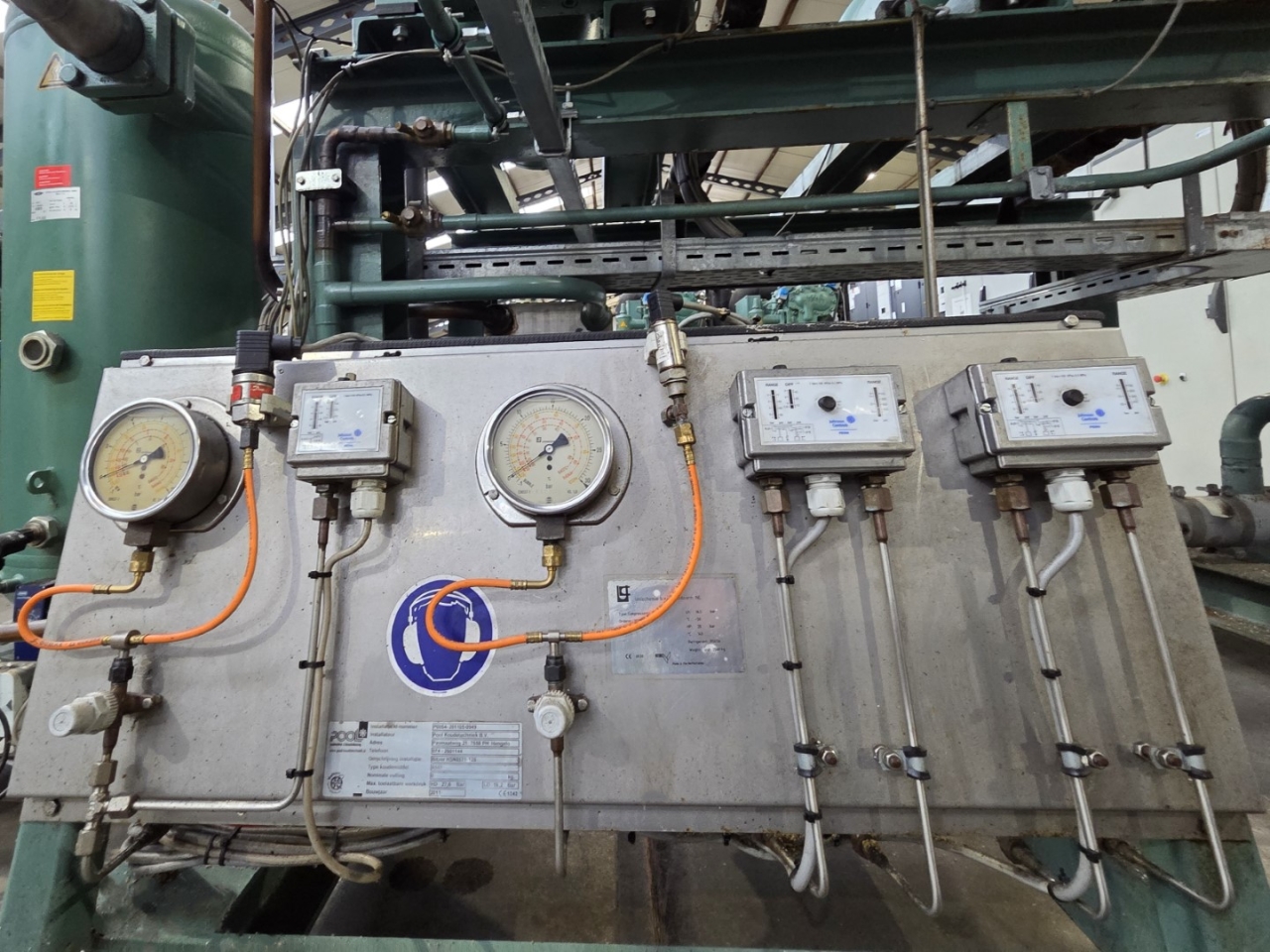

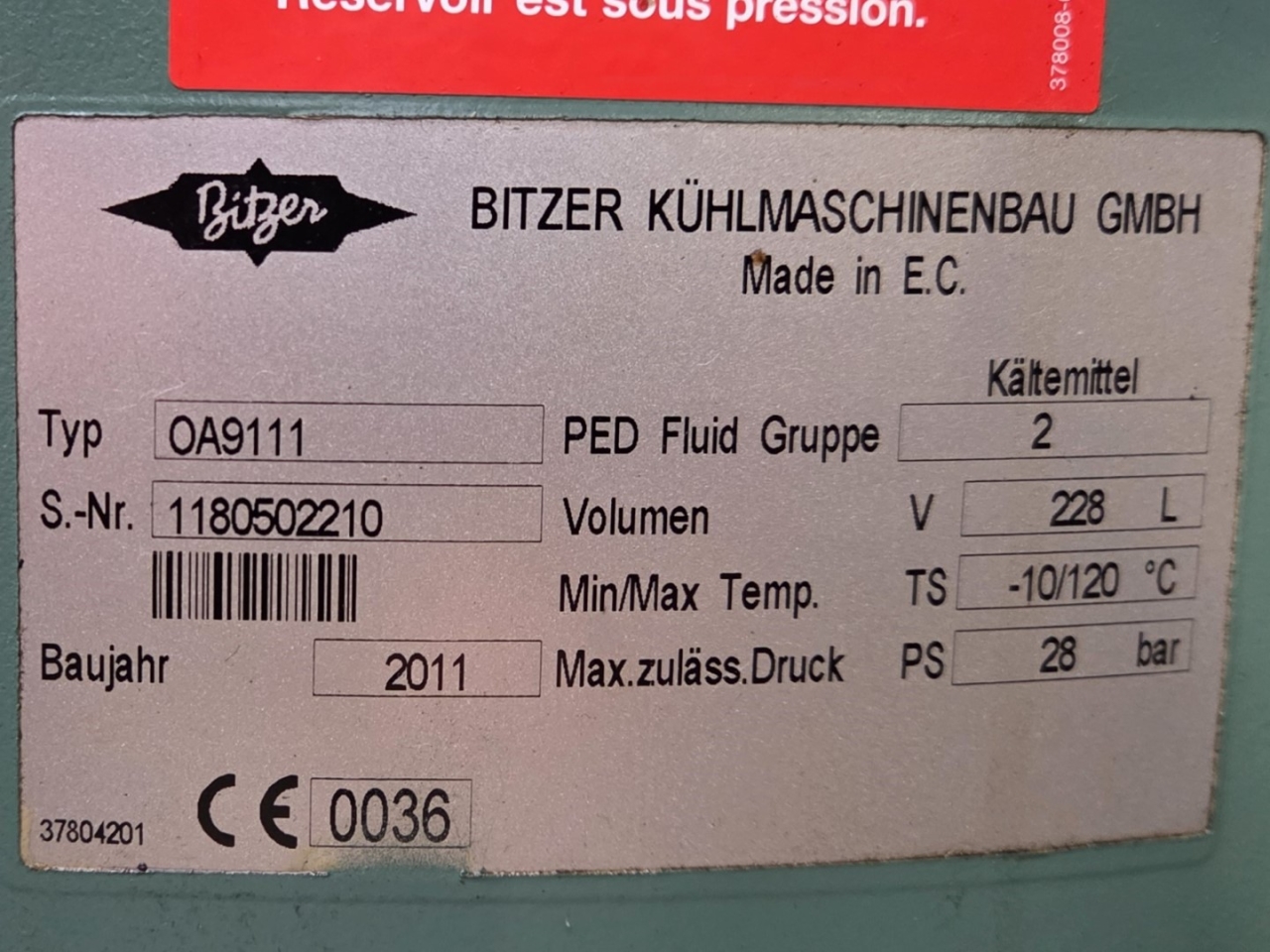

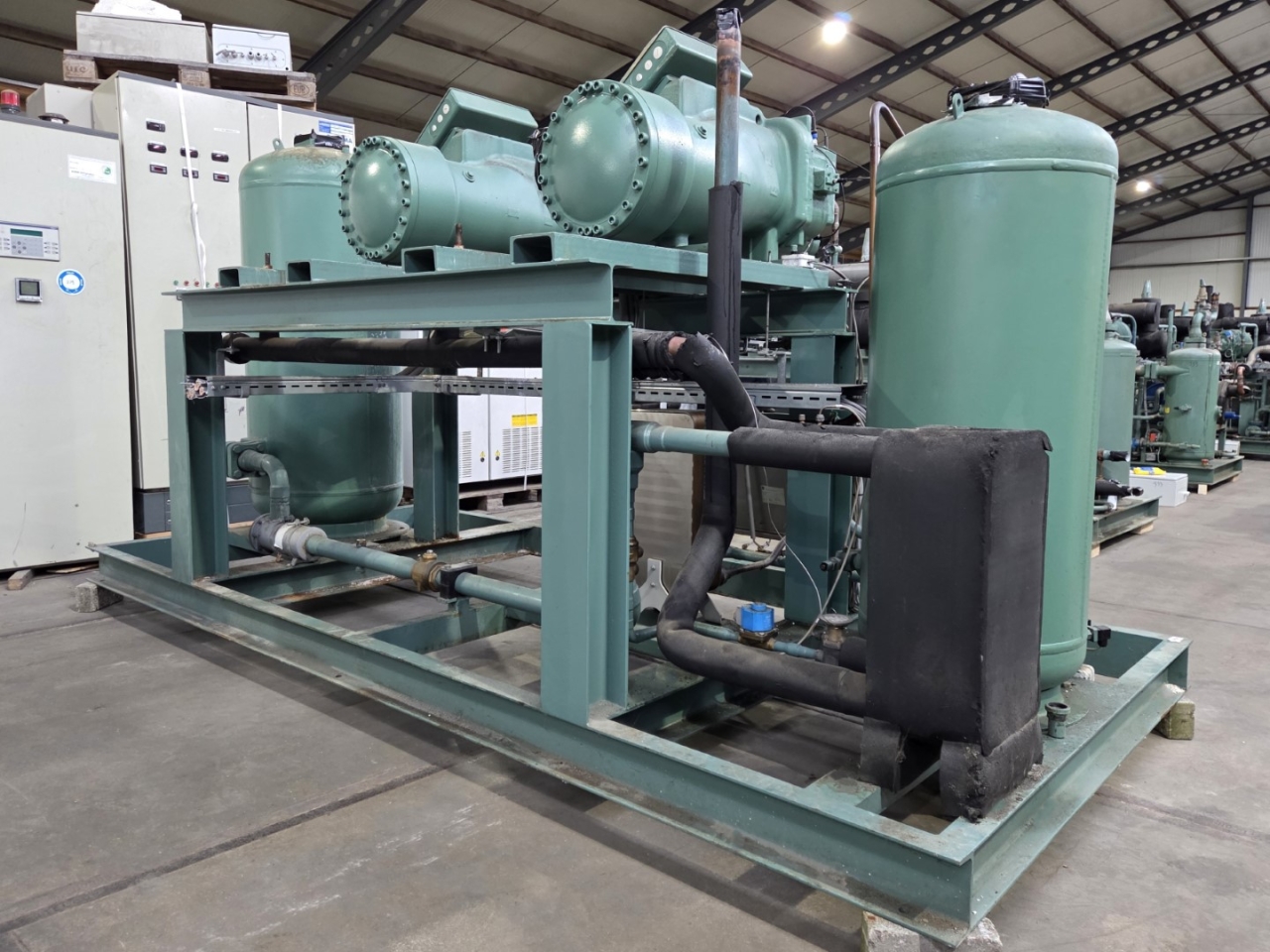

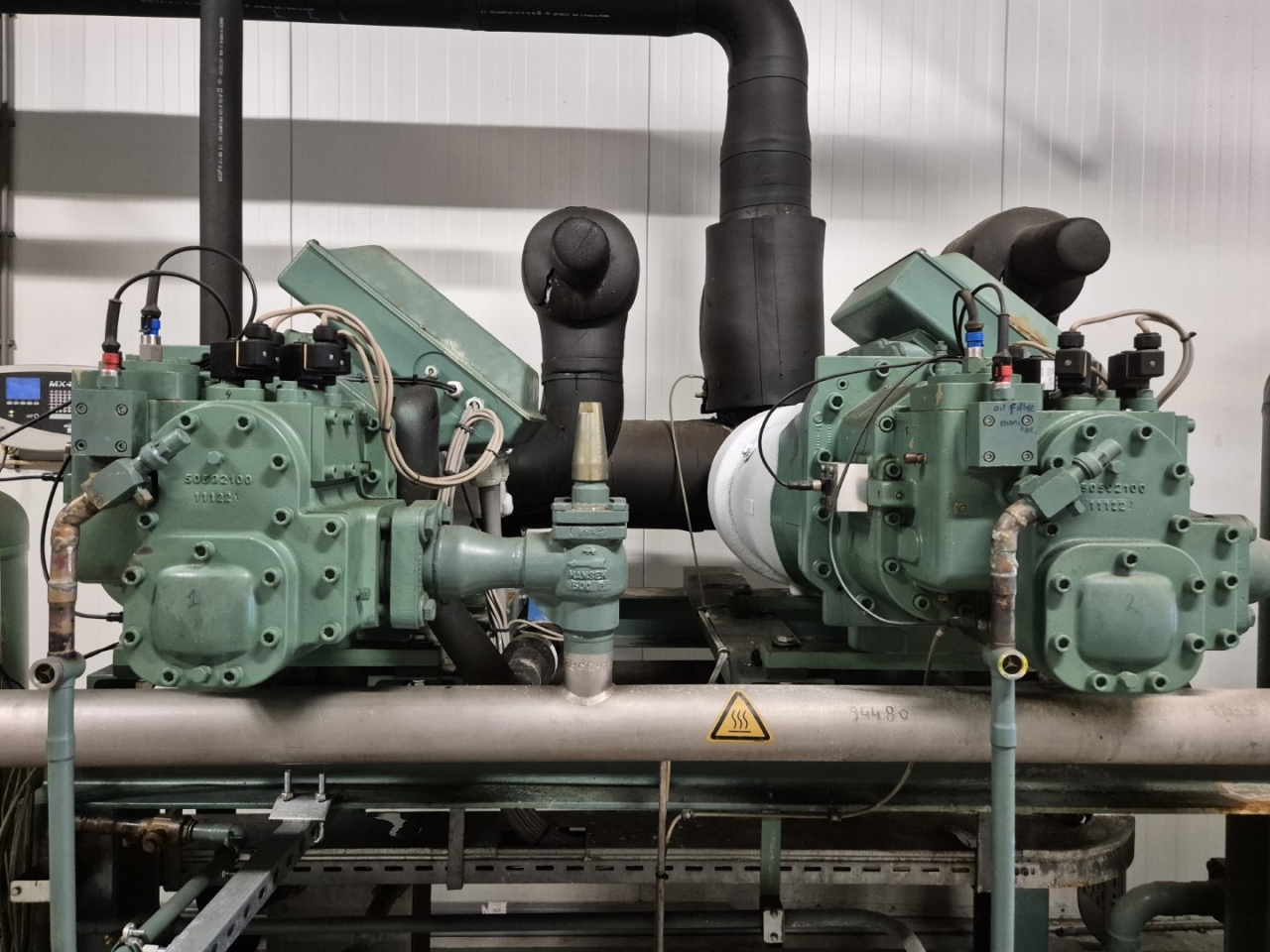

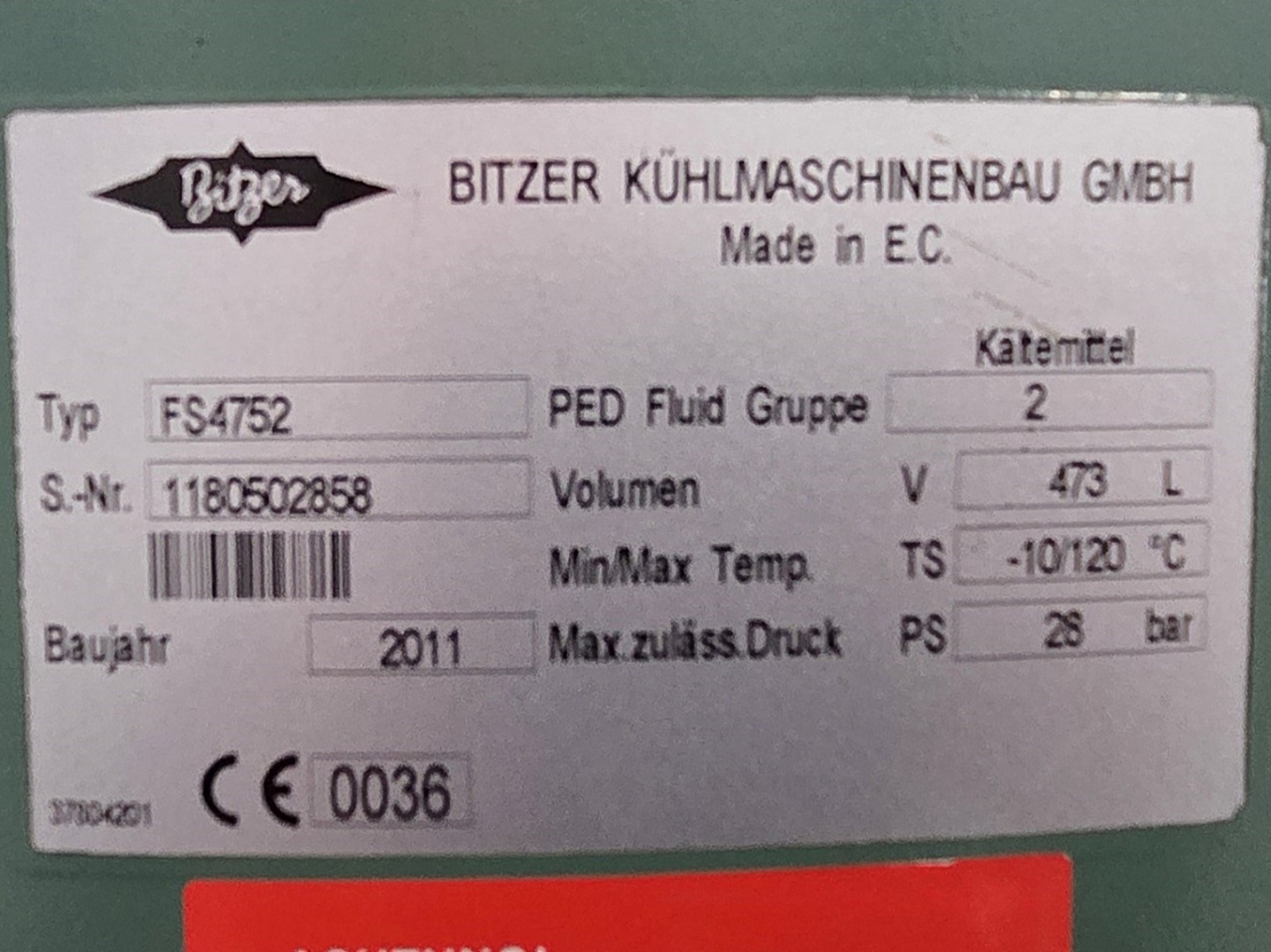

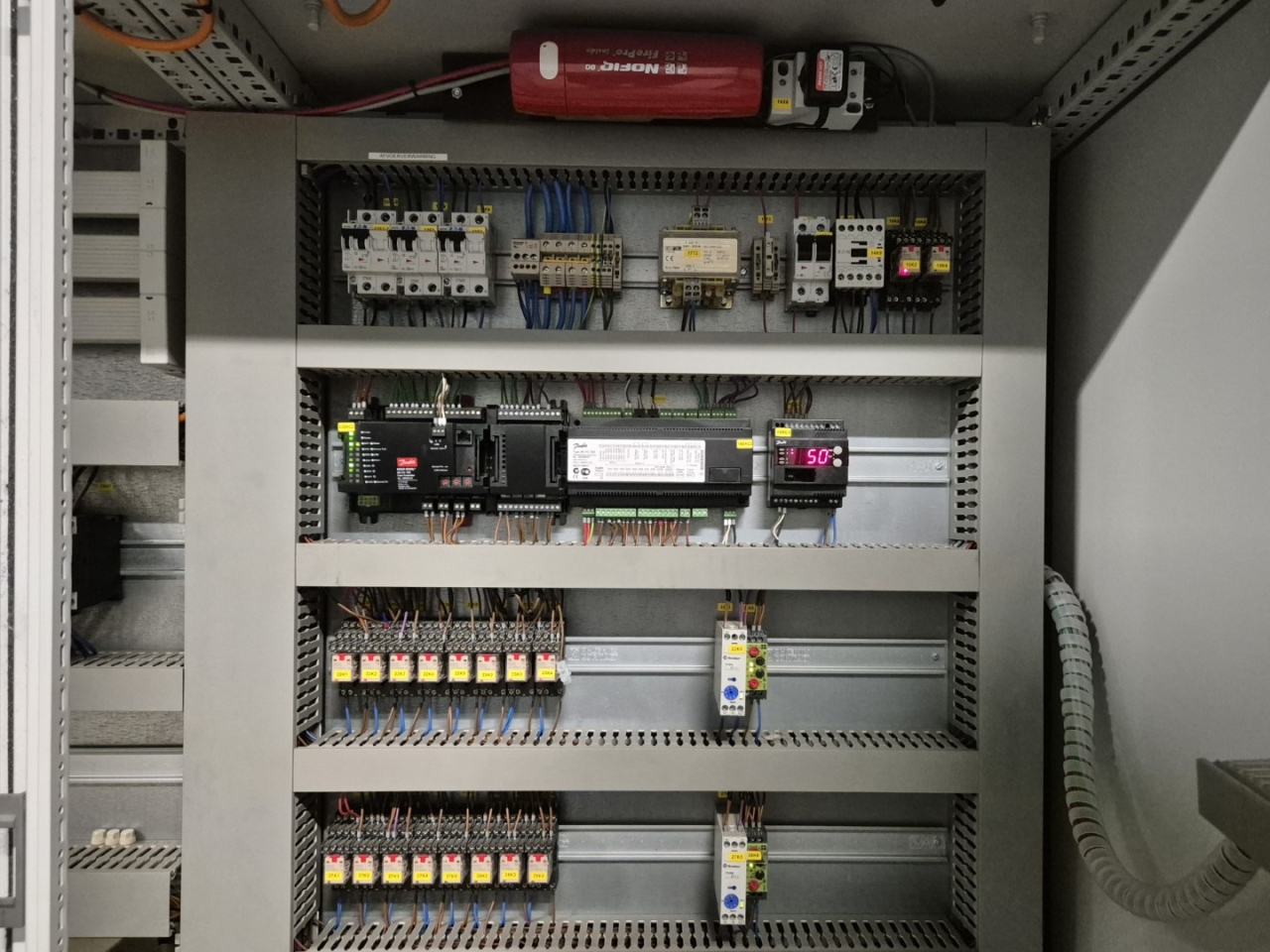

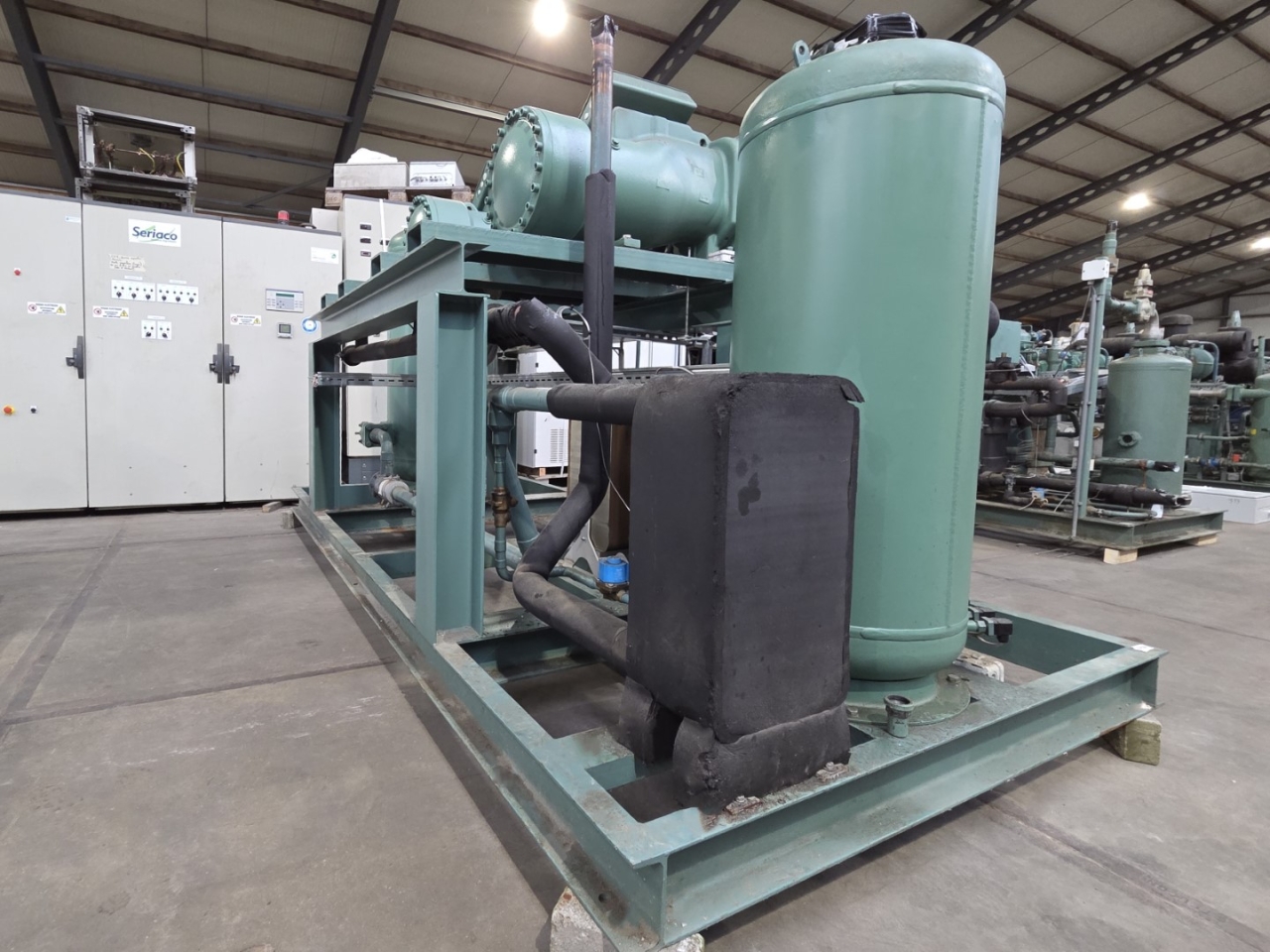

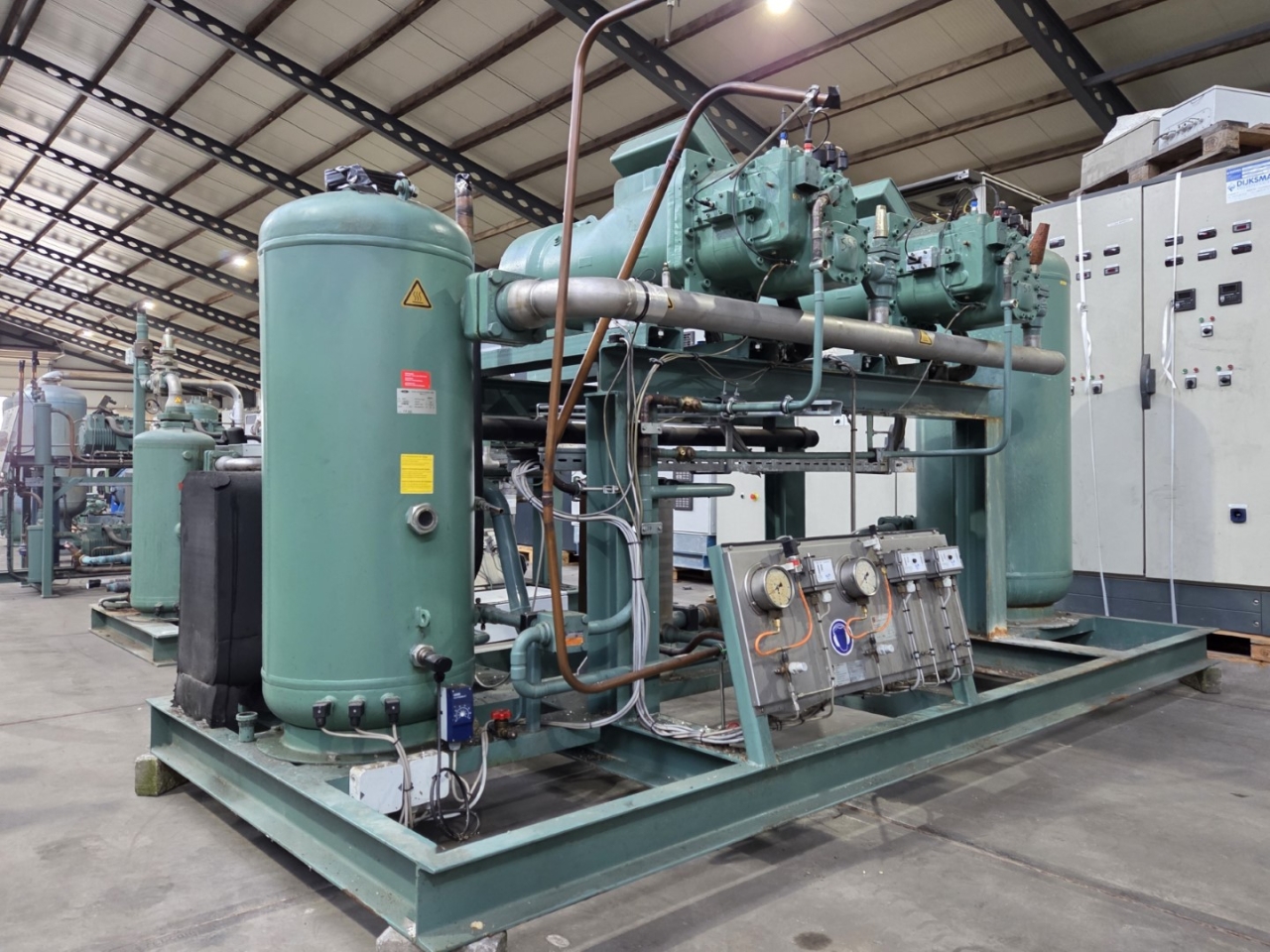

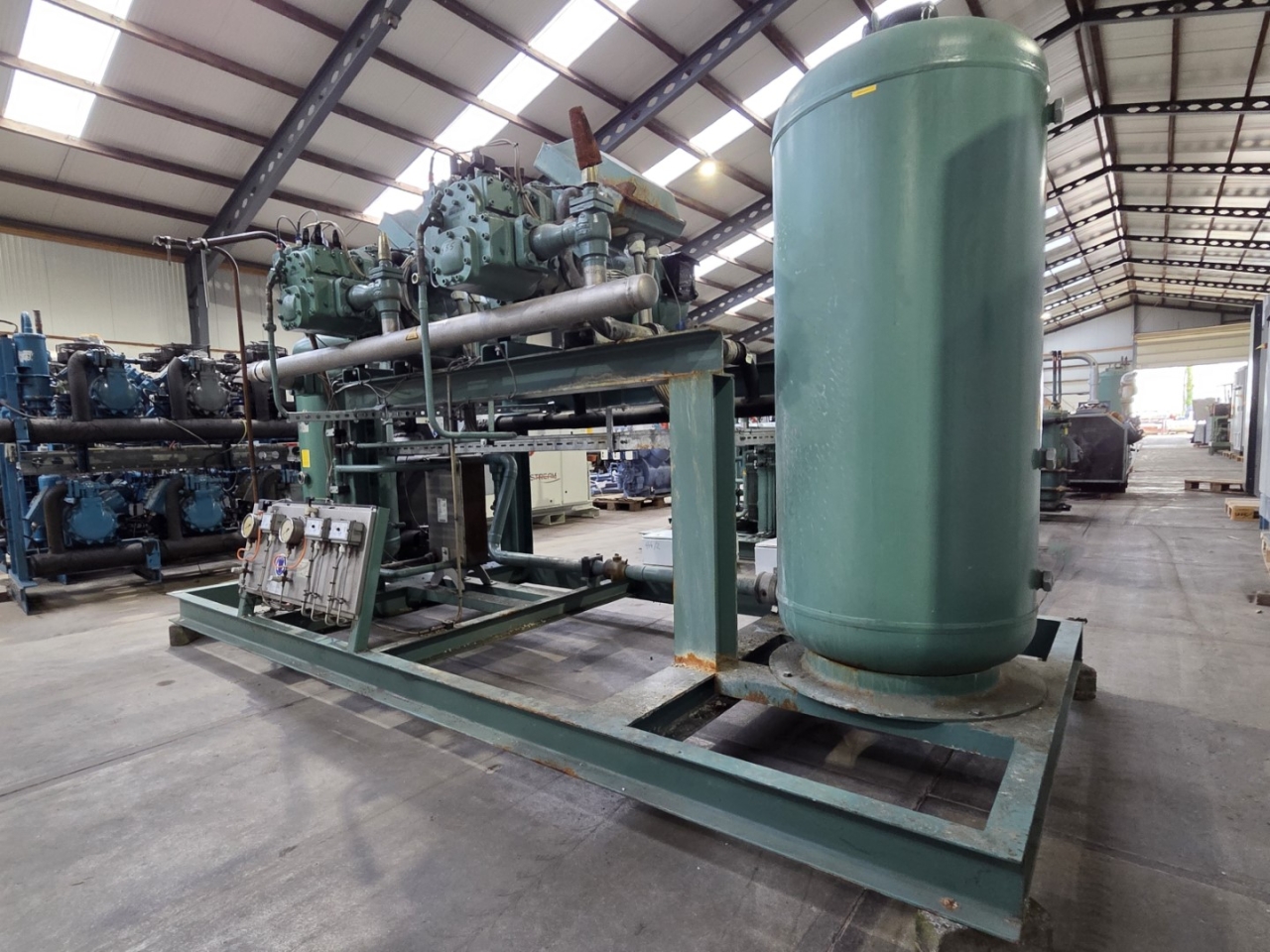

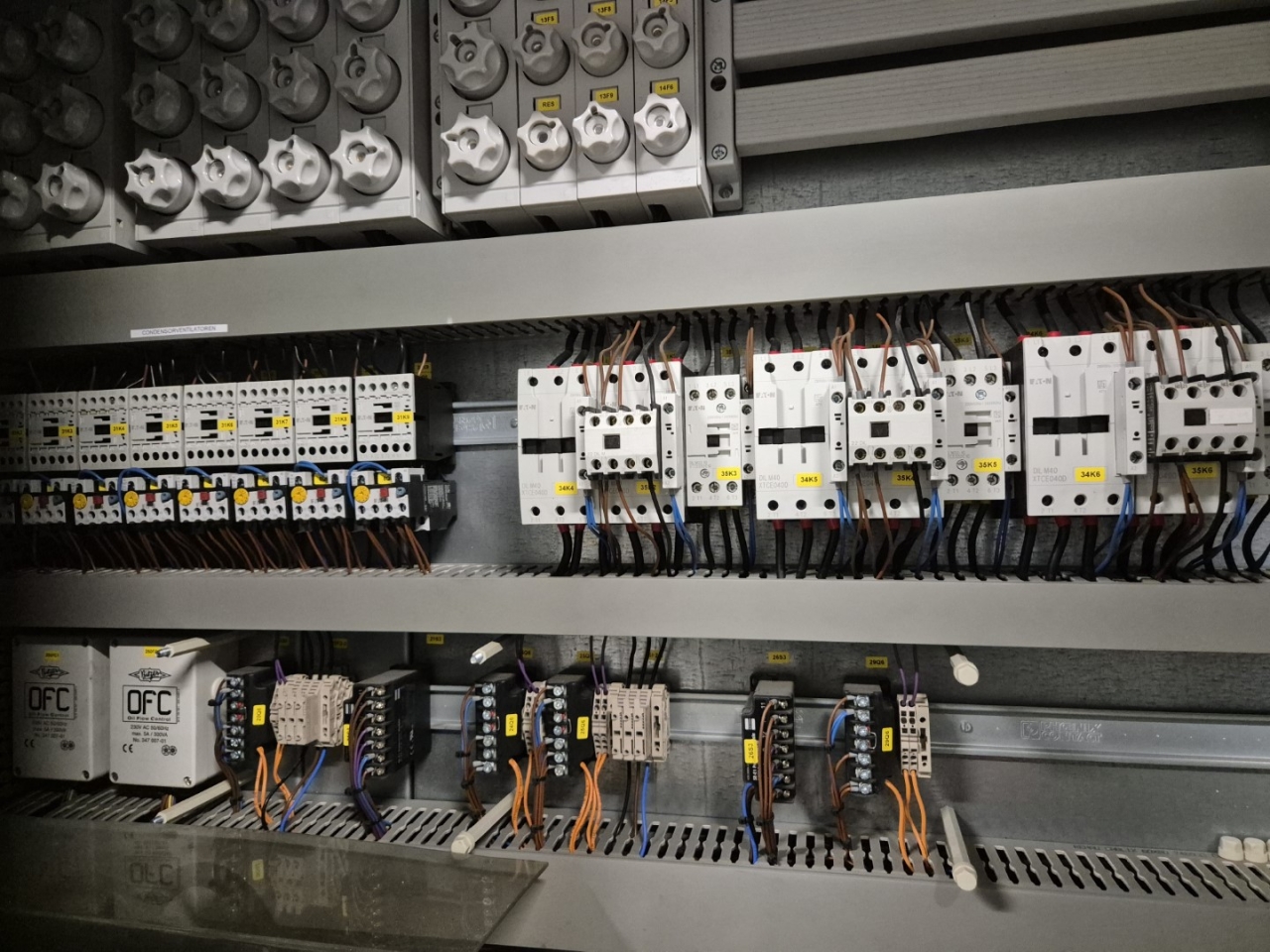

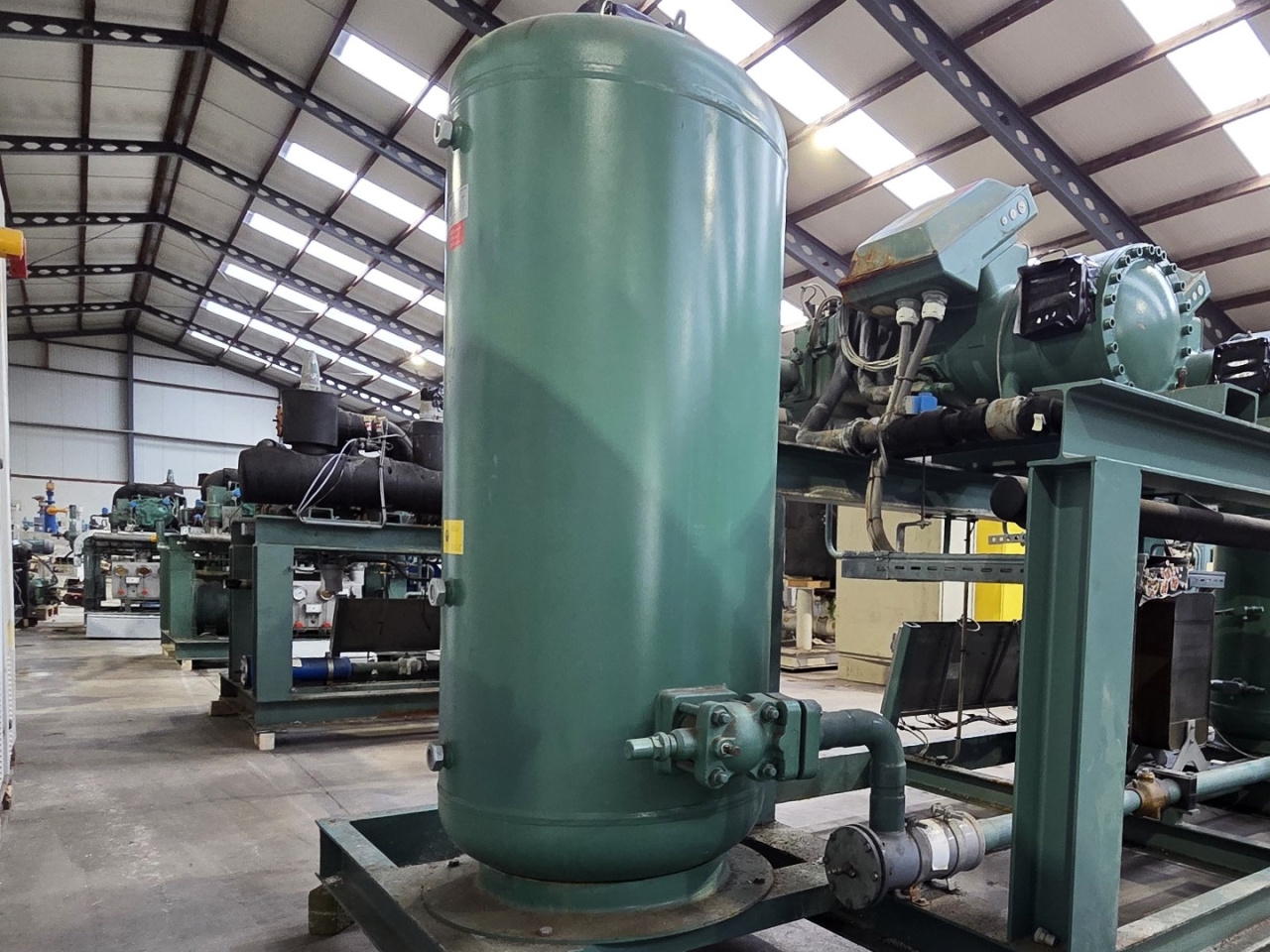

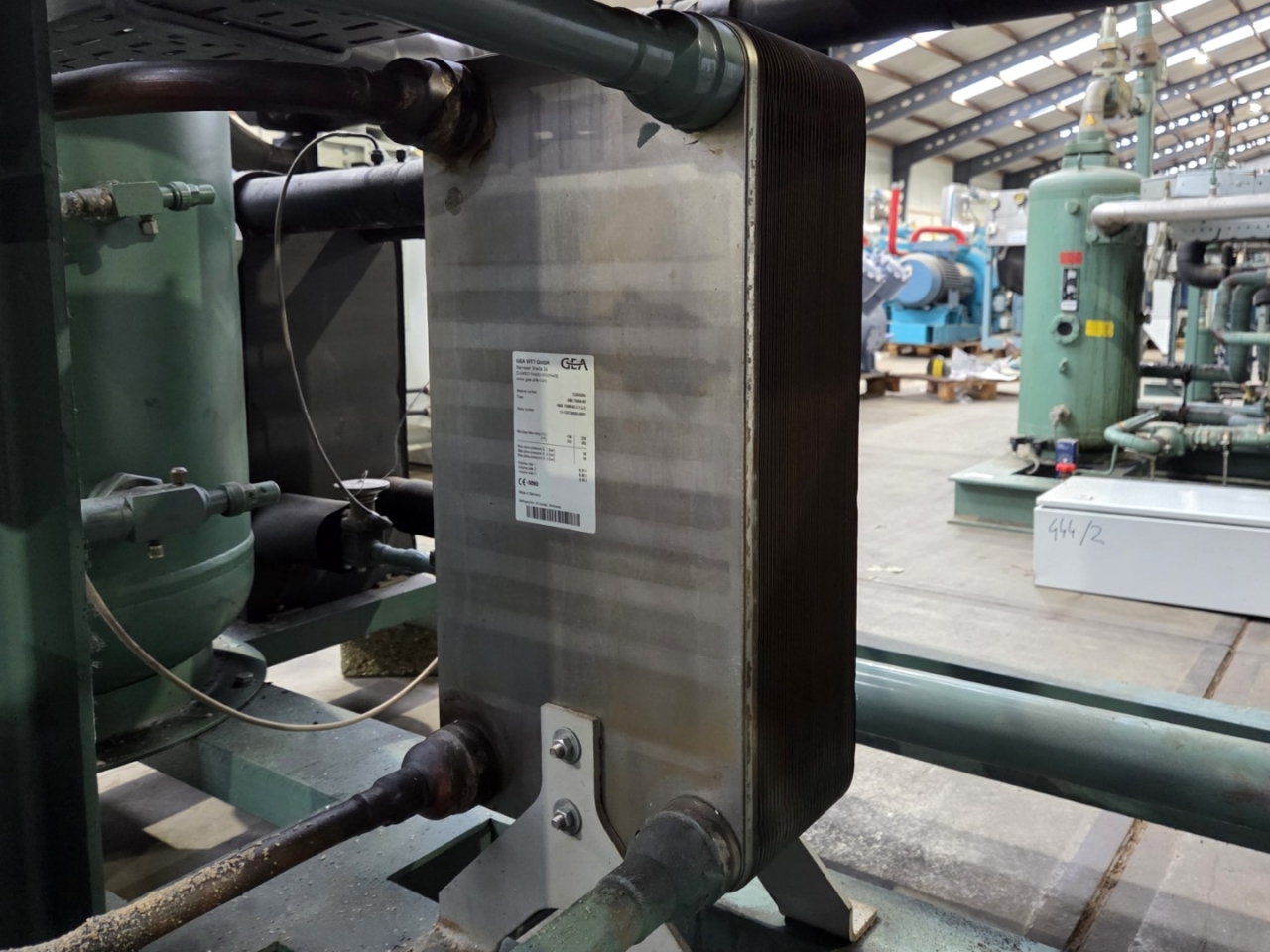

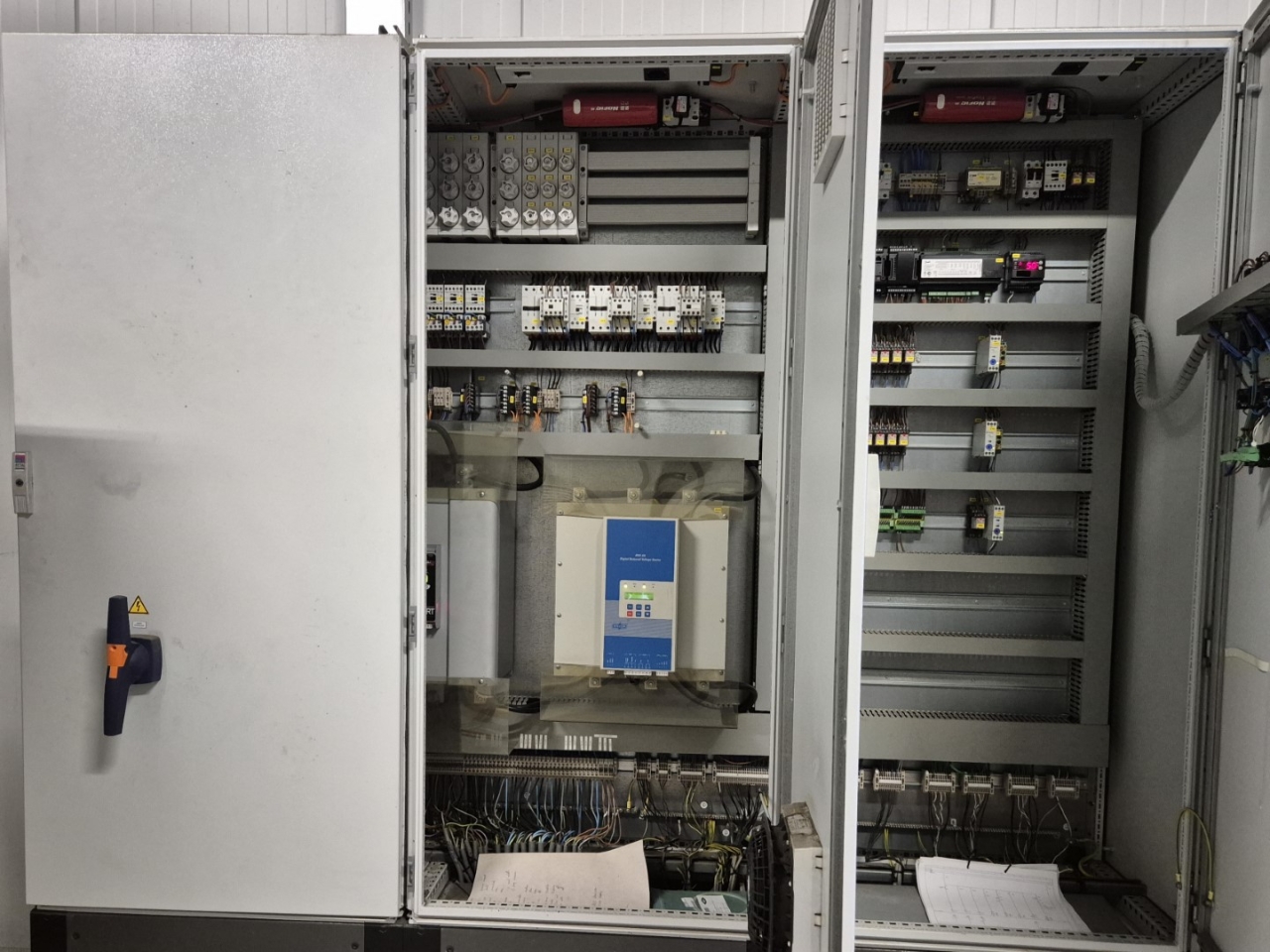

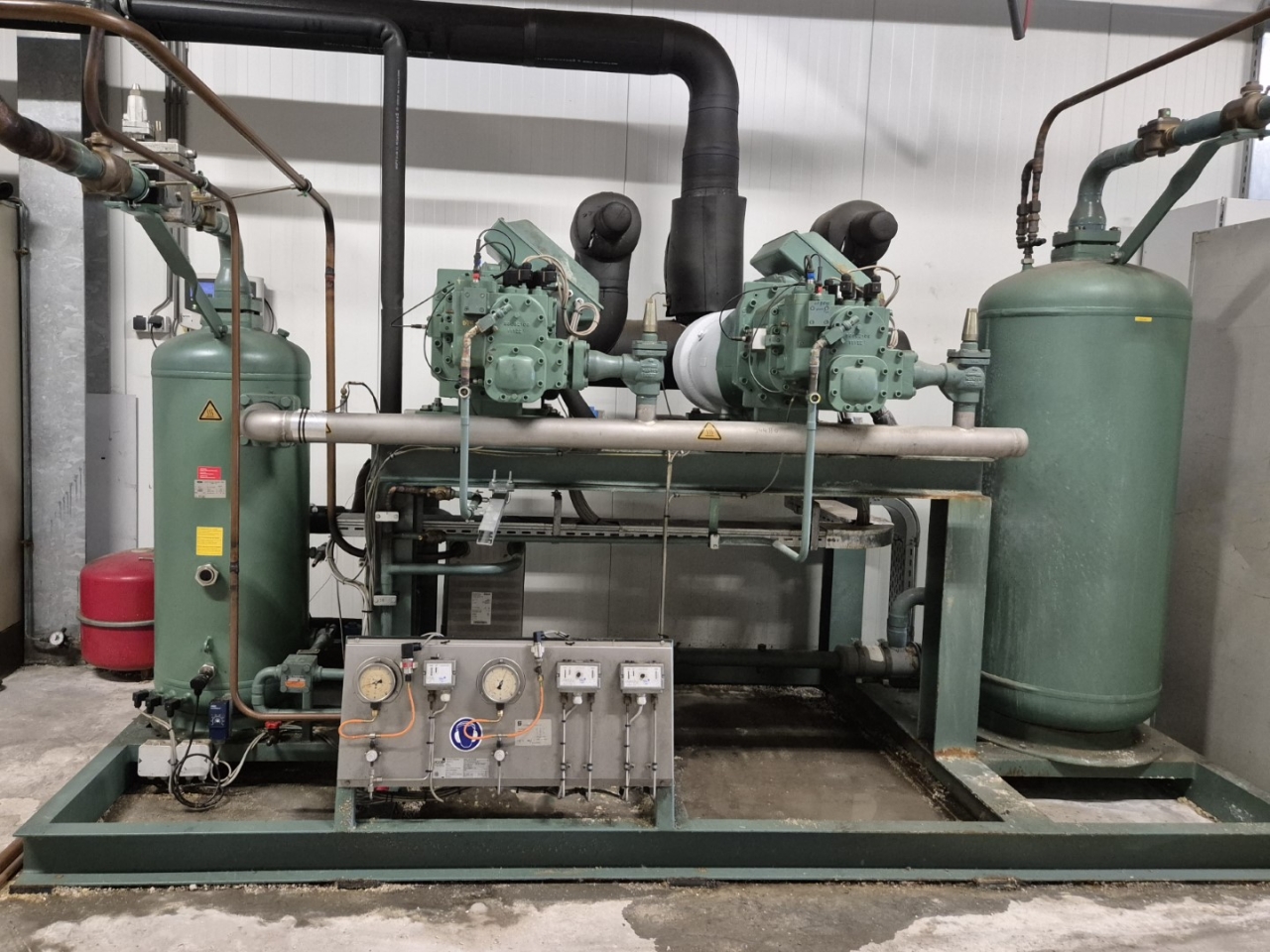

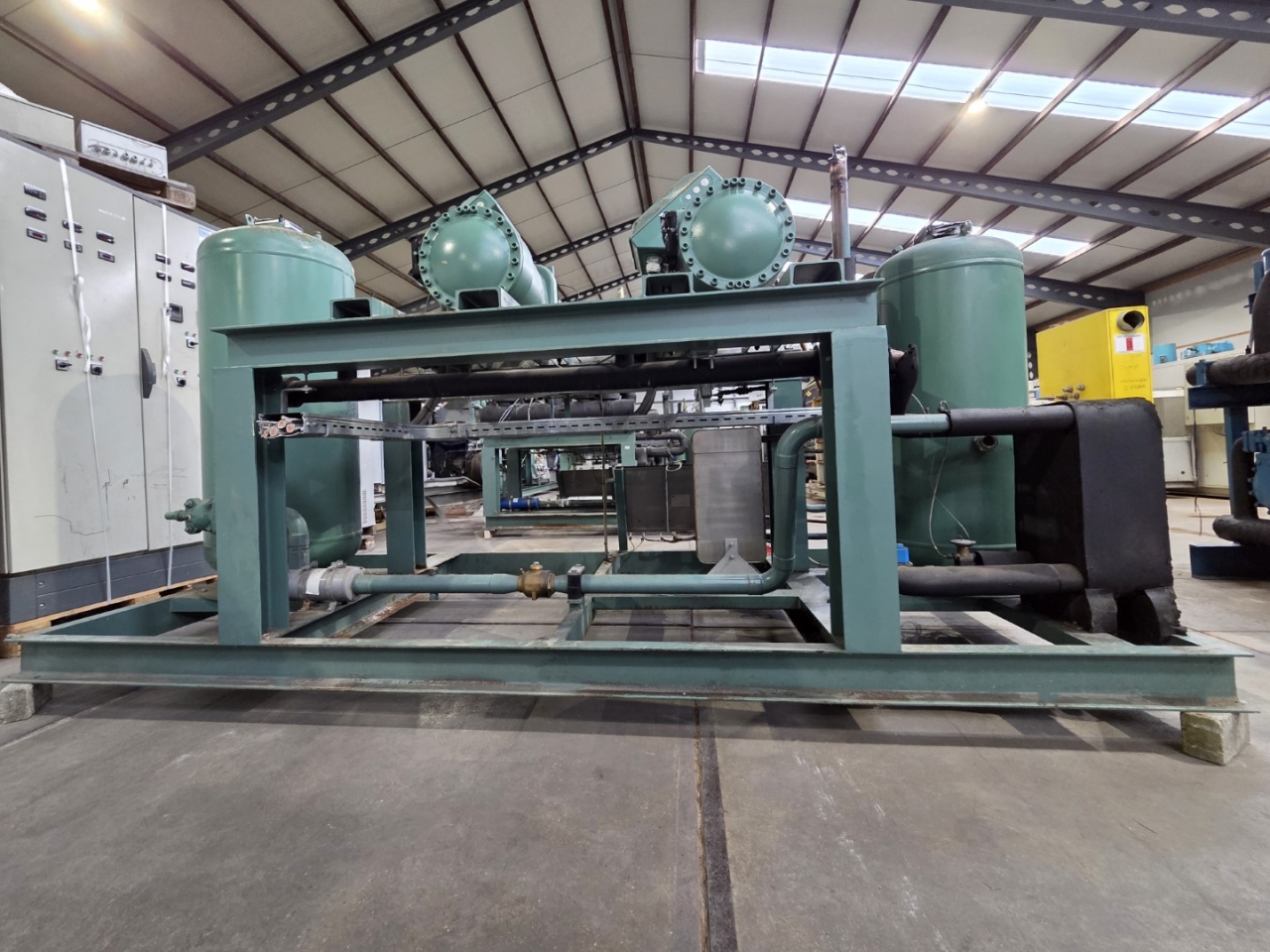

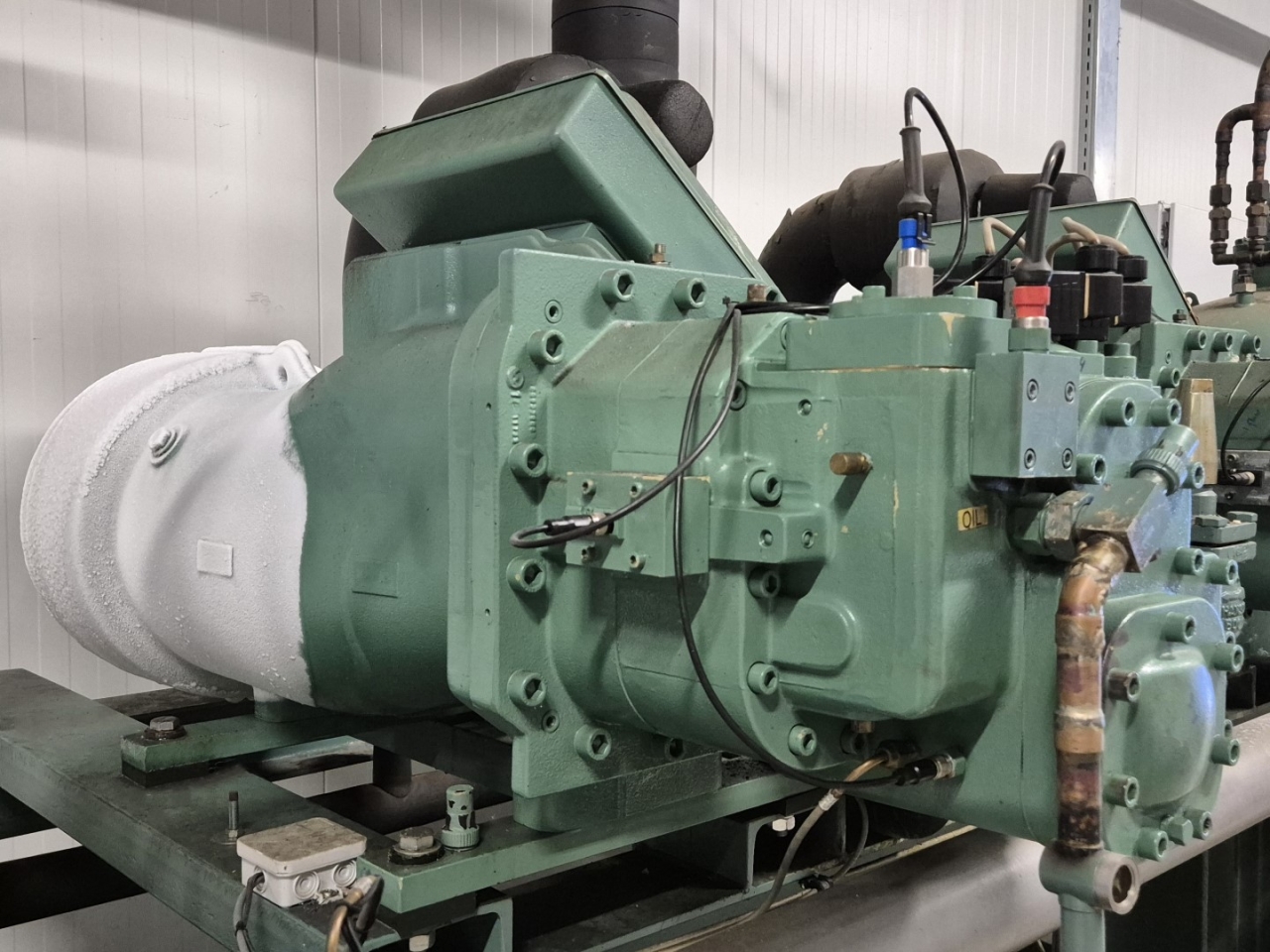

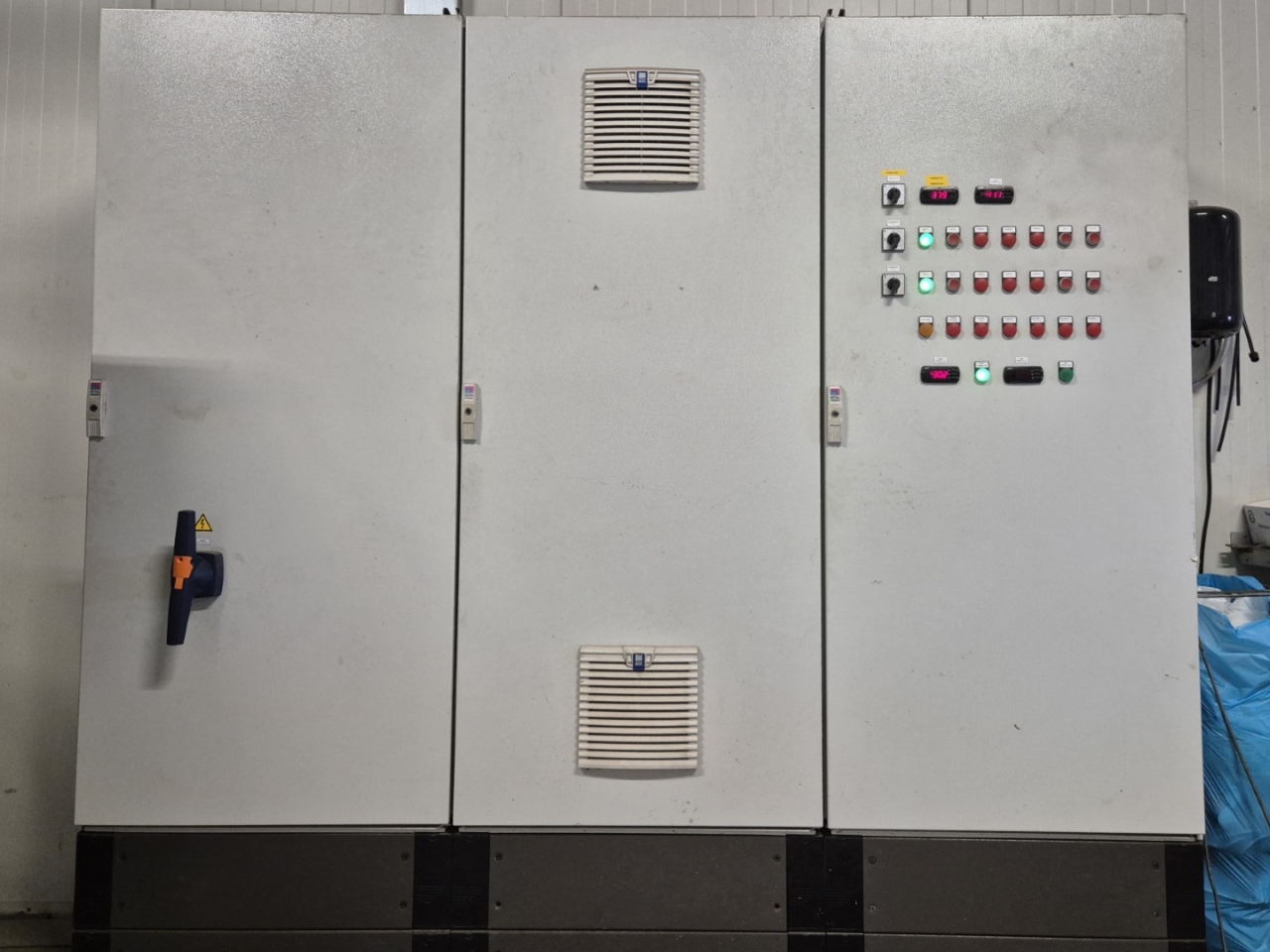

Used Bitzer HSN 8571-125-40P (x2) semi-hermetic screw compressor skid on Freon. Complete with a Bitzer FS4752 liquid receiver with a volume of 473 liter, Bitzer OA9111 oil separator with a volume of 228 liter, GEA GBS 700M-60 brazed heat exchanger as oil cooler, brazed heat exchanger as economizer, pressure and safety switches/gauges and a control cabinet. The compressors have a total displacement of 820 m³/h at 50 Hz & 990 m³/h at 60 Hz.
