Rivacold RV4C0136 / 4HE-15Y-40P (x1) & 4PES-15Y-40P (x1) Condensing unit
Rivacold RV4C0136 / 4HE-15Y-40P (x1) & 4PES-15Y-40P (x1) Condensing unit
| 18499 | |
| Marque | Rivacold |
| Le type | RV4C0136 / 4HE-15Y-40P (x1) & 4PES-15Y-40P (x1) Condensing unit |
| Réfrigérant | Freon |
| Refrigerant type | R134A |
| kW at 0ºC/+40ºC | 62,4 |
| kW at -5ºC/+40ºC | 50,1 |
| kW at -10ºC/+40ºC | 39,6 |
| kW at -20ºC/+40ºC | 23,3 |
| Sur le châssis en acier |
|

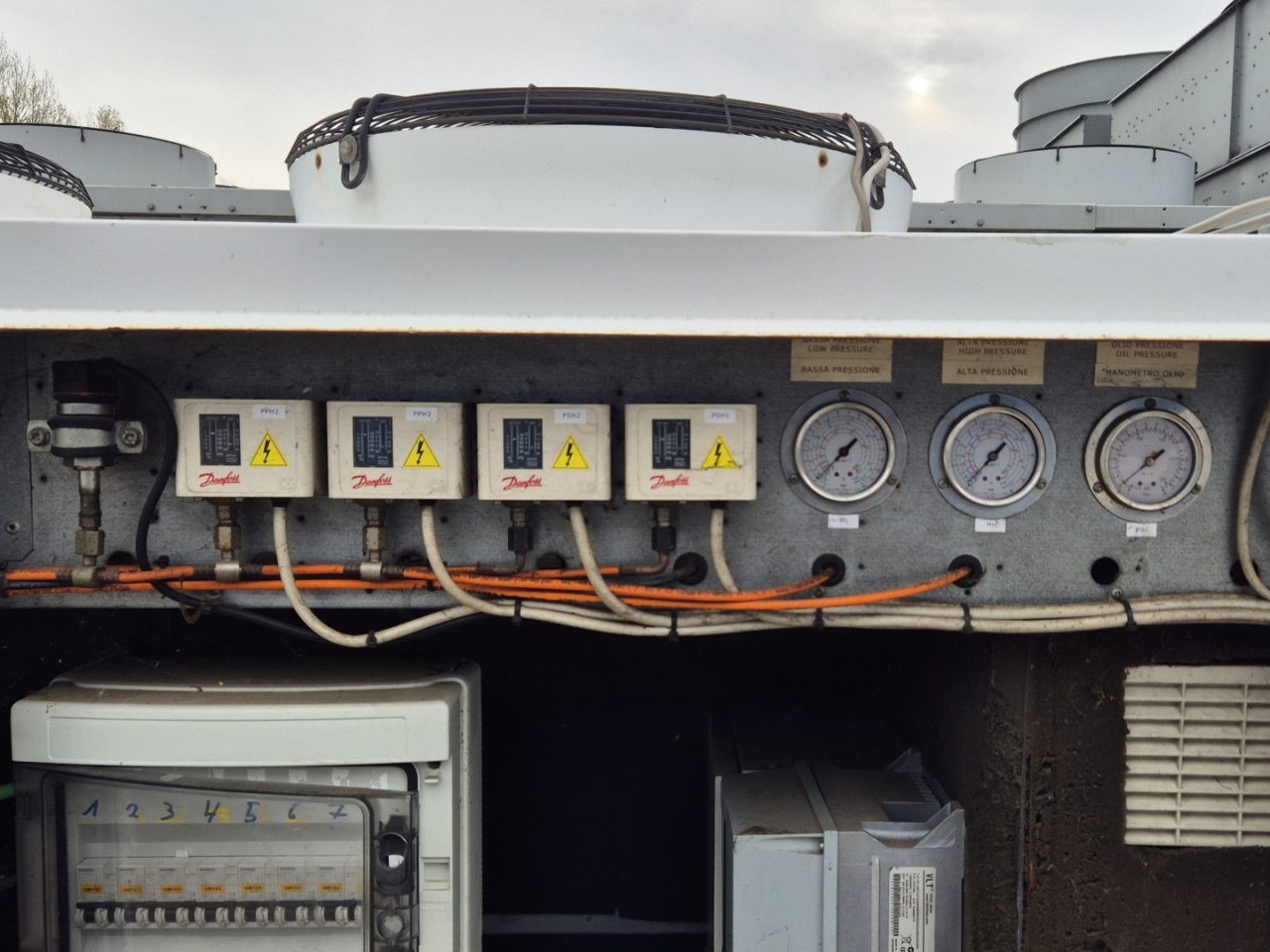

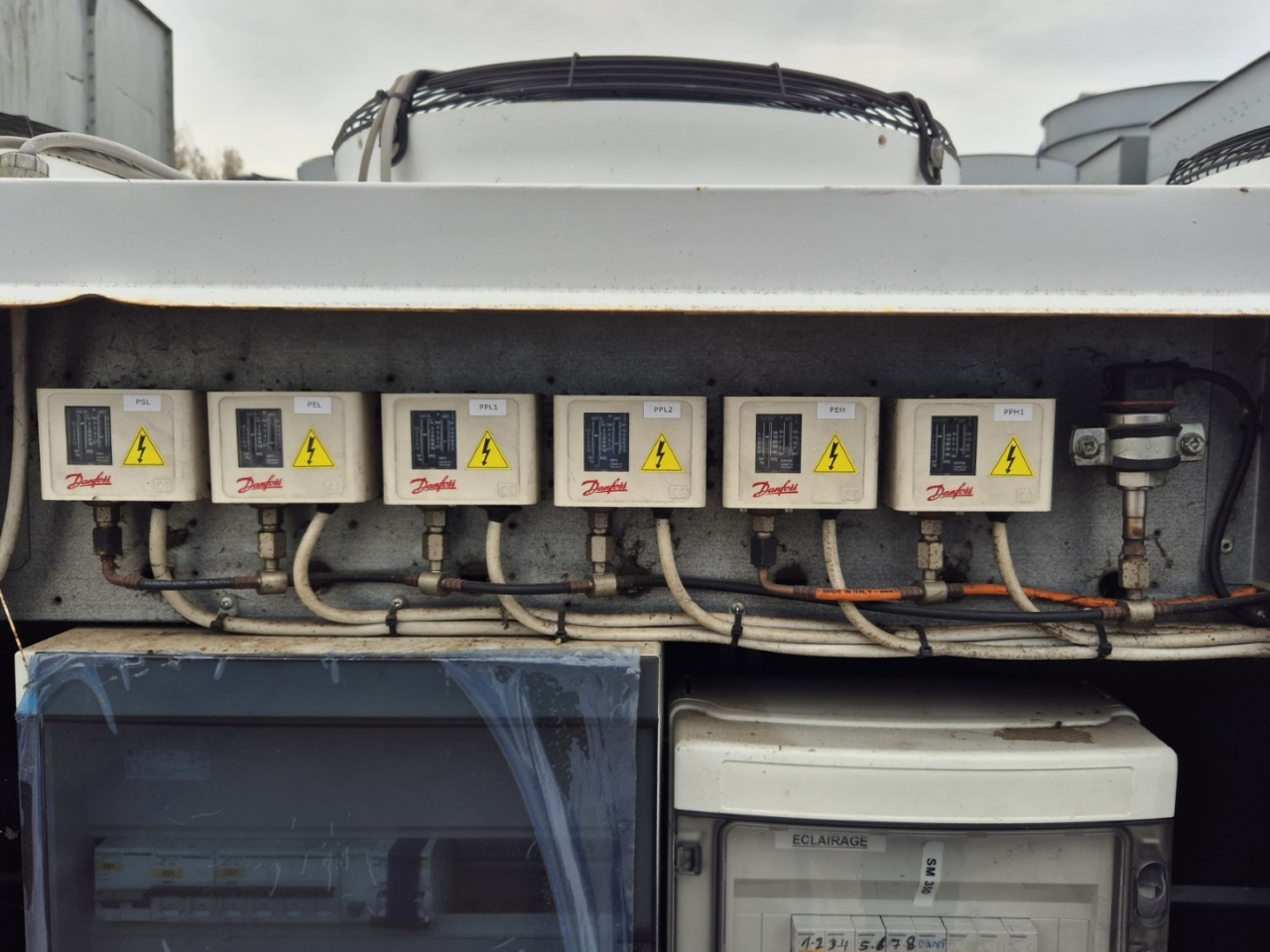

| Interrupteurs de sécurité de pression |
|
| Manomètres |
|
| Commutateurs de pression de condensation |
|
| Réservoir de liquide |
|
| Aspiration d'accumulateur |
|
| Système de niveau d'huile |
|
| Voyant |
|
| Panneau de configuration |
|
| m3 / h | 122 m³/h at 50 Hz & 162,1 m³/h at 60 Hz |
| Remarques | | Y.o.b. 2010 |
| Tailles | 3400x1450x1800 mm (LxWxH) |
| Quantité en stock | 1 |
Rivacold RV4C0136 / 4HE-15Y-40P (x1) & 4PES-15Y-40P (x1) Condensing unit

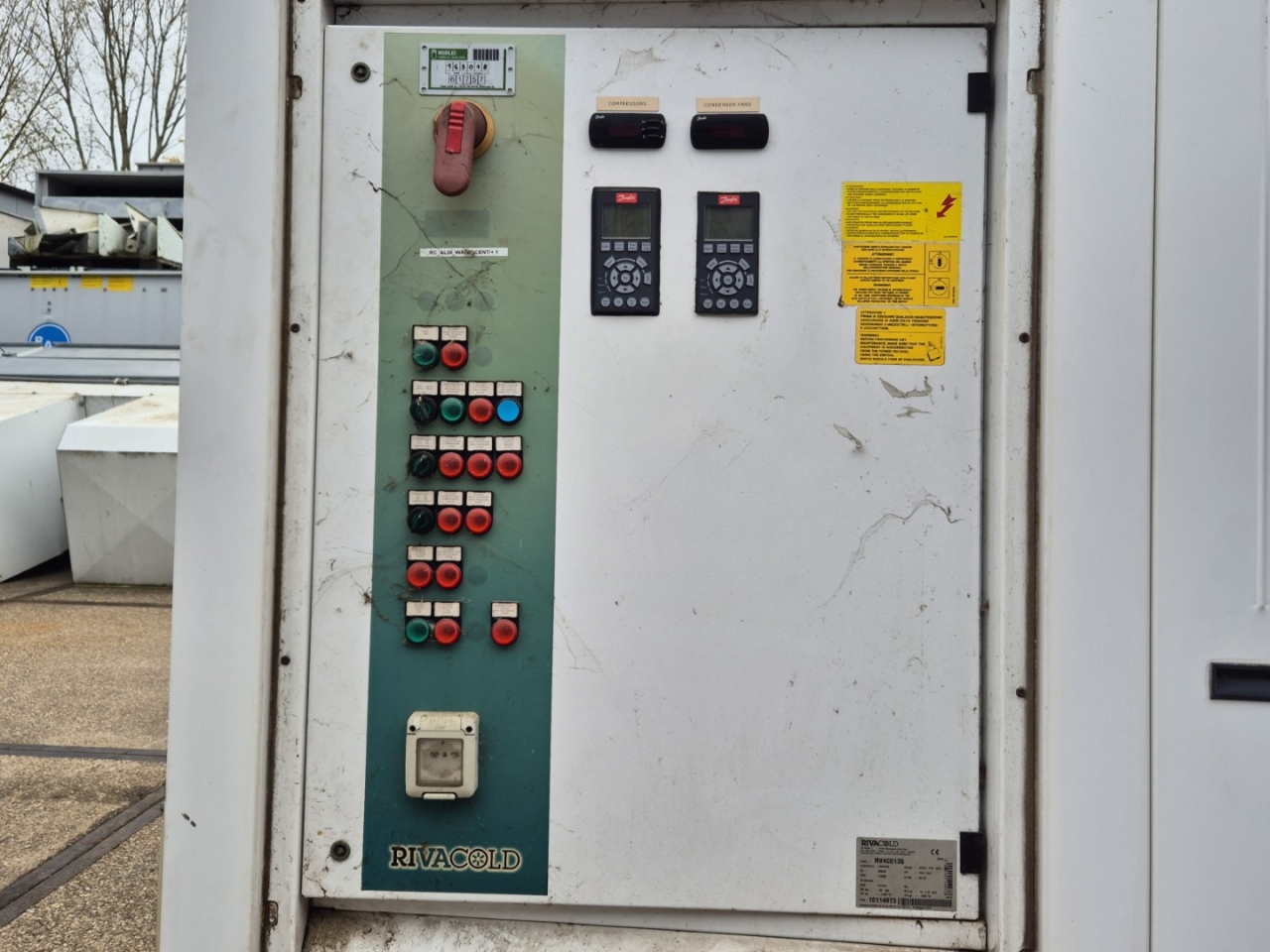

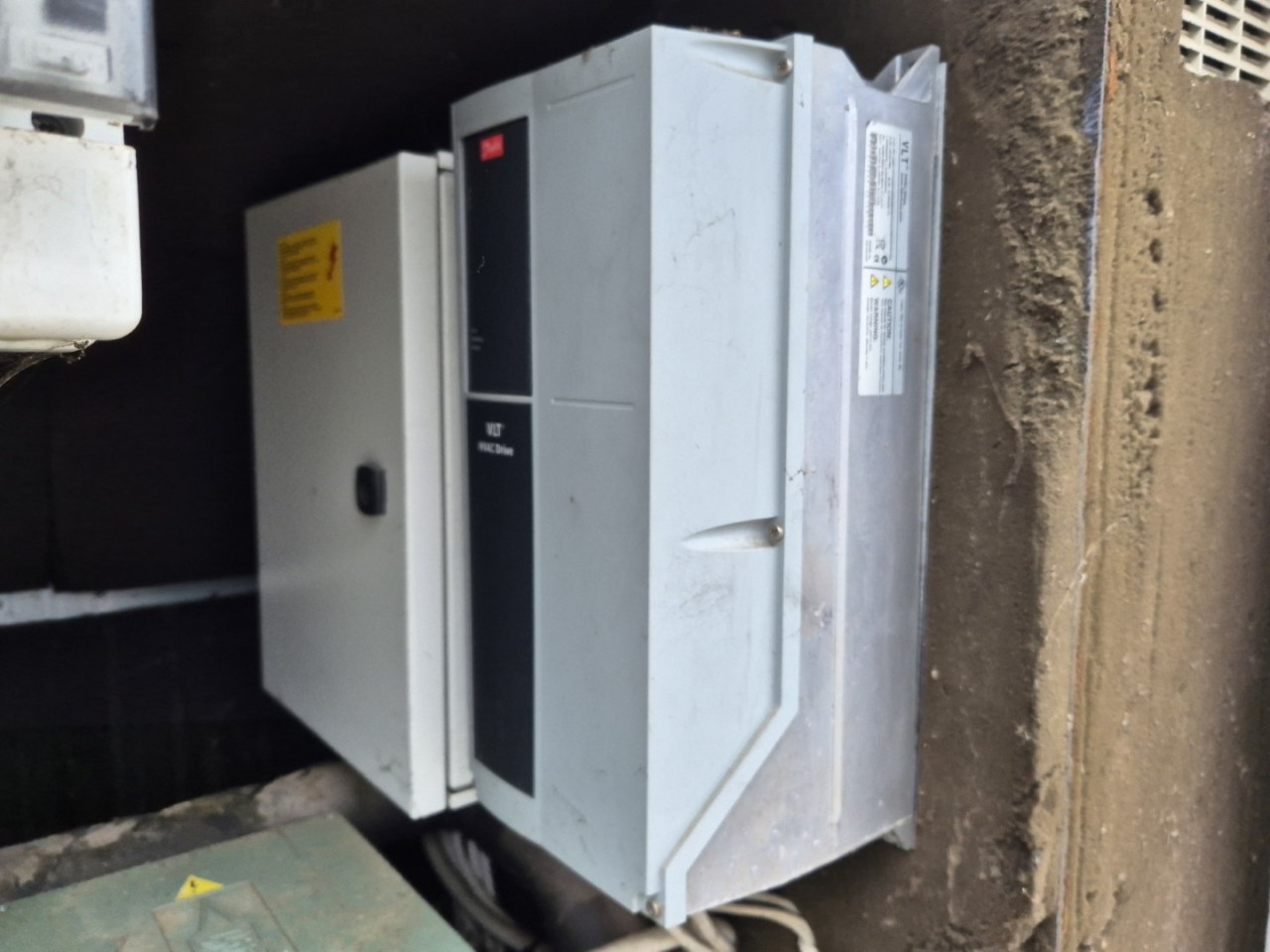

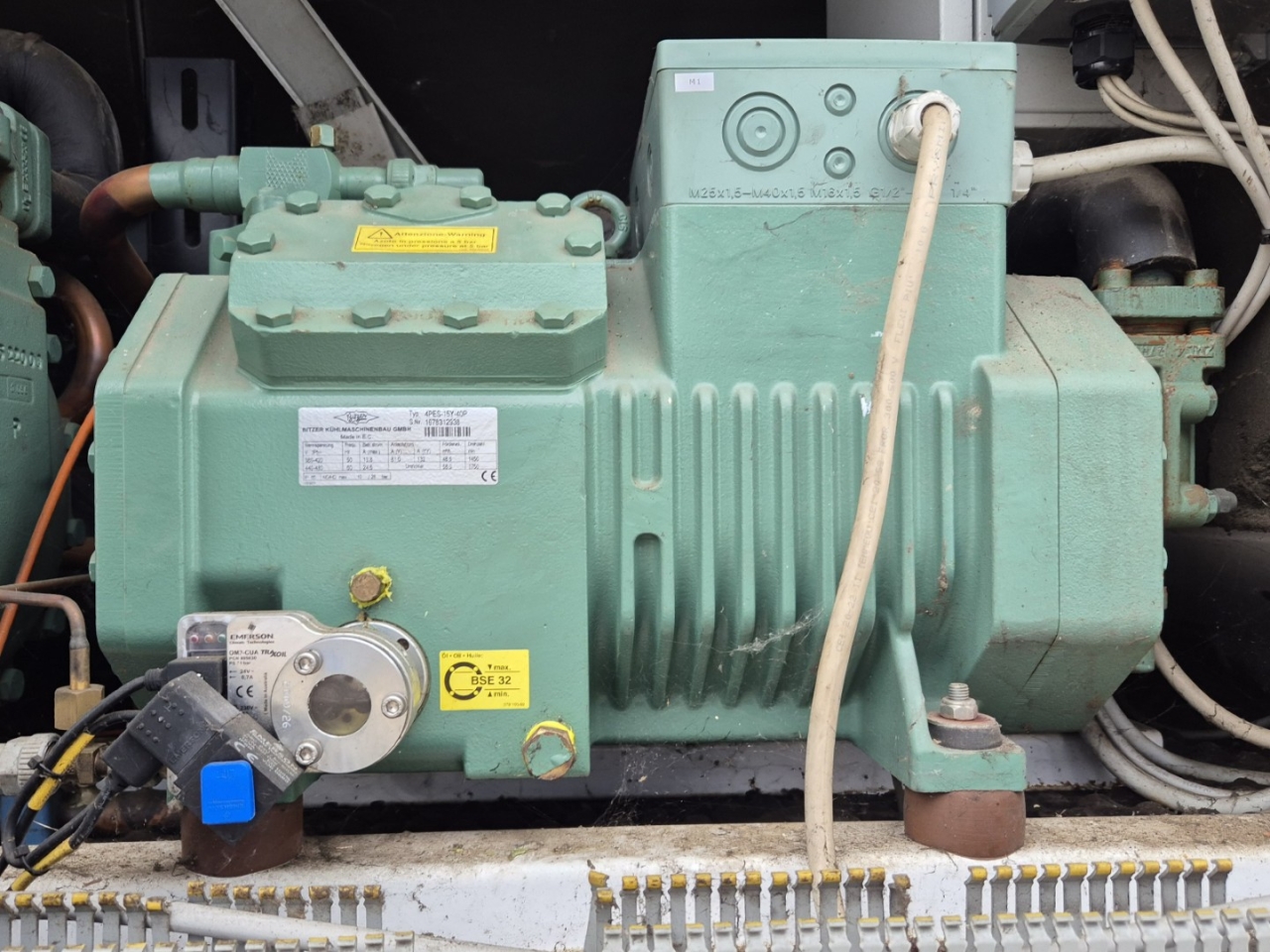

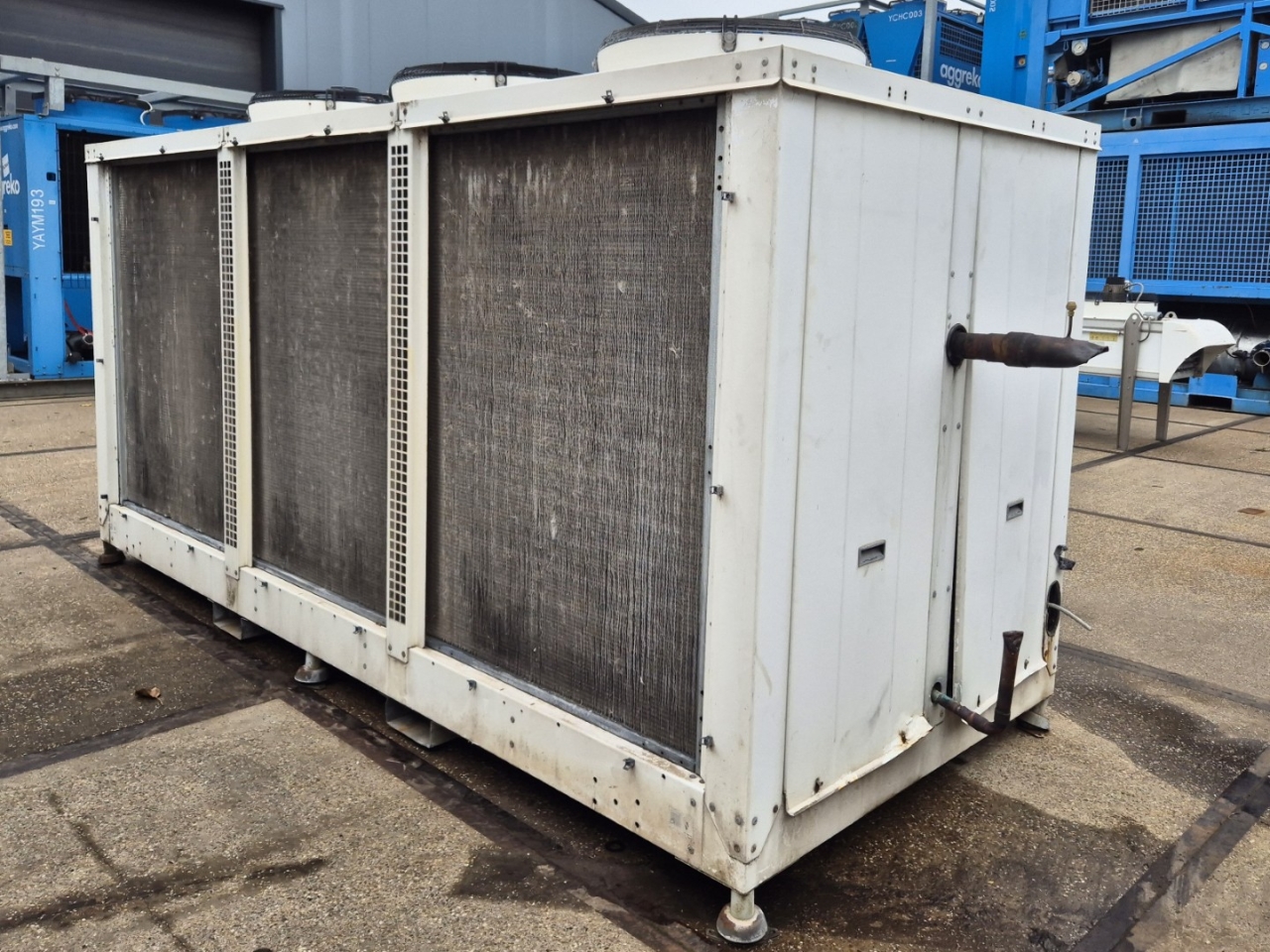

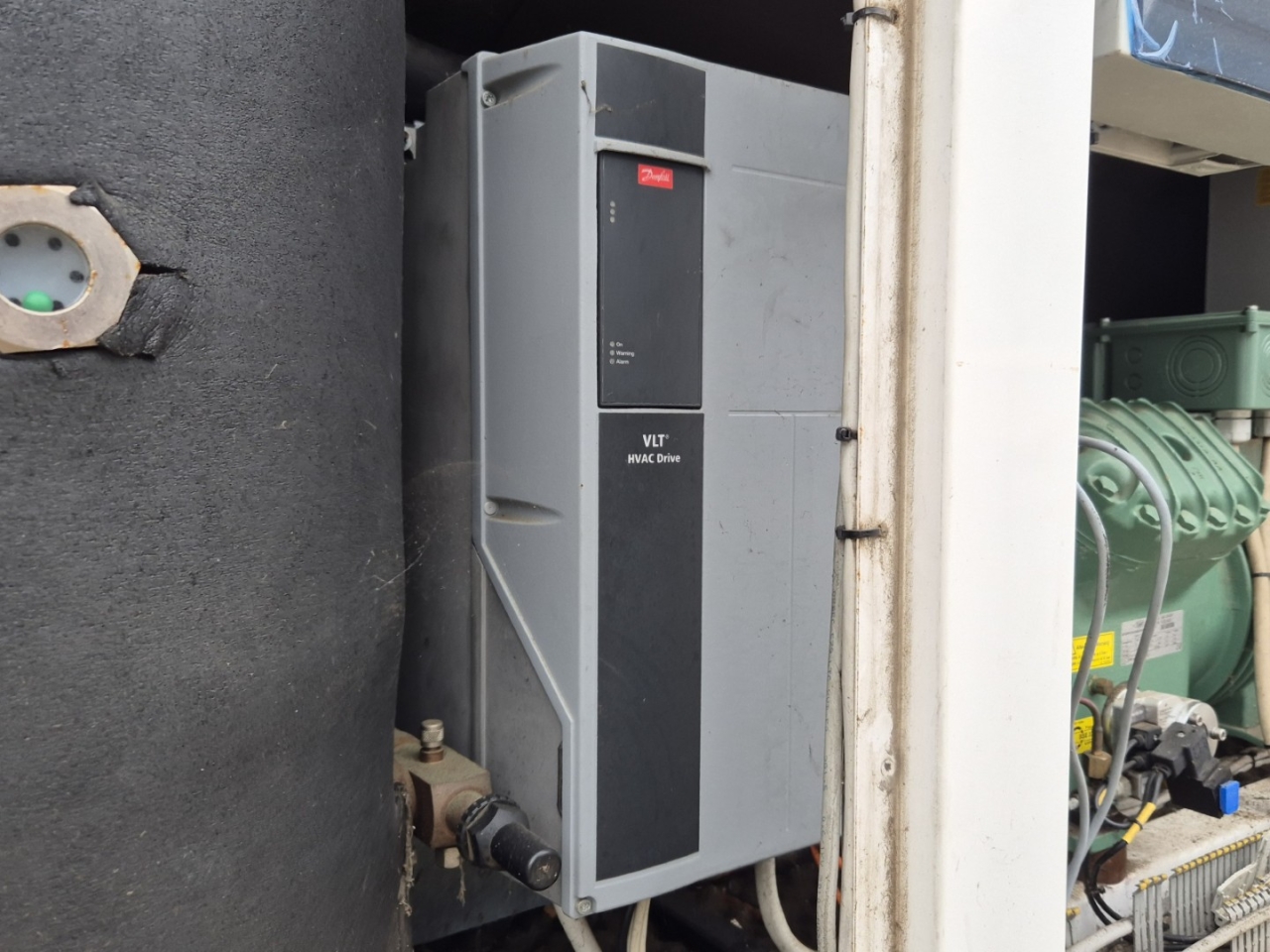

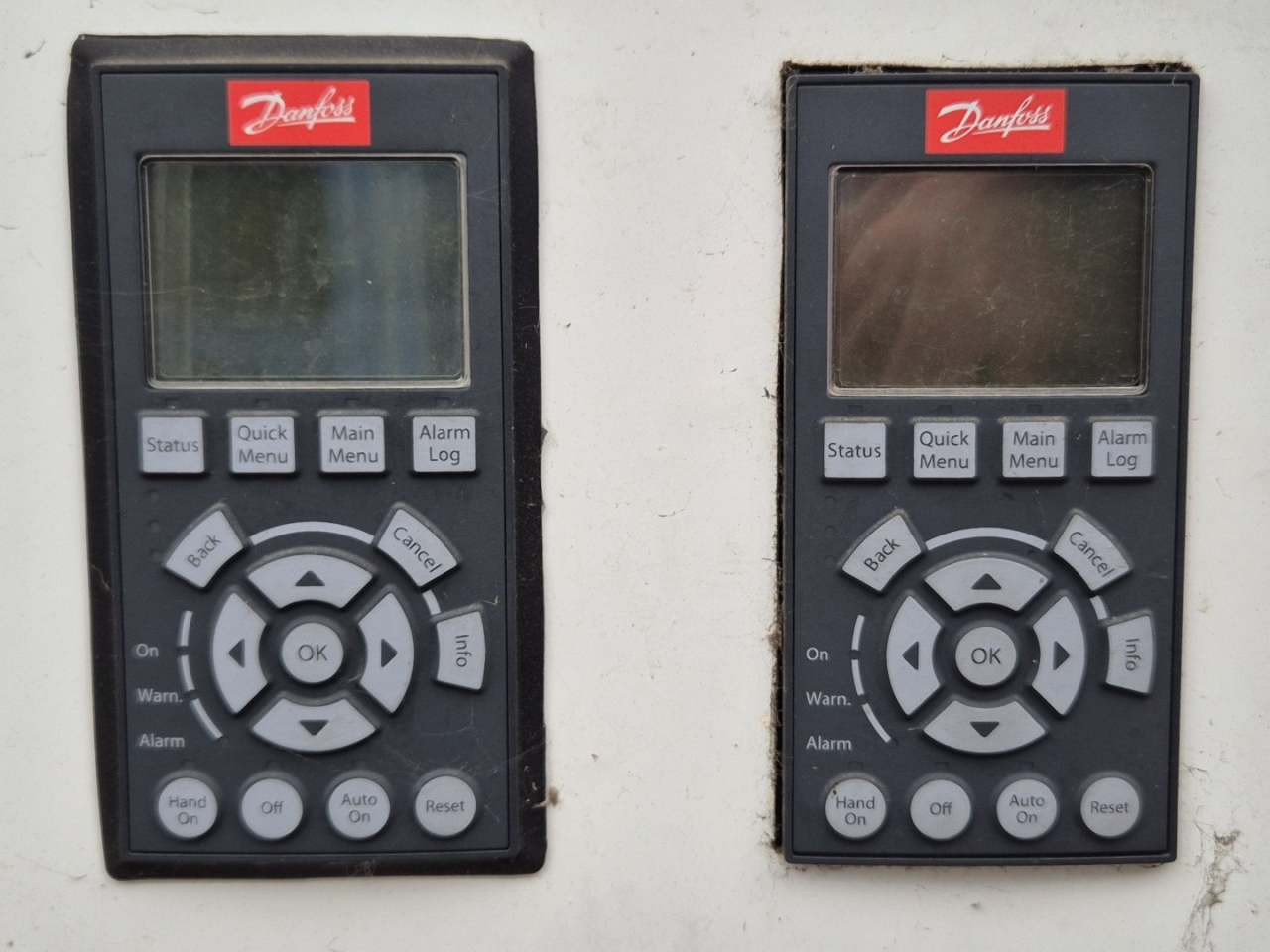

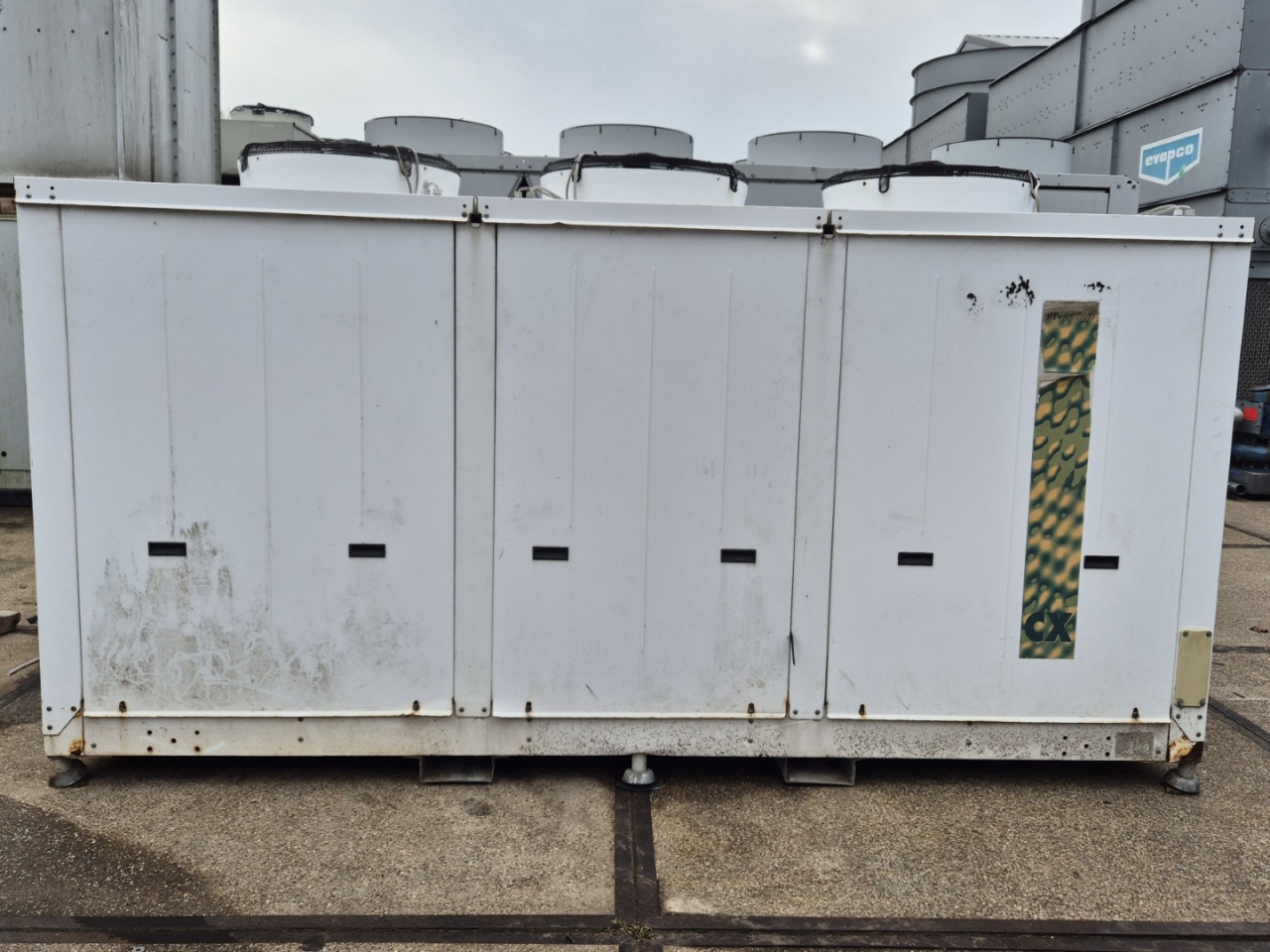

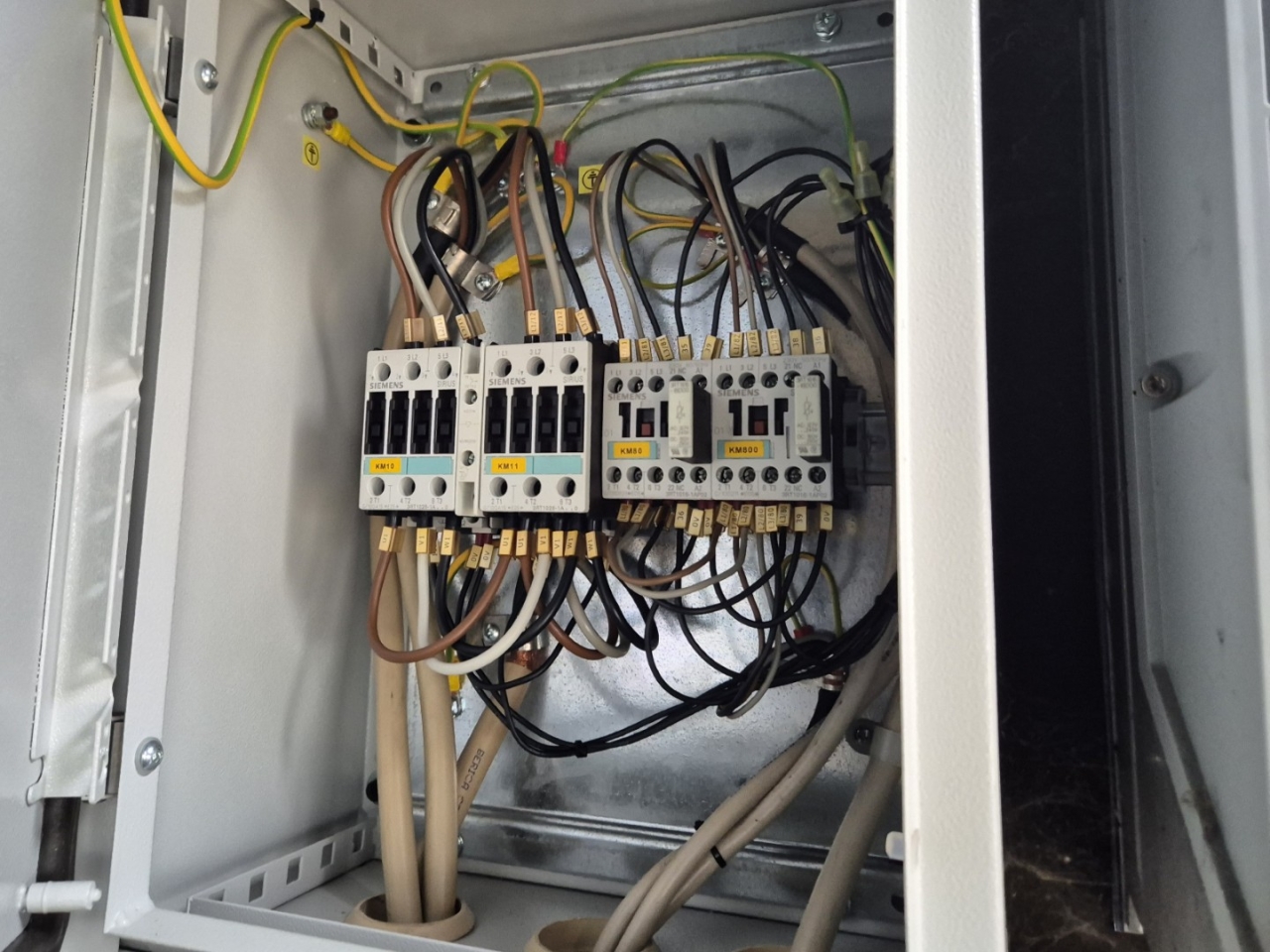

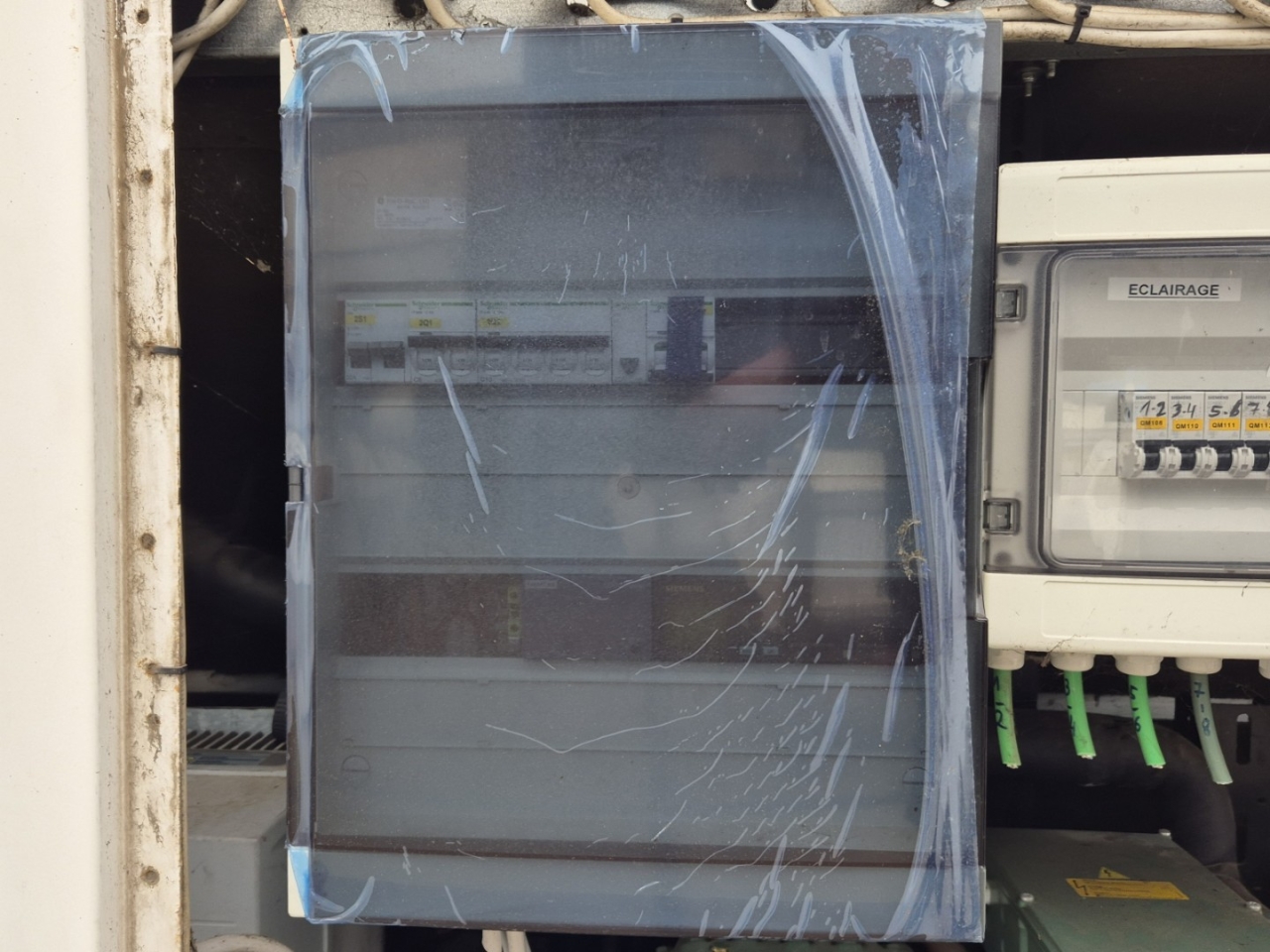

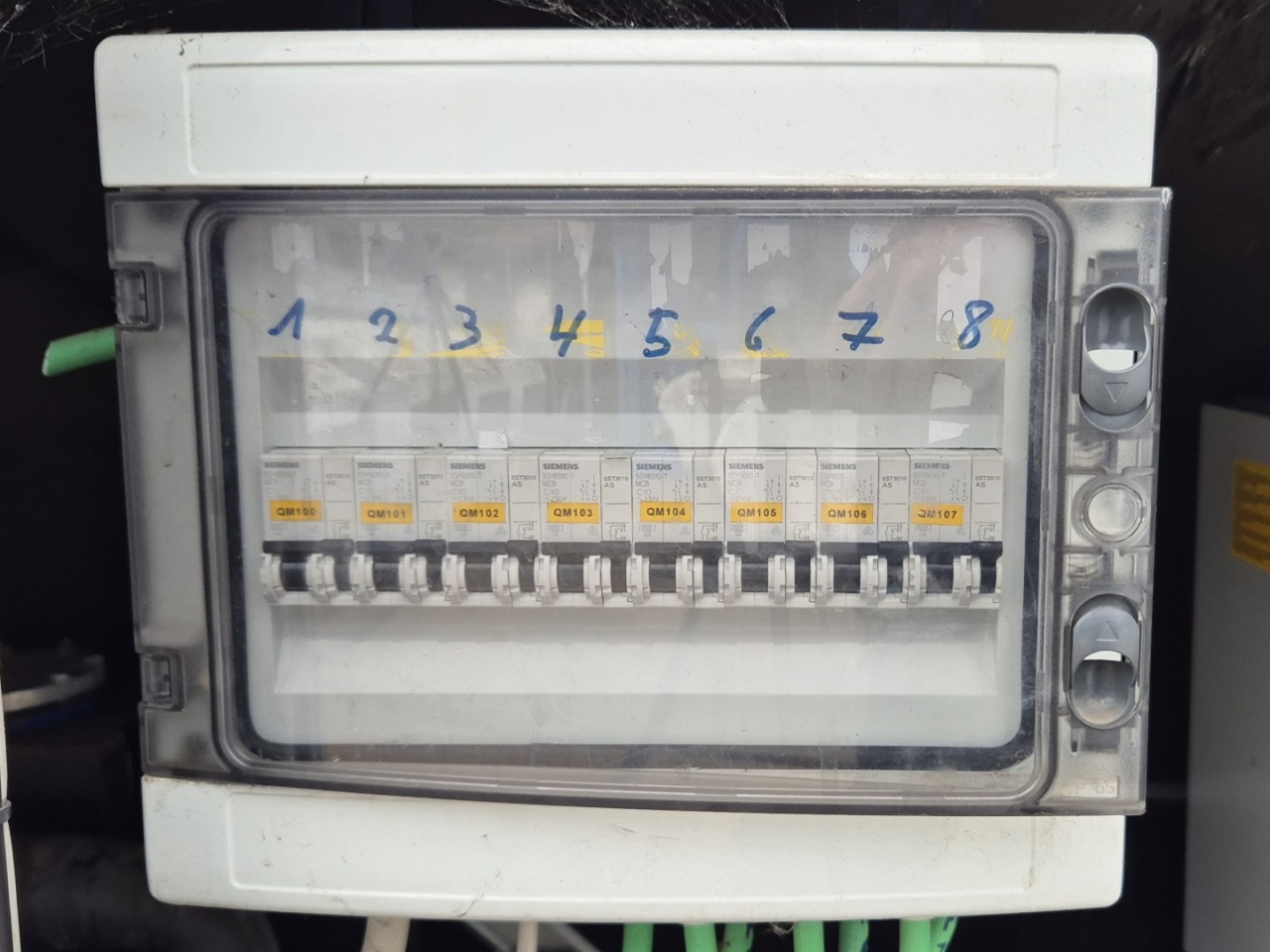

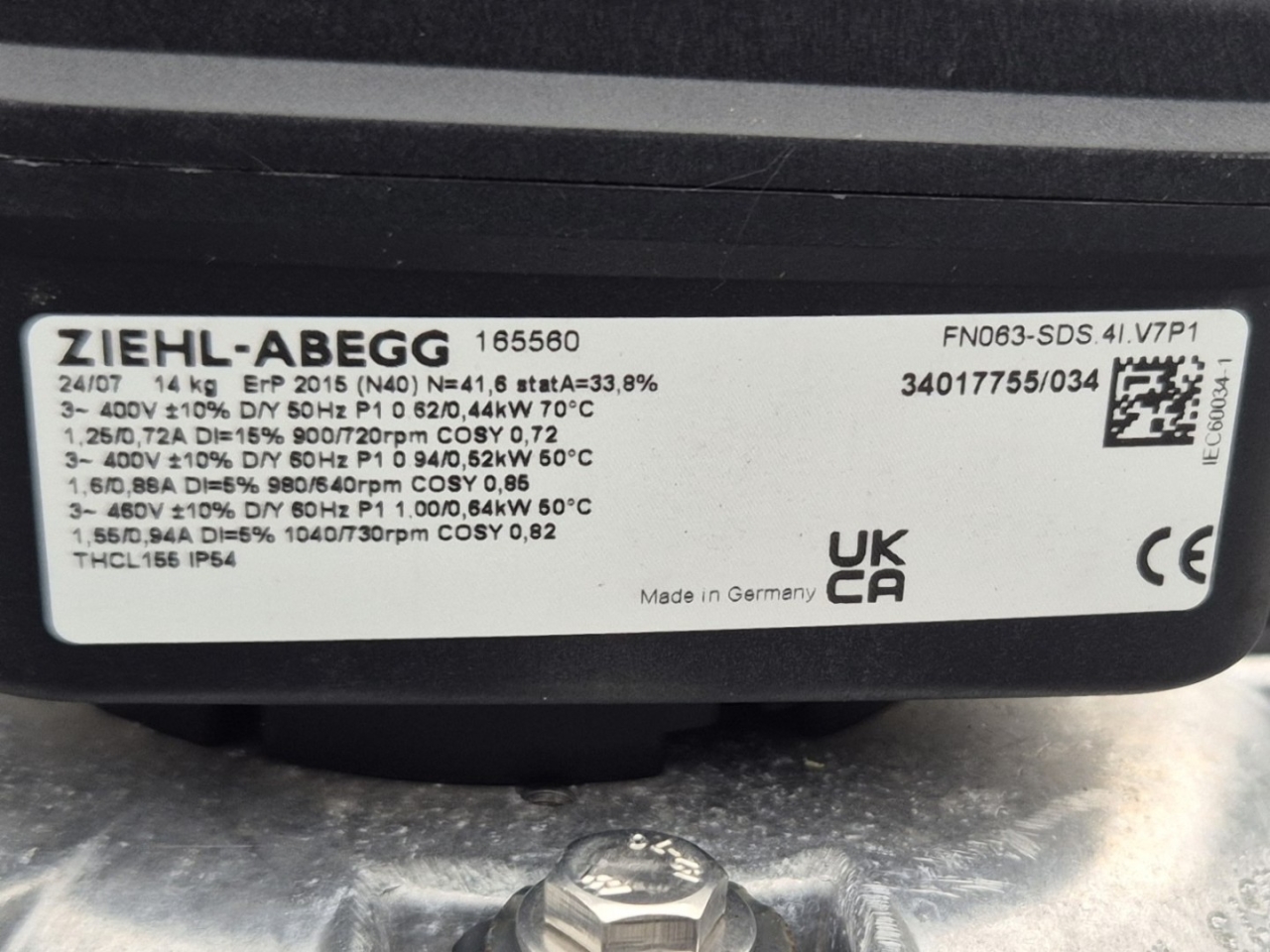

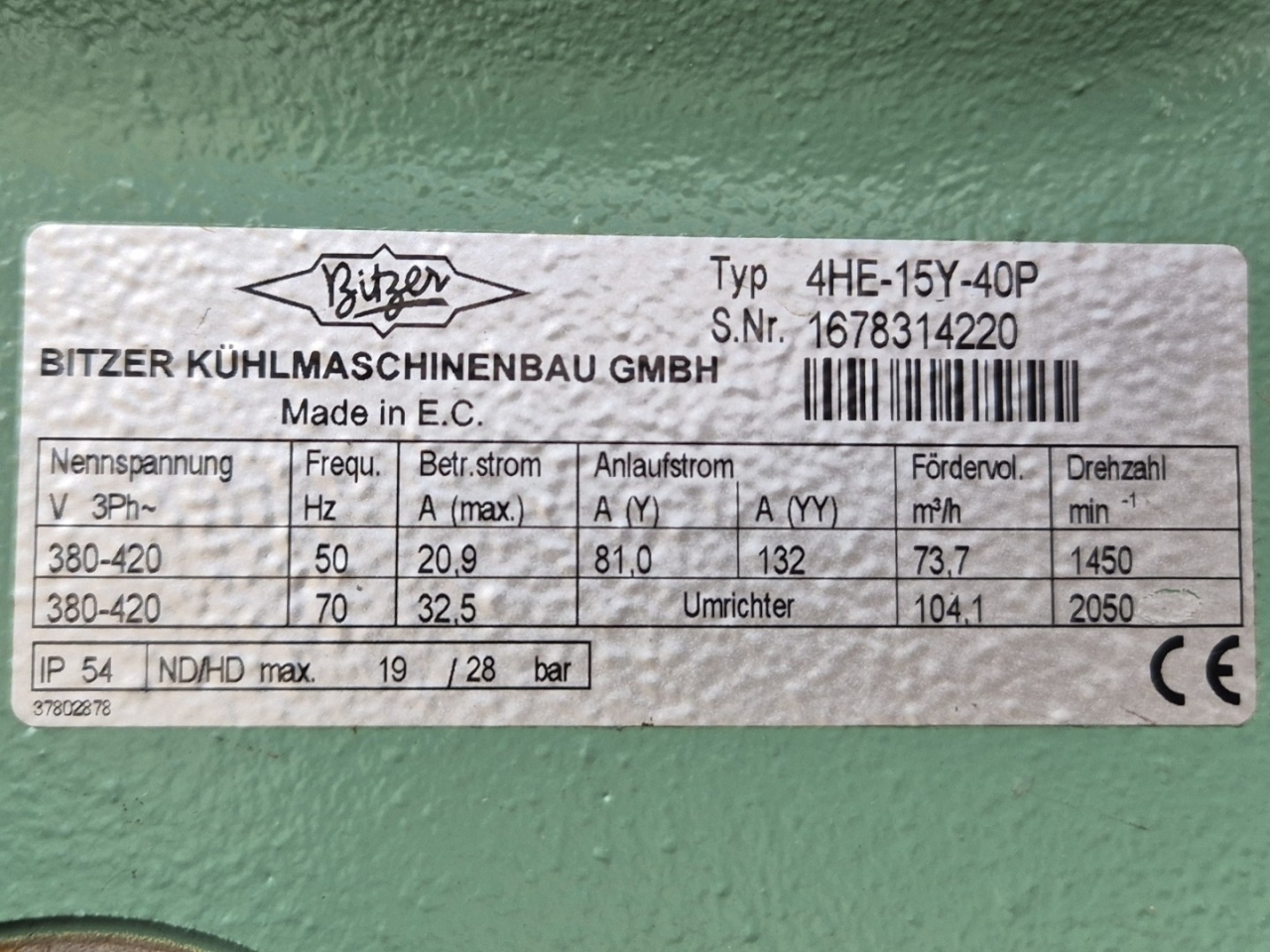

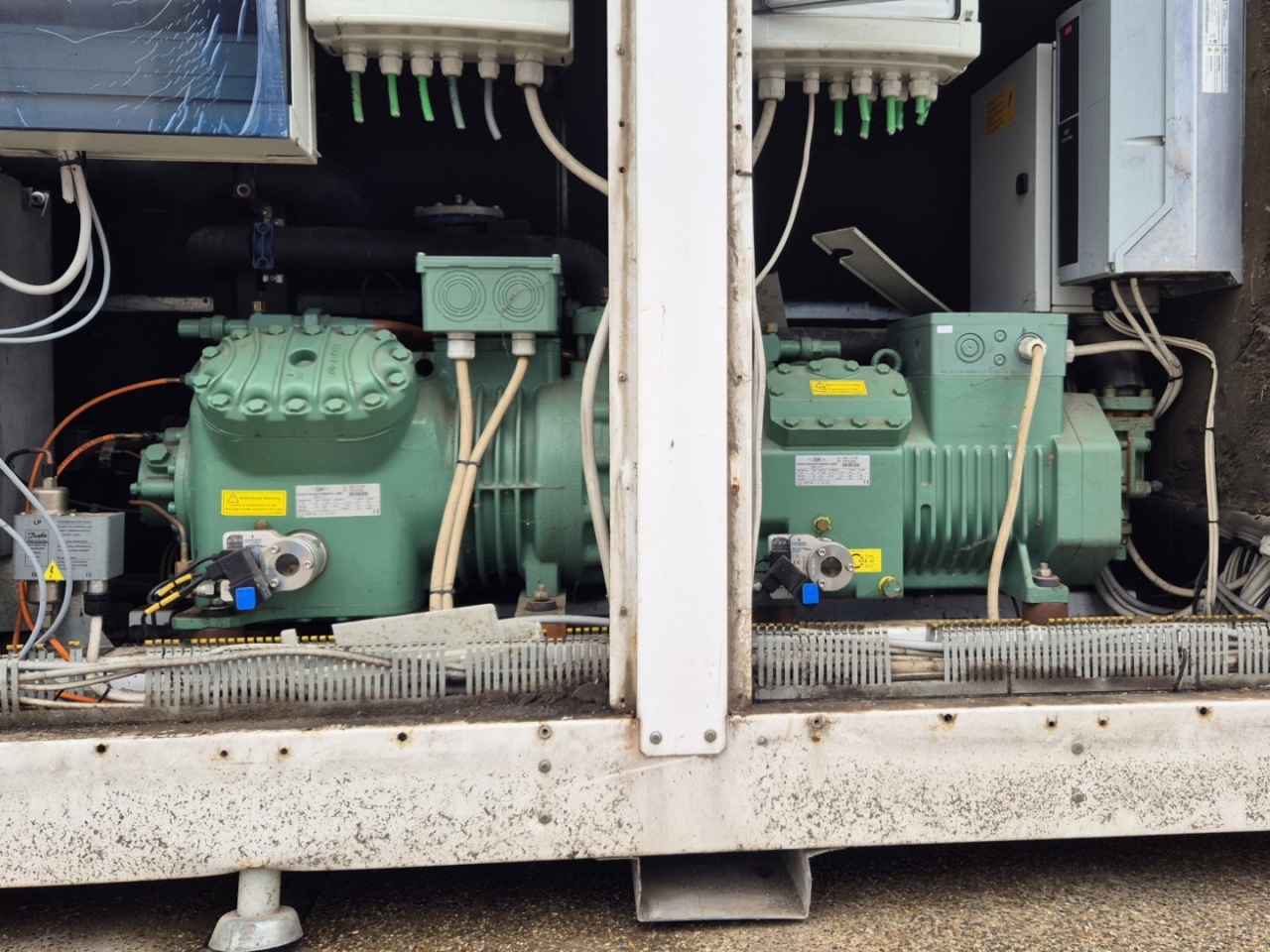

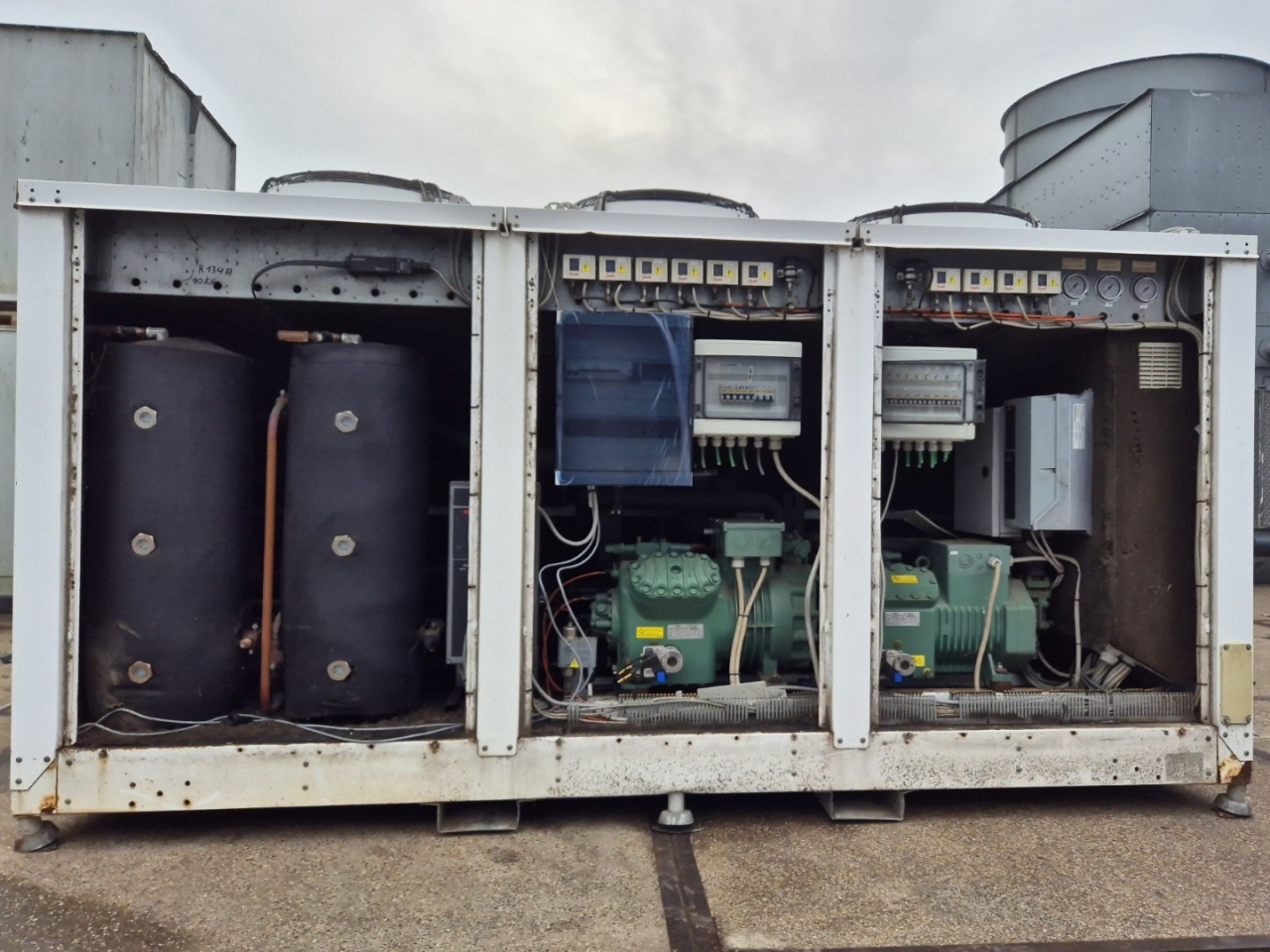

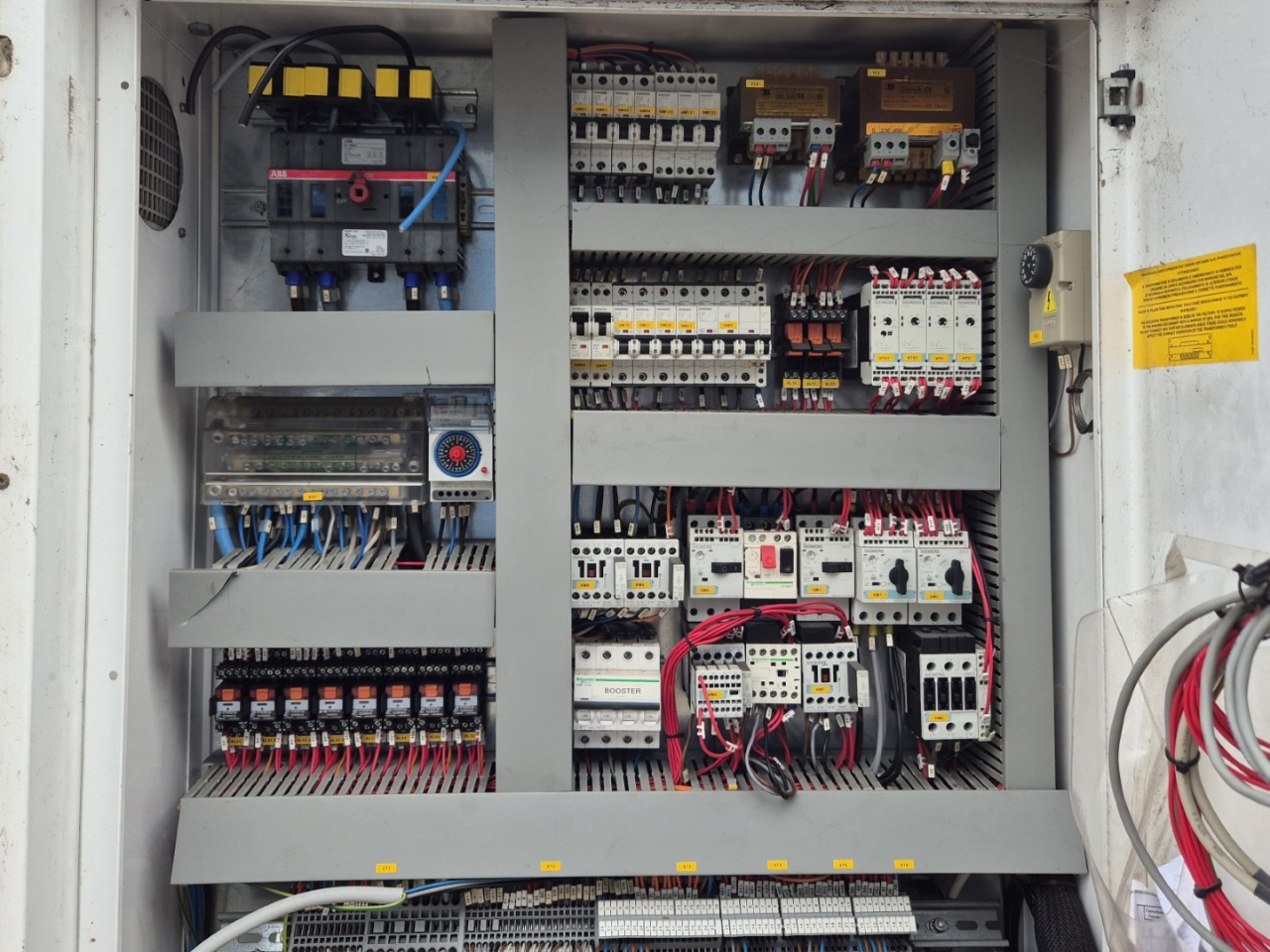

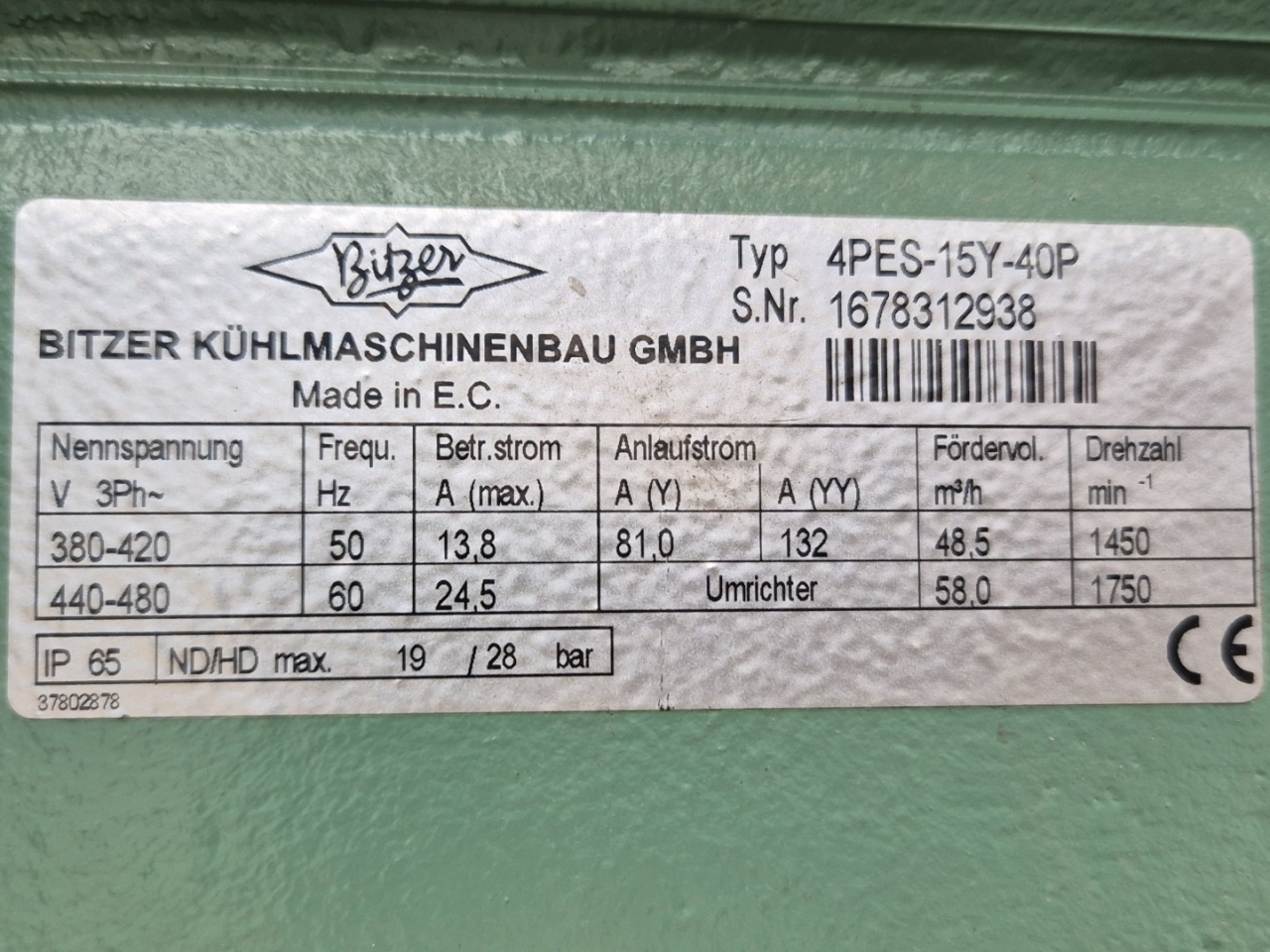

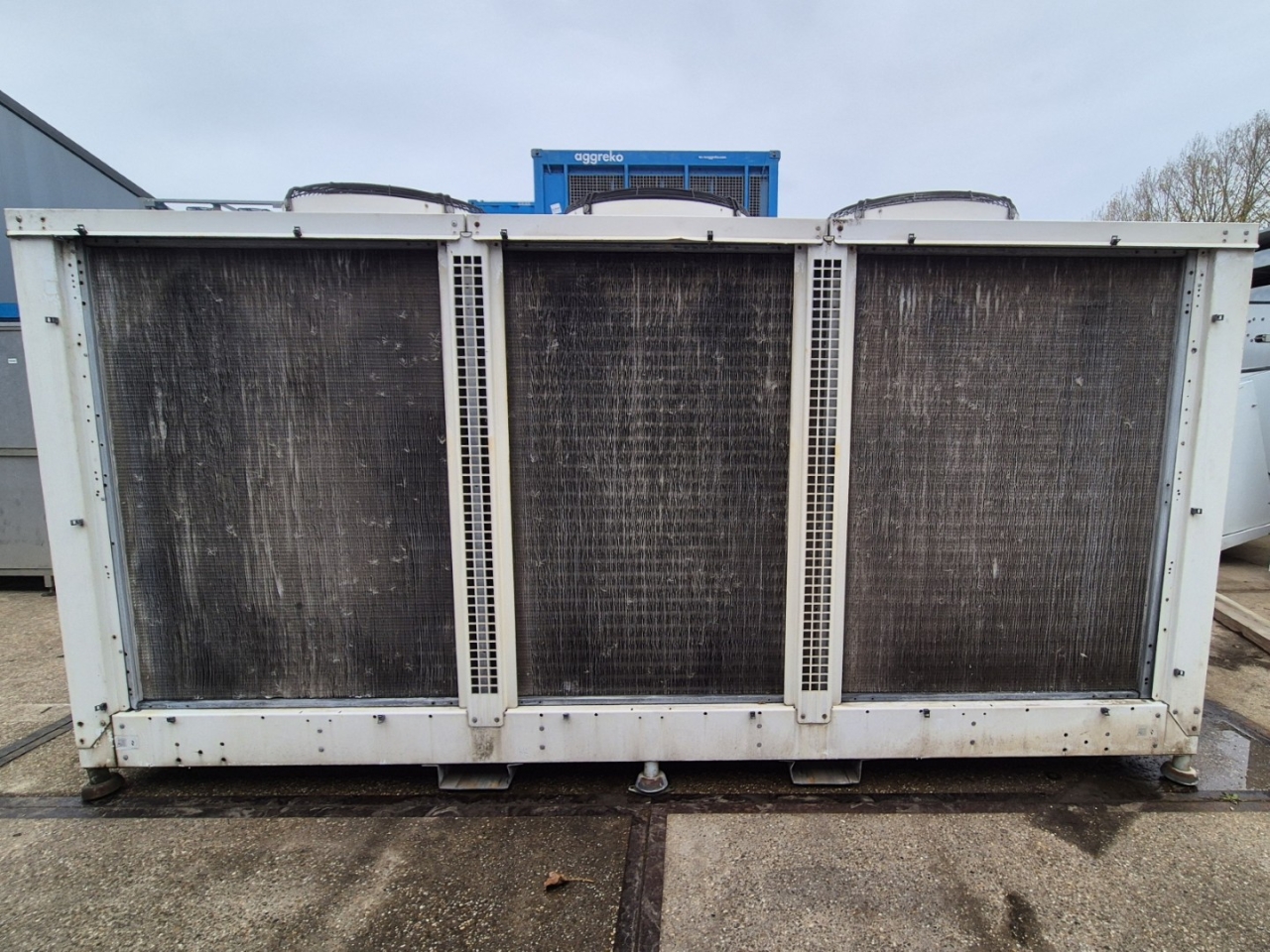

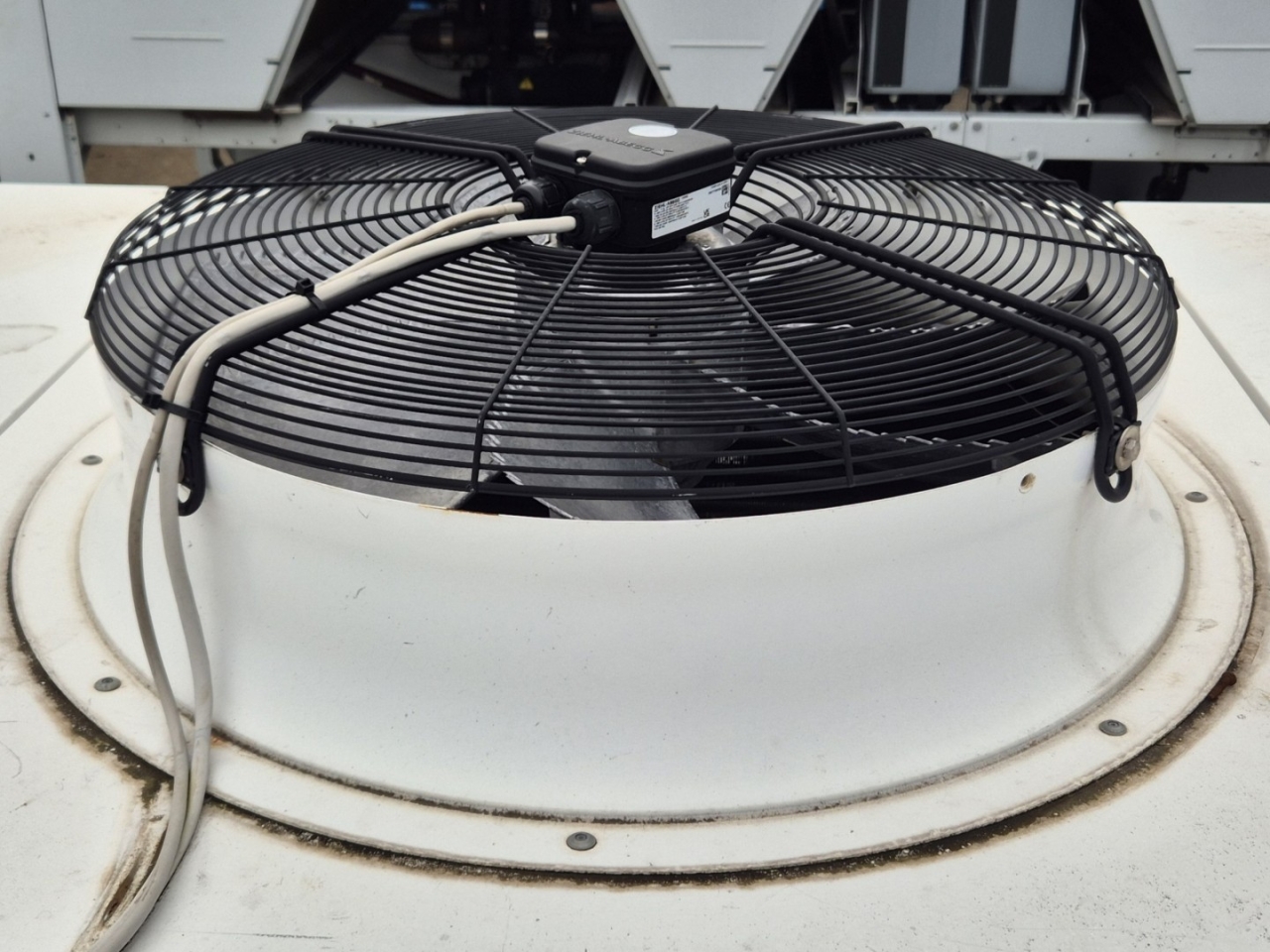

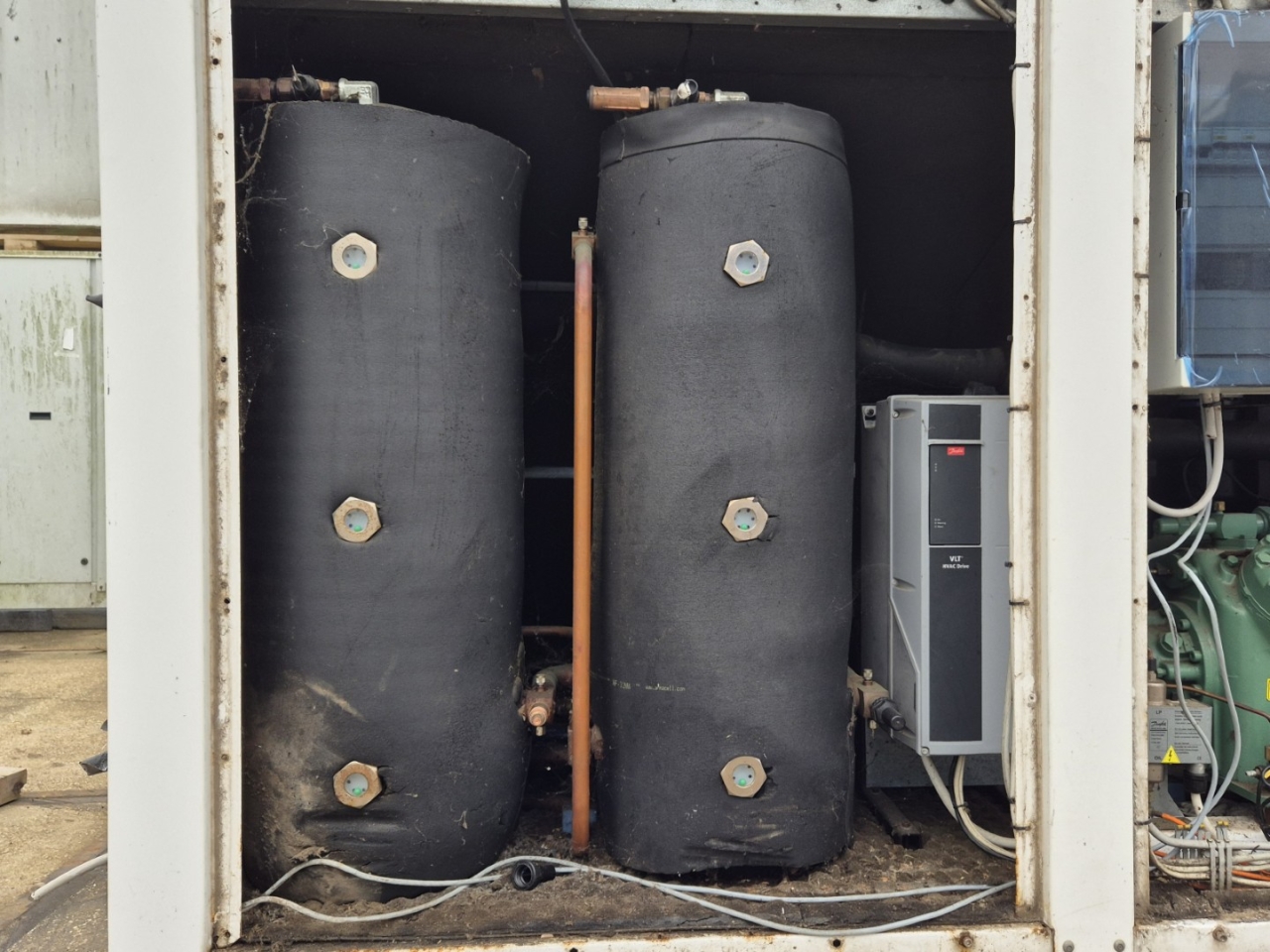

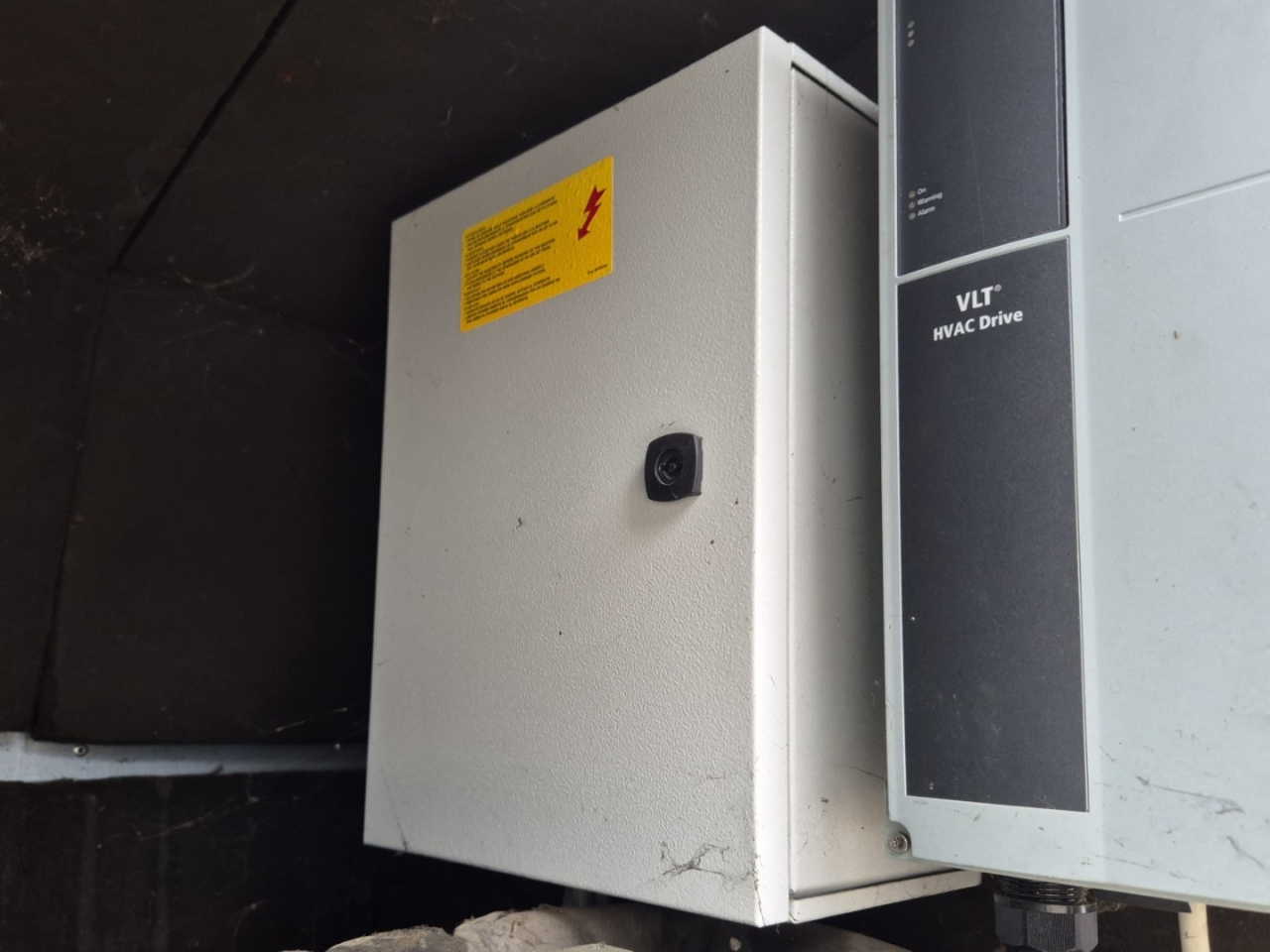

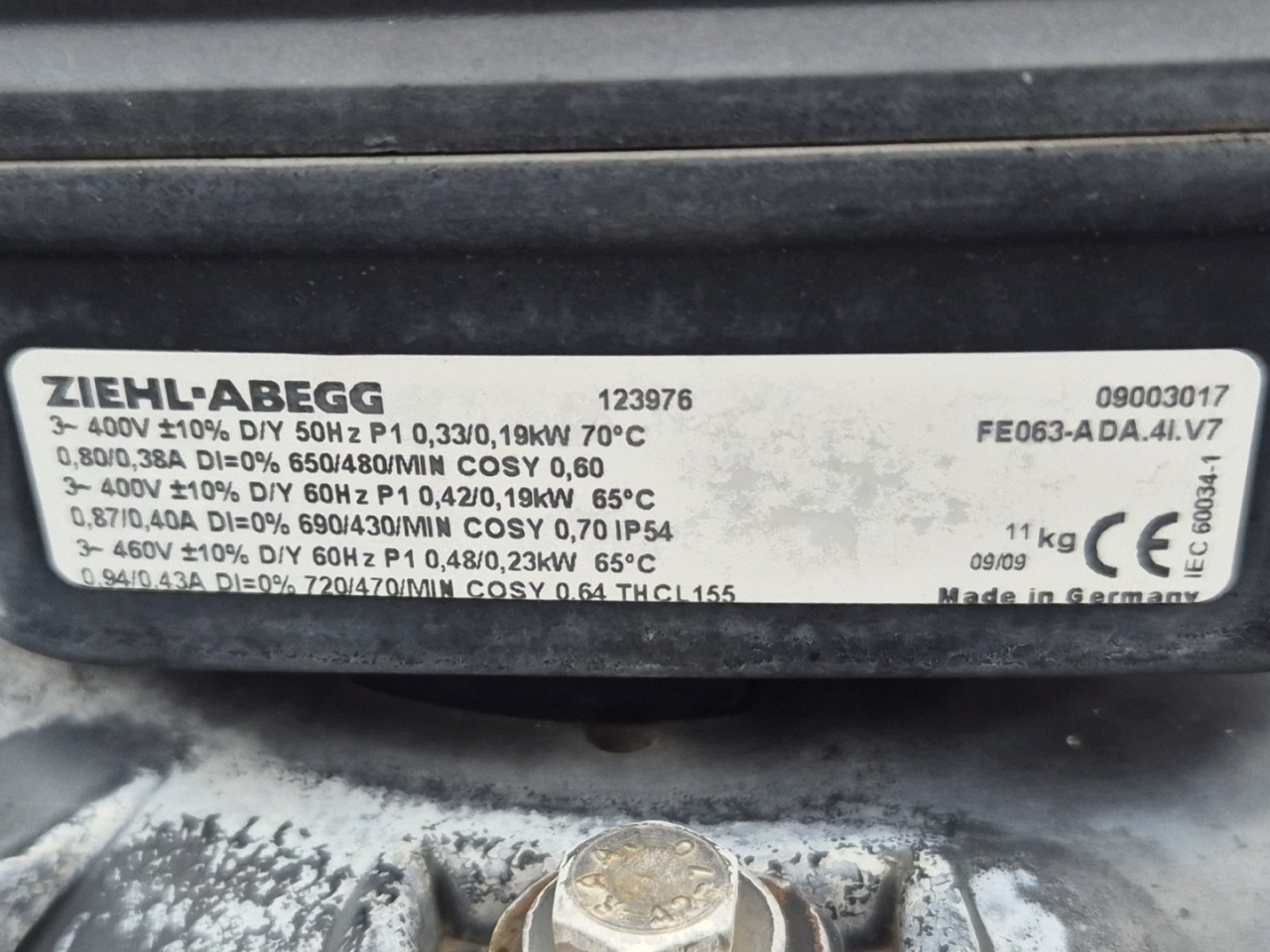

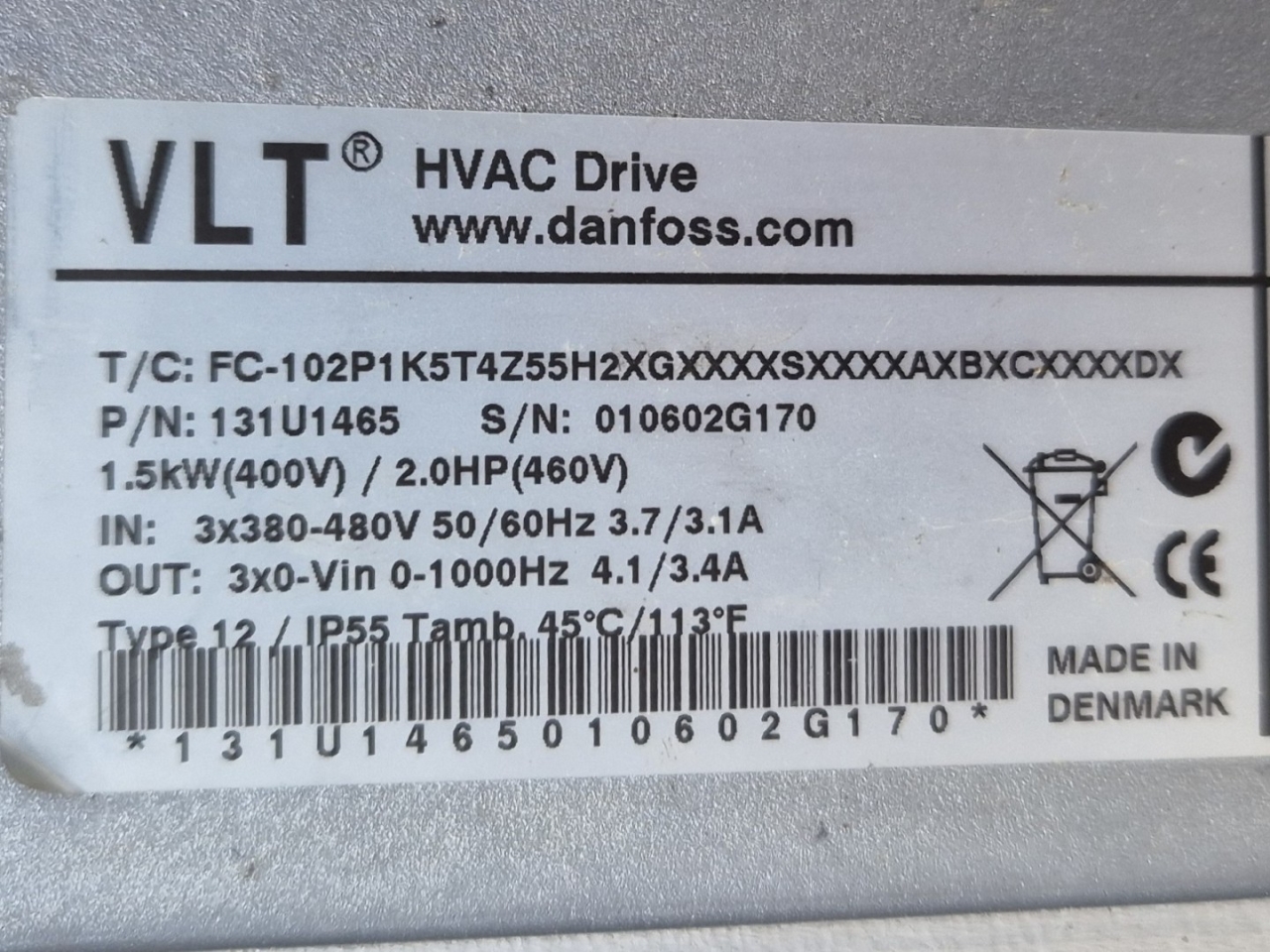

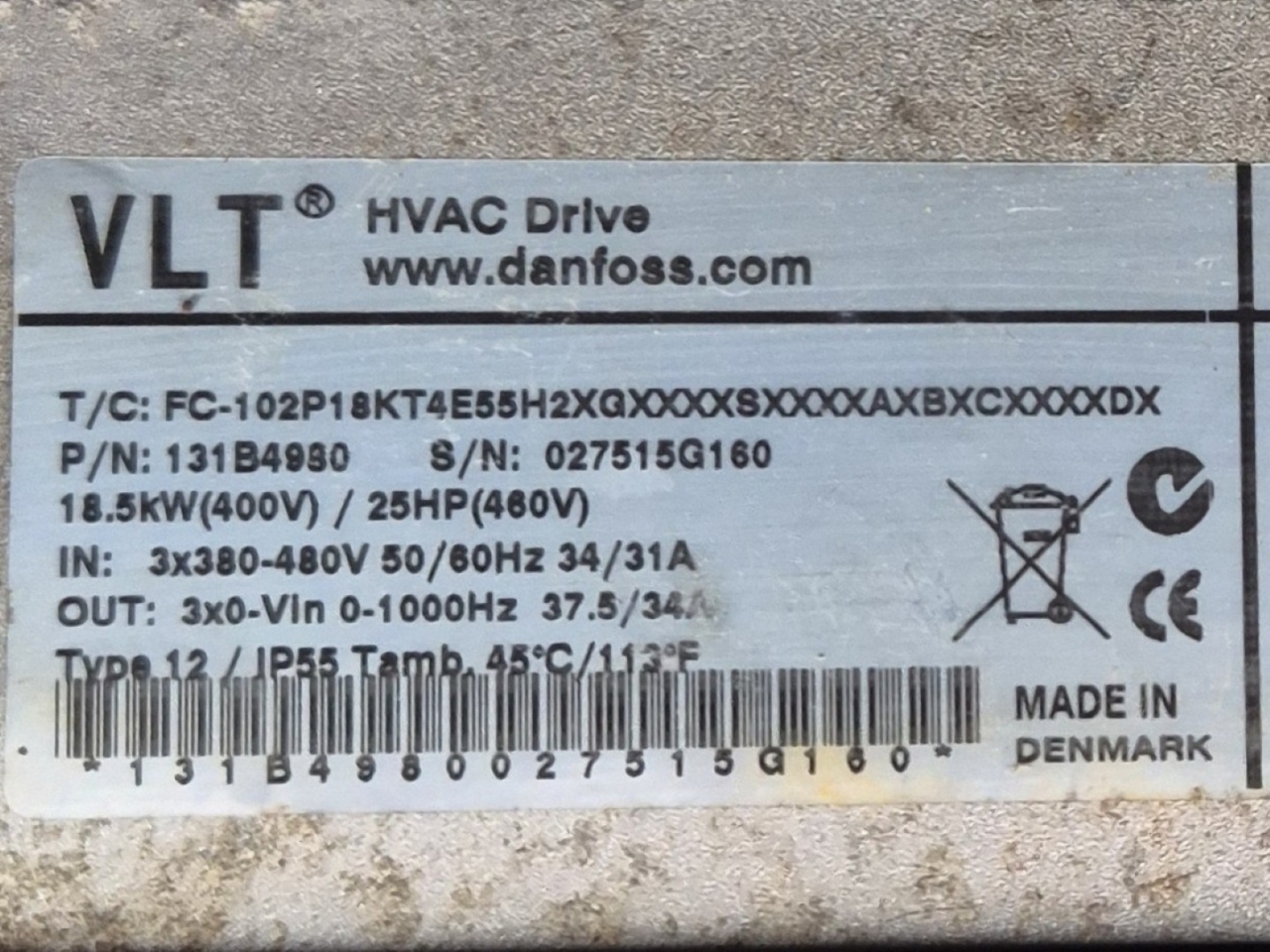

Used Rivacold RV4C0136 air-cooled condensing unit on Freon. Complete with 1 Bitzer 4HE-15Y-40P (x1) & 4PES-15Y-40P (x1) semi-hermetic reciprocating compressors, condenser with 1 Ziehl-Abegg FN063-SDS.4I.V7P1 fan - 50 Hz - 0,62/0,44 kW - 900/720 RPM - diameter 630 mm & 2 Ziehl-Abegg FE063-ADA.4I.V7 fans - 50 Hz - 0,33/0,19 kW - 650/480 RPM - diameter 630 mm, 2 liquid receivers, 2 Danfoss VLT HVAC drives with each a Danfoss LCP 102 controller, control cabinet with a Danfoss EKAB 163B & 164B controller.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
Rivacold RV4C0136 / 4HE-15Y-40P (x1) & 4PES-15Y-40P (x1) Condensing unit
| Rivacold RV4C0136 / 4HE-15Y-40P (x1) & 4PES-15Y-40P (x1) Condensing unit - | (PDF) |
| Rivacold RV4C0136 / 4HE-15Y-40P (x1) & 4PES-15Y-40P (x1) Condensing unit - Spécifications | (PDF) |
| 18499_Bitzer 4PES-15Y-40P Specifications.pdf | (PDF) |
