Grasso RC611 Compressor unit
Grasso RC611 Compressor unit
| 18556 | |
| Marque | Grasso |
| Le type | RC611 Compressor unit |
| Réfrigérant | NH 3 (ammonia) |
| kW at +10ºC/+40ºC | 990,1* |
| kW at 0ºC/+40ºC | 662,8* |
| kW at -5ºC/+40ºC | 532,3* |
| kW at -10ºC/+40ºC | 418,5* |
| Électromoteur Specs | 50 Hz / 132 kW / 1475 RPM |
| Sur le châssis en acier |
|
| Interrupteurs de sécurité de pression |
|
| Manomètres |
|
| Séparateur d'huile |
|
| Liquid déshydrateur ligne |
|
| Voyant |
|
| m3 / h | 798 |
| Remarques | | Y.o.b. 2009 |
| Remarques || | *Capacity based on NH3 - 1000 RPM. |
| Tailles | 2850x1750x1900 mm (LxWxH) |
| Quantité en stock | 1 |
Grasso RC611 Compressor unit

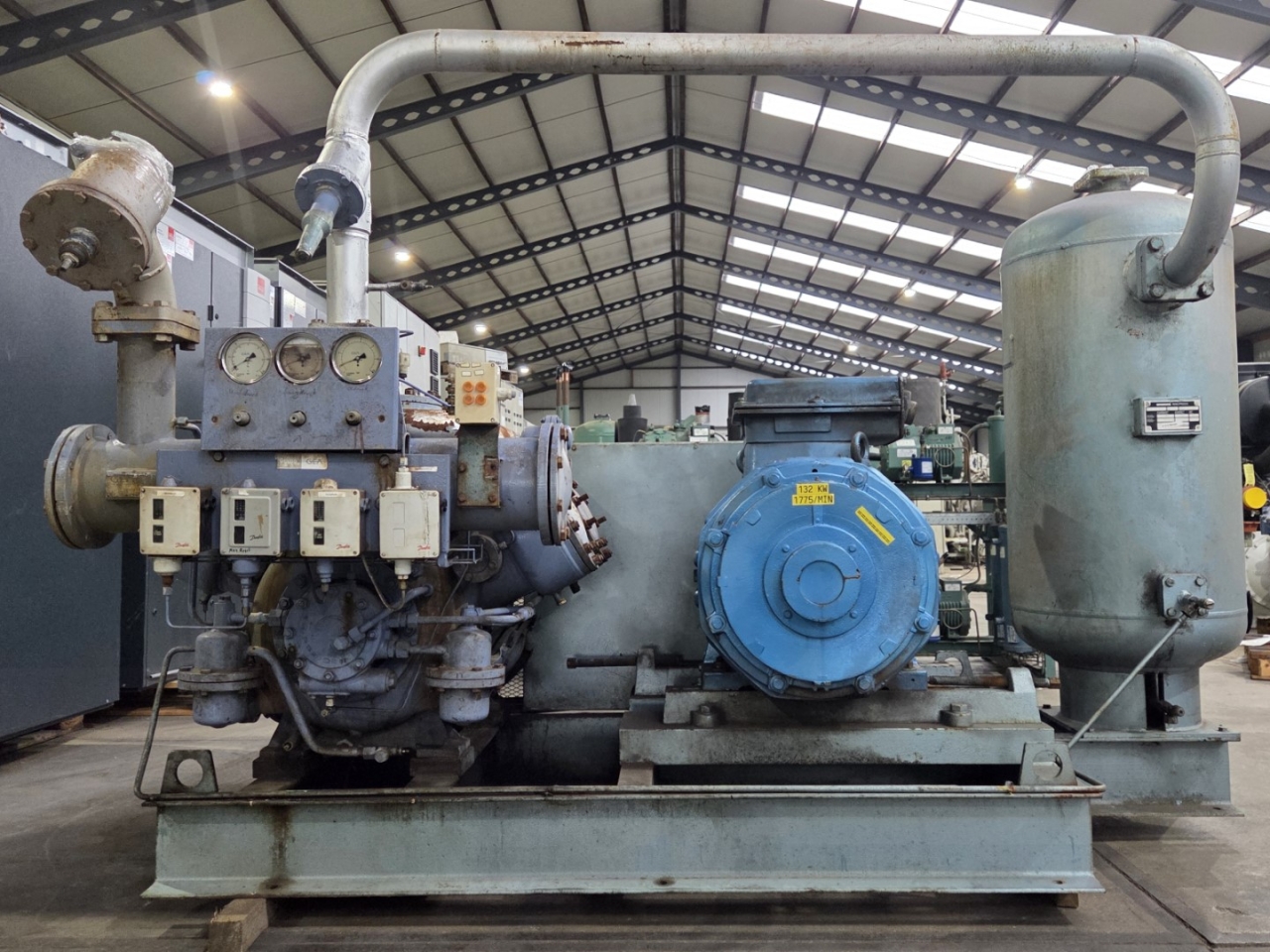

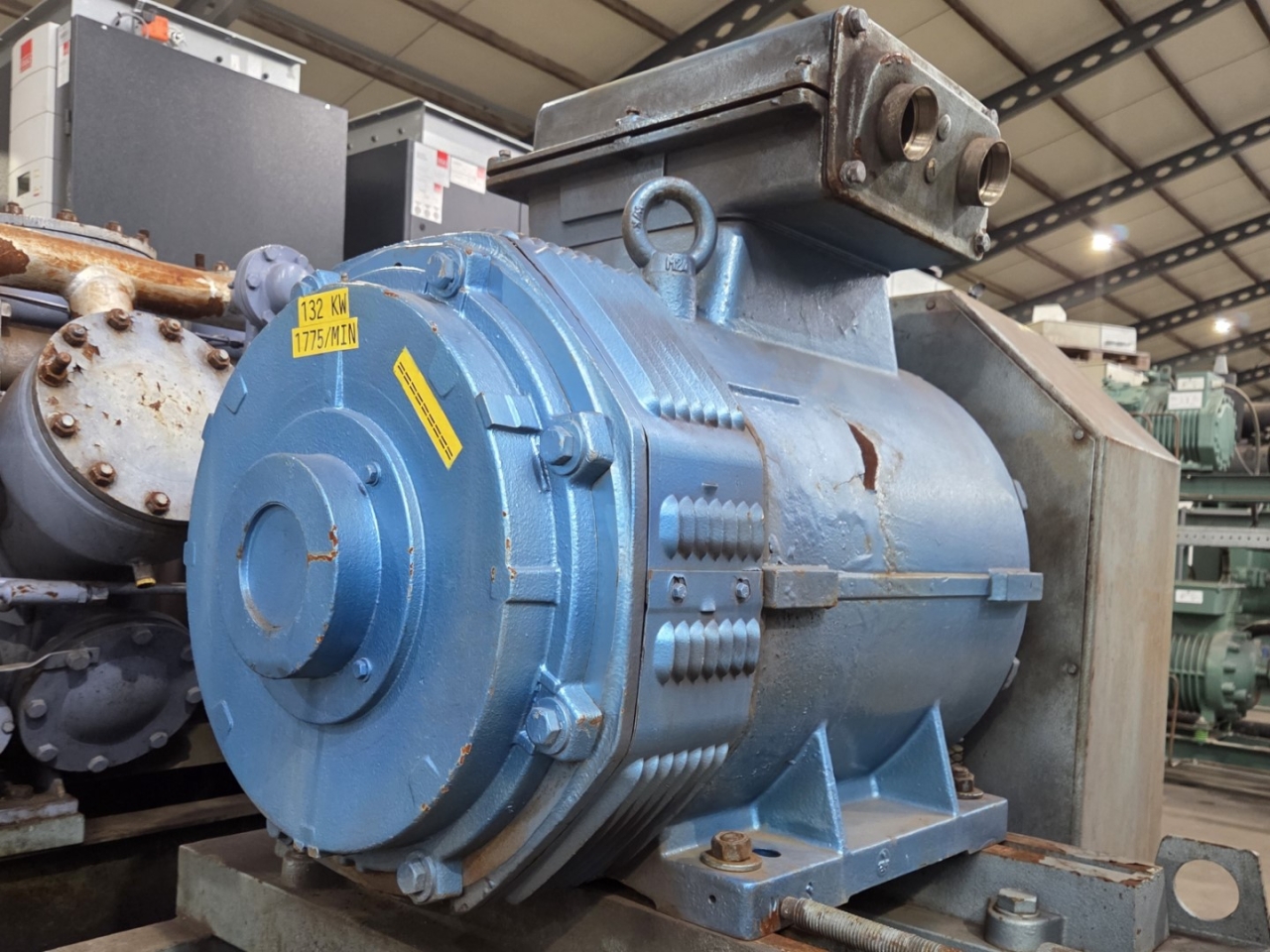

Used Grasso RC 611 single-stage reciprocating compressor unit on NH3 (Ammonia). Complete with a AEG Schorch GmbH KN7280M-BB01B-203 electric motor: 50/60 Hz - 132/152 kW - 1475/1775 RPM, Grasso OA 100 A - T oil separator with a volume of 321 liters, pressure and safety switches/gauges and a sight glass. The compressor has a displacement of 798 m³/h at 1000 RPM.
