Bock HGX34e/315-4 Condensing unit
Bock HGX34e/315-4 Condensing unit
| 18574 | |
| Marque | Bock |
| Le type | HGX34e/315-4 Condensing unit |
| Réfrigérant | Freon |
| kW at +10ºC/+40ºC | 28,7 (+7,5ºC/+40ºC) |
| kW at 0ºC/+40ºC | 22,0 |
| kW at -5ºC/+40ºC | 17,9 |
| kW at -10ºC/+40ºC | 14,7 |
| kW at -20ºC/+40ºC | 9,4 |
| kW at -30ºC/+40ºC | 5,4 |
| kW at -40ºC/+40ºC | 2,7 |
| kW at -45ºC/+40ºC | 1,7 |
| Sur le châssis en acier |
|
| Interrupteurs de sécurité de pression |
|
| Manomètres |
|
| Réservoir de liquide |
|
| Réservoir de liquide ltr. | 19 |
| Liquid déshydrateur ligne |
|
| Voyant |
|
| m3 / h | 27,3 |
| Weight | 631 |
| Condensing Unit |
|
| Tailles | 1350x1160x1050 mm (LxWxH) |
| Quantité en stock | 1 |

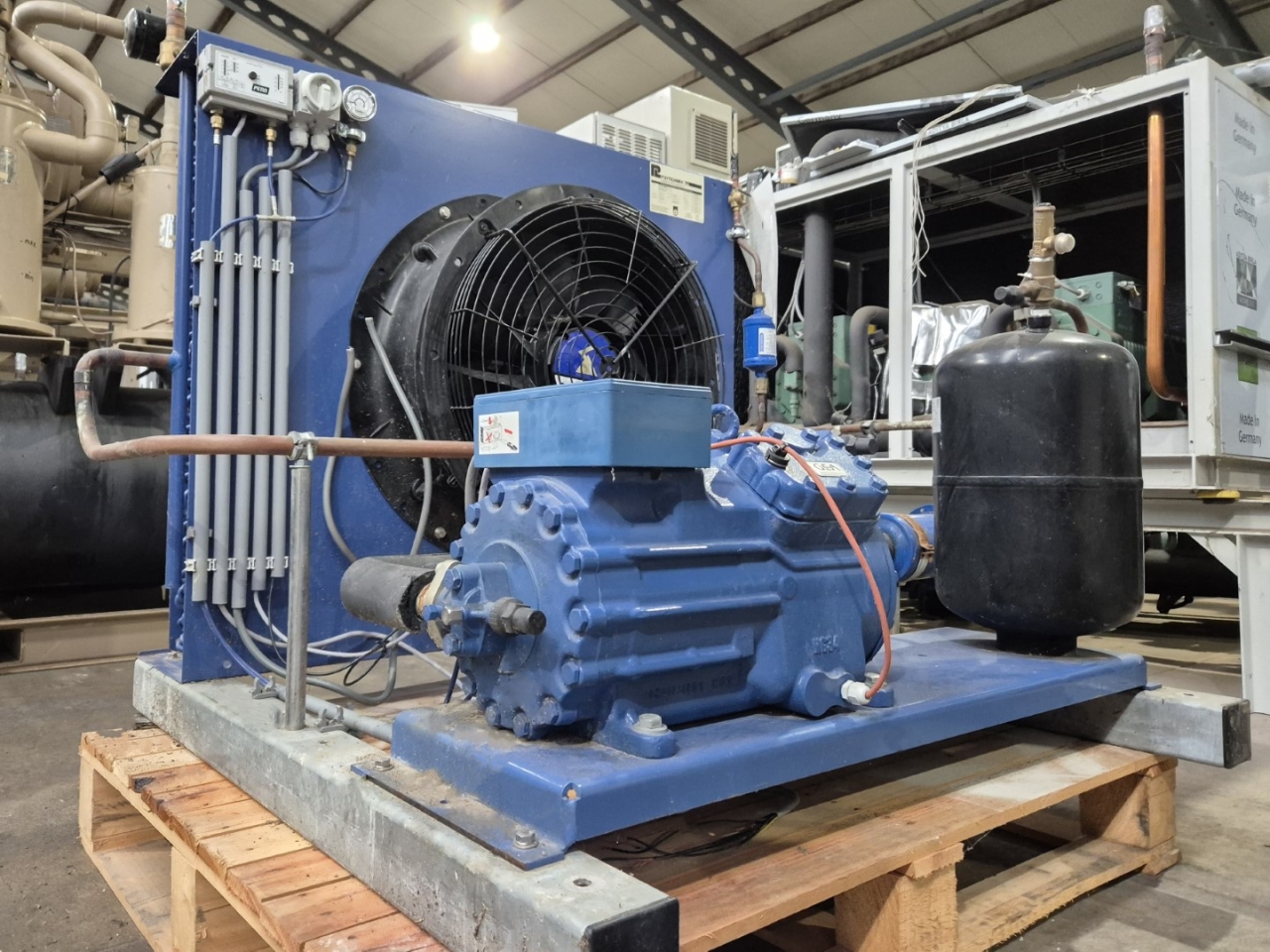

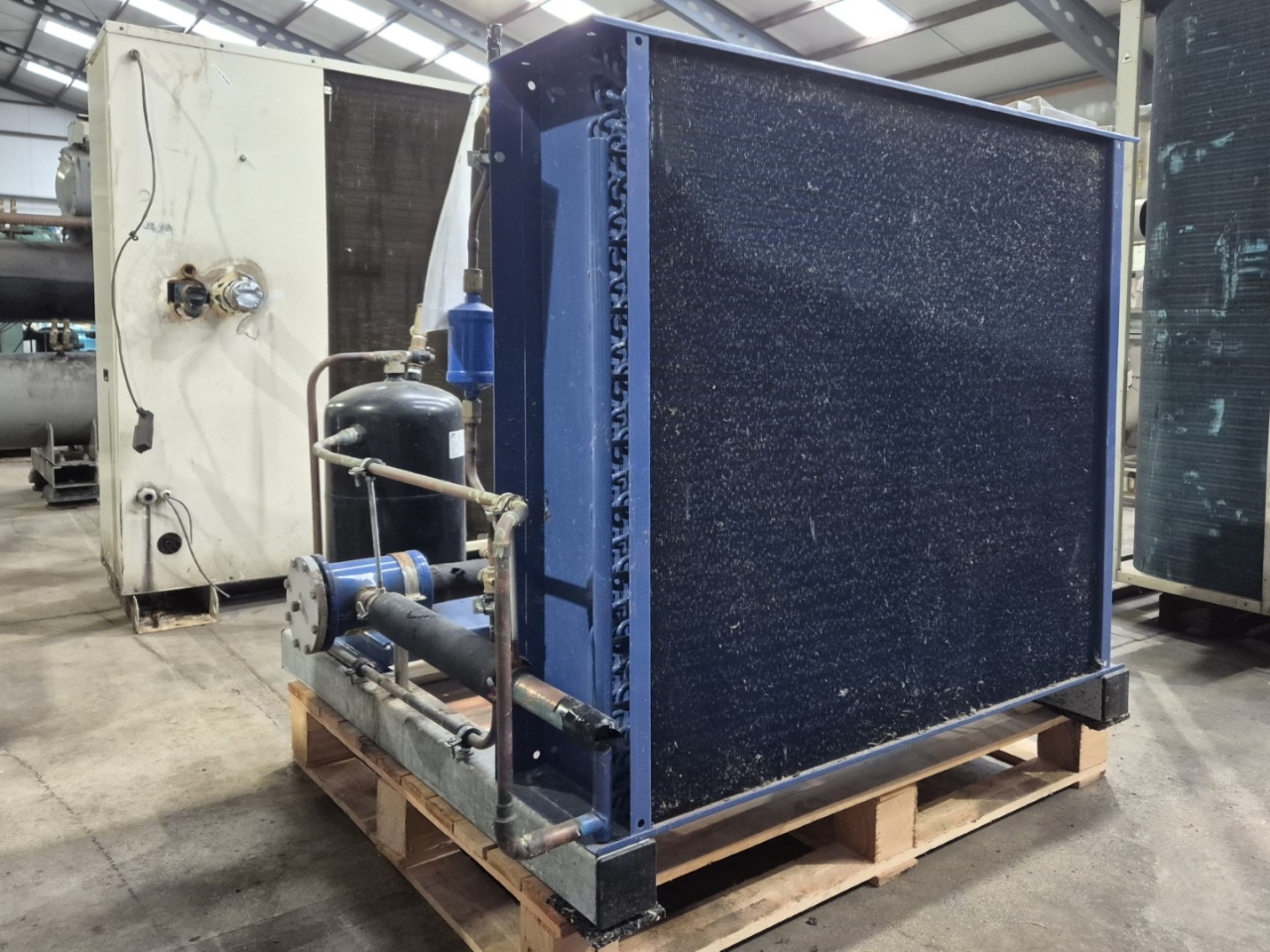

Bock HGX34e/315-4 Condensing unit

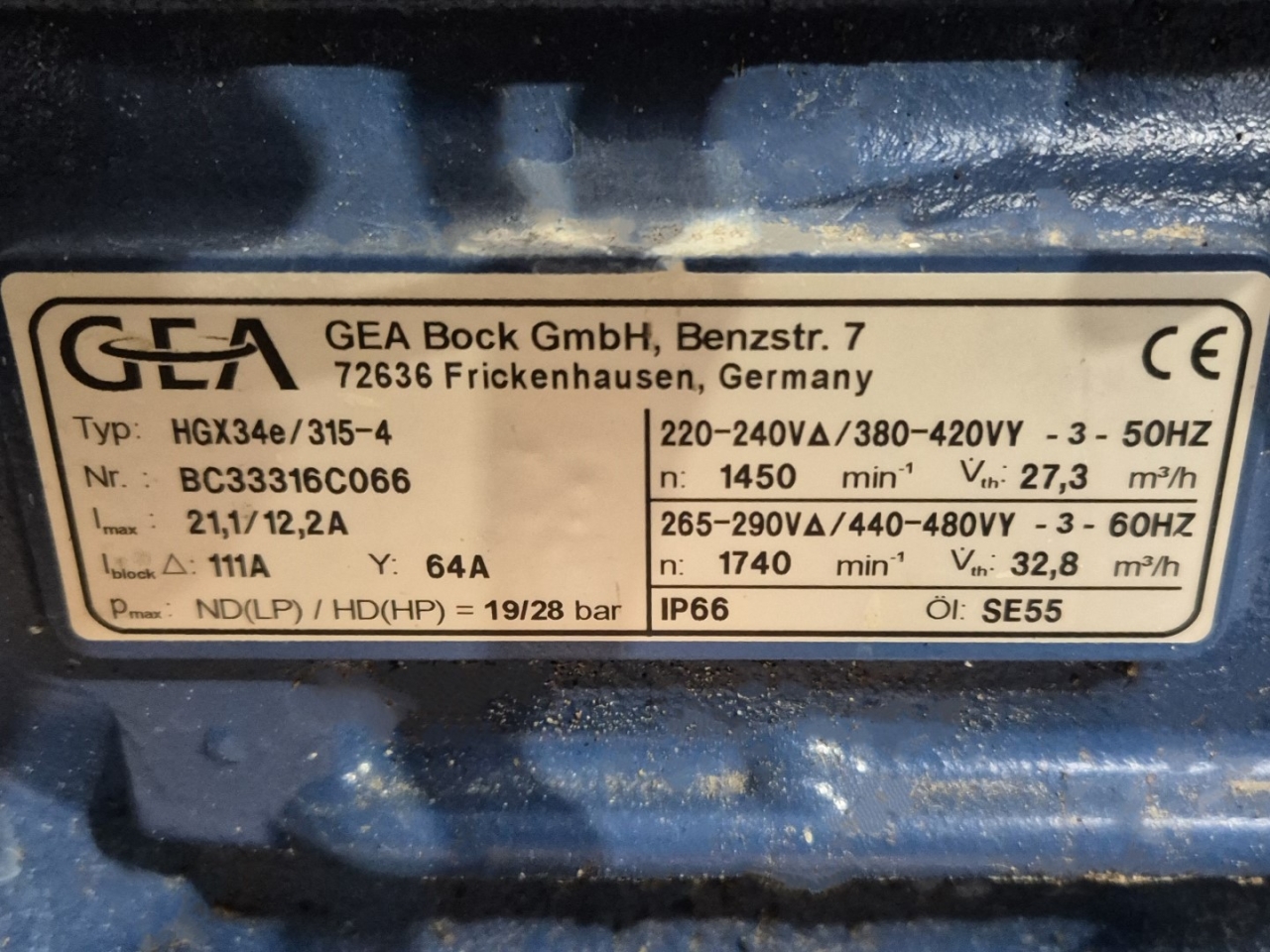

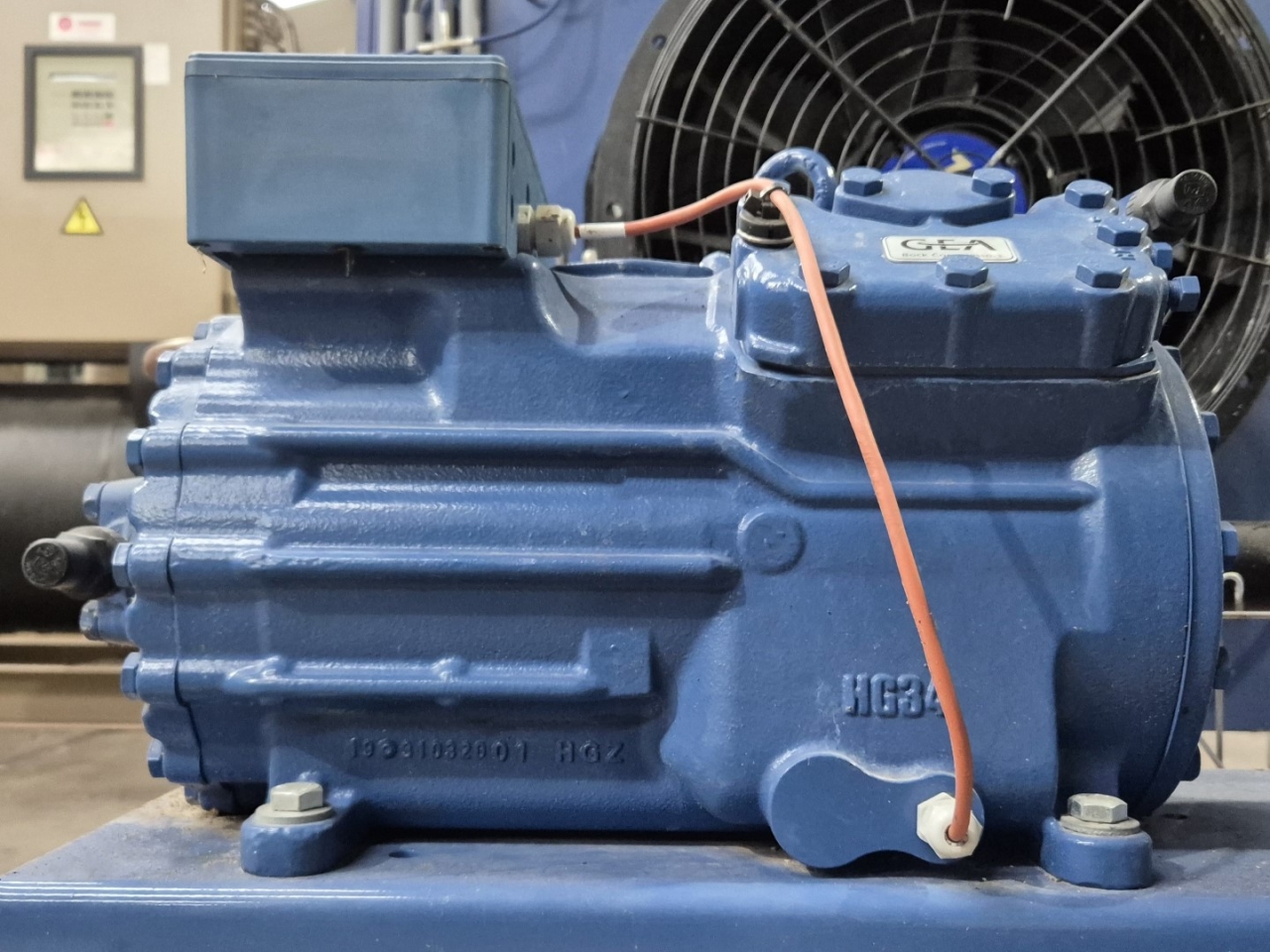

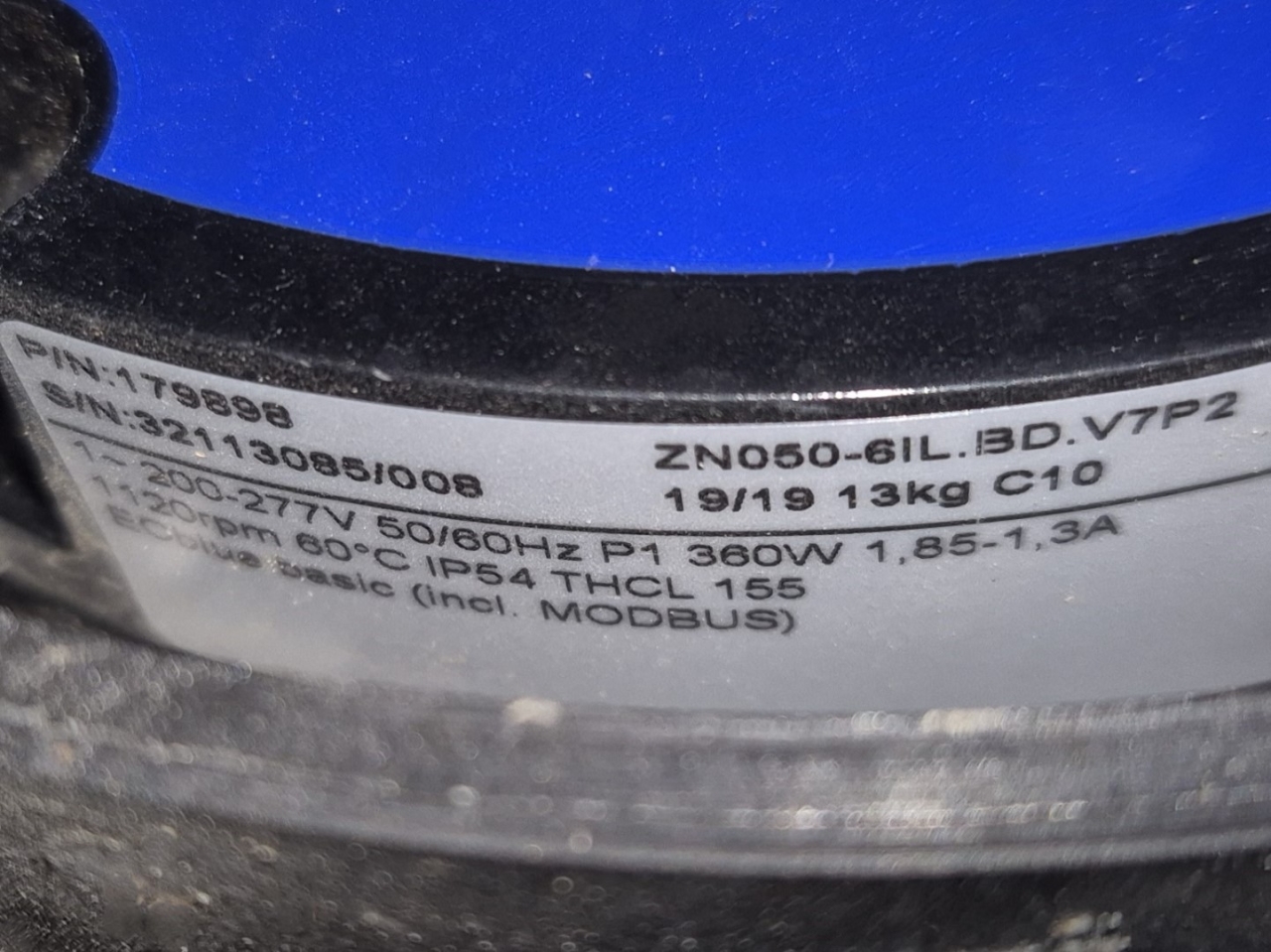

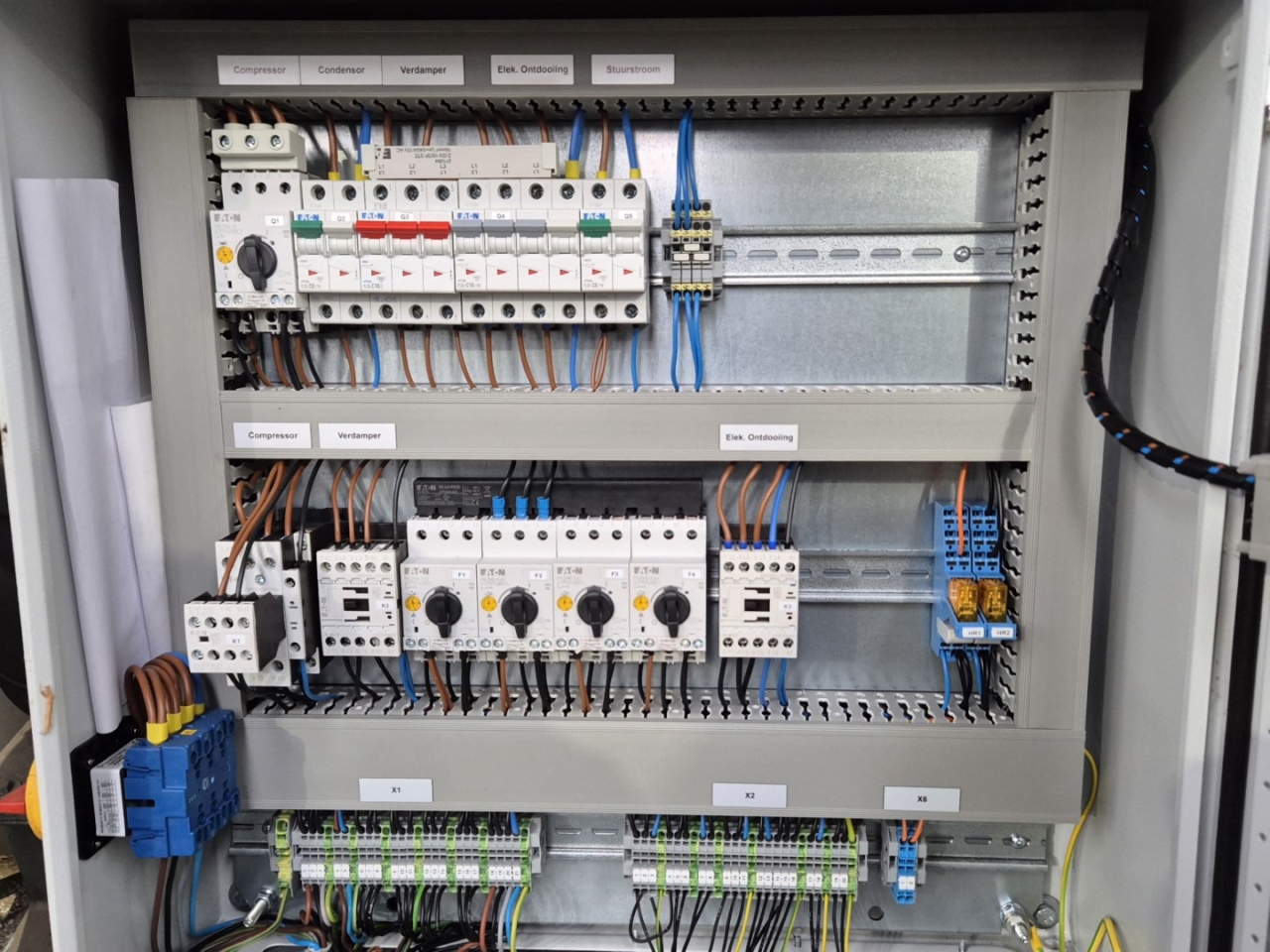

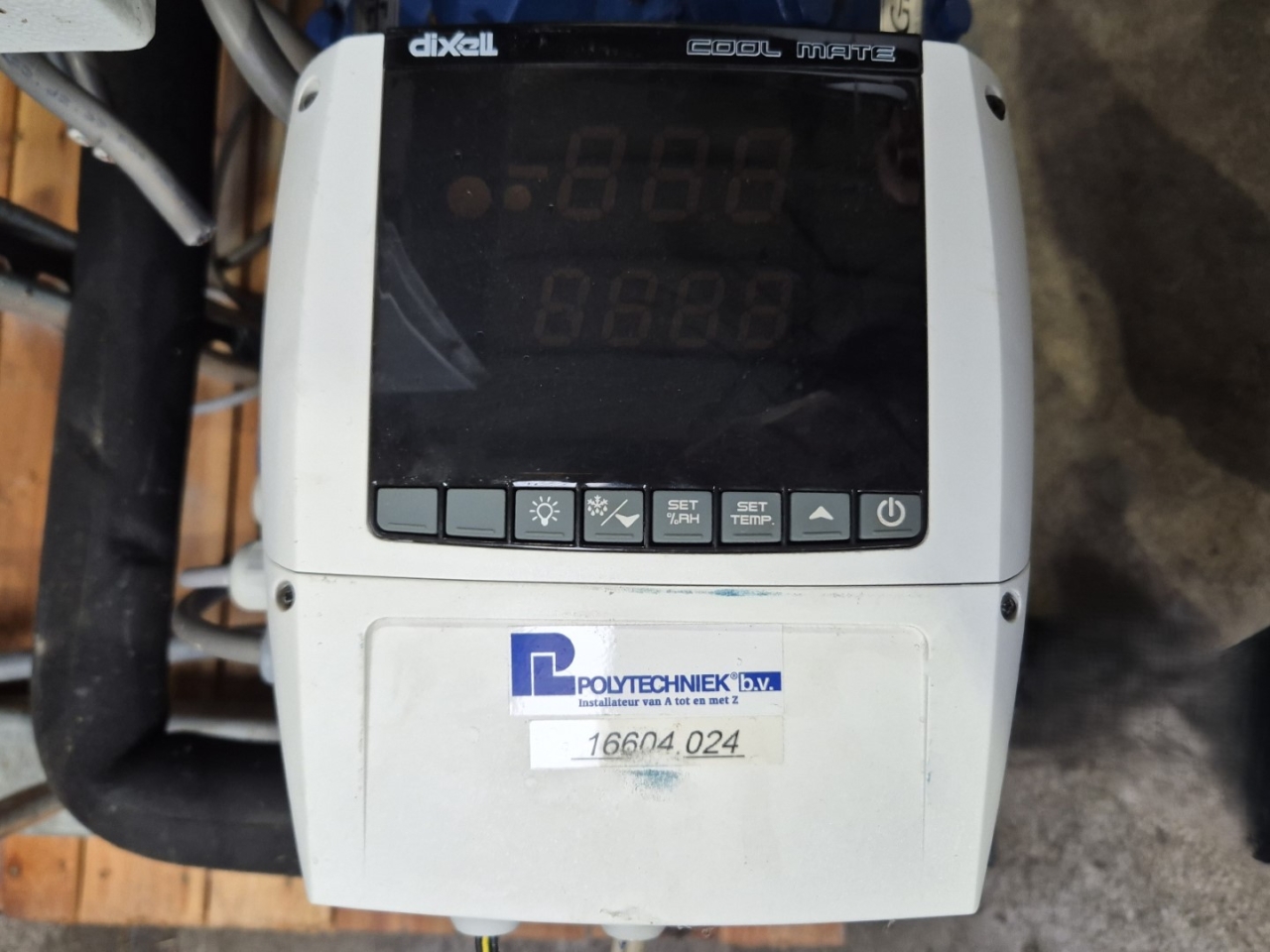

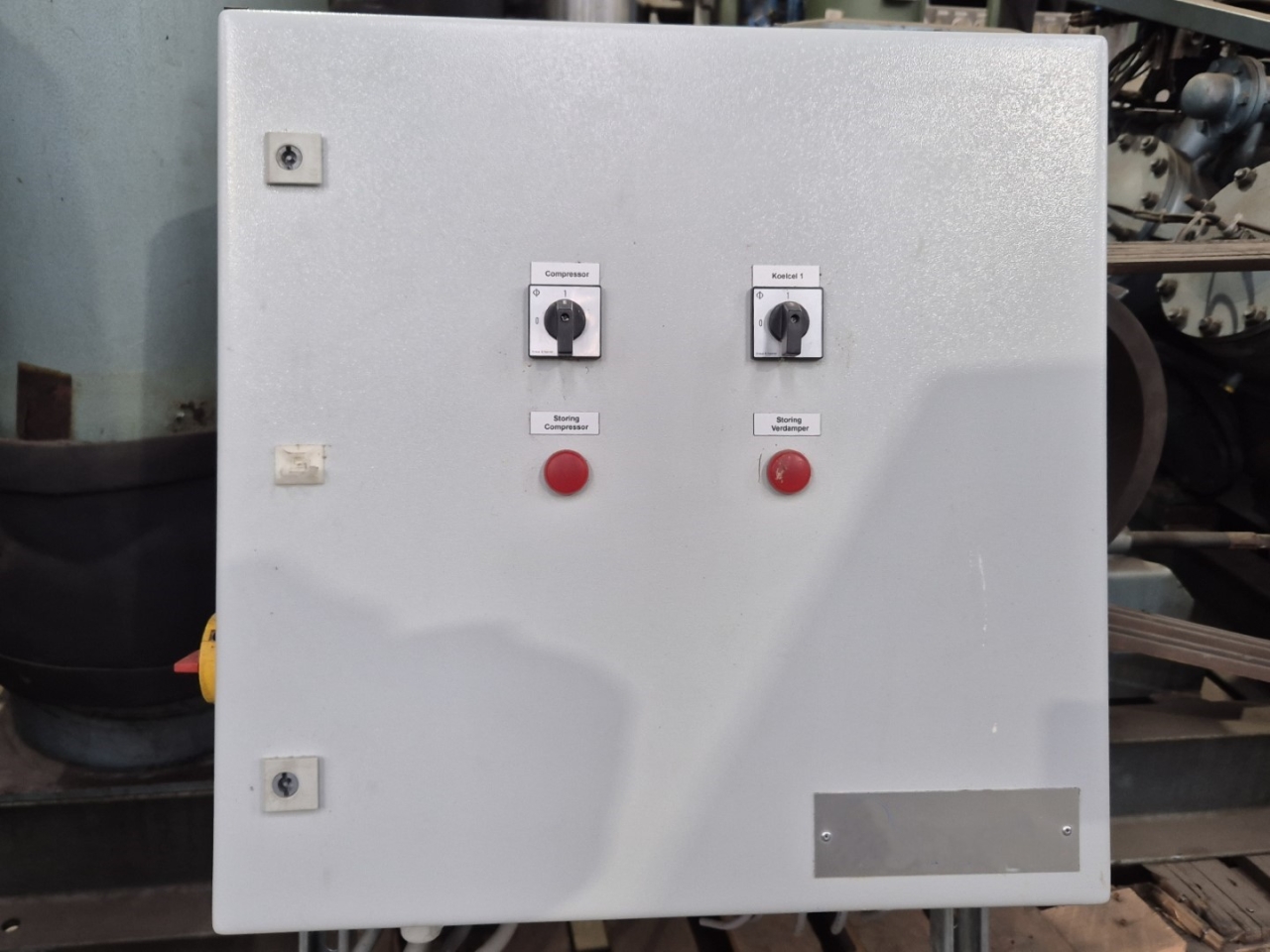

Used Bock HGX34e/315-4 condensing unit on Freon. Complete with a Frigomec RV-260X448 liquid receiver with a volume 19 liters, condenser with 1 Ziehl-Abegg ZN050-6IL.0BD.V7P2 fan - 50/60 Hz - 0,36 kW - 1120 RPM - diameter 500 mm, pressure safety switch/gauge and control panel with a Dixell Coolmate controller. The compressor has a displacement of 27,3 m³/h at 50 Hz & 32,8 m³/h at 60 Hz.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
