Helpman HTCN-100-232-V-380-C1-ISM
Helpman HTCN-100-232-V-380-C1-ISM
| 18768 | |
| La marque | Helpman |
| Le type | HTCN-100-232-V-380-C1-ISM |
| Type de produit | Air Cooled Condenser |
| Capacité kW | 297,4 |
| Nombre de ventilateurs | 6 |
| RPM de fans | 380 |
| Réfrigérant | NH 3 (ammonia) |
| Le débit d'air in m³/h | 102.000 |
| diamètre fans Ø | 1000 mm |
| Surface (m2) | 915 m² |
| Volume du tube | 30 dm³ |
| Tailles | 5850x2435x1245 mm (LxWxH) |
| Poids | 1574 kg |
| Remarques | | Y.o.b. 2009 |
| Quantité en stock | 1 |
Helpman HTCN-100-232-V-380-C1-ISM

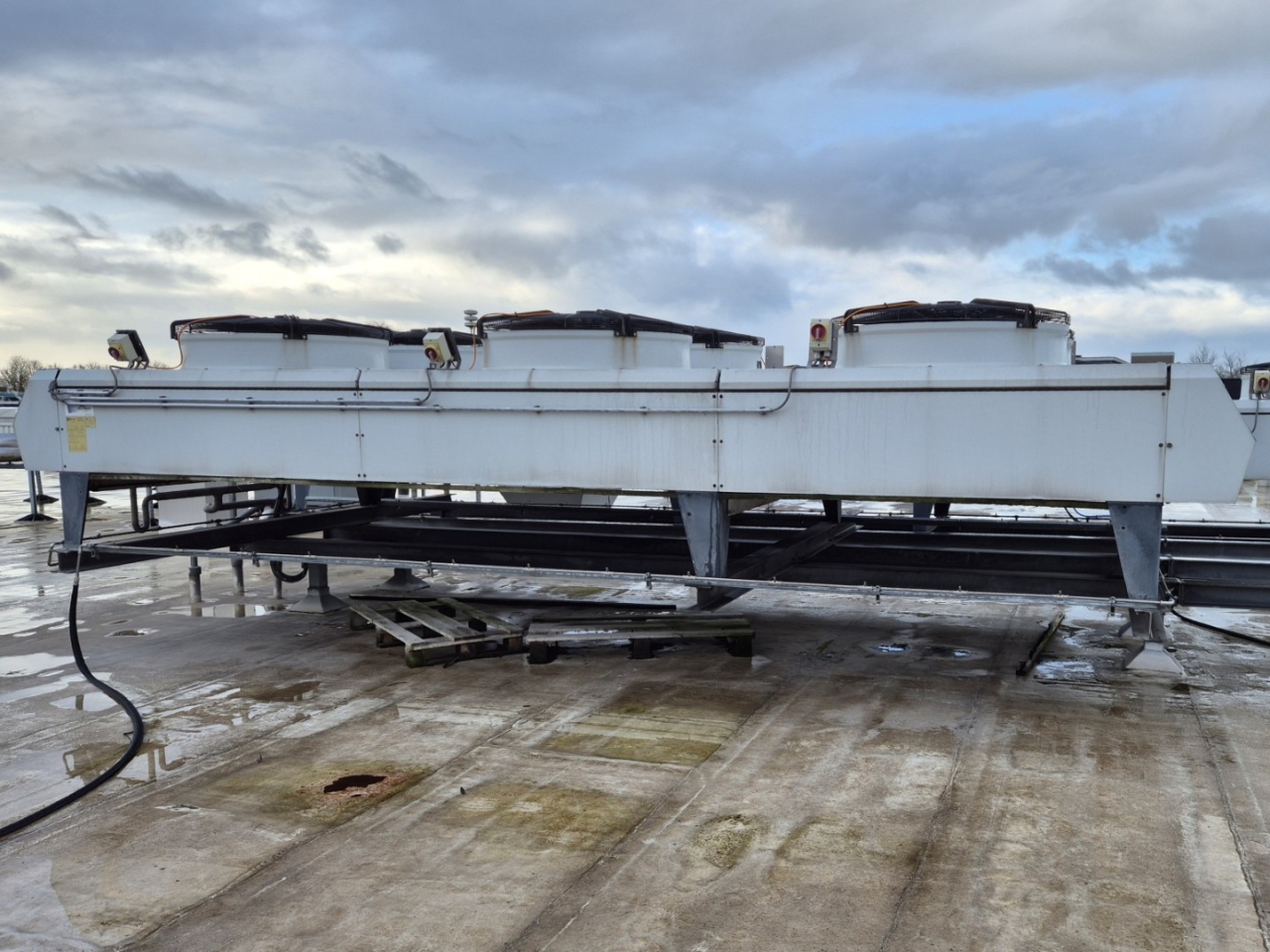

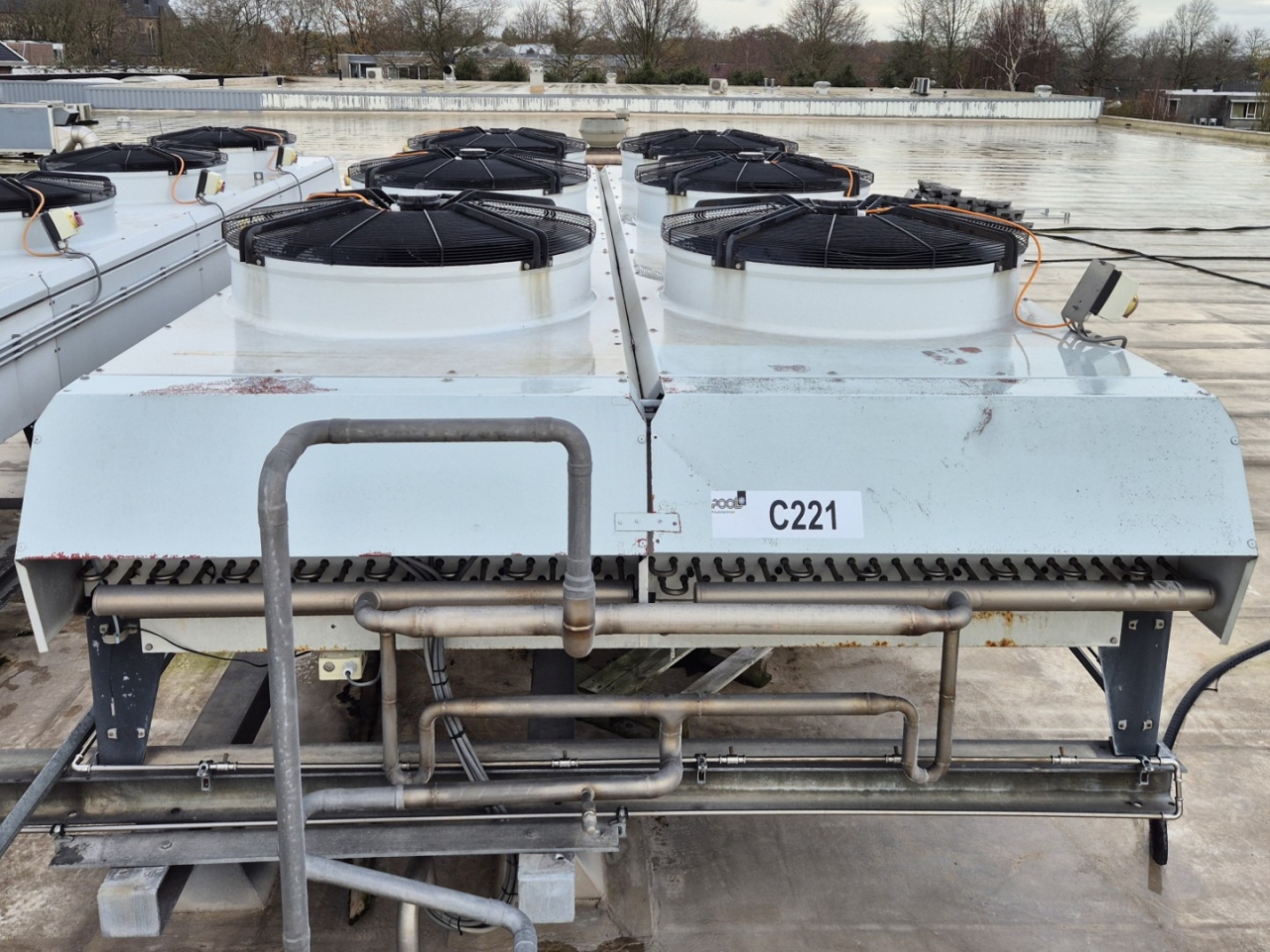

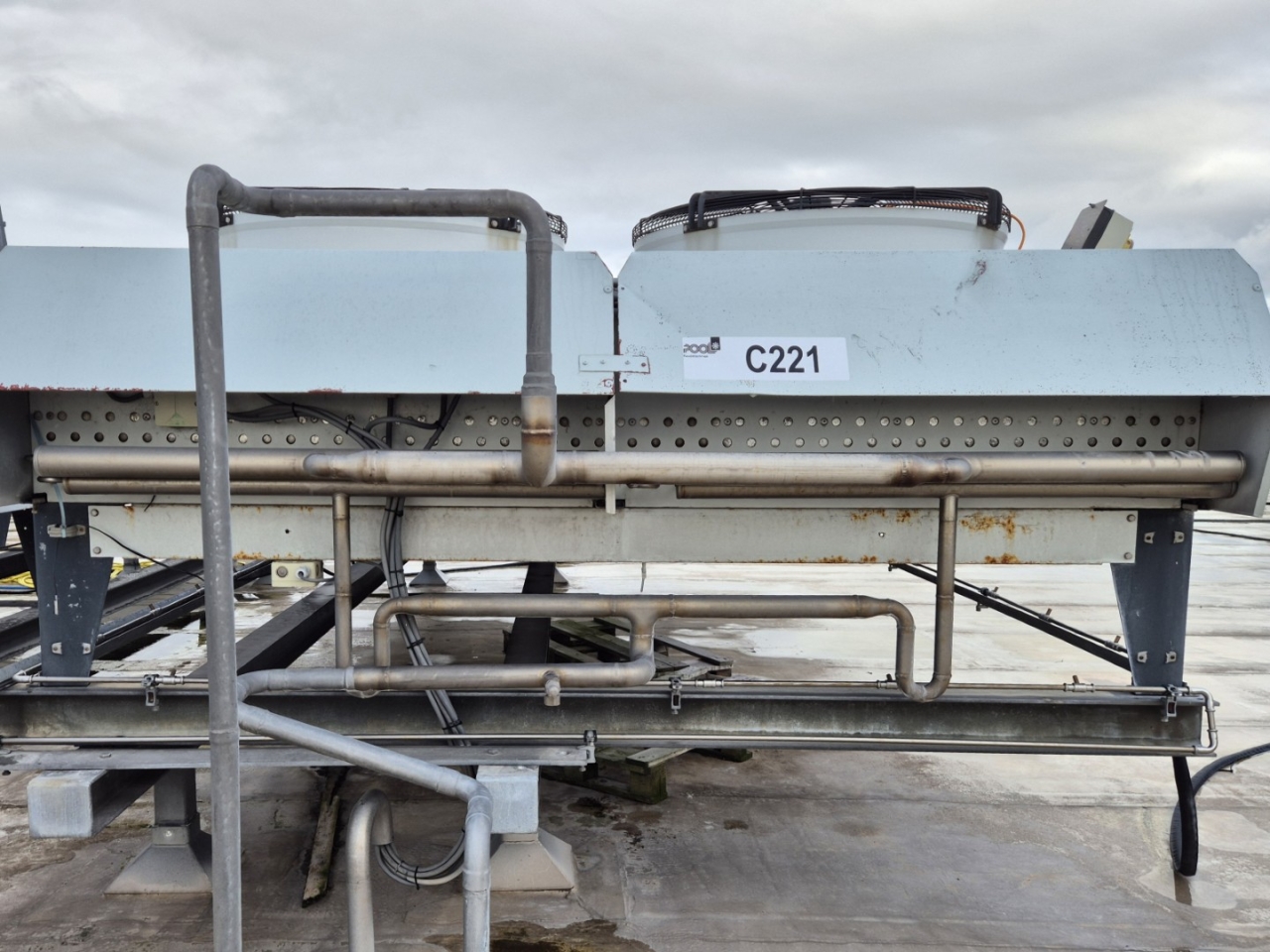

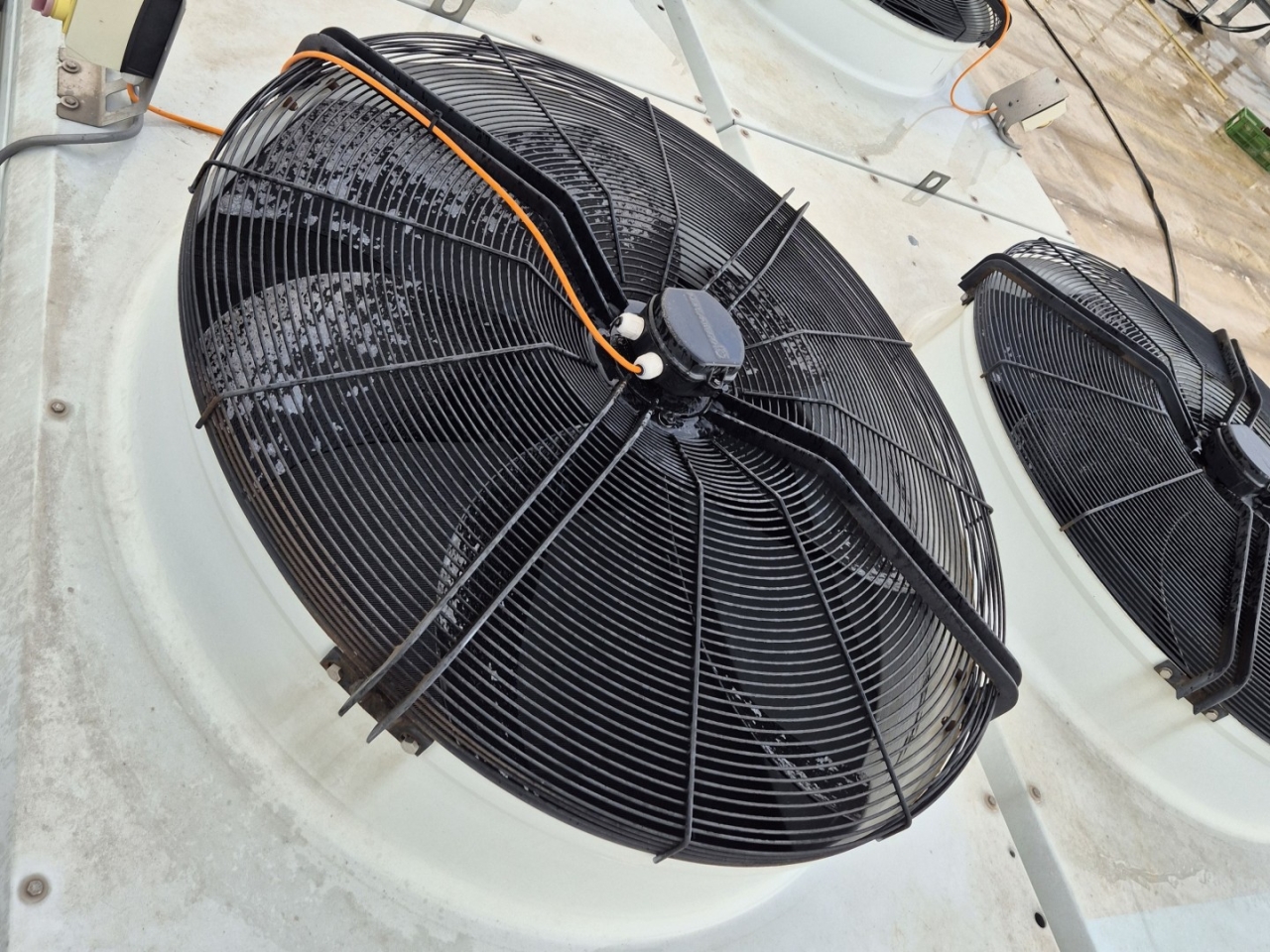

Used Helpman HTCN-100-232-V-380-C1-ISM NH3 air-cooled condenser. Complete with 6 fans with 380 RPM that produce an total airflow of 102.000 m³/h.
*All components of this used condensor will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning. on demand, we can arrange your shipment.
