Mycom FM160L-L
Mycom FM160L-L
| 18830 | |
| Marque | Mycom |
| Le type | FM160L-L |
| Réfrigérant | NH 3 (ammonia) |
| Électromoteur Specs | 50/60 Hz - 132/152 kW - 2975/3570 RPM |
| Démarrage à vide |
|
| Contrôle de capacité |
|
| Sur le châssis en acier |
|
| Interrupteurs de sécurité de pression |
|
| Manomètres |
|
| Séparateur d'huile |
|
| Voyant |
|
| Panneau de configuration |
|
| Remarques | | Y.o.b. 2007 |
| Weight | 3200 kg |
| Tailles | 3298x1308x1768 mm (LxWxH) |
| Quantité en stock | 1 |
Mycom FM160L-L

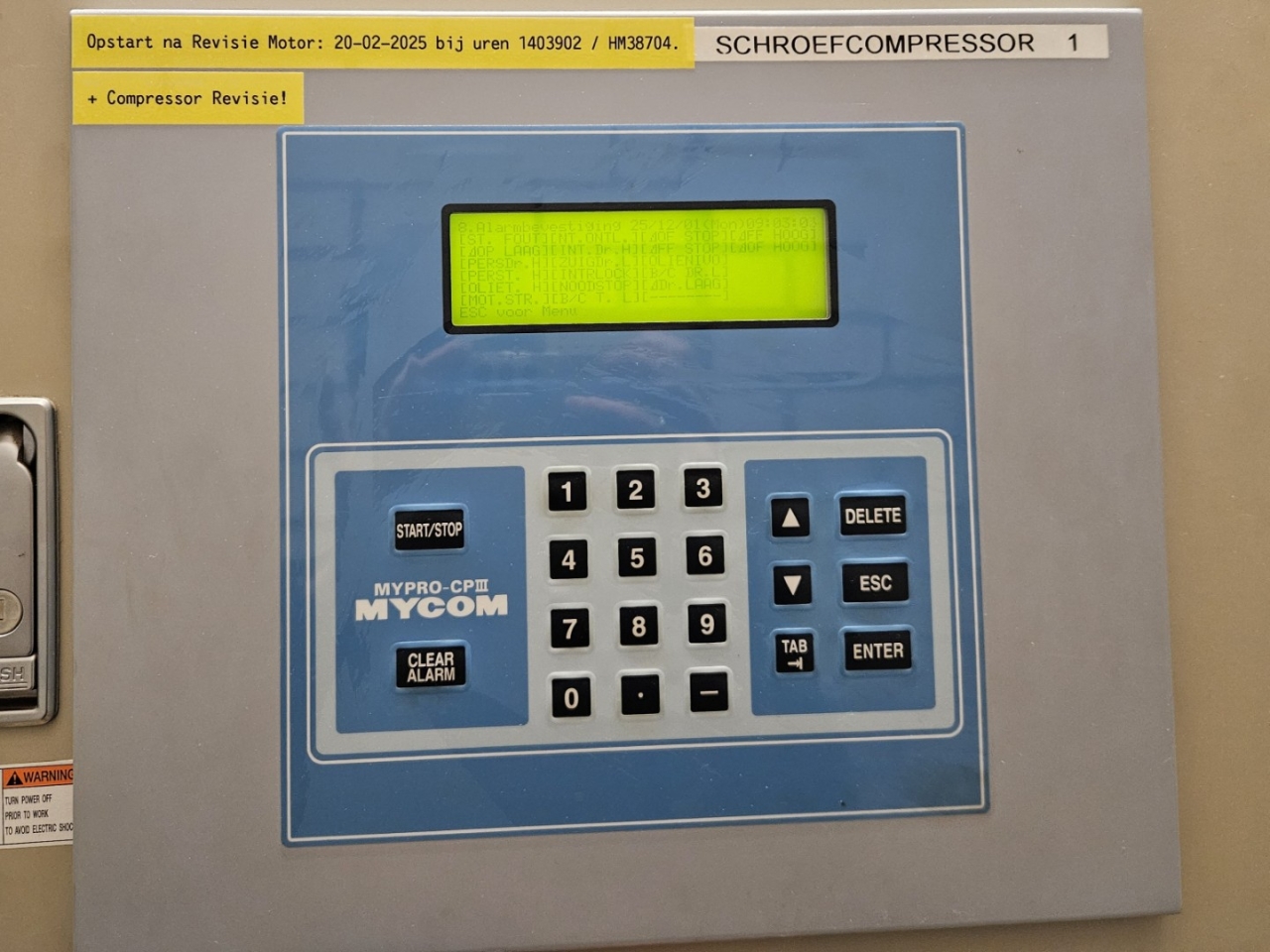

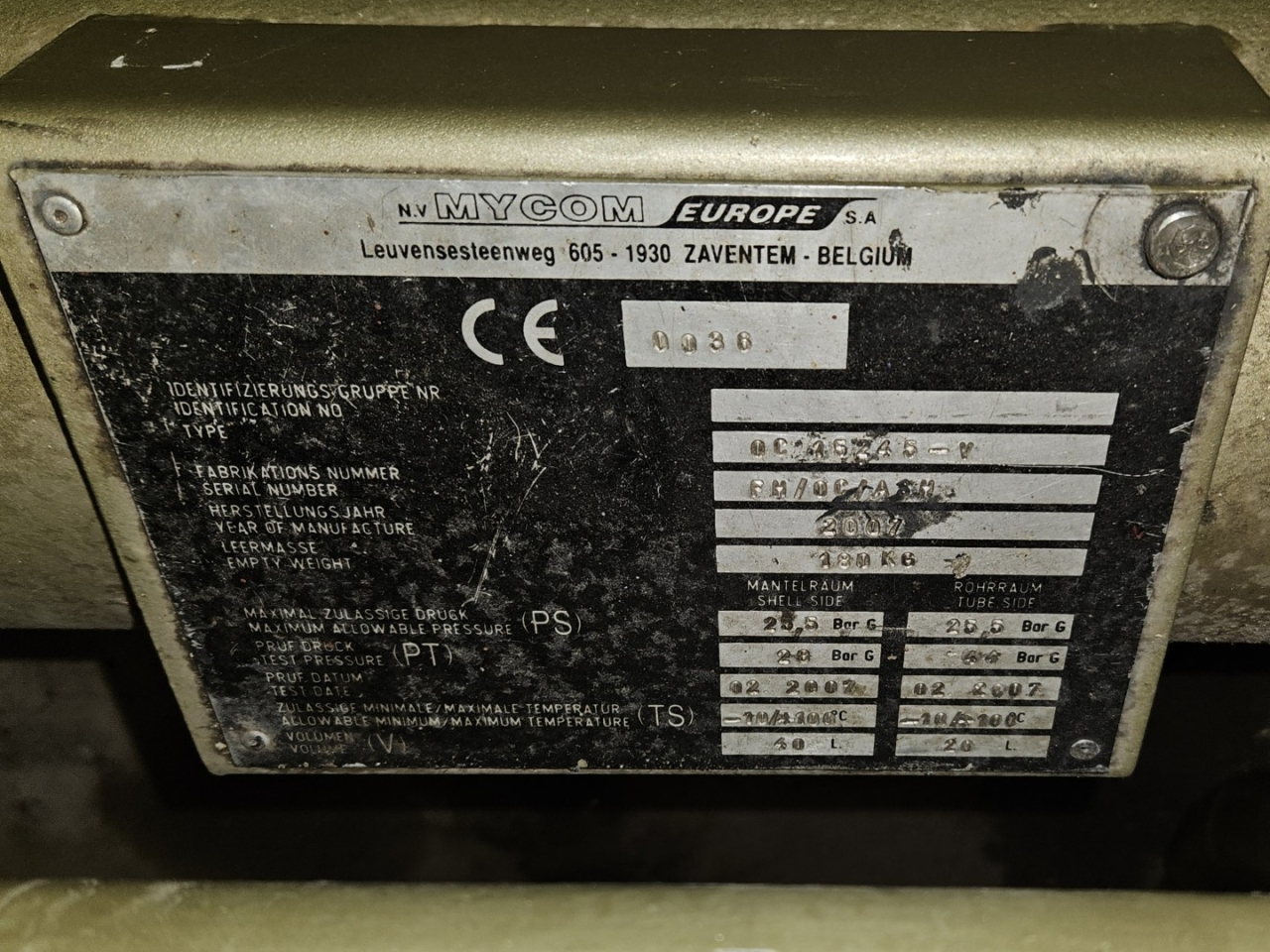

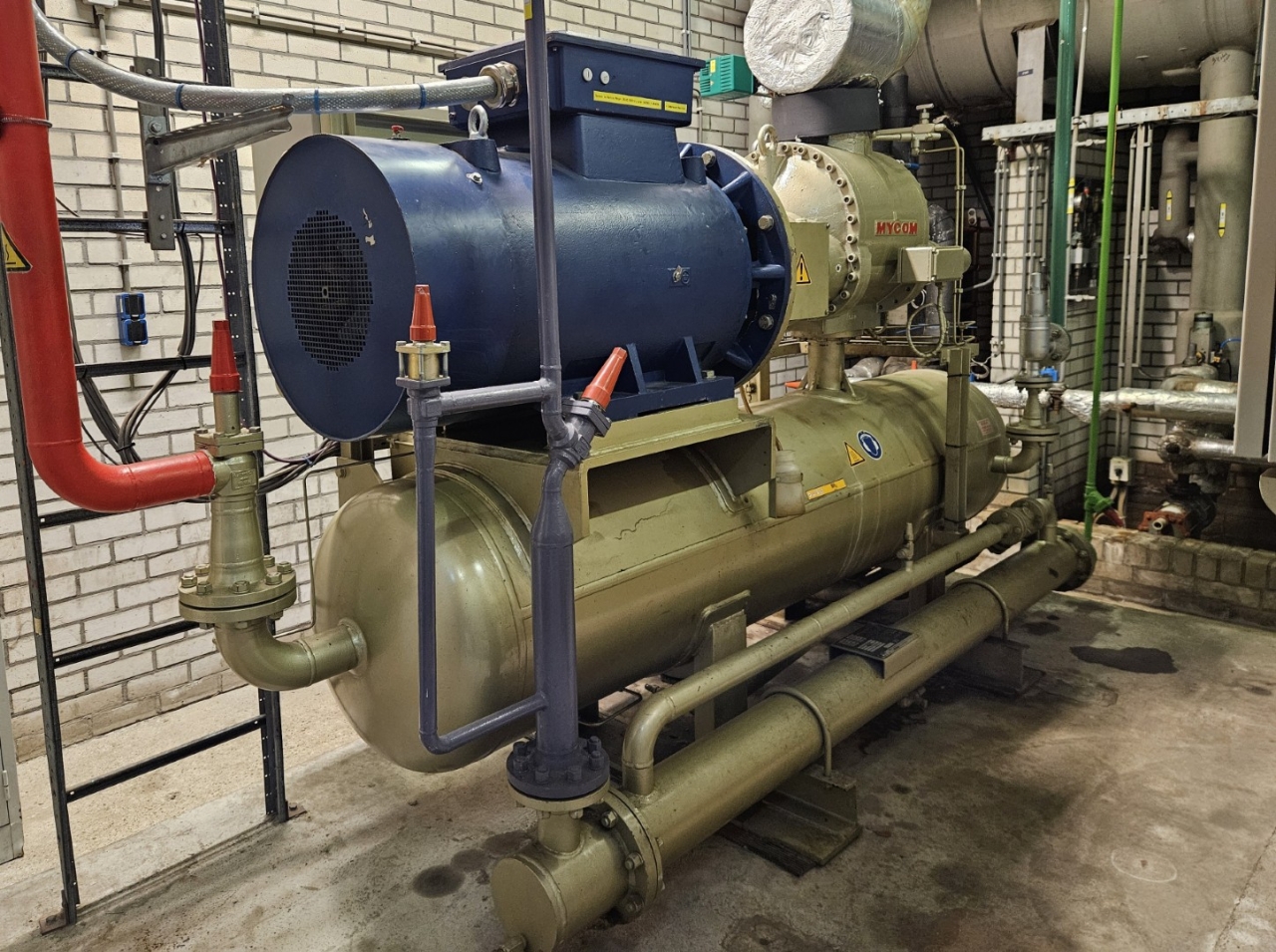

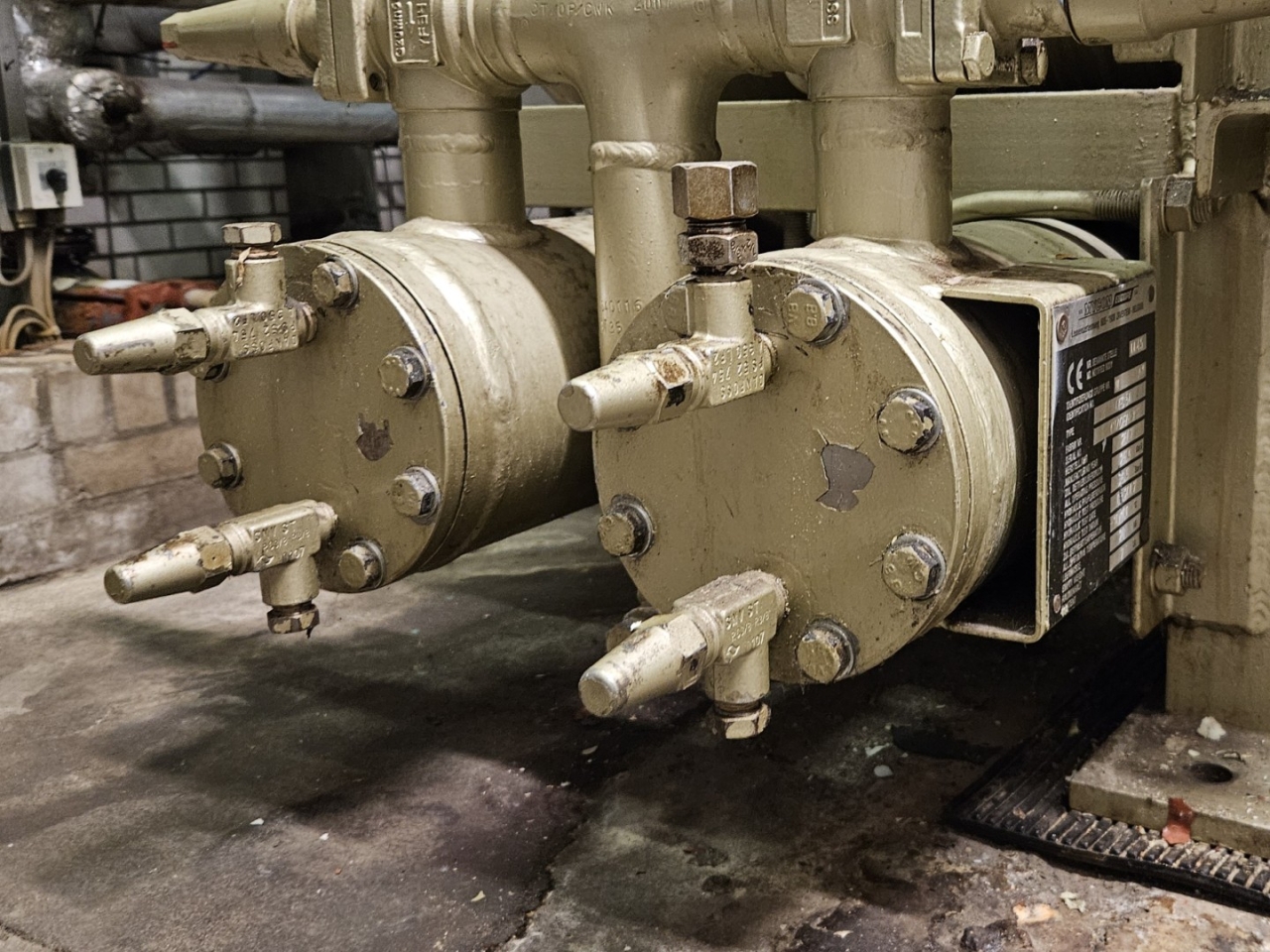

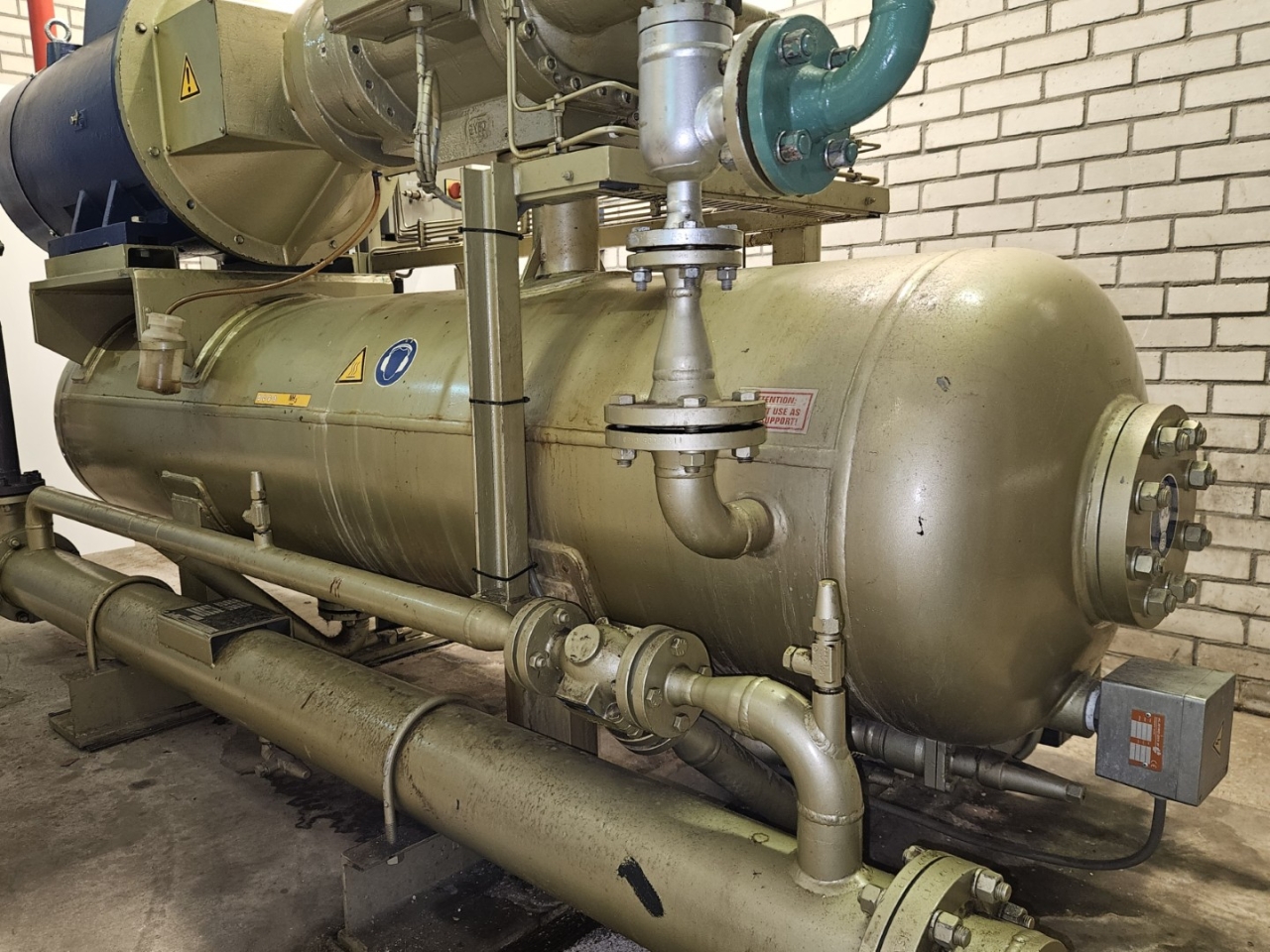

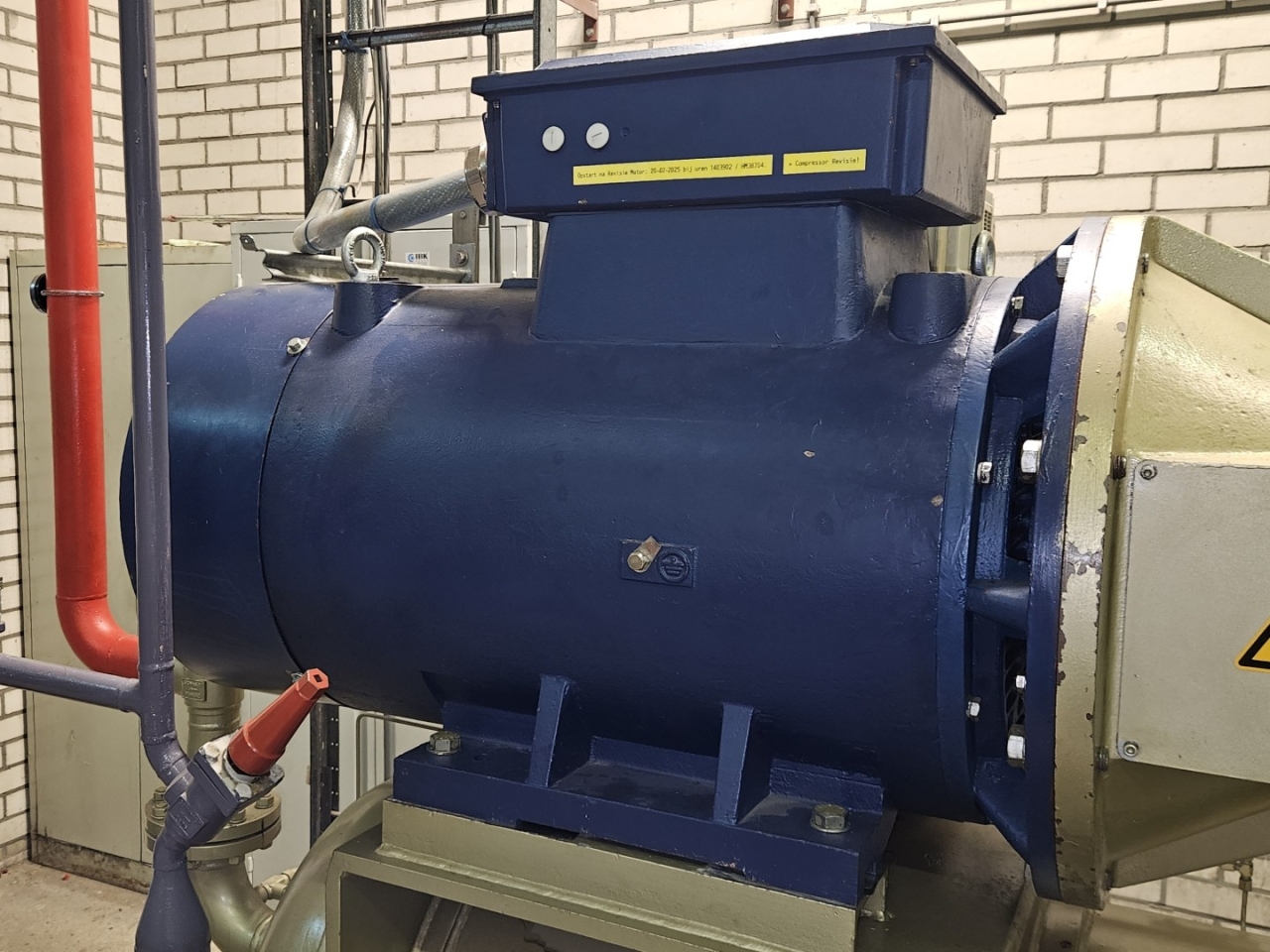

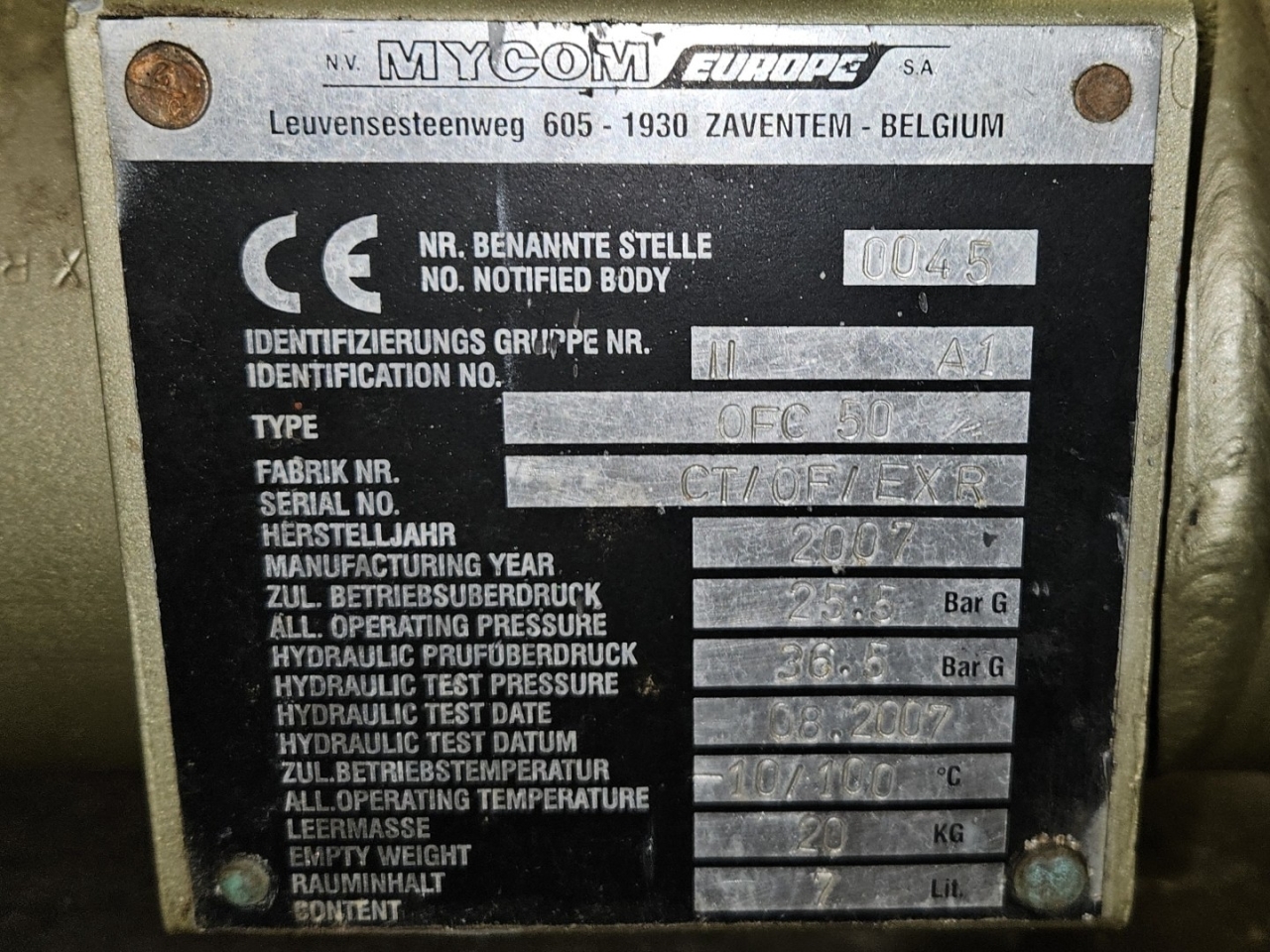

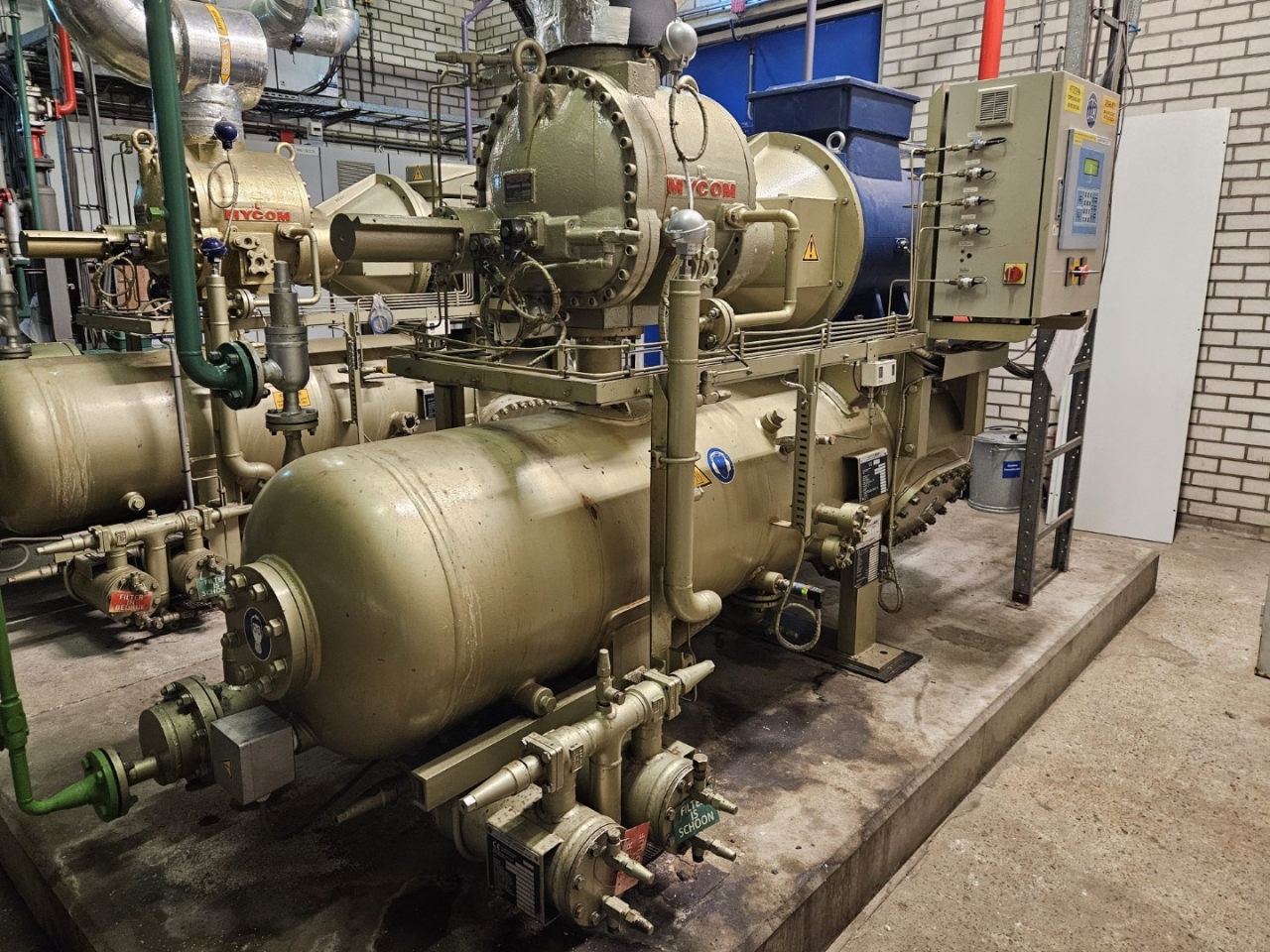

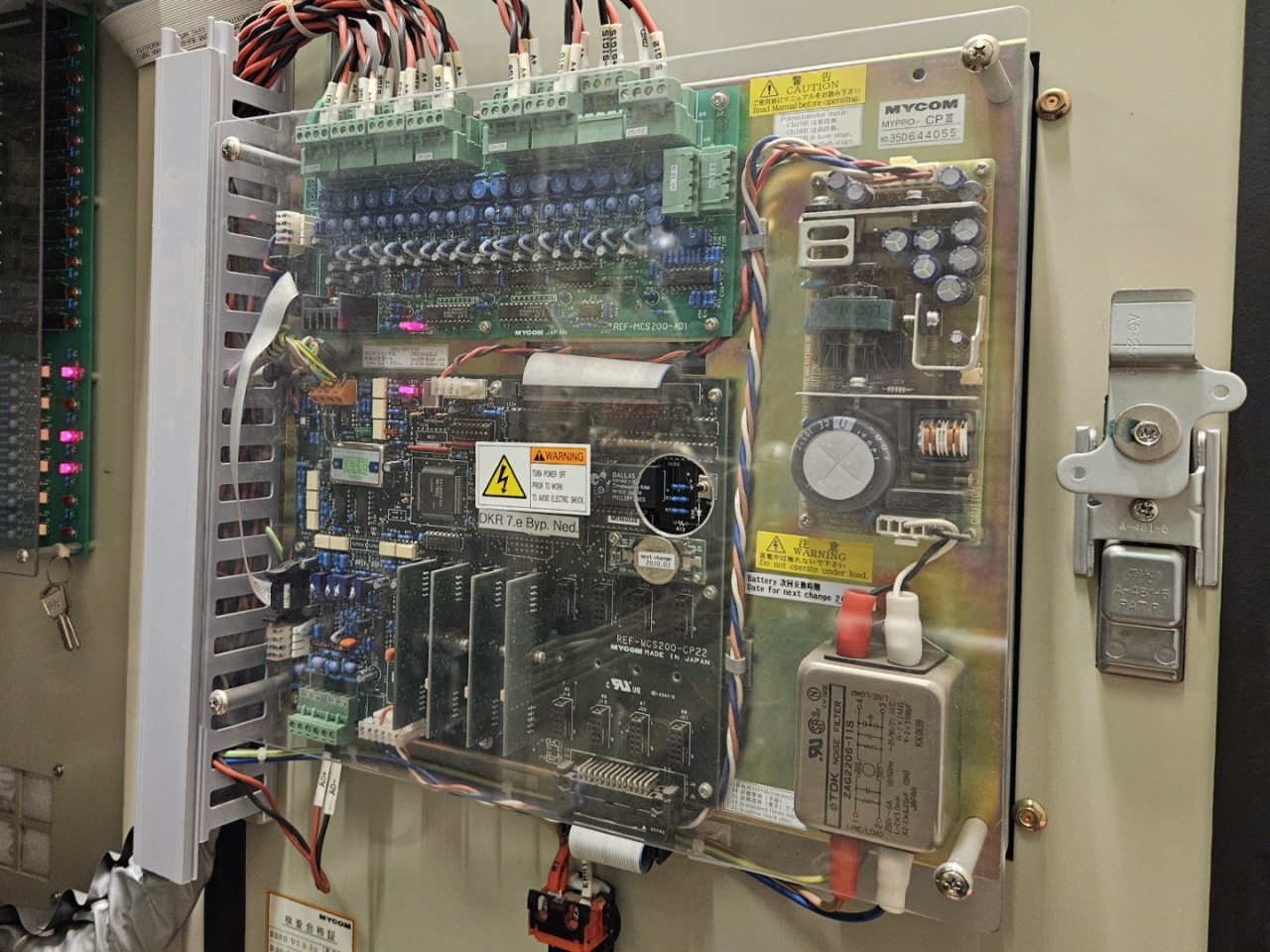

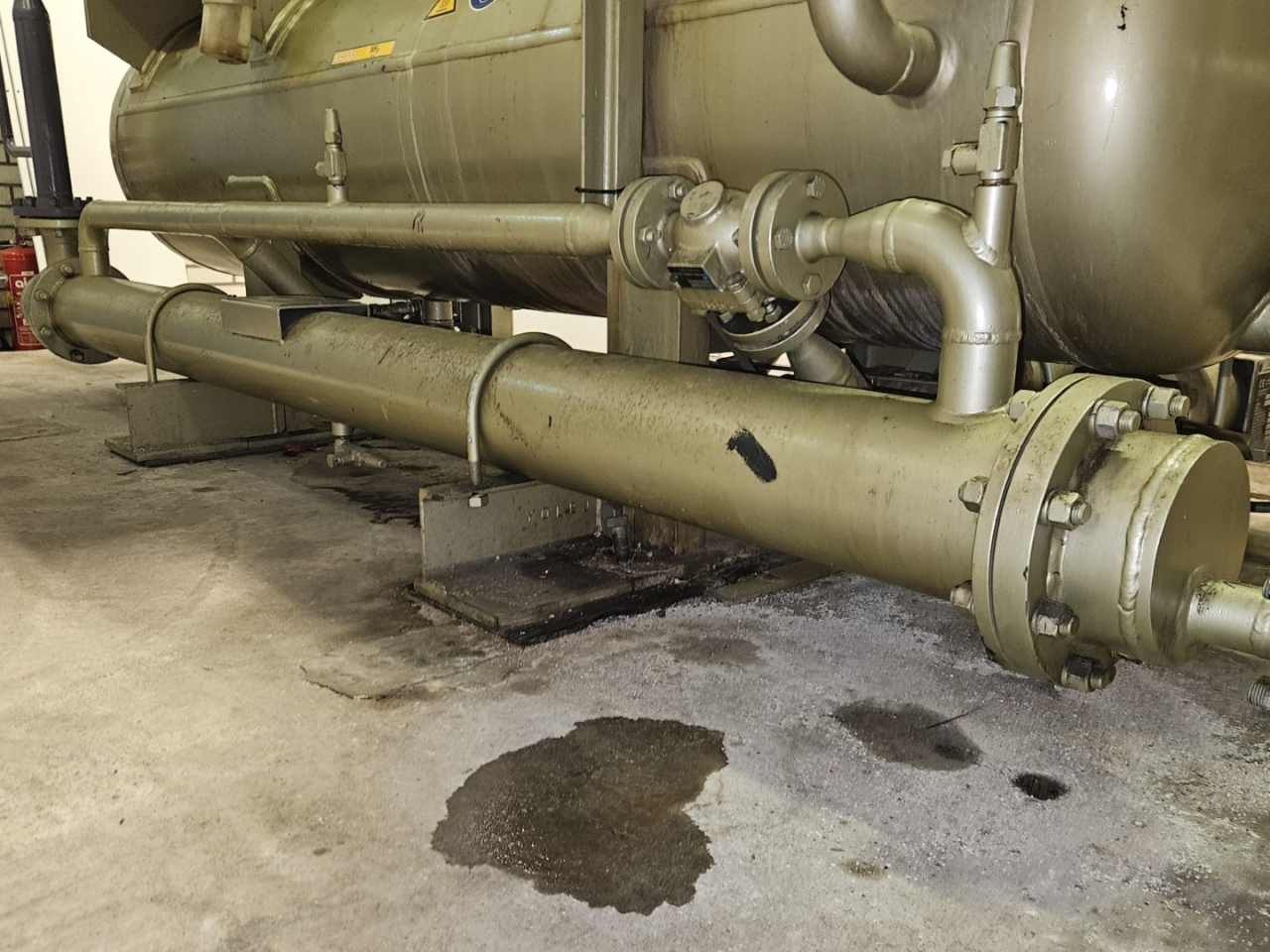

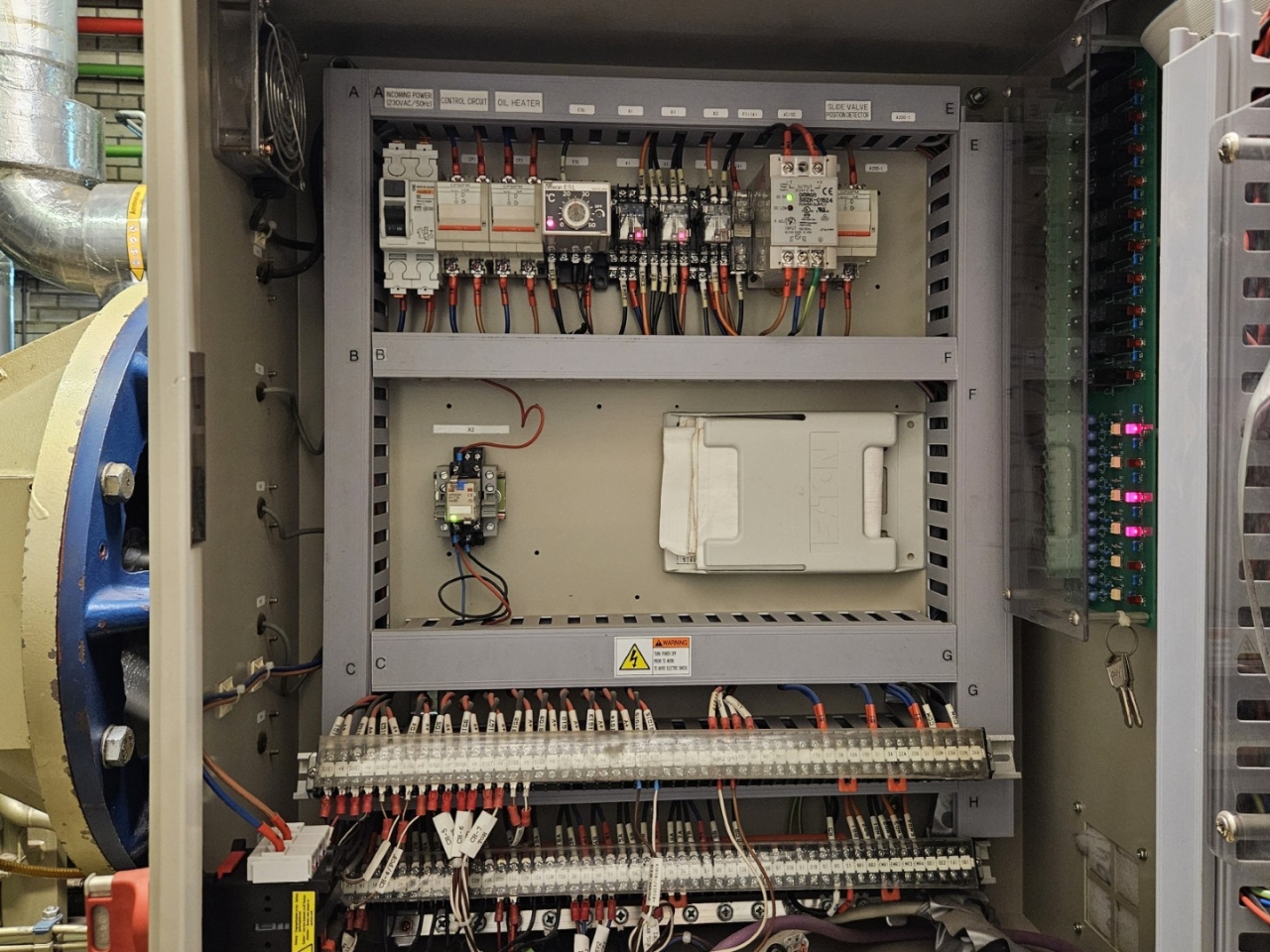

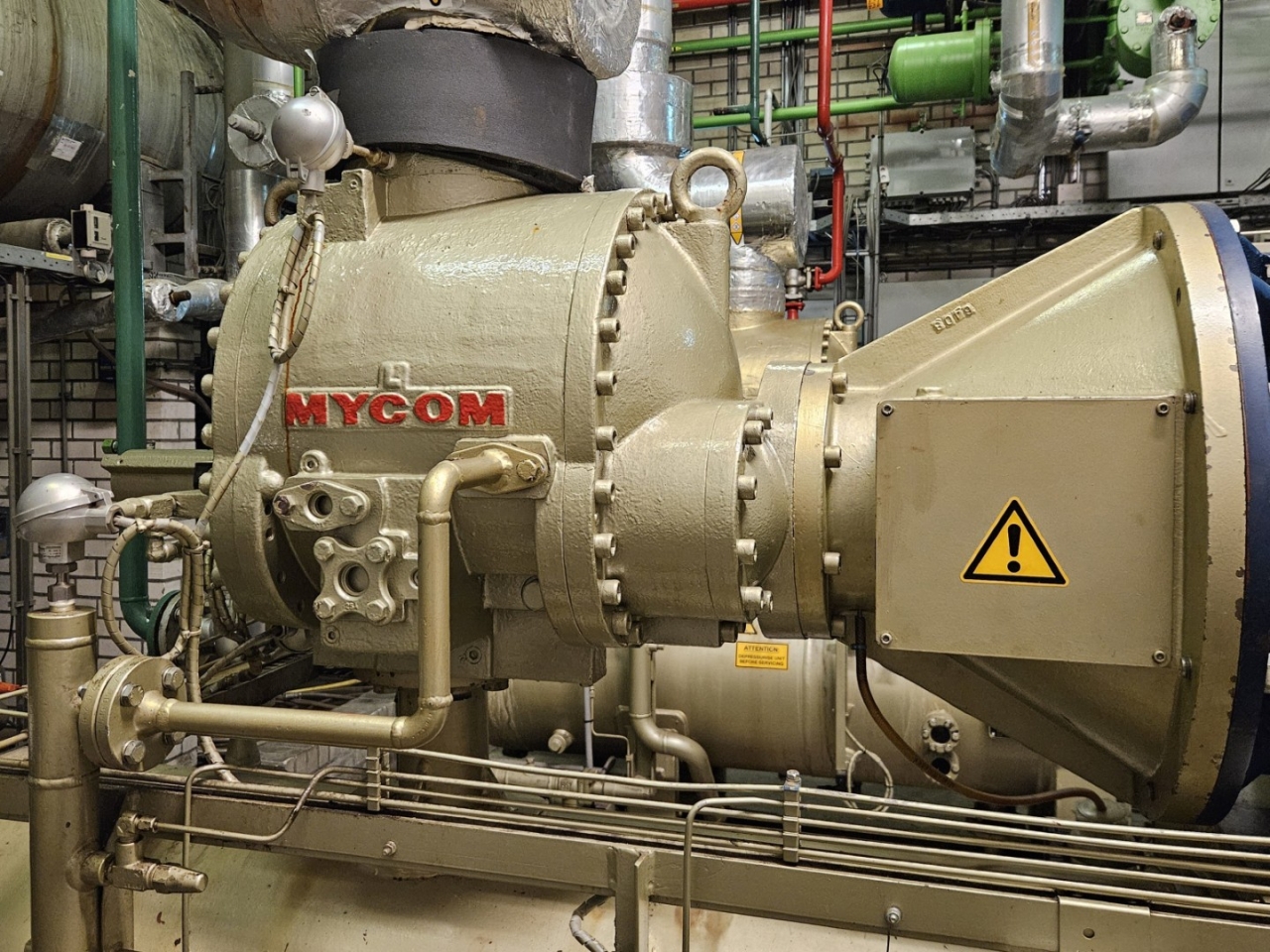

Used Mycom / Mayekawa FM160L-L screw compressor skid on NH3 (Ammonia). Complete with 2EC 2EC-ODP280M-2 electric motor - 50/60 Hz - 132/152 kW - 2975/3570 RPM, Mycom HS 6023 oil separator with a volume of 700 liter, Mycom OC 15245-V oil cooler, 2 Mayekawa OFC 50 oil filter, pressure and safety switches/gauges and a control cabinet with a Mycom MYPRO-CP3 controller.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
