Sabroe SMC 108L
Sabroe SMC 108L
| 14733 | |
| Marka | Sabroe |
| Typ | SMC 108L |
| Czynnik chłodzący | NH 3 (ammonia) |
| Refrigerant type | R717 |
| kW at +10ºC/+40ºC | 722,4 |
| kW at 0ºC/+40ºC | 477,8 |
| kW at -5ºC/+40ºC | 380,2 |
| kW at -10ºC/+40ºC | 297,1 |
| Silnik elektryczny Specs | 50/60 Hz - 110/127 kW - 1475/1775 RPM |
| Rozładunek |
|
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Separator oleju |
|
| Okno widokowe |
|
| Zawór elektromagnetyczny |
|
| Panel kontrolny |
|
| m3 / h | 565 |
| Uwagi | | Y.o.b. 2005 |
| Rozmiary | 2450x1150x1480 mm (LxWxH) |
| Liczba sztuk | 1 |
Sabroe SMC 108L

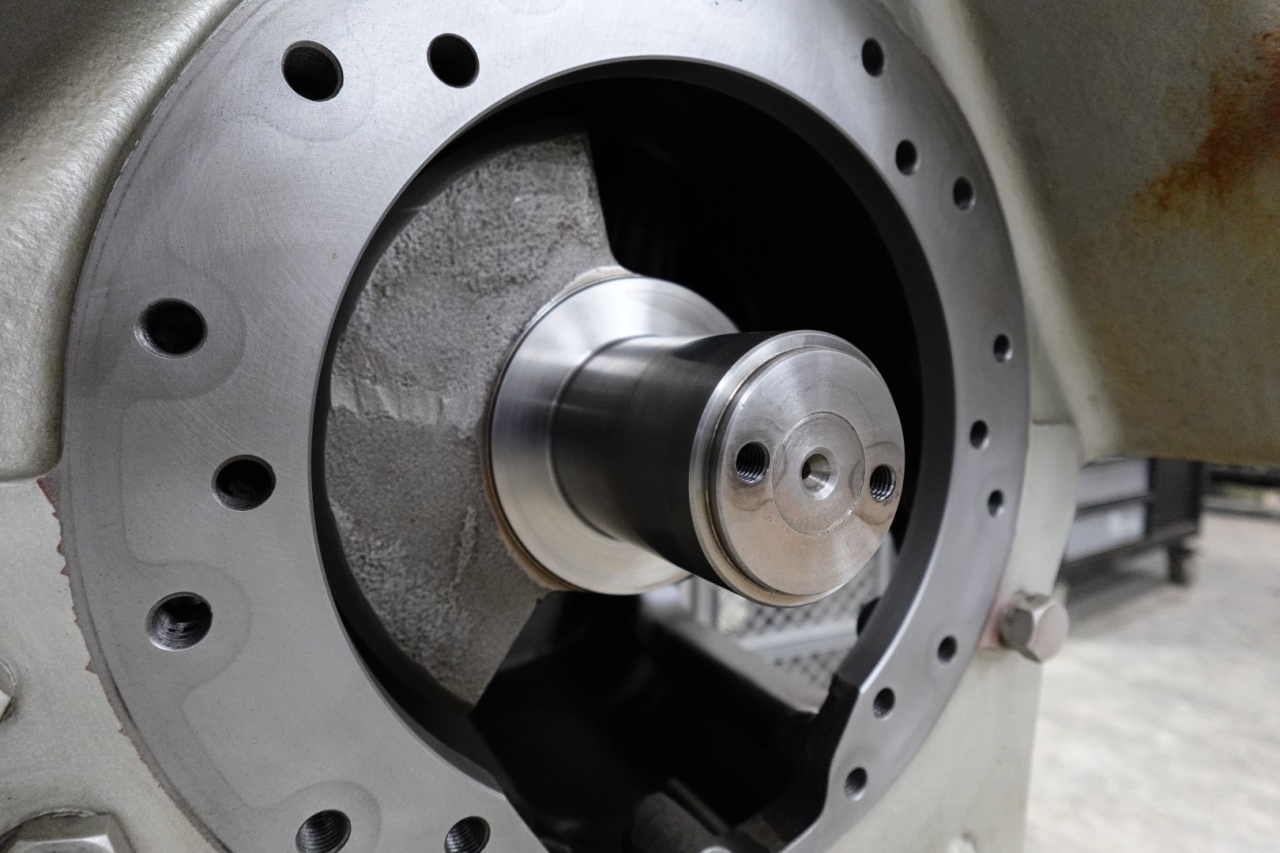

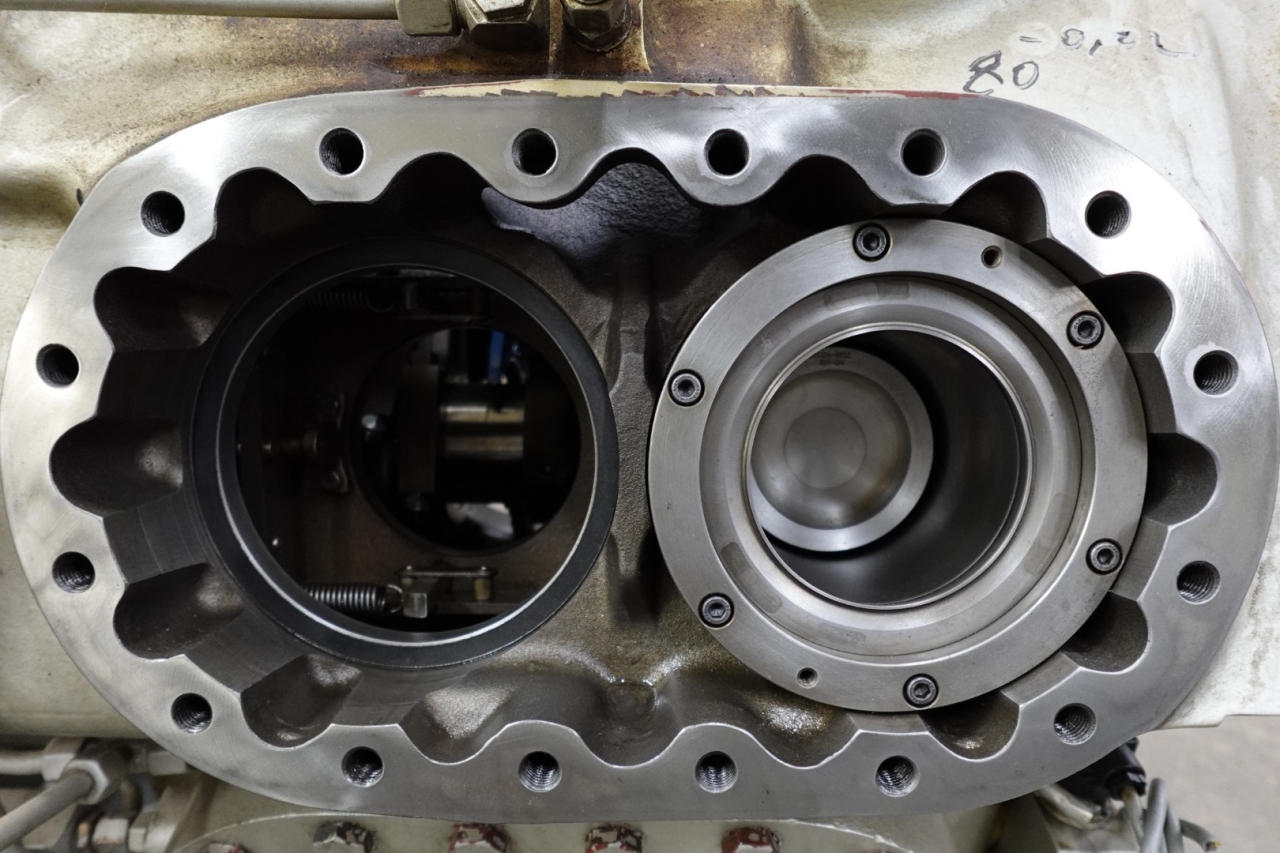

Used Sabroe SMC 108L reciprocating compressor on NH3 (Ammonia). Complete with a Schorch KN7280S-BB01B-401 electric motor - 50 Hz - 110 kW - 1475 RPM, Sabroe OVUR 3206D oil separator with a volume of 39 liter, pressure and safety switch and a Sabroe UNISAB 2 control panel. The compressor has a displacement of 565 m³/h.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
