Bluebox/Western Zeta REV 3.2 1PS
Bluebox/Western Zeta REV 3.2 1PS
| 14887 | |
| Marka | Bluebox/Western |
| Typ | Zeta REV 3.2 1PS |
| Typ produktu | Air Cooled Chiller |
| Ogólna wydajność w kW | 40,4 |
| Ogólna wydajność w Tonaż | 11,5 |
| Czynnik chłodzący | Freon |
| Typ czynnika chłodzącego | R410A |
| Liquid buffer tank |
|
| Pump |
|
| Moduł hydrauliczny |
|
| Waga kg. | 416 |
| Rozmiary | 1700x1100x1450 mm (LxWxH) |

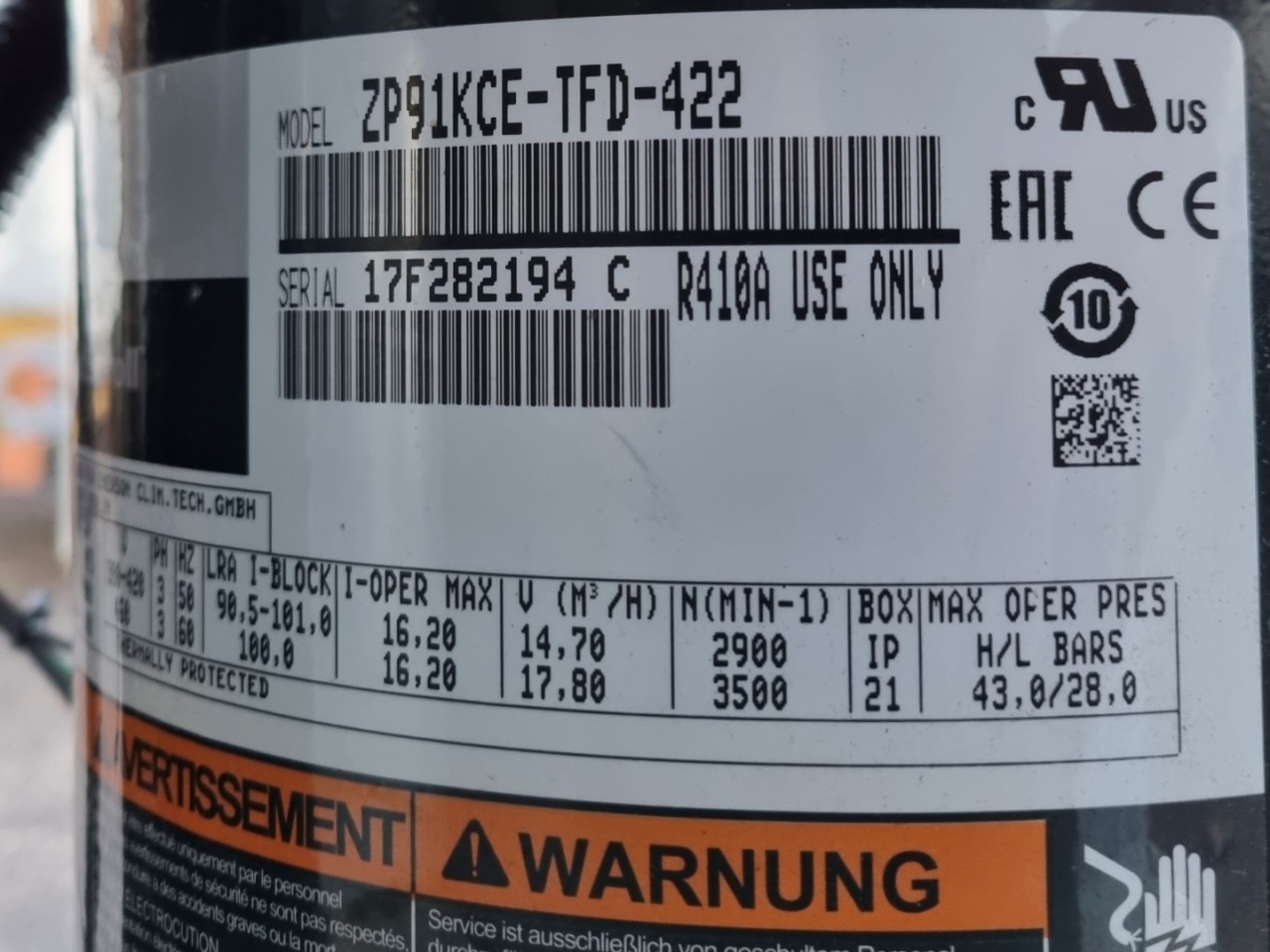

| Compressor(s) type & model | Copeland Scroll ZP91KCE-TFD-422(x2) |
| Number of fans | 2 |
| Fan specifications | 0,6 kW - 860 RPM - diameter 630 mm |
| Uwagi | | water flow: 3,6-9,6 m³/h |
| Remarks ||| | Y.o.b. 2017 |
| Liczba sztuk | 1 |
Bluebox/Western Zeta REV 3.2 1PS

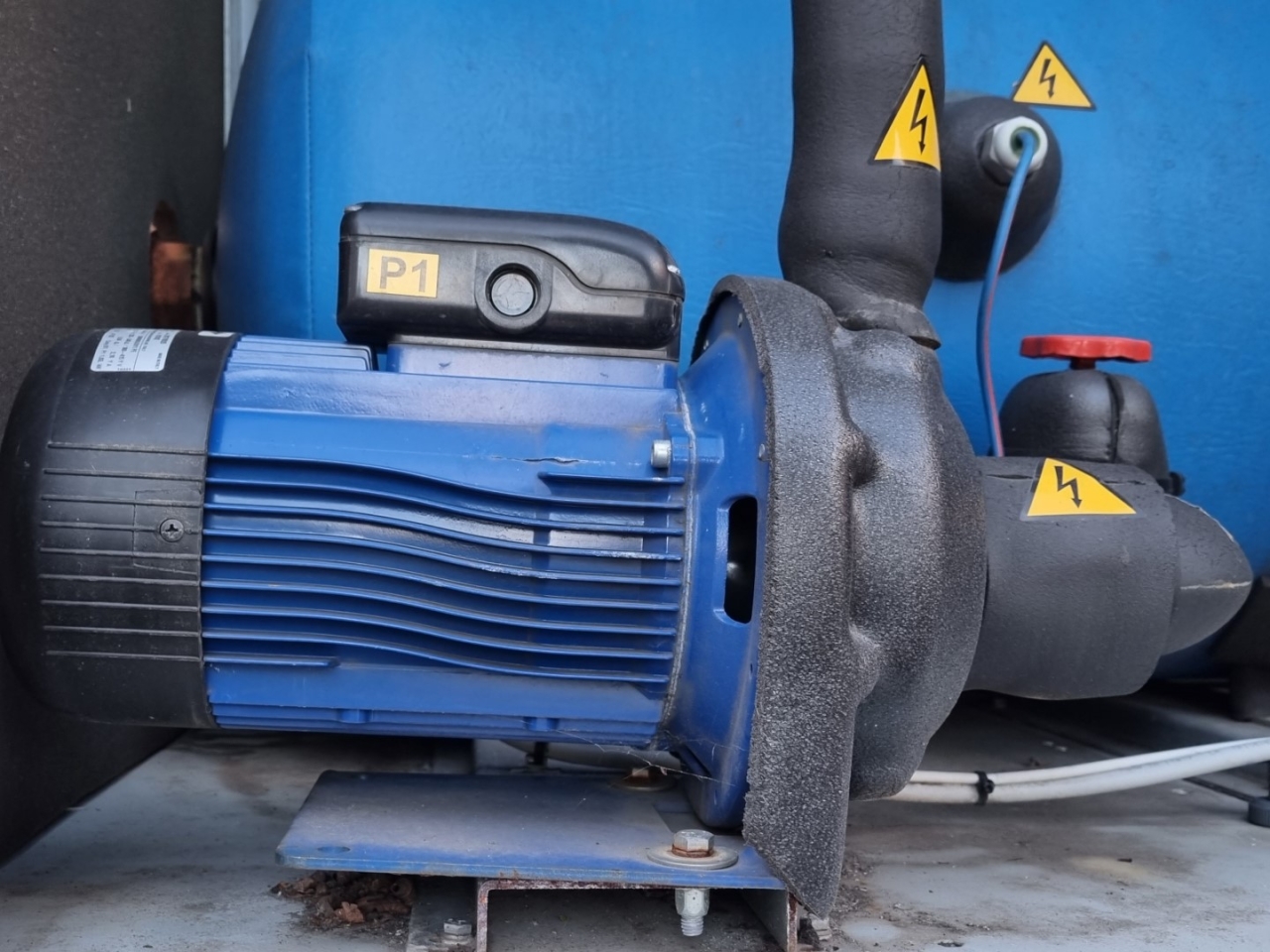

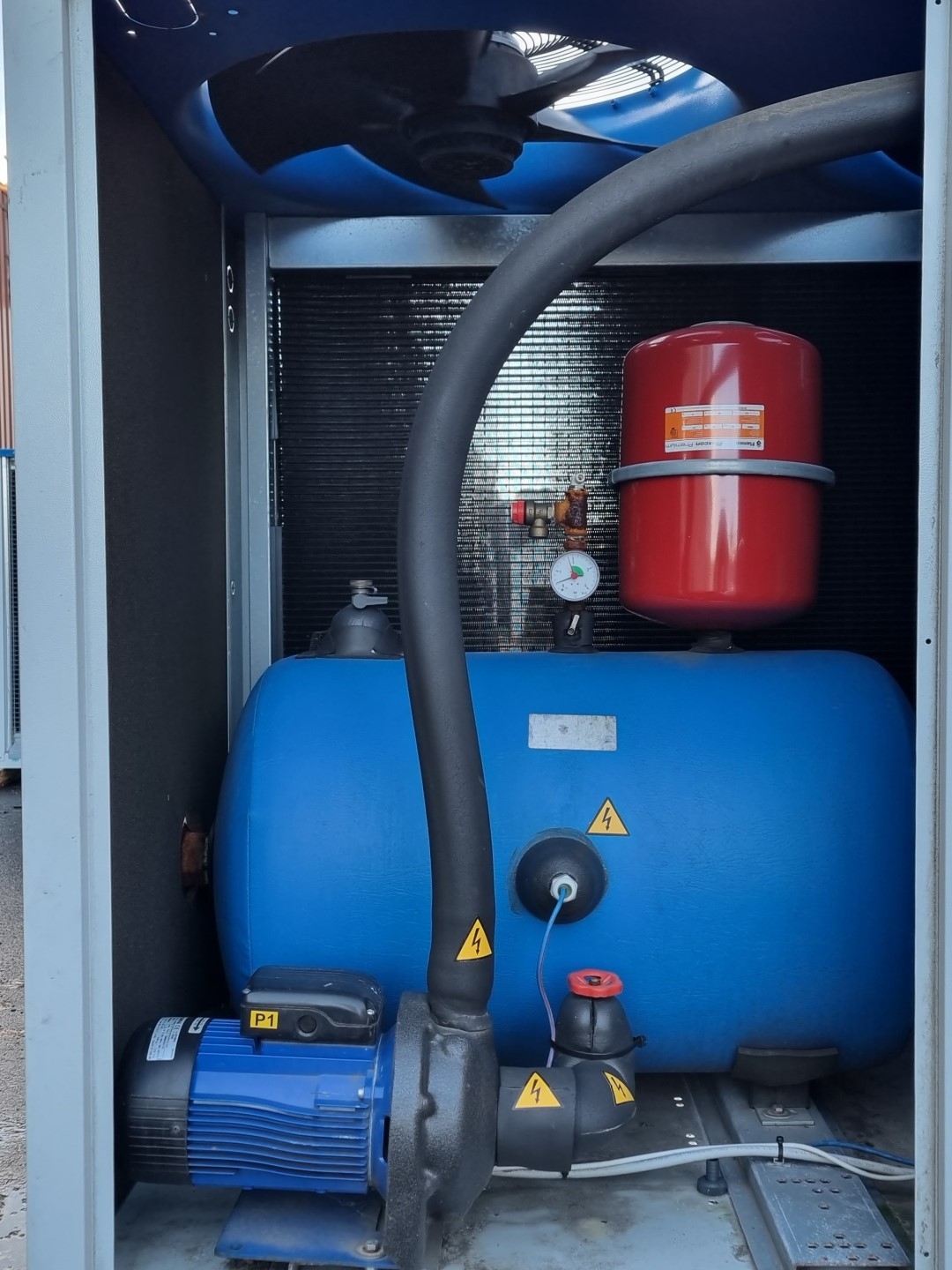

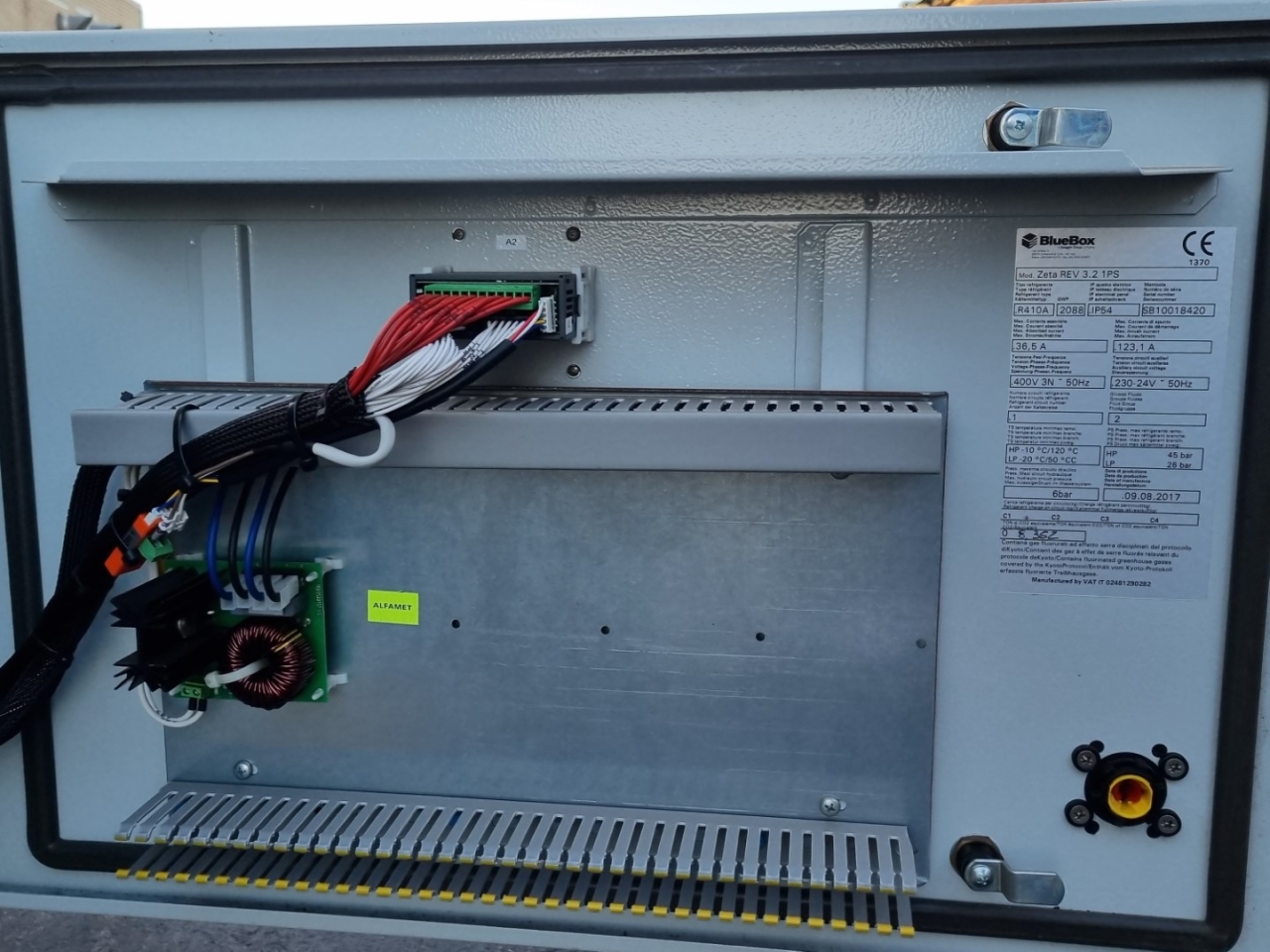

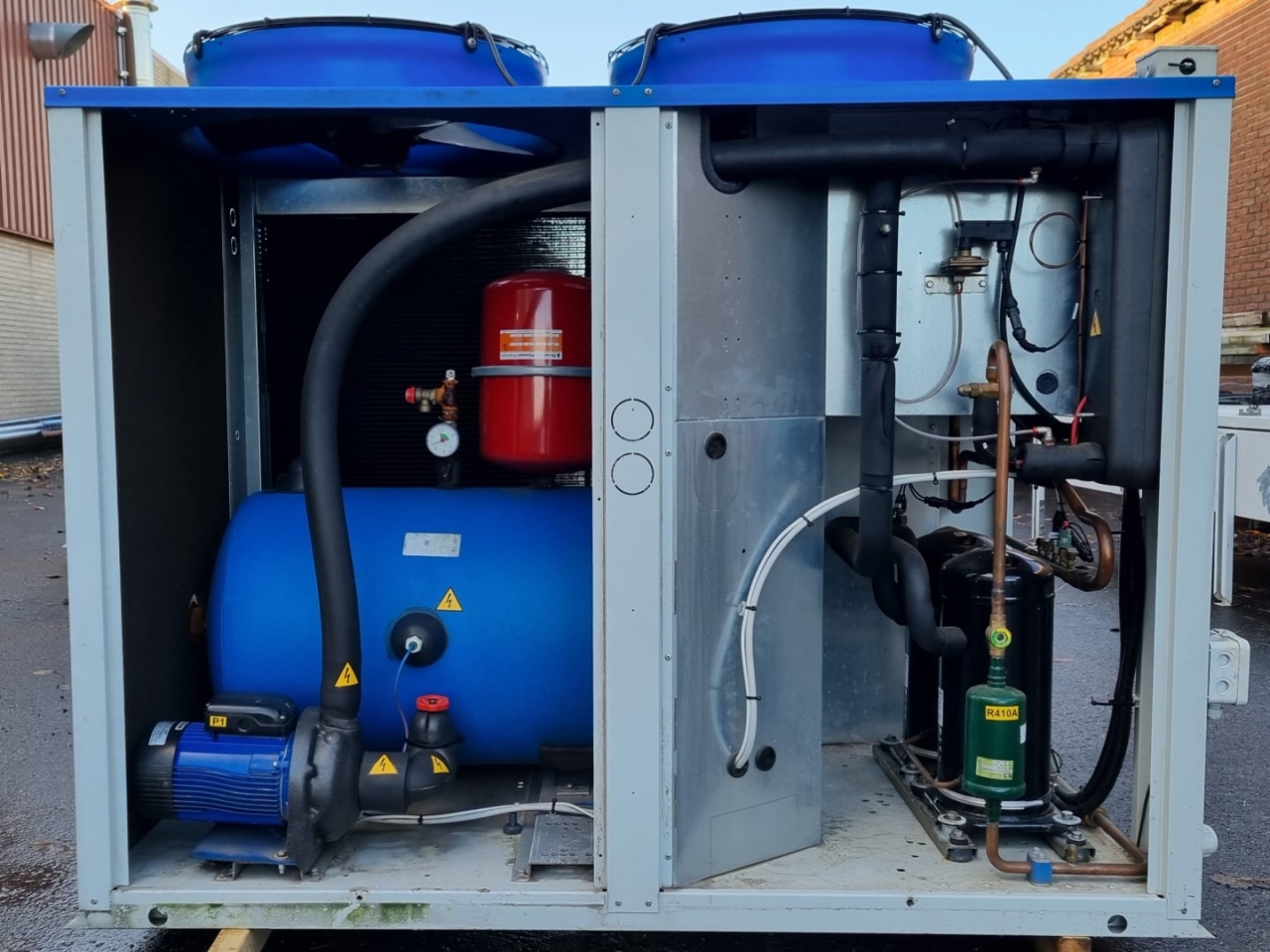

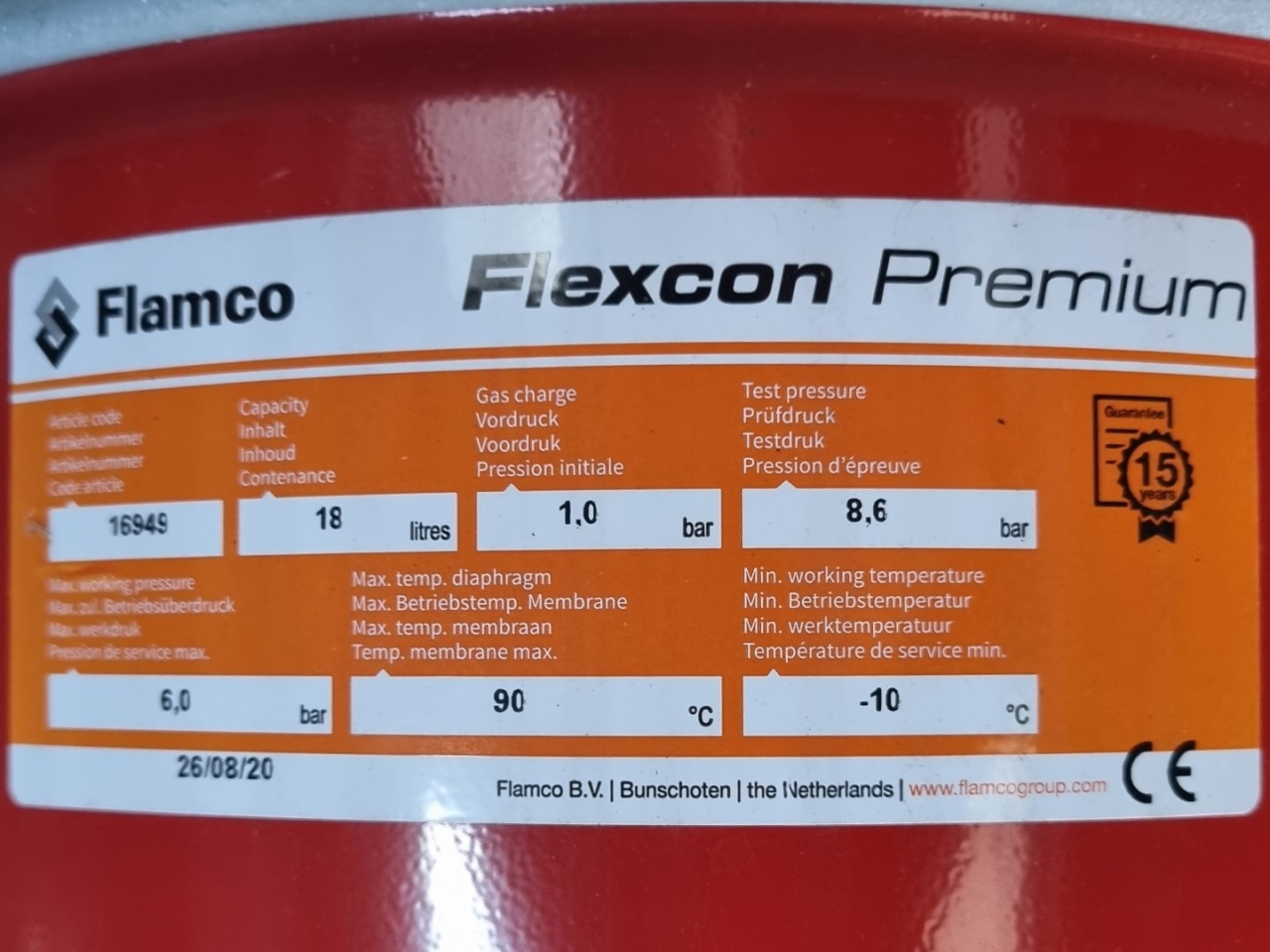

Used BlueBox Zeta REV 3.2 1PS air cooled chiller on R410A build in 2017. Complete with 2 Copeland ZP91KCE-TFD-422 scroll compressors, condensor with 2 EBM-Papst A6E630-AN01-01 fans - 50 Hz - 0,60 kW - 860 RPM and a total airflow of 16.000 m³/h, plate heat exchanger as evaporator, liquid buffer tank, Lowara CIE120/4/D water pump, expansion vessel, liquid line filter drier and a control box with a control panel.
*All components of this used chiller will be tested on adequate performance, leak free condition (condensing blocks), compressors, fans, control panel, and so forth). Choosing HOSBV means buying with warranty. We perform a industrial cleaning. if requested we can arrange your shipment.
