Copeland ZS45K4E-TFD-551 (x2)
Copeland ZS45K4E-TFD-551 (x2)
| 15326 | |
| Marka | Copeland |
| Typ | ZS45K4E-TFD-551 (x2) |
| Czynnik chłodzący | Freon |
| kW at 0ºC/+40ºC | 30,9 |
| kW at -5ºC/+40ºC | 25,6 |
| kW at -10ºC/+40ºC | 21,0 |
| kW at -20ºC/+40ºC | 14,0 |
| kW at -30ºC/+40ºC | 9,0 |
| kW at -40ºC/+40ºC | 5,5 |
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Obiornik cieczy |
|
| Obiornik cieczy ltr. | 14,2 |
| Ssanie |
|
| Osuszający filter lini cieczy |
|
| Okno widokowe |
|
| Panel kontrolny |
|
| m3 / h | 34,1 |
| Uwagi | | Y.o.b. 2002 |
| Package / Rack |
|
| Rozmiary | 1000x750x740 mm (LxWxH) |
| Liczba sztuk | 1 |
Copeland ZS45K4E-TFD-551 (x2)

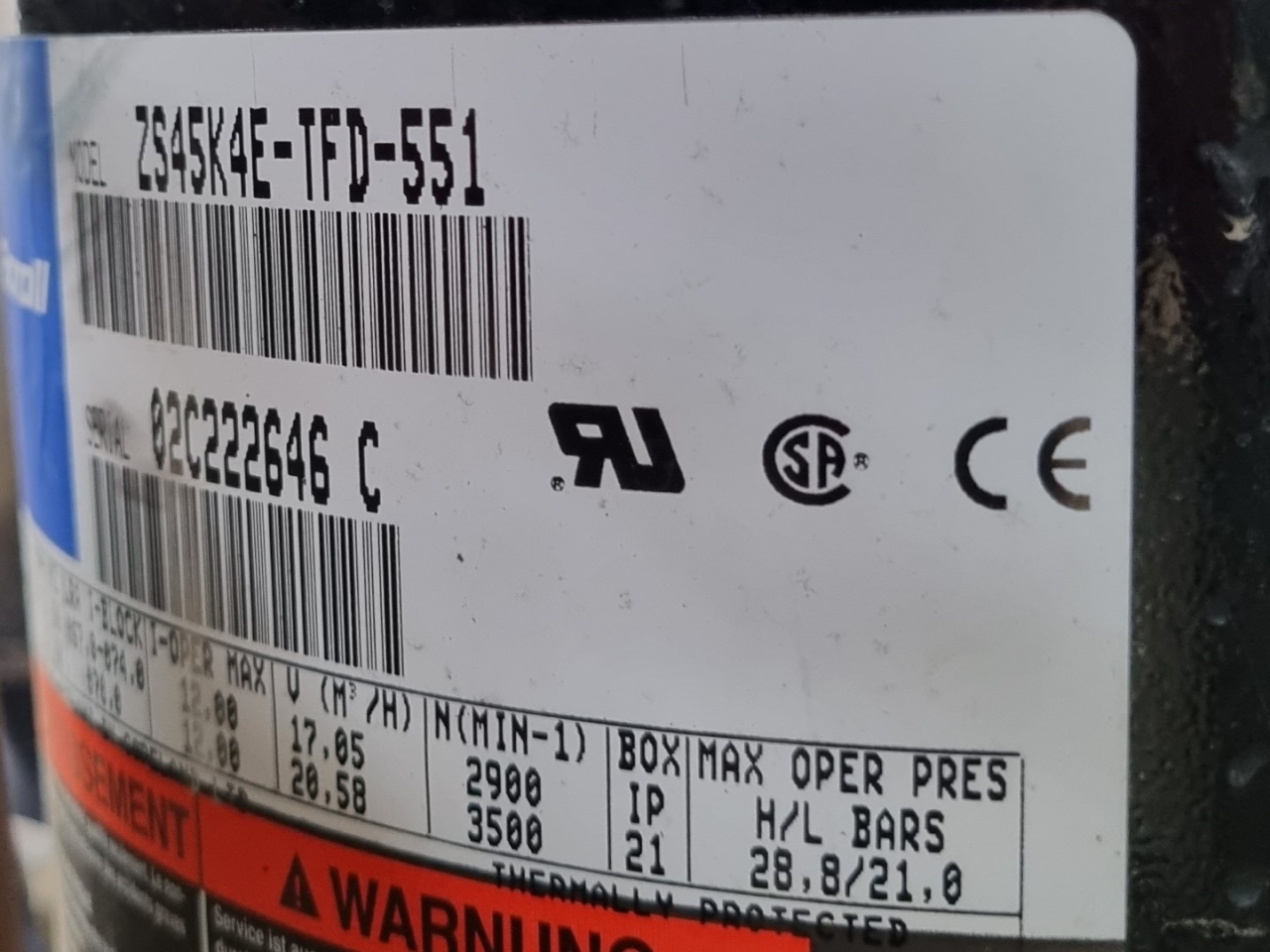

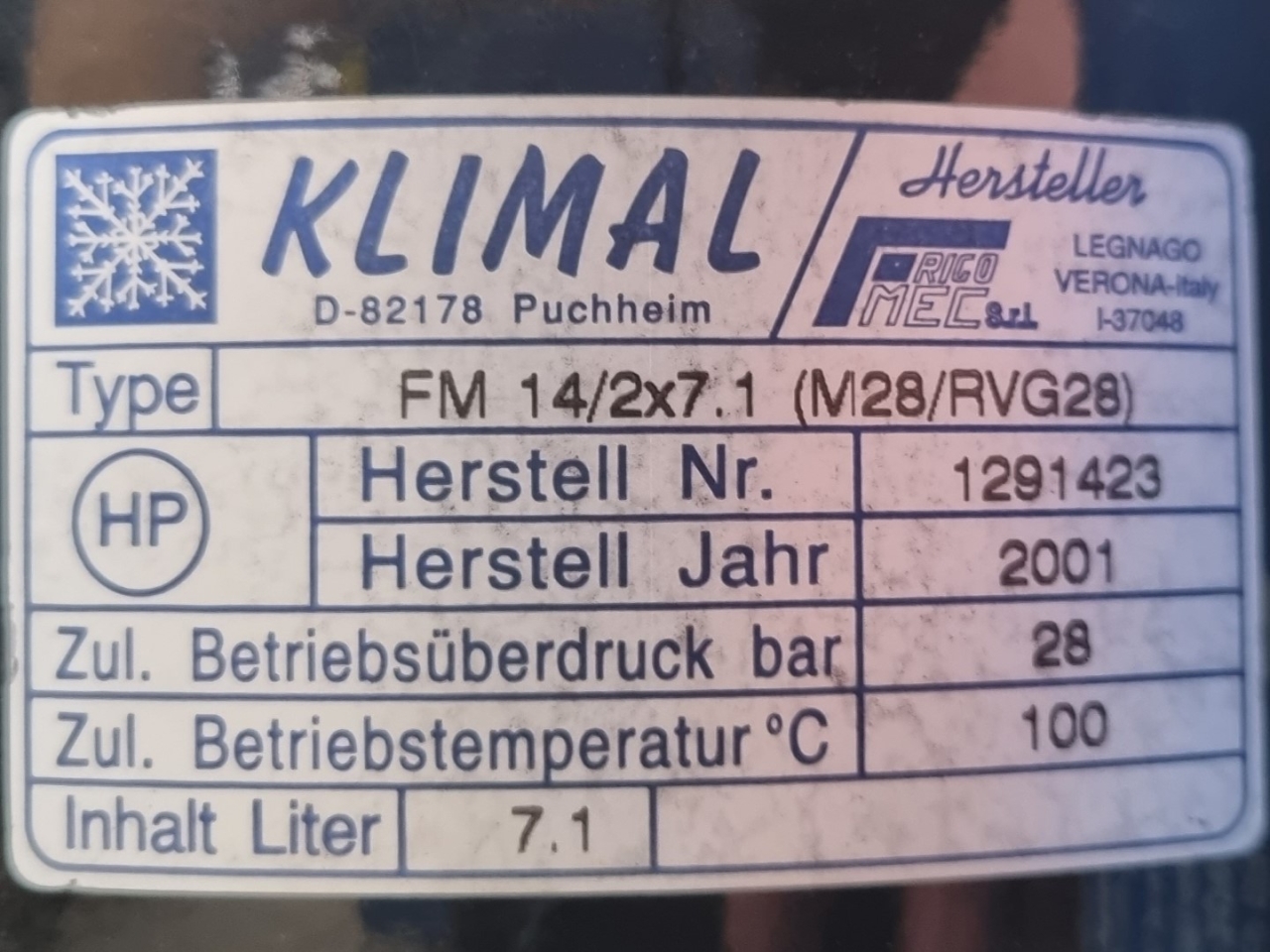

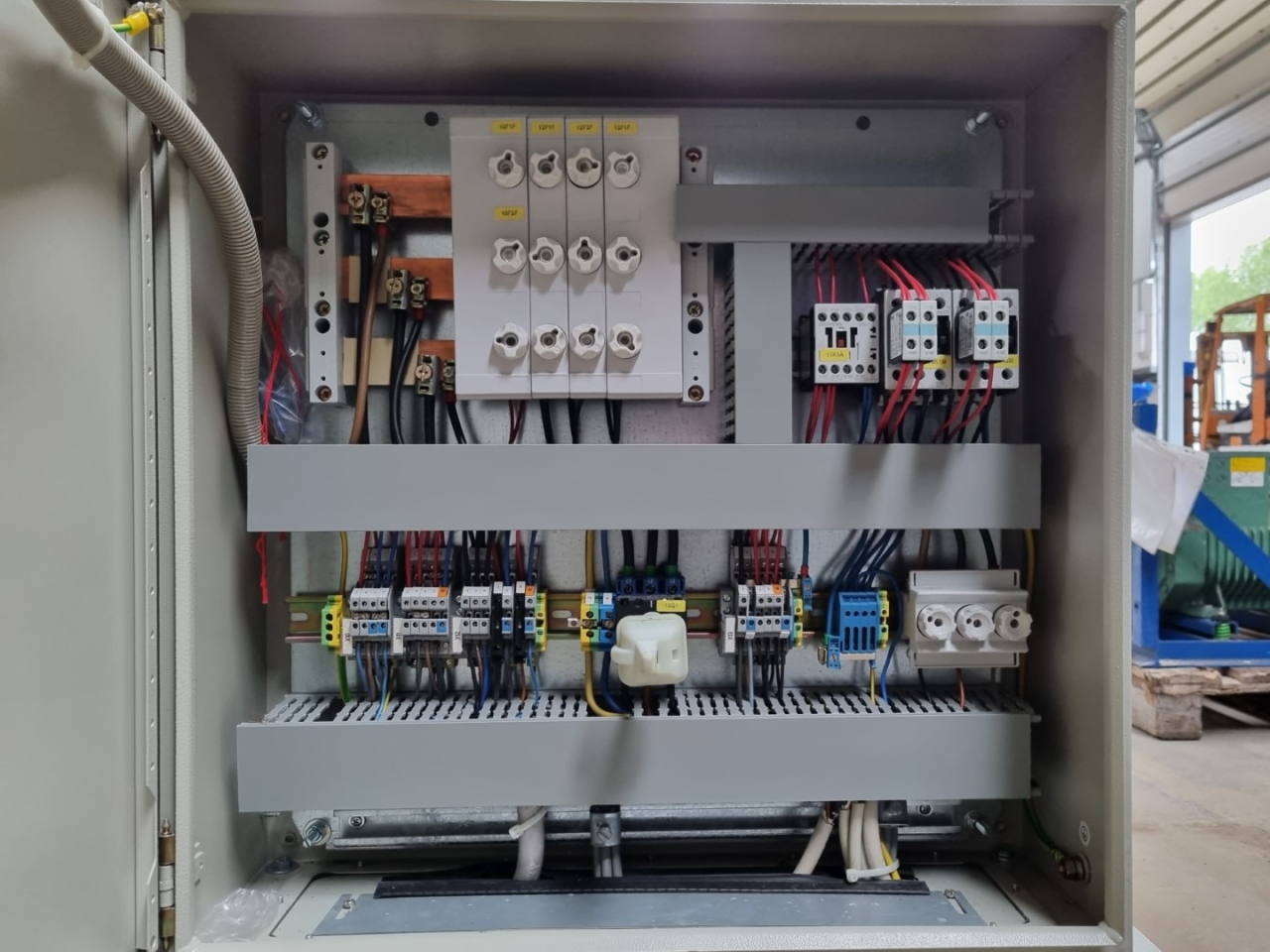

Used Copeland ZS45K4E-TFD-551 (x2) scroll compressors rack on Freon. Complete with a suction accumulator, 2 Klimal FM 14/2x7.1 (M28/RVG28) liquid receivers each with a volume of 7,1 liter, pressure and safety switches, liquid line filter drier and a control cabinet. The compressors have a total displacement of 34,1 m³/h.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *If requested we are happy to arrange your shipment.
