Cabero ACWA097A2.2/2N D
Cabero ACWA097A2.2/2N D
| 16690 | |
| Marka | Cabero |
| Typ | ACWA097A2.2/2N D |
| Typ produktu | Air Cooled Condenser |
| Ogólna wydajność w kW | 139,7 |
| Liczba wentylatorów | 2 |
| Prdkość obrotów wentylatora (obr/min) | 1100 RPM |
| Czynnik chłodzący | NH 3 (ammonia) |
| Przepływ powietrza w m³/h | 49.100 |
| wentylatory o średnicy Ø | 910 mm |
| Powierzchnia (m2) | 319,5 m² |
| Objętość rurki | 47,5 dm³ |
| Rozmiary | 3000x1350x1860 mm (LxWxH) |
| Uwagi | | Y.o.b. 2017 |
| Liczba sztuk | 1 |
Cabero ACWA097A2.2/2N D

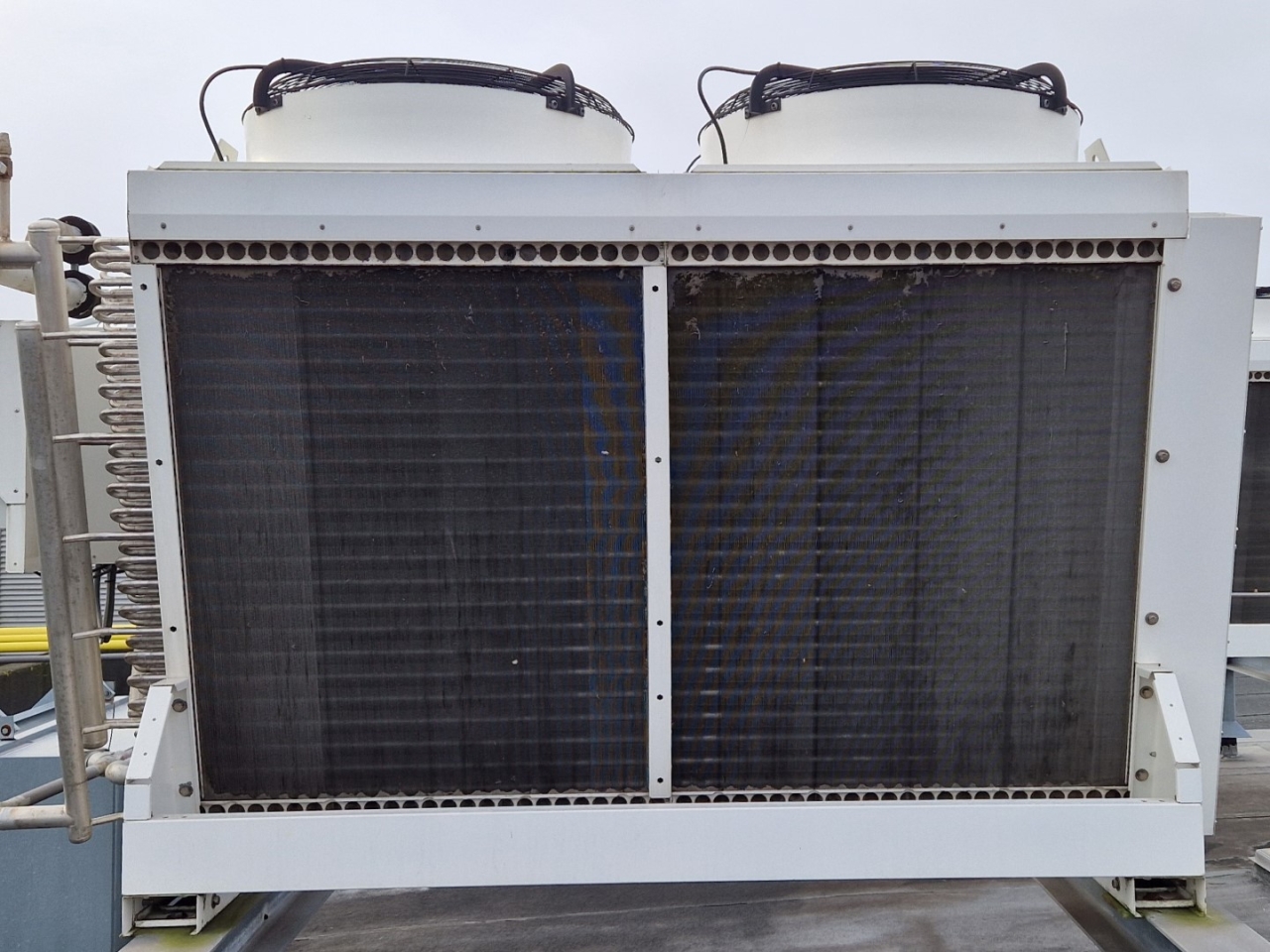

Used Cabero ACWA097A2.2/2N D air-cooled condenser on NH3 (Ammonia) built in 2017. Complete with 2 Ziehl-Abegg FN091-ZIQ.GL.V5P1 fans - 50/60 Hz - 3,2 kW - 1100 RPM - diameter 910 mm and a total airflow of 49.100 m³/h.
*All components of this used condenser will be tested on adequate functionality, leak-free condition (electro engines), condensing block, and bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning. on demand, we can arrange your shipment.
Cabero ACWA097A2.2/2N D
| Cabero ACWA097A2.2/2N D - | (PDF) |
