Bitzer 6FE-50Y-40P (x6) & 6F-50.2Y-40P (x1)
Bitzer 6FE-50Y-40P (x6) & 6F-50.2Y-40P (x1)
| 17684 | |
| Marka | Bitzer |
| Typ | 6FE-50Y-40P (x6) & 6F-50.2Y-40P (x1) |
| Czynnik chłodzący | Freon |
| kW at 0ºC/+40ºC | 869,3 |
| kW at -5ºC/+40ºC | 724,1 |
| kW at -10ºC/+40ºC | 597,4 |
| kW at -20ºC/+40ºC | 392,2 |
| kW at -30ºC/+40ºC | 241,0 |
| kW at -40ºC/+40ºC | 131,4 |
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Wskaźniki ciśnienia |
|
| Separator oleju |
|
| Poziom oleju w systemie |
|
| Osuszający filter lini cieczy |
|
| Okno widokowe |
|
| Zawór elektromagnetyczny |
|
| m3 / h | 1061 m³/h - 50 Hz & 1281,6 m³/h - 60 Hz |
| Waga kg. | 1650 kg |
| Package / Rack |
|
| Rozmiary | 3800x2700x2000 mm (LxWxH) |
| Liczba sztuk | 1 |
Bitzer 6FE-50Y-40P (x6) & 6F-50.2Y-40P (x1)

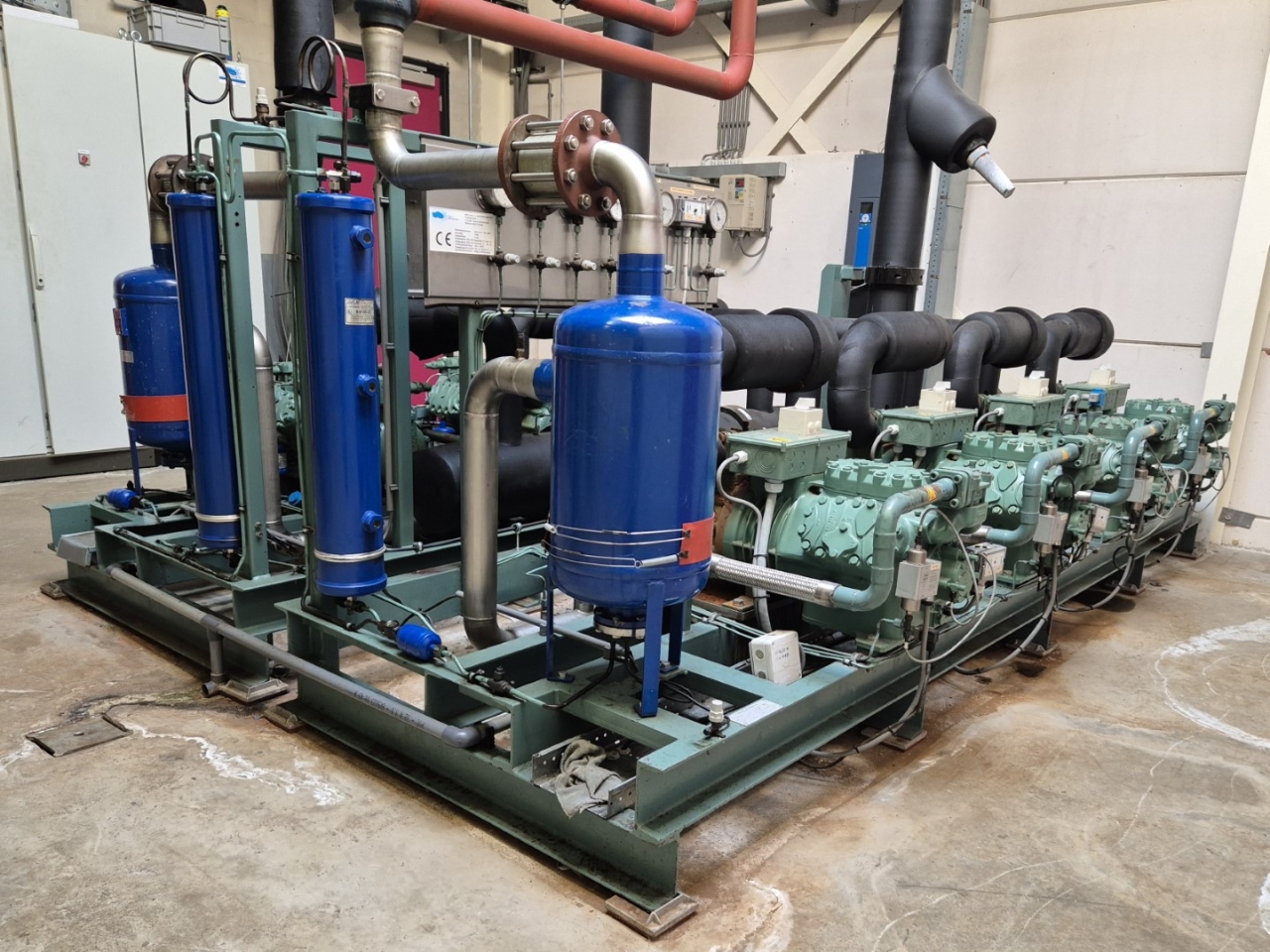

Used semi-hermetic reciprocating Bitzer 6FE-50Y-40P (x6) & 6F-50.2Y-40P (x1) compressors rack on Freon. Complete with a 2 Henry Technologies S-5414-CE oil separators with volume of 40 liters, 2 Henry Technologies S-9108-CE oil reservoir, S-9530 oil level system AC&R, pressure and safety switches/gauges, control kast and frequency regulators: Omron SX-D4055-EV, Vacon0100-3L-0140 and x2 Omron CIMR-E7Z4011. The compressors have a total displacement of 1061 m³/h at 50 Hz and 1281,6 m³/h at 60 Hz.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
