Bitzer 4H-15.2Y
Bitzer 4H-15.2Y
| 17743 | |
| Marka | Bitzer |
| Typ | 4H-15.2Y |
| Czynnik chłodzący | Freon |
| kW at -5ºC/+40ºC | 49,7 |
| kW at -10ºC/+40ºC | 41,1 |
| kW at -20ºC/+40ºC | 27,1 |
| kW at -30ºC/+40ºC | 9,2 |
| kW at -40ºC/+40ºC | 6,4 |
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Obiornik cieczy |
|
| Obiornik cieczy ltr. | 45 |
| Ssanie |
|
| Separator oleju |
|
| Osuszający filter lini cieczy |
|
| Okno widokowe |
|
| Zawór elektromagnetyczny |
|
| m3 / h | 50 Hz - 73,6 m³/h / 60 Hz - 88,8 m³/h |
| Rozmiary | 2330x750x1100 mm (LxW) |
| Liczba sztuk | 2 |
Bitzer 4H-15.2Y

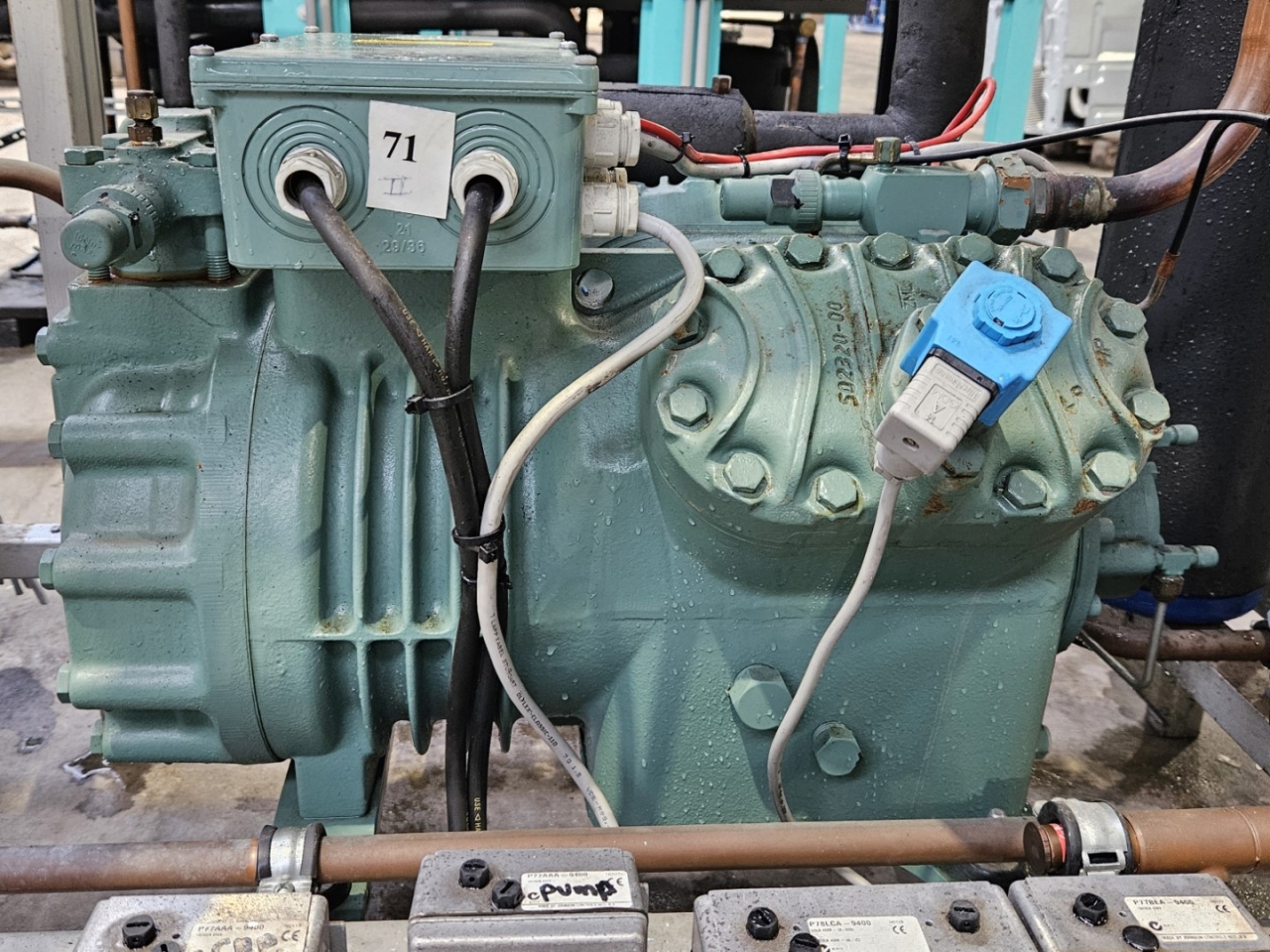

Used Bitzer 4H-15.2Y semi-hermetic reprocating compressor on Freon. Complete with a suction accumulator, oil separator, liquid receiver with a volume of 45 liter, capacity control, liquid line filter drier, pressure and safety switches. The compressor has a displacement of 73,6 m³/h at 50 Hz & 88,8 m³/h at 60 Hz.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
