Güntner GFHV FD 090.2NF/23E-53
Güntner GFHV FD 090.2NF/23E-53
| 17810 | |
| Marka | Güntner |
| Typ | GFHV FD 090.2NF/23E-53 |
| Typ produktu | Drycooler |
| Ogólna wydajność w kW | 200,0 |
| Liczba wentylatorów | 6 |
| Prdkość obrotów wentylatora (obr/min) | 830 |
| Czynnik chłodzący | Glycol |
| Przepływ powietrza w m³/h | 101.766 |
| wentylatory o średnicy Ø | 900 mm |
| Powierzchnia (m2) | 1446,4 m² |
| Objętość rurki | 178,3 dm³ |
| Rozmiary | 6050x2250x1480 mm (LxWxH) |
| Waga | 1327 kg |
| Uwagi | | Y.o.b. 2024 |
| Remarks || | *Please notice that the drycooler has some transport damage |
| Liczba sztuk | 1 |
Güntner GFHV FD 090.2NF/23E-53

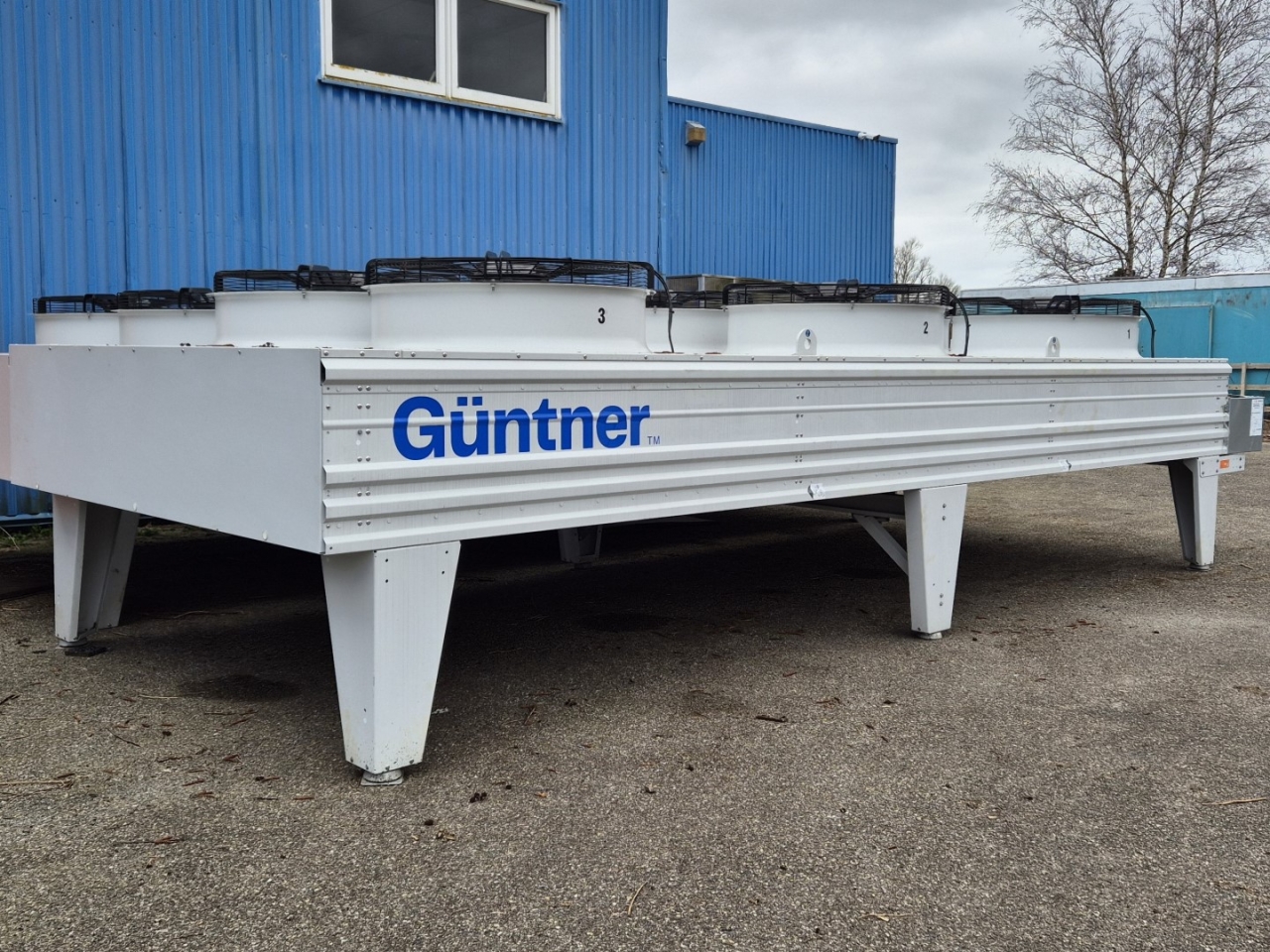

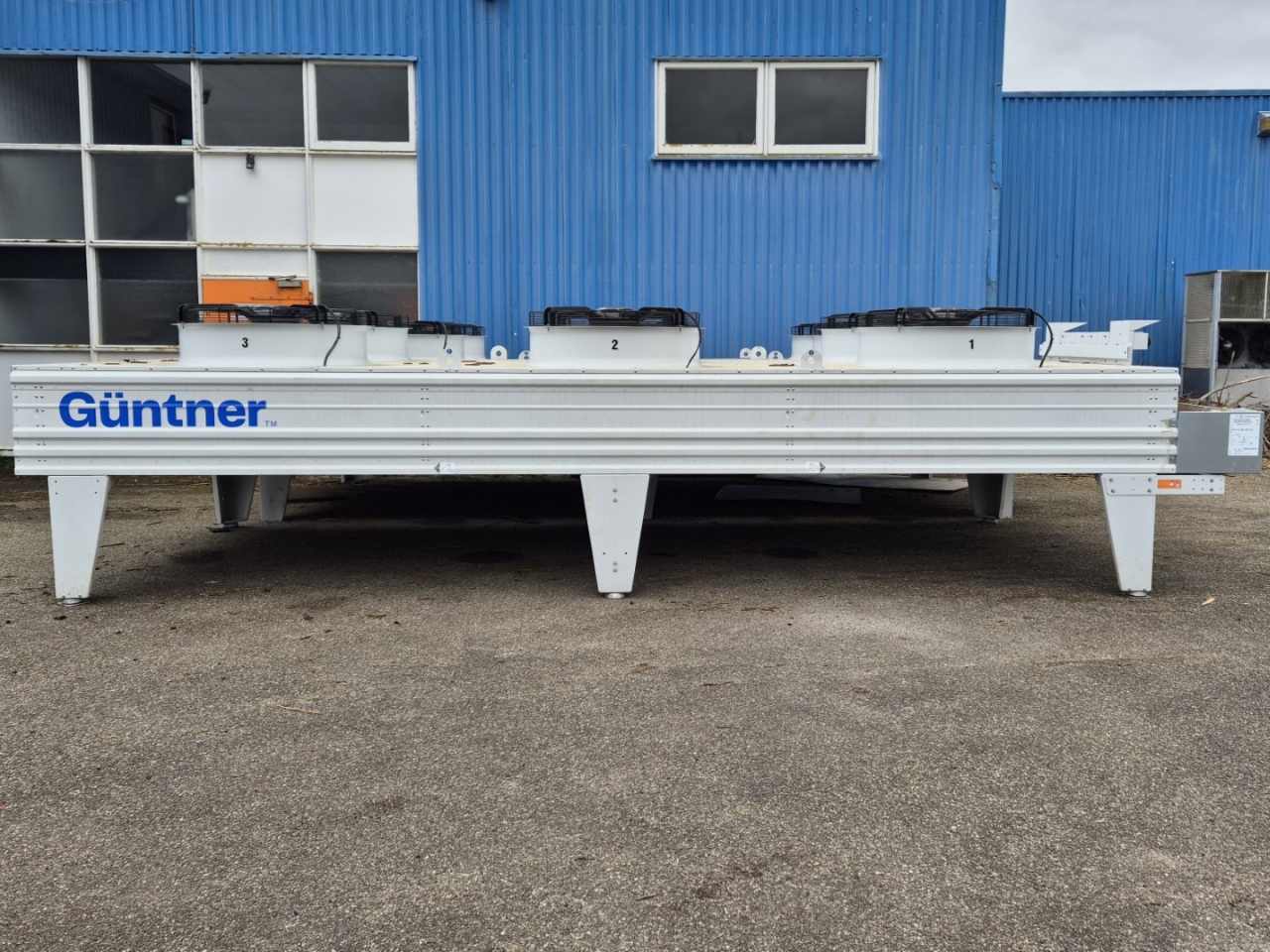

New Güntner GFHV FD 090.2NF/23E-53 drycooler built in 2024. Complete with 6 EBM-papst S3G910-CS35-68 fans - 50/60 Hz - 1,55 kW - 830 RPM - diameter 900 mm that produce a total airflow of 101.766 m³/h. Please notice that the drycooler has some transport damage.
Capacity based on the following:
Air inlet/outlet temperature: 35°C/41,5°C
Inlet/outlet temperature: 45°C/39°C
Volume flow: 32,07 m³/h
Medium: Glycol 30%.
*All components of this used condenser will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning. on demand, we can arrange your shipment.
