Alfa Laval VDDSE1006.1CD96 C4 SW CBP
Alfa Laval VDDSE1006.1CD96 C4 SW CBP
| 17858 | |
| Marka | Alfa Laval |
| Typ | VDDSE1006.1CD96 C4 SW CBP |
| Typ produktu | Drycooler |
| Ogólna wydajność w kW | 564,0 |
| Liczba wentylatorów | 12 |
| Prdkość obrotów wentylatora (obr/min) | 850 |
| Czynnik chłodzący | Glycol |
| Przepływ powietrza w m³/h | 289.000 |
| wentylatory o średnicy Ø | 1000 mm |
| Powierzchnia (m2) | 3691,7 |
| Rozmiary | 8420x2280x2500 mm (LxWxH) |
| Waga | 3170 kg |
| Uwagi | | Y.o.b. 2016 |
| Liczba sztuk | 1 |
Alfa Laval VDDSE1006.1CD96 C4 SW CBP

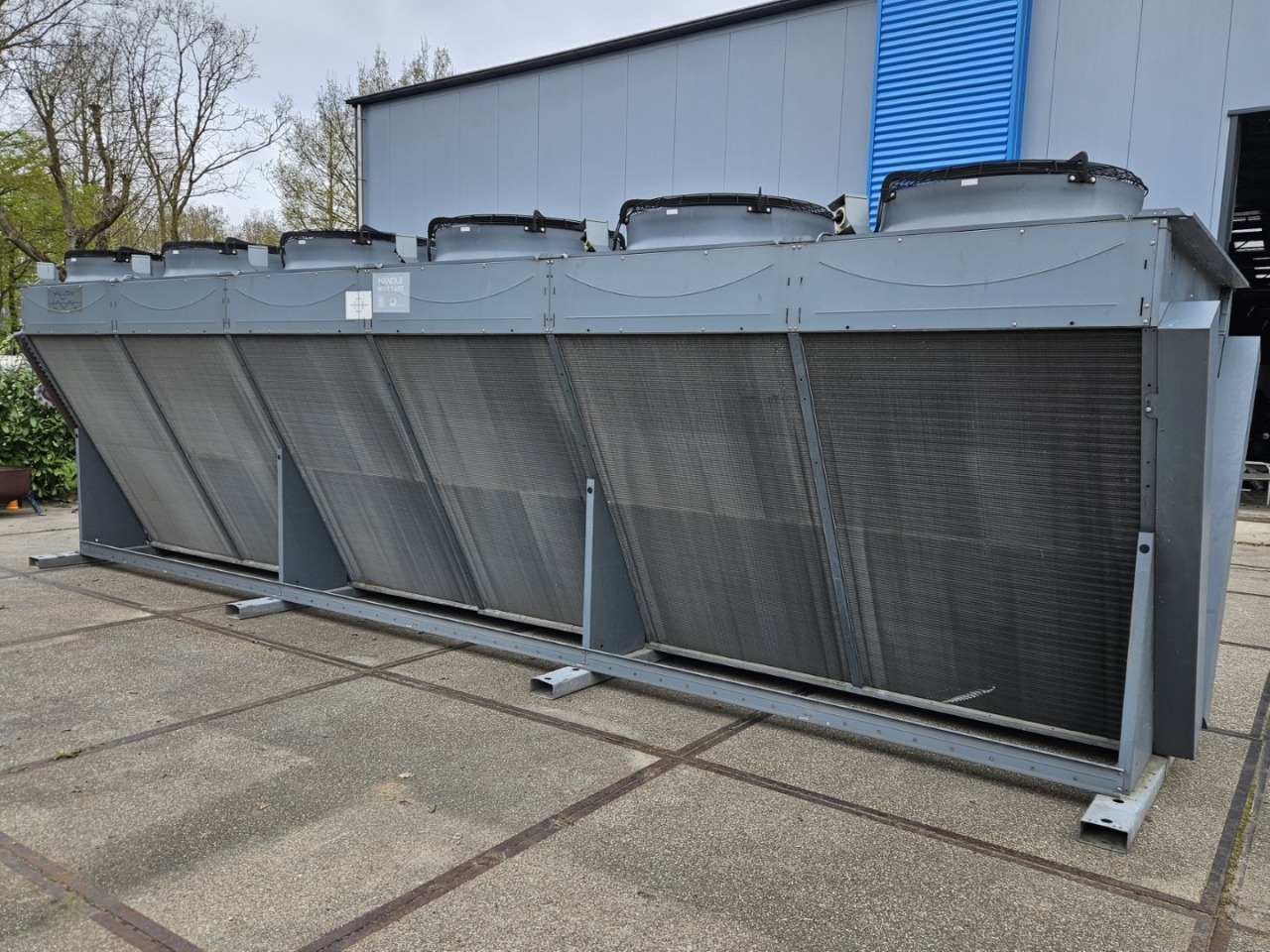

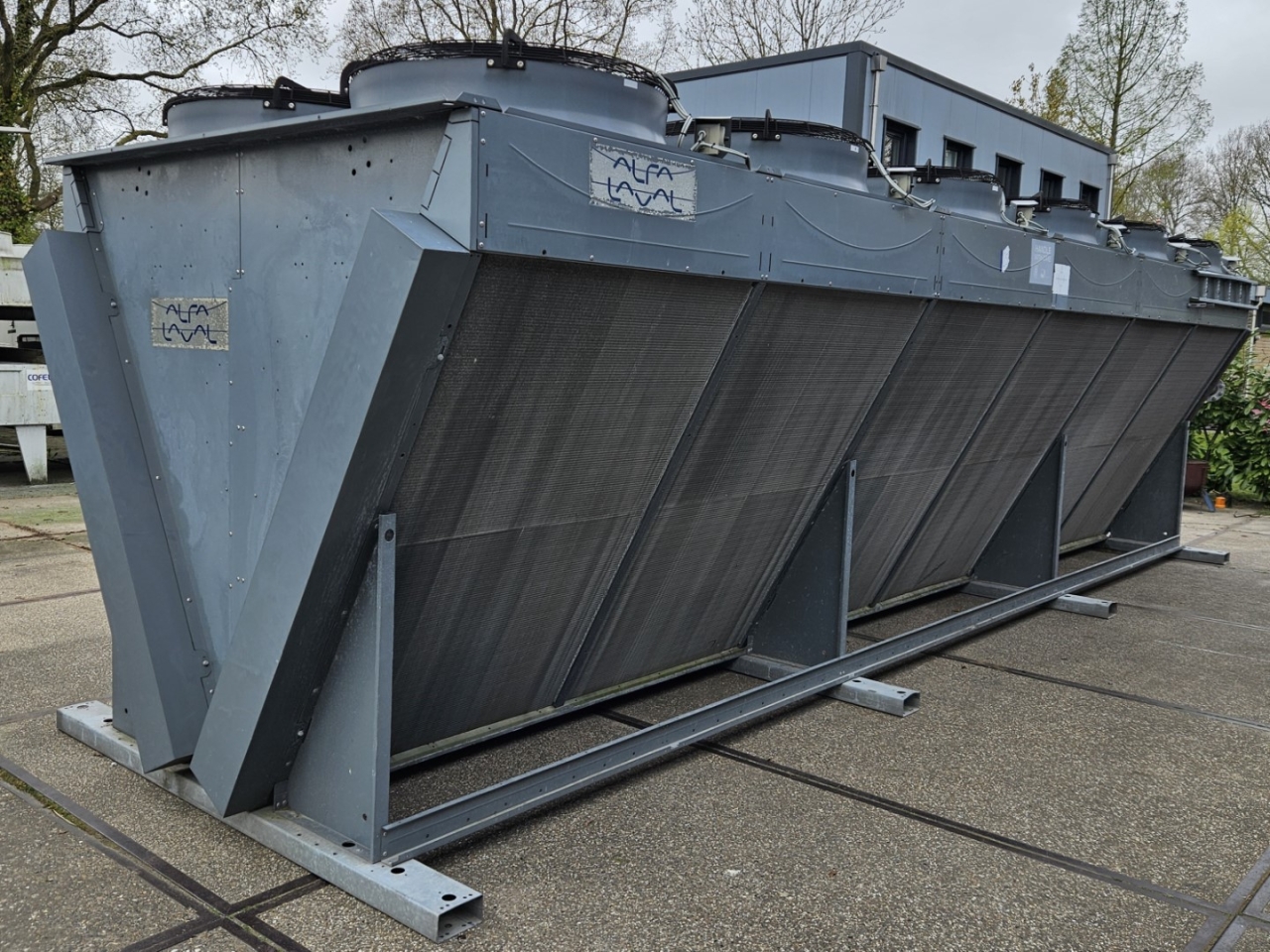

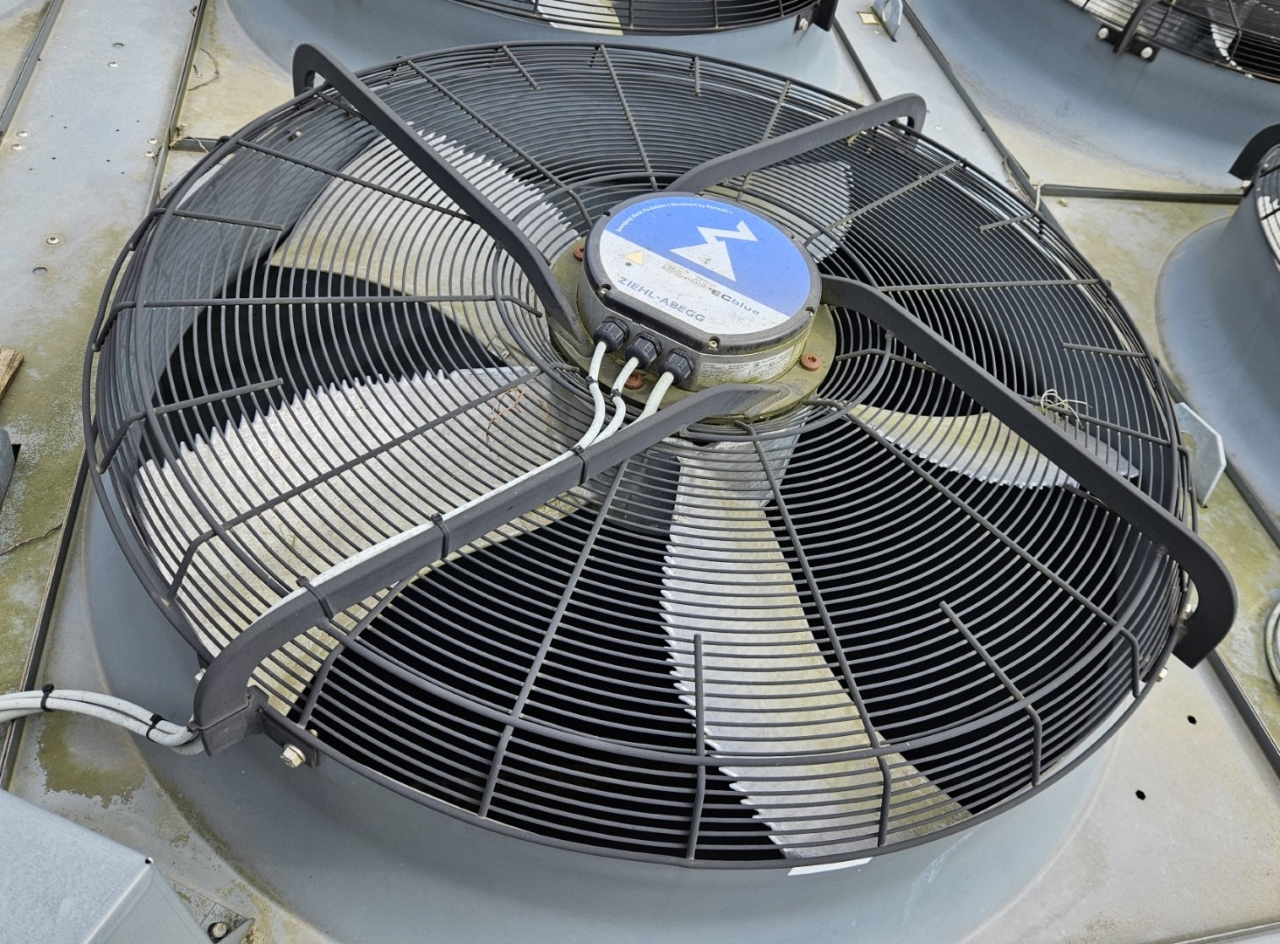

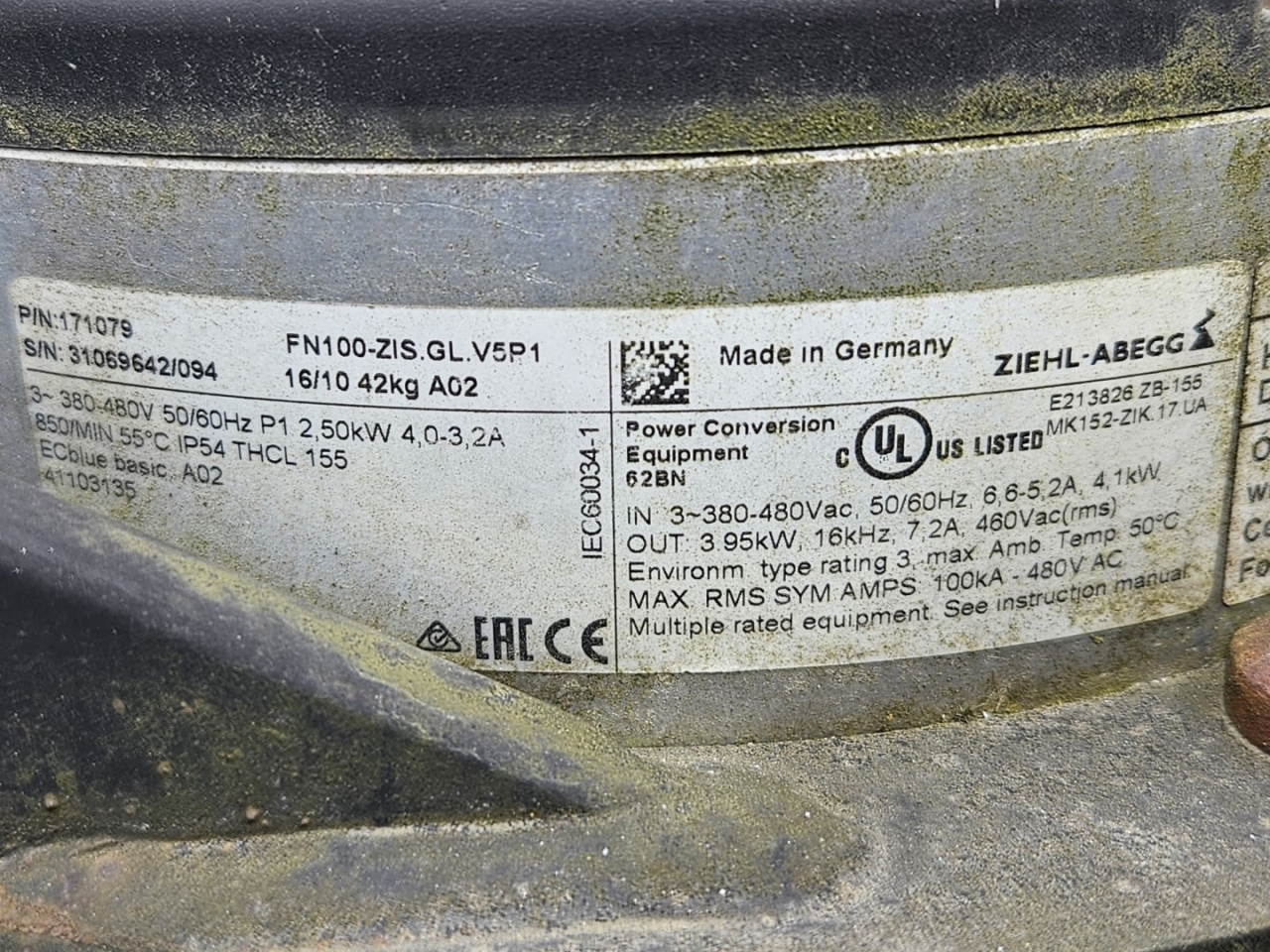

Used Alfa Laval VDDSE1006.1CD96 C4 SW CBP drycooler built in 2016. Complete with 12 Ziehl-Abegg FN100-ZIS.GL.V5P1 fans - 50/60 Hz - 2,5 kW - 850 RPM - diameter 1000 mm.
Capacity of 564 kW based on the following conditions:
Air inlet/outlet: +25°C/+31°C.
Medium: Ethylene Glycol 34% Vol.
Medium inlet/outlet: +40°C/+35°C.
Flow: 106 m³/h.
Capacity of 2197,6 kW based on the following conditions:
Air inlet/outlet: +25°C/+48,4°C.
Medium: Ethylene Glycol 34% Vol.
Medium inlet/outlet: +60°C/+40°C.
Flow: 103,2 m³/h.
*All components of this used condenser will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning. on demand, we can arrange your shipment.
