Güntner GFHV FD 090.2NF/12E-52
Güntner GFHV FD 090.2NF/12E-52
| 17928 | |
| Marka | Güntner |
| Typ | GFHV FD 090.2NF/12E-52 |
| Typ produktu | Drycooler |
| Ogólna wydajność w kW | 111,5* |
| Liczba wentylatorów | 2 |
| Prdkość obrotów wentylatora (obr/min) | 825 |
| Czynnik chłodzący | Glycol |
| Przepływ powietrza w m³/h | 41.100 |
| wentylatory o średnicy Ø | 910 mm |
| Powierzchnia (m2) | 319,4 |
| Objętość rurki | 60,8 dm³ |
| Rozmiary | 4260x1140x1840 mm (LxWxH) |
| Uwagi | | Y.o.b. 2021 |
| Liczba sztuk | 1 |
Güntner GFHV FD 090.2NF/12E-52

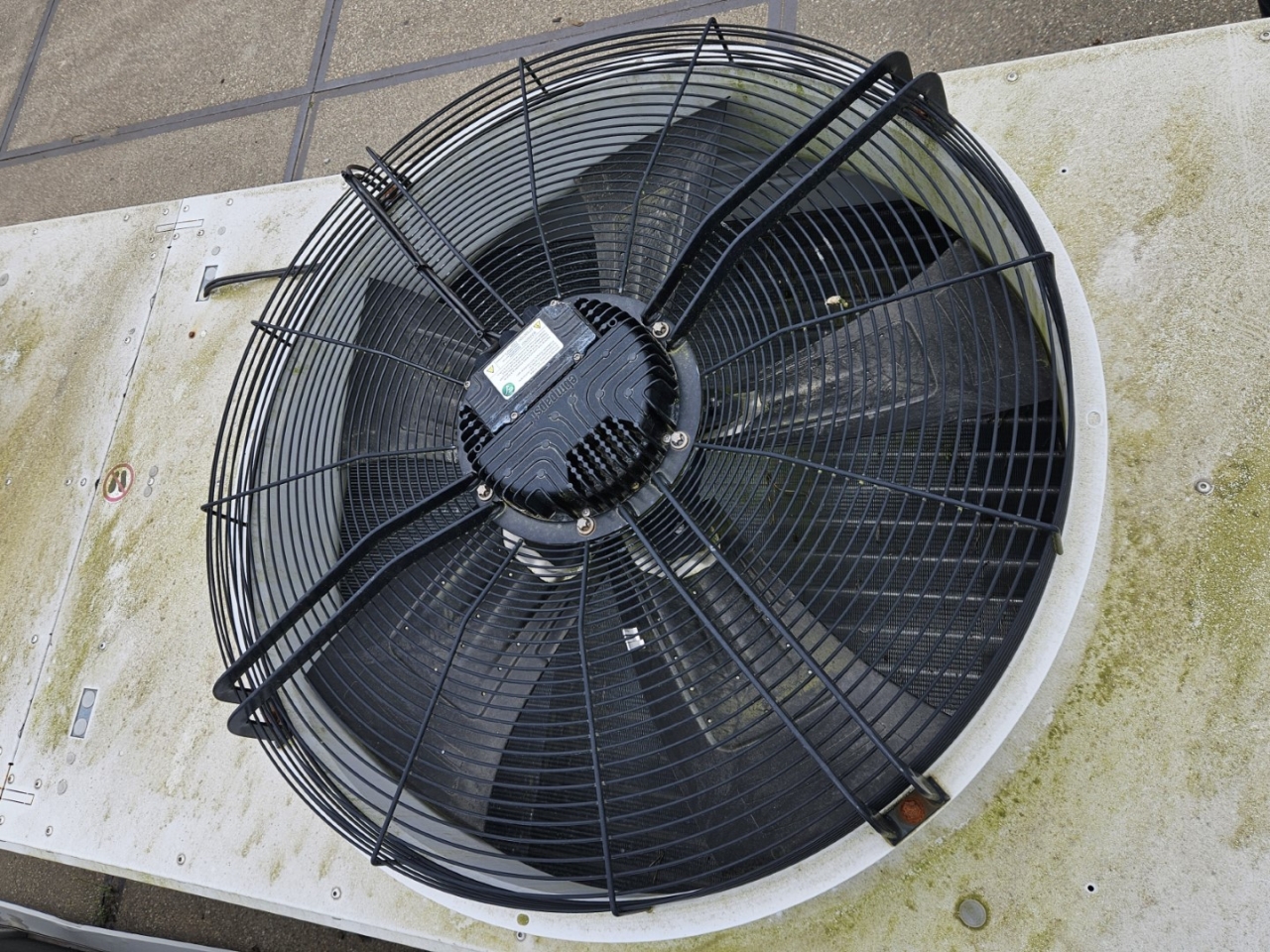

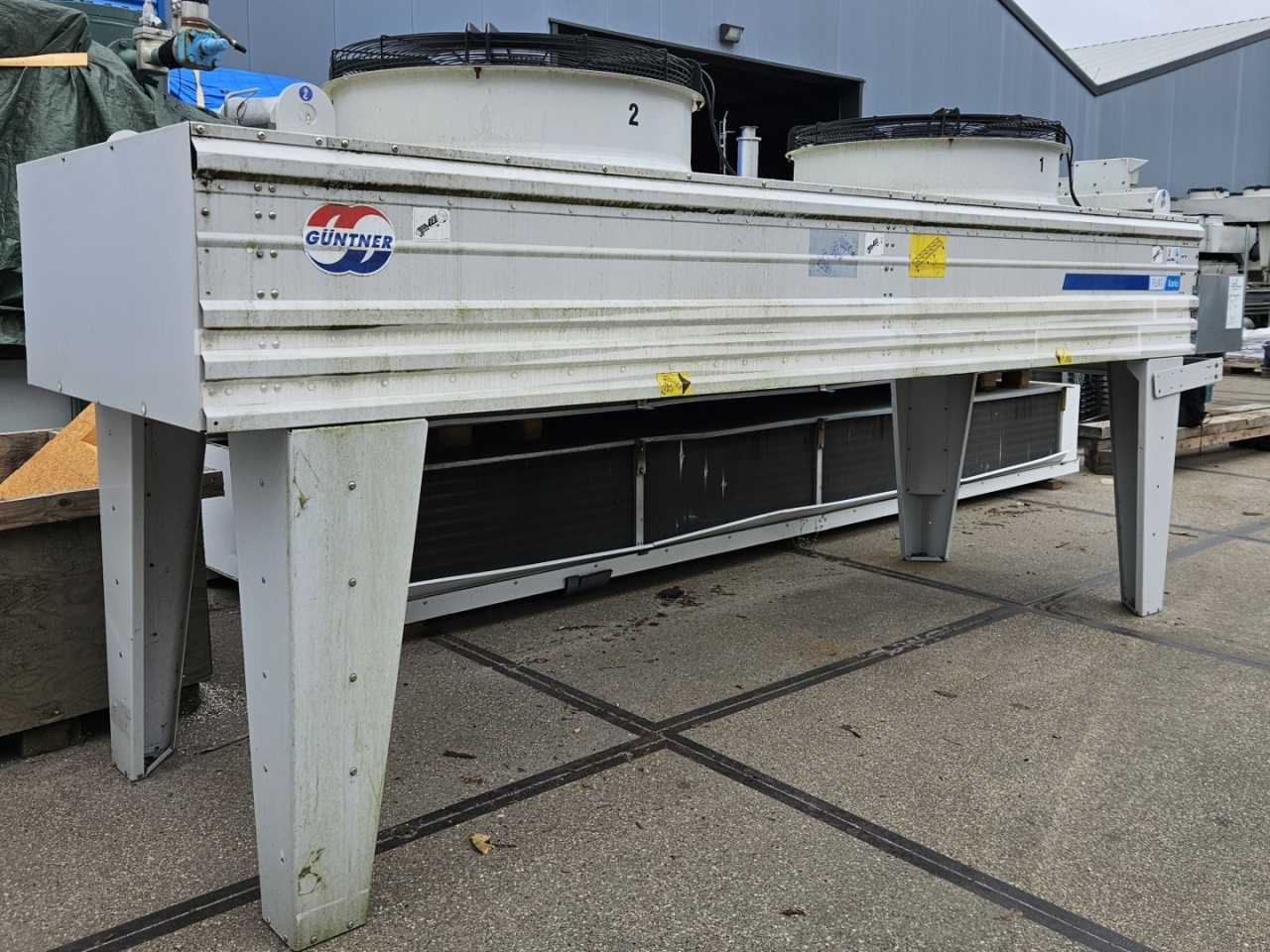

New Güntner GFHV FD 090.2NF/12E-52 drycooler built in 2021. Complete with 2 EBM-Papst S3G910-CS22-09 fans - 50/60 Hz - 1,55 kW - 825 RPM - diameter 910 mm and a total airflow of 41.100 m³/h.
*Capacity based on the following:
Air inlet/outlet temperature: 25°C/33,2°C.
Medium Inlet/outlet temperature: 40°C/35°C.
Volume flow: 20,9 m³/h.
Medium: Glycol 34%.
Capacity of 216,8 kW based on the following:
Air inlet/outlet temperature: 25°C/40,9°C.
Medium Inlet/outlet temperature: 60°C/40°C.
Volume flow: 10,2 m³/h.
Medium: Glycol 34%.
*All components of this used condenser will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning. on demand, we can arrange your shipment.
