Güntner GFH 102C/2*3 S (D)-F4 /3
Güntner GFH 102C/2*3 S (D)-F4 /3
| 17929 | |
| Marka | Güntner |
| Typ | GFH 102C/2*3 S (D)-F4 /3 |
| Typ produktu | Drycooler |
| Ogólna wydajność w kW | 250,6 |
| Liczba wentylatorów | 6 |
| Prdkość obrotów wentylatora (obr/min) | 430/310 |
| Czynnik chłodzący | Glycol |
| Przepływ powietrza w m³/h | 84.500 |
| wentylatory o średnicy Ø | 1000 mm |
| Powierzchnia (m2) | 1190,5 |
| Objętość rurki | 221 dm³ |
| Rozmiary | 7260x2400x1500 mm (LxWxH) |
| Liczba sztuk | 4 |
Güntner GFH 102C/2*3 S (D)-F4 /3

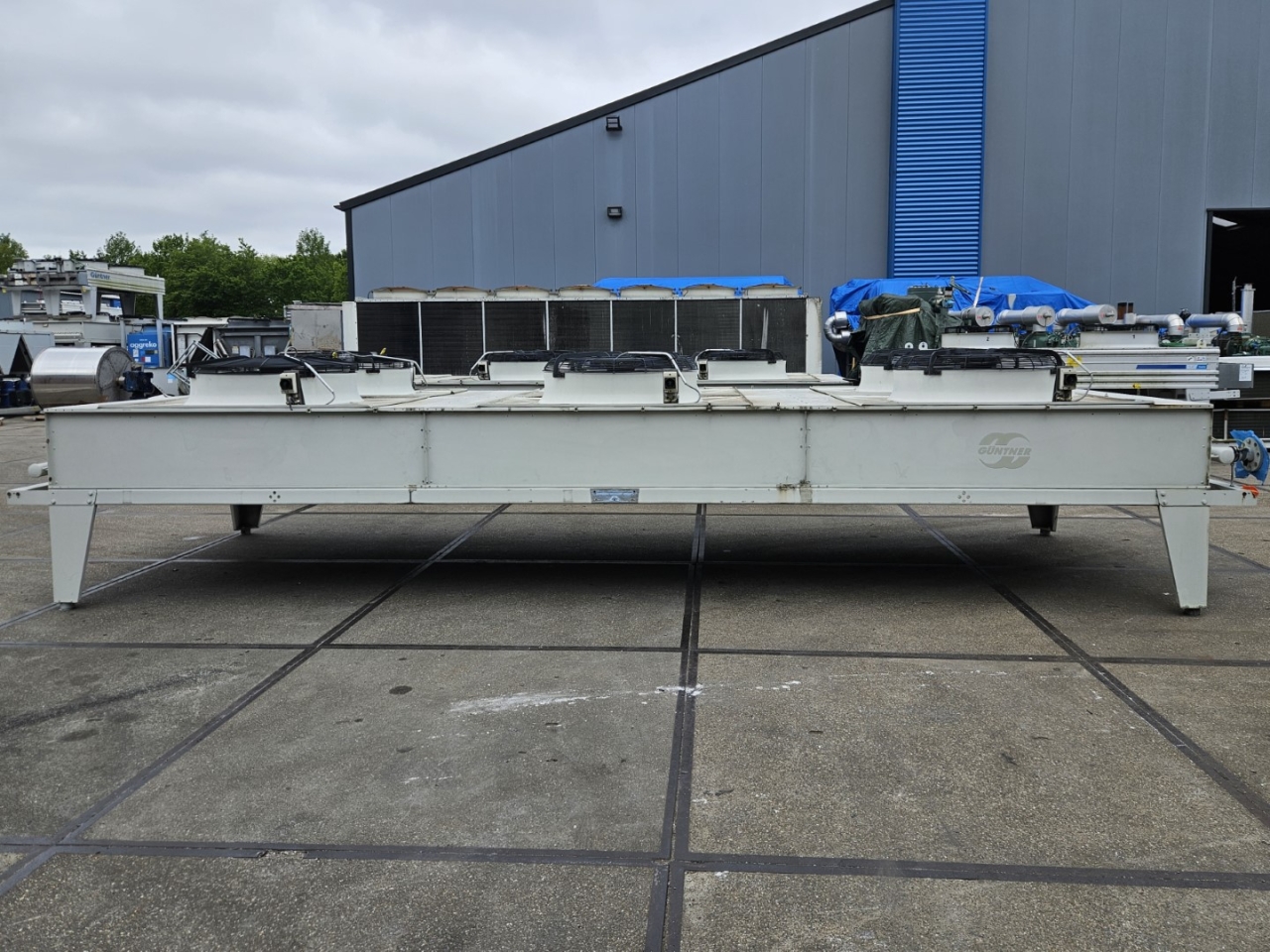

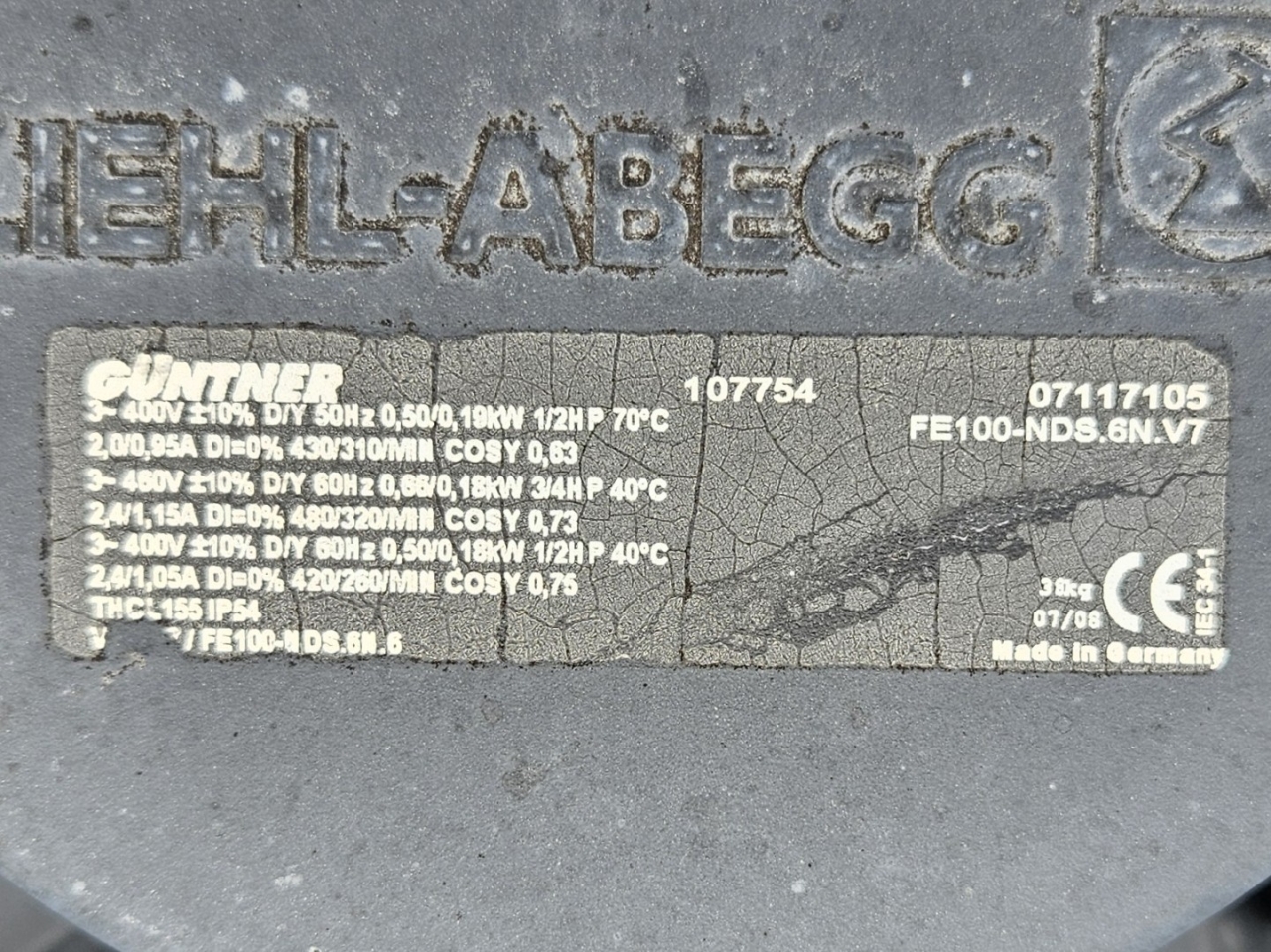

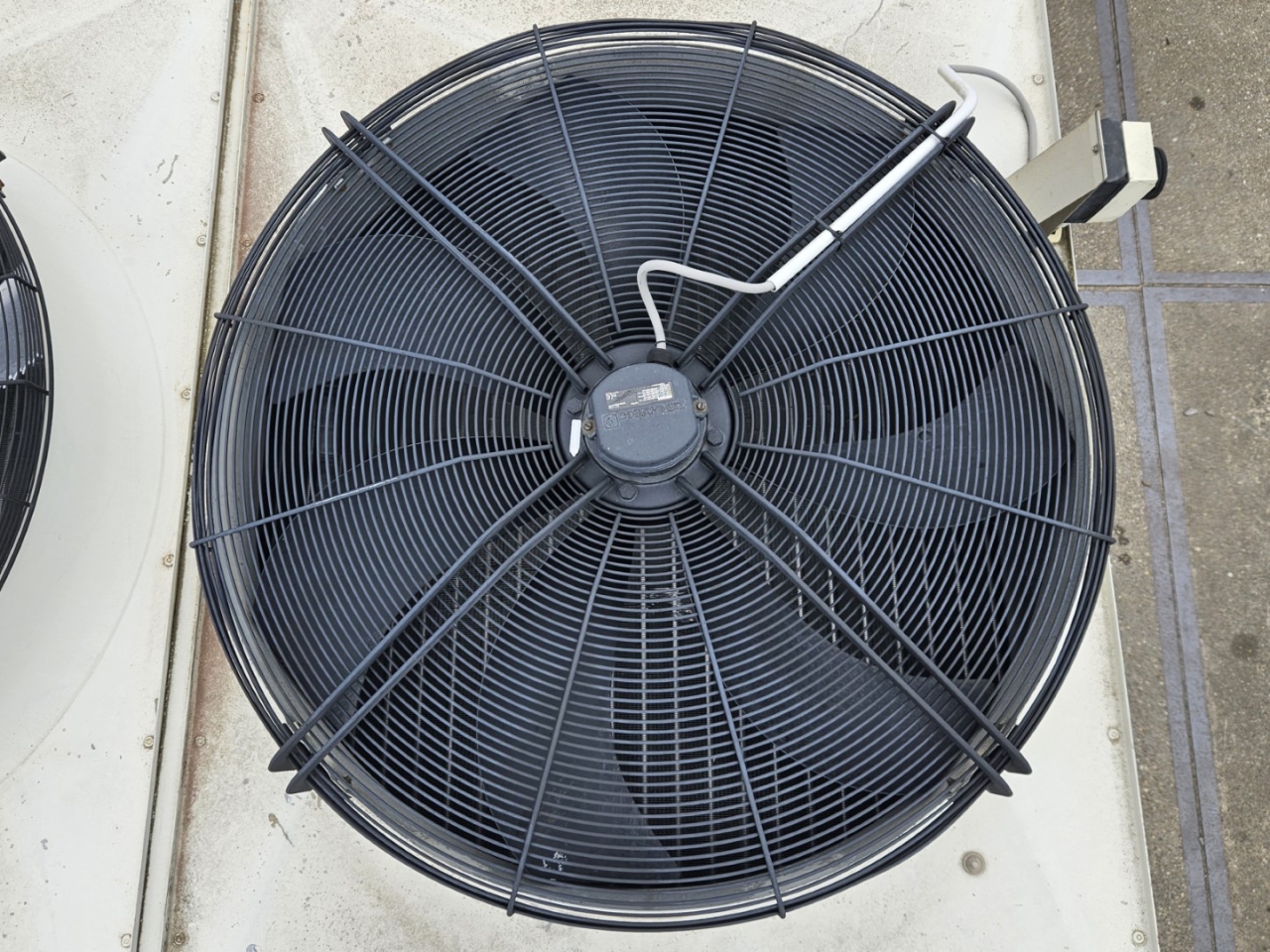

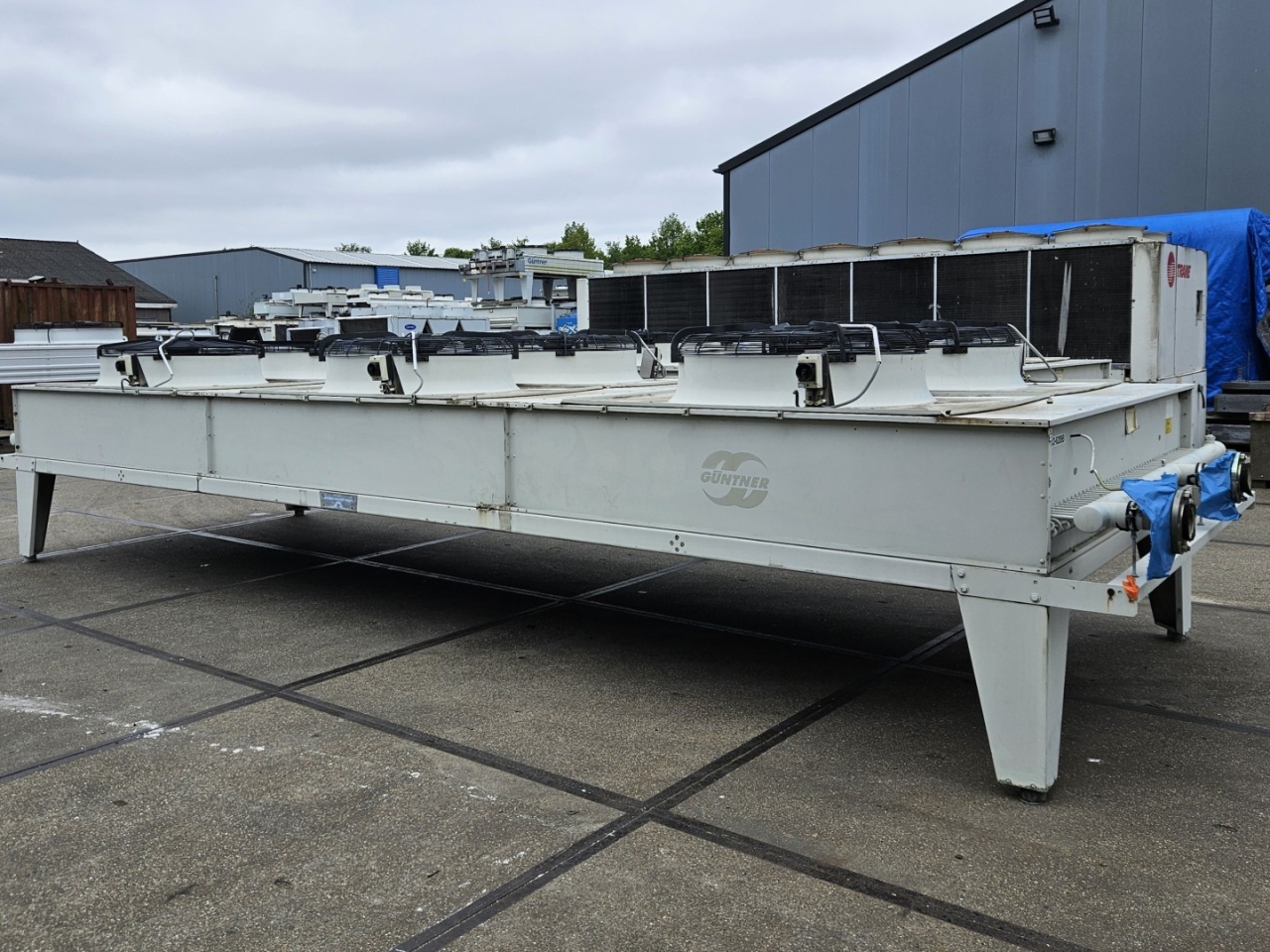

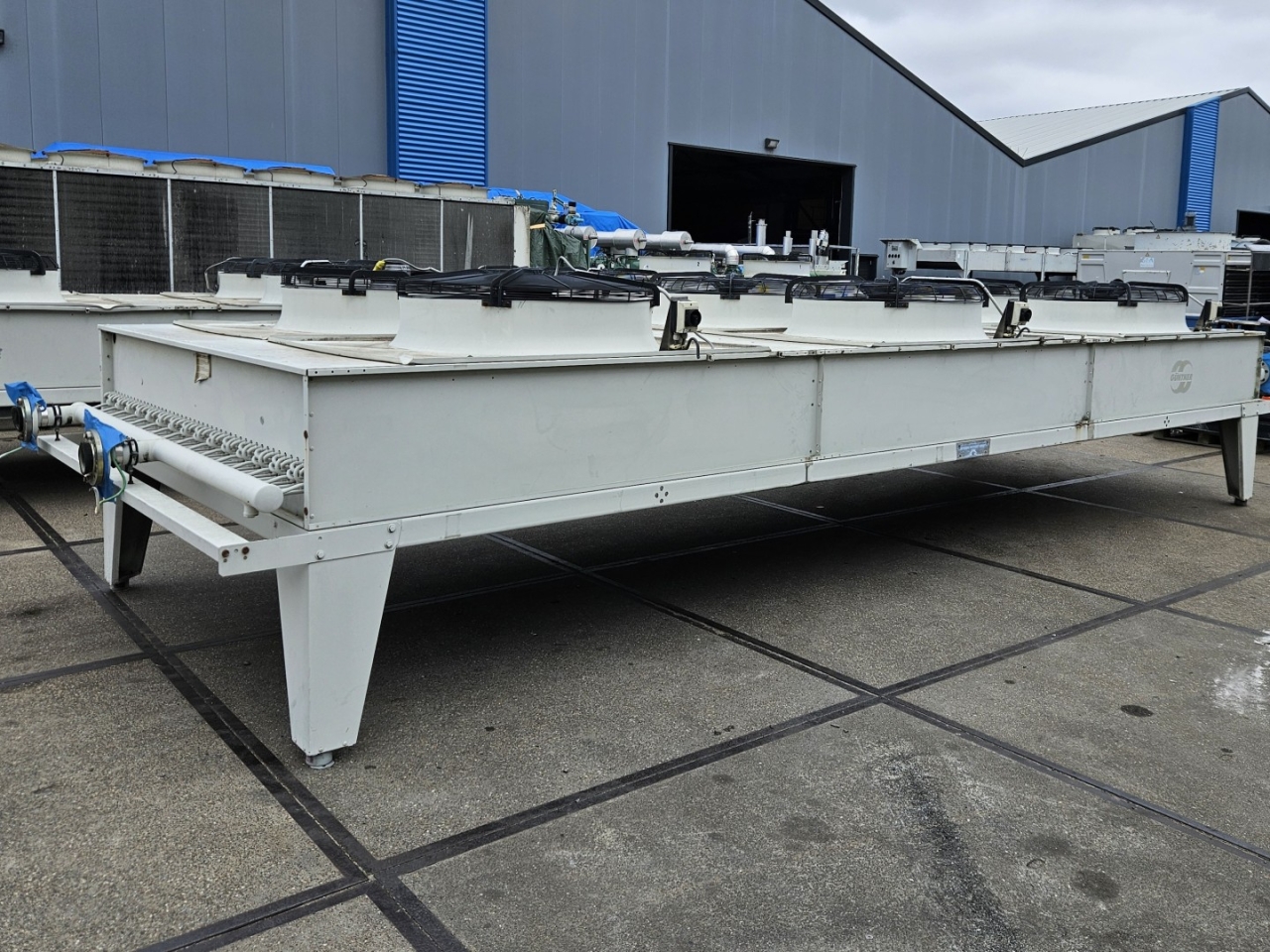

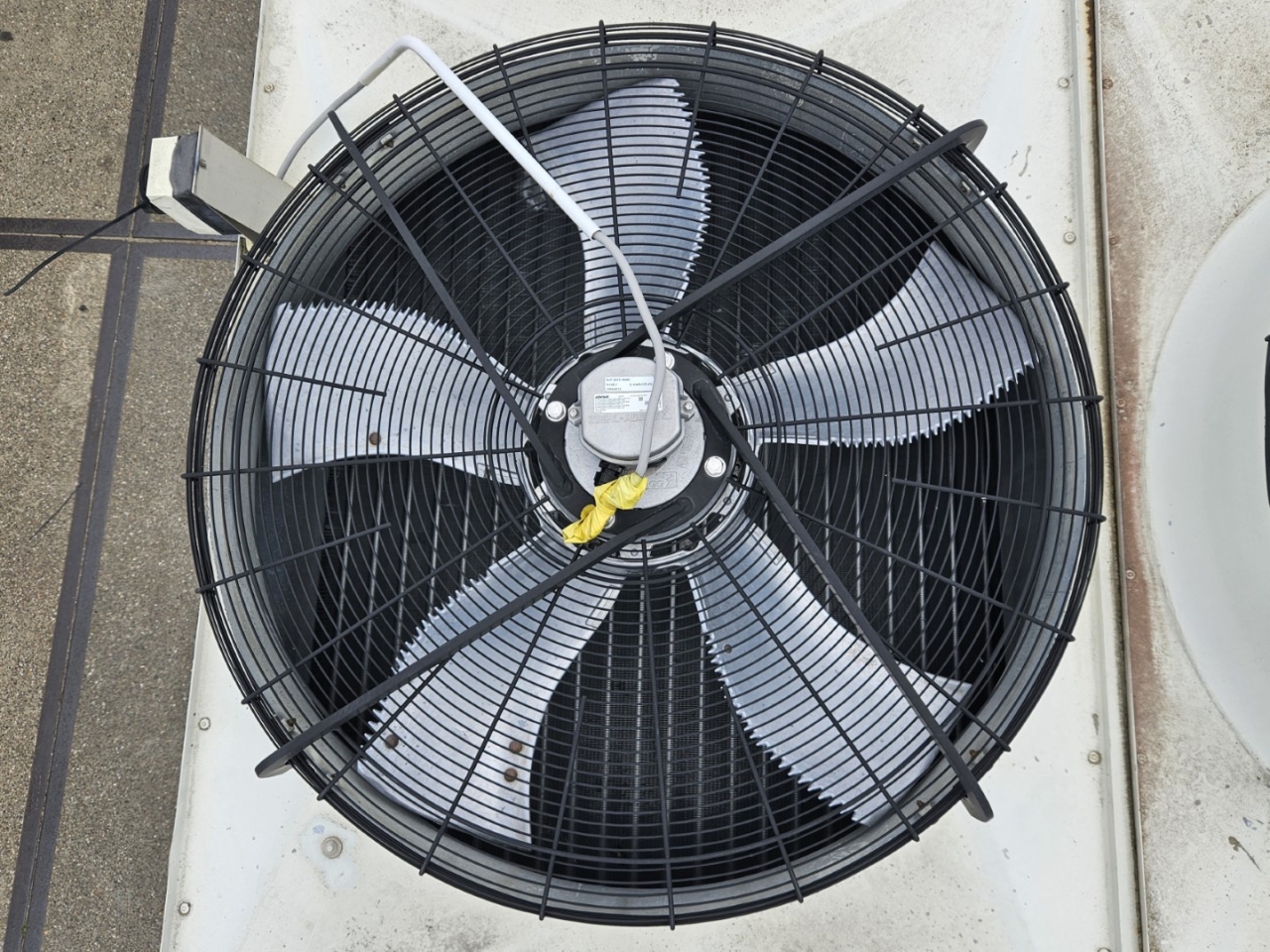

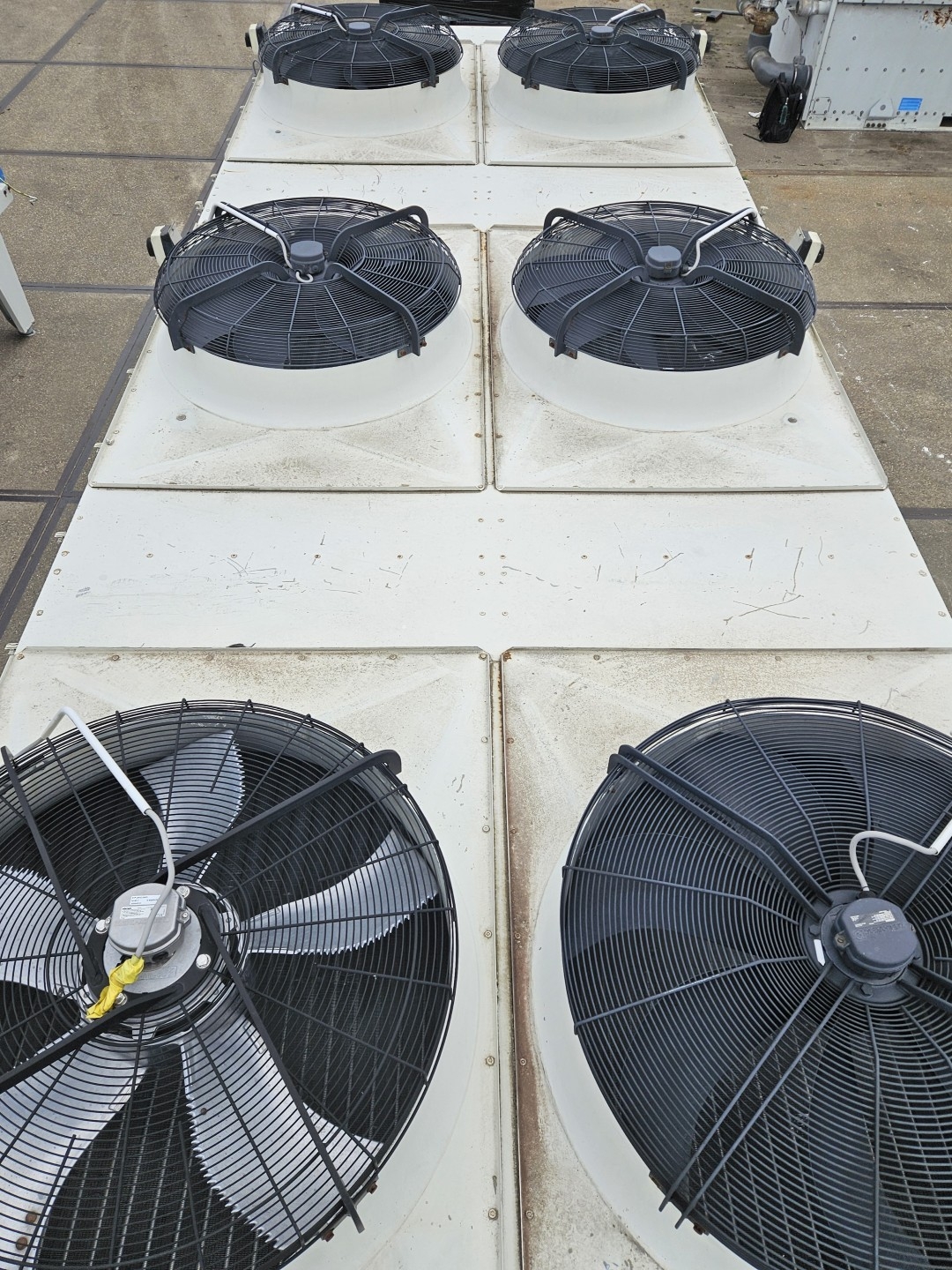

Used Güntner GFH 102C/2*3S (D)-F4 /3 drycooler. Complete with 6 Ziehl-Abegg FE100-NDS.6N.V7 fans - 50 Hz - 0,50/0,19 kW - 430/310 RPM - diameter 1000 mm and a total airflow of 84.500 m³/h.
*Capacity based on the following:
Air inlet/outlet temperature: 25°C/33,9°C.
Medium Inlet/outlet temperature: 40°C/35°C.
Volume flow: 47,1 m³/h.
Medium: Glycol 34%.
Capacity of 625,1 kW based on the following:
Air inlet/outlet temperature: 25°C/47,3°C.
Medium Inlet/outlet temperature: 60°C/40°C.
Volume flow: 29,3 m³/h.
Medium: Glycol 34%.
*All components of this used condenser will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning. on demand, we can arrange your shipment.
