L’Unité Hermetique TFHP4531Z (x3) Condensing Unit
L’Unité Hermetique TFHP4531Z (x3) Condensing Unit
| 18131 | |
| Marka | L’Unité Hermetique |
| Typ | TFHP4531Z (x3) Condensing Unit |
| Czynnik chłodzący | Freon |
| kW at 0ºC/+40ºC | 18,9 |
| kW at -5ºC/+40ºC | 15,3 |
| kW at -10ºC/+40ºC | 12,3 |
| kW at -20ºC/+40ºC | 7,2 |
| kW at -30ºC/+40ºC | 5,1 (-25ºC/+40ºC) |
| Podstawa na stalowej ramie |
|
| Obiornik cieczy |
|
| Obiornik cieczy ltr. | 20 l |
| Osuszający filter lini cieczy |
|
| Okno widokowe |
|
| Panel kontrolny |
|
| m3 / h | 29,4 m³/h - 2900 RPM |
| Condensing Unit |
|
| Rozmiary | 1500x850x950 mm (LxWxH) |
| Liczba sztuk | 1 |
L’Unité Hermetique TFHP4531Z (x3) Condensing Unit

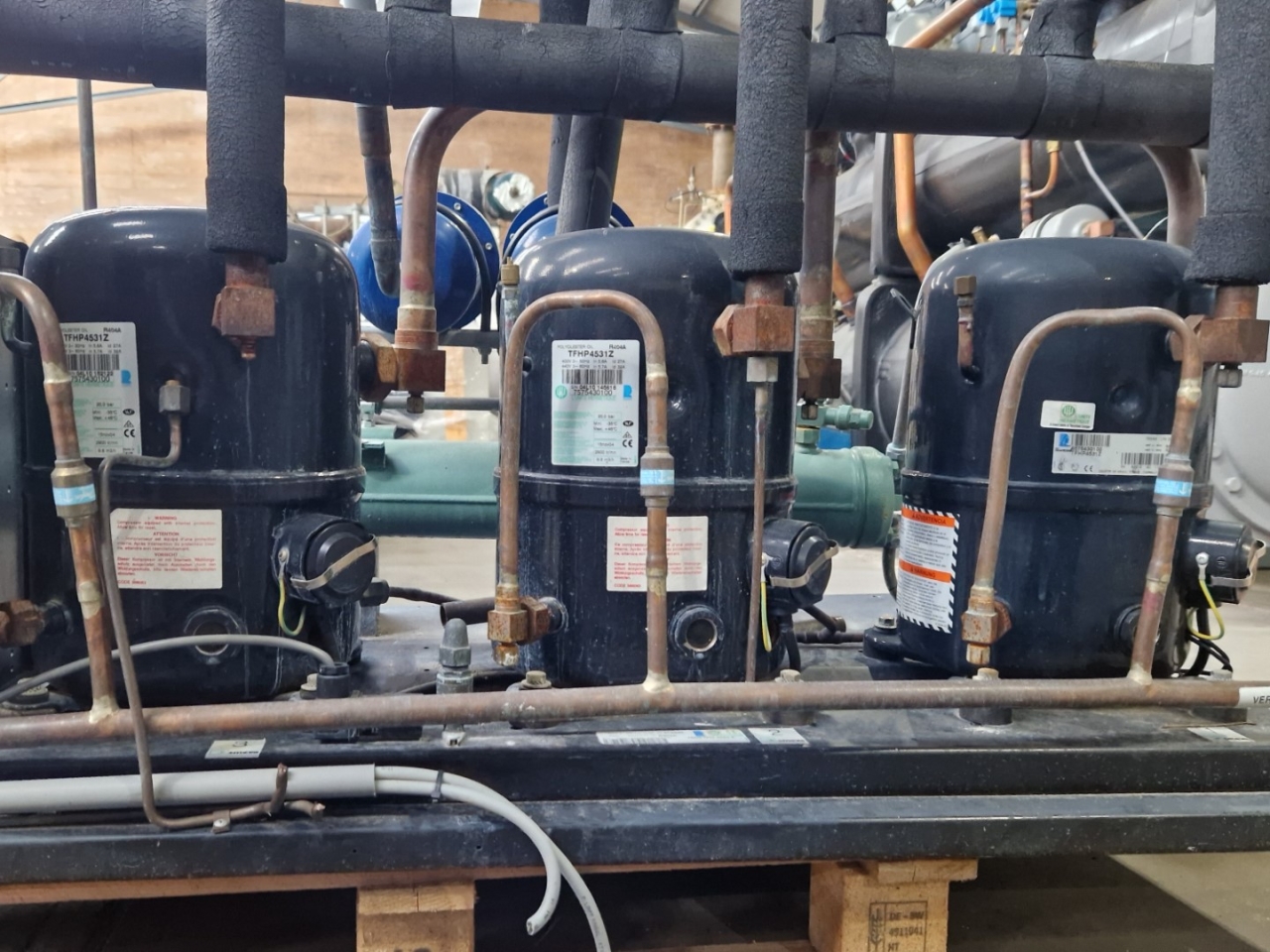

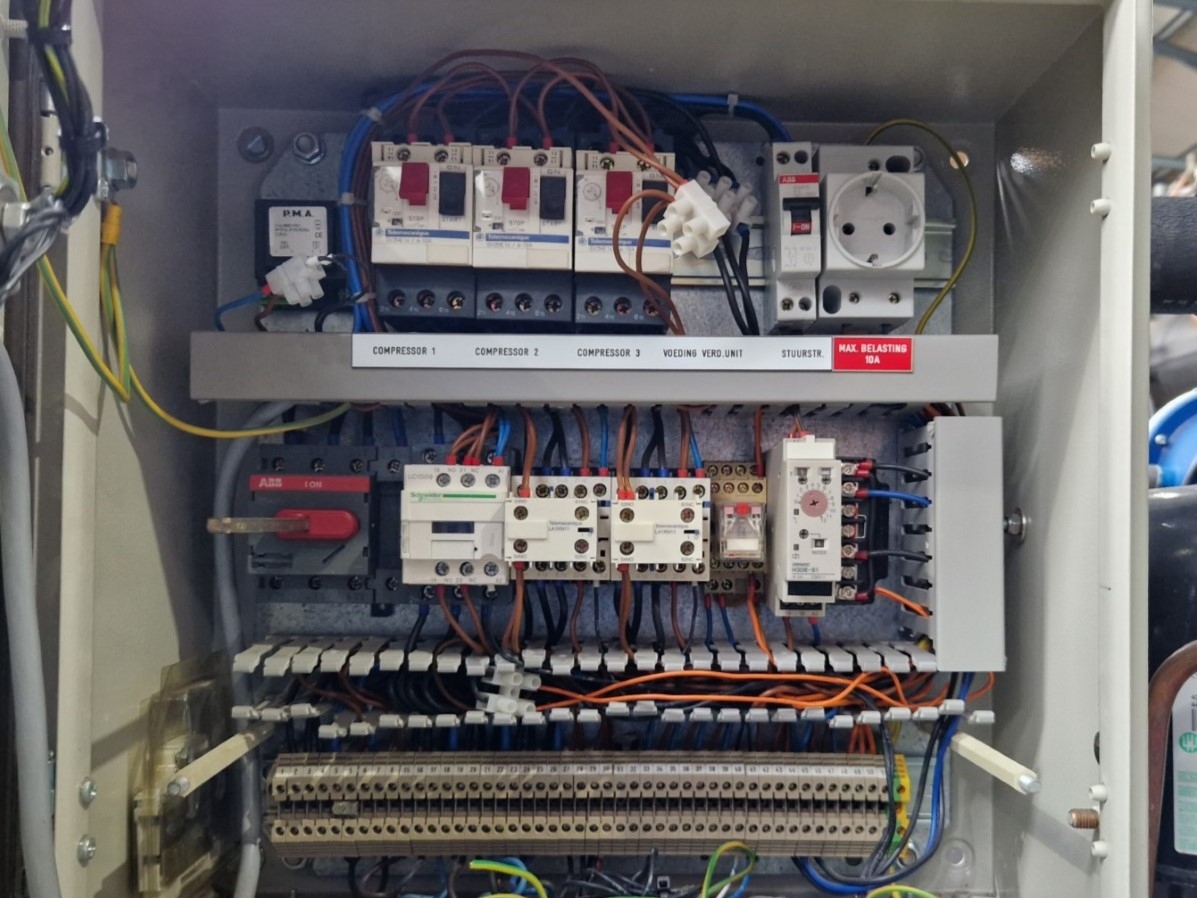

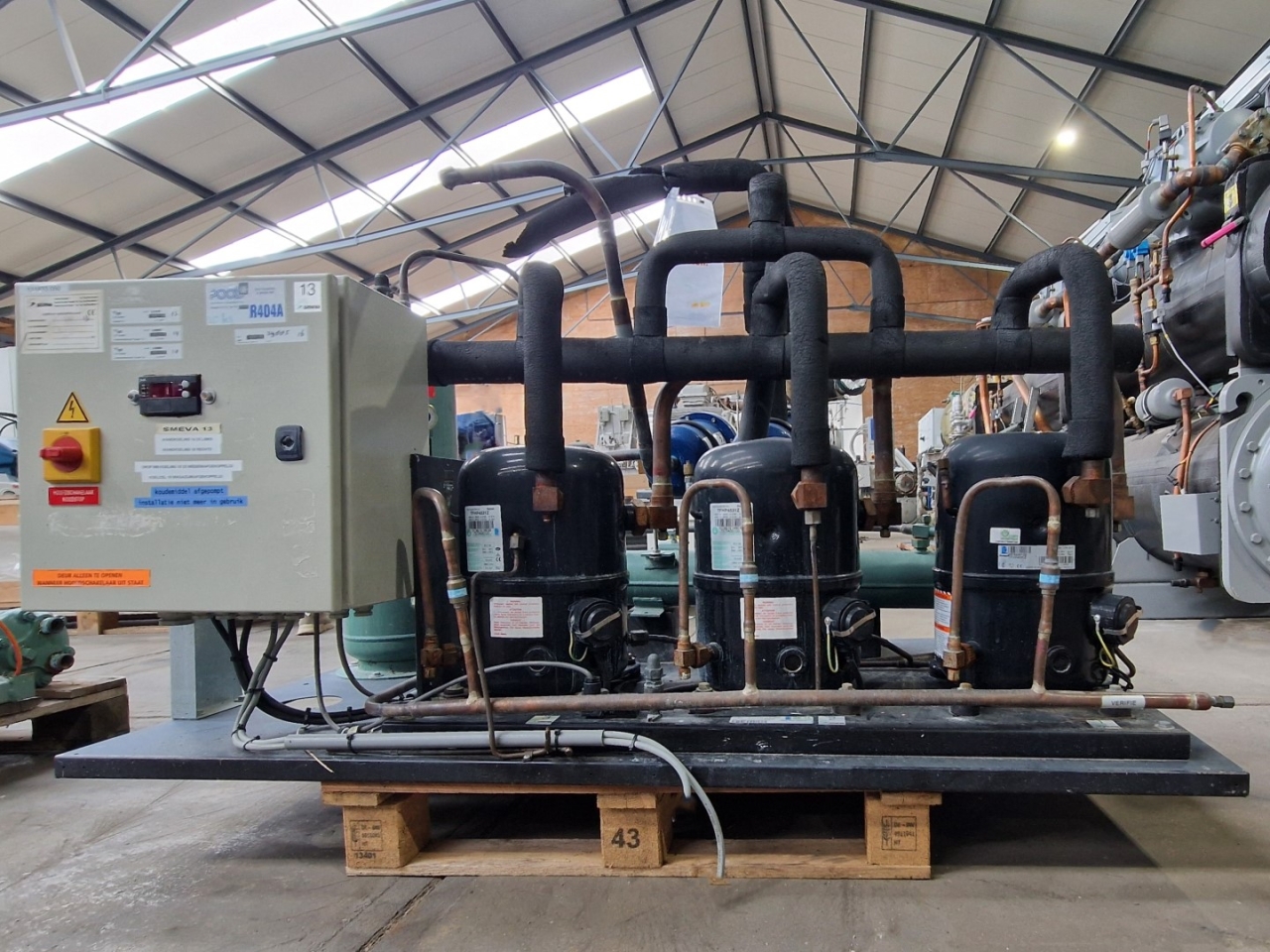

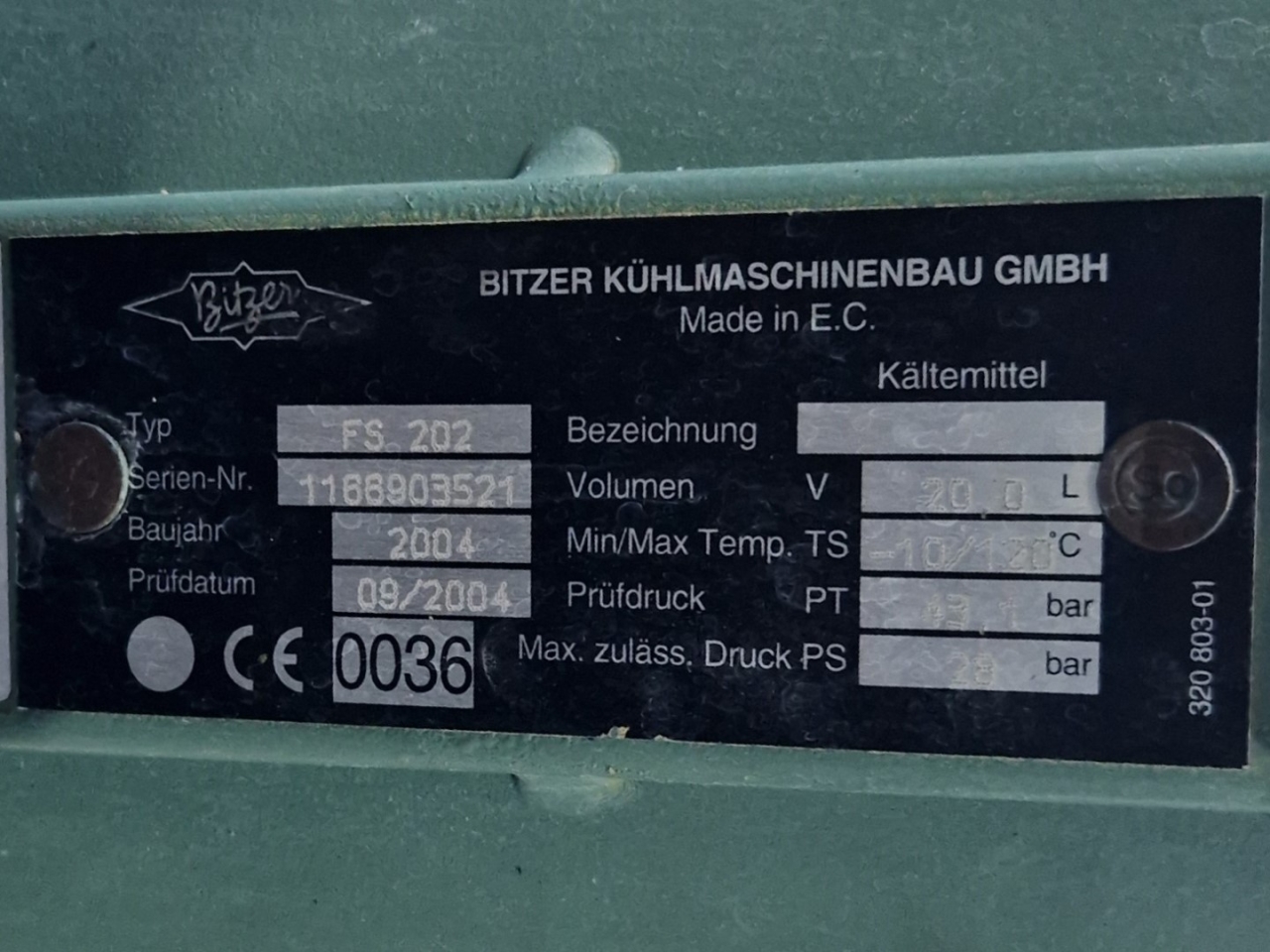

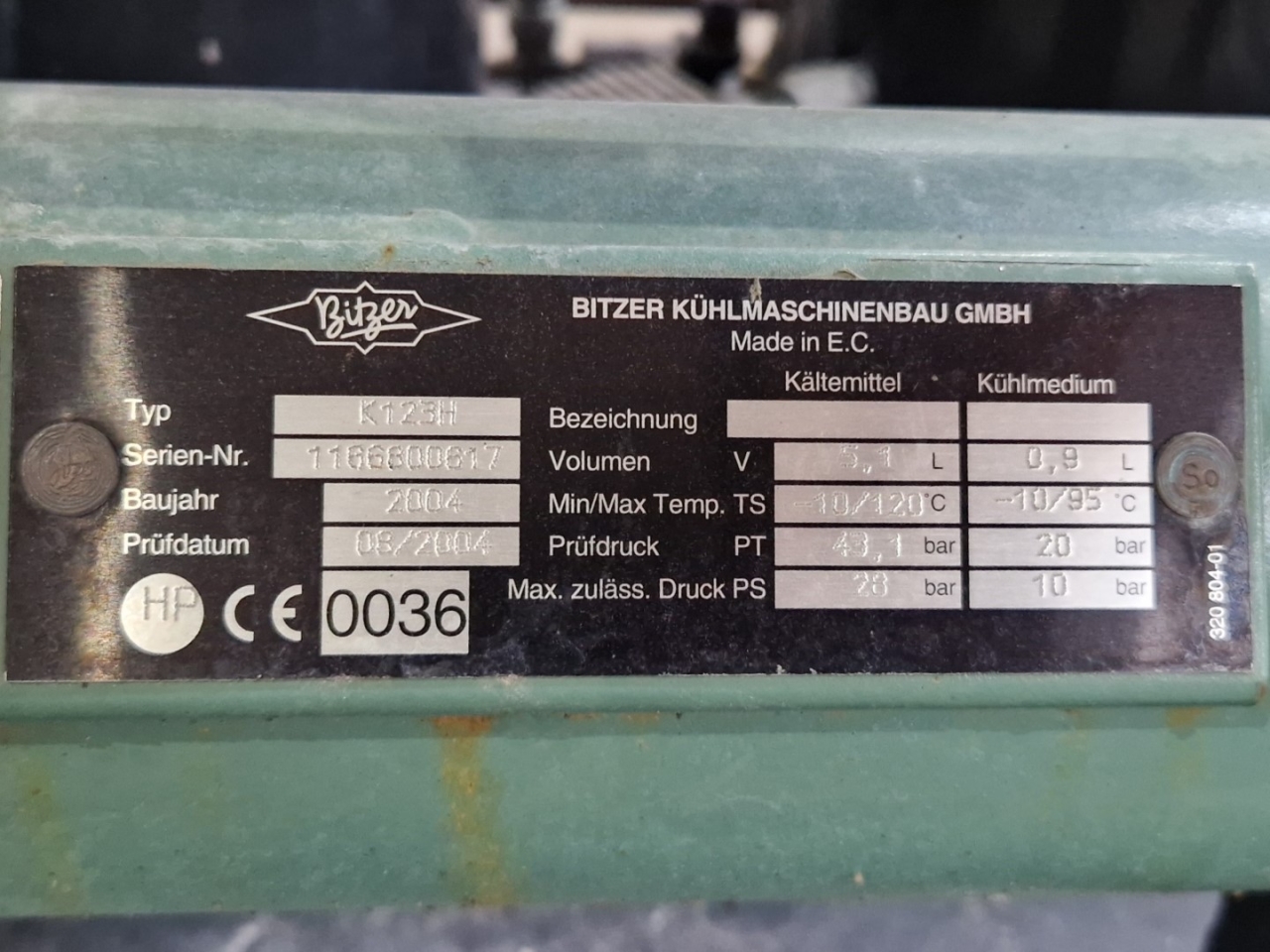

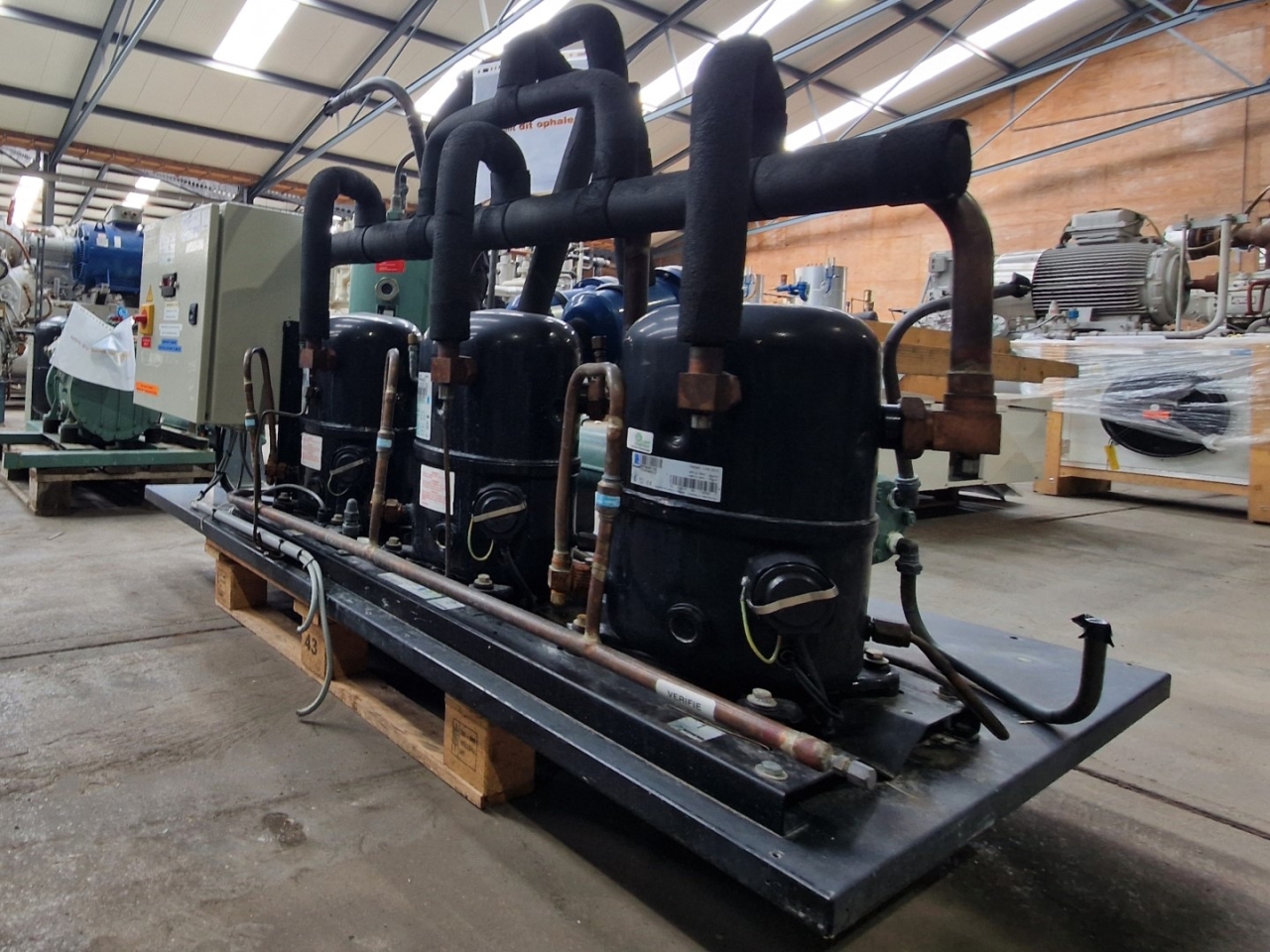

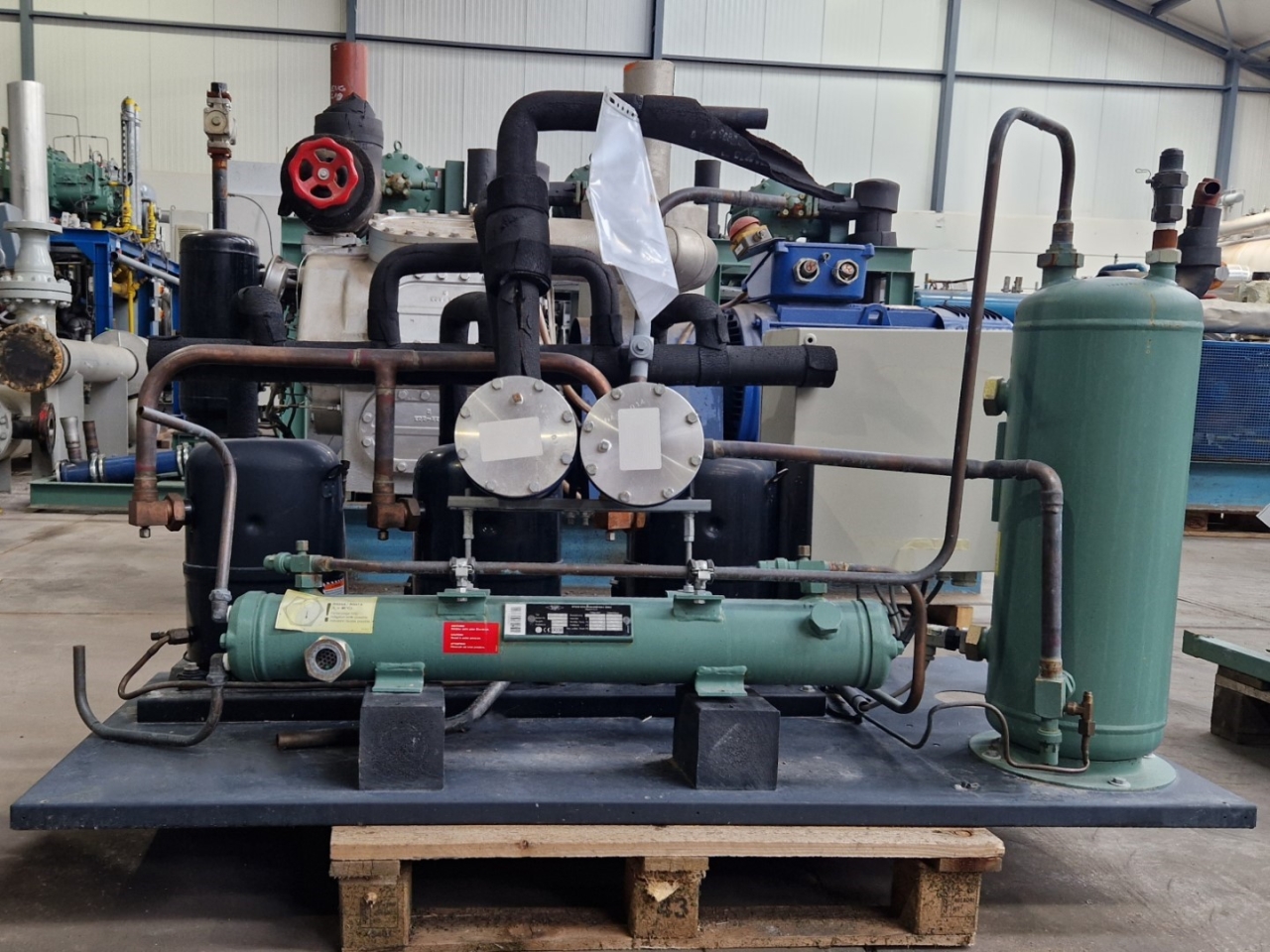

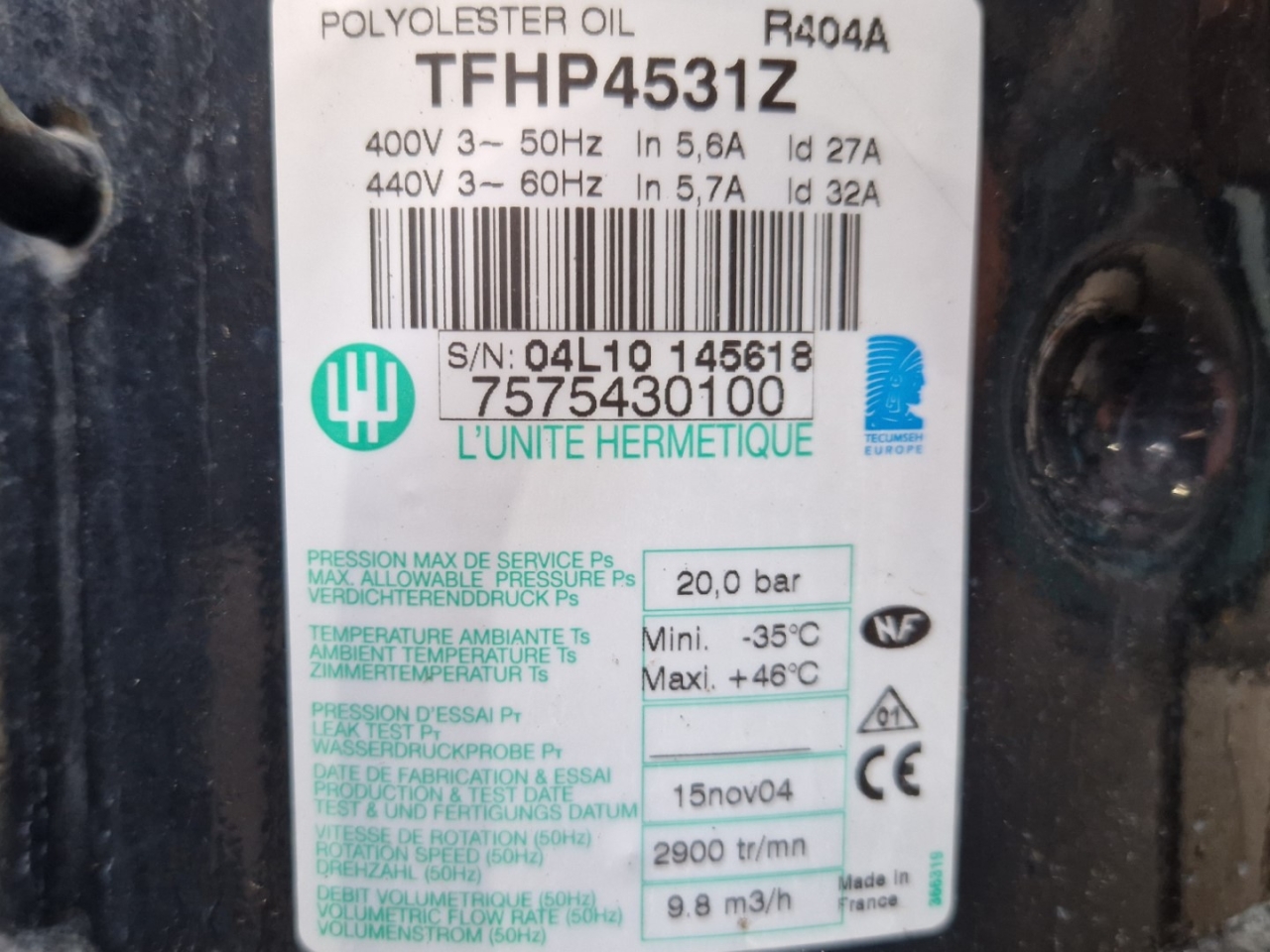

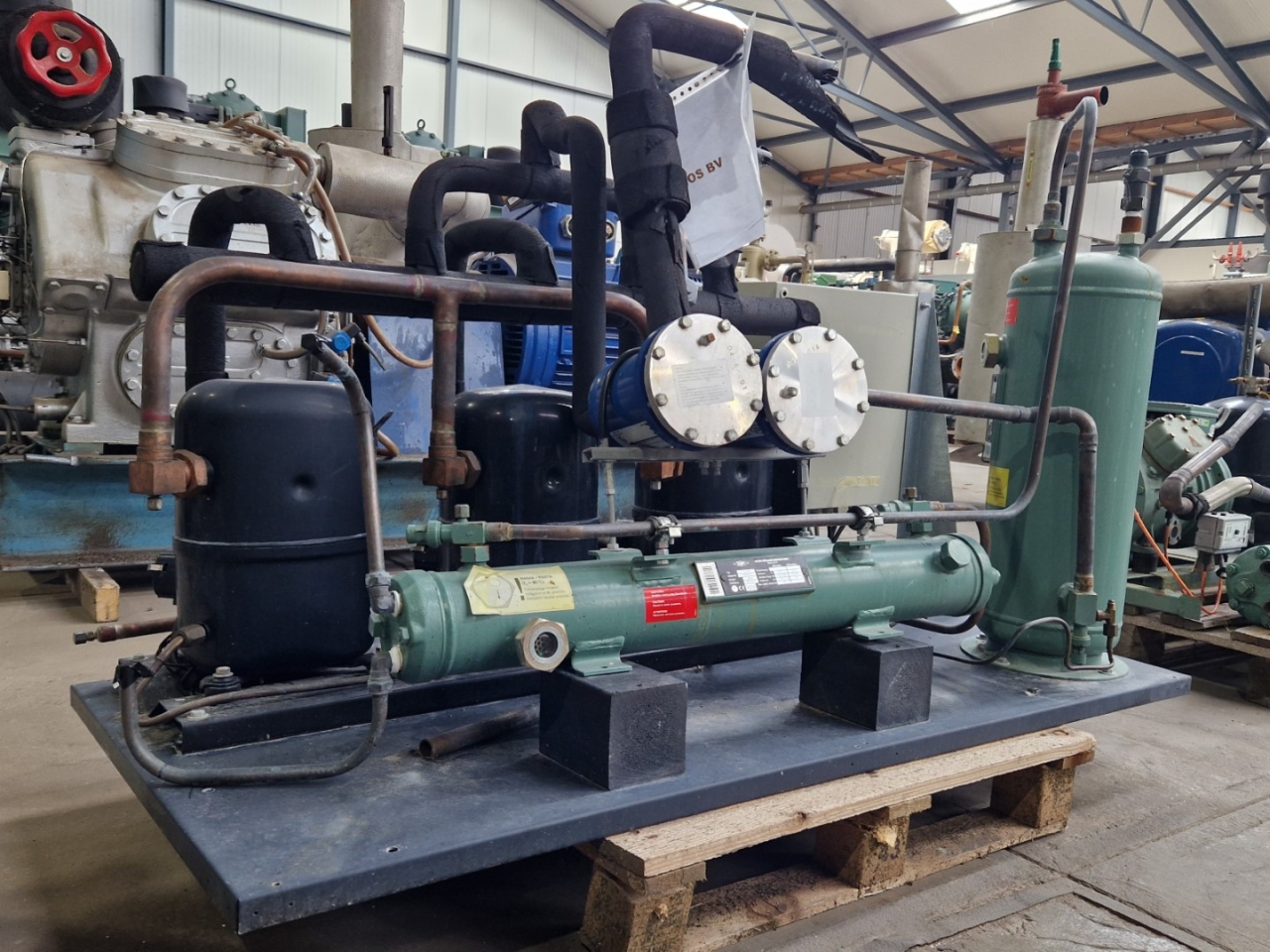

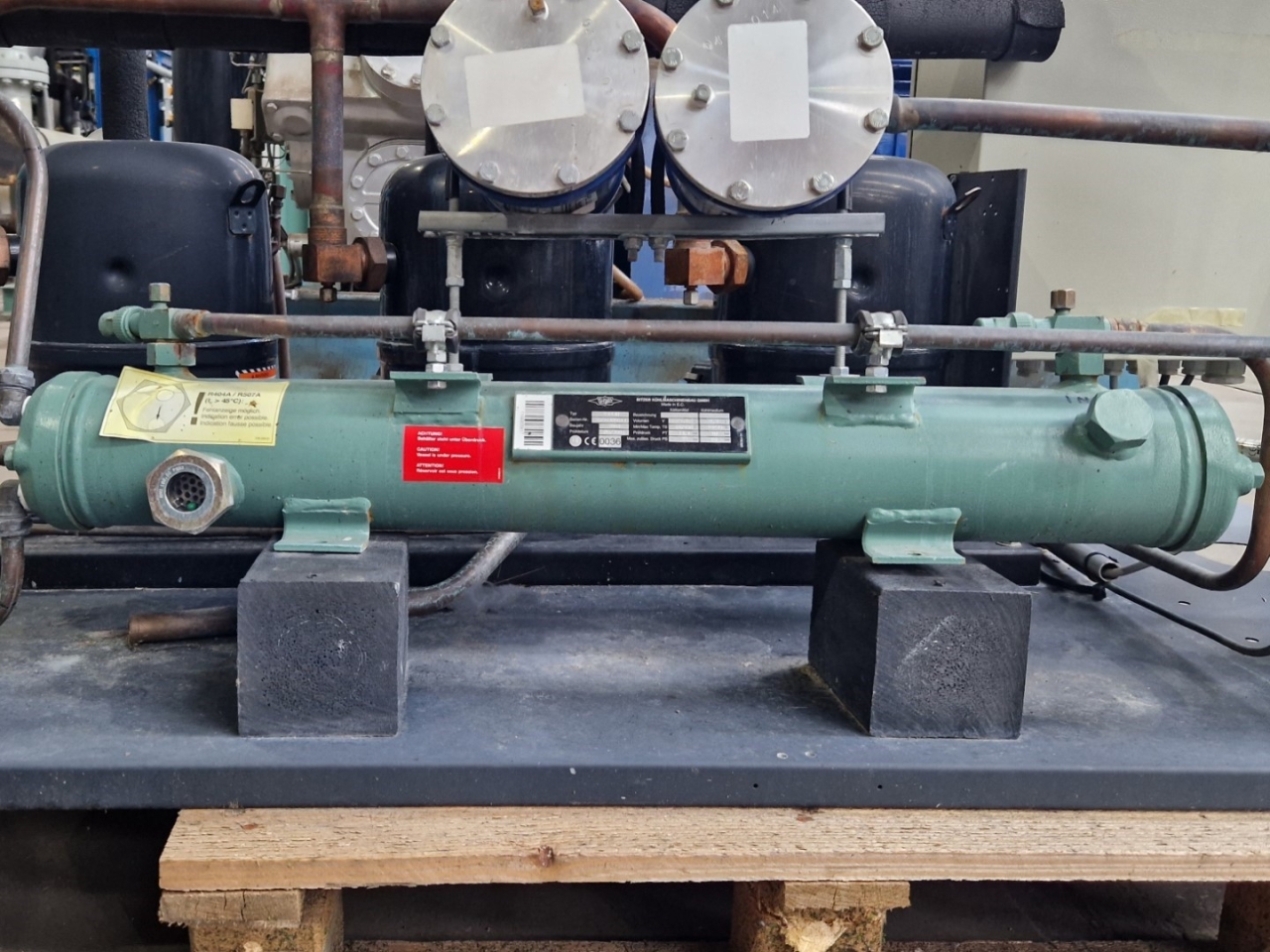

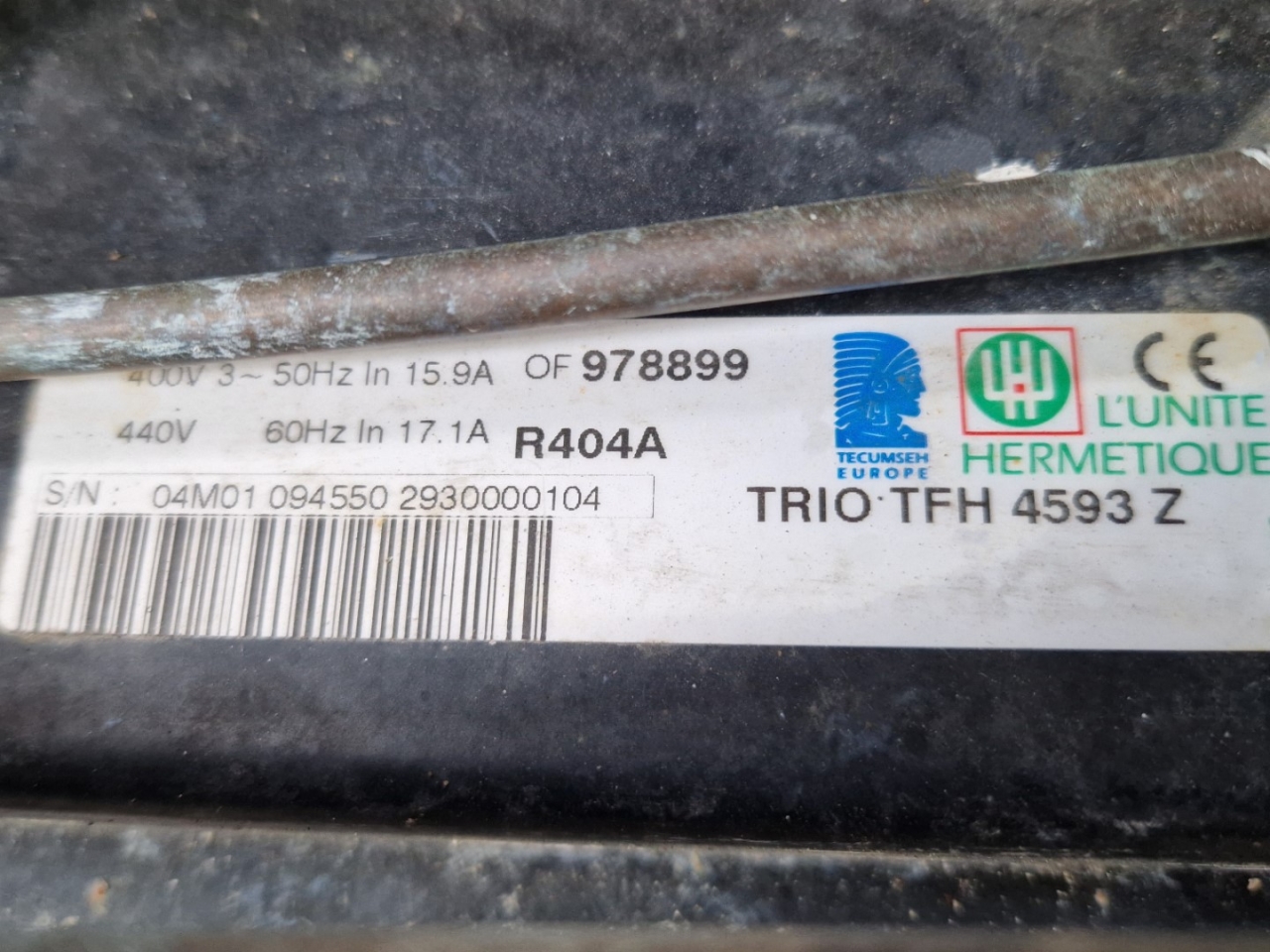

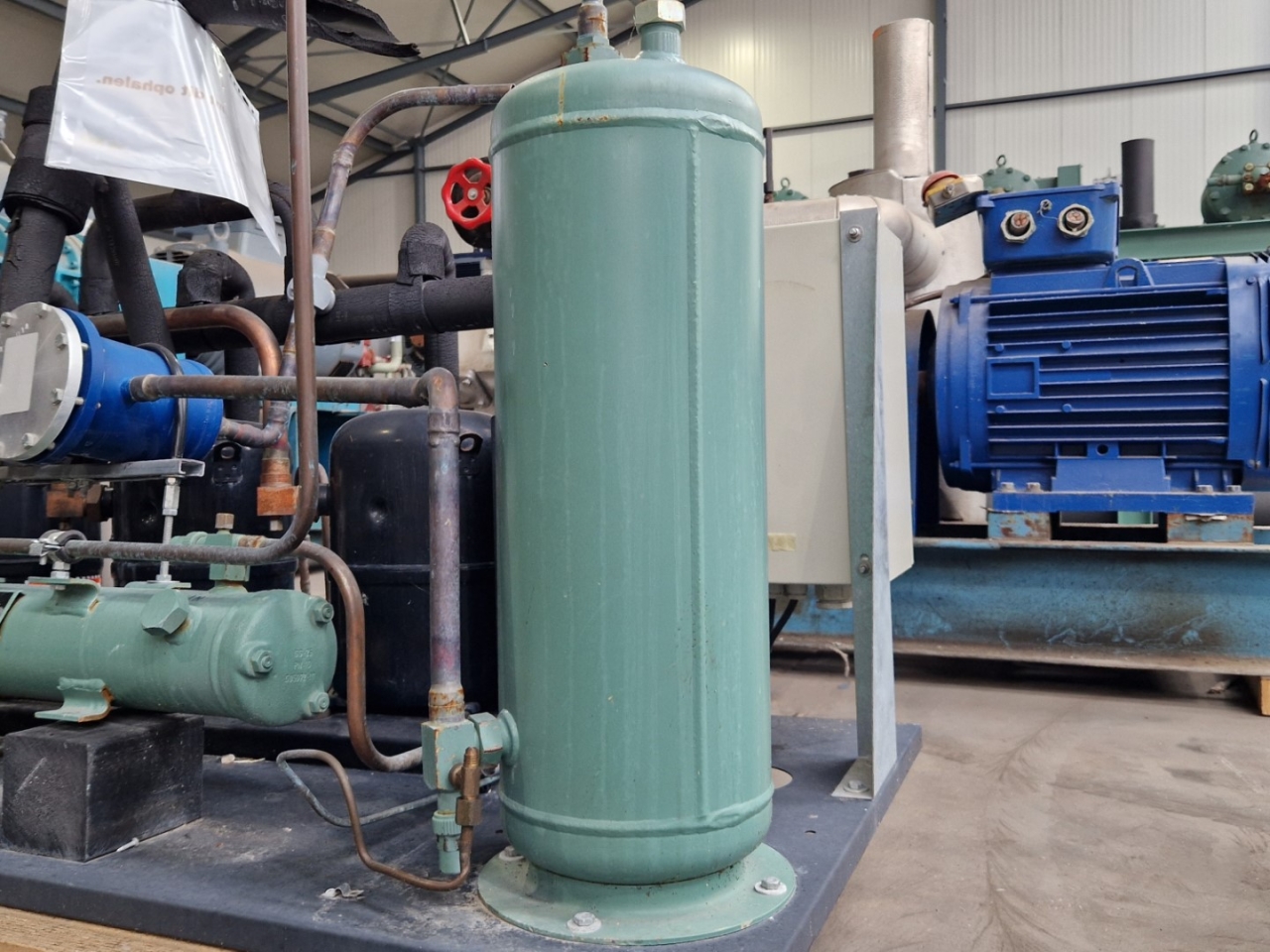

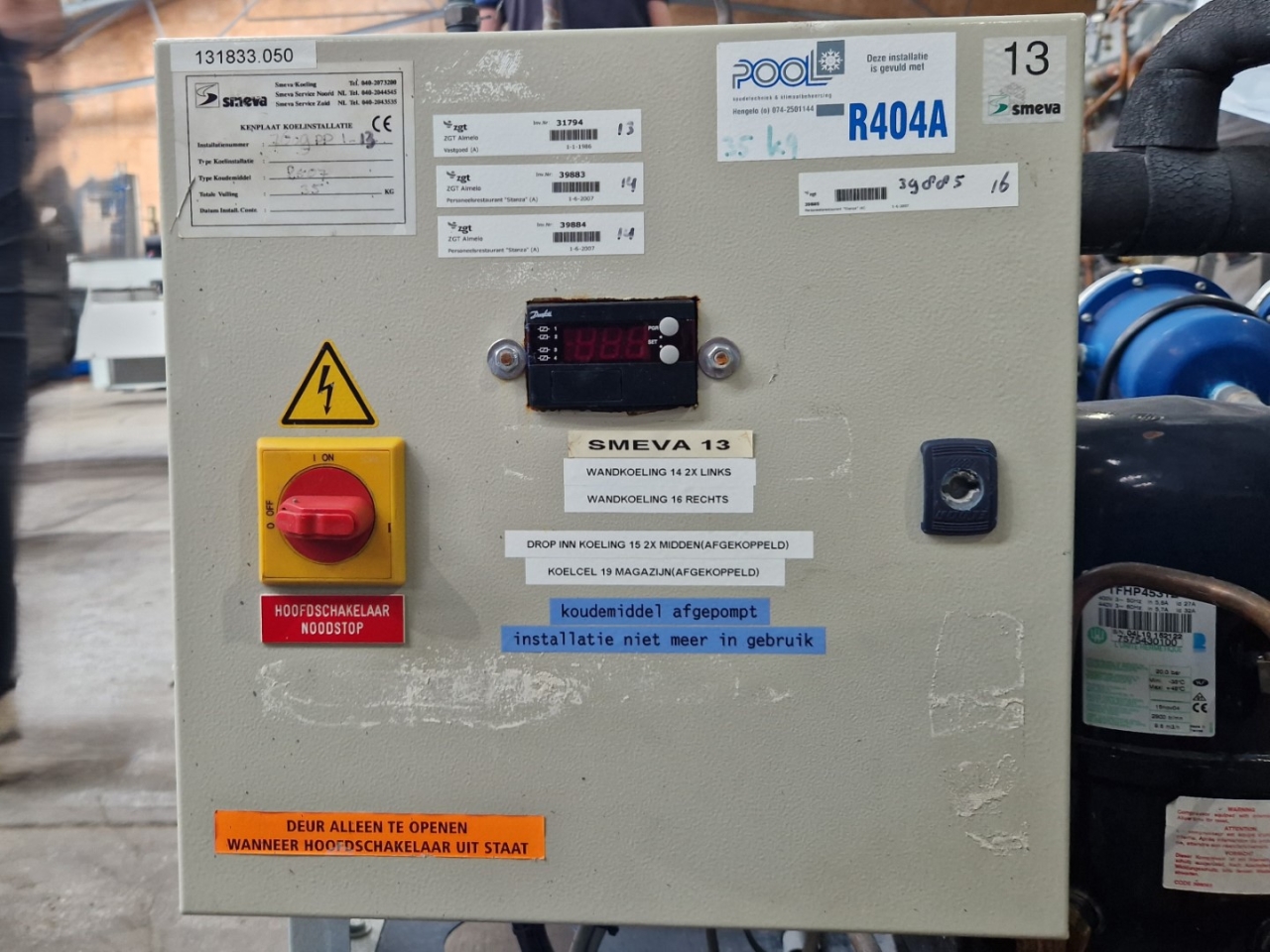

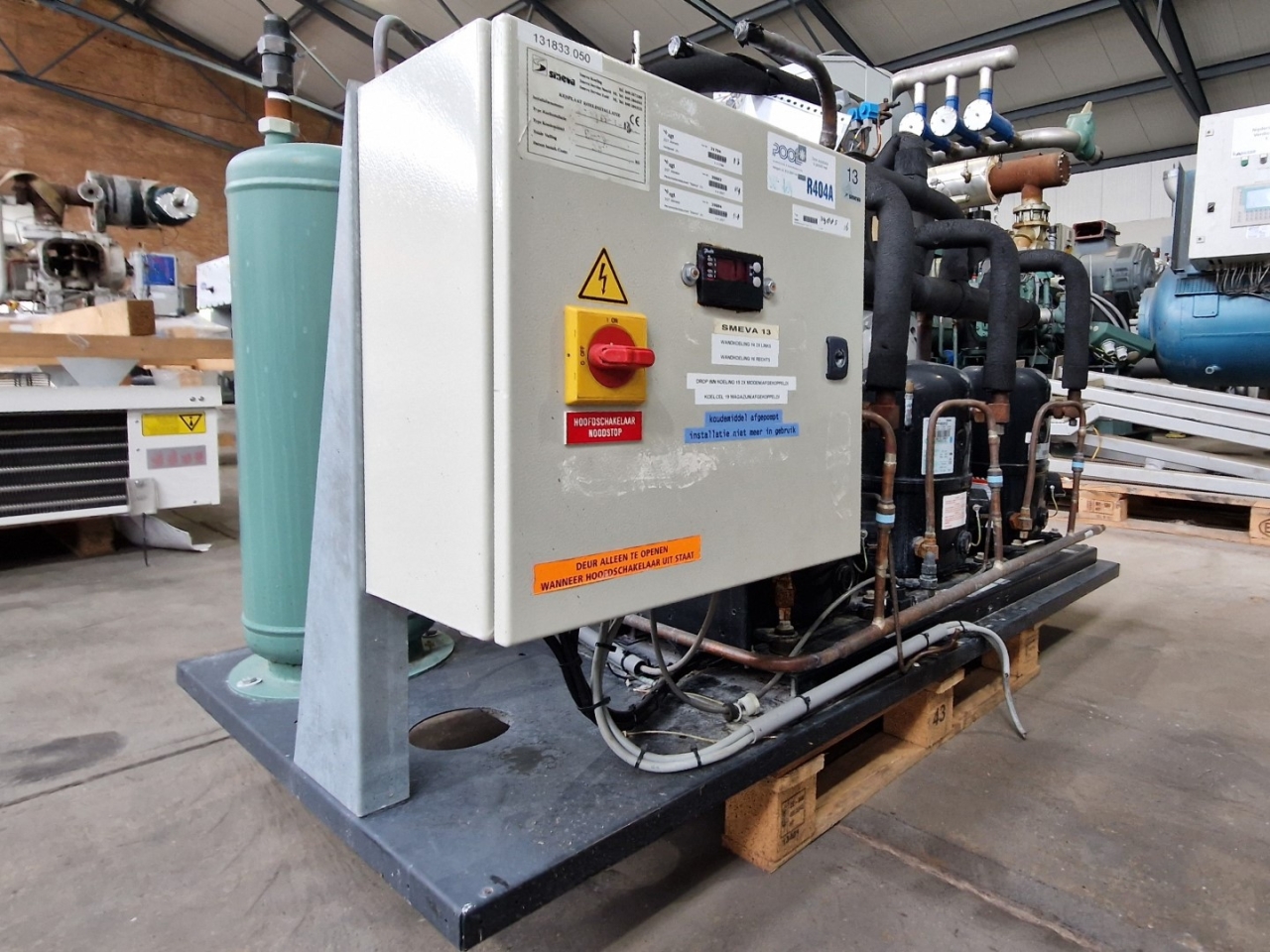

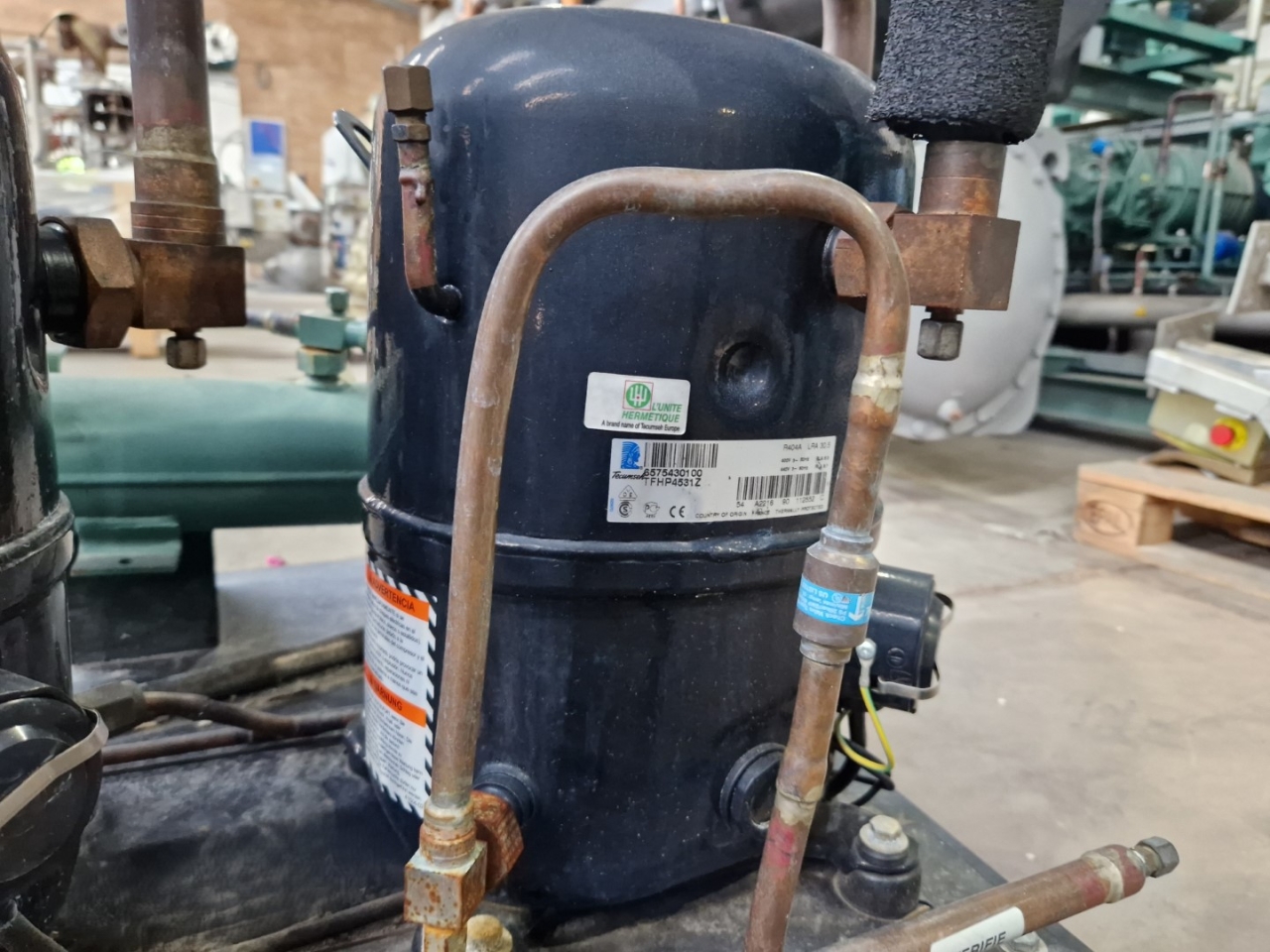

Used L’Unité Hermetique Trio TFH 4593 Z water-cooled condensing unit on Freon. Complete with a 3 Tecumseh TFHP4531Z scroll compressors, Bitzer K123H shell and tube condenser, Bitzer FS 202 liquid receiver with a volume of 20 liters, 2 liquid line filters drier and a control cabinet with a Danfoss controller. The compressors have a displacement of 29,4 m³/h at 2900 RPM.
