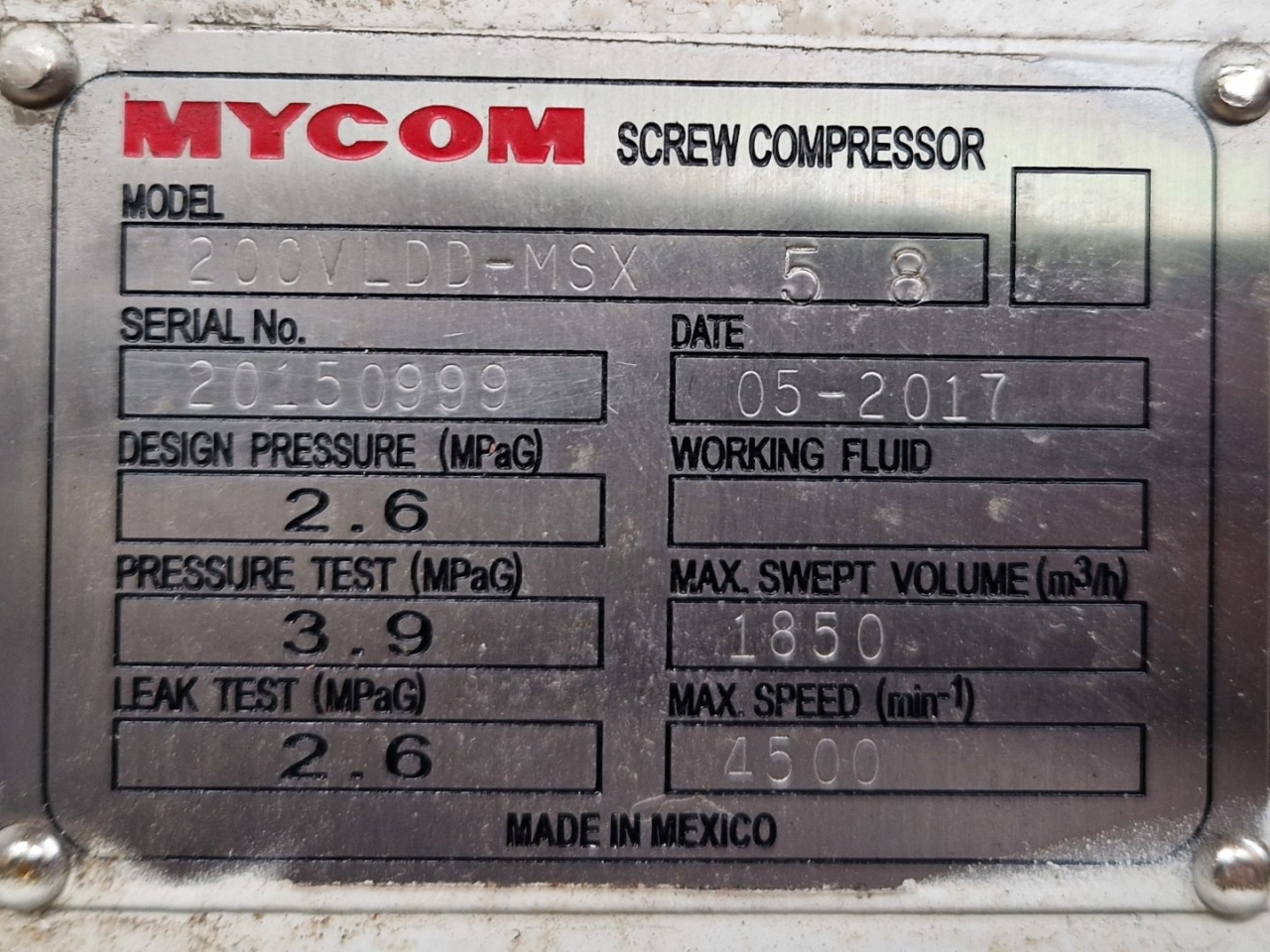

Mycom 200VLDD-MSX 5.8
Mycom 200VLDD-MSX 5.8
| 18079 | |
| Marka | Mycom |
| Typ | 200VLDD-MSX 5.8 |
| Czynnik chłodzący | NH 3 (ammonia) |
| kW at +10ºC/+40ºC | 1654,4 |
| kW at 0ºC/+40ºC | 1157,0 |
| kW at -5ºC/+40ºC | 954,7 |
| kW at -10ºC/+40ºC | 779,8 |
| kW at -20ºC/+40ºC | 502,0 |
| kW at -30ºC/+40ºC | 303,9 |
| kW at -40ºC/+40ºC | 167,6 |
| kW at -45ºC/+40ºC | 117,7 |
| Silnik elektryczny Specs | 50/60 Hz - 315 kW - 2965/3575 RPM |
| Rozładunek |
|
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|

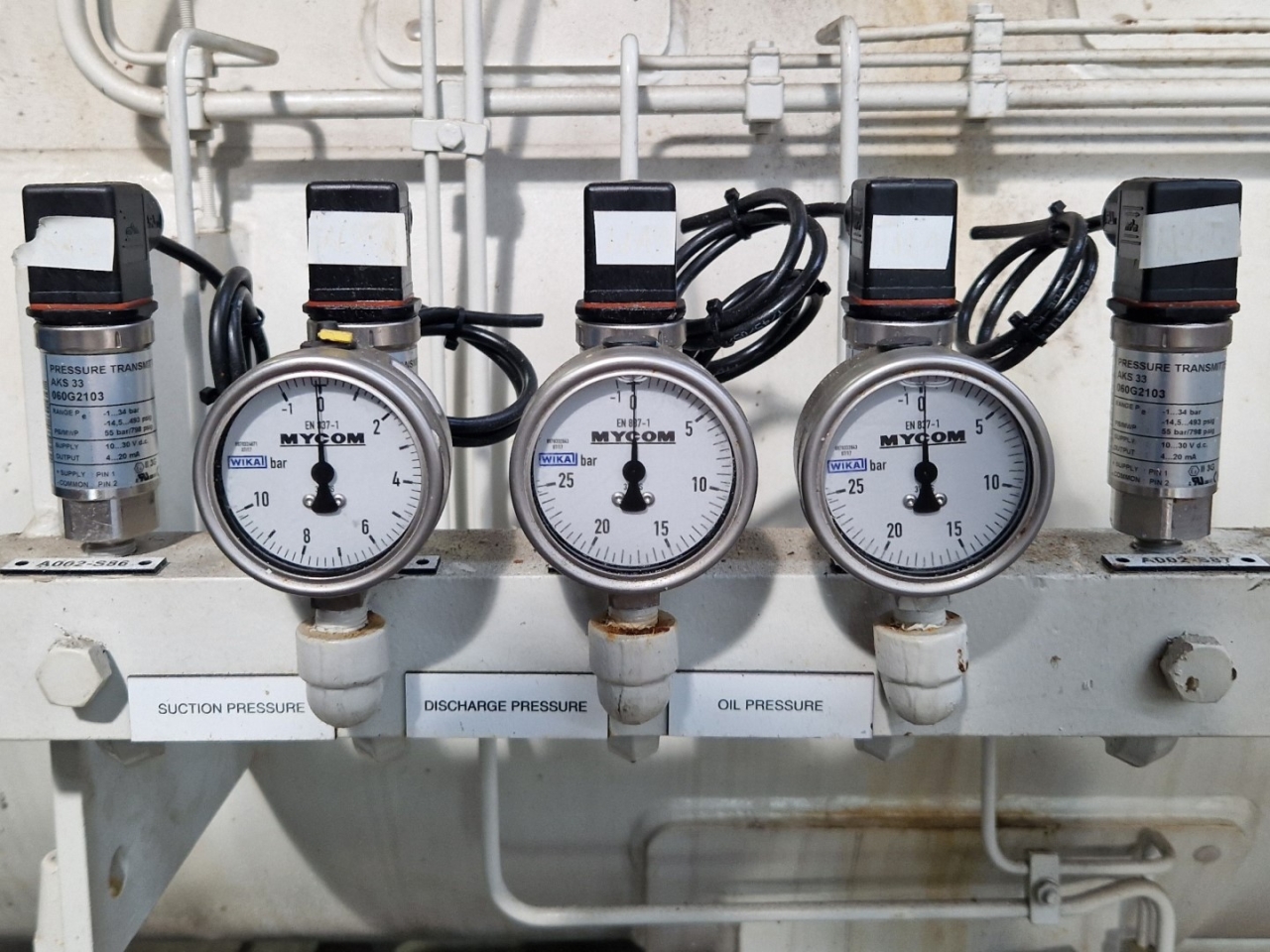

| Wskaźniki ciśnienia |
|
| Przełączniki kondensacji ciśnienia |
|
| Separator oleju |
|
| Osuszający filter lini cieczy |
|
| Okno widokowe |
|
| Panel kontrolny |
|
| m3 / h | 1850 m³/h - 4500 RPM |
| Uwagi | | Y.o.b. 2017 |
| Waga kg. | +- 4700 |
| Rozmiary | 4200x1600x2540 mm (LxWxH) |
| Liczba sztuk | 2 |
Mycom 200VLDD-MSX 5.8

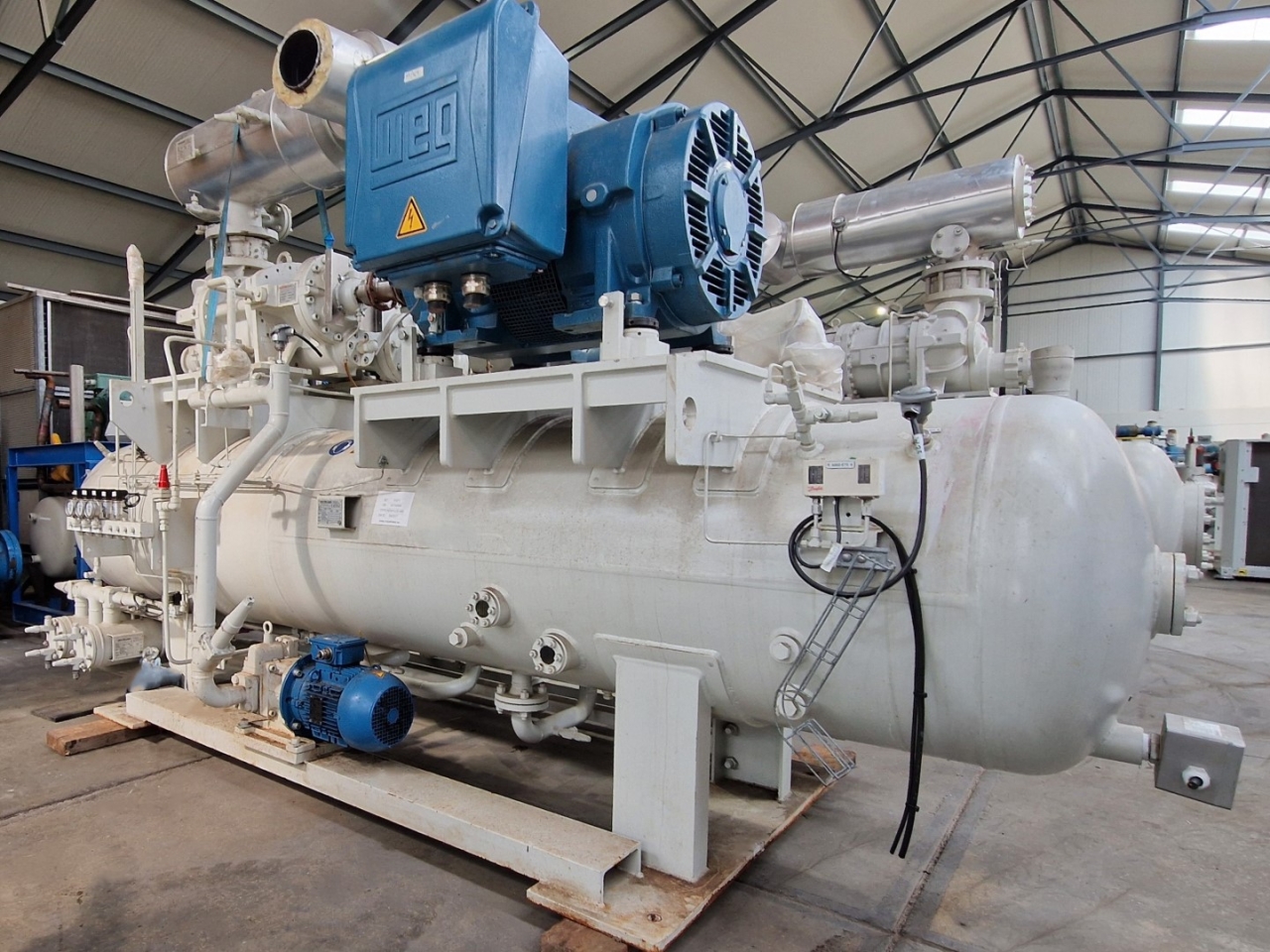

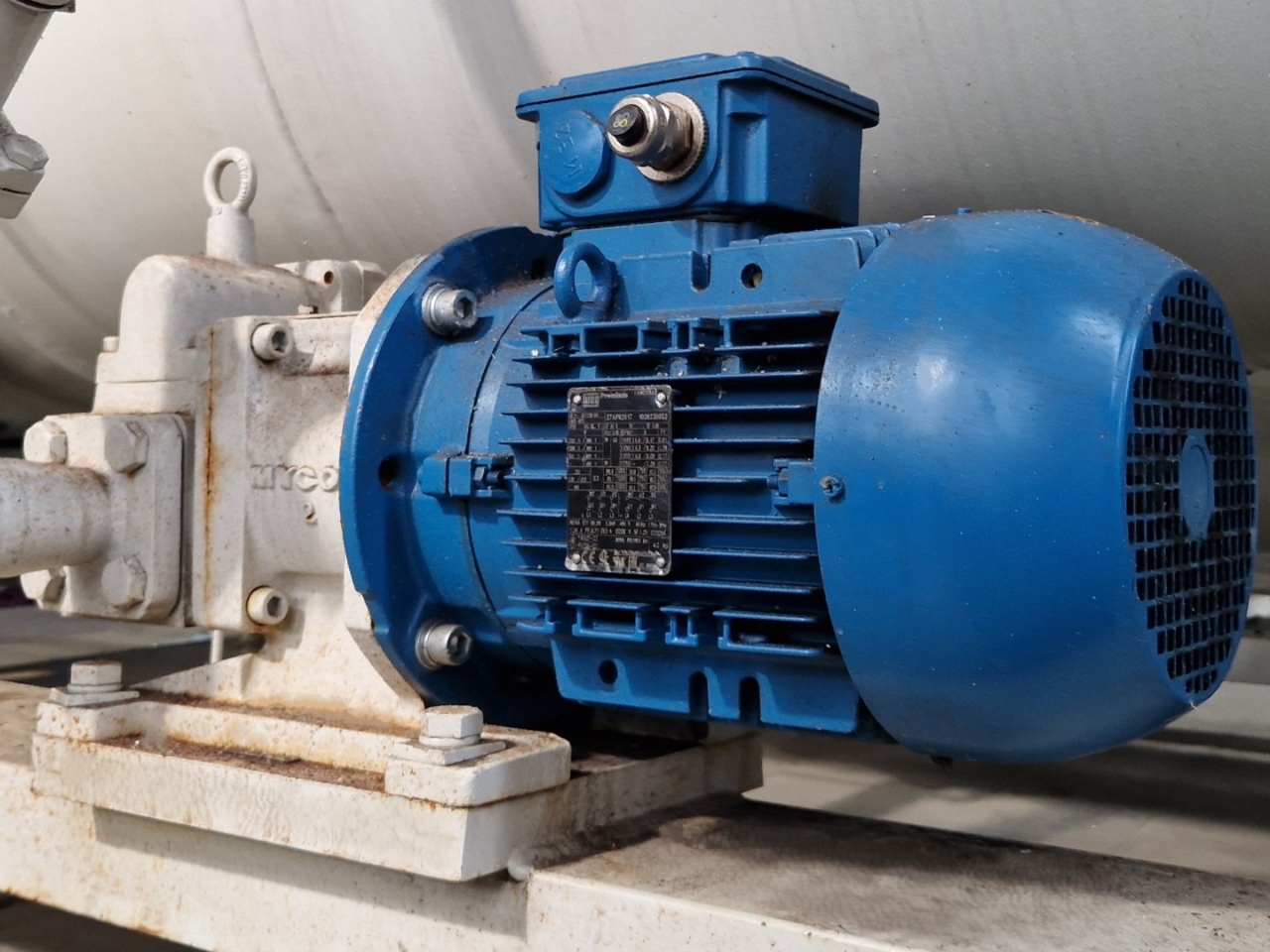

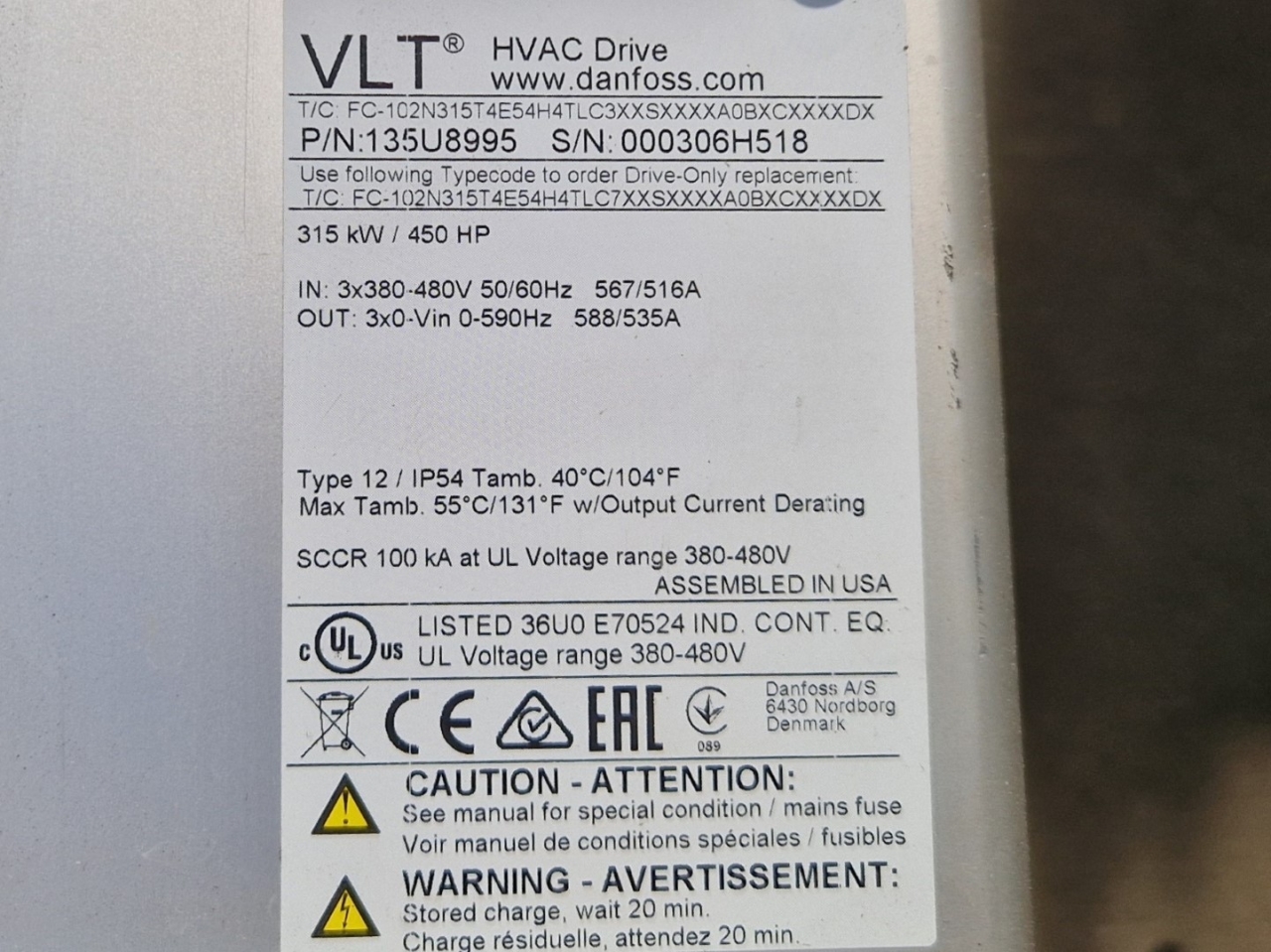

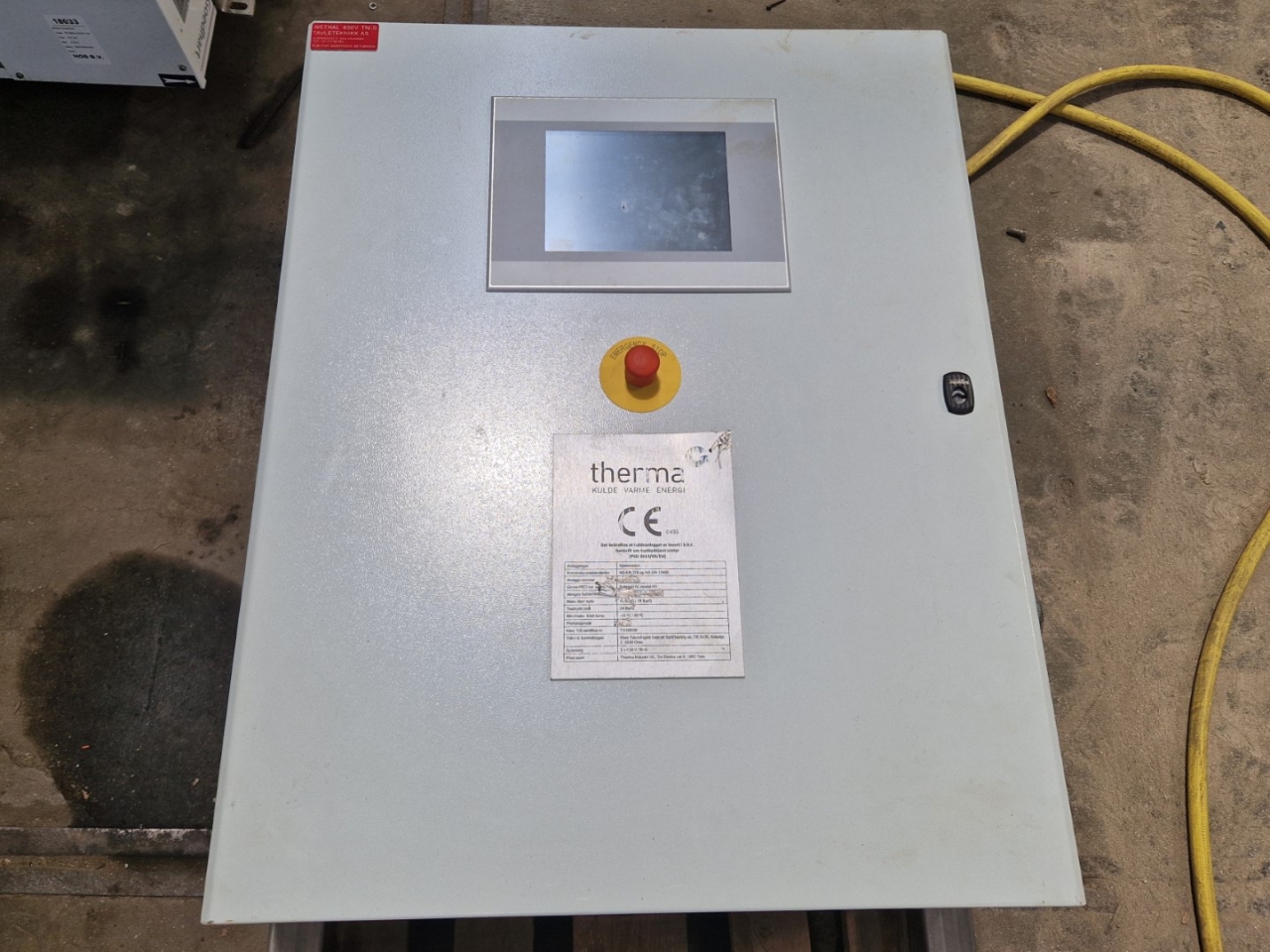

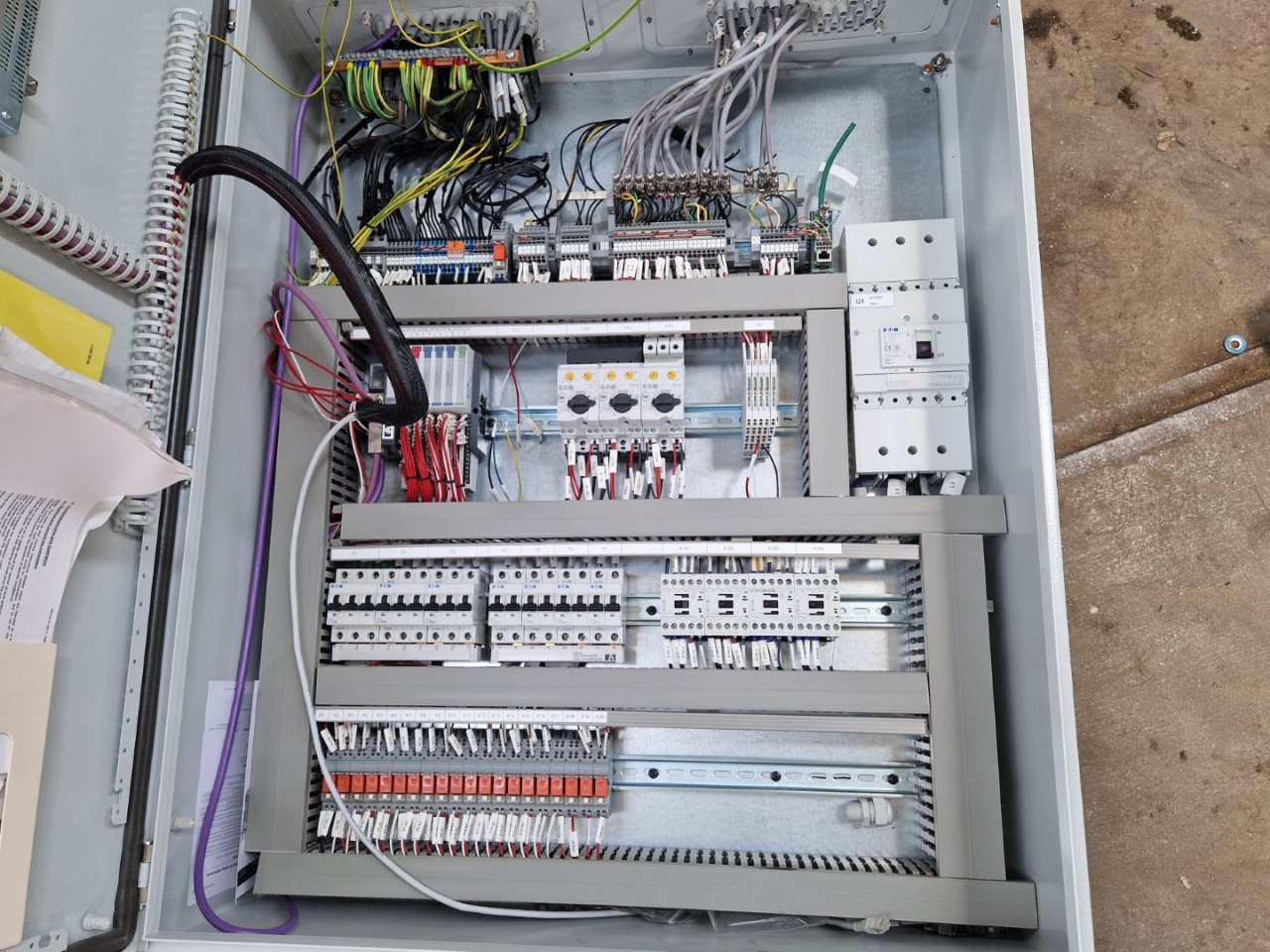

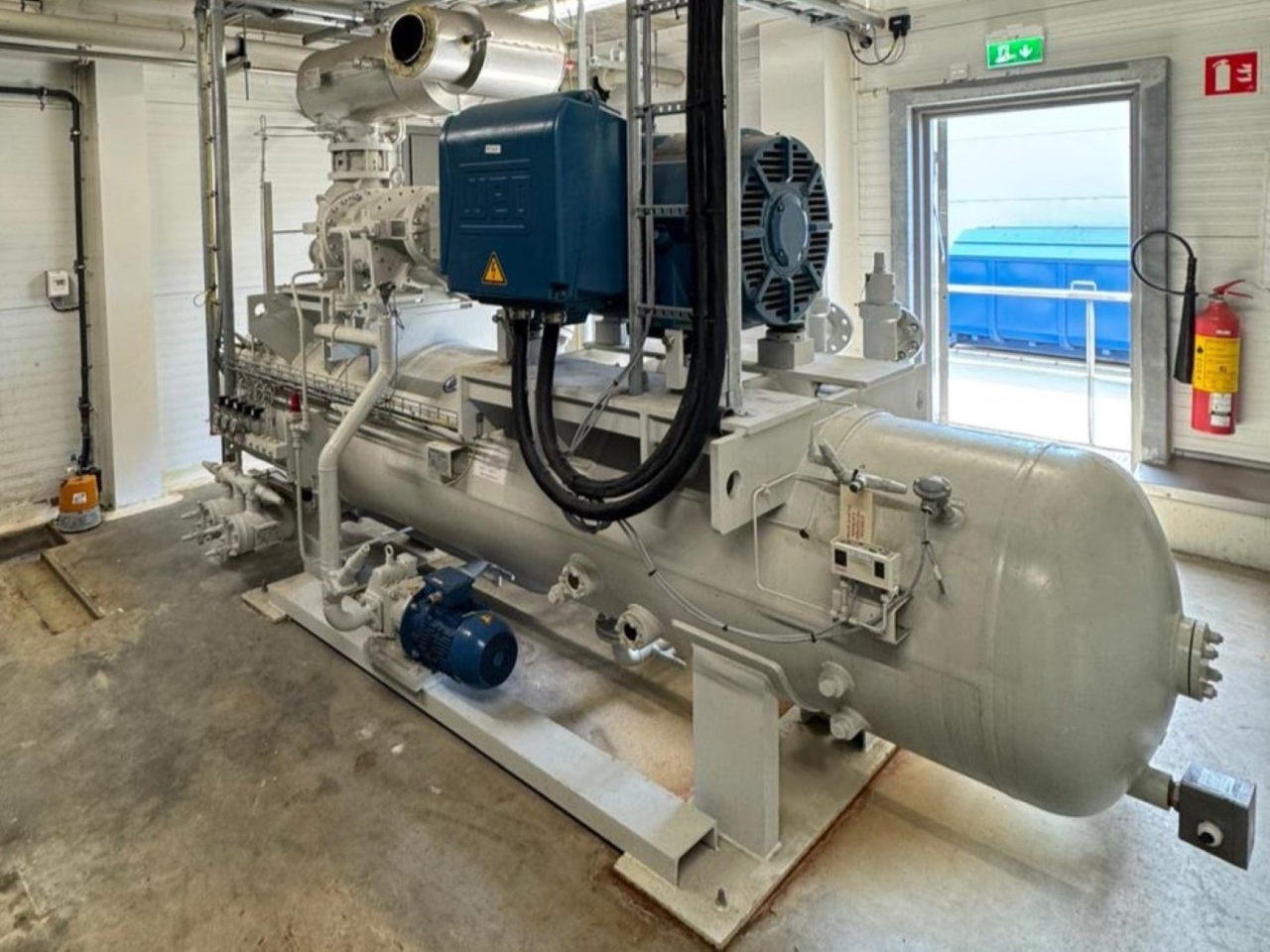

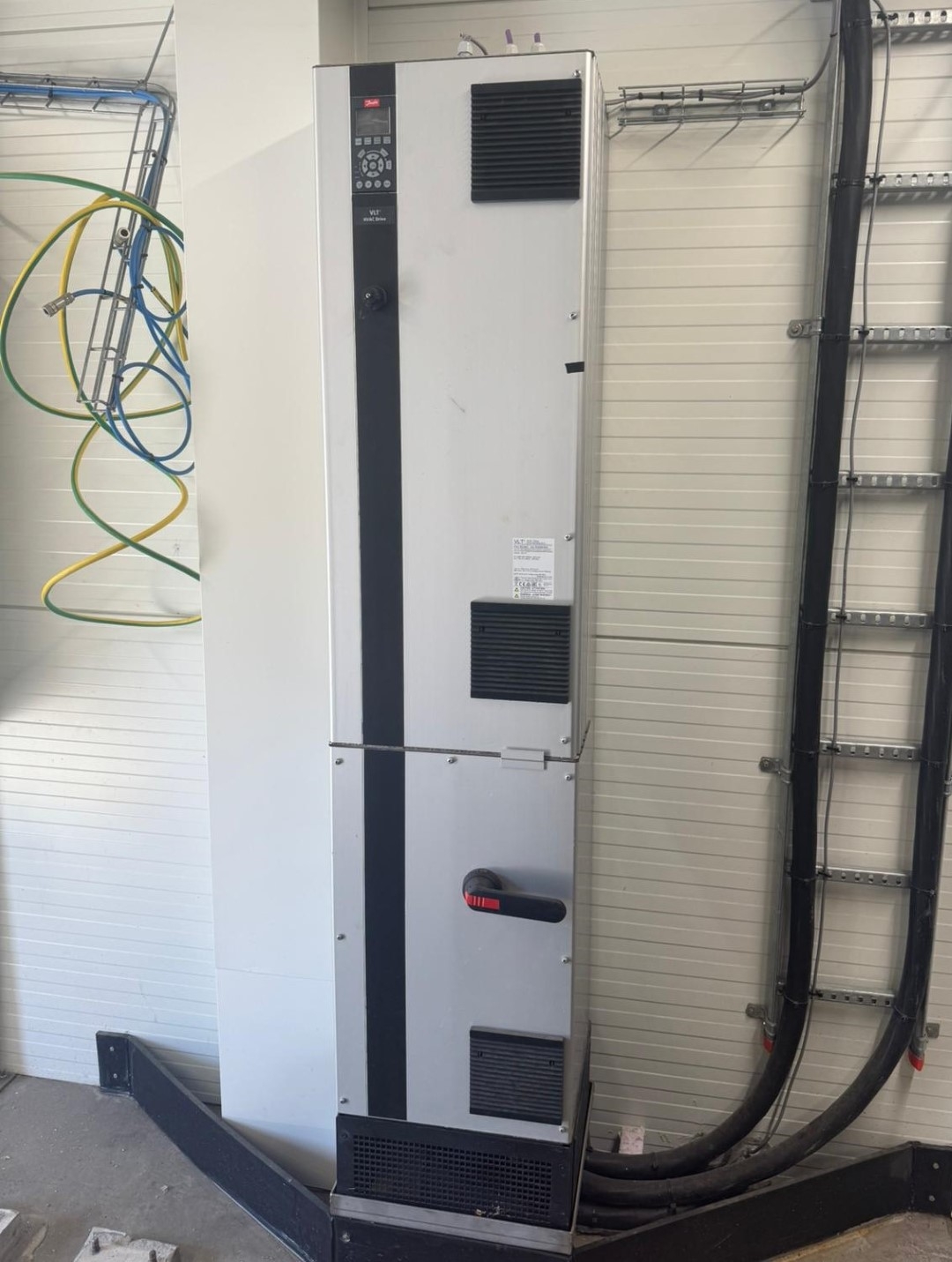

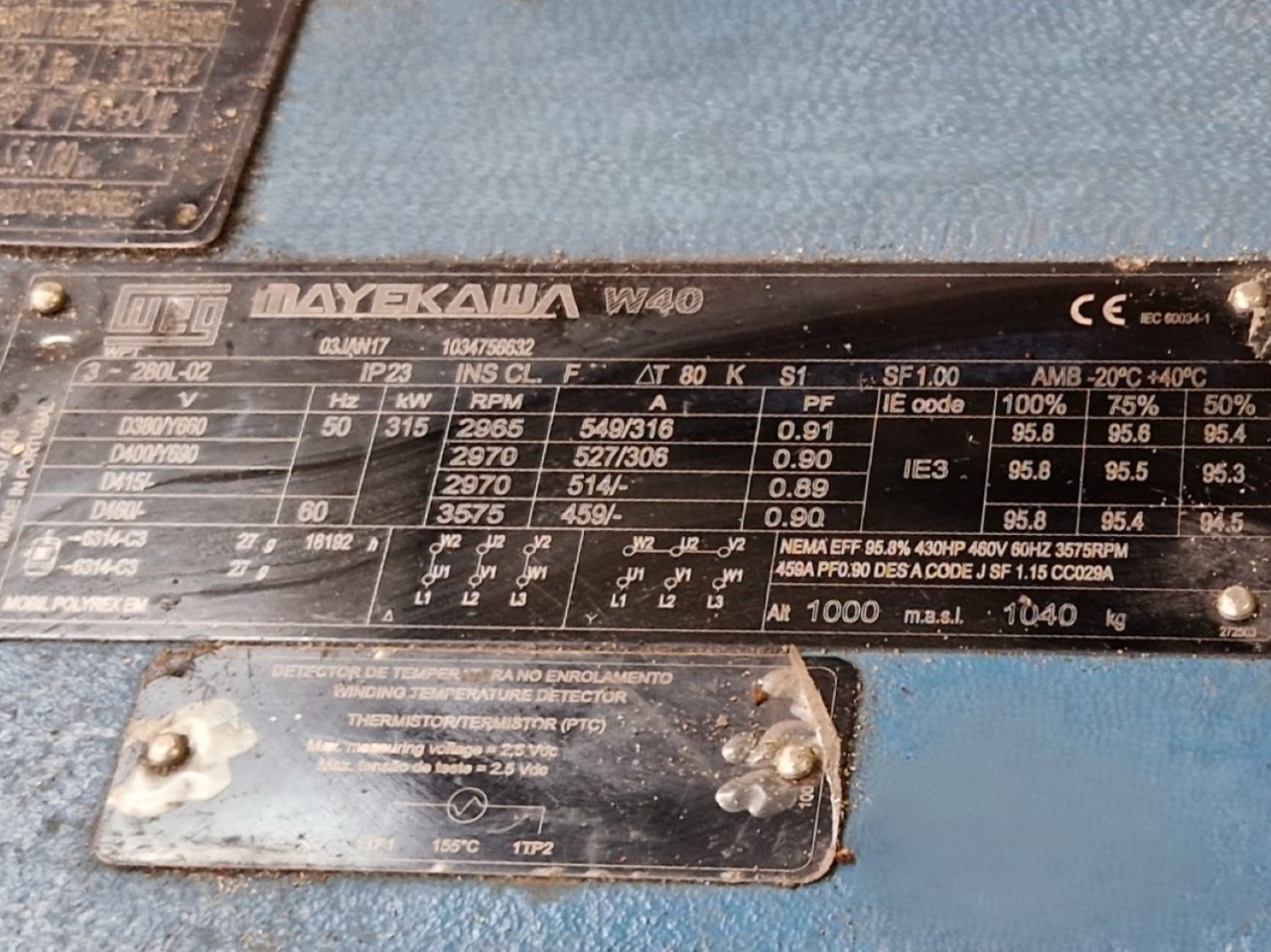

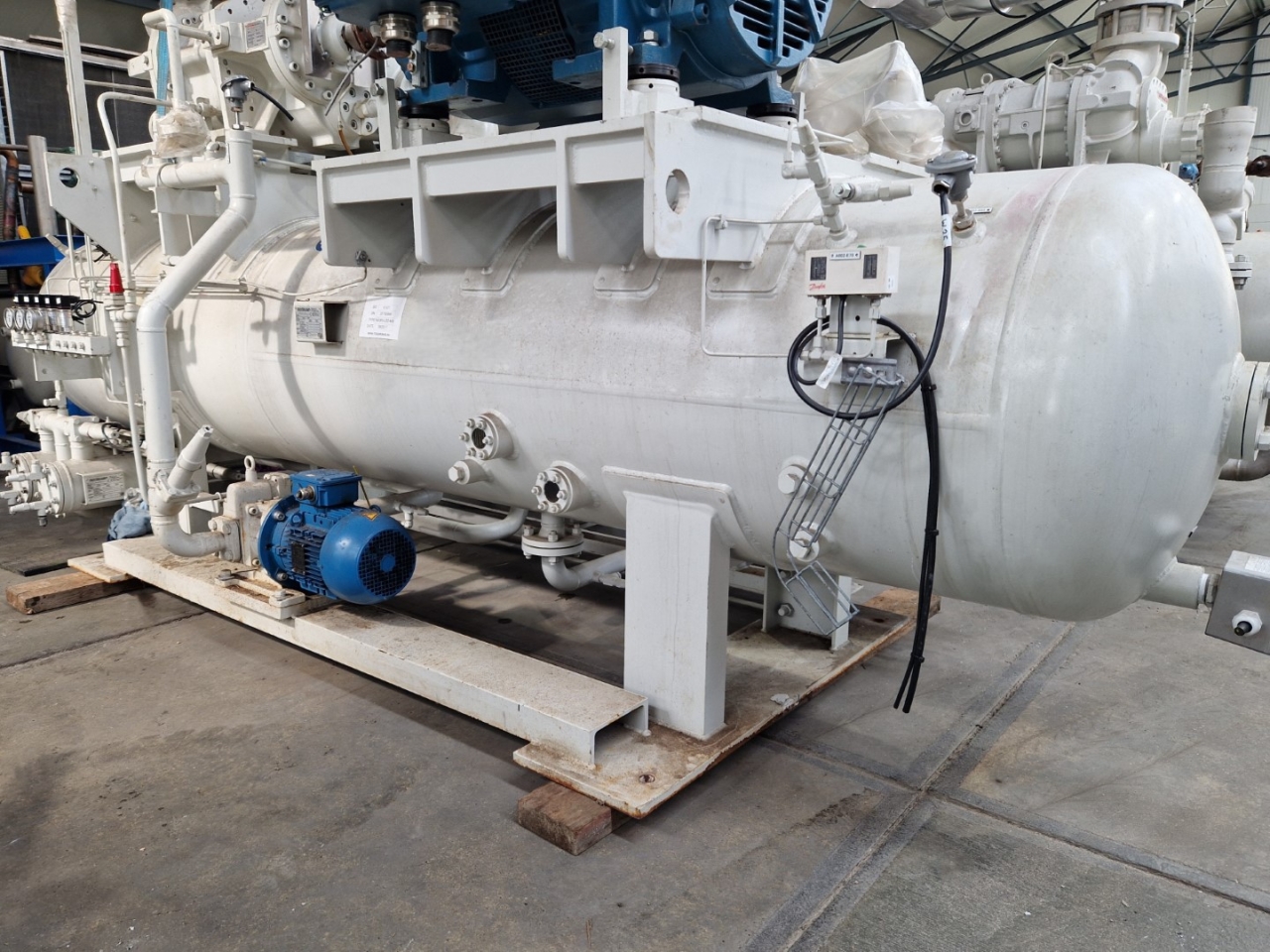

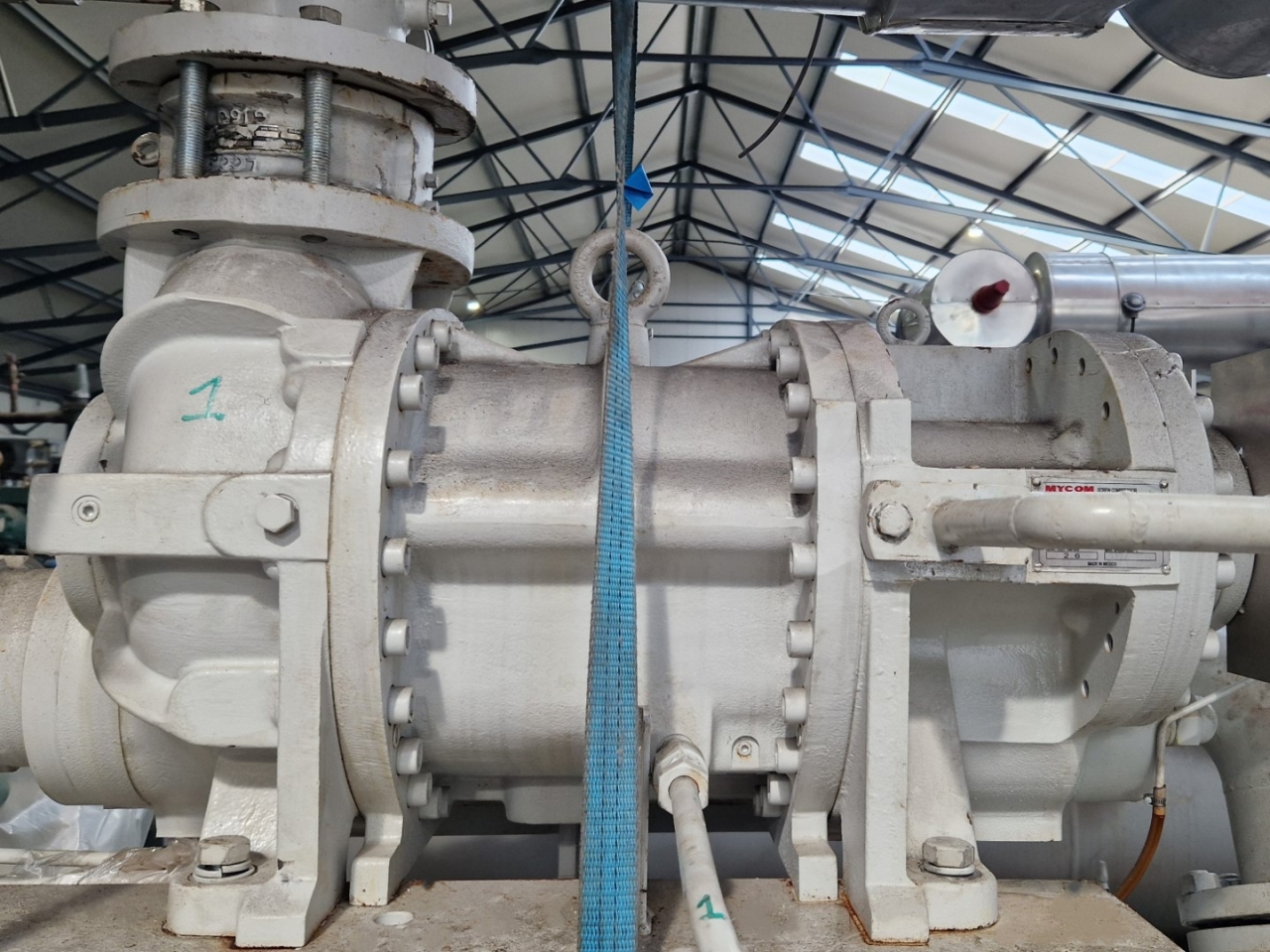

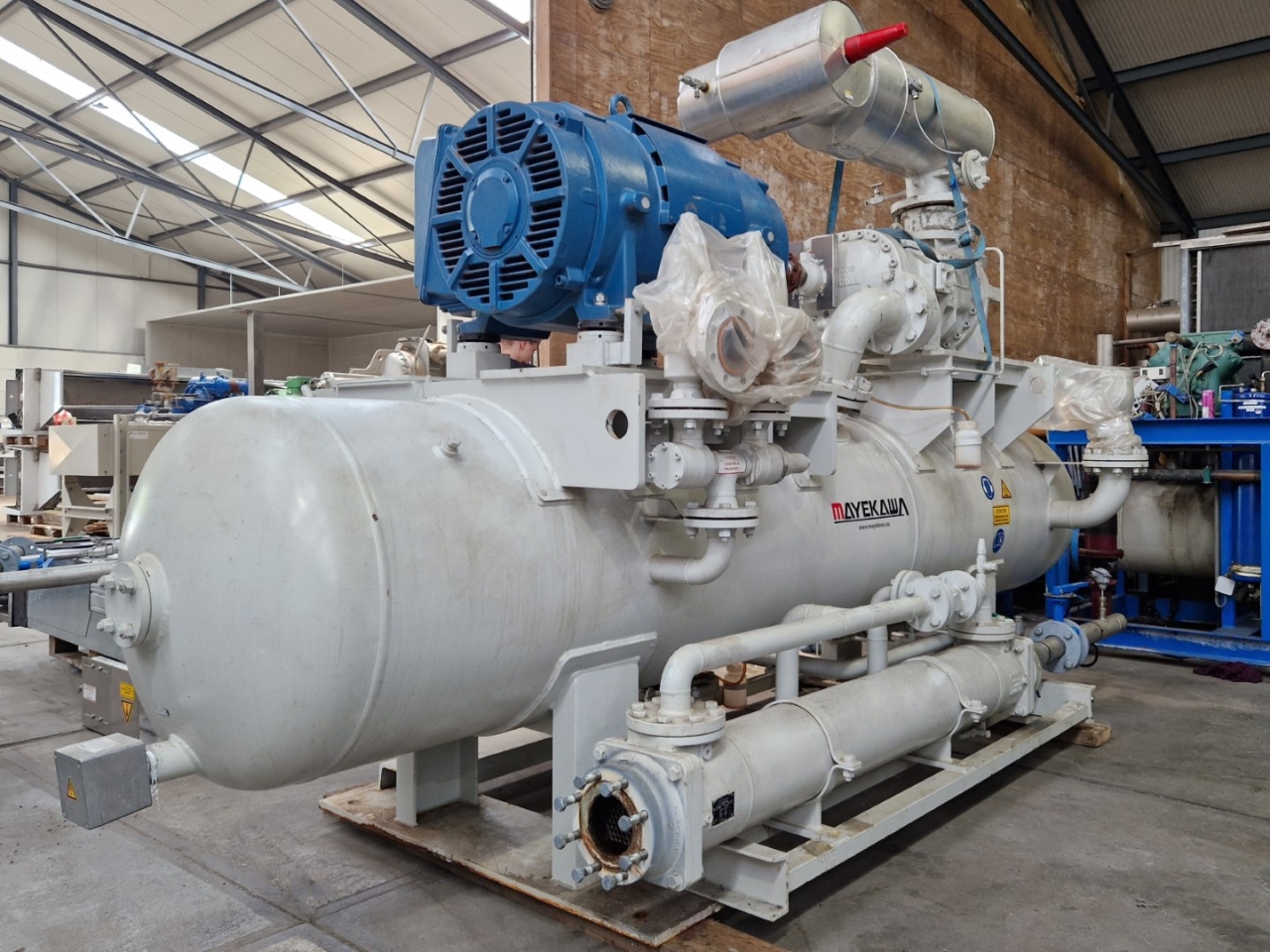

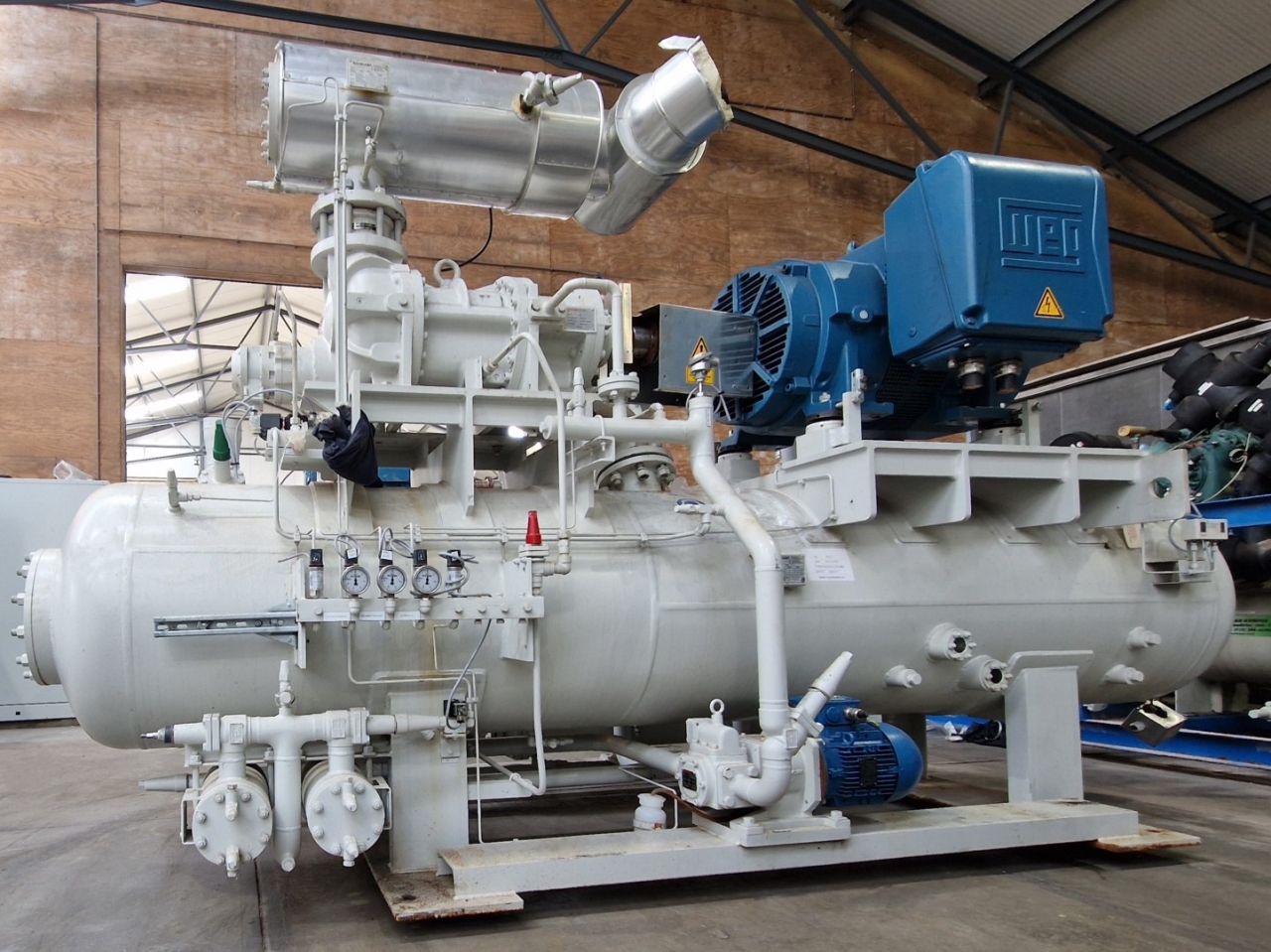

Used Mycom 200VLDD-MSX 5.8 screw compressor unit on NH3 (Ammonia) built in 2017. Complete with a WEG 280L-02 electric motor with the following specifications: 50/60 Hz - 315 kW - 2965/3575 RPM, Mayekawa HS7533V-200 oil separator with a volume of 1550 liters, HS-Cooler KS20-AEH-115 L1600 oil cooler, Mycom F50P oil pump, Grundfos TP 40-140/4 A-F-A-BQQE water pump that provides cooling water for the oil cooler, expansion vessel, pressure and safety switches/gauges, Danfoss FC-102N315T4E54H4 frequency regulator and a control cabinet for the compressor with a display.
We can deliver these compressor units with a suitable Evapco LSCE 281 evaporating condenser. Please feel free to contact us for more information!
Unit number 1: running 24000 hours.
Unit number 2: running 21000 hours.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
