Sabroe HPO 28
Sabroe HPO 28
| 18224 | |
| Marka | Sabroe |
| Typ | HPO 28 |
| Czynnik chłodzący | CO2 |
| Refrigerant type | R744 |
| kW at -20ºC/+40ºC | 611,4* |
| kW at -30ºC/+40ºC | 418,1* |
| kW at -40ºC/+40ºC | 271,1* |
| Silnik elektryczny Specs | 50 Hz - 132 kW - 1487 RPM |
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Separator oleju |
|
| Okno widokowe |
|
| Zawór elektromagnetyczny |
|
| Panel kontrolny |
|
| m3 / h | 233 |
| Uwagi | | Y.o.b. 2012 |
| Uwagi || | *Capacity based on a condensing temperature of 0°C |
| Rozmiary | 2500x950x1700 mm (LxWxH) |
| Liczba sztuk | 2 |
Sabroe HPO 28

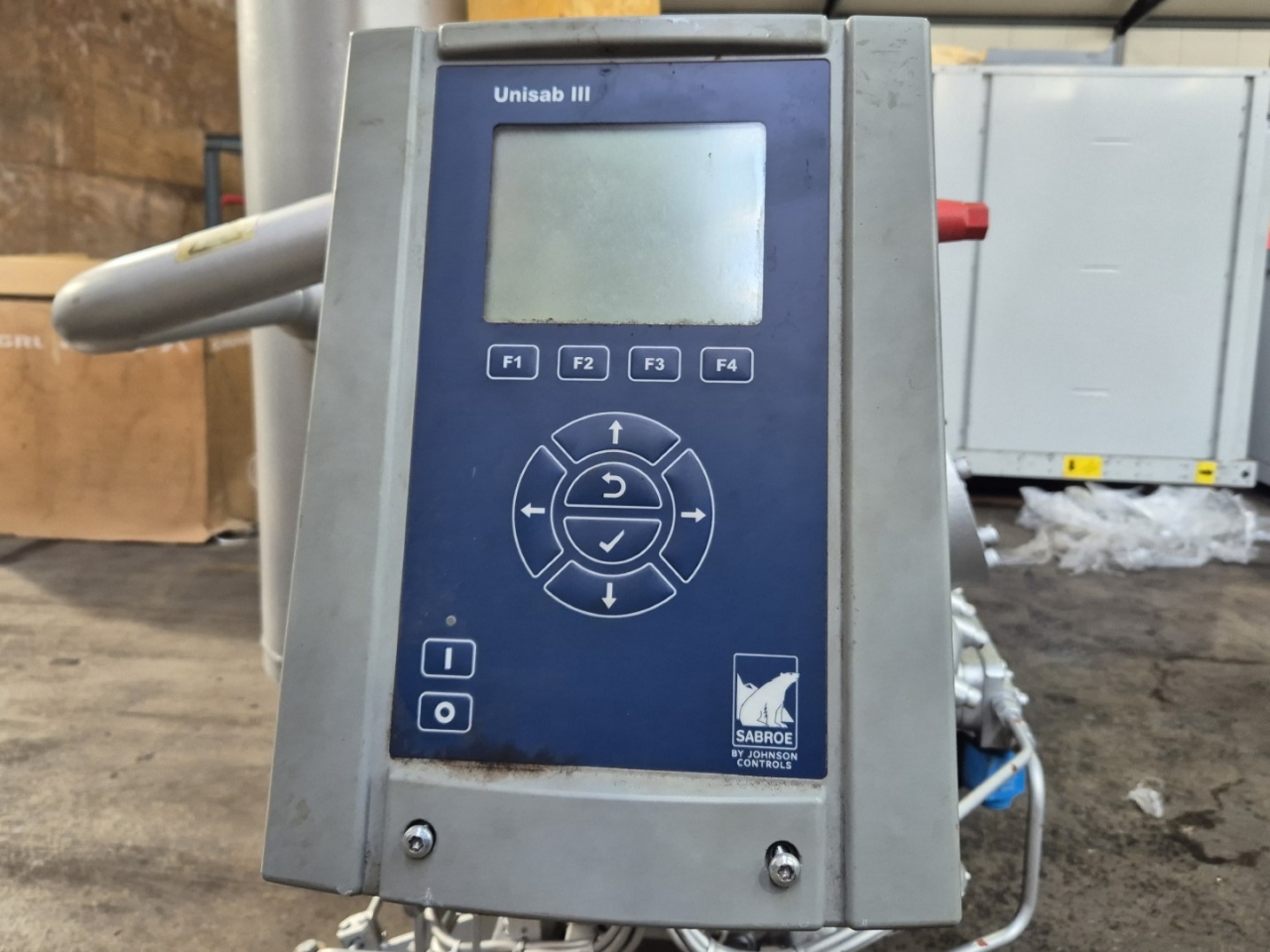

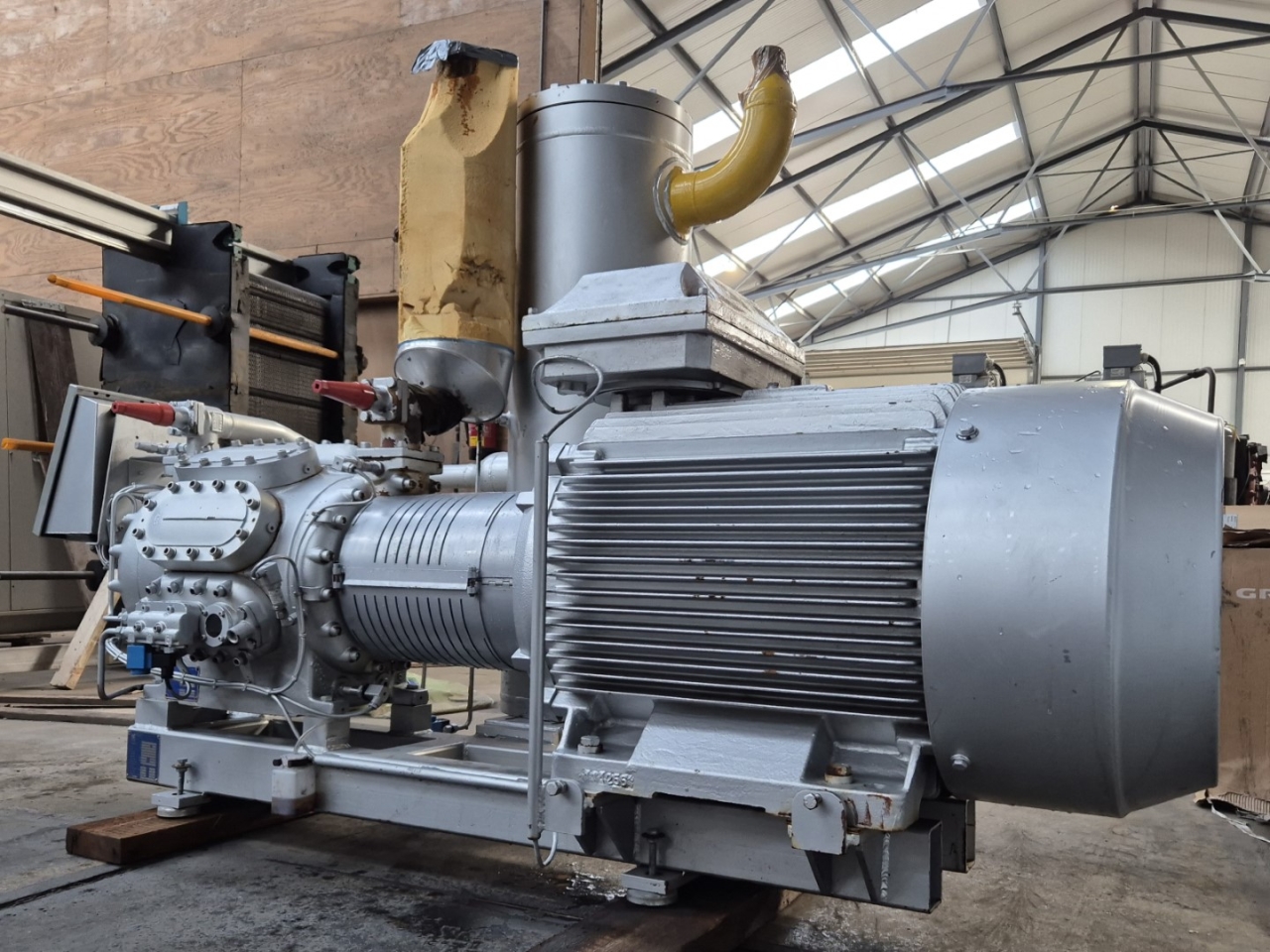

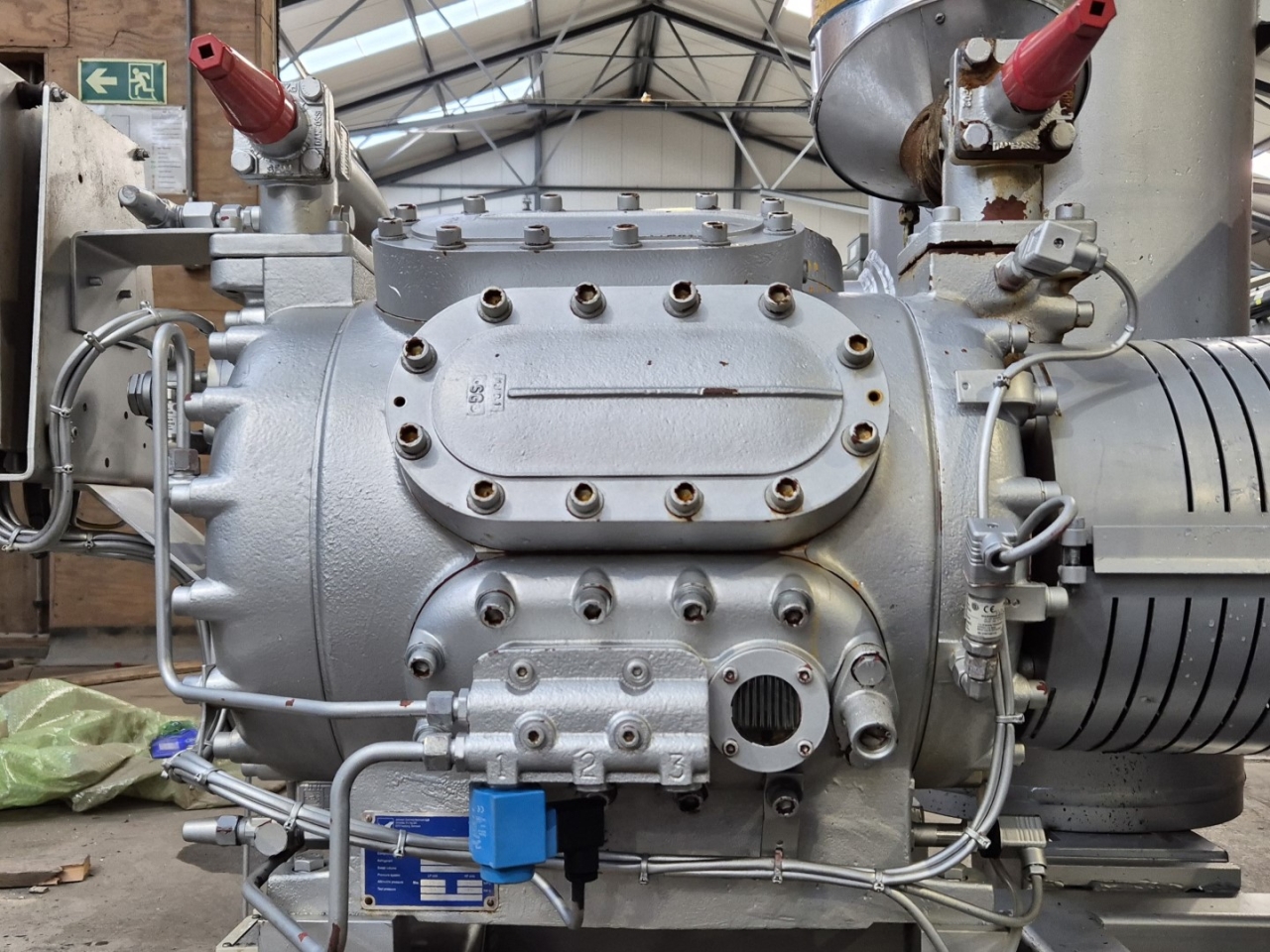

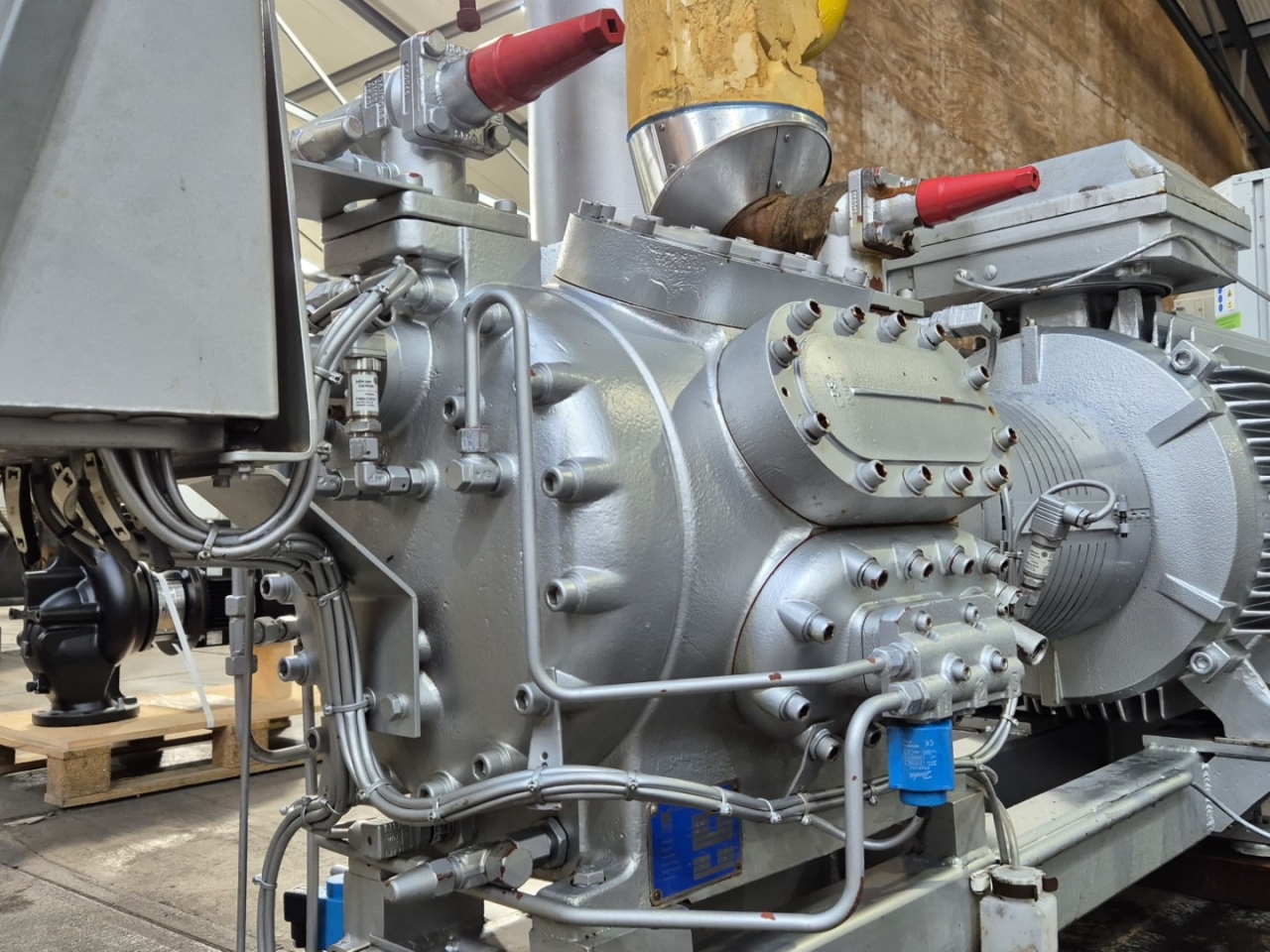

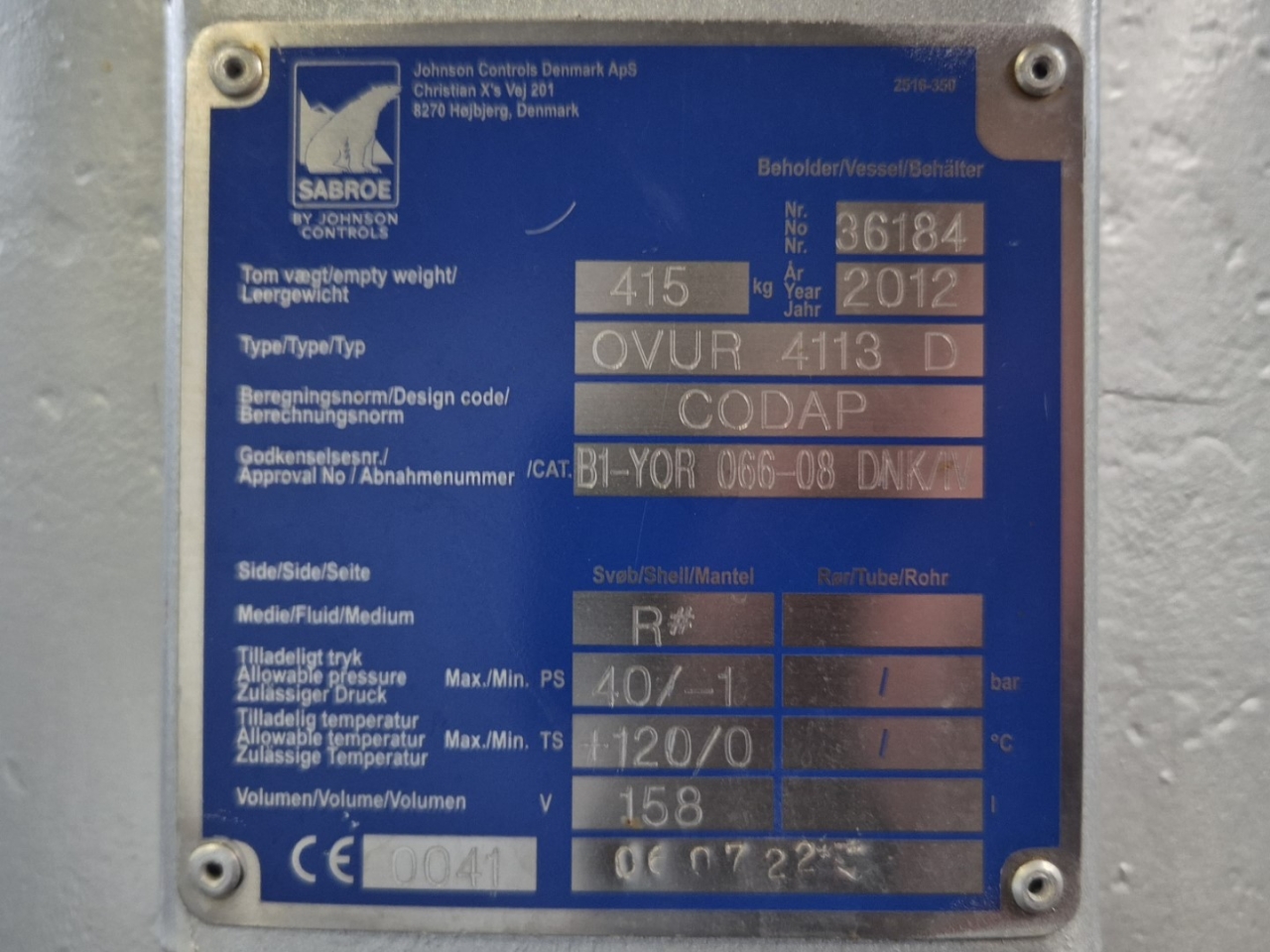

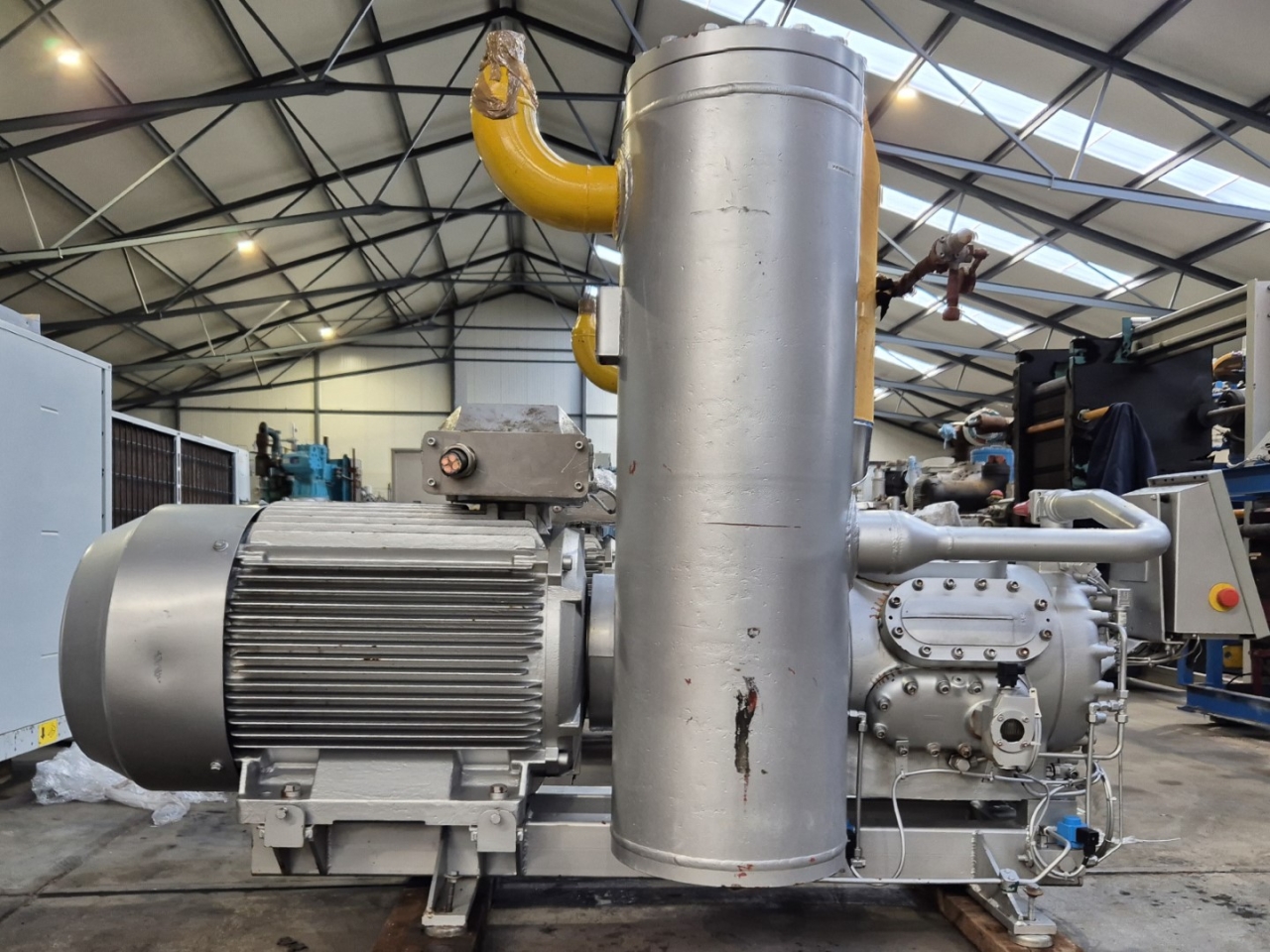

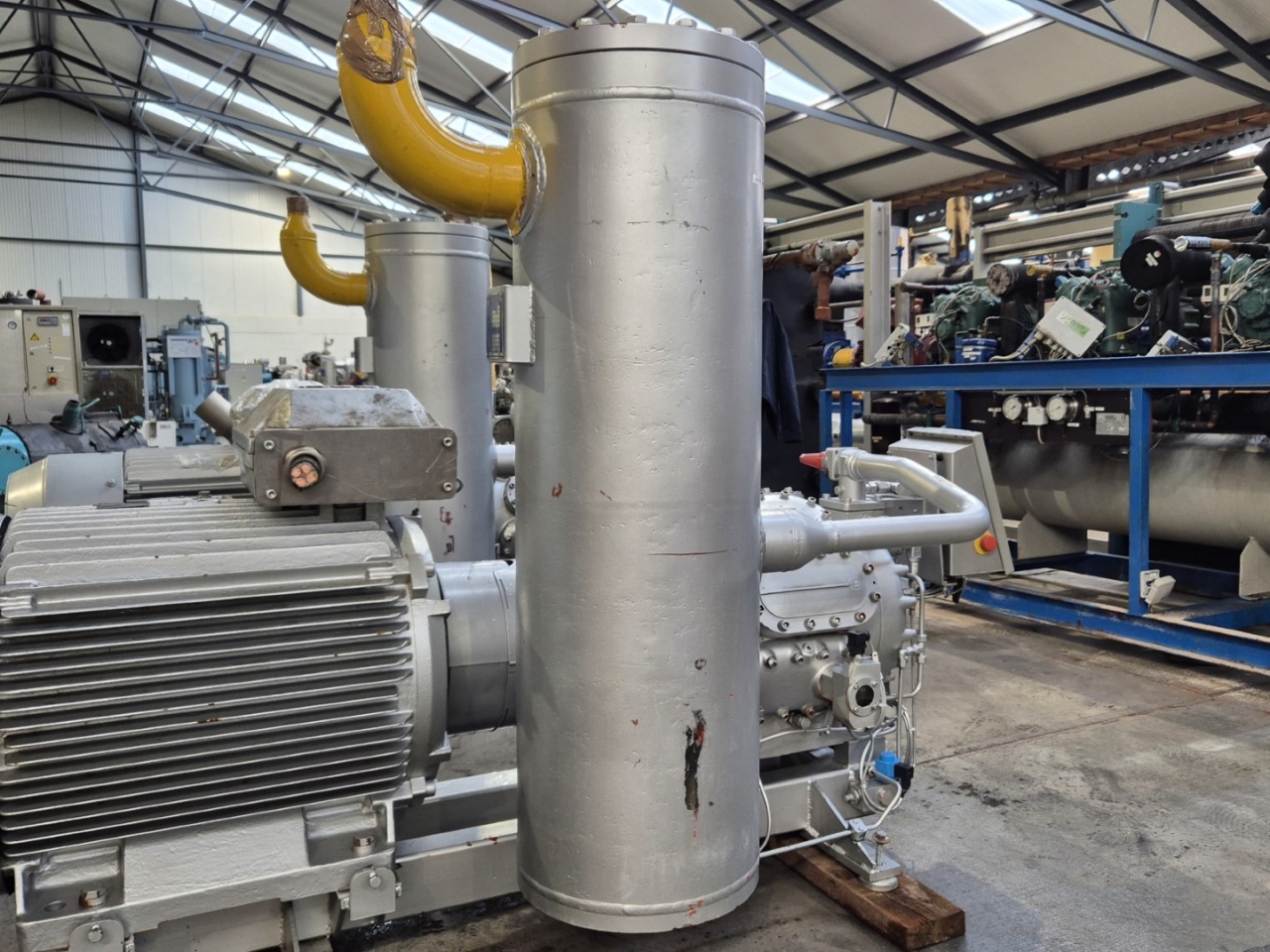

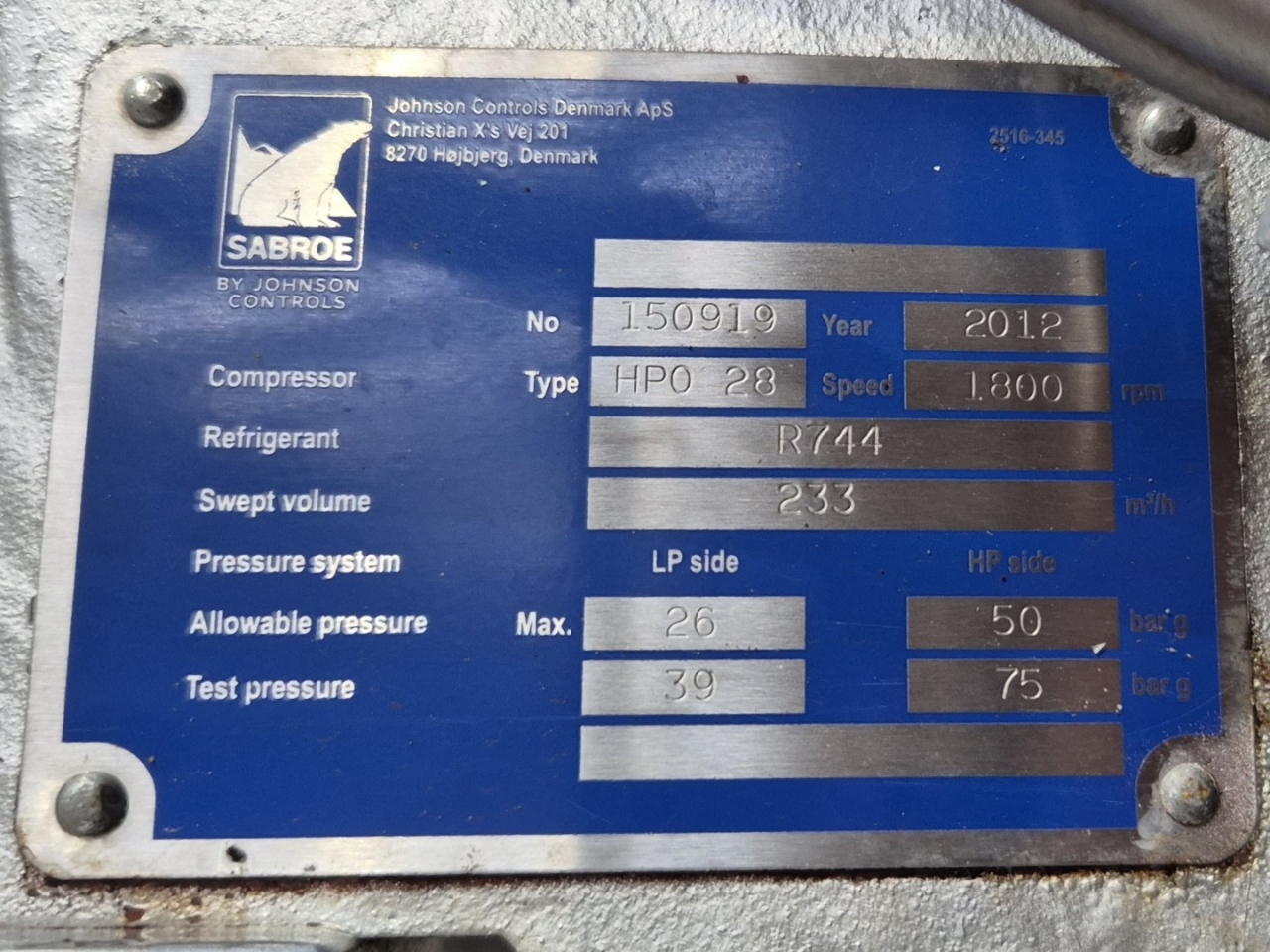

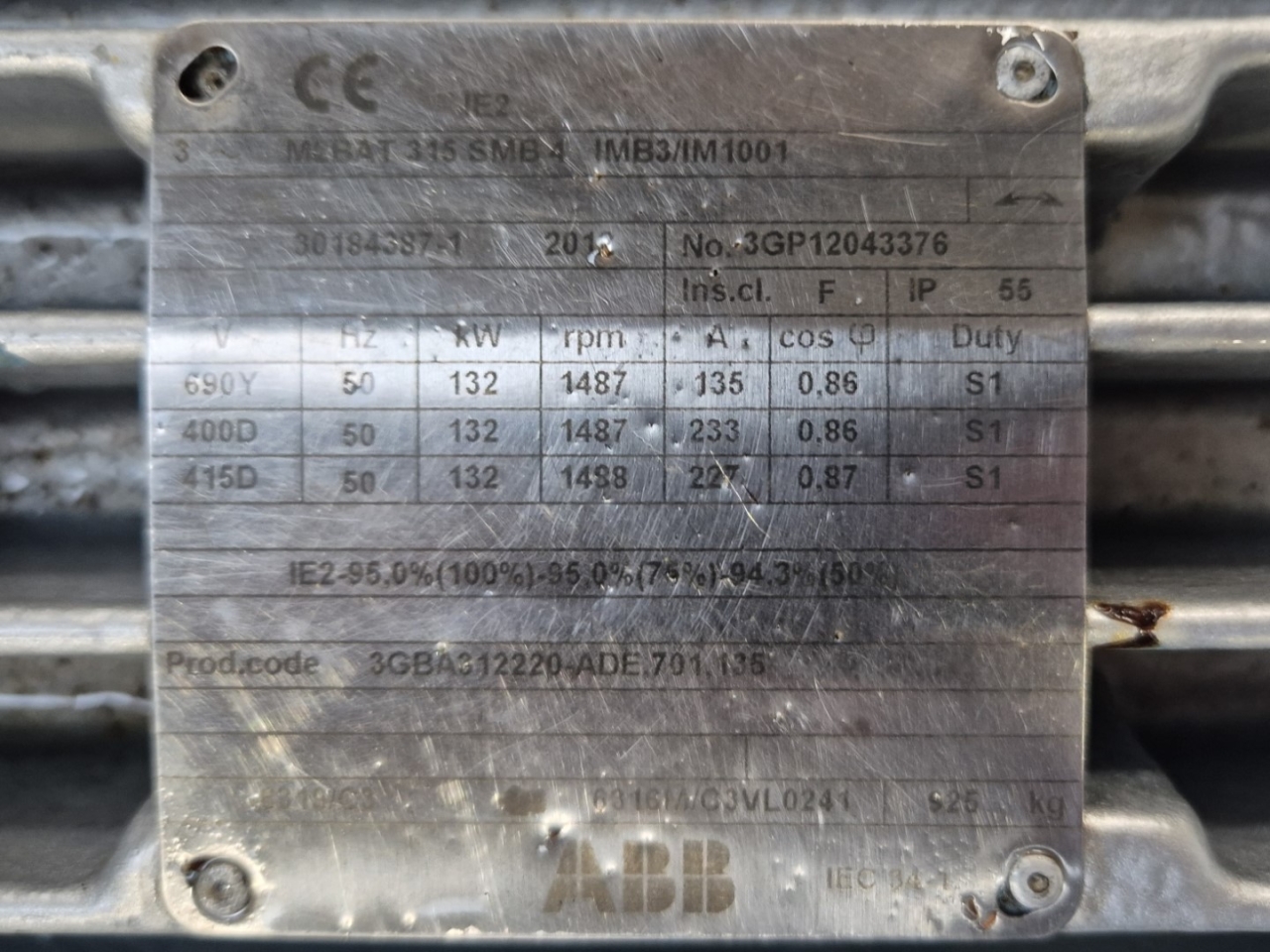

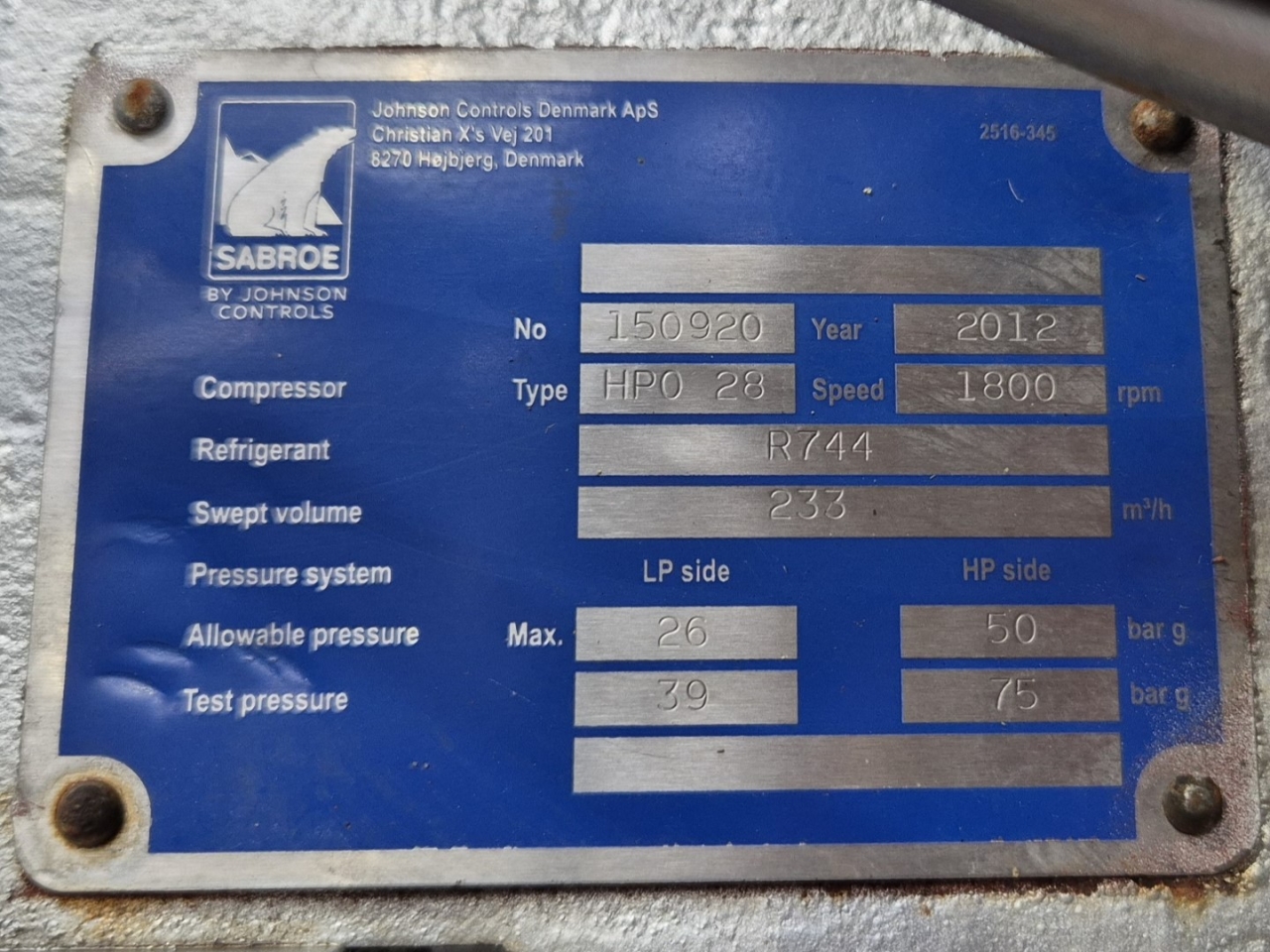

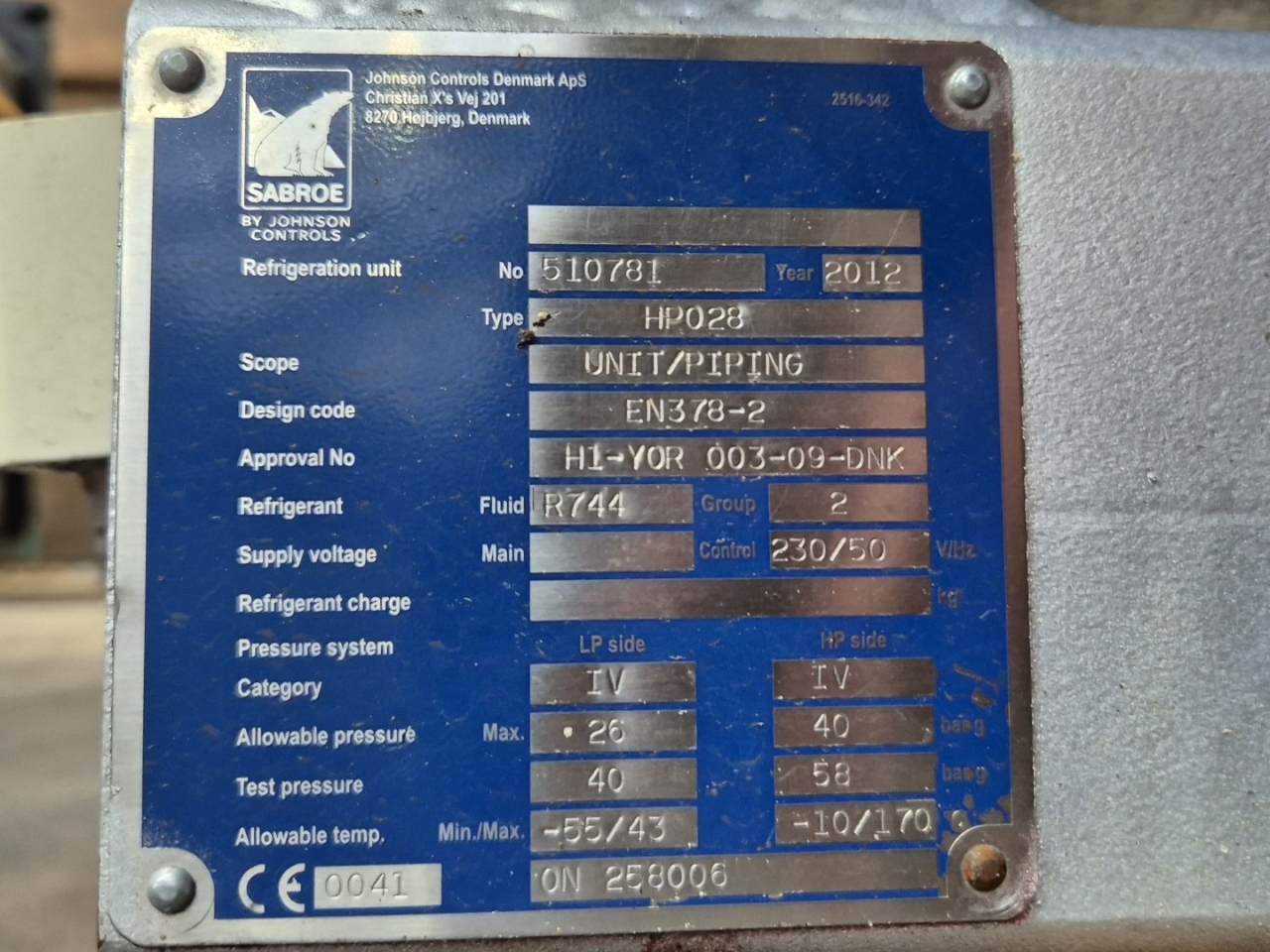

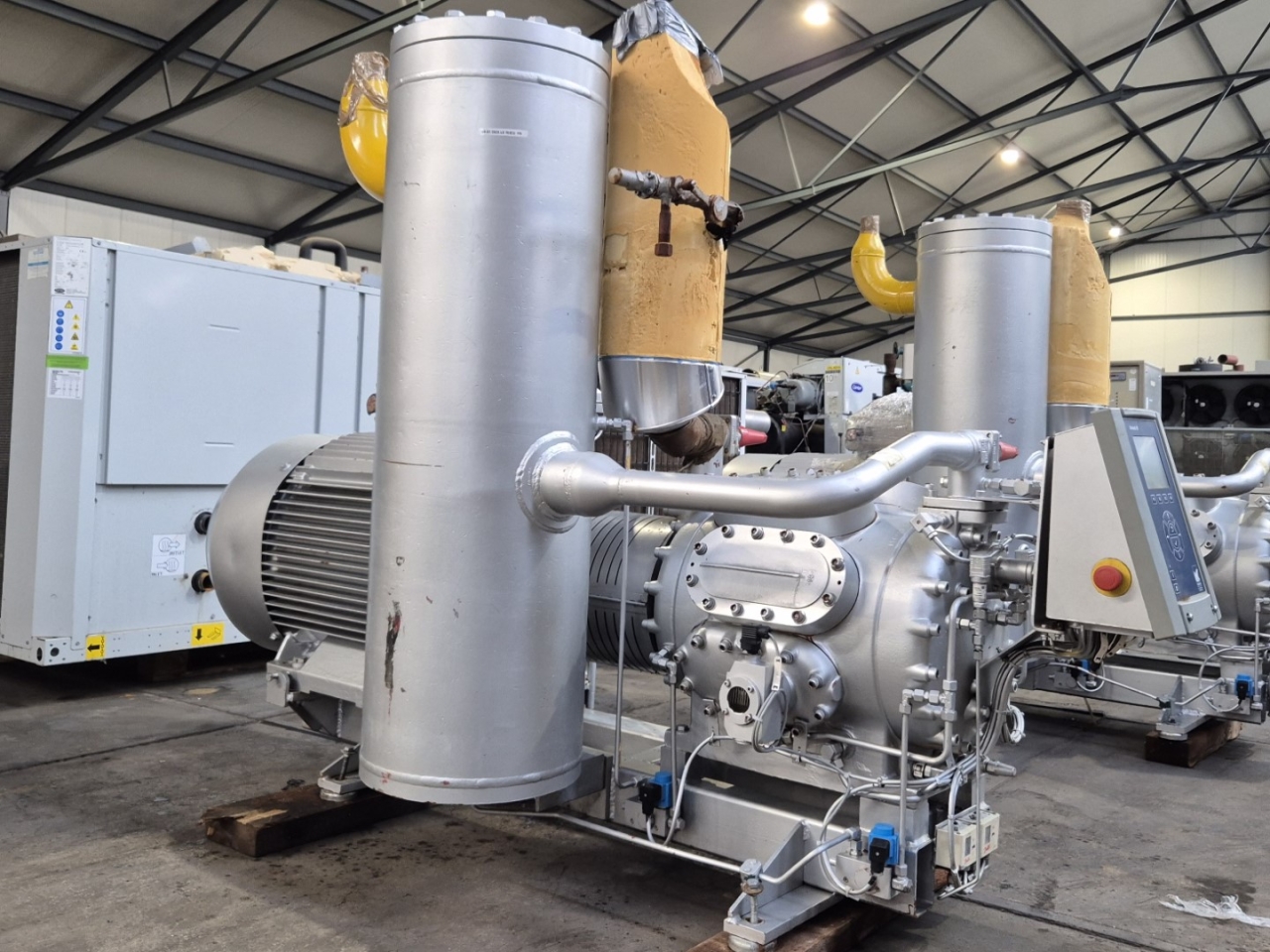

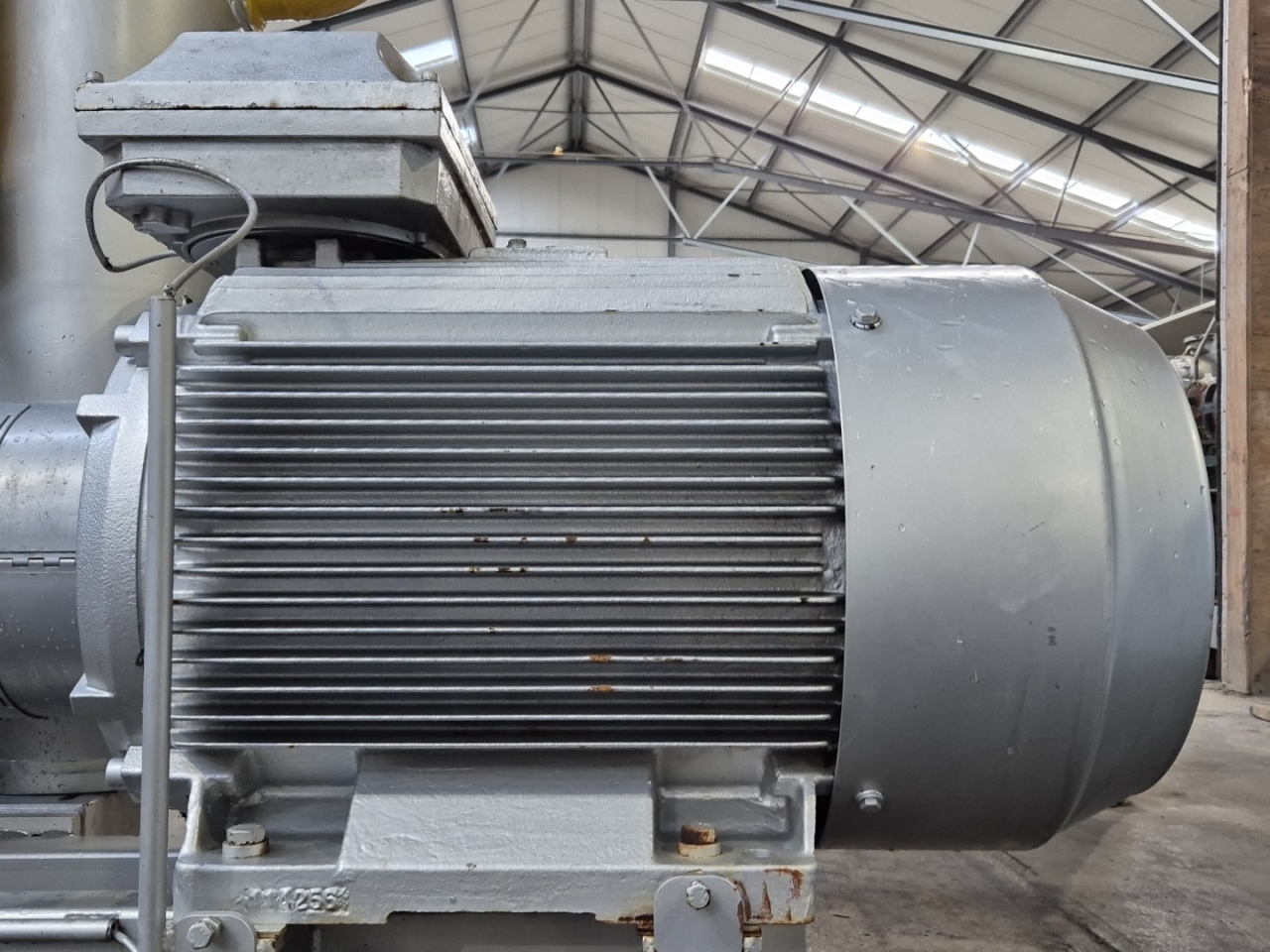

Used Sabroe HPO 28 reciprocating compressor on R744 (CO2). Complete with an ABB M2BAT 315 SMB 4 electric motor - 50 Hz - 132 kW - 1487 RPM, Sabroe OVUR 4113D oil separator with a volume of 158 liter and a Unisab 3 controller. The compressor has a displacement of 233 m³/h. *Capacity based on a condensing temperature of 0°C.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment soley if it has passed our extensive quality test and after it has been cleaned industrially. *If requested we are happy to arrange your shipment.
Sabroe HPO 28
| Sabroe HPO 28 - | (PDF) |
