Bitzer 4CC-6.2Y-40S Water-cooled condensing unit
Bitzer 4CC-6.2Y-40S Water-cooled condensing unit
| 18323 | |
| Marka | Bitzer |
| Typ | 4CC-6.2Y-40S Water-cooled condensing unit |
| Czynnik chłodzący | Freon |
| kW at -5ºC/+40ºC | 21,1 |
| kW at -10ºC/+40ºC | 17,4 |
| kW at -20ºC/+40ºC | 11,4 |
| kW at -30ºC/+40ºC | 7,0 |
| kW at -40ºC/+40ºC | 3,8 |
| kW at -45ºC/+40ºC | 2,5 |
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Osuszający filter lini cieczy |
|
| Okno widokowe |
|
| m3 / h | 32,5 |
| Uwagi | | Y.o.b. 2004 |
| Waga kg. | 118 |
| Condensing Unit |
|
| Rozmiary | 1000x400x700 mm (LxWxH) |
| Liczba sztuk | 4 |
Bitzer 4CC-6.2Y-40S Water-cooled condensing unit

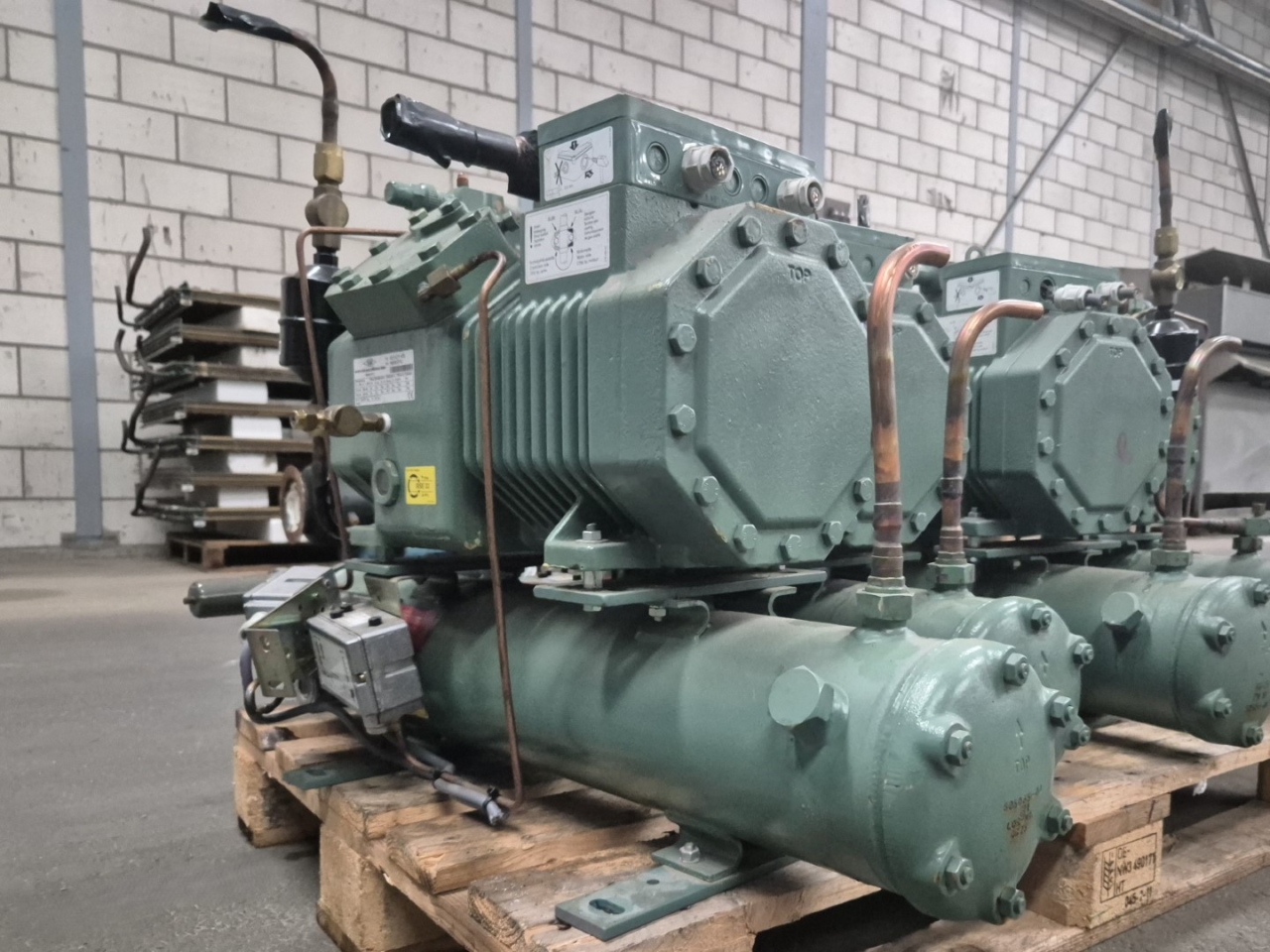

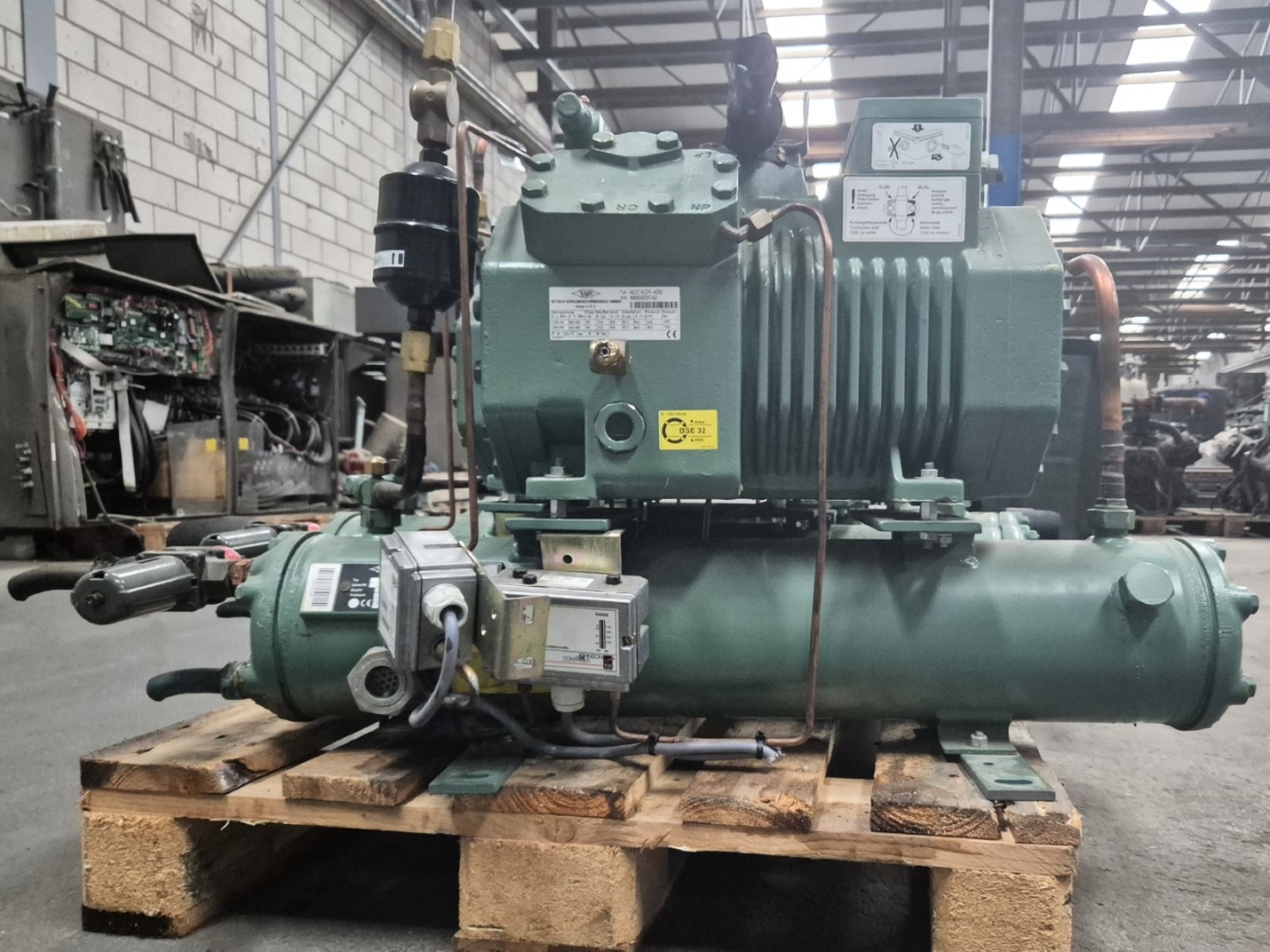

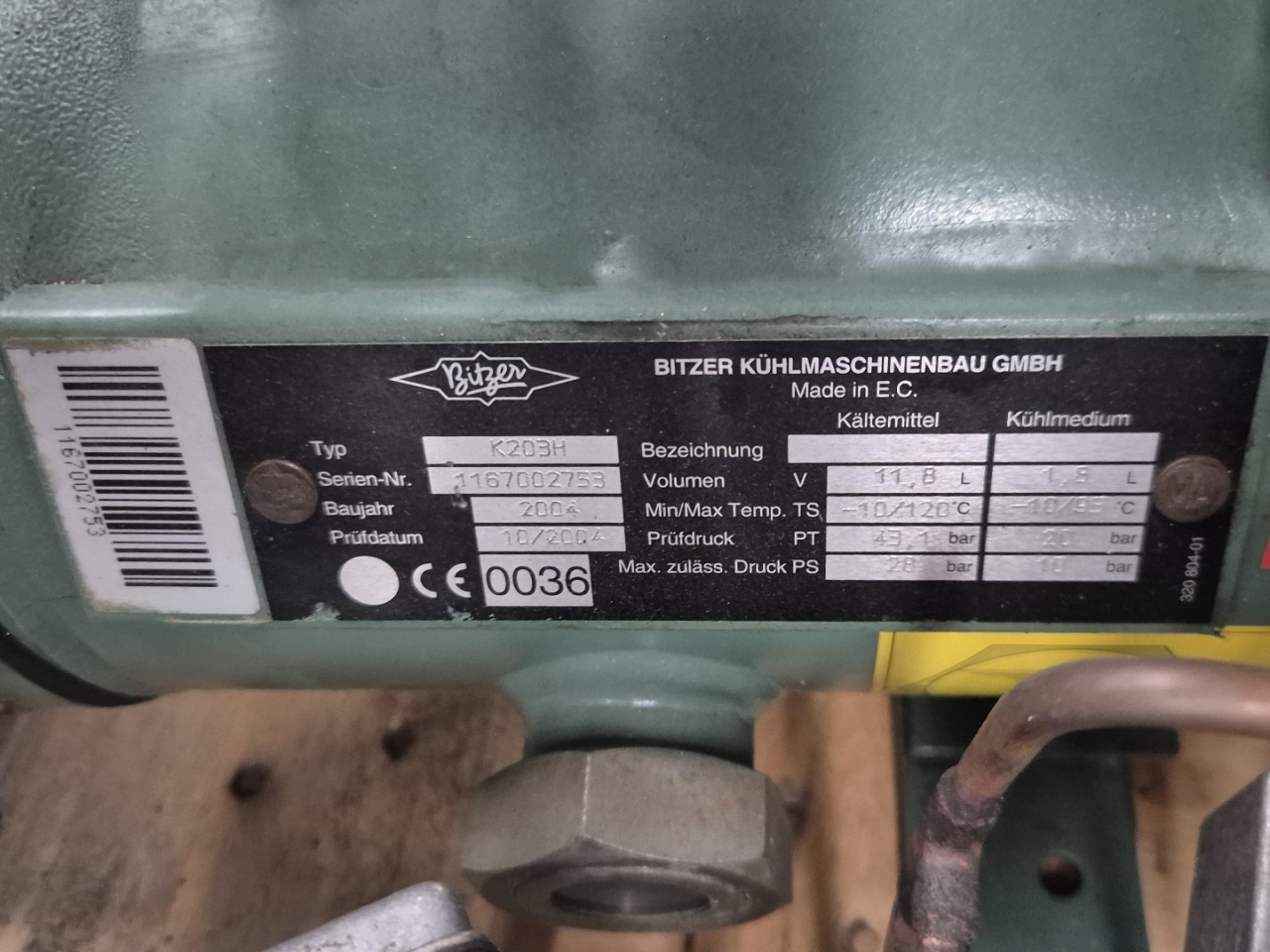

Used Bitzer water-cooled condensing unit on Freon. Complete with a Bitzer 4CC-6.2Y-40S semi-hermetic reciprocating compressor, Bitzer K203H shell and tube condenser, pressure and safety switches and a sight glasses. The compressor has a displacement of 32,5 m³/h at 50 Hz and 39,2 m³/h at 60 Hz.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and deliver after an industrial cleaning. *If requested we are happy to arrange your logistics
