Sabroe SMC 112 L
Sabroe SMC 112 L
| 18366 | |
| Marka | Sabroe |
| Typ | SMC 112 L |
| Czynnik chłodzący | Freon |
| kW at +10ºC/+40ºC | 1083,5 |
| kW at 0ºC/+40ºC | 716,6 |
| kW at -5ºC/+40ºC | 570,2 |
| kW at -10ºC/+40ºC | 445,7 |
| Silnik elektryczny Specs | 50/60 Hz - 160/184 kW - 1480/1780 RPM |
| Rozładunek |
|
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Okno widokowe |
|
| Zawór elektromagnetyczny |
|
| Panel kontrolny |
|
| m3 / h | 848 |
| Rozmiary | 2850x1100x1380 mm (LxWxH) |
| Liczba sztuk | 1 |
Sabroe SMC 112 L

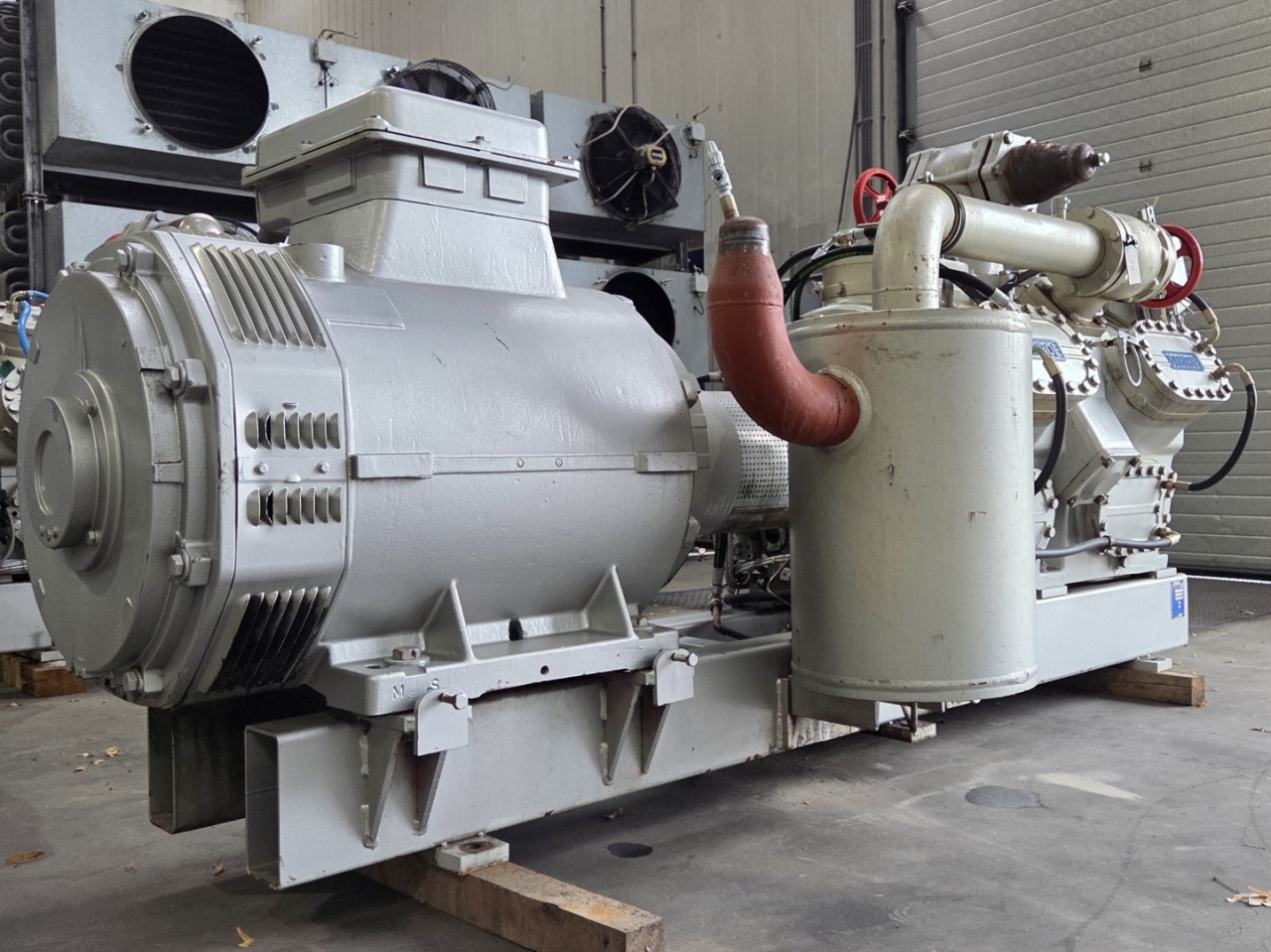

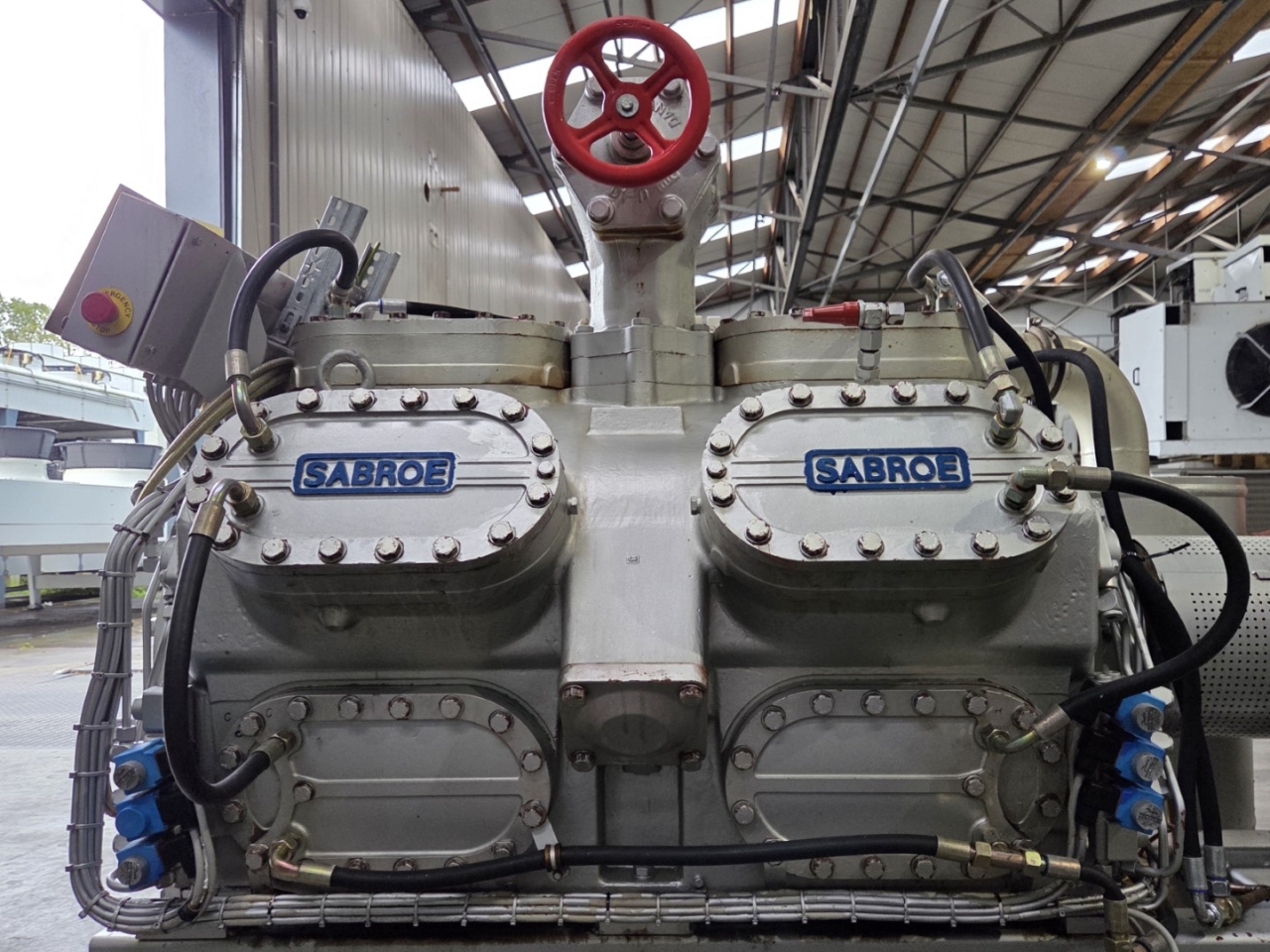

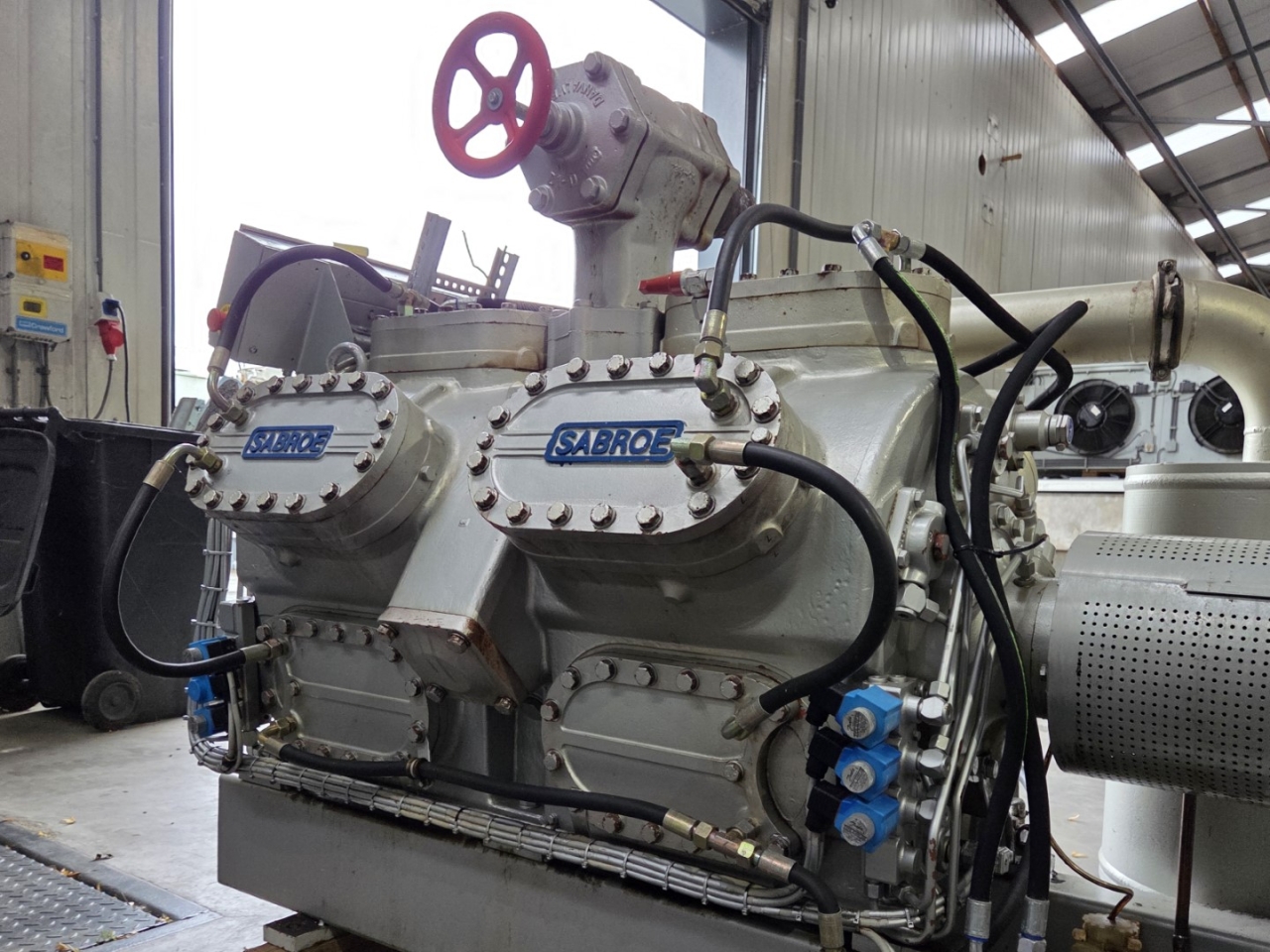

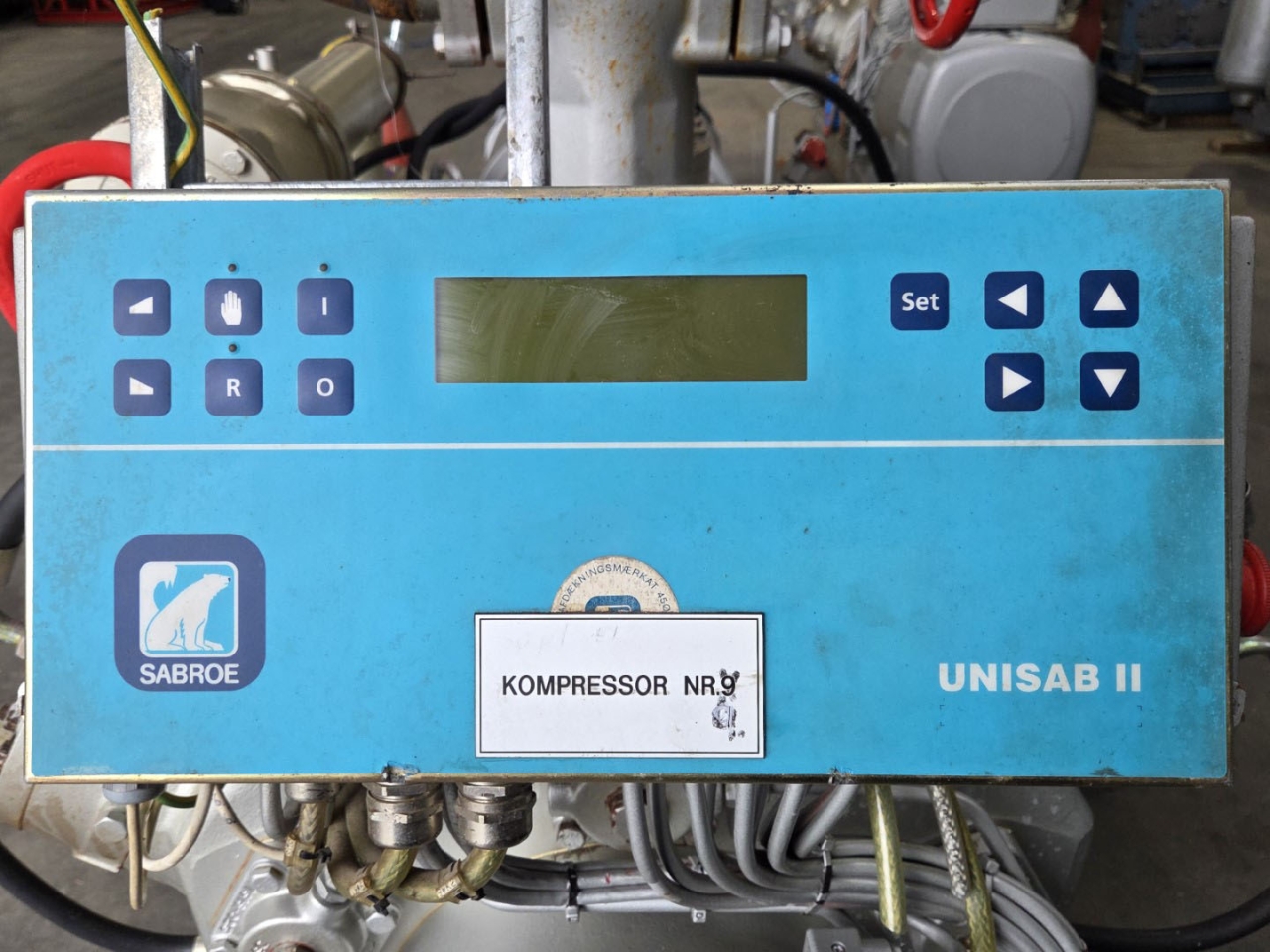

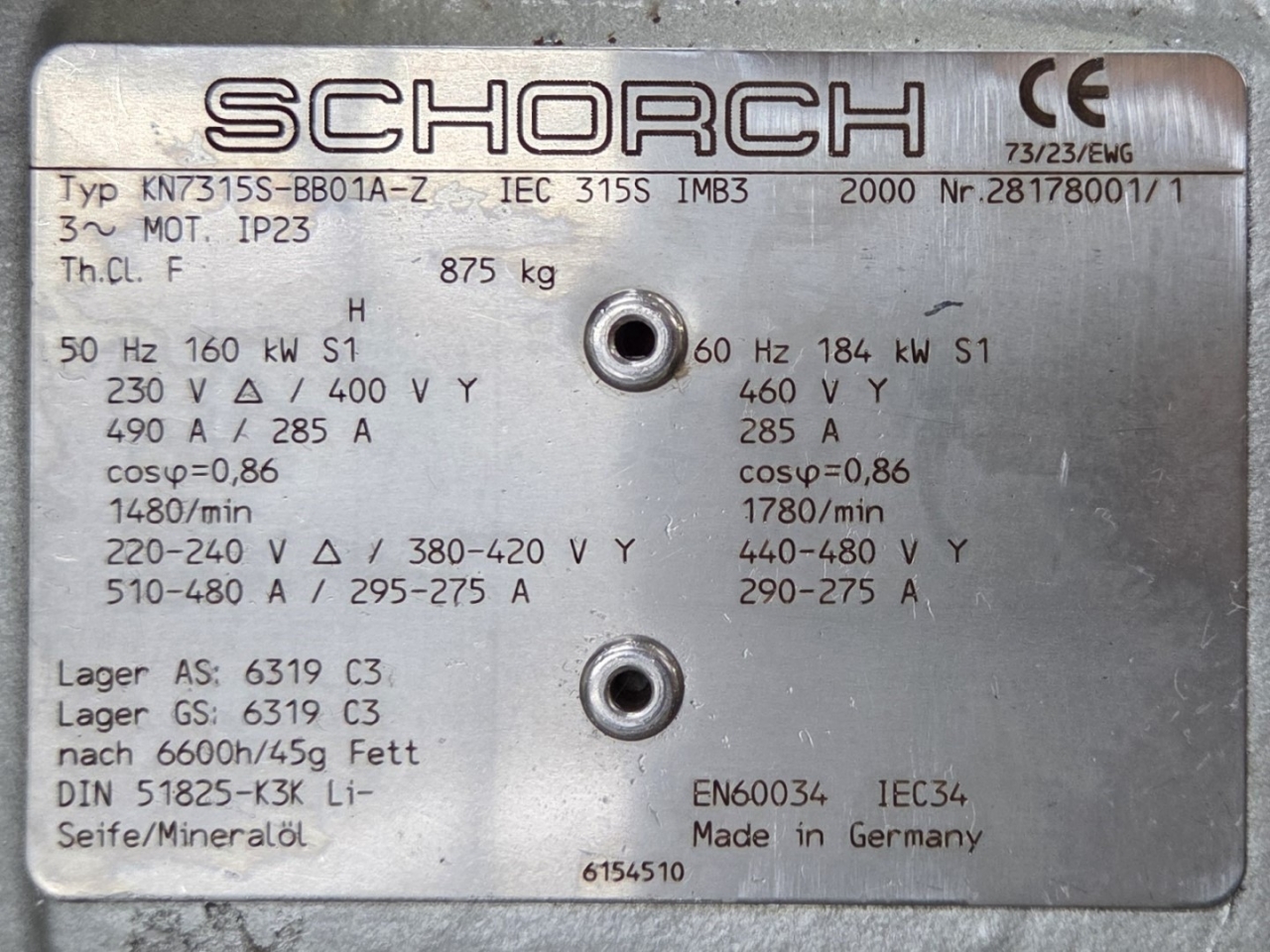

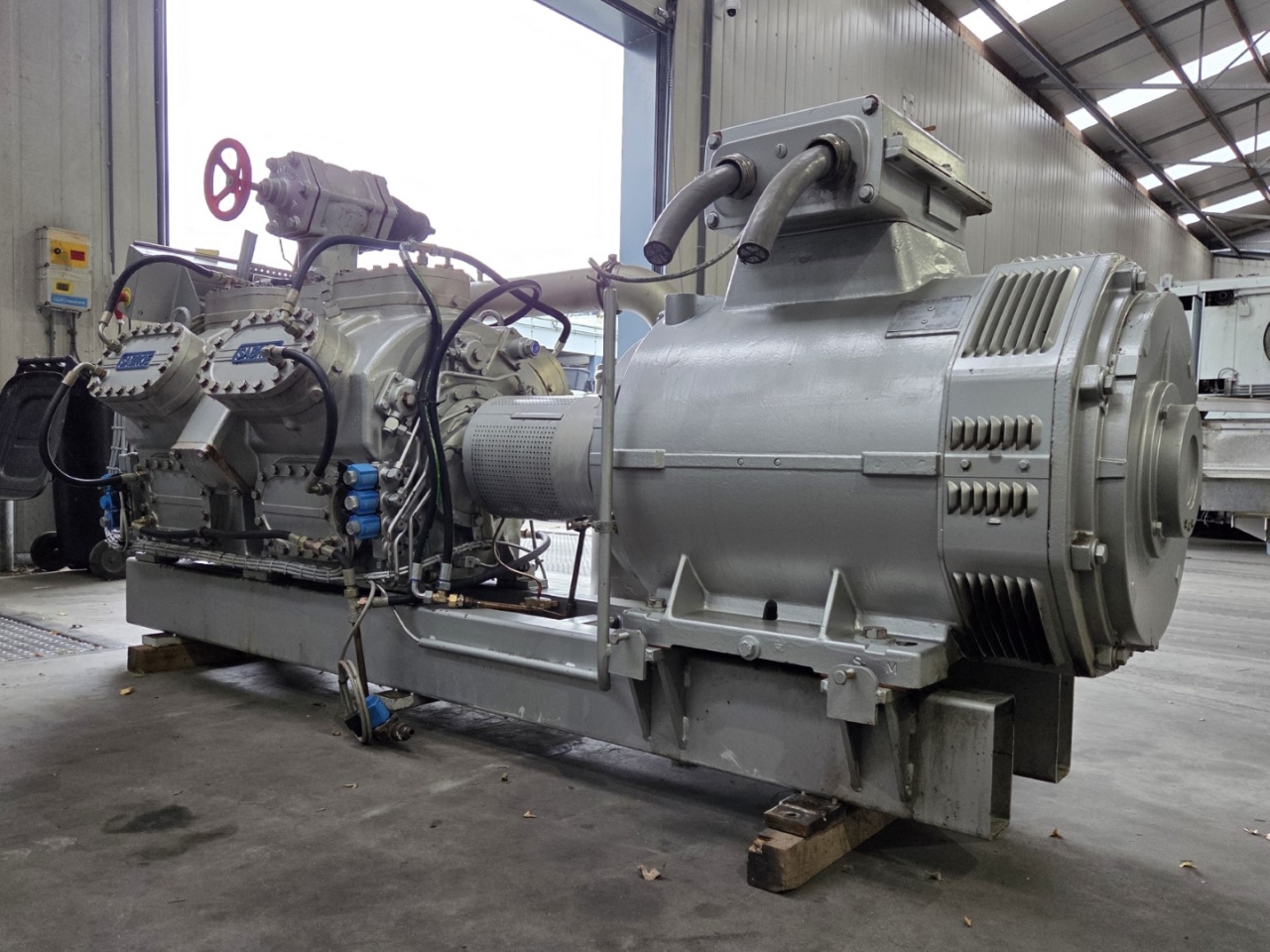

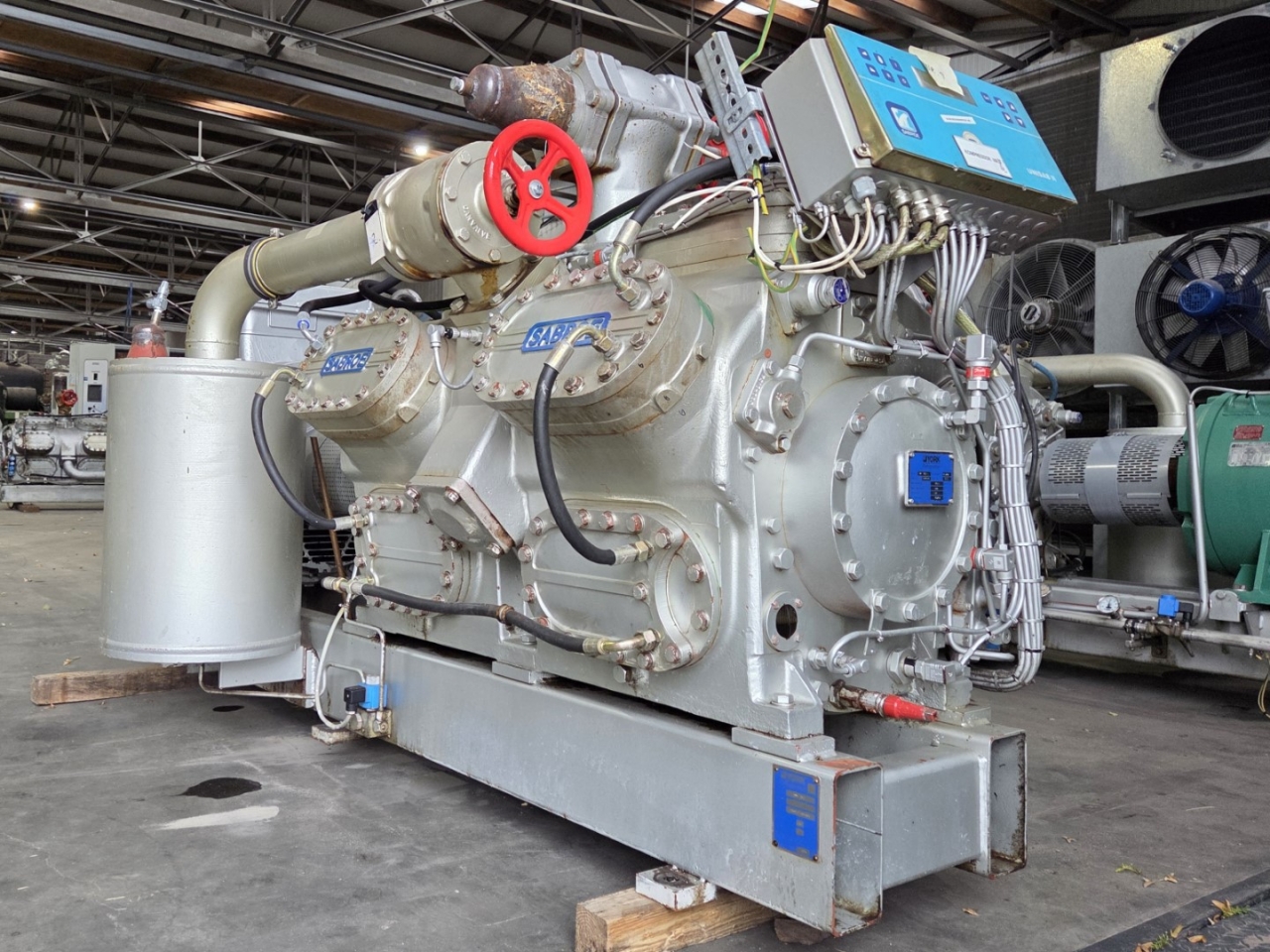

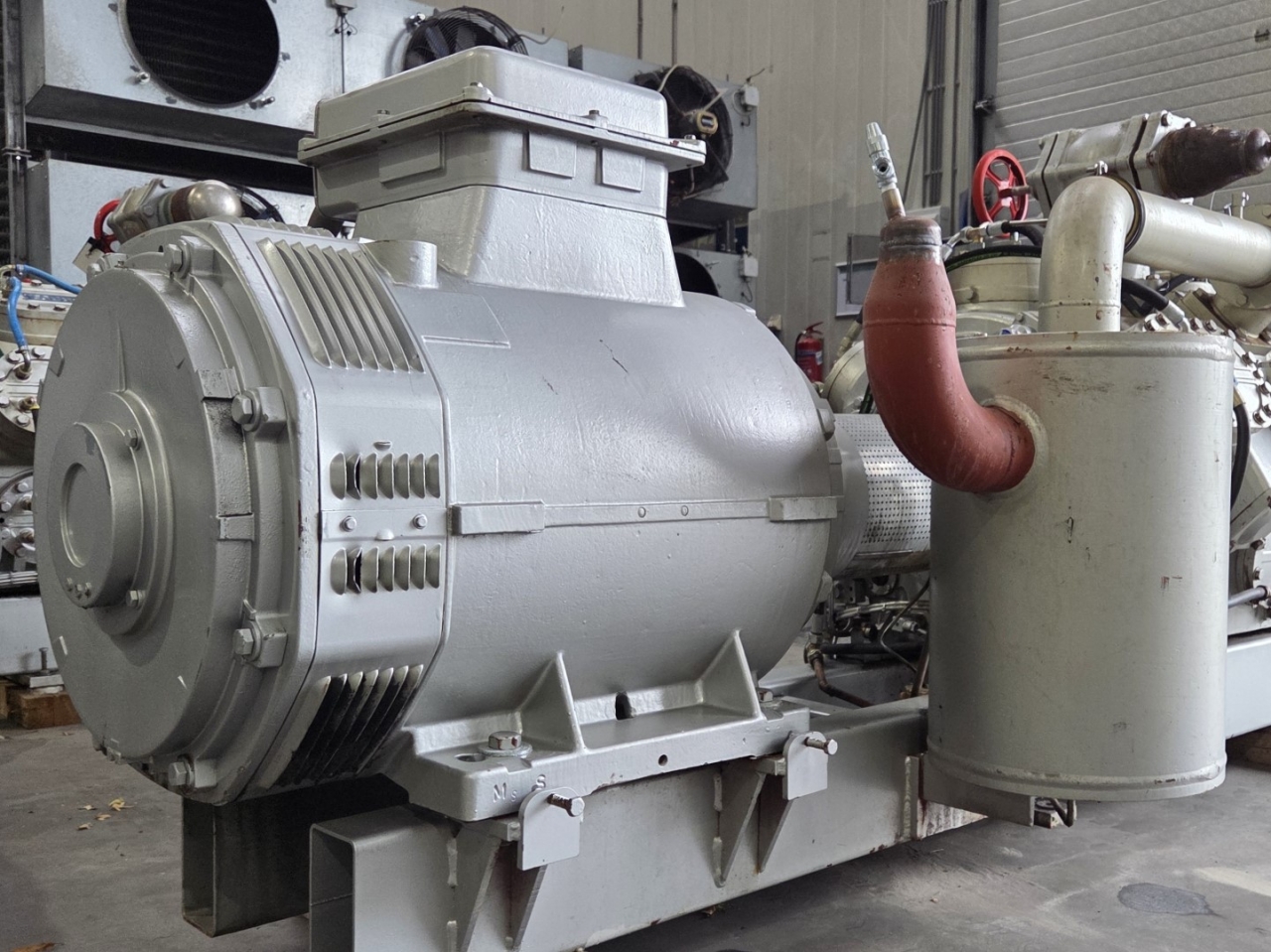

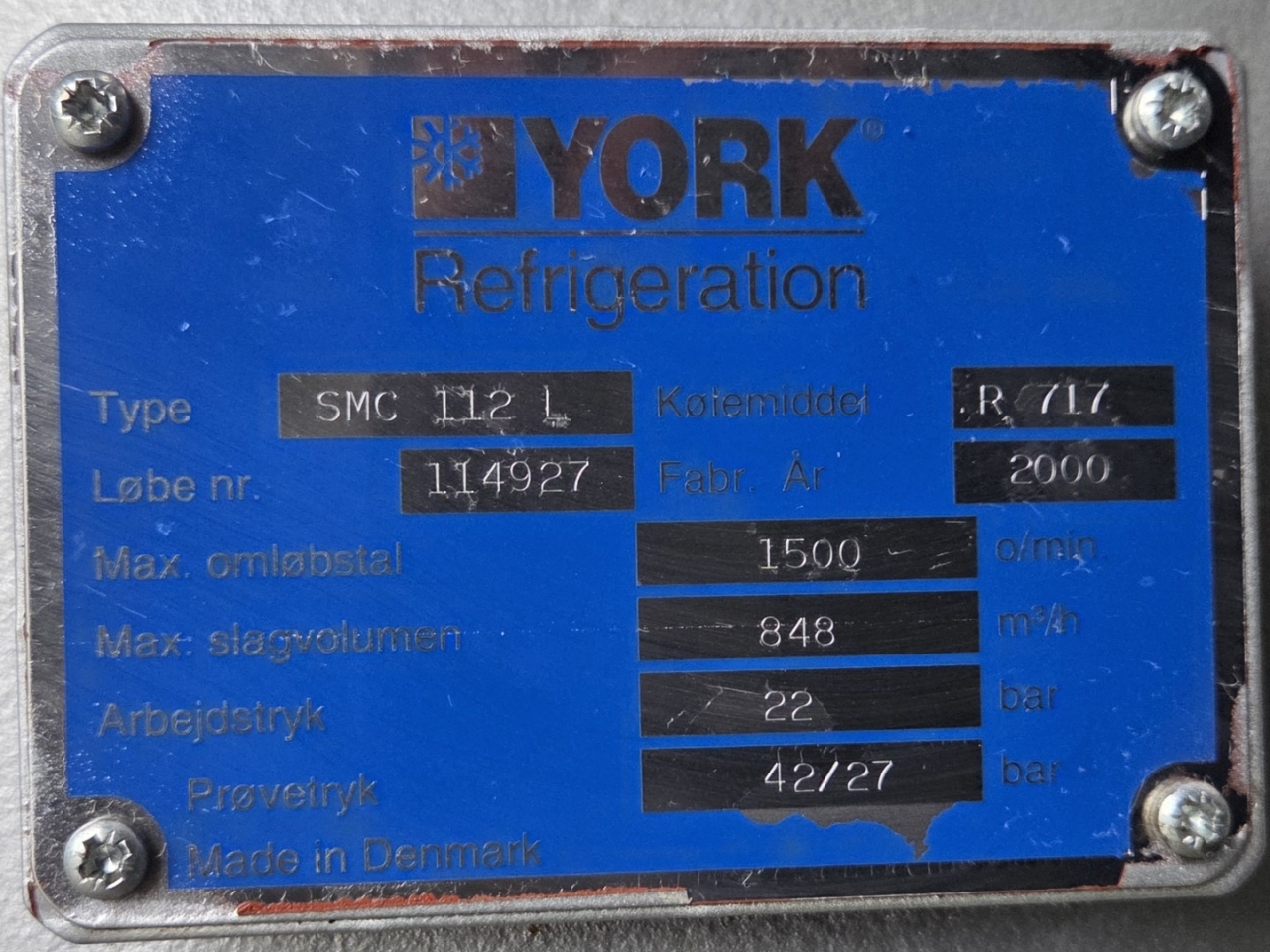

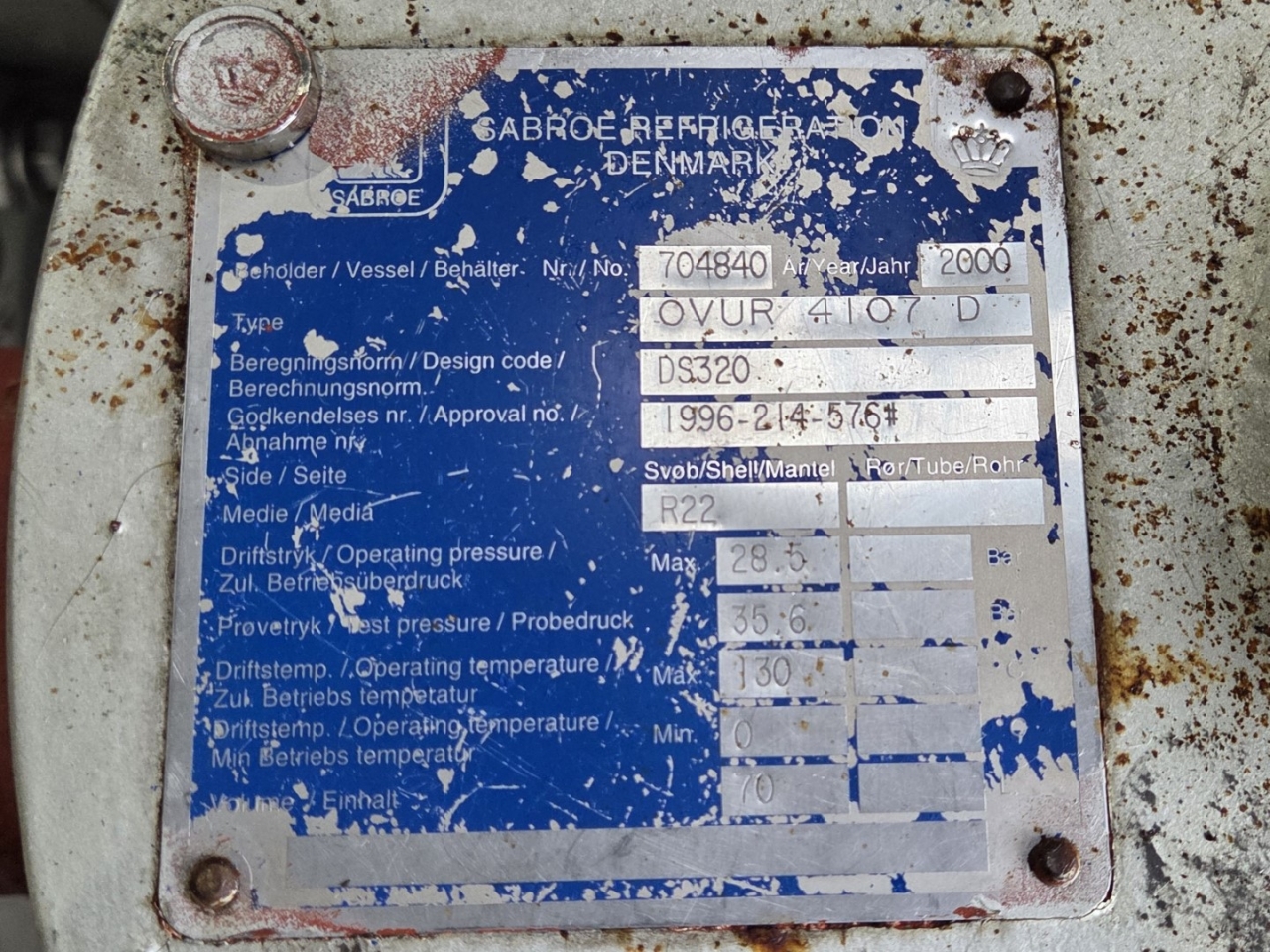

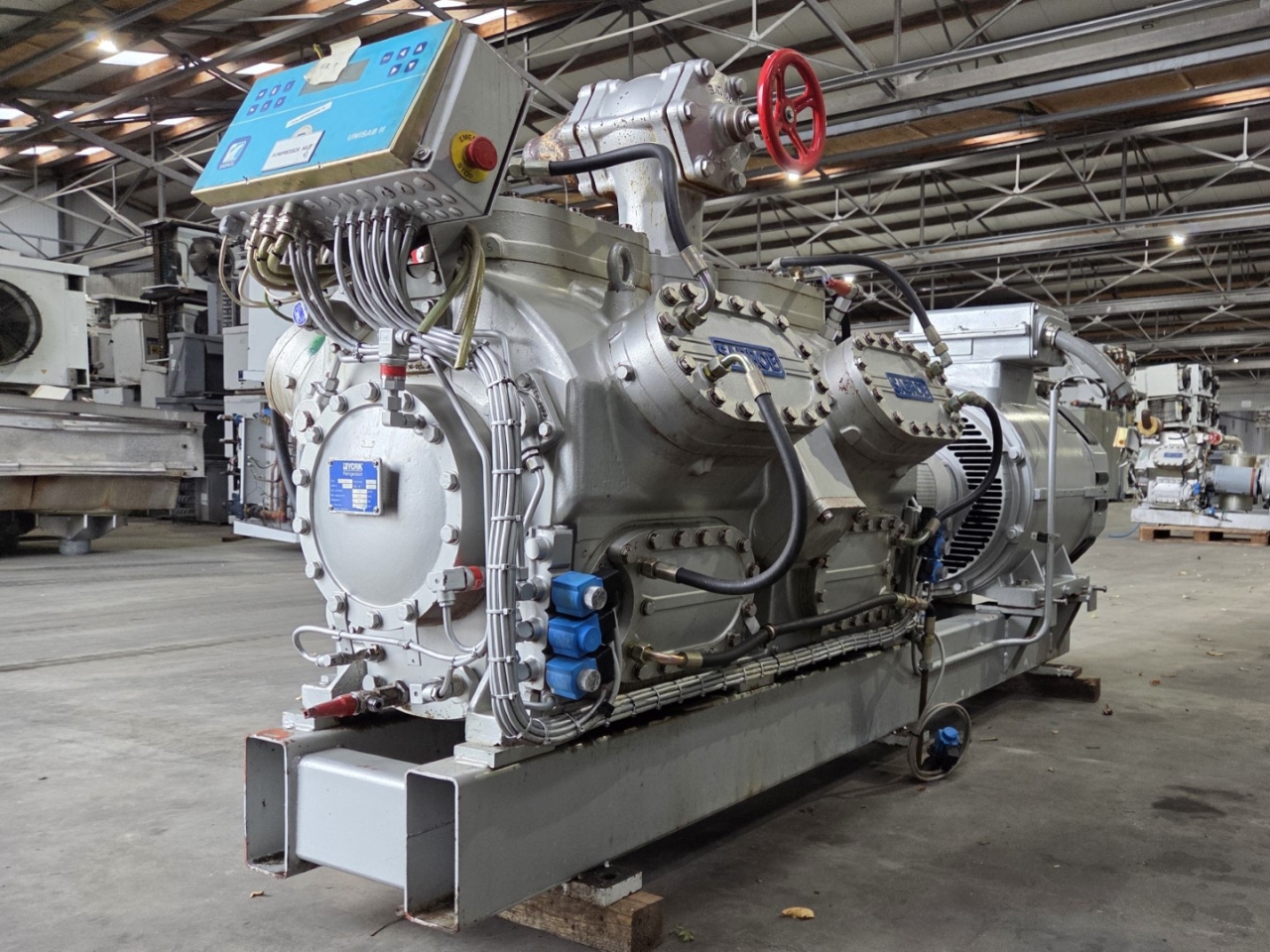

Used Sabroe SMC 112 L R717 (Ammonia) reciprocating compressor on a steel base frame. Complete with a Schorch KN7315S-BB01A-Z electric motor - 50/60 Hz - 160/184 kW - 1480/1780 RPM, Sabroe OVUR 4107D oil separator with a volume of 70 liter and an Unisab 2 controller. The compressor has a displacement of 848 m³/h.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *If requested we are happy to arrange your logistics.
