Maneurop MT 28 JE 4 VE (x2) Condensing unit
Maneurop MT 28 JE 4 VE (x2) Condensing unit
| 18436 | |
| Marka | Maneurop |
| Typ | MT 28 JE 4 VE (x2) Condensing unit |
| Czynnik chłodzący | Freon |
| kW at +10ºC/+40ºC | 19,1 |
| kW at 0ºC/+40ºC | 12,6 |
| kW at -5ºC/+40ºC | 10,0 |
| kW at -10ºC/+40ºC | 7,8 |
| kW at -20ºC/+40ºC | 4,3 |
| kW at -30ºC/+40ºC | 1,9 |
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Separator oleju |
|
| Osuszający filter lini cieczy |
|
| Okno widokowe |
|
| m3 / h | 16,7 |
| Package / Rack |
|
| Condensing Unit |
|
| Rozmiary | 1400x900x1140 mm (LxWxH) |
| Liczba sztuk | 1 |
Maneurop MT 28 JE 4 VE (x2) Condensing unit

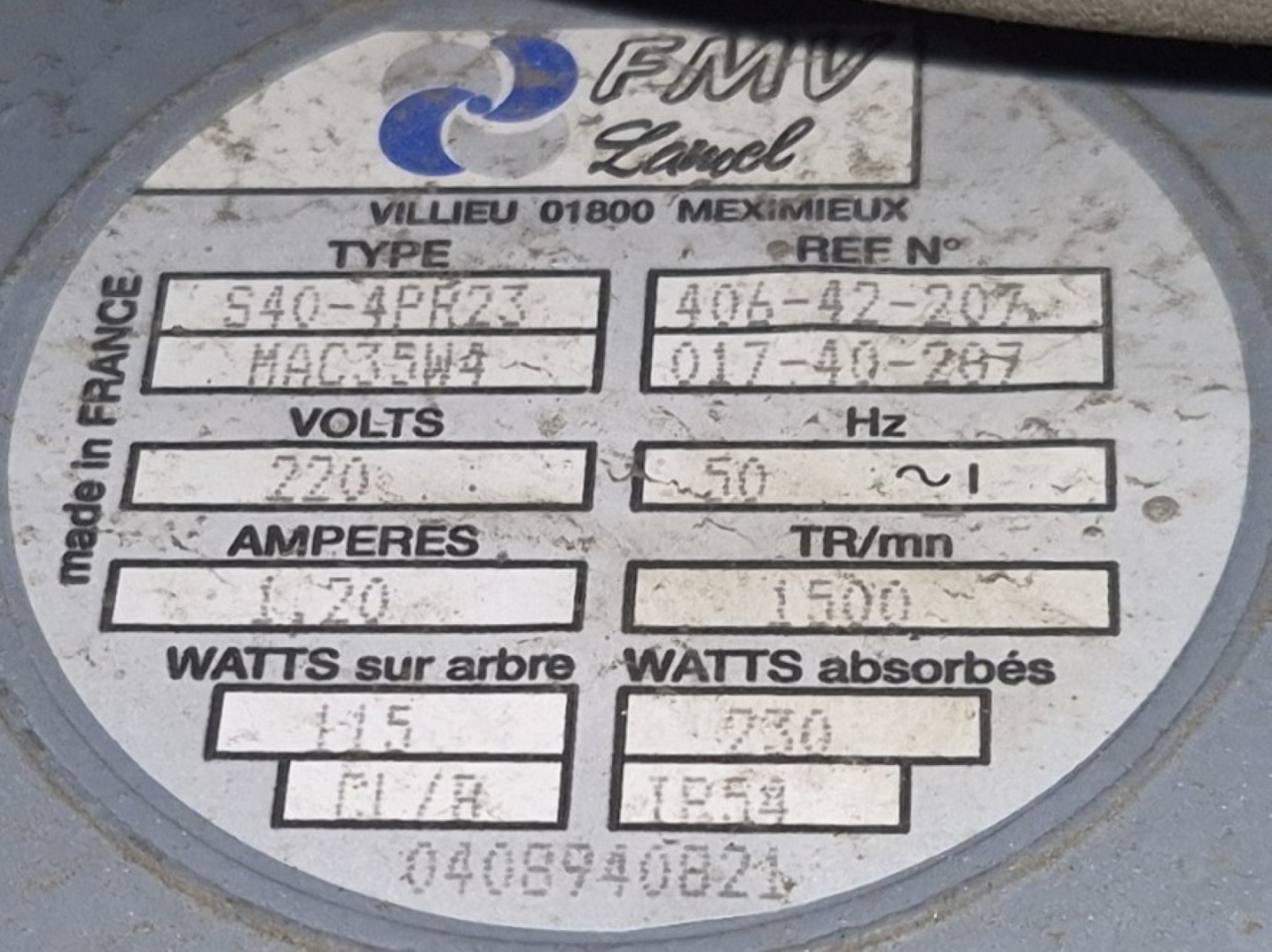

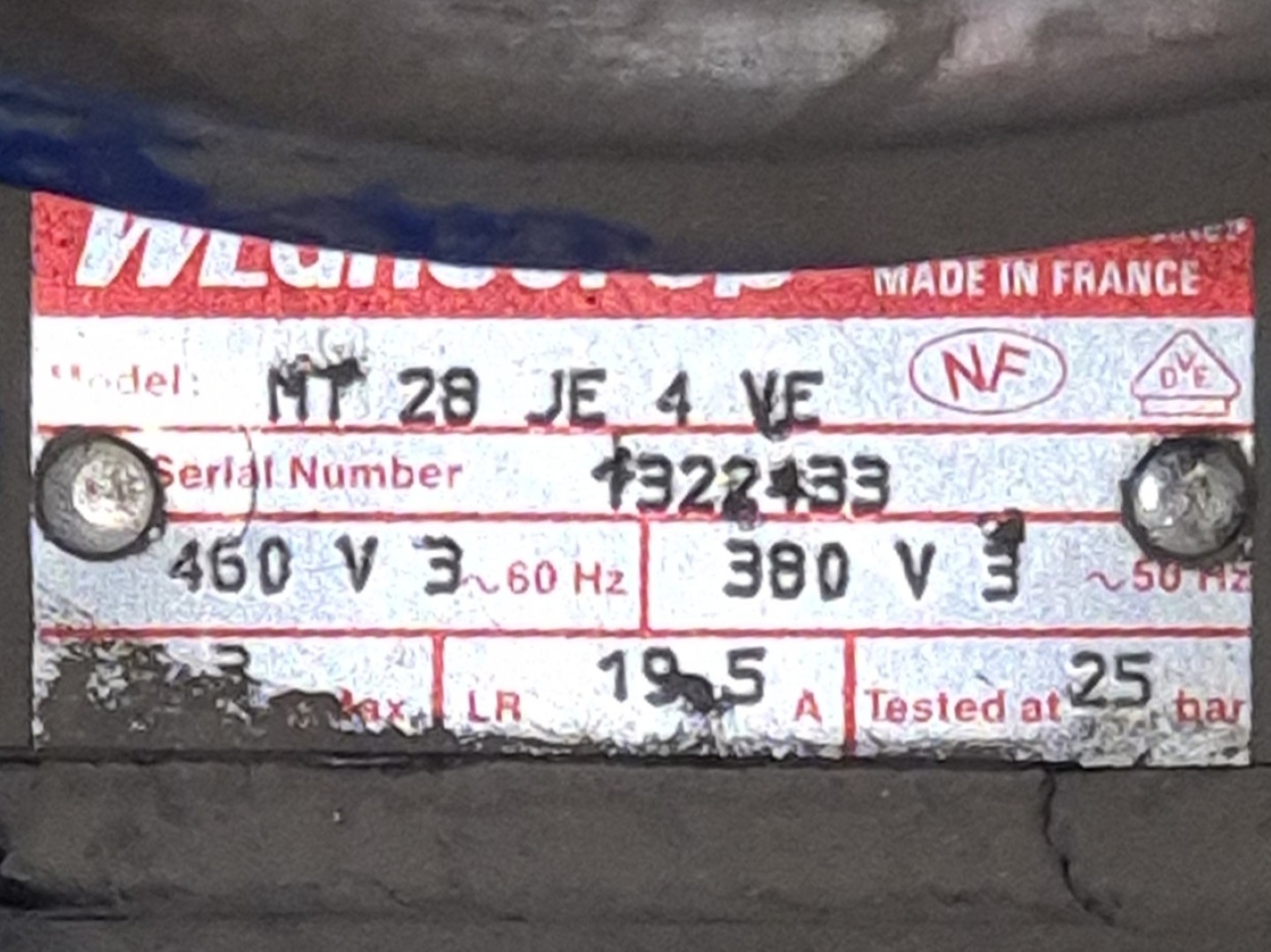

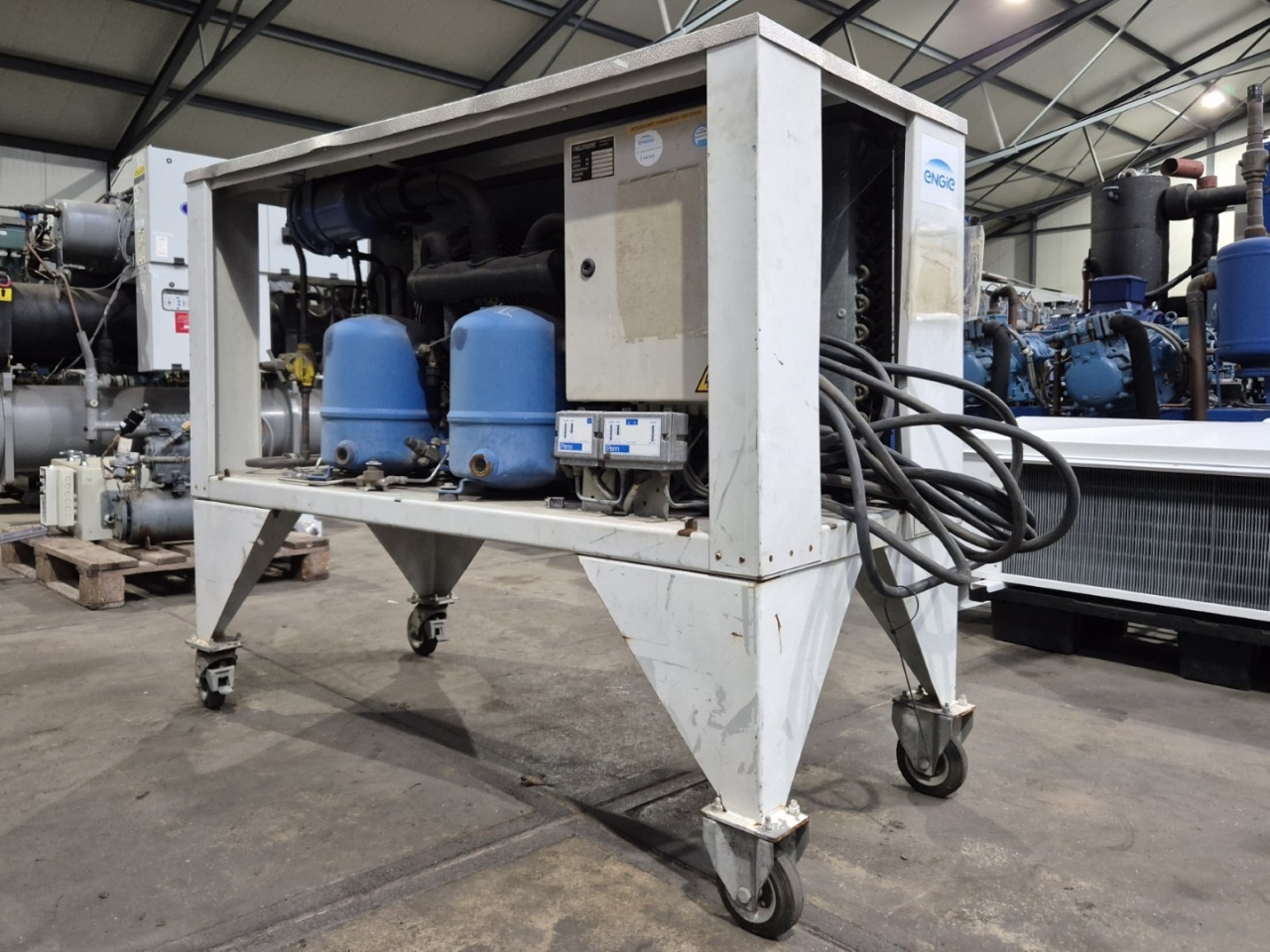

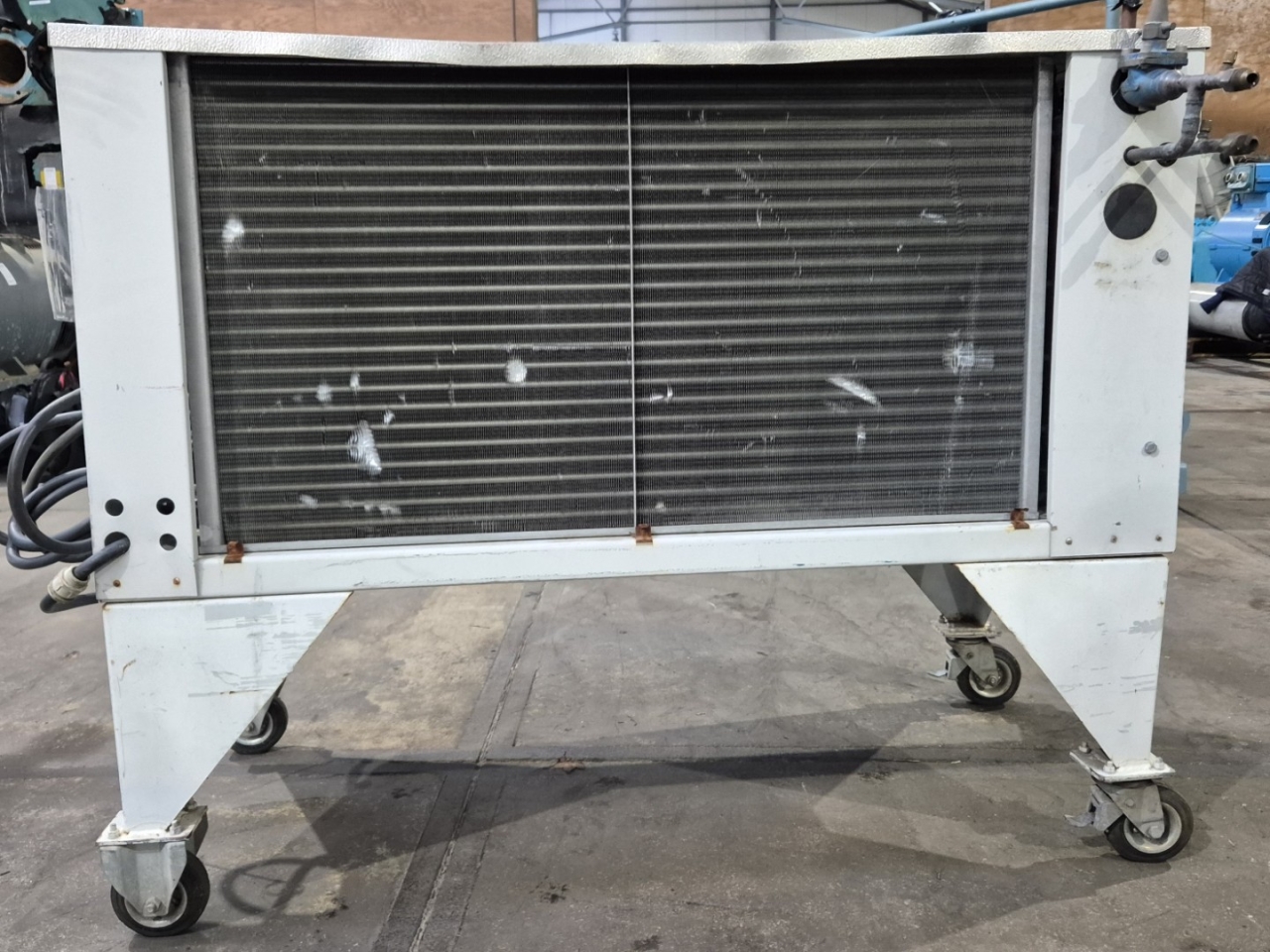

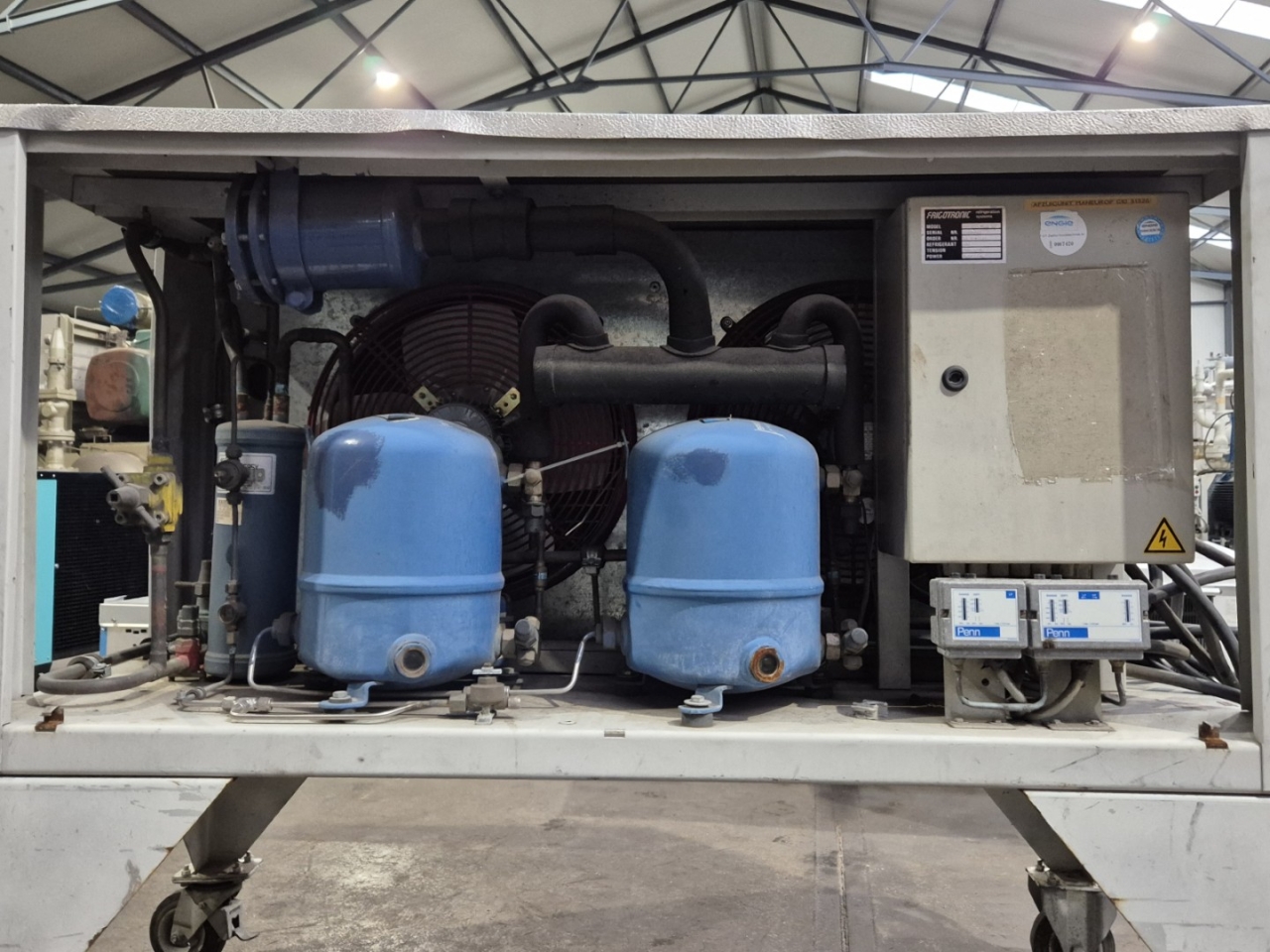

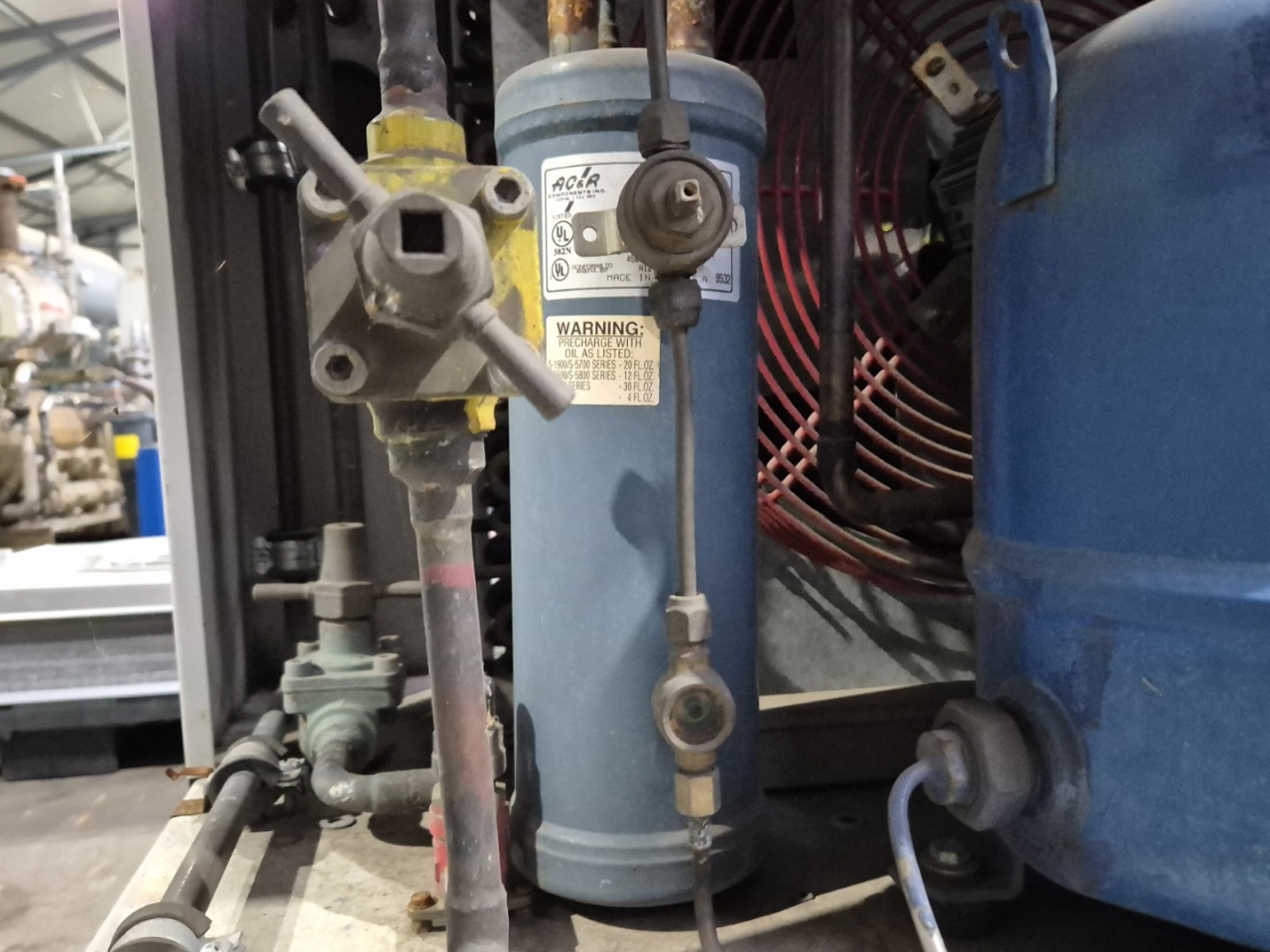

Used Freon condensing unit on Freon. Complete with 2 Maneurop MT 28 JE 4 VE piston compressors, condenser with 2 FMV Lamel S40-4PR23 fans - 50 Hz - 0,12 kW - 1500 RPM, oil separator, pressure and safety switches and a control cabinet. The compressors have a total displacement of 16,7 m³/h.
