Climaveneta NX2-G06/K 0676
Climaveneta NX2-G06/K 0676
| 18548 | |
| Marka | Climaveneta |
| Typ | NX2-G06/K 0676 |
| Typ produktu | Air Cooled Chiller |
| Ogólna wydajność w kW | 636,3 |
| Ogólna wydajność w Tonaż | 180,9 |
| Czynnik chłodzący | Freon |
| Typ czynnika chłodzącego | R454B |
| Waga kg. | 3980 |
| Rozmiary | 6260x2260x2550 mm (LxWxH) |

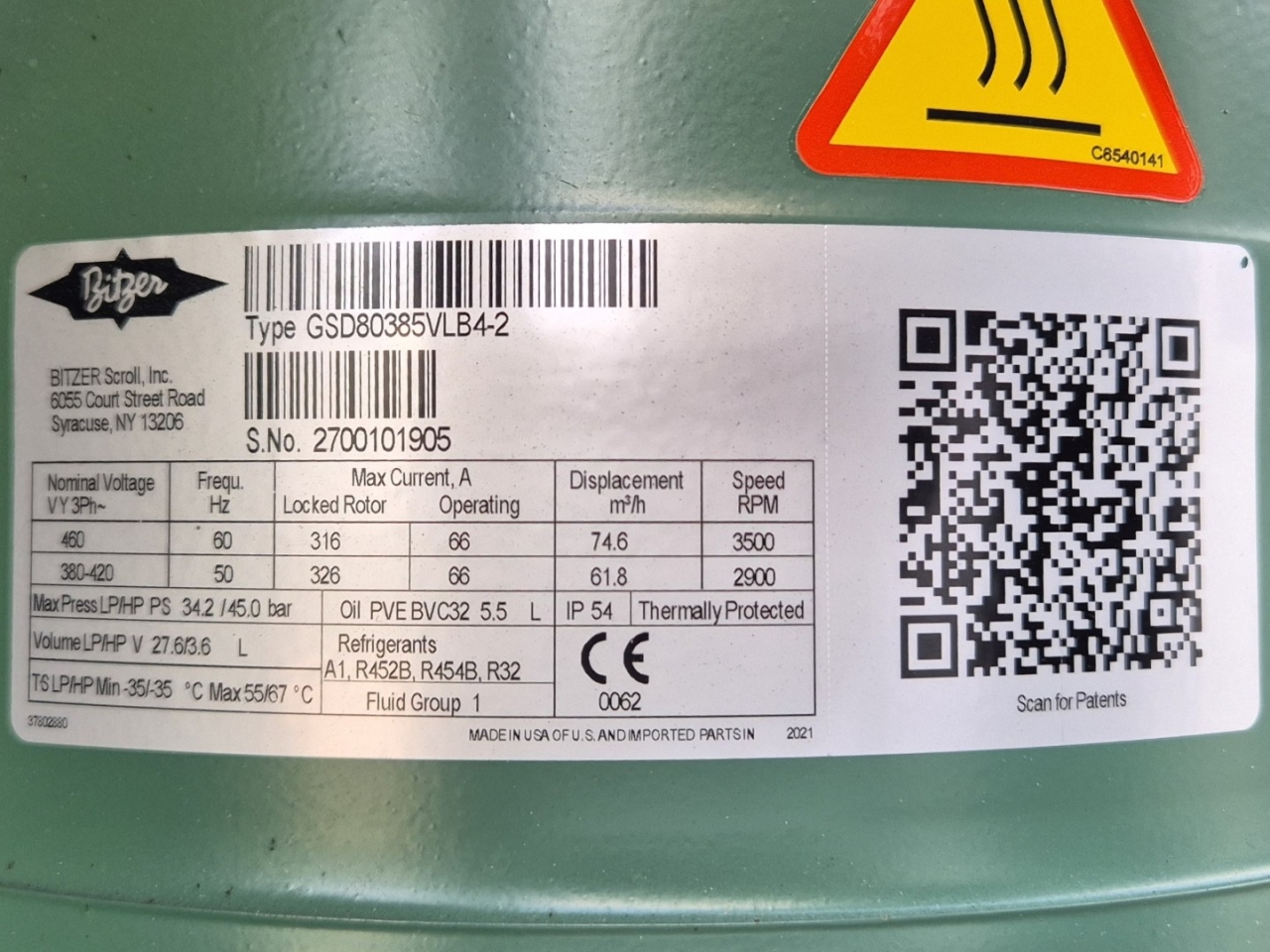

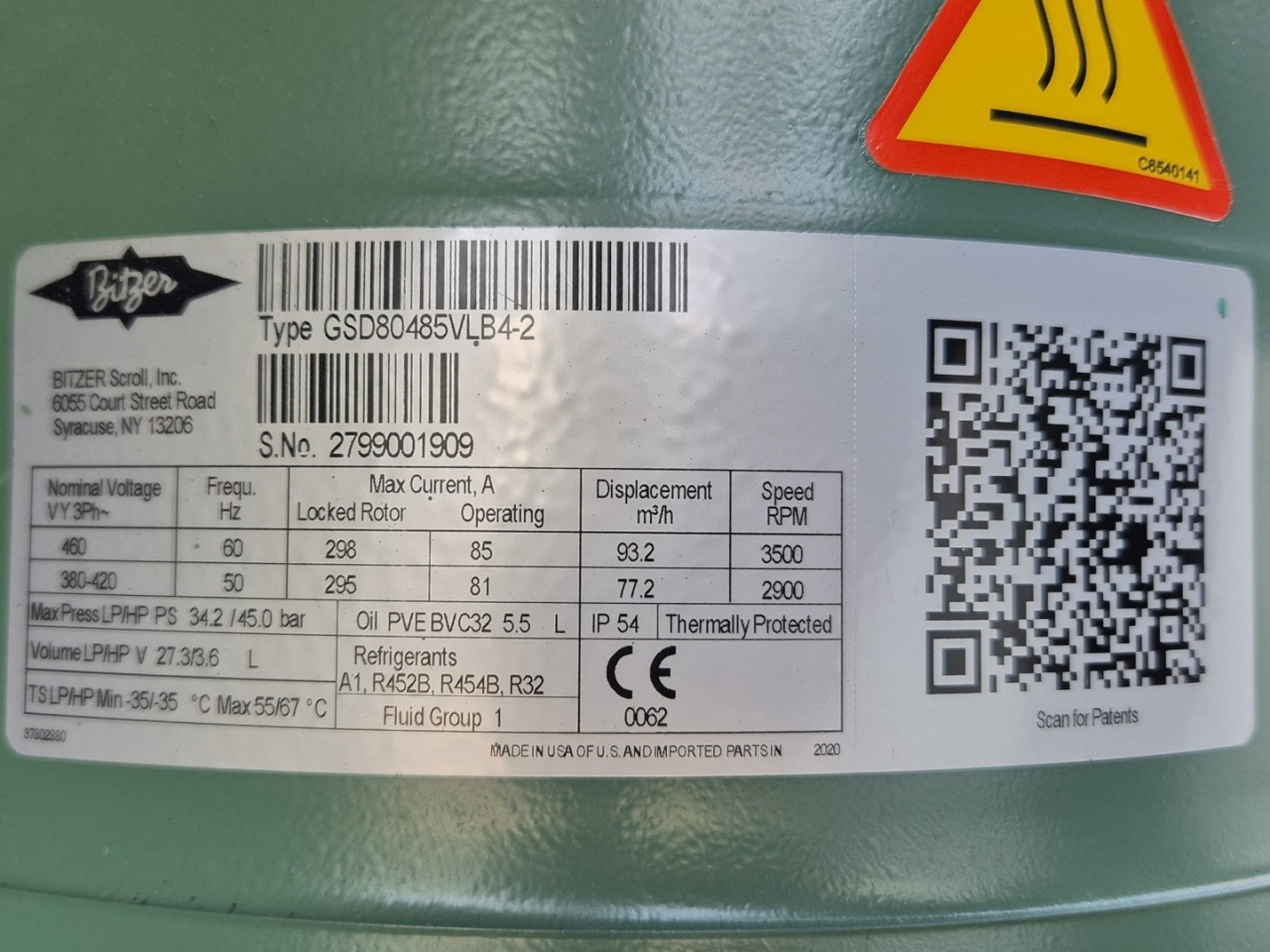

| Compressor(s) type & model | 5x Bitzer GSD80485VLB4-2 & 1x Bitzer 80385VLB4-2 |

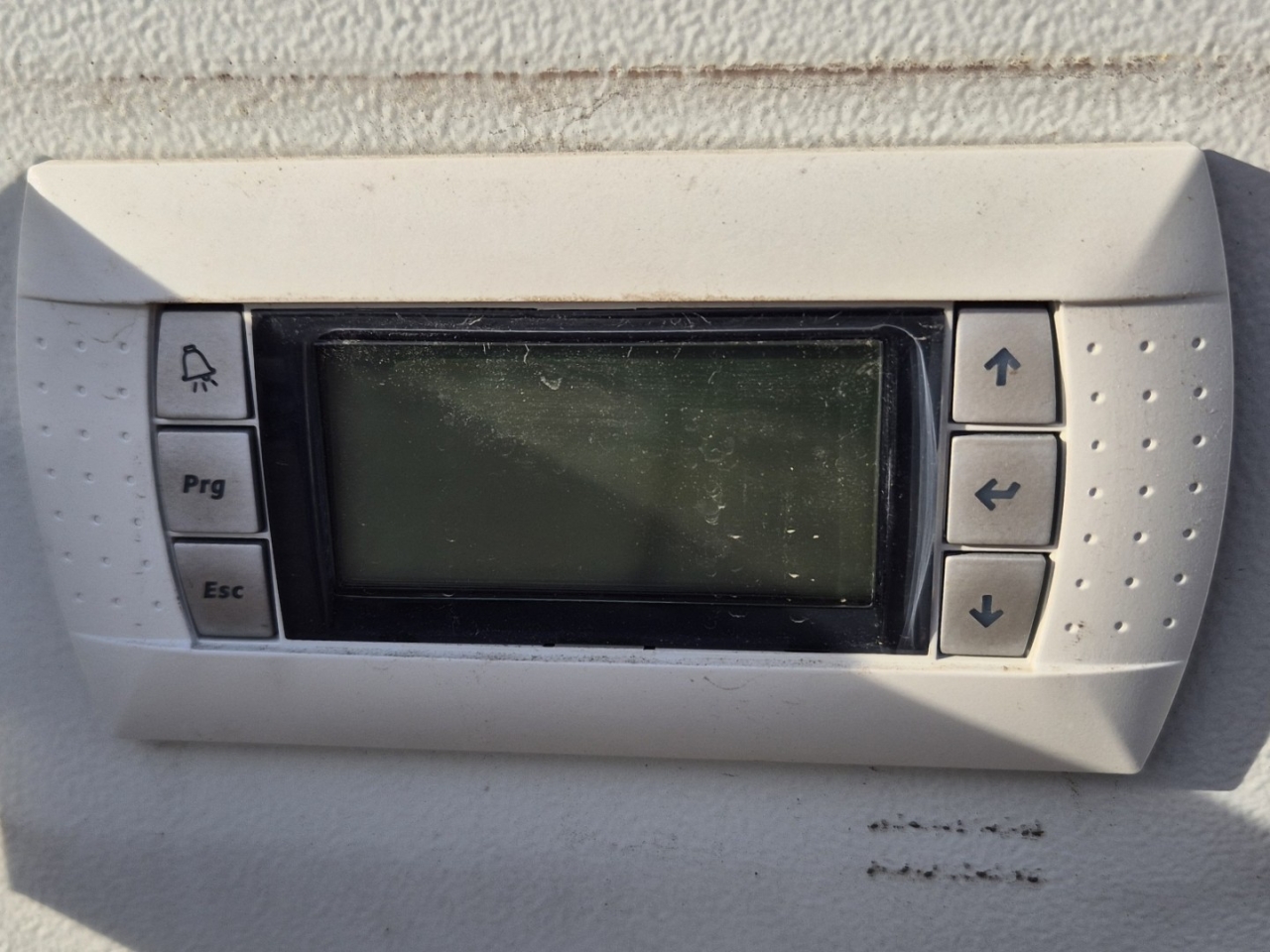

| Display | Carel pGD1 |
| Number of fans | 9 |
| Fan specifications | 50 Hz - 1,9/1,1 kW - 870/630 RPM |
| Uwagi | | Y.o.b. 2021 |
| Liczba sztuk | 1 |
Climaveneta NX2-G06/K 0676

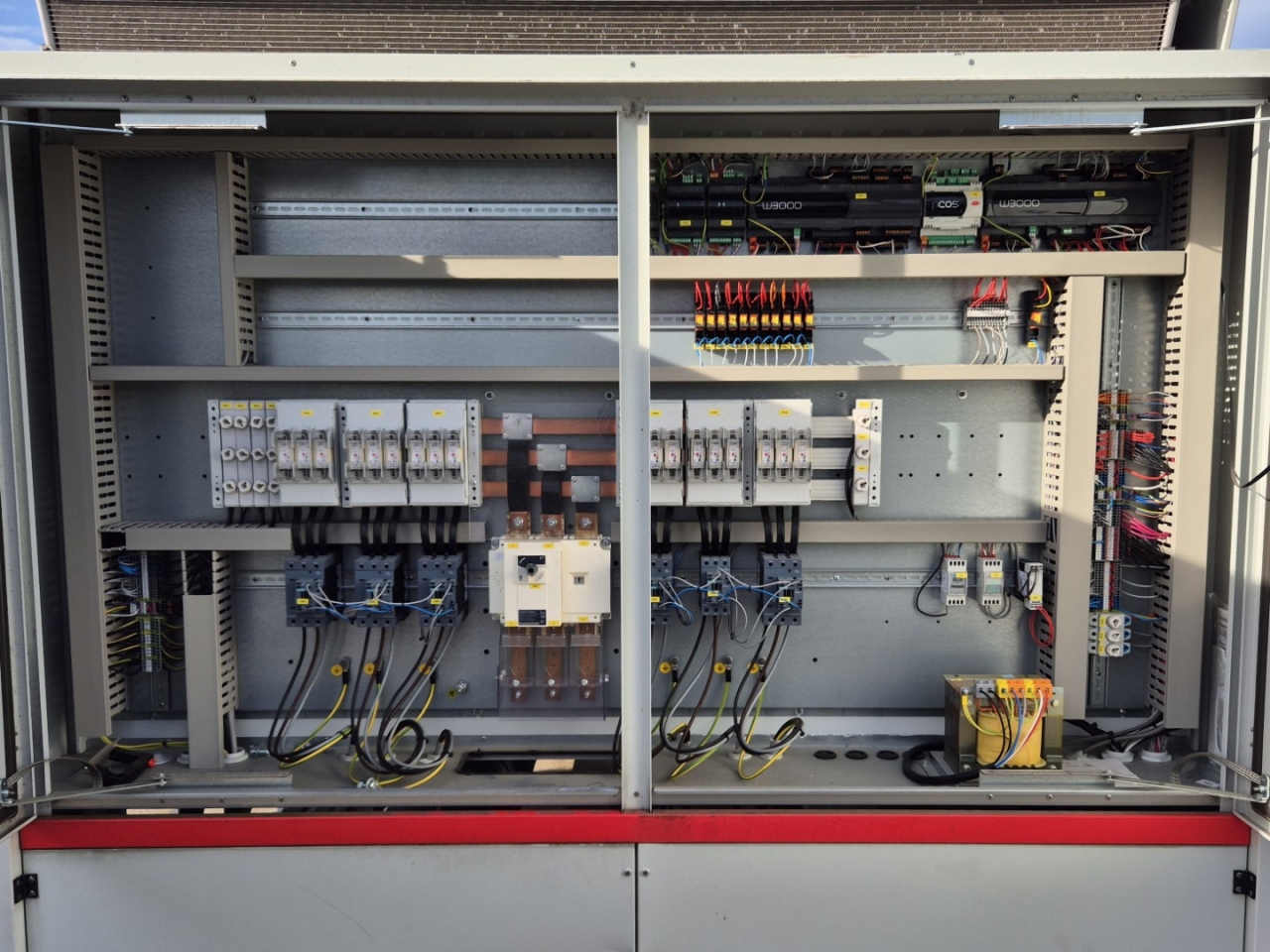

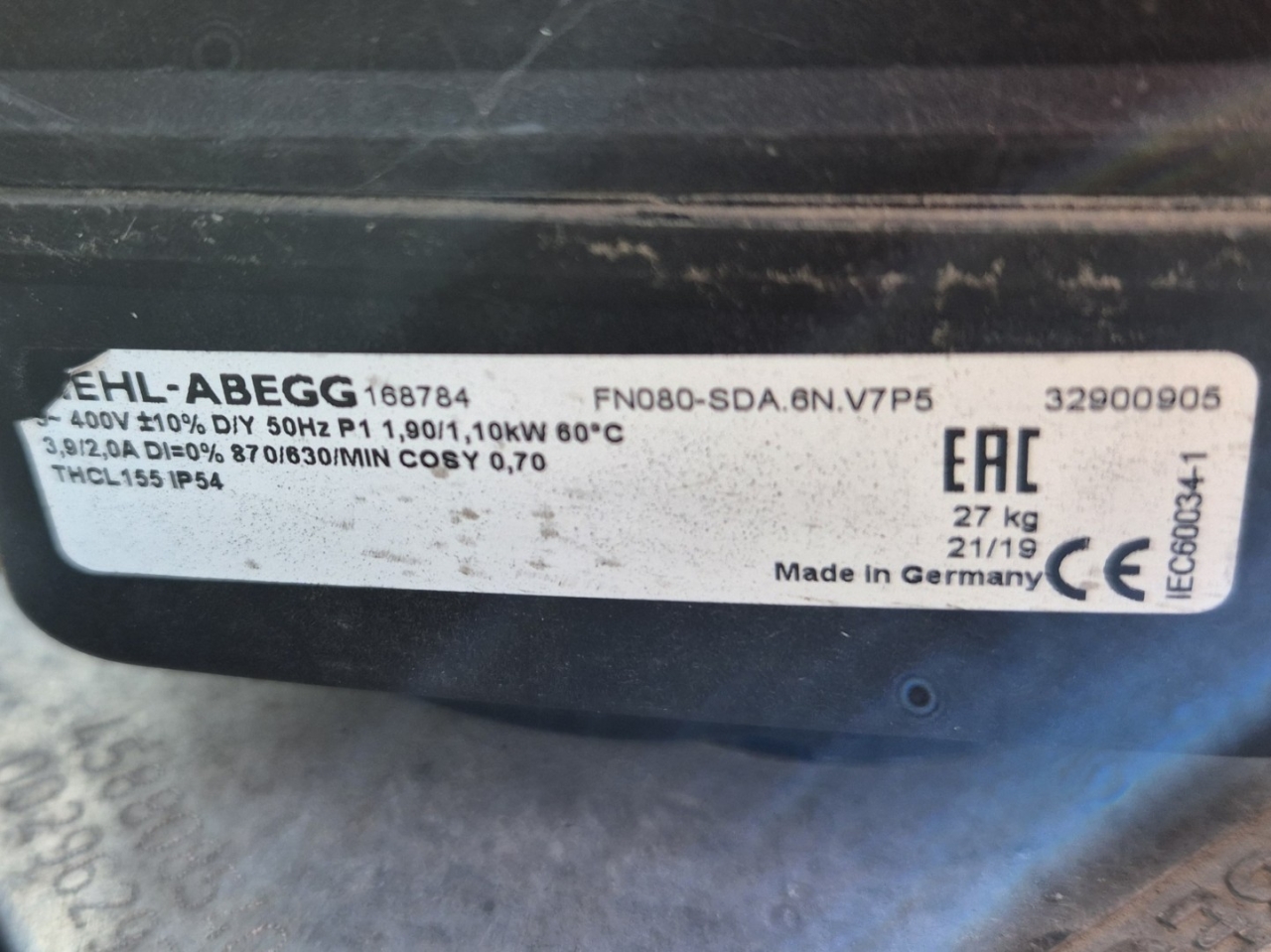

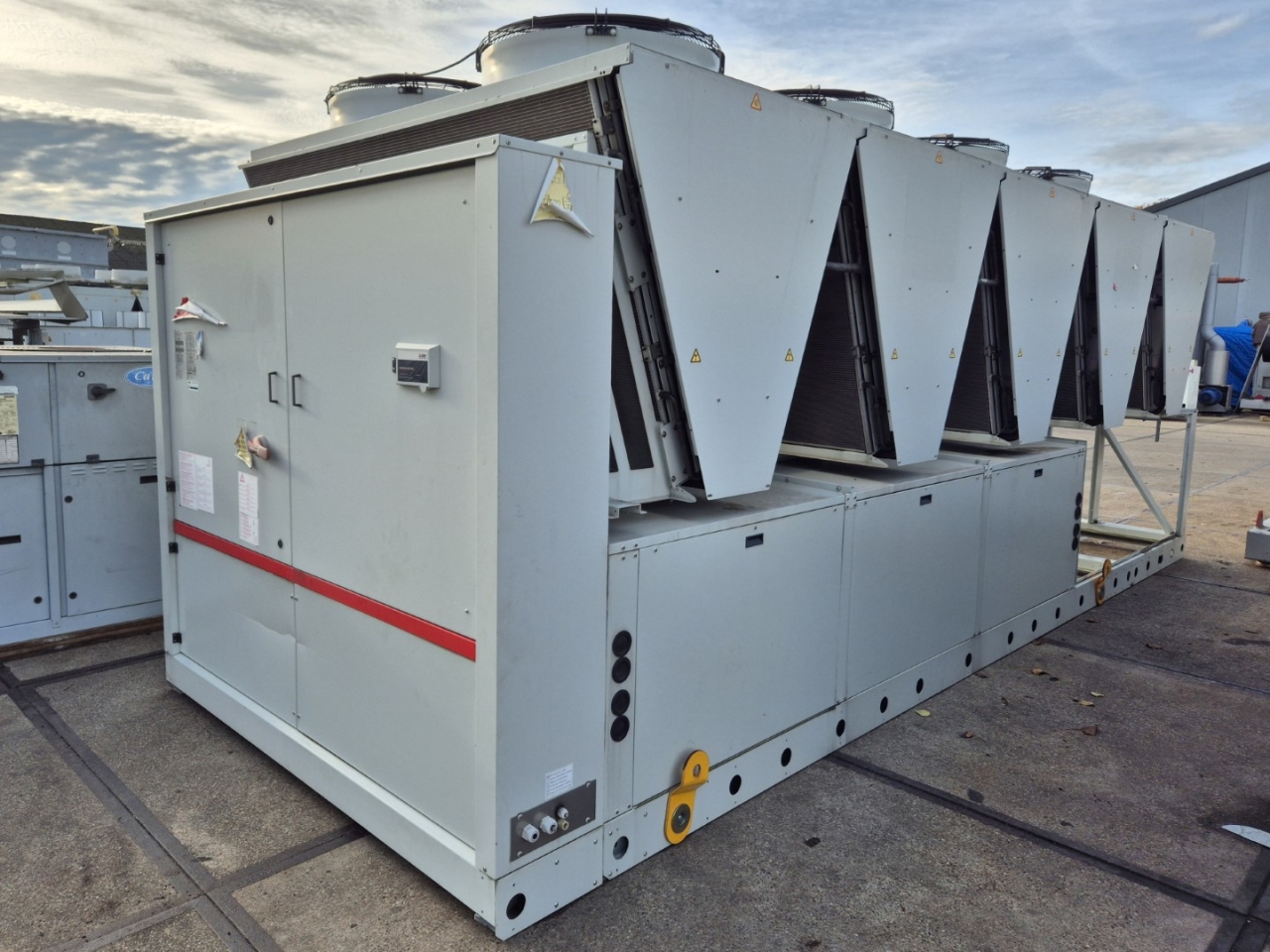

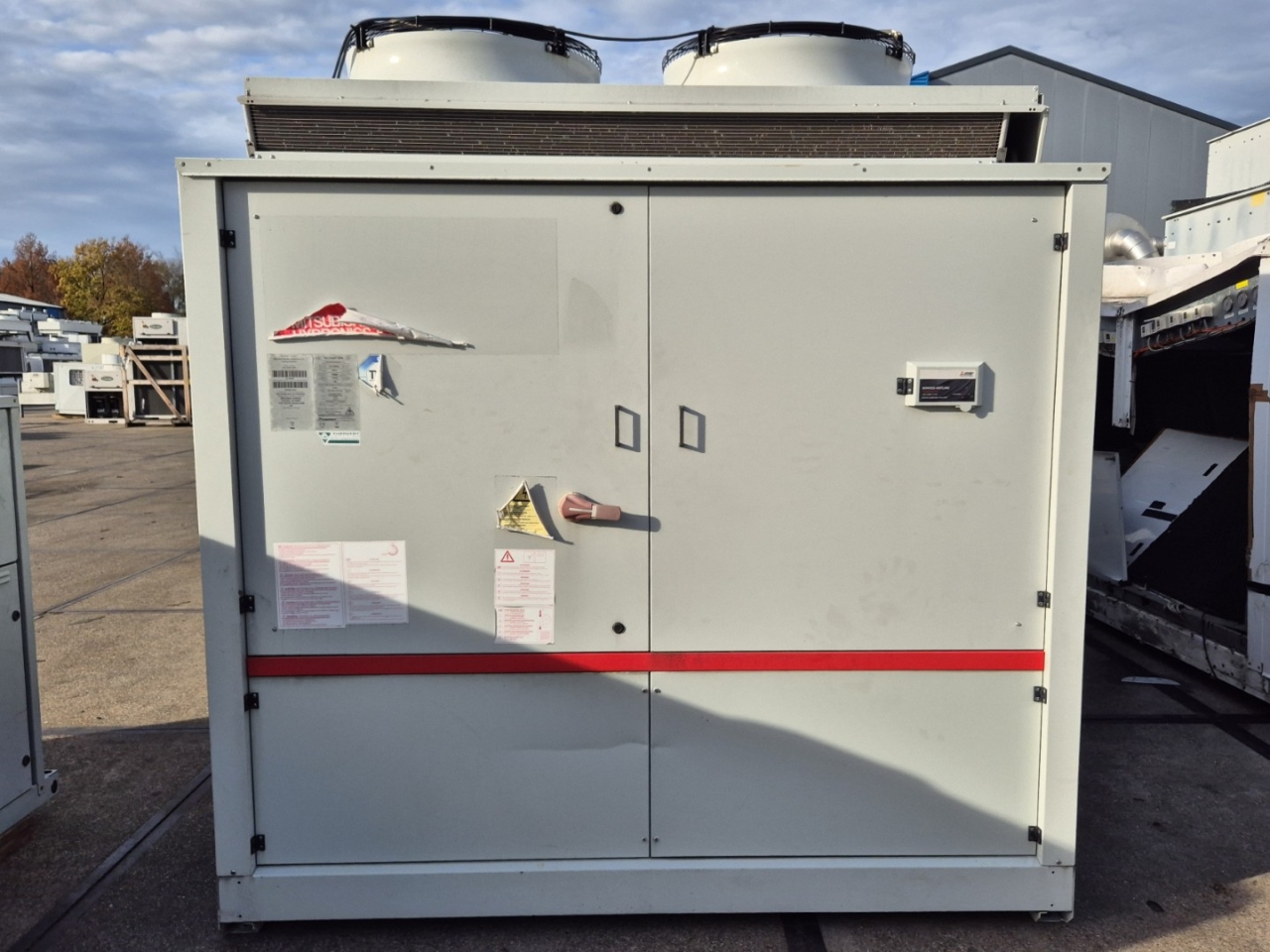

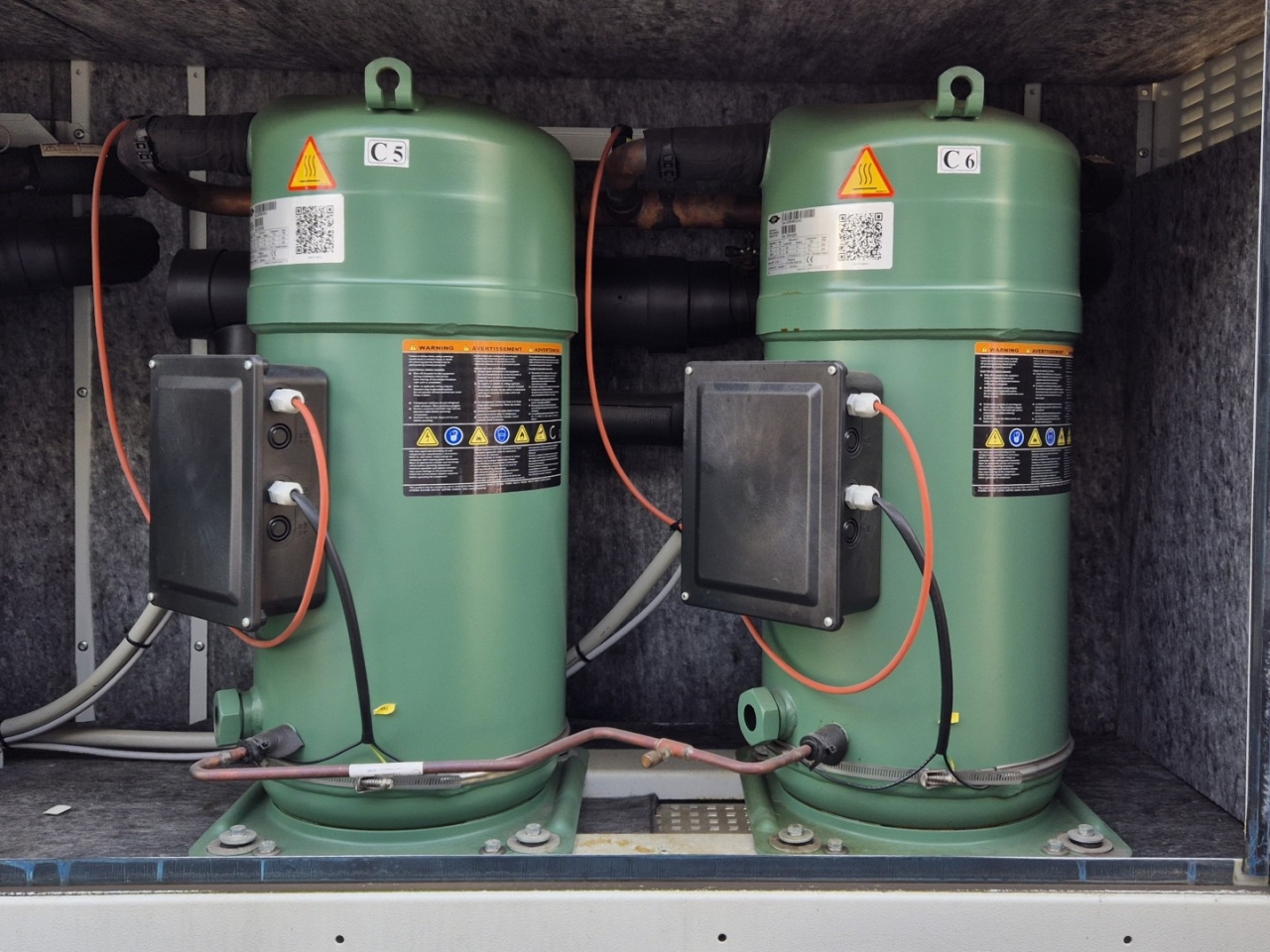

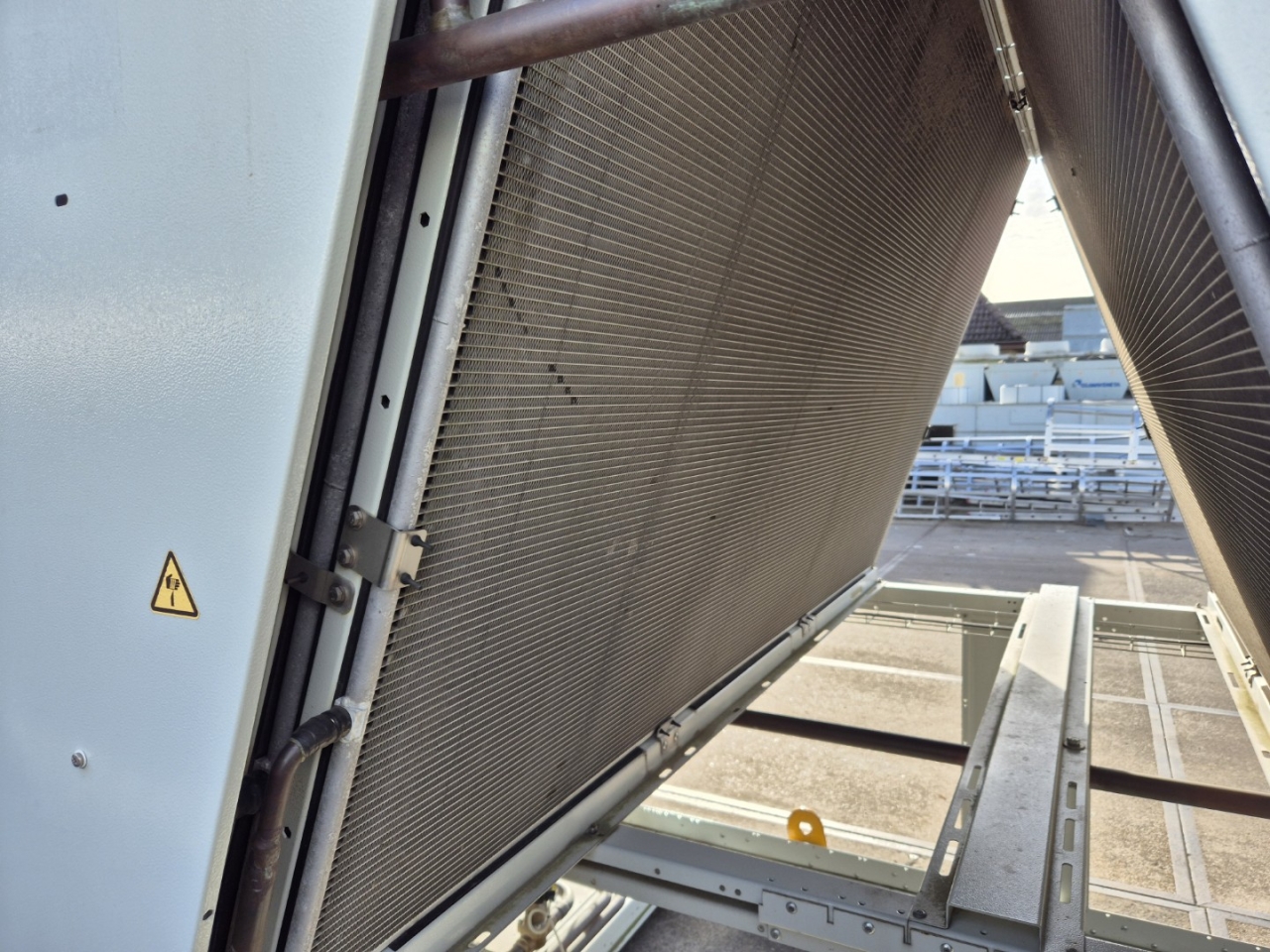

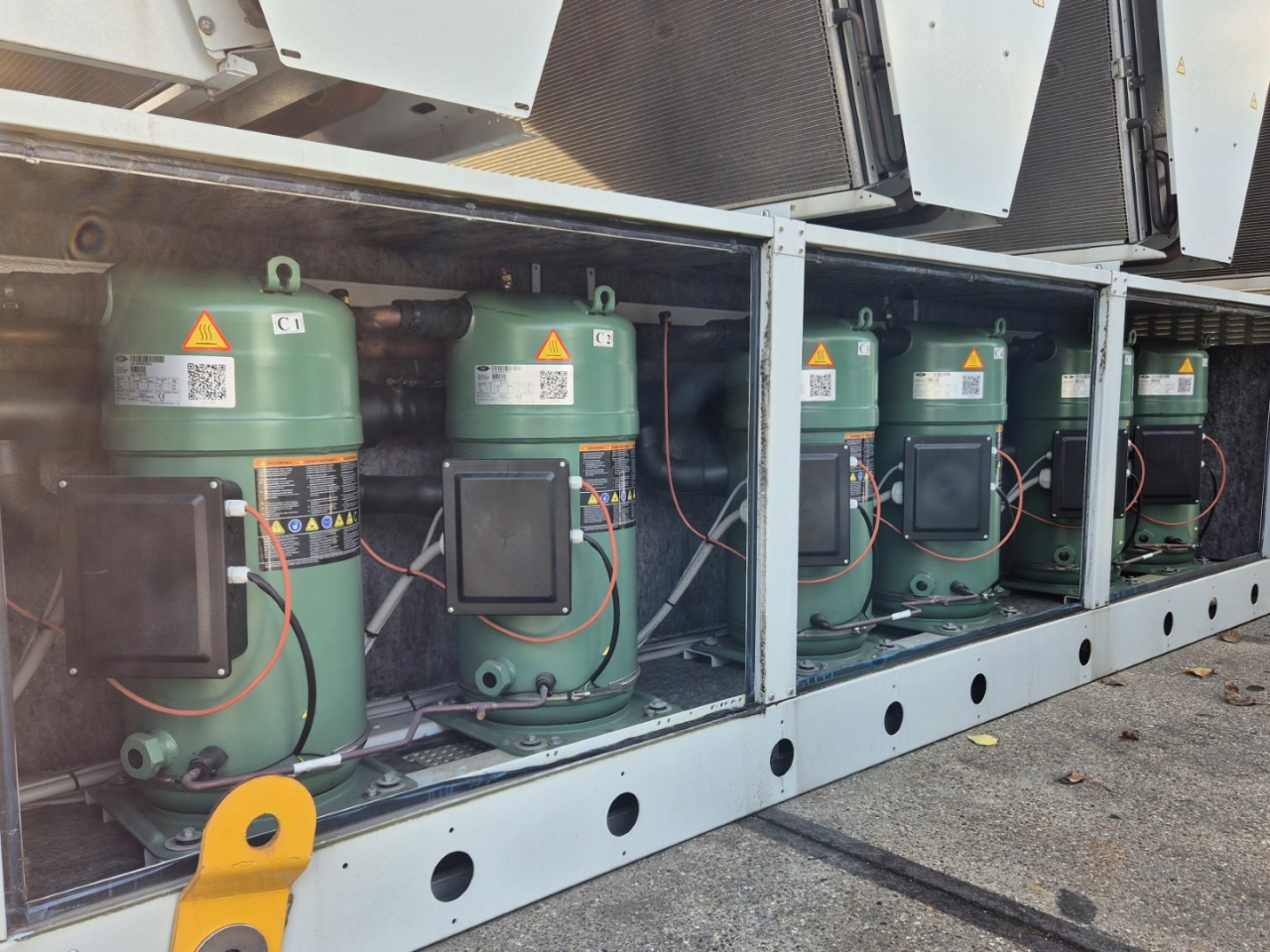

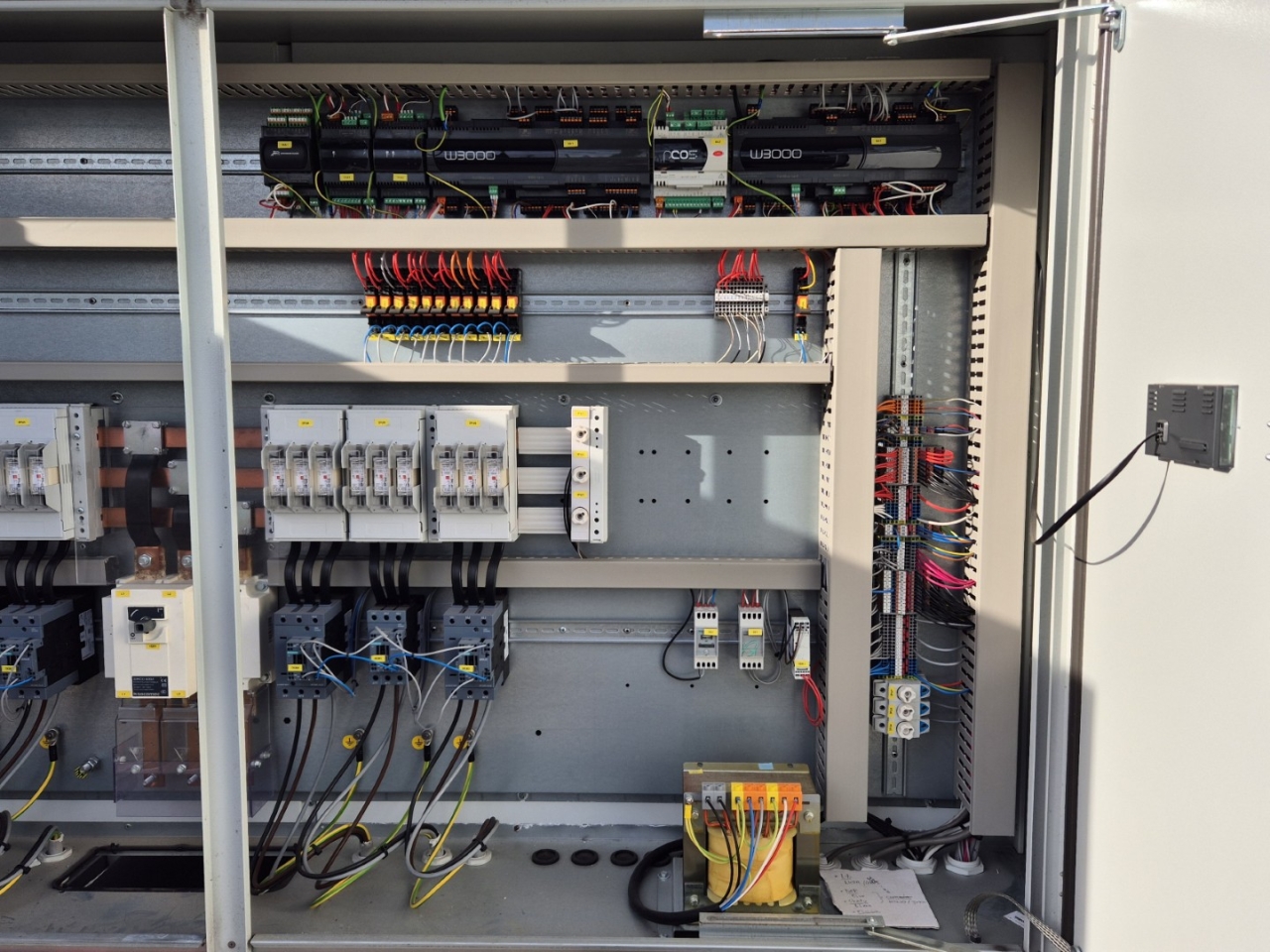

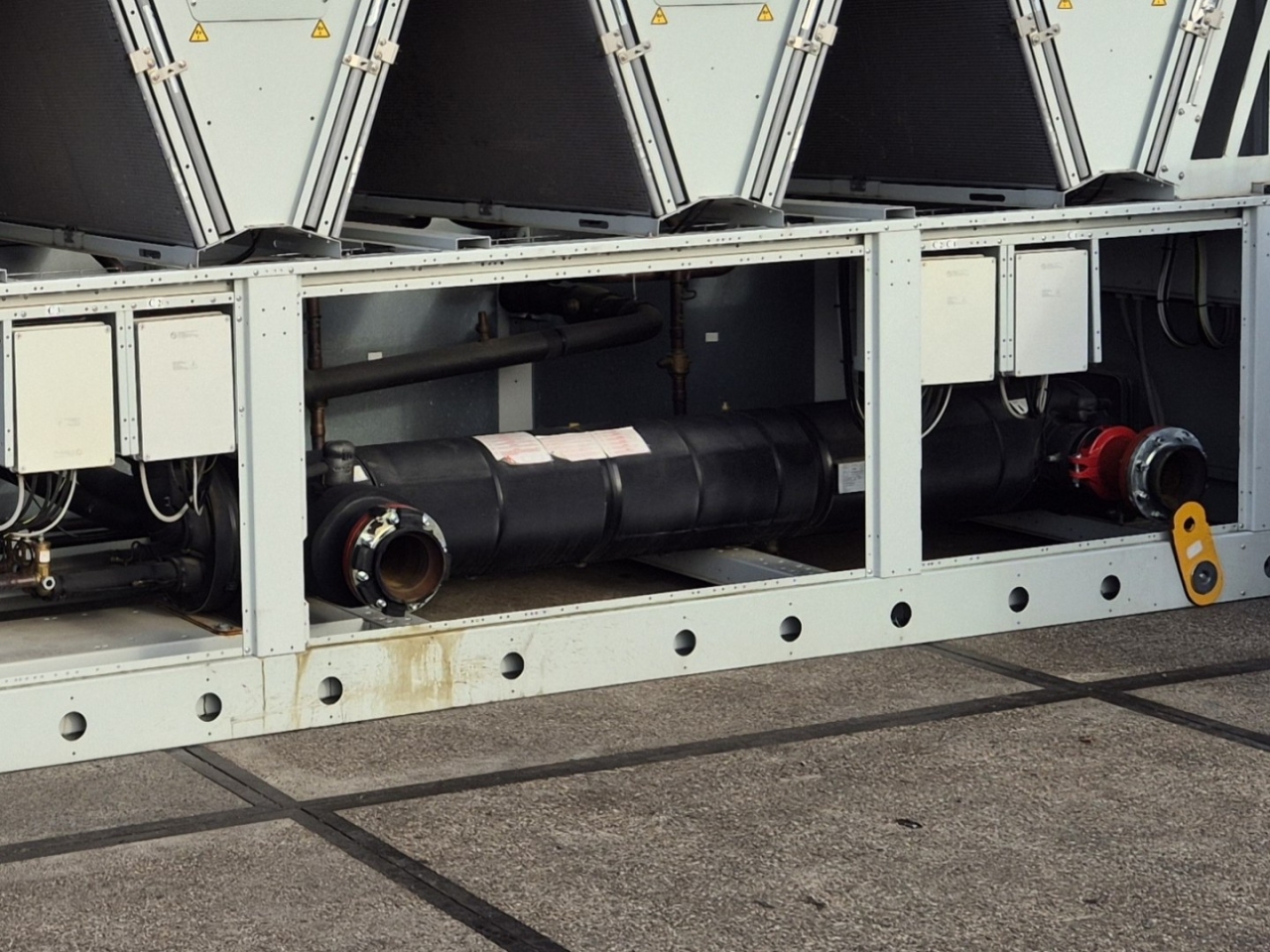

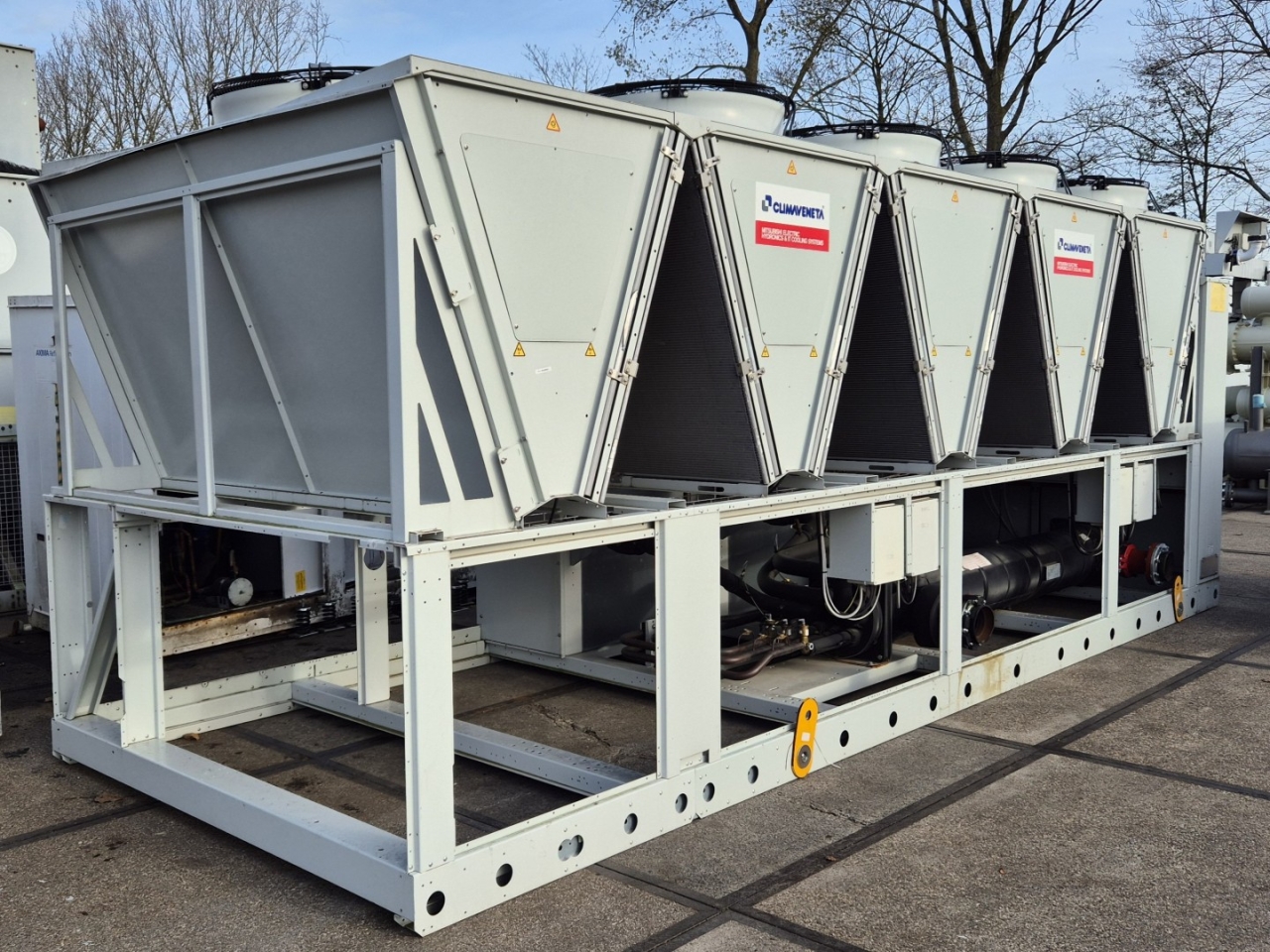

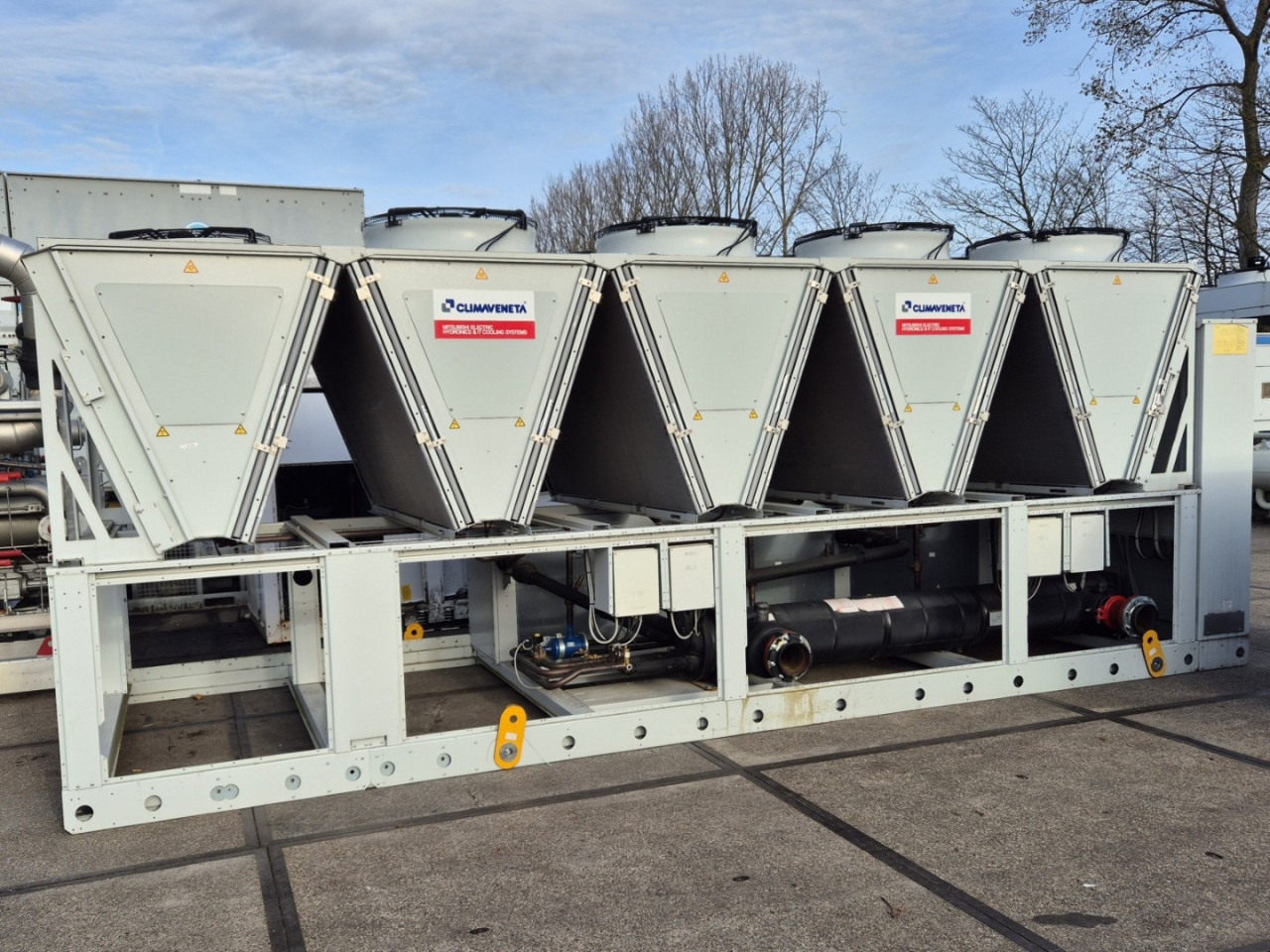

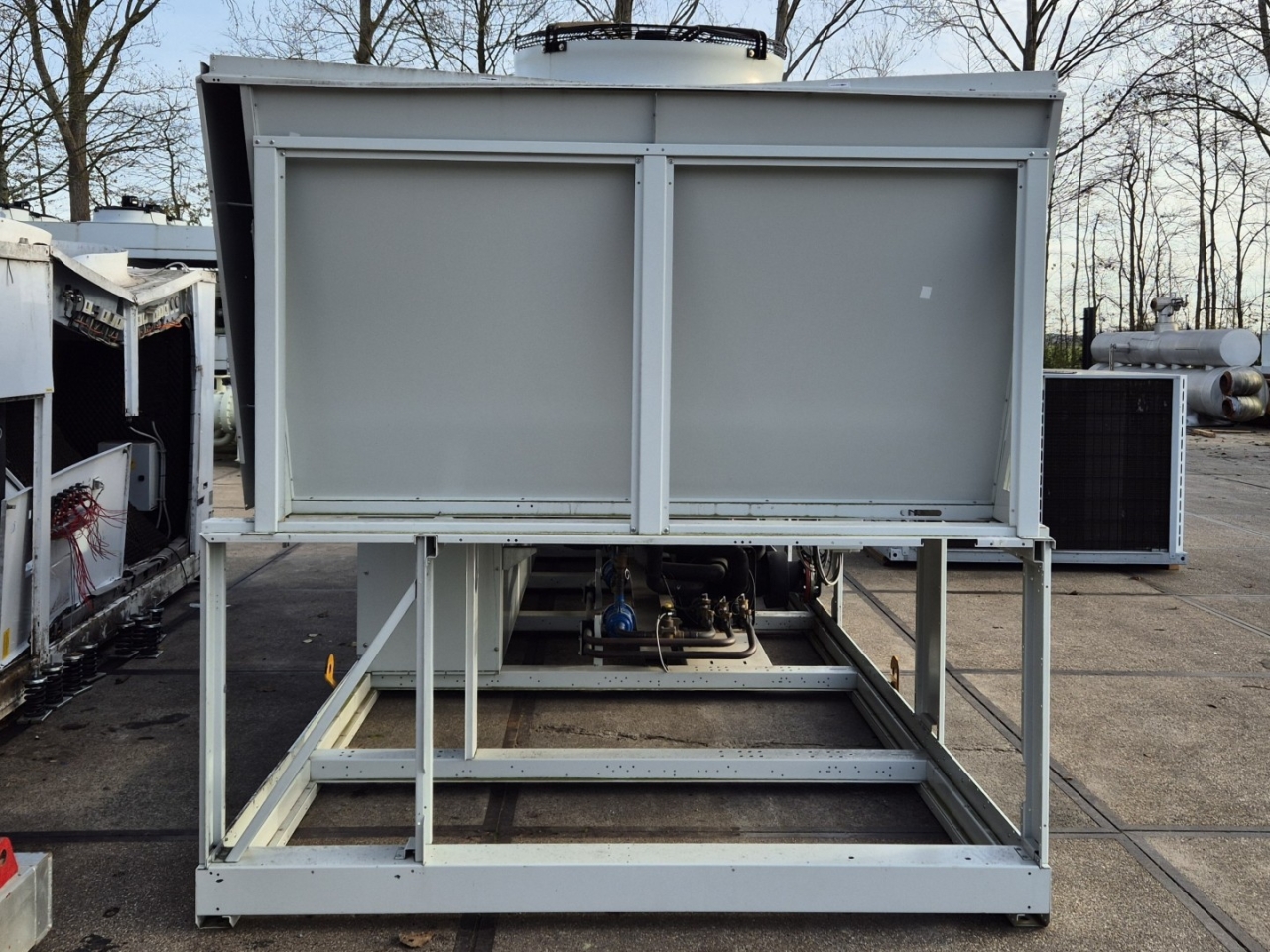

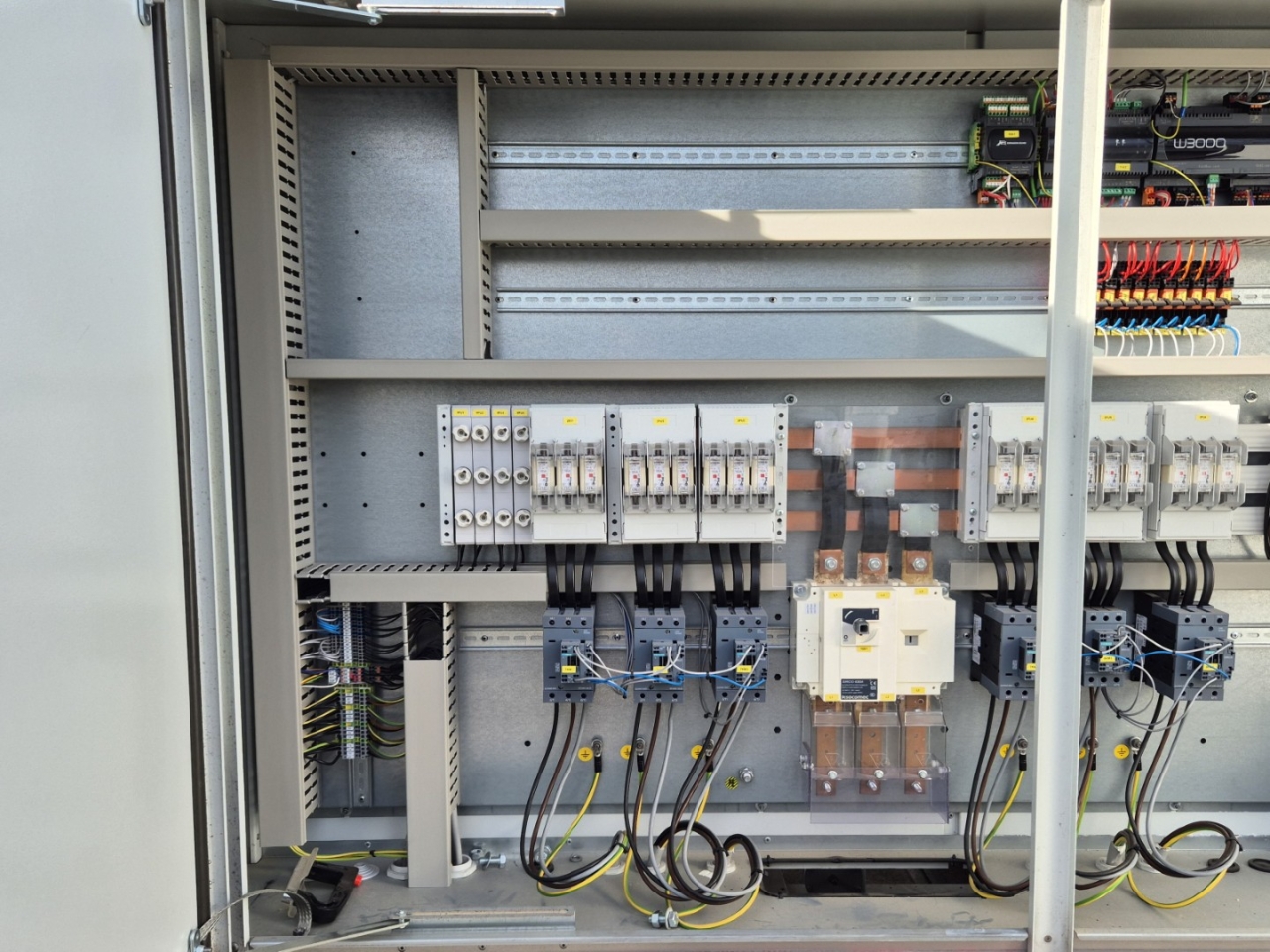

Used Climaveneta NX2-G06/K 0676 air-cooled chiller on R454B built in 2021. Complete with 5 Bitzer GSD80485VLB4-2 & 1 Bitzer 80385VLB4-2 scroll compressors, condenser with 9 Ziehl-Abegg FN080-SDA.6N.V7P5 fans - 50 Hz - 1,9/1,1 kW - 870/630 RPM - diameter 800 mm that produce an airflow of 184.068 m³/h, shell and tube as evaporator and a control cabinet Carel controller. The chiller has a capacity of 636,3 kW at a water inlet/outlet temperature of 12°C/7°C and a condensing temperature of 35°C.
*All components of this used chiller will be tested on adequate performance, leak free condition (condensing blocks, compressors, fans, control panel and so forth). Choosing HOSBV means buying with warranty. We perform a industrial cleaning if requested we can arrange your shipment.
