Bitzer 4T-8.2Y (x2)
Bitzer 4T-8.2Y (x2)
| 18562 | |
| Marka | Bitzer |
| Typ | 4T-8.2Y (x2) |
| Czynnik chłodzący | Freon |
| kW at -5ºC/+40ºC | 54,3 |
| kW at -10ºC/+40ºC | 44,7 |
| kW at -20ºC/+40ºC | 29,1 |
| kW at -30ºC/+40ºC | 17,7 |
| kW at -40ºC/+40ºC | 9,5 |
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Wskaźniki ciśnienia |
|
| Obiornik cieczy |
|
| Obiornik cieczy ltr. | 20 & 25 |
| Ssanie |
|
| Okno widokowe |
|
| Zawór elektromagnetyczny |
|
| m3 / h | 50 Hz - 78,8 m³/h & 60 Hz - 94,4 m³/h |
| Package / Rack |
|
| Rozmiary | 1560x870x1560 mm (LxWxH) |
| Liczba sztuk | 1 |
Bitzer 4T-8.2Y (x2)

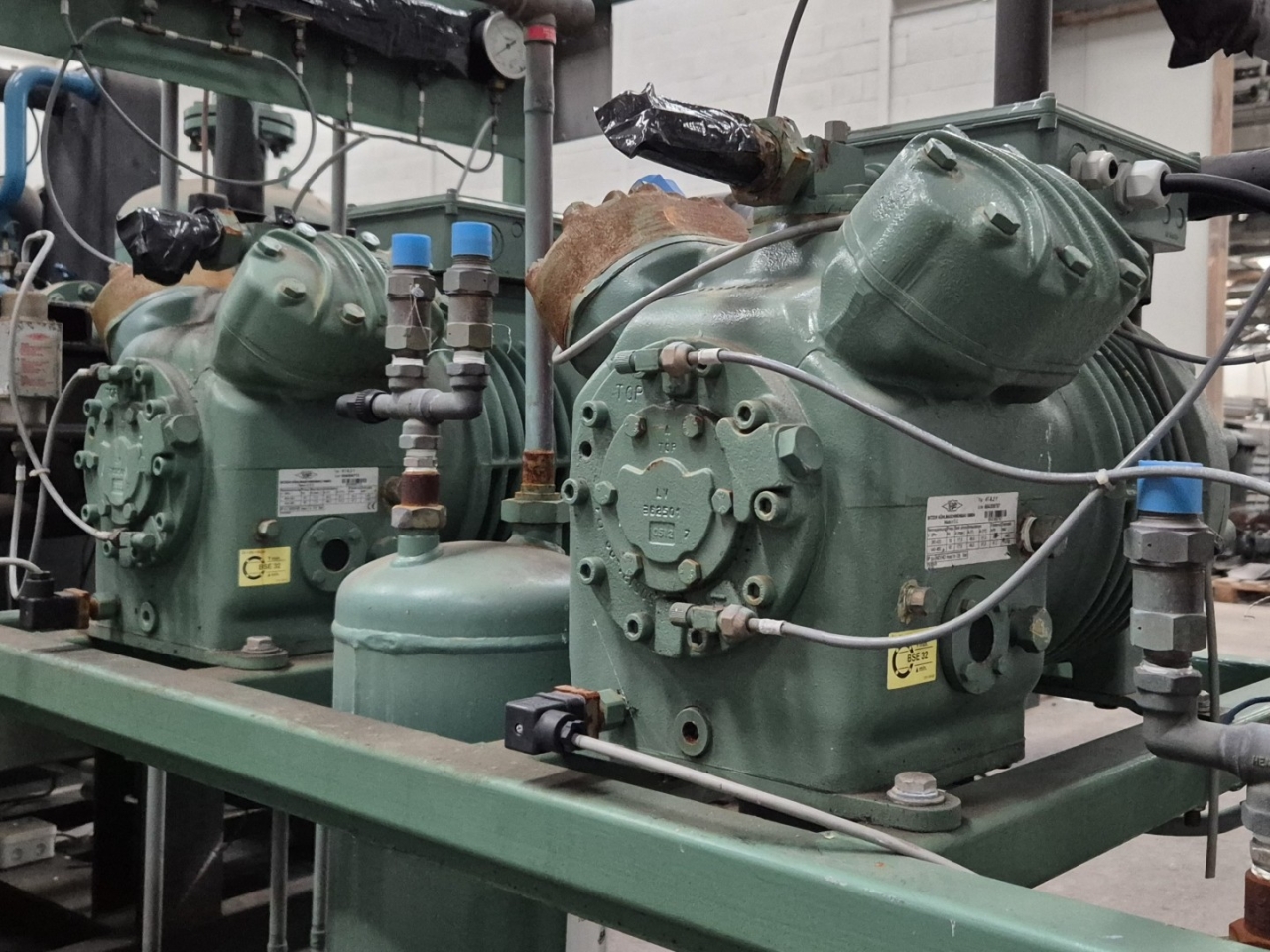

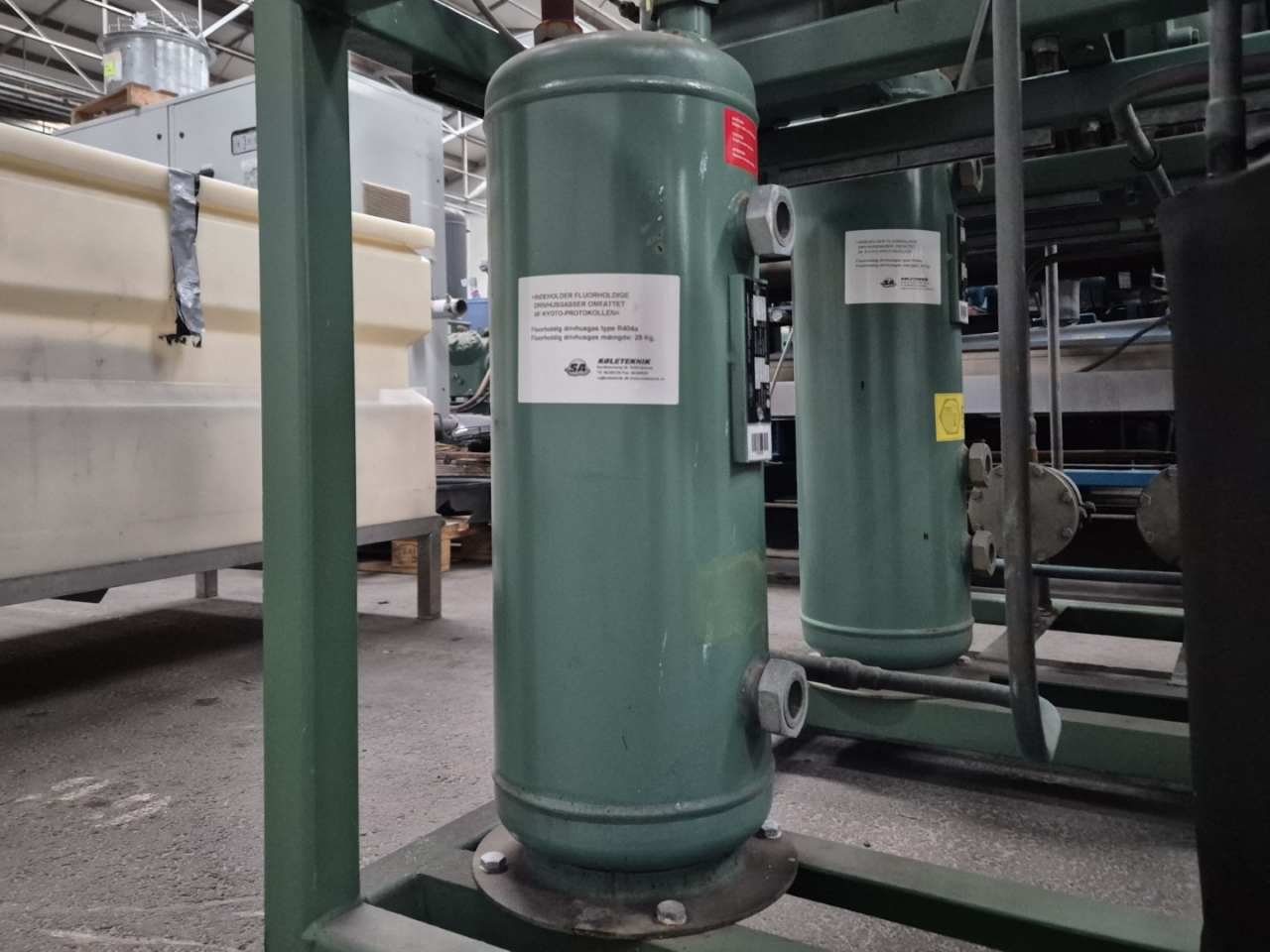

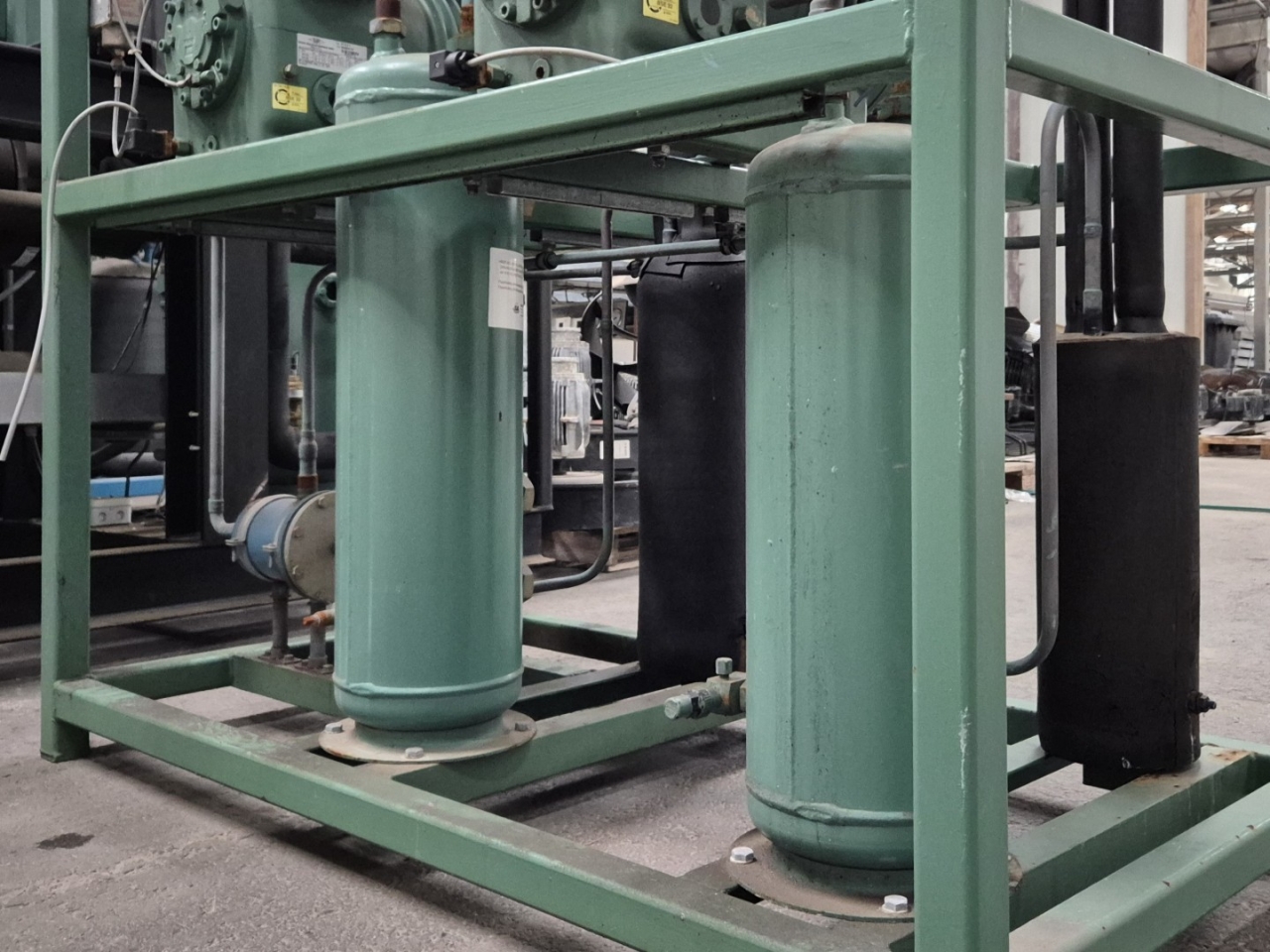

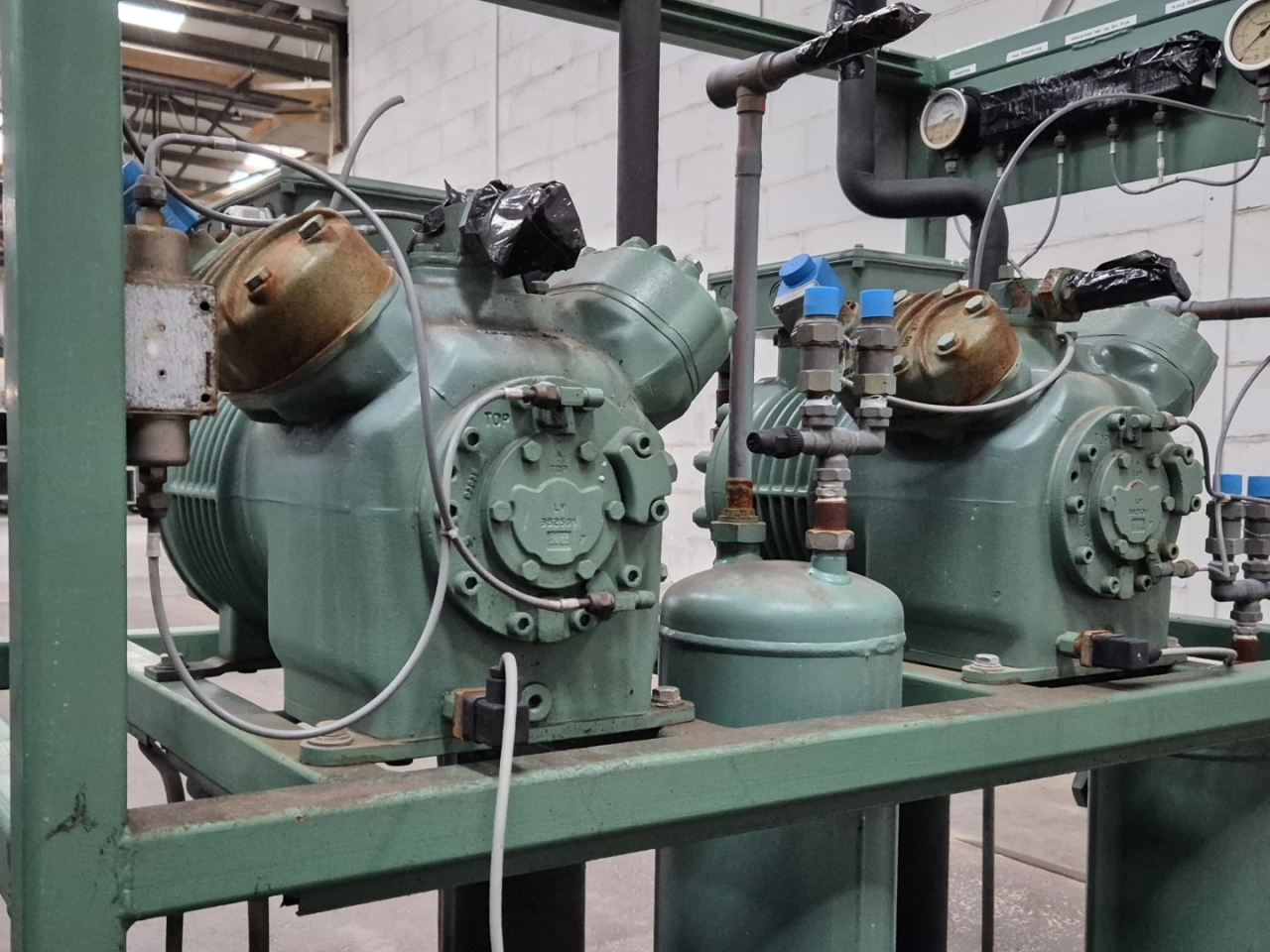

Used Bitzer 4T-8.2Y (x2) semi-hermetic reciprocating compressor rack on Freon. Each compressor with it's own Bitzer FS liquid receiver, suction accumulator, liquid line filter drier and pressure and safety switches/gauges. The compressors have a total displacement of 78,8 m³/h at 50 Hz & 94,4 m³/h at 60 Hz. Please notice that the compressors are on their own circuit, but it's possible to make one. The capacity's are based on both compressors combined.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
