Cabero ACDND107KF/2x7S
Cabero ACDND107KF/2x7S
| 17312 | |
| Marka | Cabero |
| Typ | ACDND107KF/2x7S |
| Typ produktu | Drycooler |
| Ogólna wydajność w kW | 826,0* |
| Liczba wentylatorów | 14 |
| Prdkość obrotów wentylatora (obr/min) | 330/460 RPM |
| Czynnik chłodzący | Glycol |
| Przepływ powietrza w m³/h | 213.000 |
| wentylatory o średnicy Ø | 1000 mm |
| Powierzchnia (m2) | 3801,2 m² |
| Rozmiary | 10240x2350x2595 mm (LxWxH) |
| Uwagi | | Y.o.b. 2010 |
| Remarks || | *Capacity based on inlet/outlet temperature: +40°C/+60°C & air inlet: 25°C |
| Liczba sztuk | 8 |
Cabero ACDND107KF/2x7S

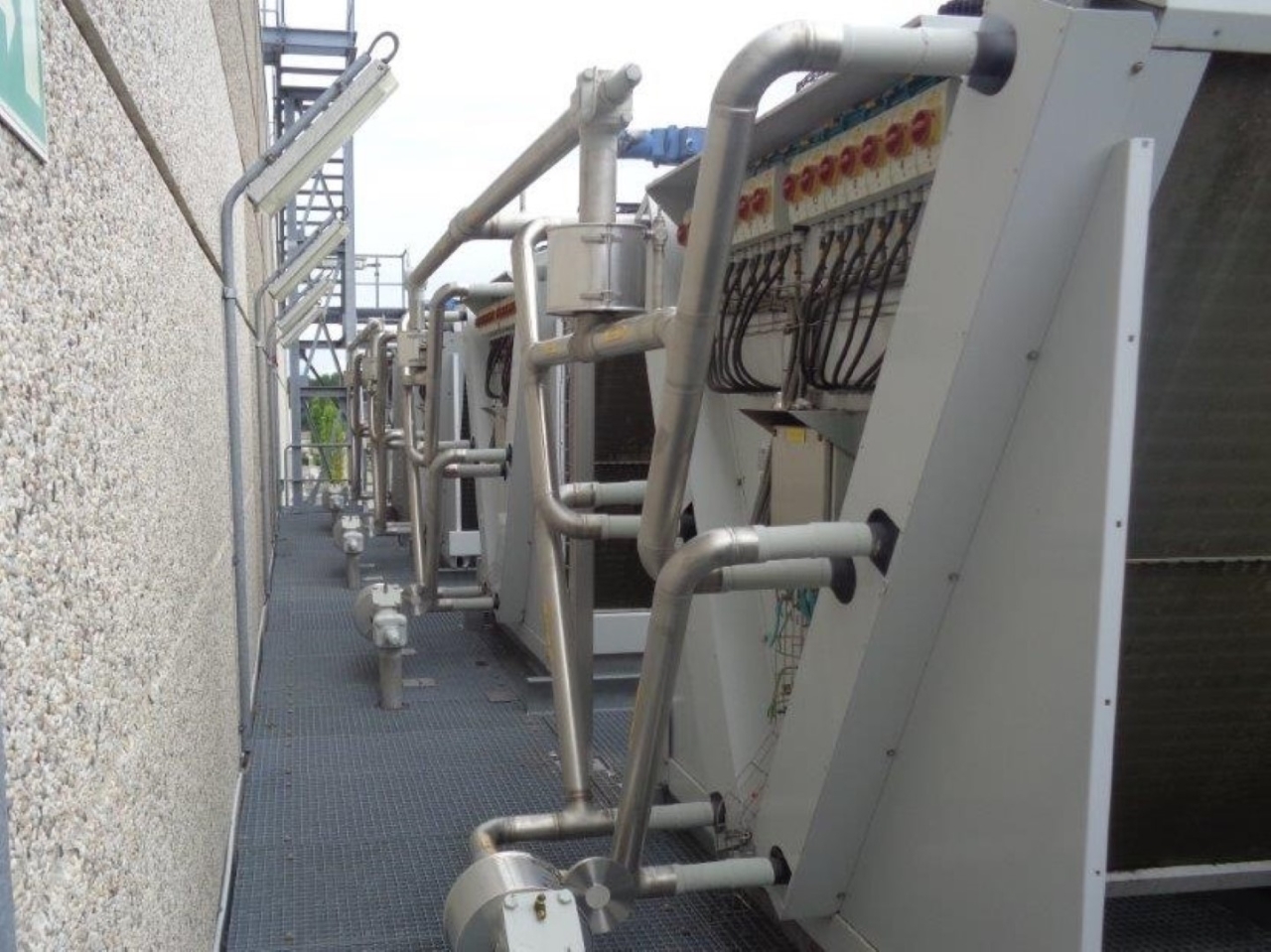

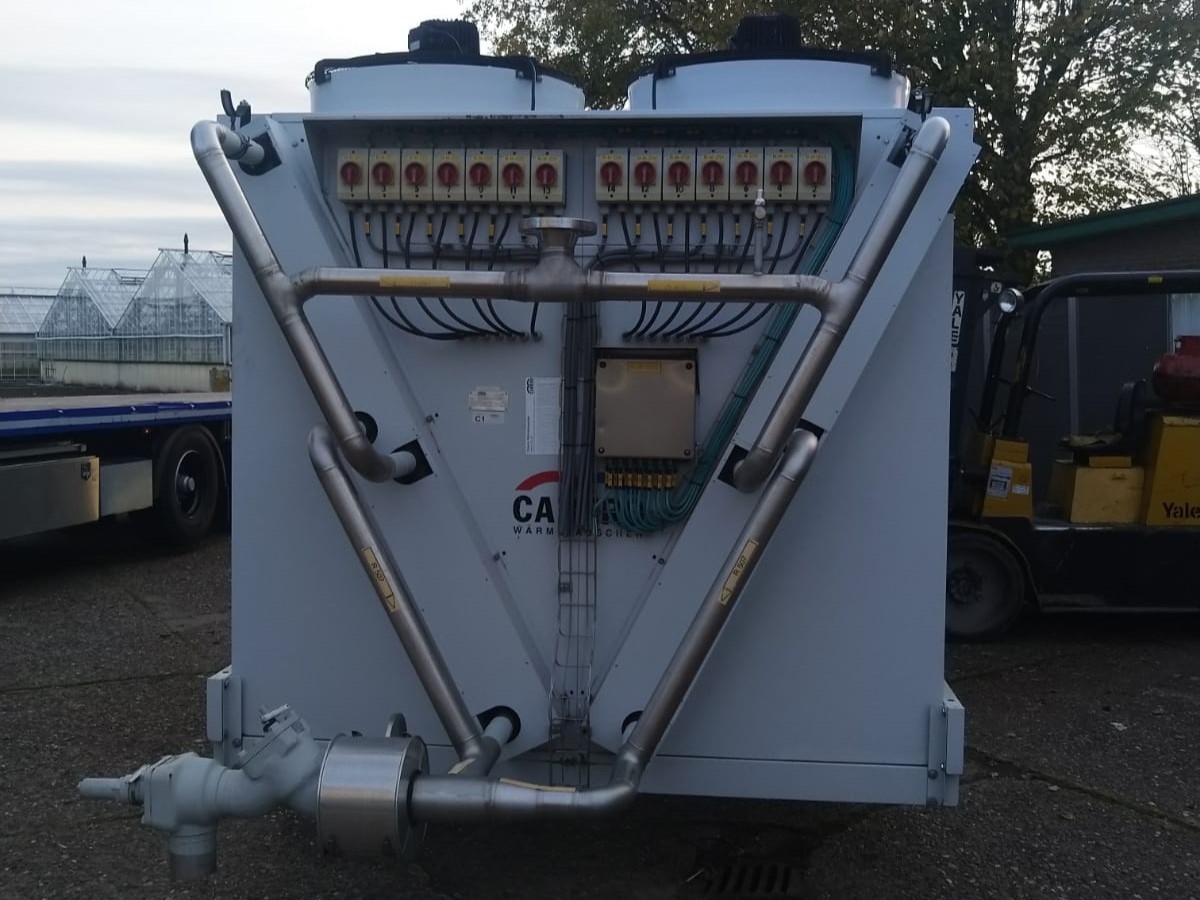

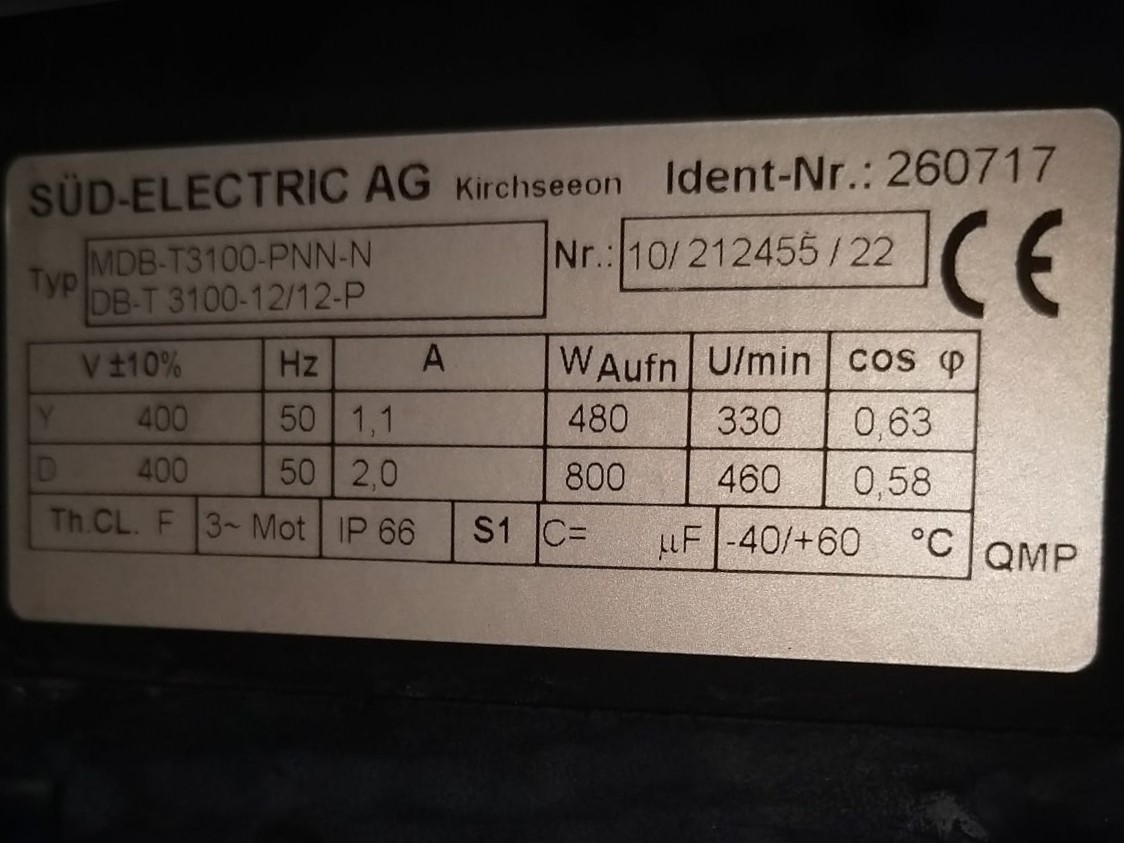

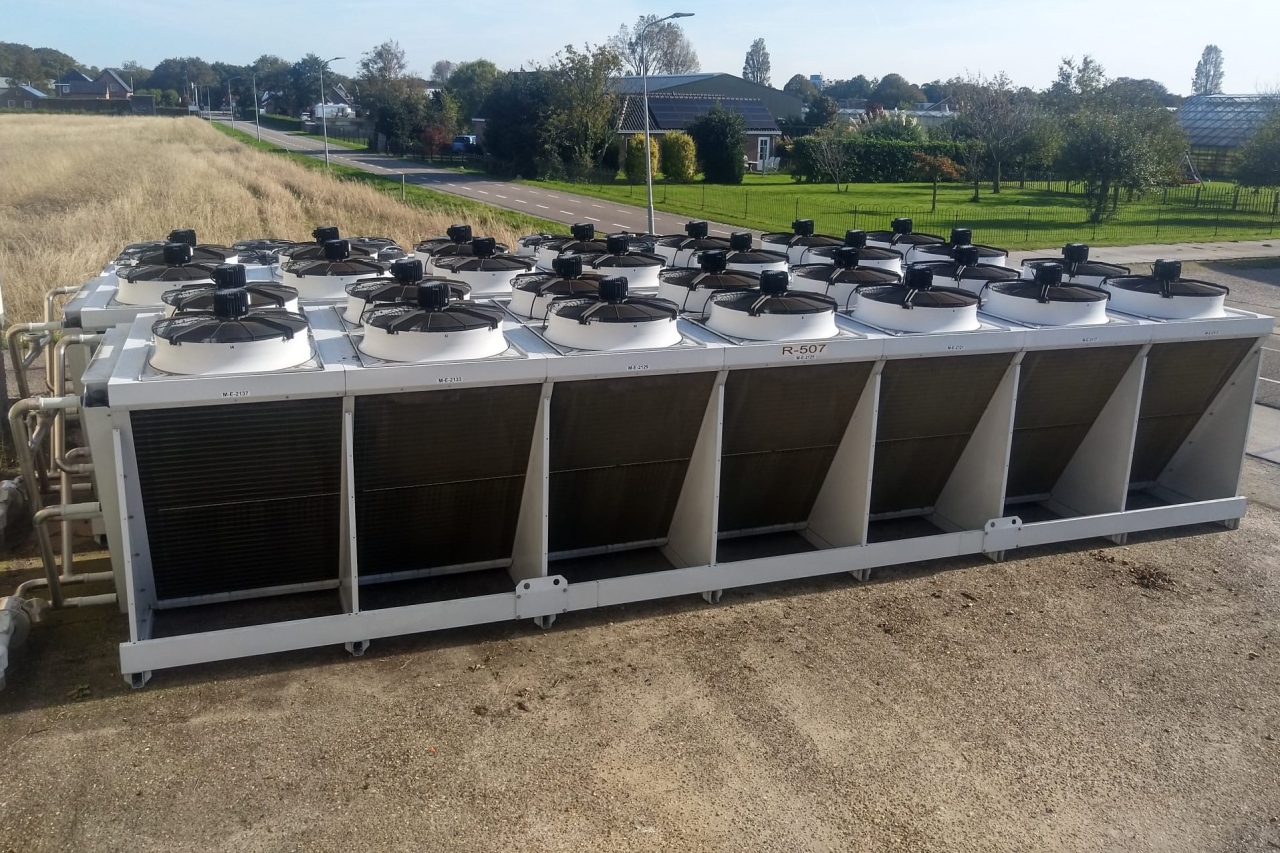

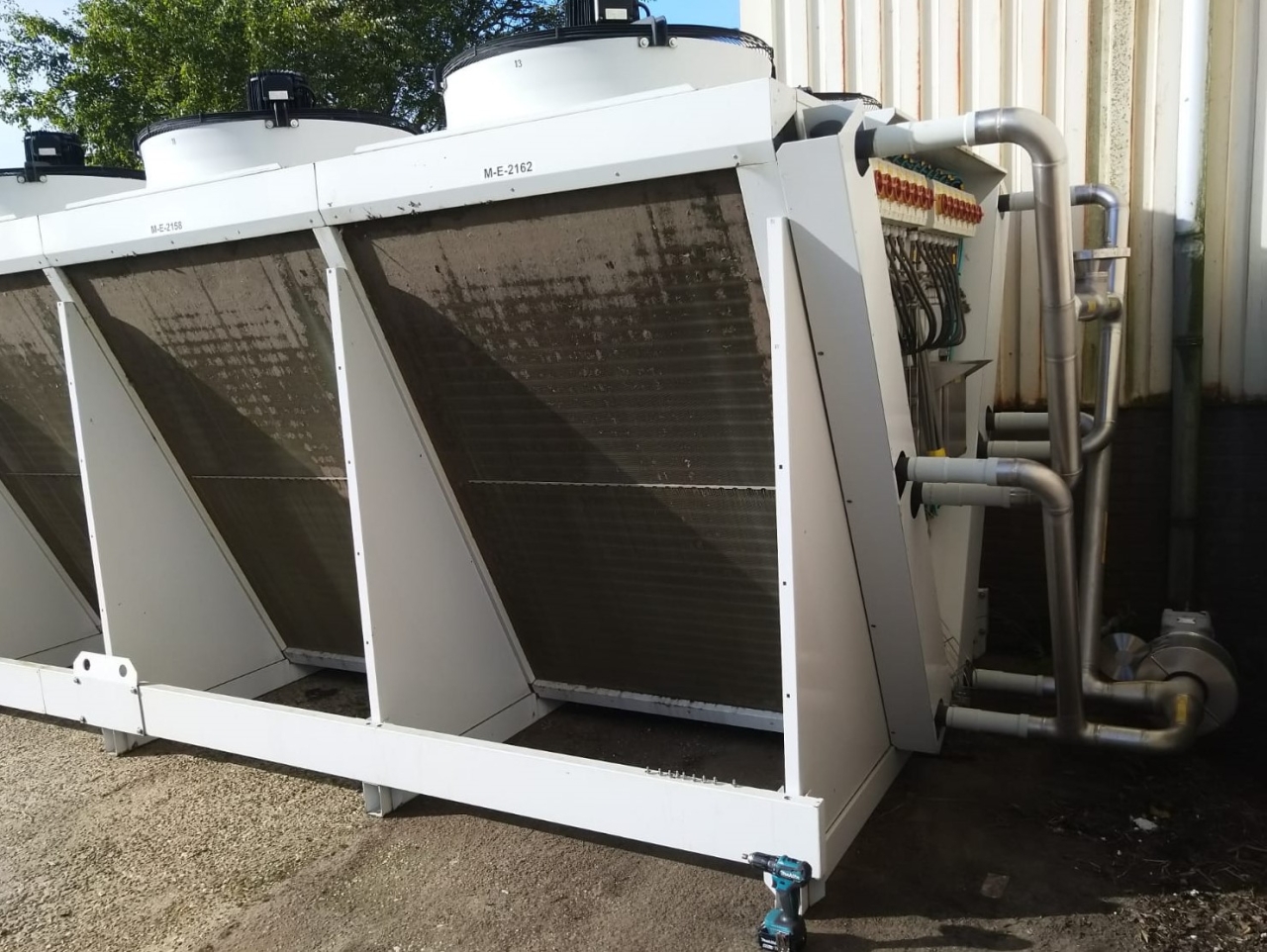

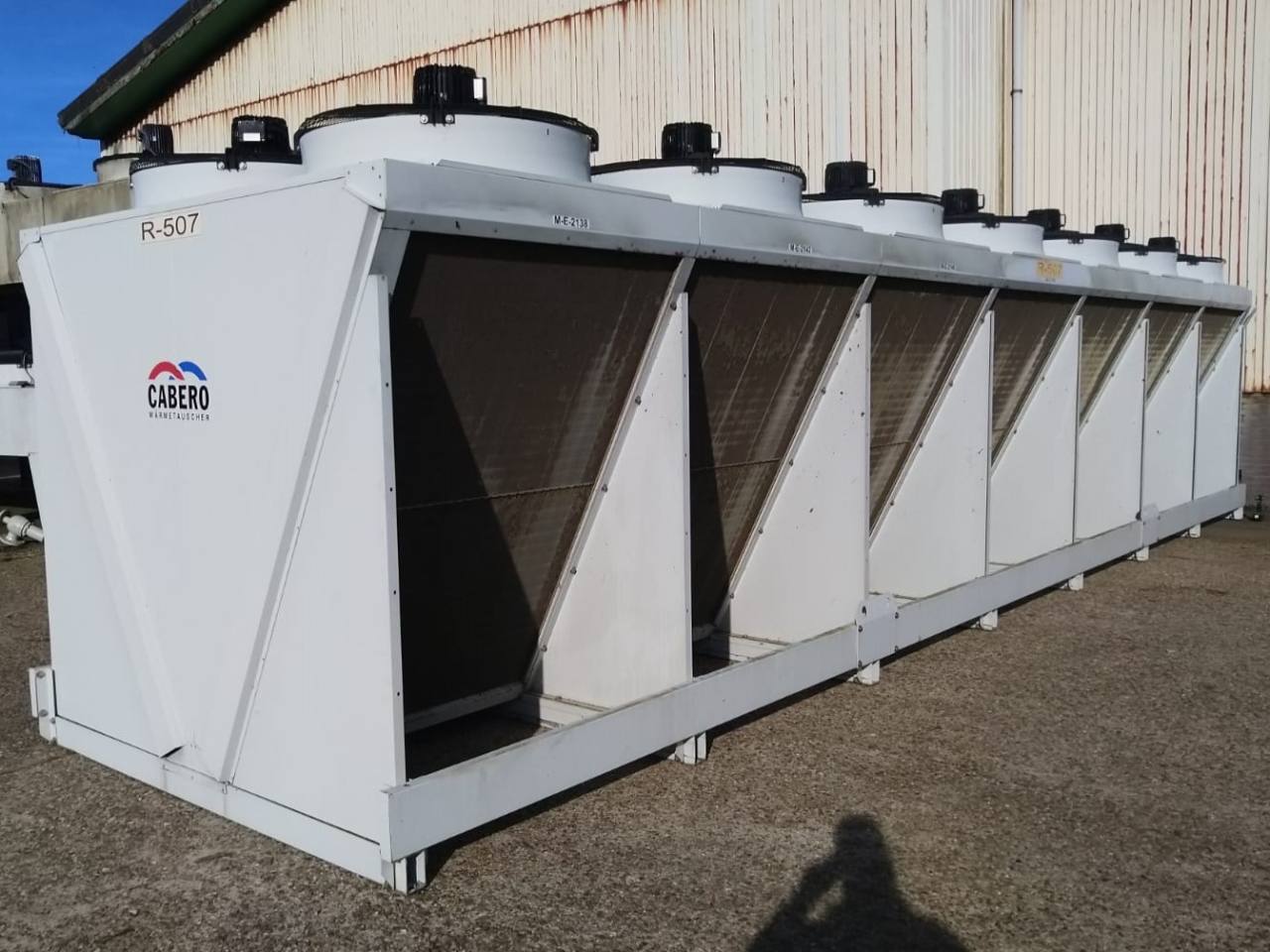

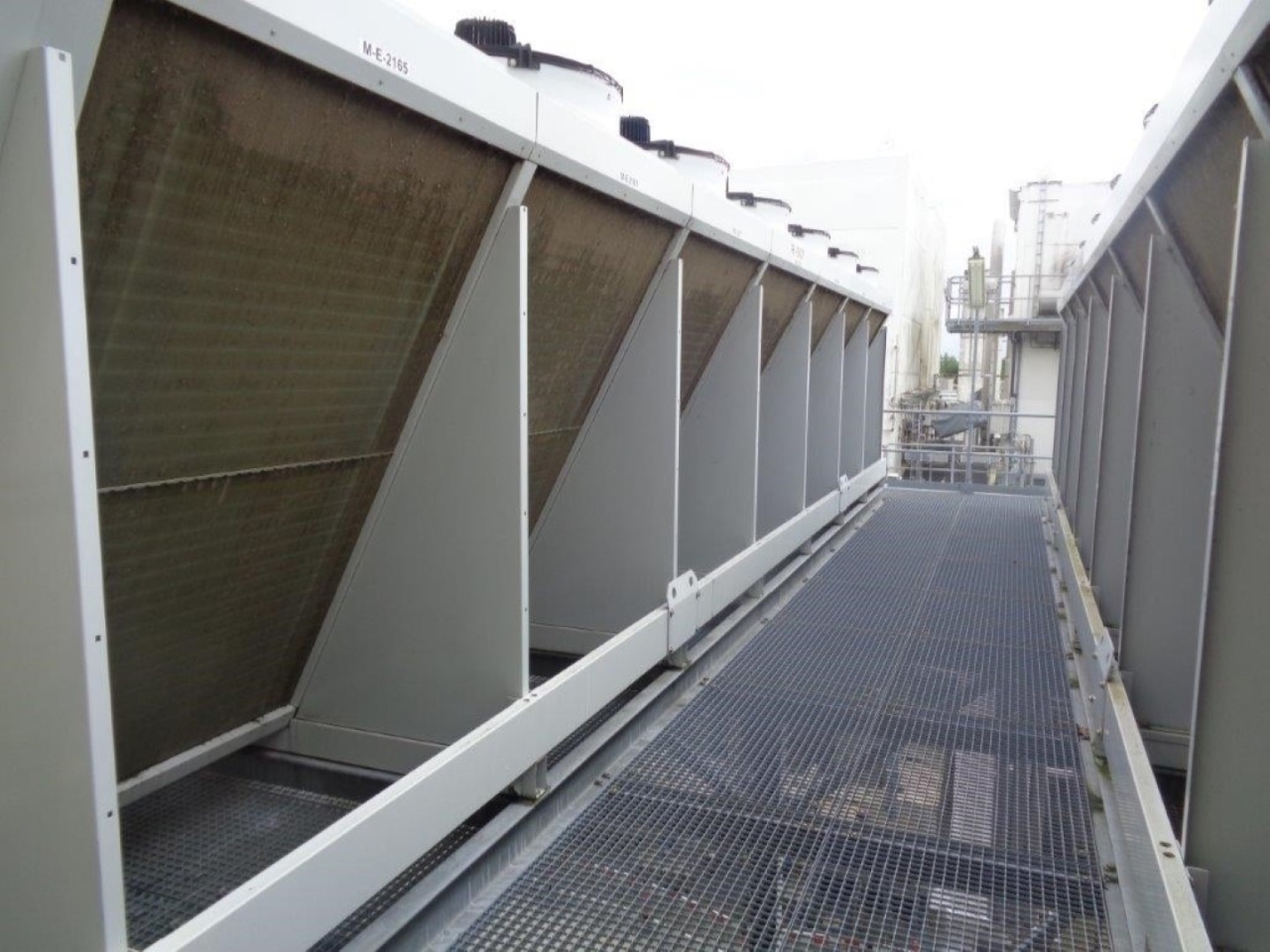

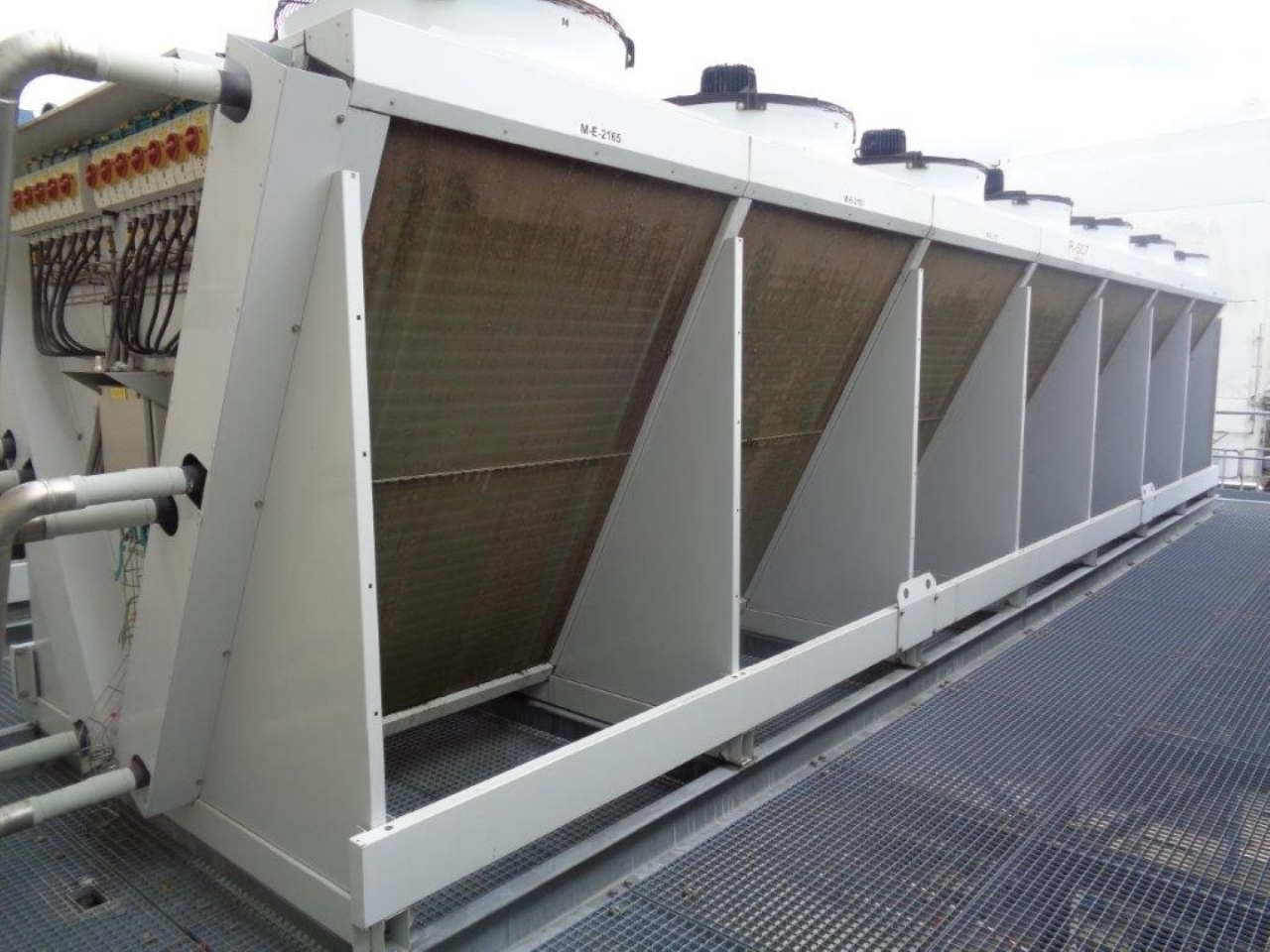

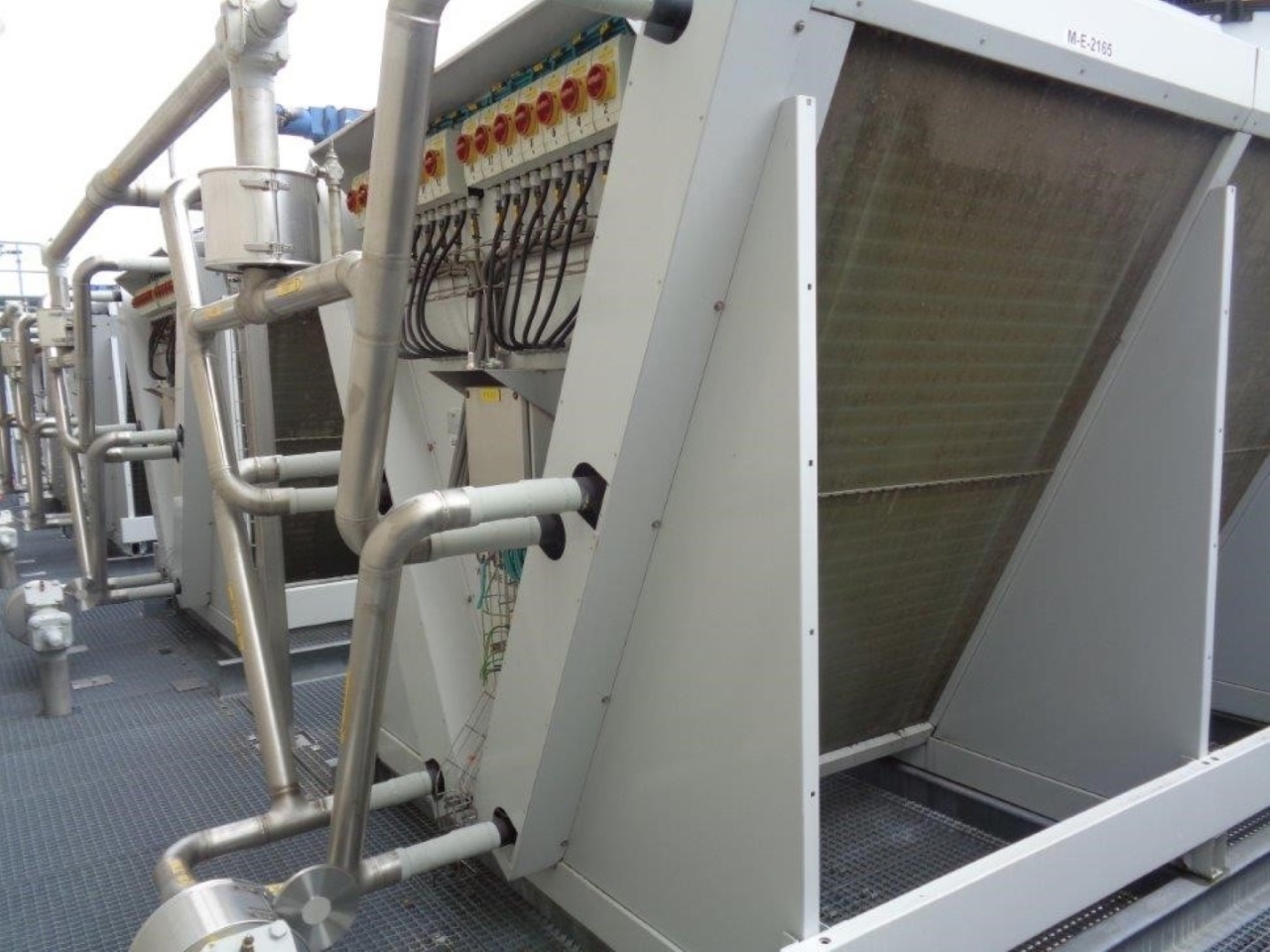

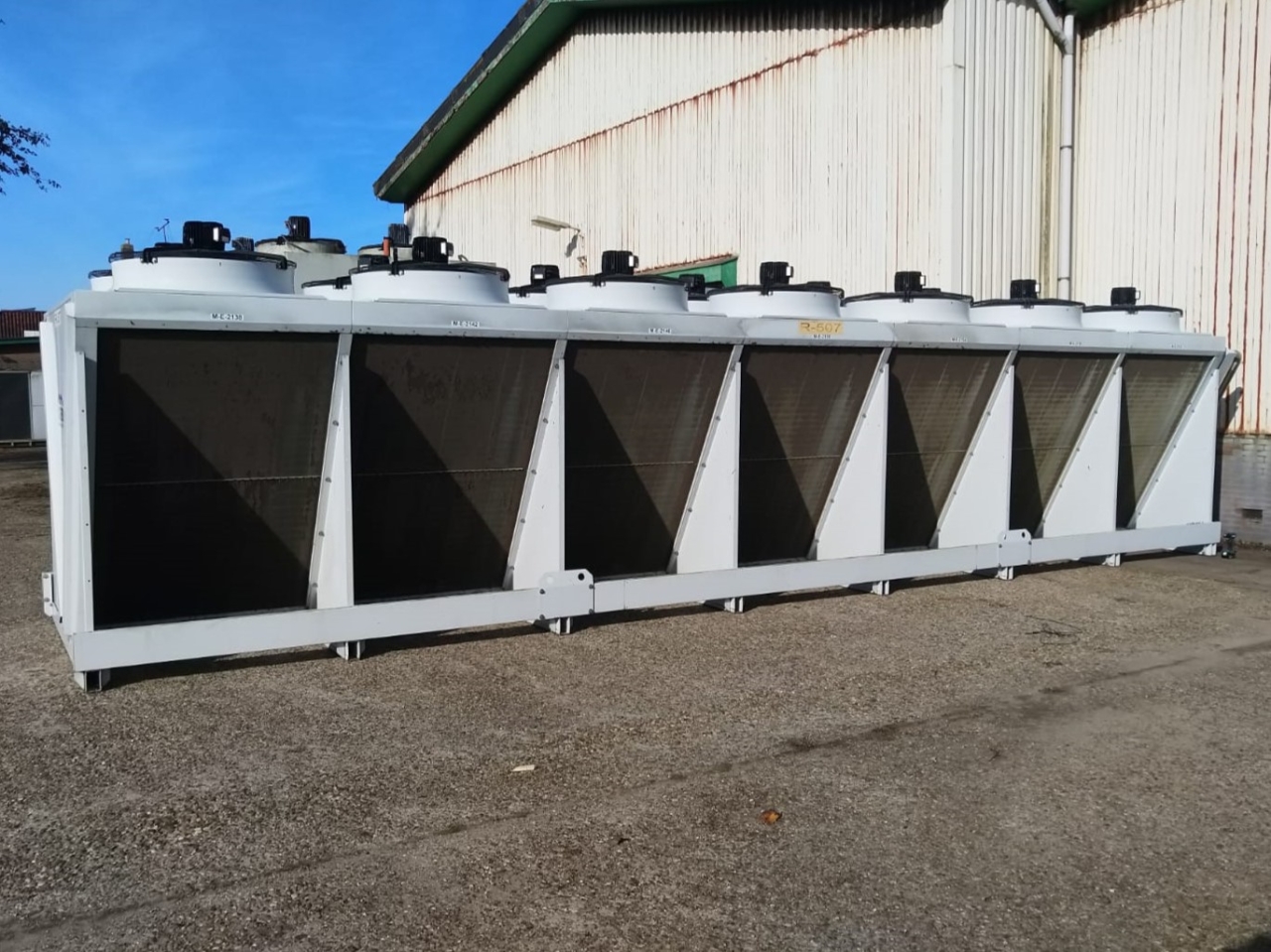

Used Cabero ACDND107KF/2x7S-72S72-2 drycooler. Complete with 14 Süd-Electric MDB-T3100-PNN-N fans - 50 Hz - 0,48/0,80 kW - 330/460 RPM - diameter 1000 mm and a total airflow of 213.000 m³/h.
*Capacity based on inlet/outlet temperature: +40°C/+60°C & air inlet: 25°C.
*All components of this used condensors will be tested on good working, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform a industrial cleaning. Also, we can arrange your shipment.
