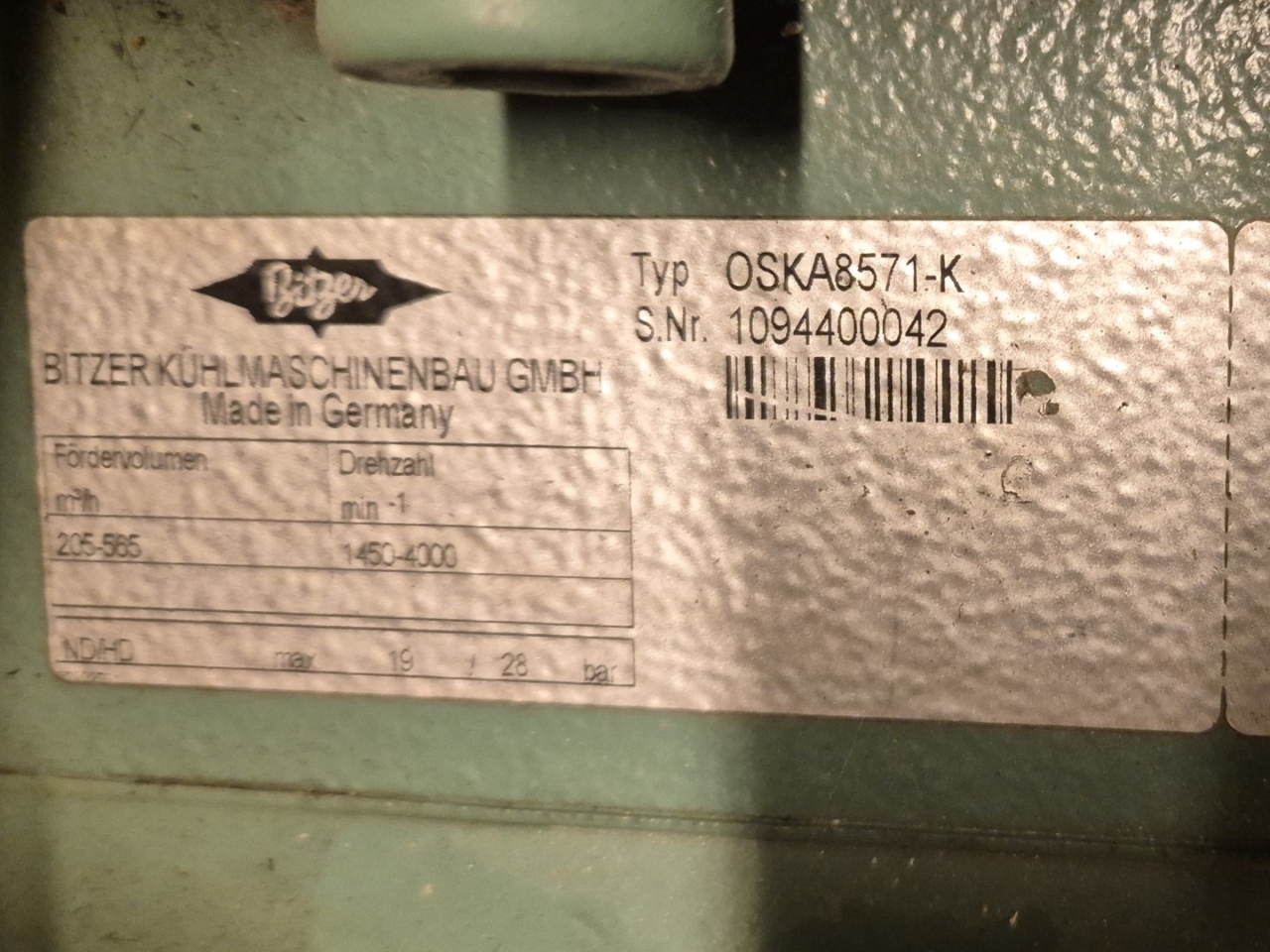

Bitzer OSKA8571-K (x2)
Bitzer OSKA8571-K (x2)
| 18816 | |
| Marka | Bitzer |
| Typ | OSKA8571-K (x2) |
| Czynnik chłodzący | NH 3 (ammonia) |
| kW at +10ºC/+40ºC | 1132,0 |
| kW at 0ºC/+40ºC | 776,0 |
| kW at -5ºC/+40ºC | 634,0 |
| kW at -10ºC/+40ºC | 510,0 |
| Rozładunek |
|
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|

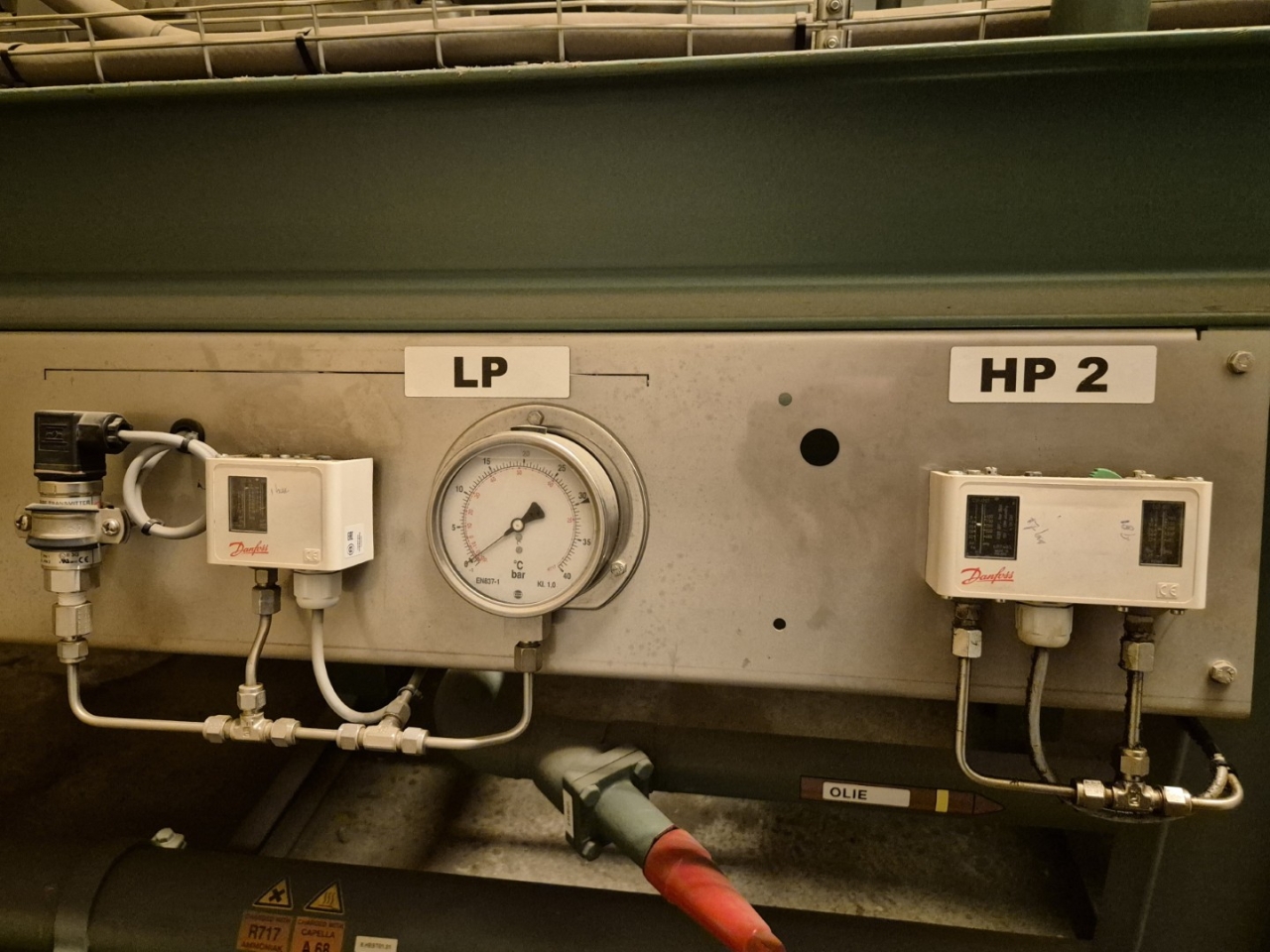

| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Wskaźniki ciśnienia |
|
| Separator oleju |
|
| Okno widokowe |
|
| Zawór elektromagnetyczny |
|
| Panel kontrolny |
|
| m3 / h | 410 m³/h at 1450 RPM & 1130 m³/h at 4000 RPM |
| Uwagi | | Y.o.b. 2018 |
| Uwagi || | Running hours: 4.500 |
| Package / Rack |
|
| Liczba sztuk | 1 |
Bitzer OSKA8571-K (x2)

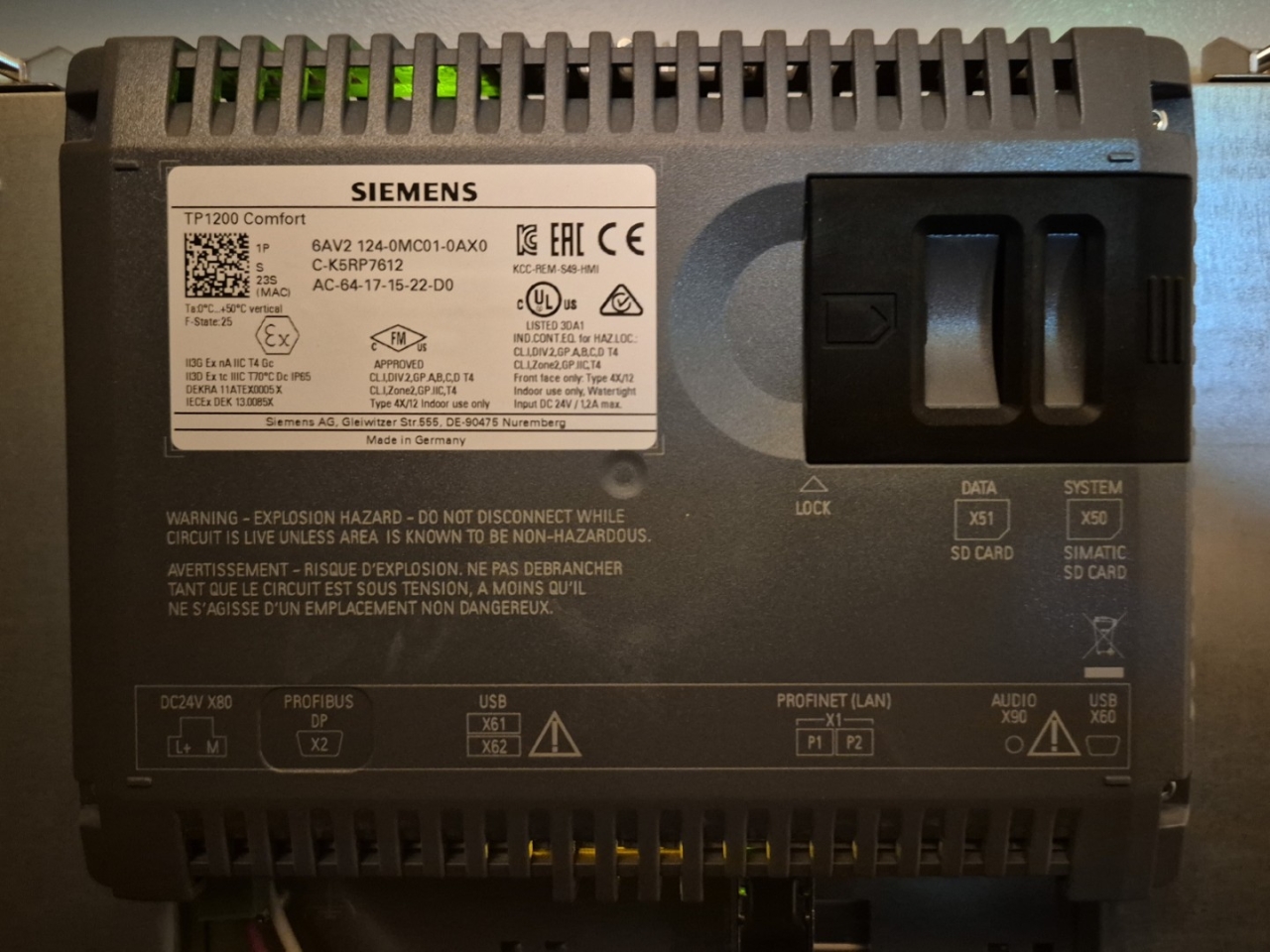

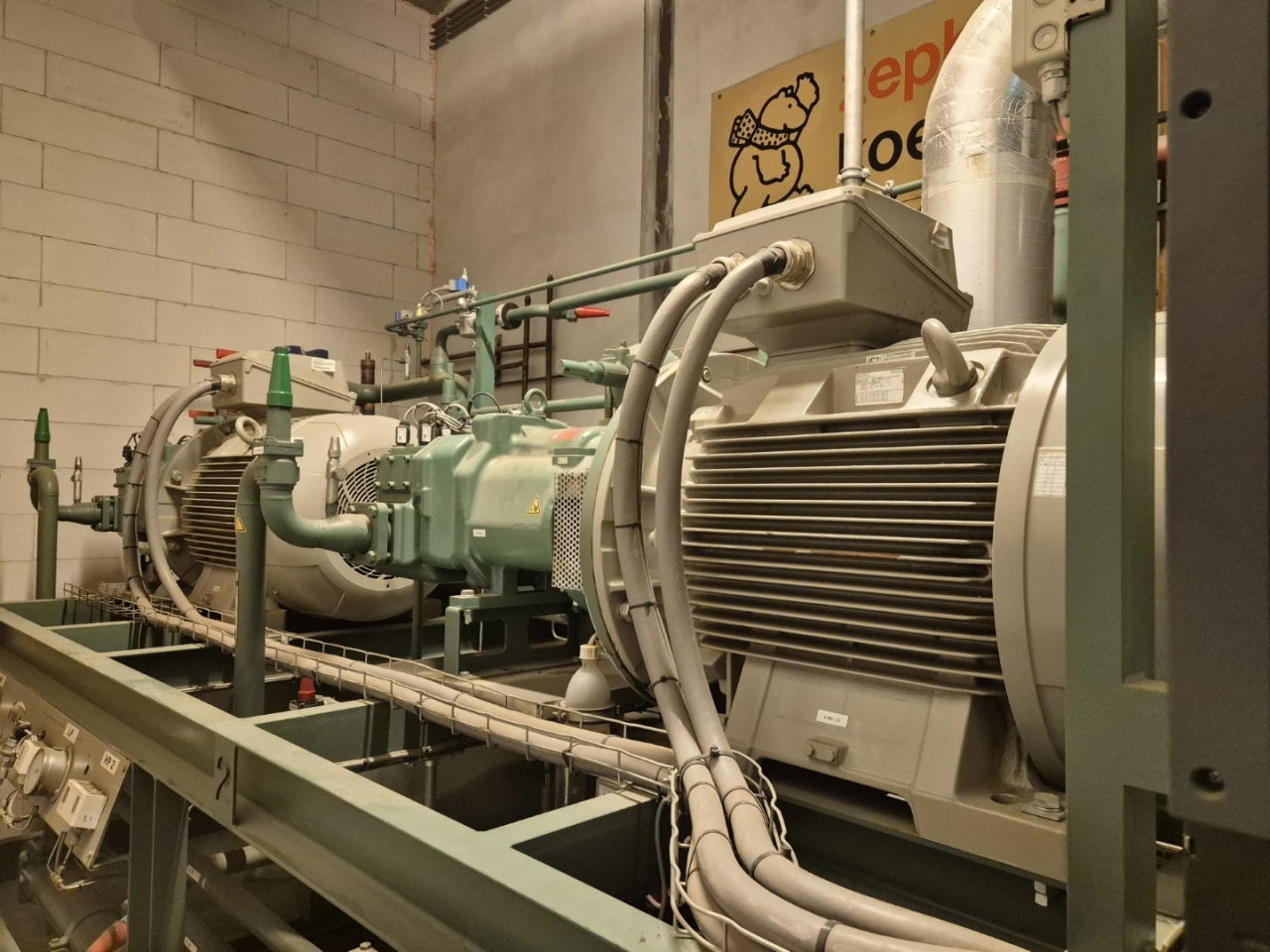

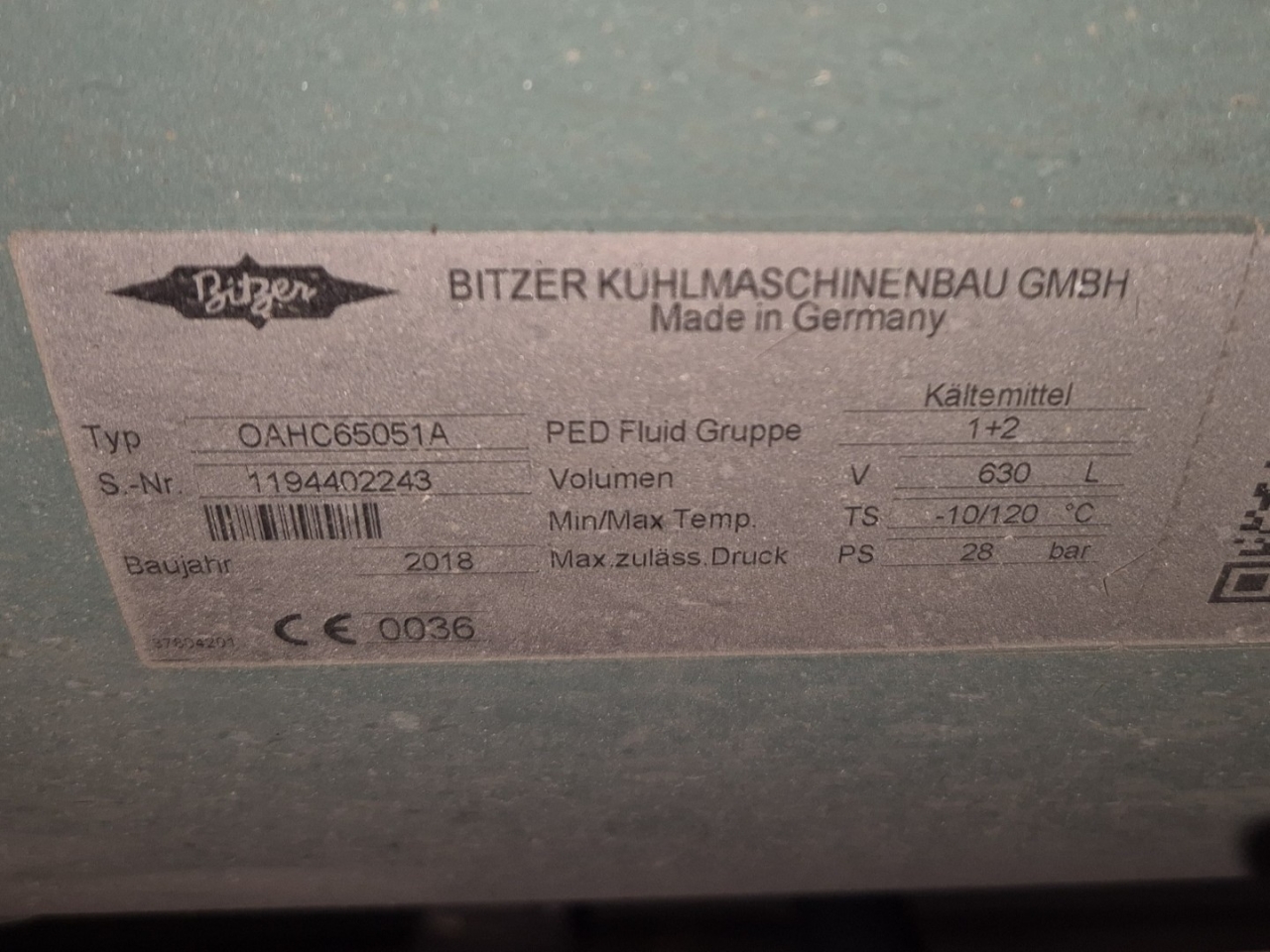

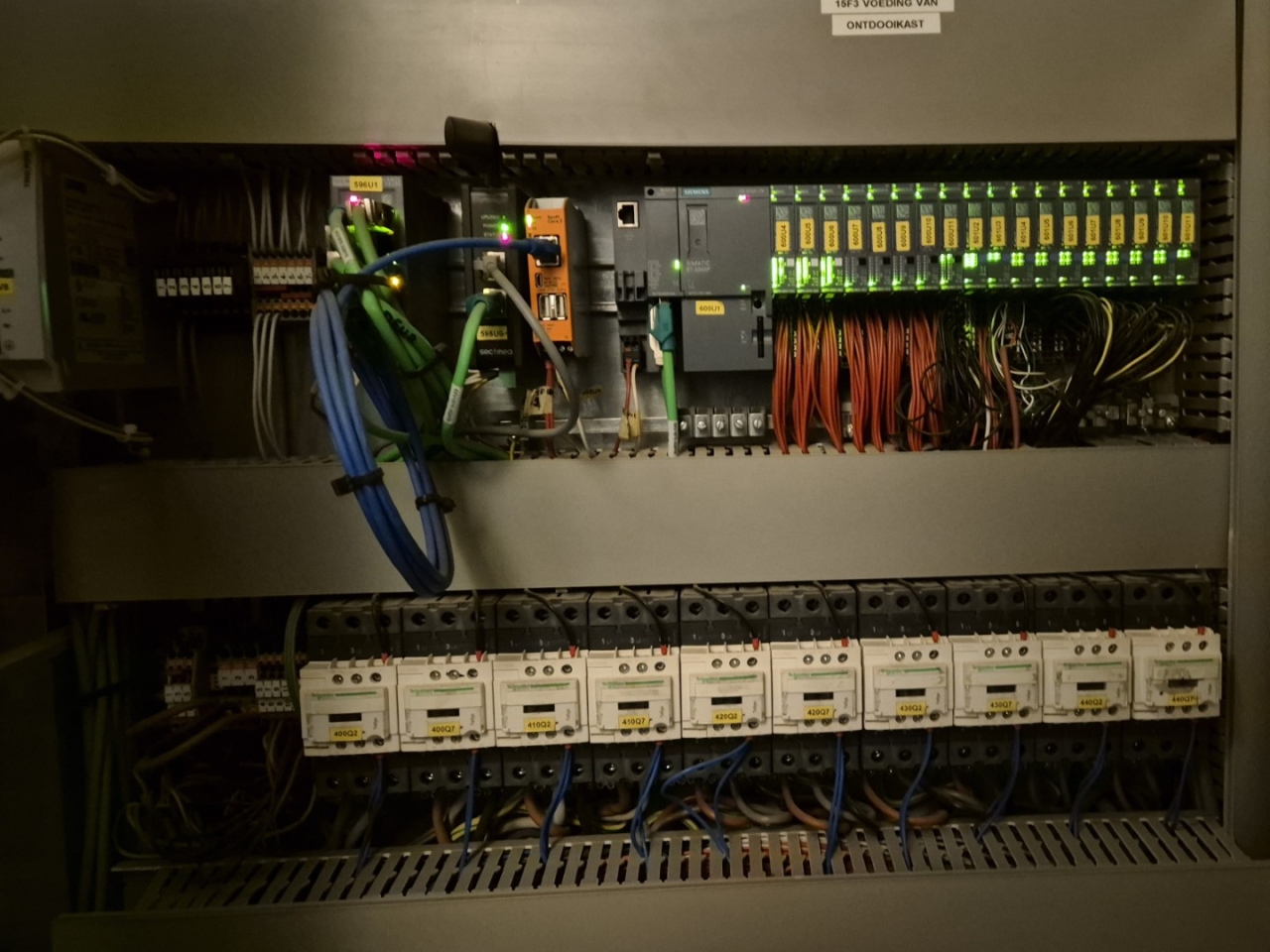

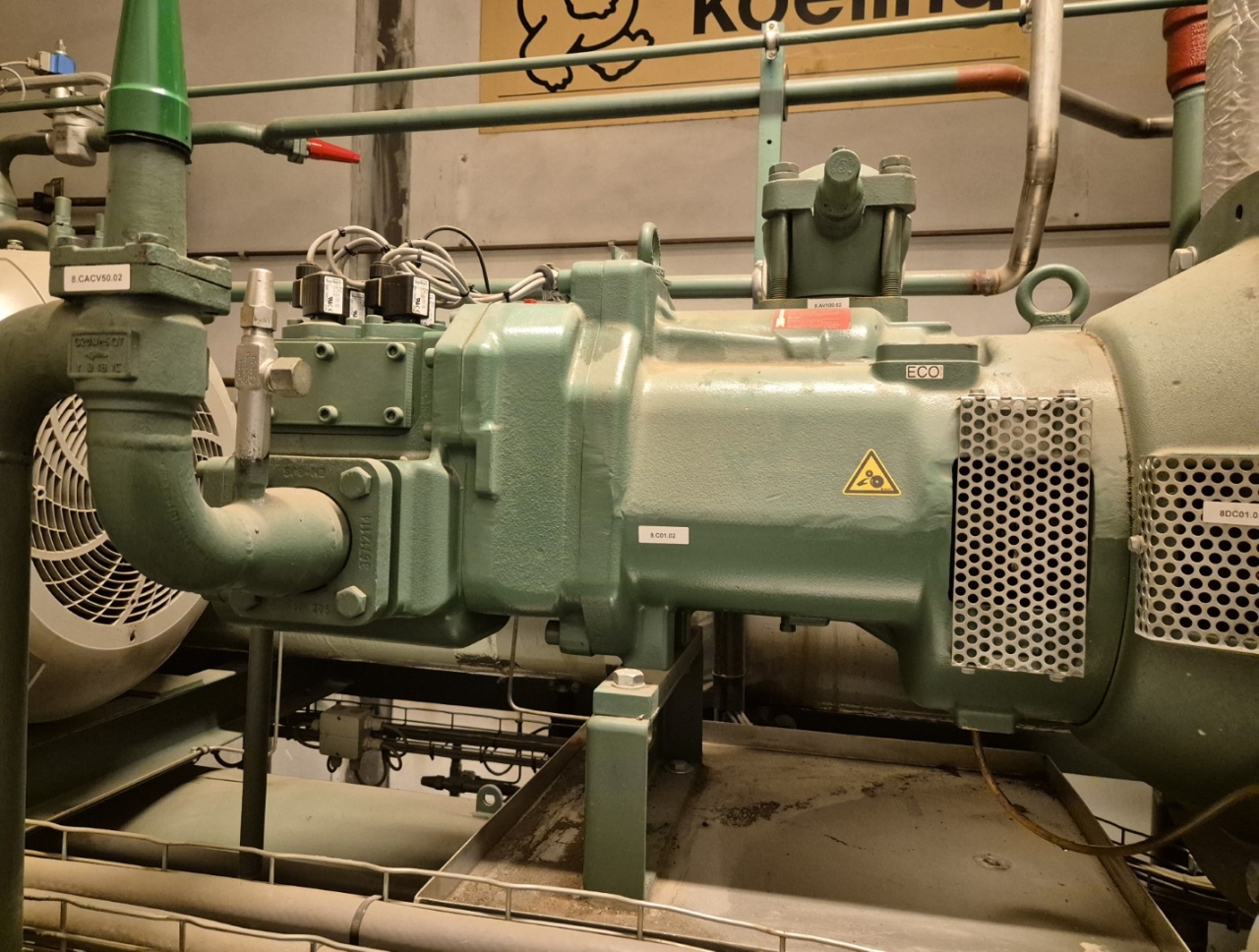

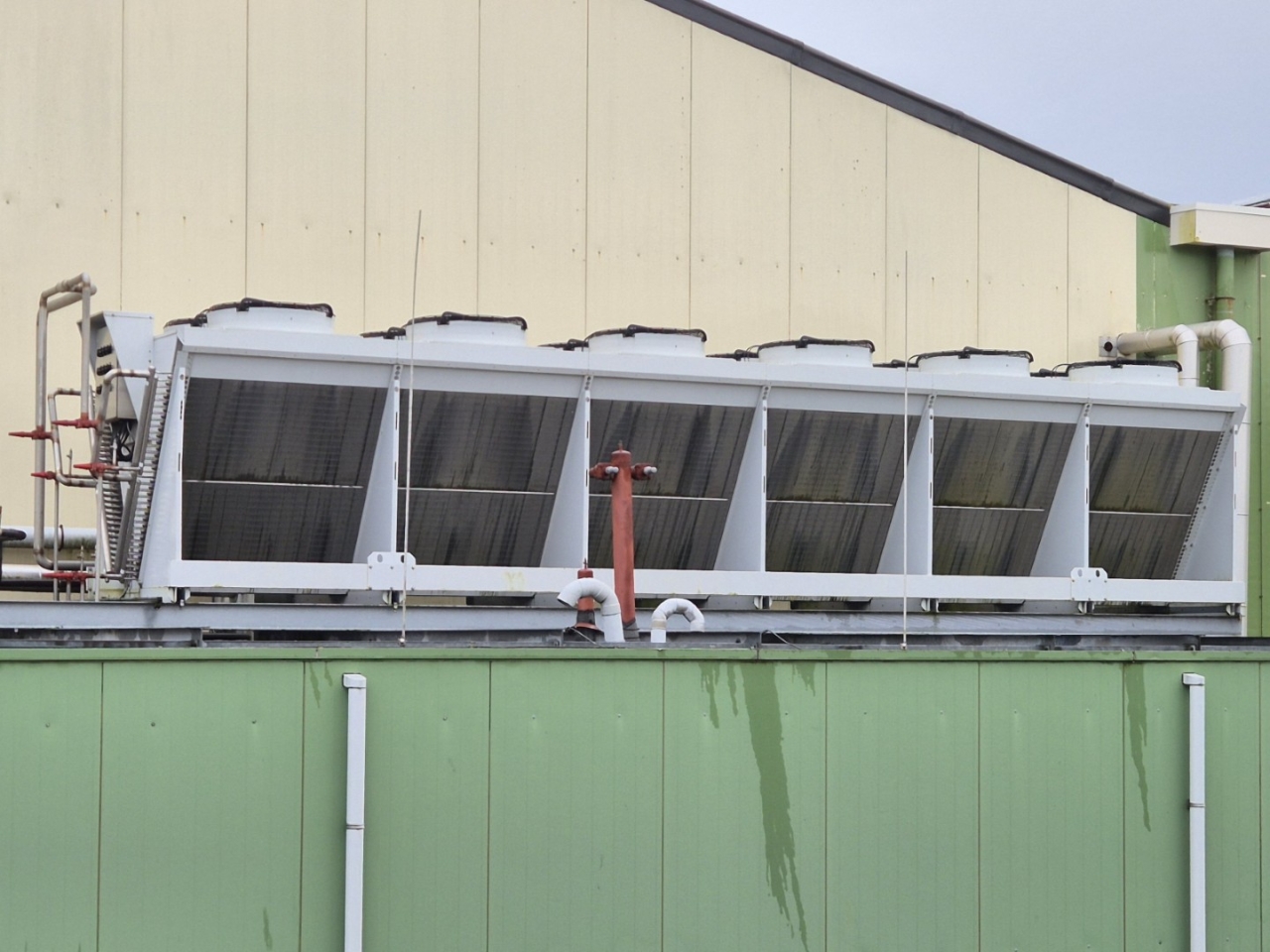

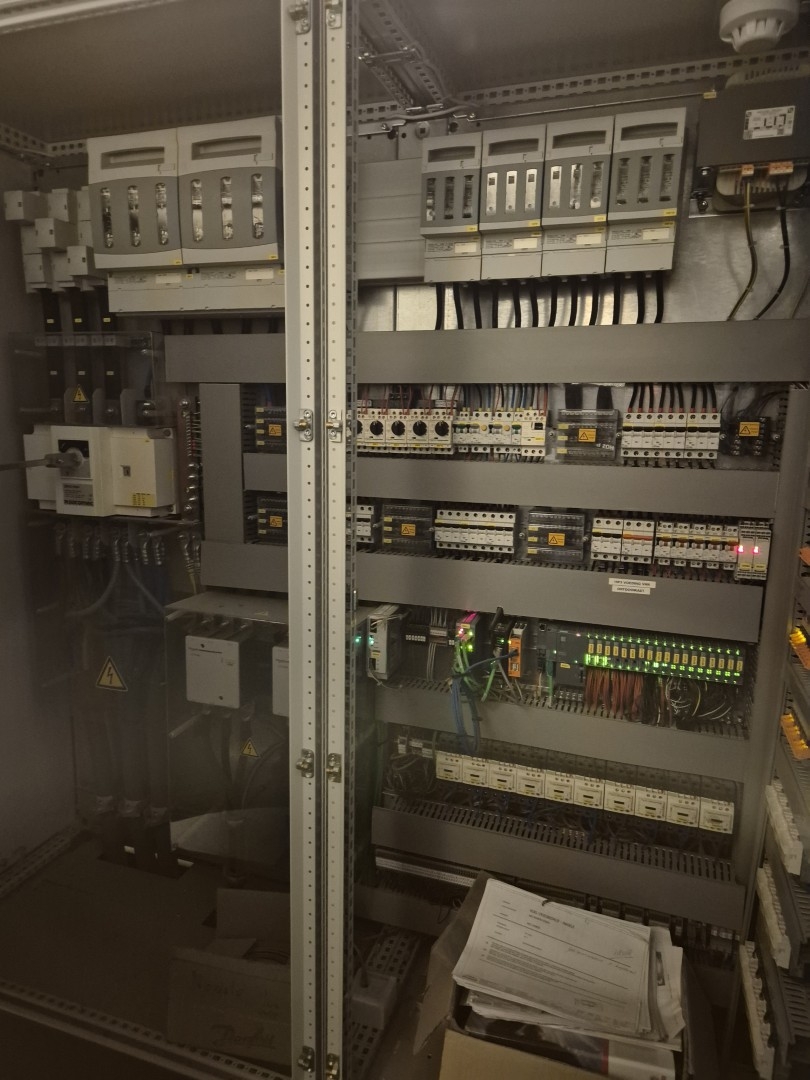

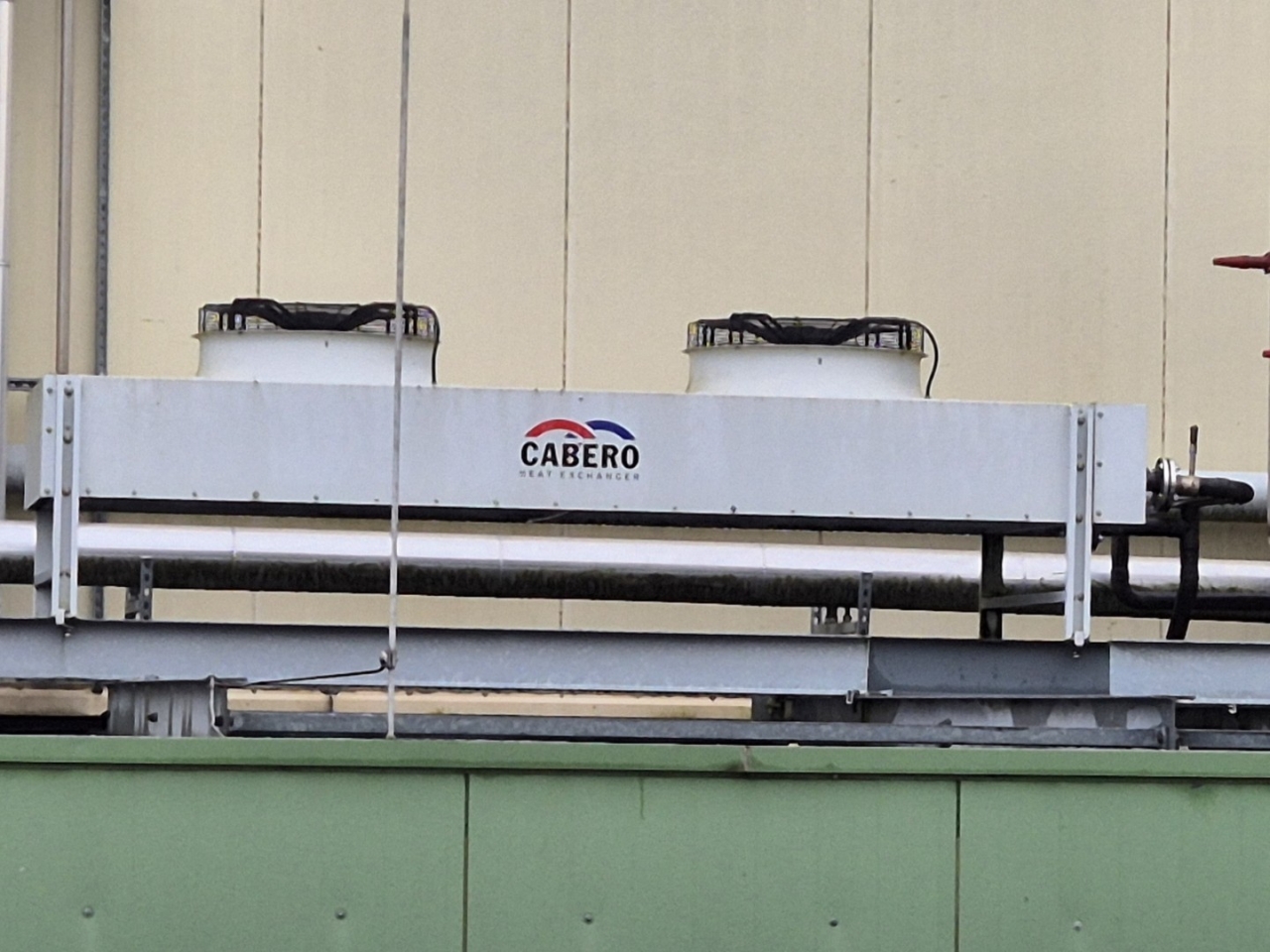

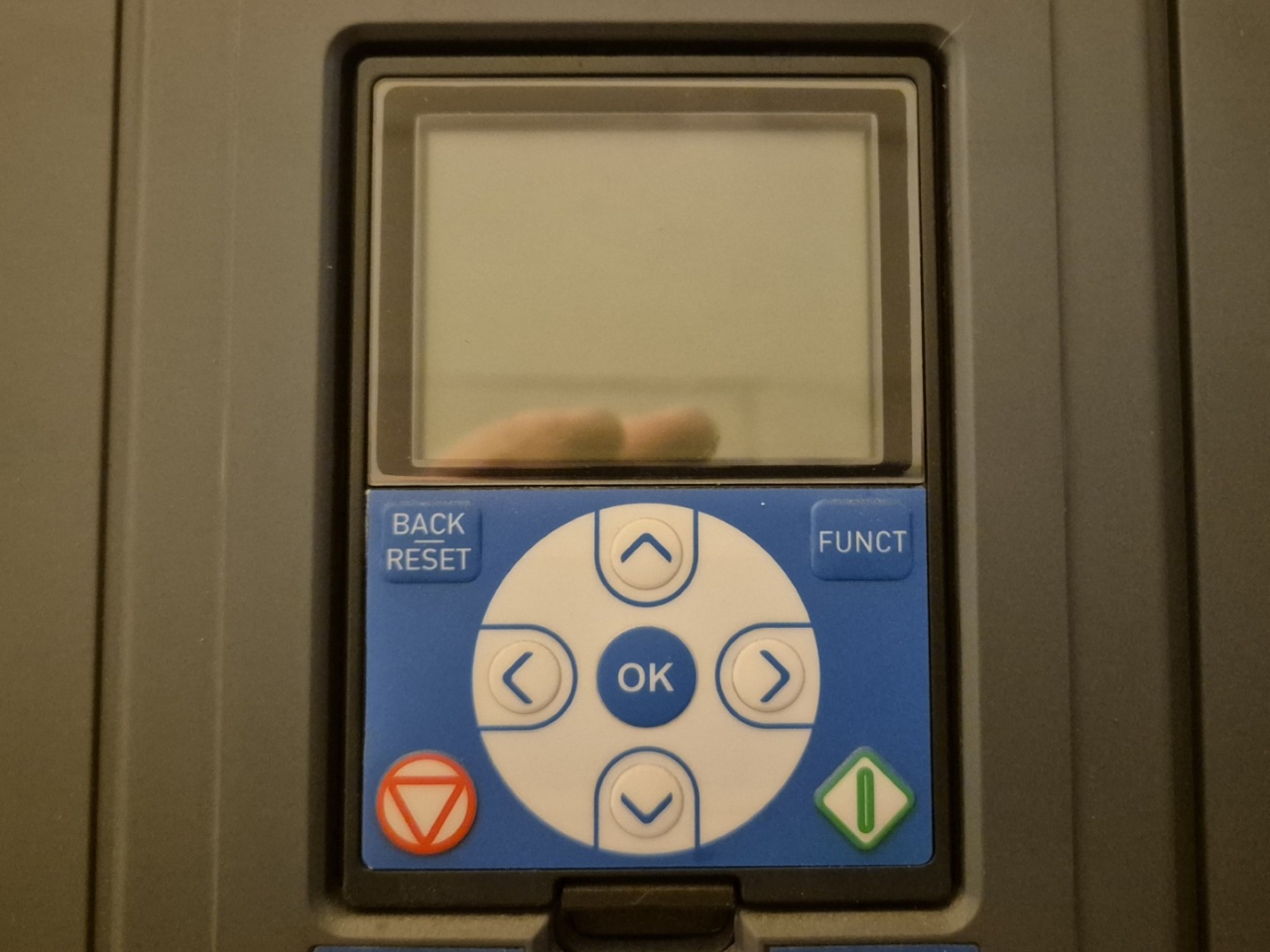

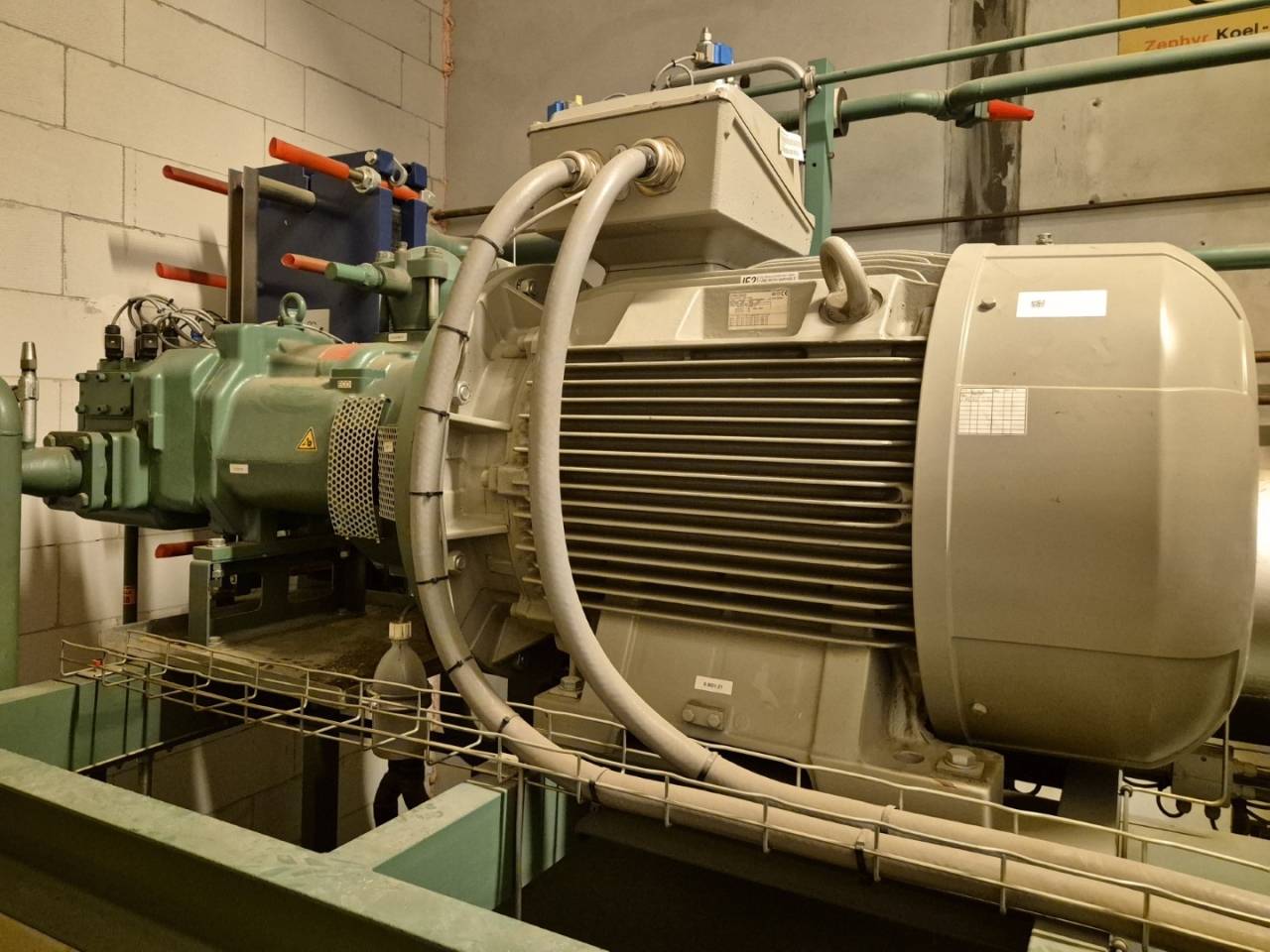

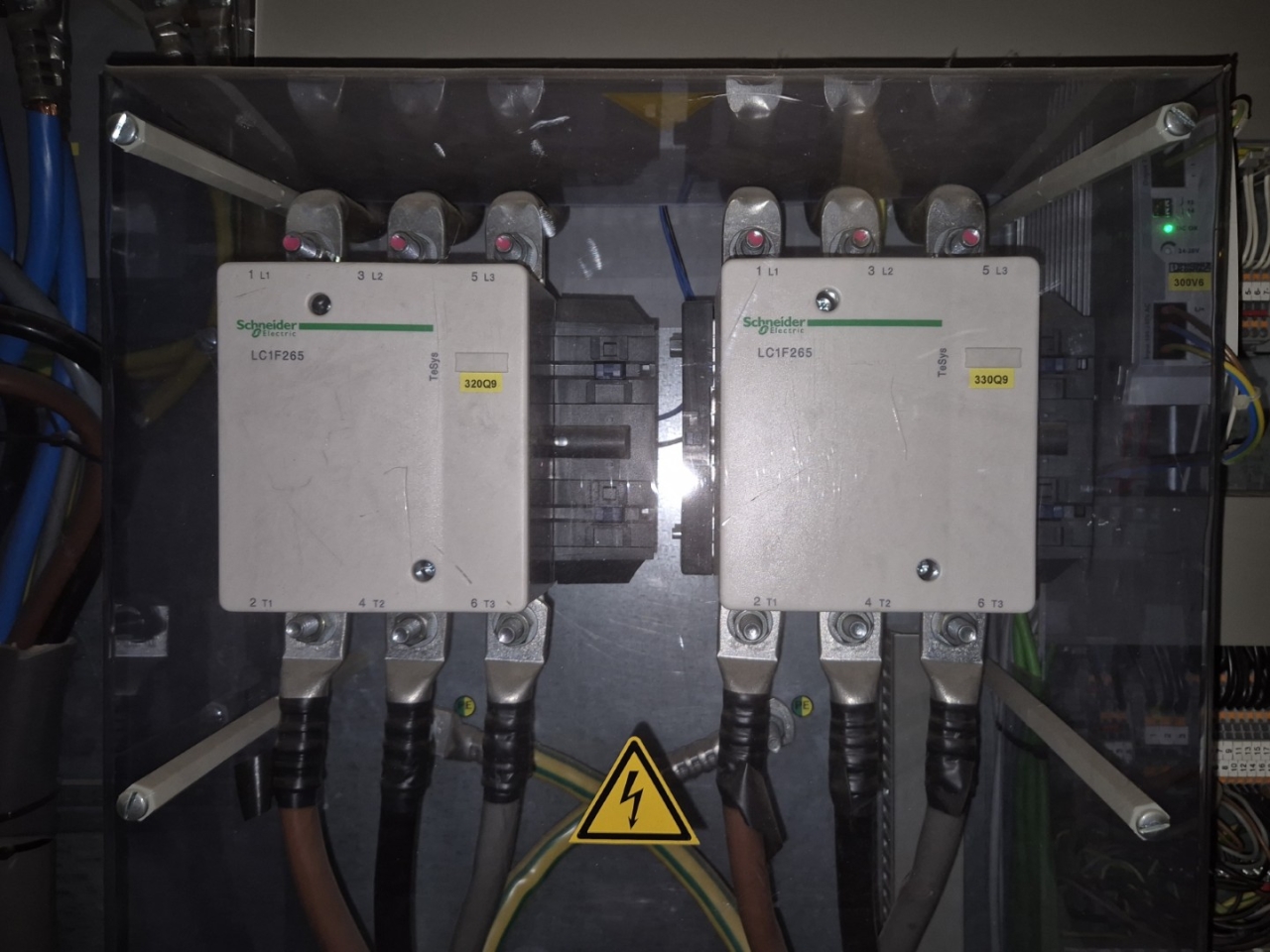

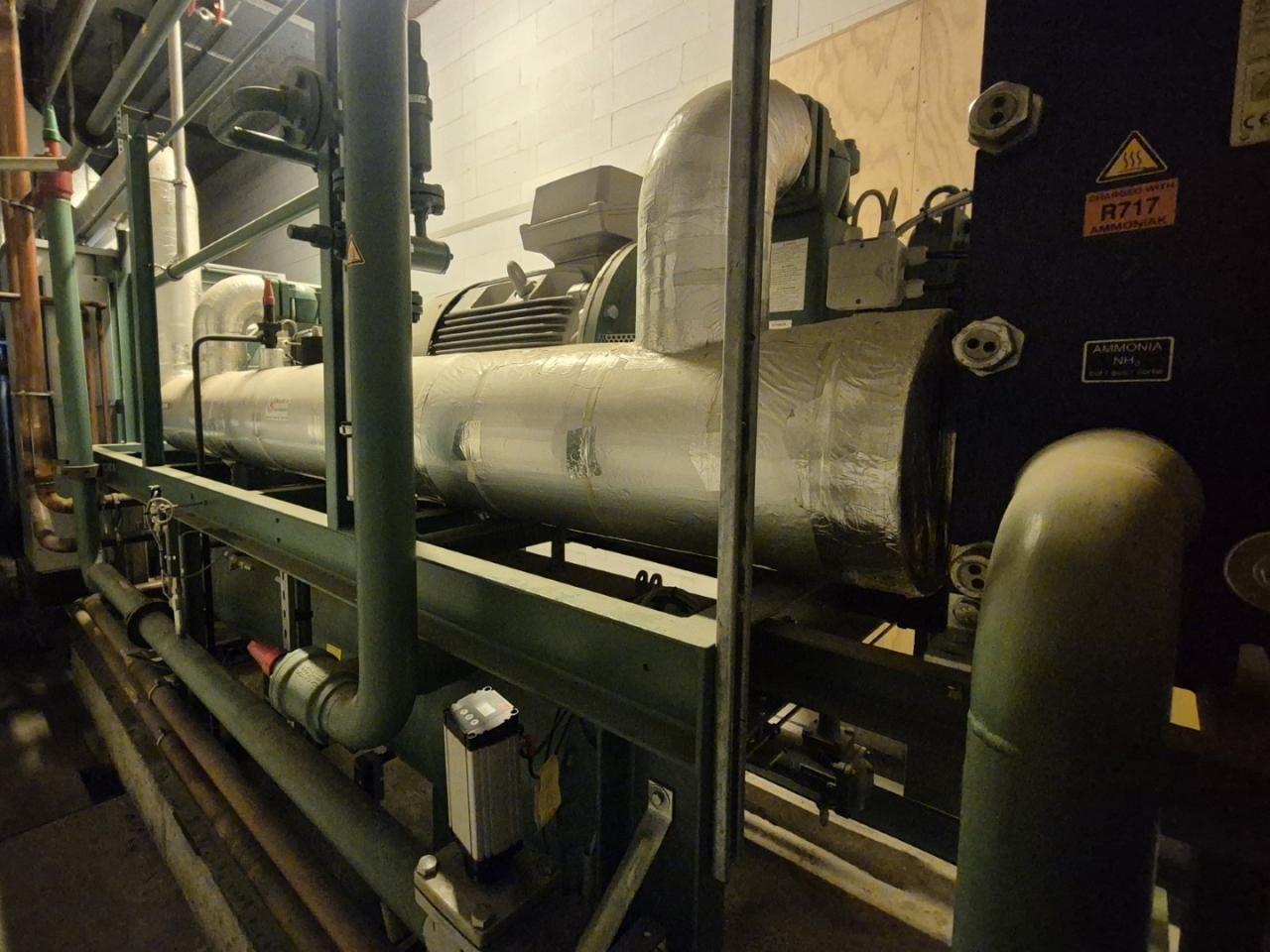

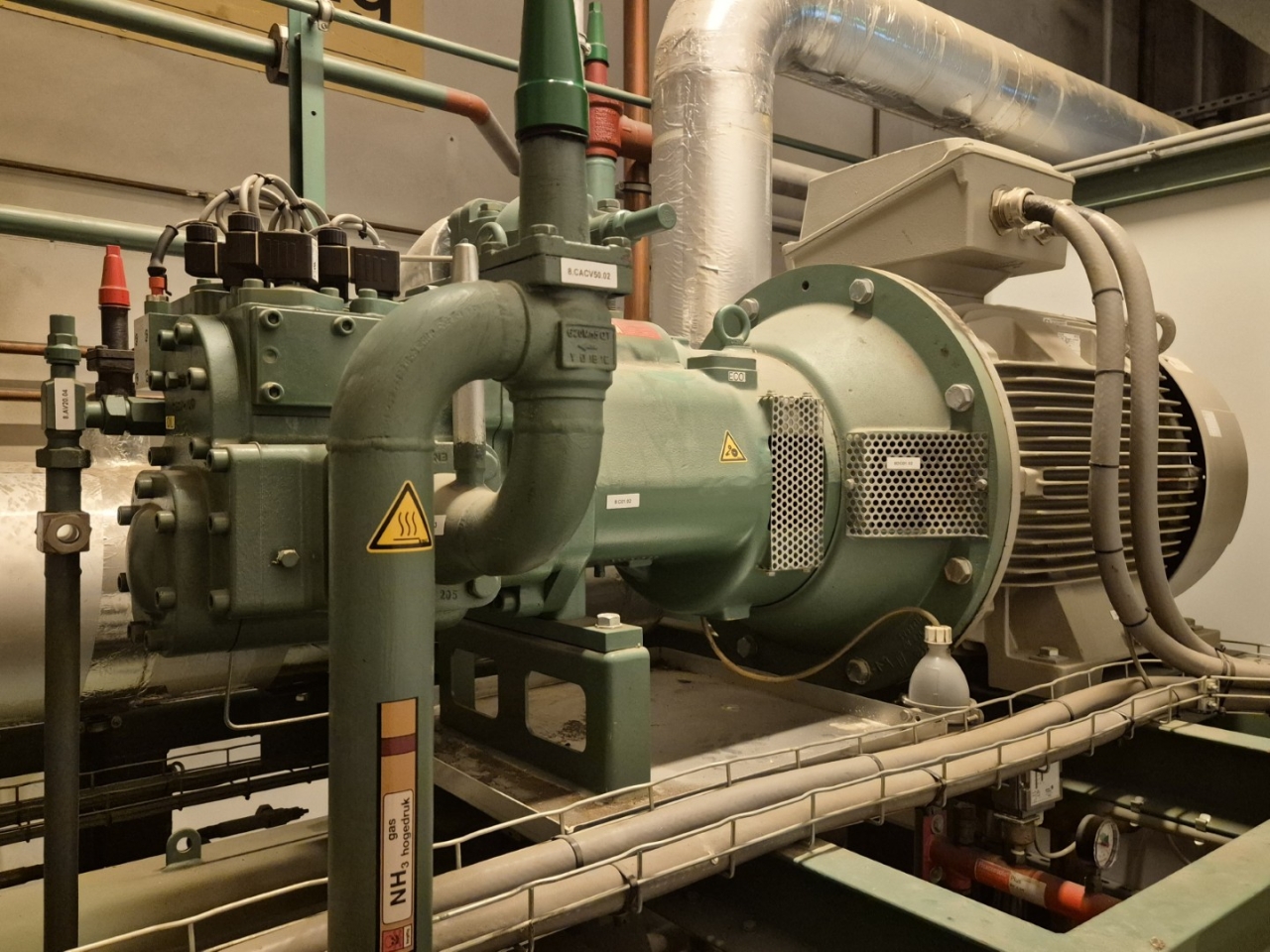

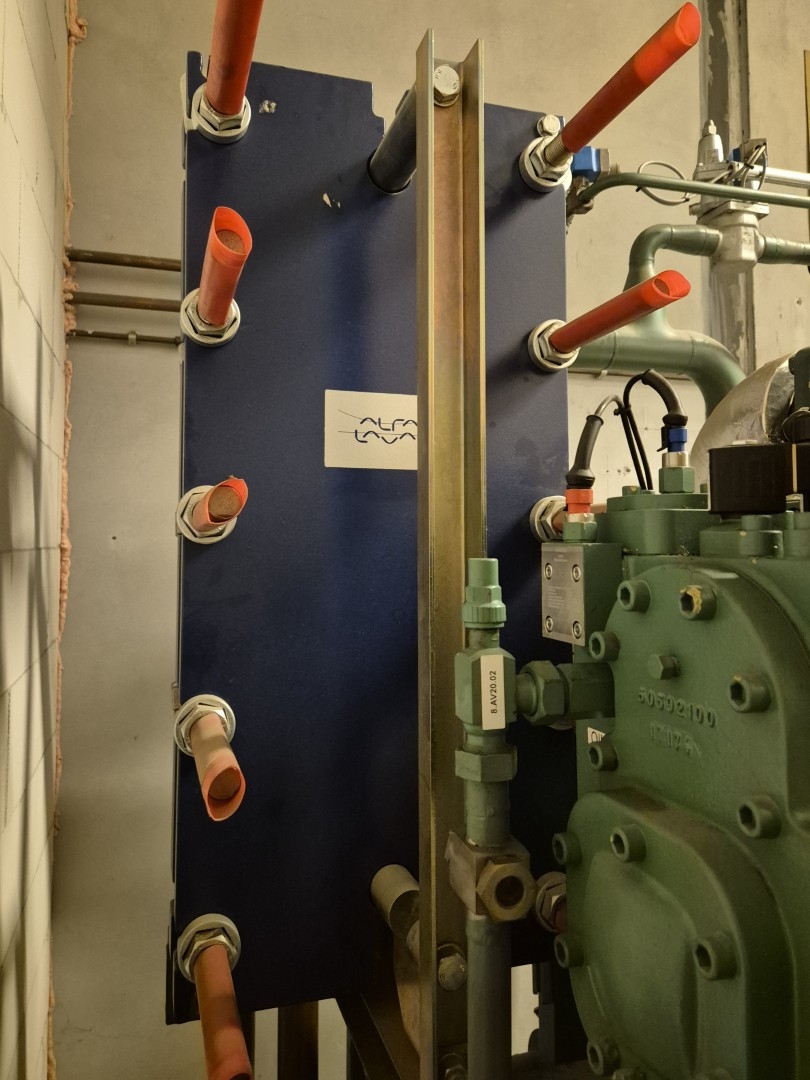

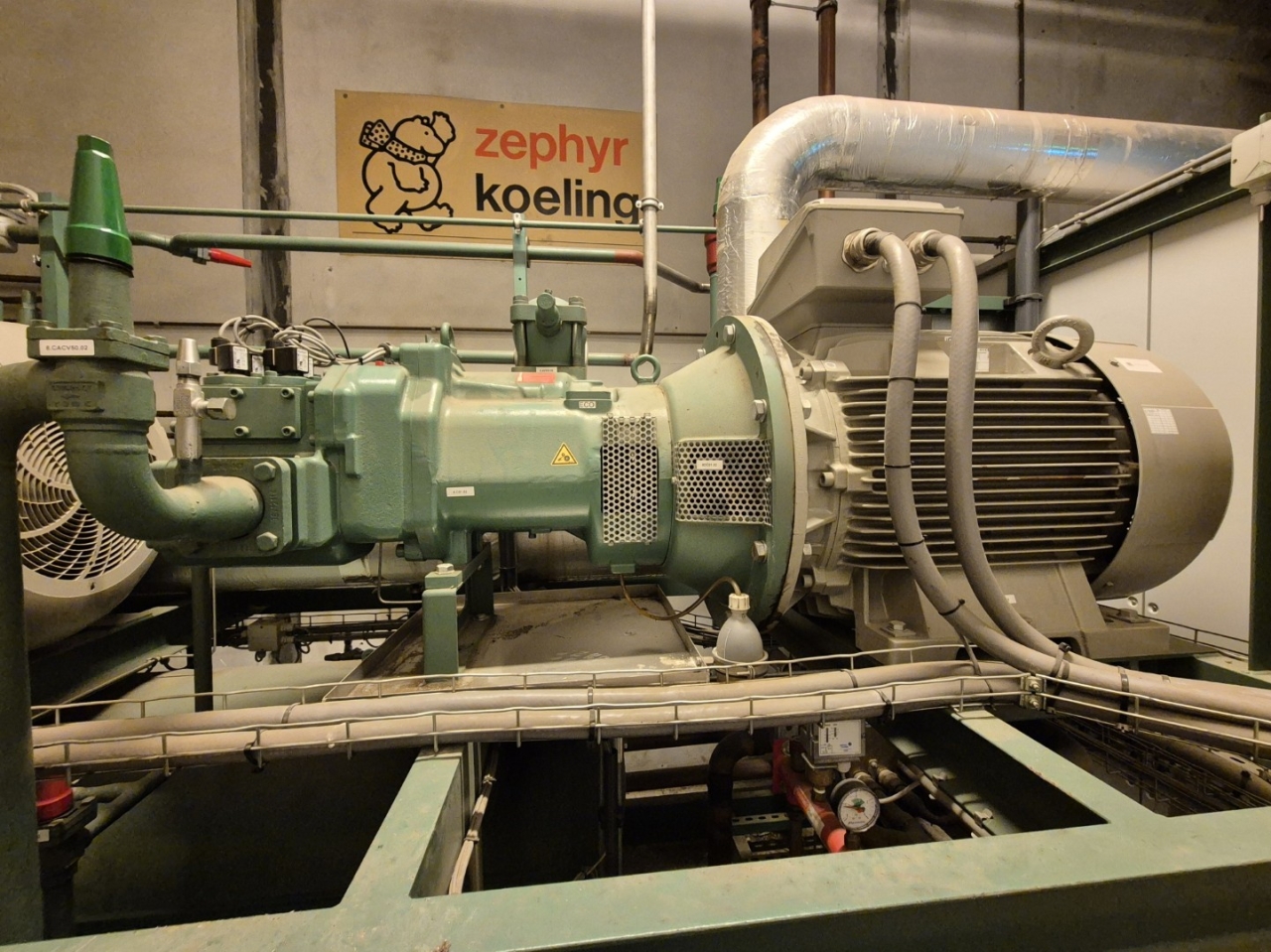

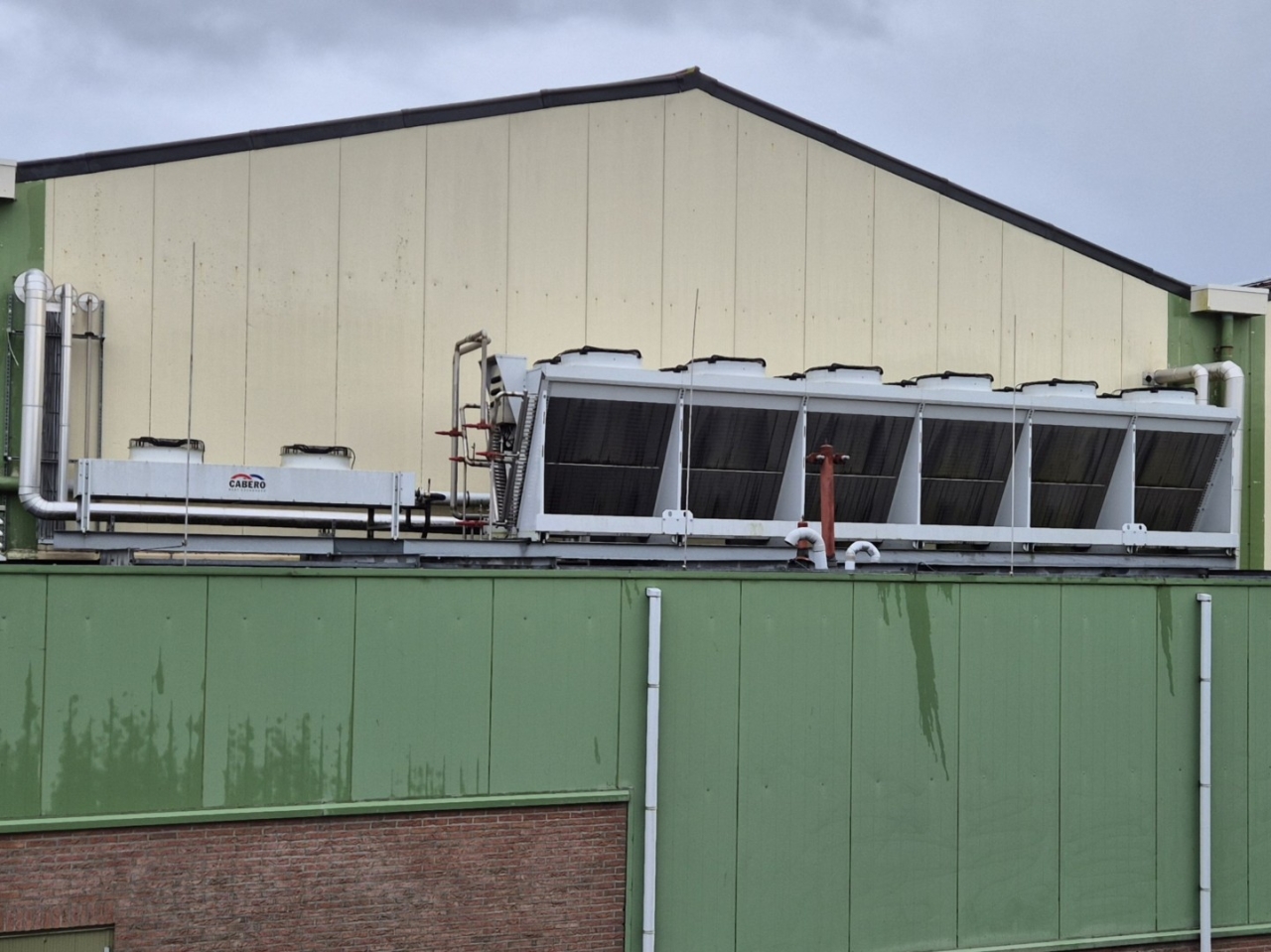

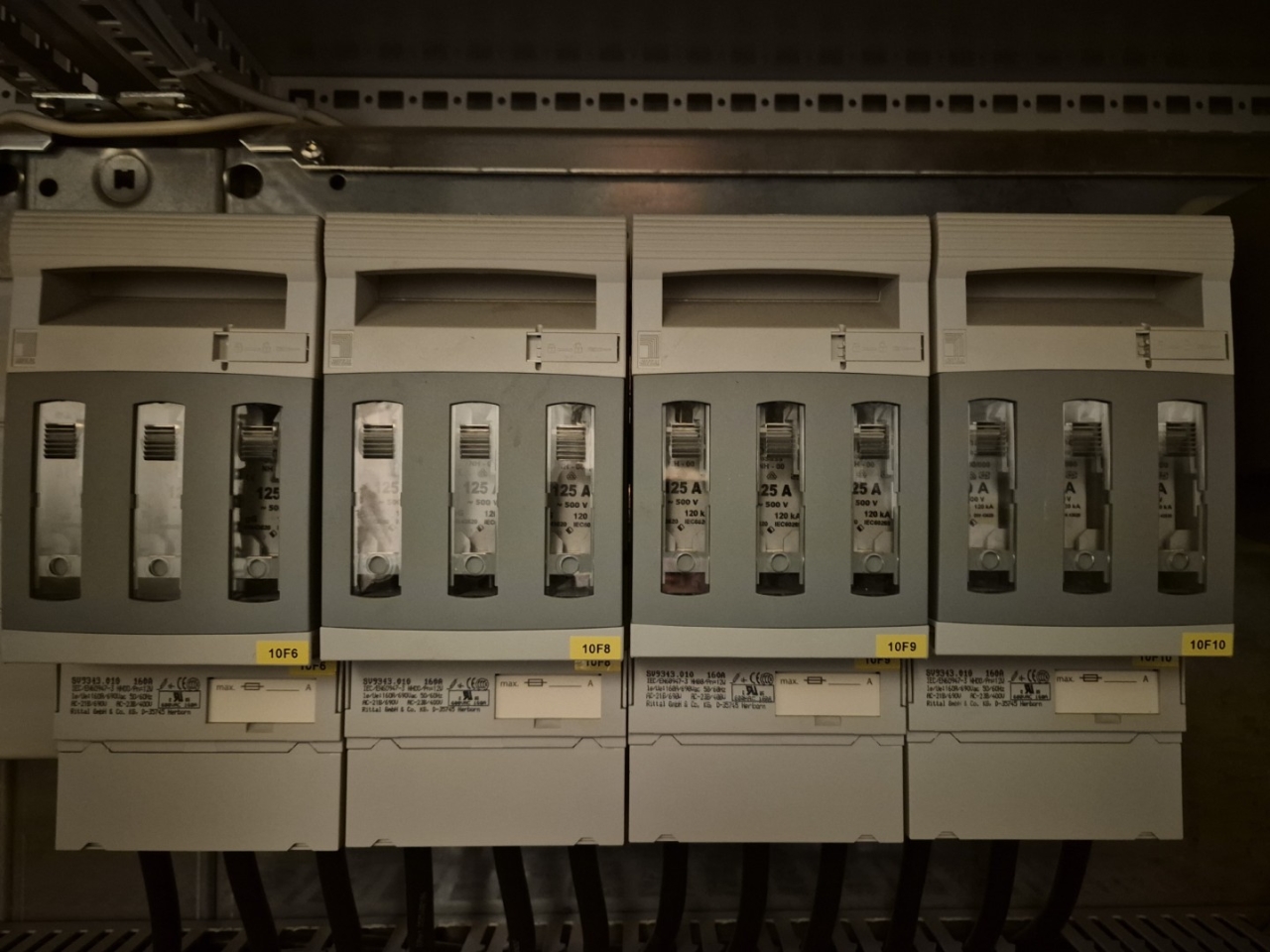

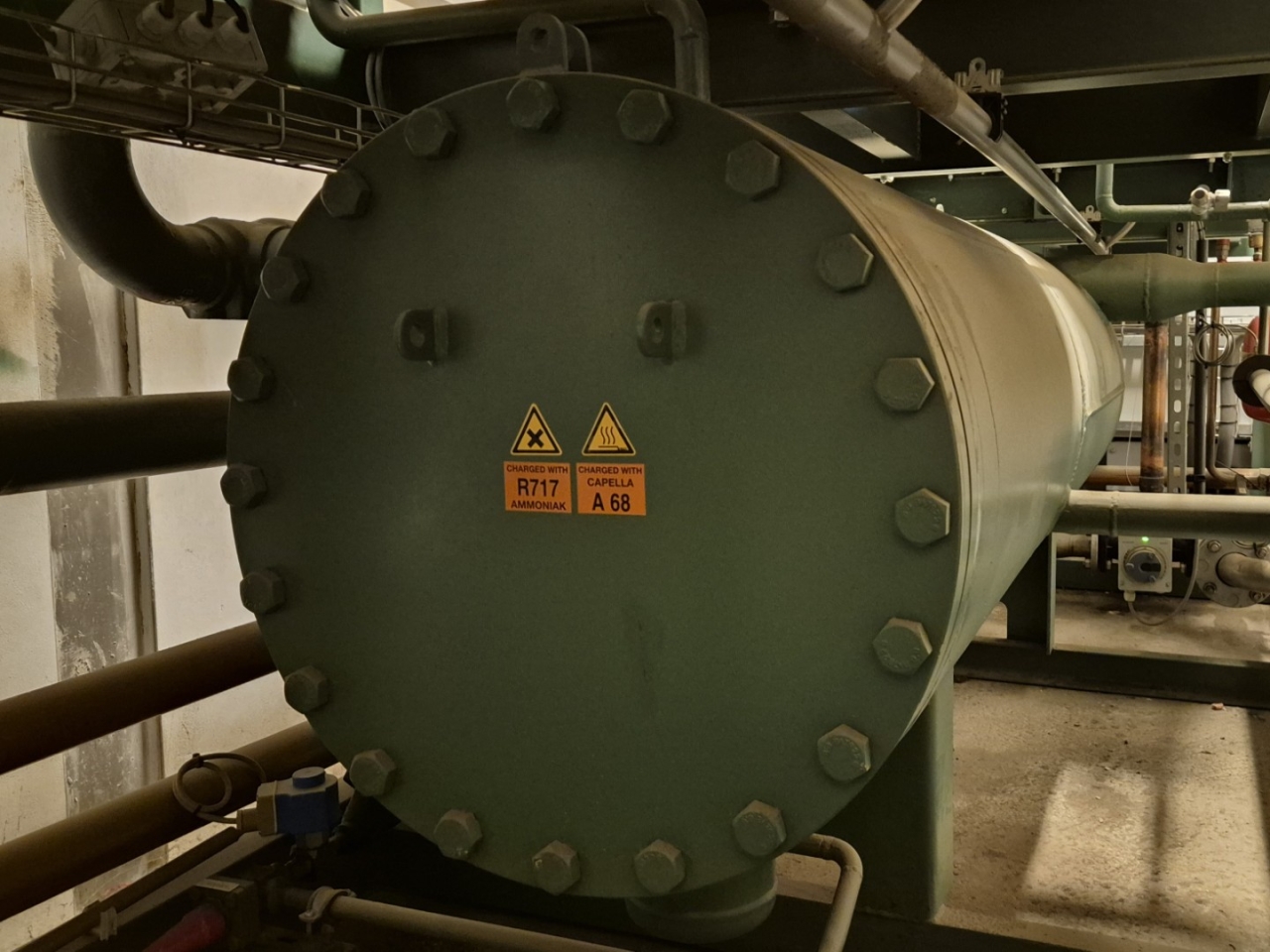

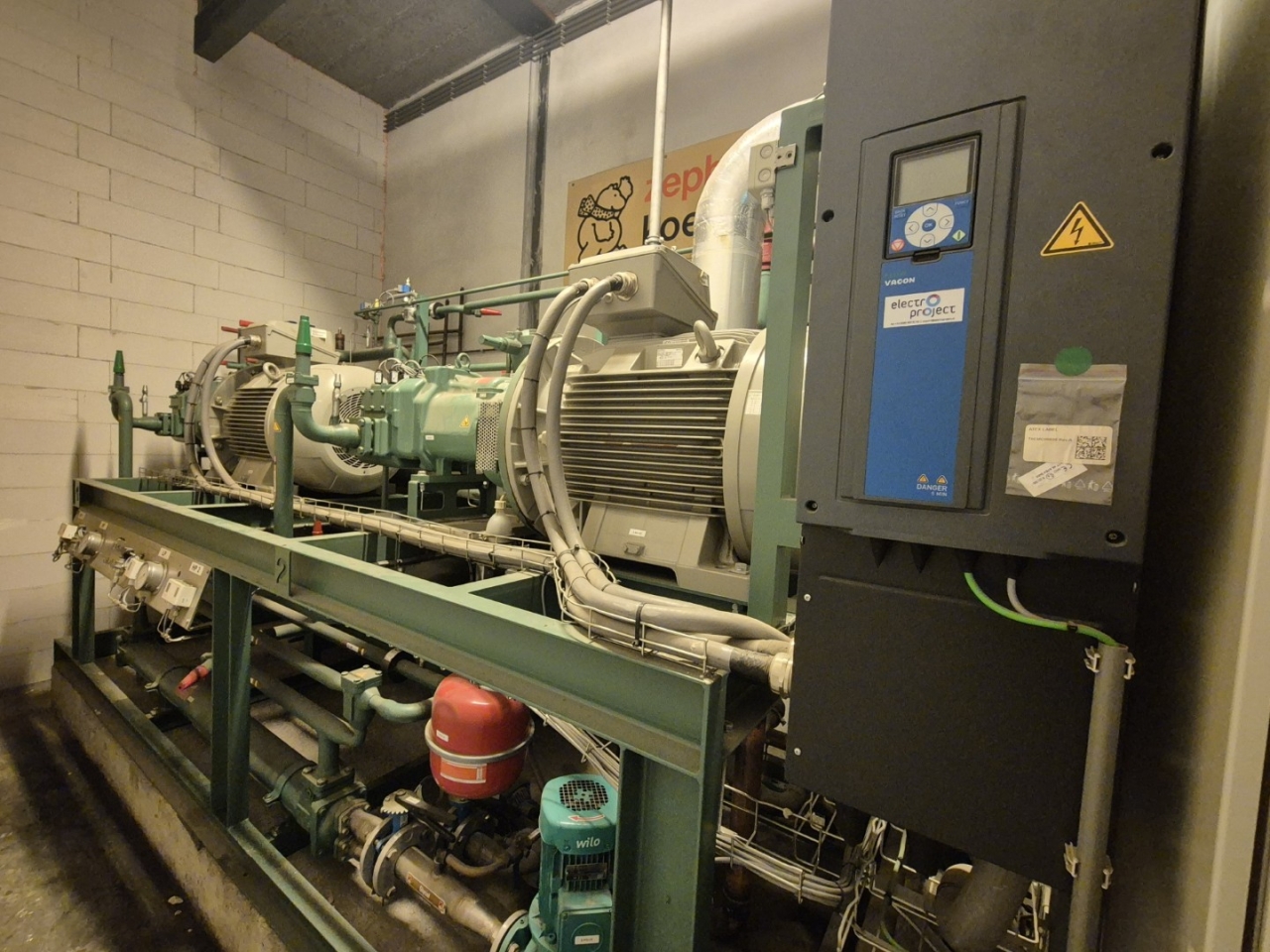

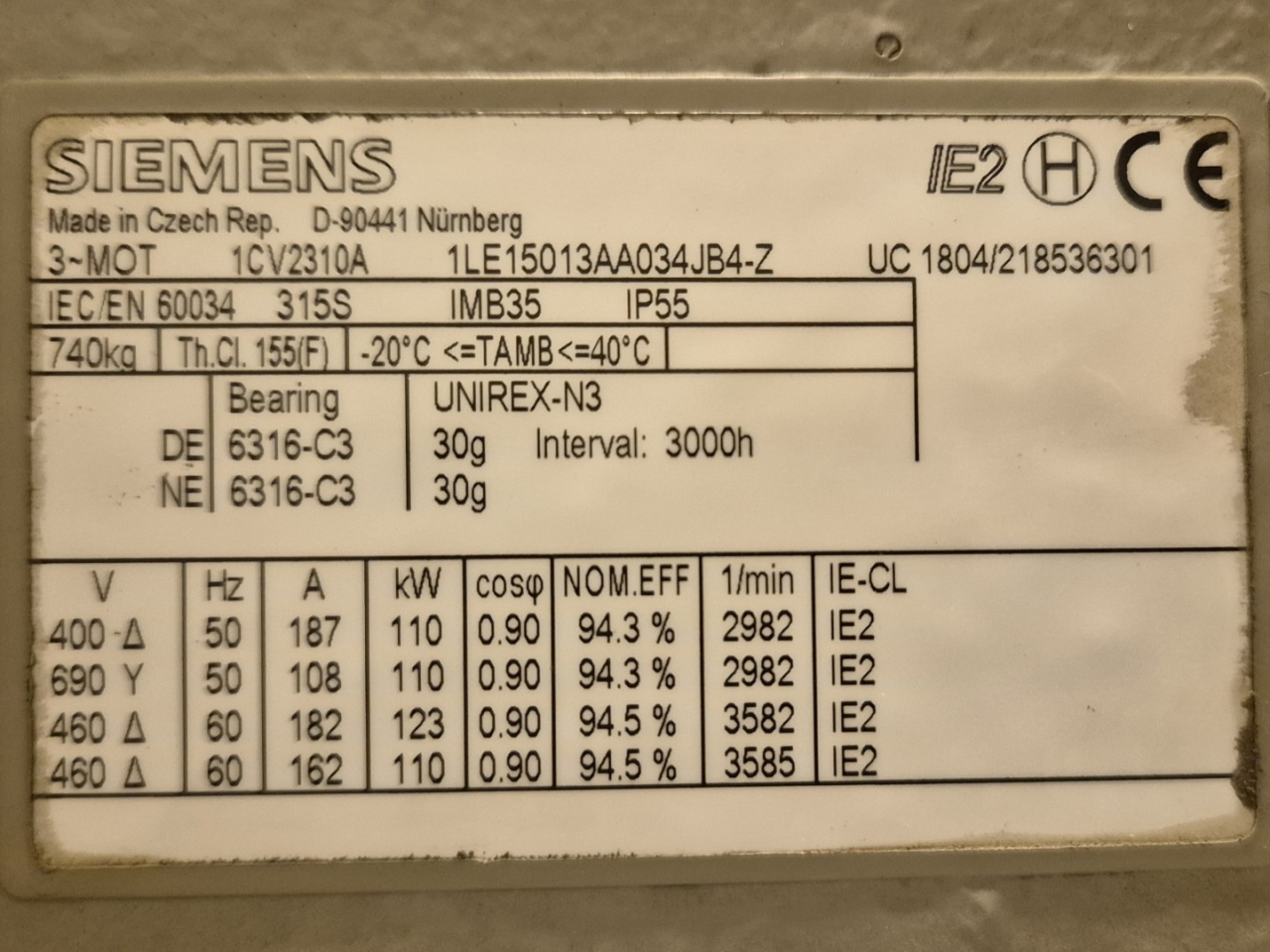

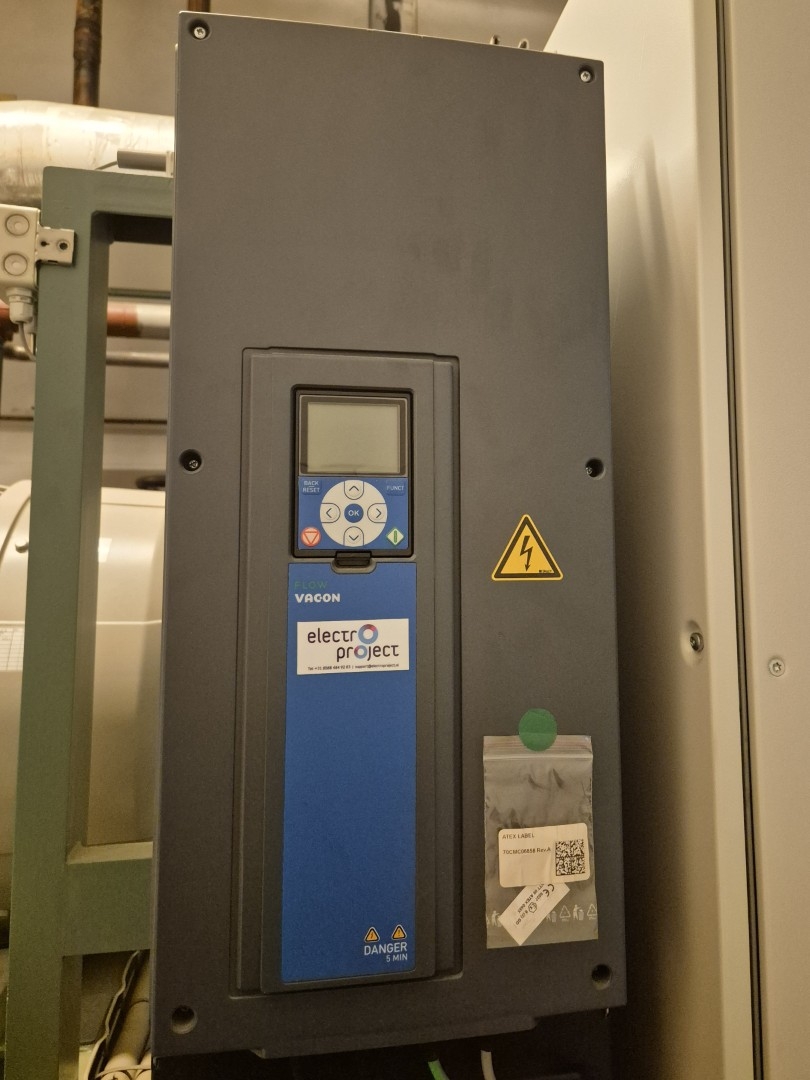

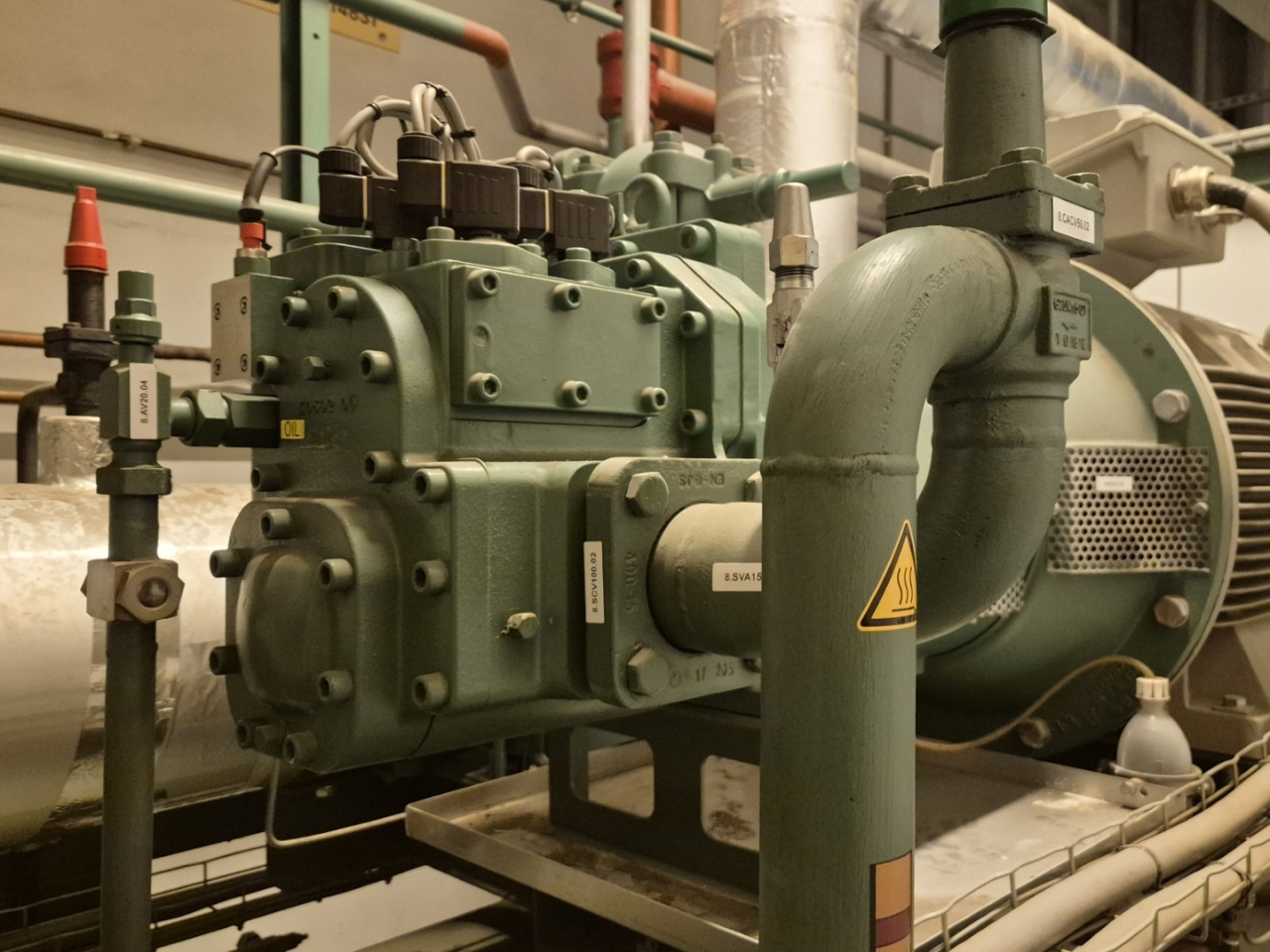

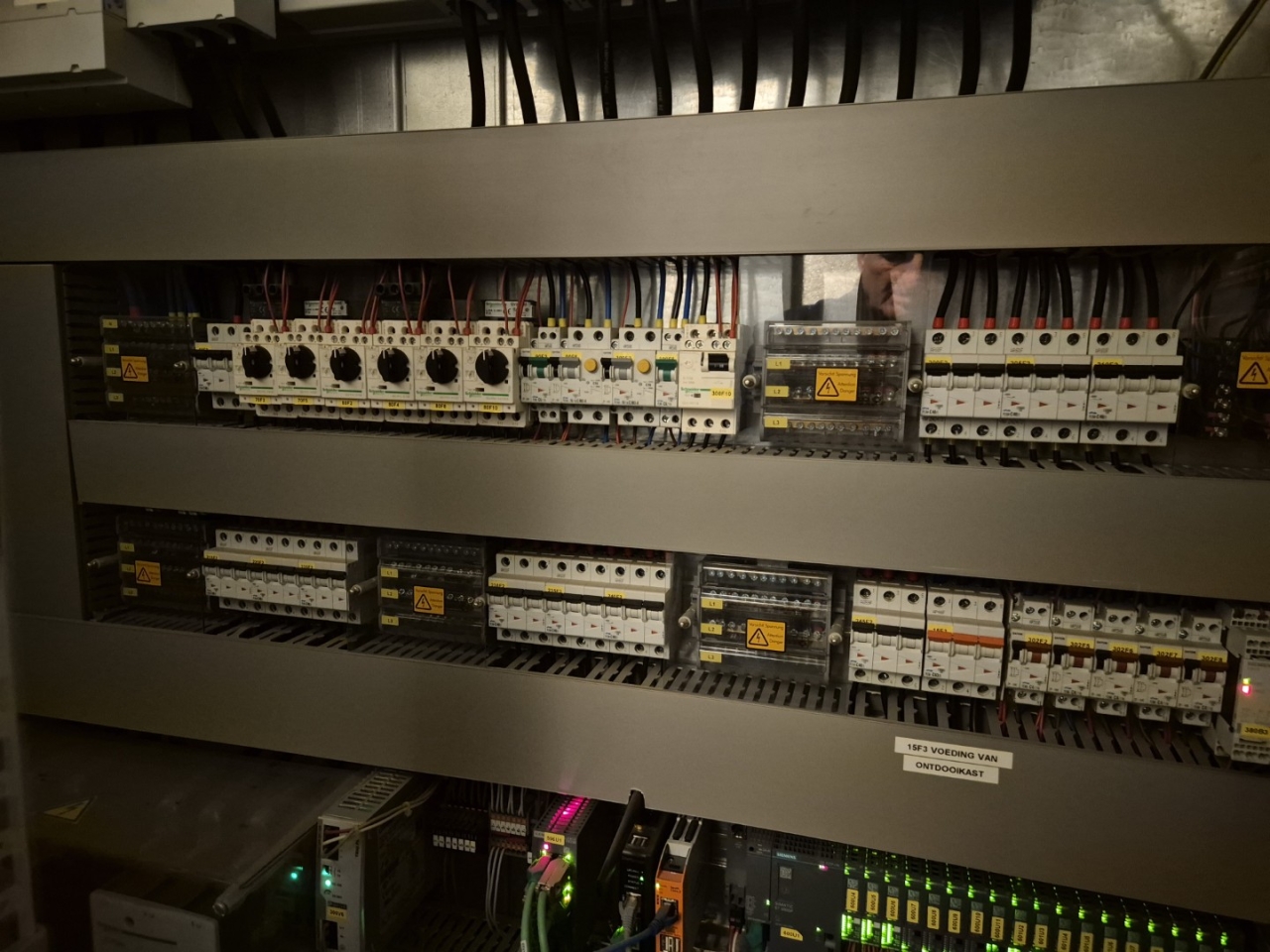

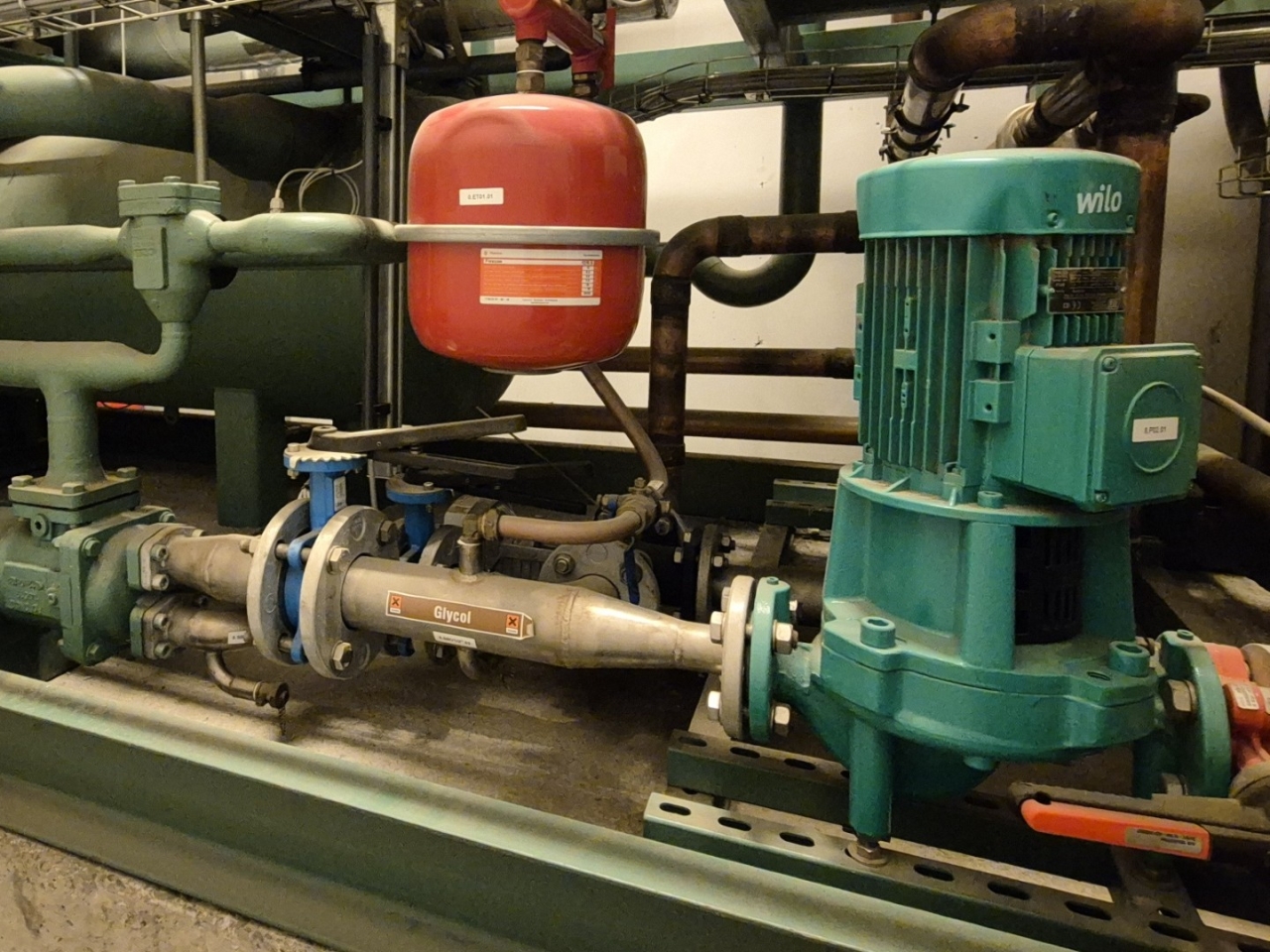

Used Bitzer OSKA 8571-K (x2) open screw compressor rack on R717 (Ammonia) built in 2018. Complete with two Siemens 1CV2310A electric motors - 50/60 Hz - 110/123 kW - 2982/3582 RPM, Bitzer OAHC65051A oil separator with a volume of 630 liter, oil cooling, heat recovery, Vacon frequency converter, control cabinet with a Siemens TP200 Comfort. The compressors have a displacement 410 m³/h at 1450 RPM & 1130 m³/h at 4000 RPM. This set comes with a V-shaped Cabero condenser with 12 fans and a Cabero drycooler with 2 fans providing cooled Glycol for the oil cooling.
Ideal for large industrial refrigeration, cold storage, and food processing applications.
Working hours: 4.500
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment solely if it has passed our extensive test. Warranty and industrial cleaning are included in your purchase. *If requested we are happy to arrange your shipment.
